chapter 23 the respiratory system
Chapter 23The Respiratory System
  • Cells continually use O2 & release CO2
  • Respiratory system designed for gas exchange
  • Cardiovascular system transports gases in blood
  • Failure of either system
    • rapid cell death from O2 starvation
respiratory system anatomy
Respiratory System Anatomy
  • Nose
  • Pharynx = throat
  • Larynx = voicebox
  • Trachea = windpipe
  • Bronchi = airways
  • Lungs
  • Locations of infections
    • upper respiratory tract is above vocal cords
    • lower respiratory tract is below vocal cords

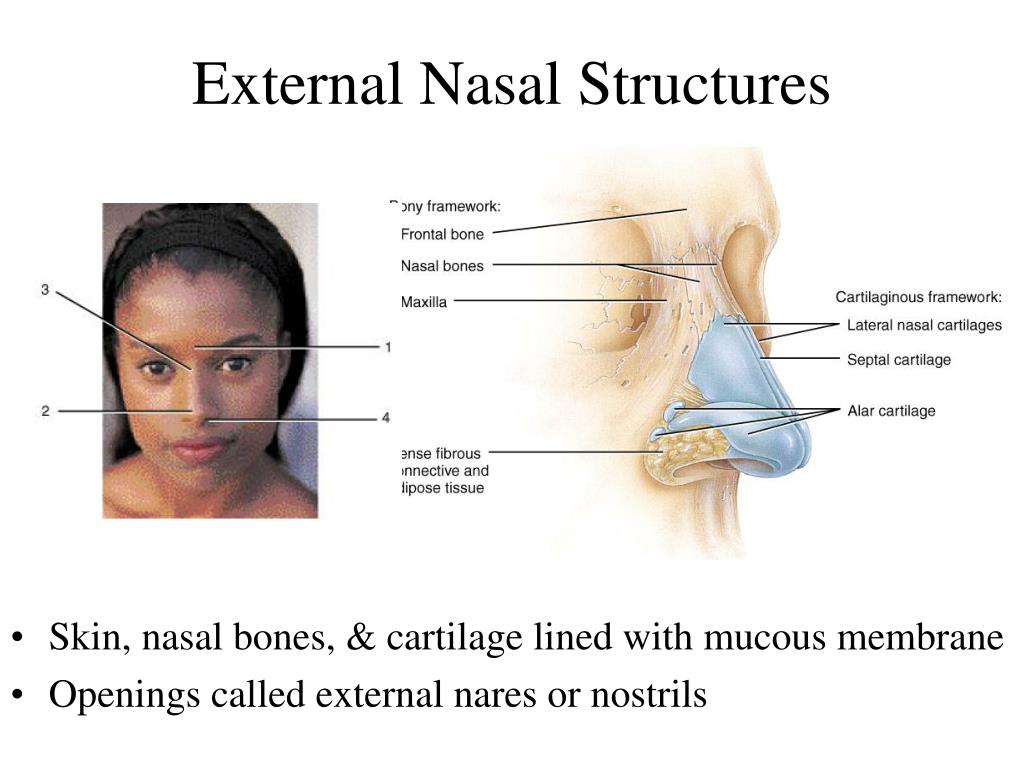

external nasal structures
External Nasal Structures
  • Skin, nasal bones, & cartilage lined with mucous membrane
  • Openings called external nares or nostrils
nose internal structures
Nose -- Internal Structures
  • Large chamber within the skull
  • Roof is made up of ethmoid and floor is hard palate
  • Internal nares (choanae) are openings to pharynx
  • Nasal septum is composed of bone & cartilage
  • Bony swelling or conchae on lateral walls
functions of the nasal structures
Functions of the Nasal Structures
  • Olfactory epithelium for sense of smell
  • Pseudostratified ciliated columnar with goblet cells lines nasal cavity
    • warms air due to high vascularity
    • mucous moistens air & traps dust
    • cilia move mucous towards pharynx
  • Paranasal sinuses open into nasal cavity
    • found in ethmoid, sphenoid, frontal & maxillary
    • lighten skull & resonate voice
  • Commonly called a “nose job”
  • Surgical procedure done for cosmetic reasons / fracture or septal repair
  • Procedure
    • local and general anesthetic
    • nasal cartilage is reshaped through nostrils
    • bones fractured and repositioned
    • internal packing & splint while healing

Tortora & Grabowski 9/e 2000 JWS

  • Muscular tube (5 inch long) hanging from skull
    • skeletal muscle & mucous membrane
  • Extends from internal nares to cricoid cartilage
  • Functions
    • passageway for food and air
    • resonating chamber for speech production
    • tonsil (lymphatic tissue) in the walls protects entryway into body
  • Distinct regions -- nasopharynx, oropharynx and laryngopharynx

From choanae to soft palate

openings of auditory (Eustachian) tubes from middle ear cavity

adenoids or pharyngeal tonsil in roof

Passageway for air only

pseudostratified ciliated columnar epithelium with goblet


From soft palate to epiglottis

fauces is opening from mouth into oropharynx

palatine tonsils found in side walls, lingual tonsil in tongue

Common passageway for food & air

stratified squamous epithelium

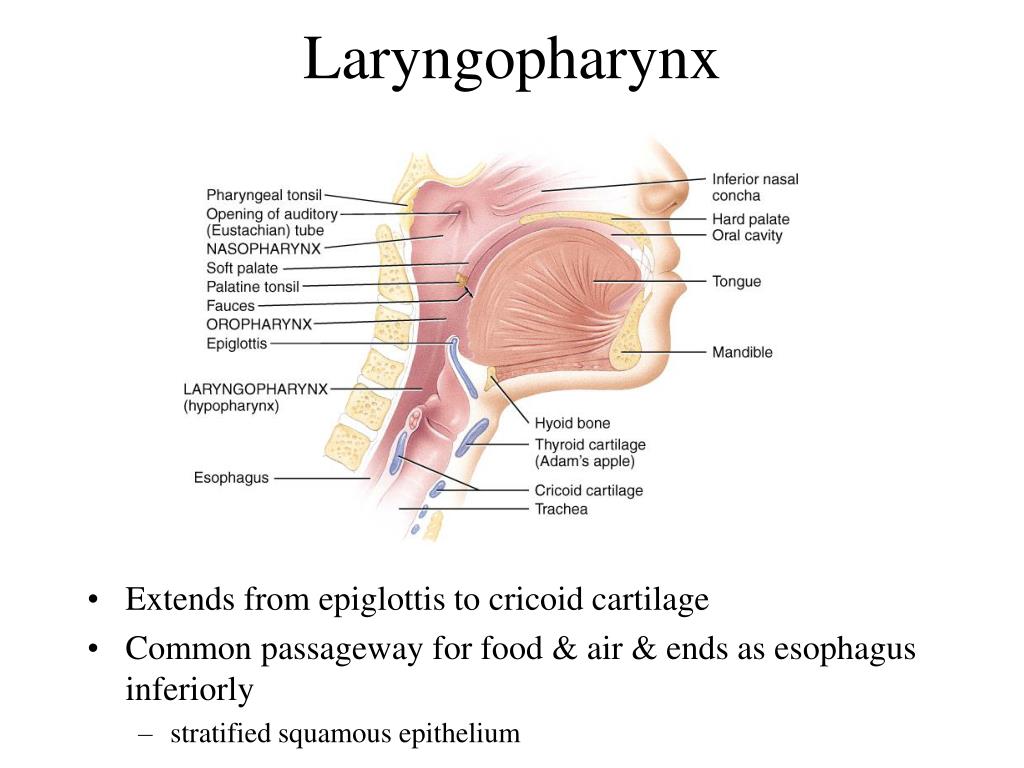

Extends from epiglottis to cricoid cartilage

Common passageway for food & air & ends as esophagus inferiorly

stratified squamous epithelium

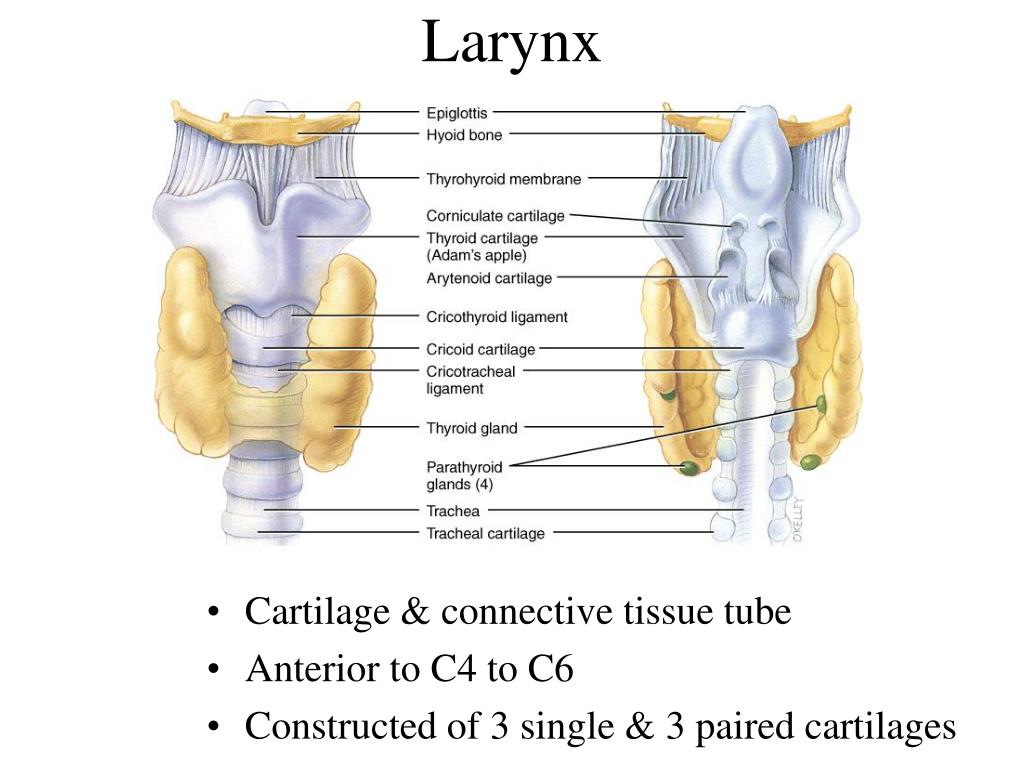

cartilages of the larynx
Cartilages of the Larynx
  • Thyroid cartilage forms Adam’s apple
  • Epiglottis---leaf-shaped piece of elastic cartilage
    • during swallowing, larynx moves upward
    • epiglottis bends to cover glottis
  • Cricoid cartilage---ring of cartilage attached to top of trachea
  • Pair of arytenoid cartilages sit upon cricoid
    • many muscles responsible for their movement
    • partially buried in vocal folds (true vocal cords)
  • Cartilage & connective tissue tube
  • Anterior to C4 to C6
  • Constructed of 3 single & 3 paired cartilages
vocal cords
Vocal Cords
  • False vocal cords (ventricular folds) found above vocal folds (true vocal cords)
  • True vocal cords attach to arytenoid cartilages
the structures of voice production
The Structures of Voice Production
  • True vocal cord contains both skeletal muscle and an elastic ligament (vocal ligament)
  • When 10 intrinsic muscles of the larynx contract, move cartilages & stretch vocal cord tight
  • When air is pushed past tight ligament, sound is produced (the longer & thicker vocal cord in male produces a lower pitch of sound)
  • The tighter the ligament, the higher the pitch
  • To increase volume of sound, push air harder
movement of vocal cords
Movement of Vocal Cords
  • Opening and closing of the vocal folds occurs during breathing and speech
speech and whispering
Speech and Whispering
  • Speech is modified sound made by the larynx.
  • Speech requires pharynx, mouth, nasal cavity & sinuses to resonate that sound
  • Tongue & lips form words
  • Pitch is controlled by tension on vocal folds
    • pulled tight produces higher pitch
    • male vocal folds are thicker & longer so vibrate more slowly producing a lower pitch
  • Whispering is forcing air through almost closed rima glottidis -- oral cavity alone forms speech
  • Size is 5 in long & 1in diameter
  • Extends from larynx to T5 anterior to the esophagus and then splits into bronchi
  • Layers
    • mucosa = pseudostratified columnar with cilia & goblet
    • submucosa = loose connective tissue & seromucous glands
    • hyaline cartilage = 16 to 20 incomplete rings
      • open side facing esophagus contains trachealis m. (smooth)
      • internal ridge on last ring called carina
    • adventitia binds it to other organs
trachea and bronchial tree

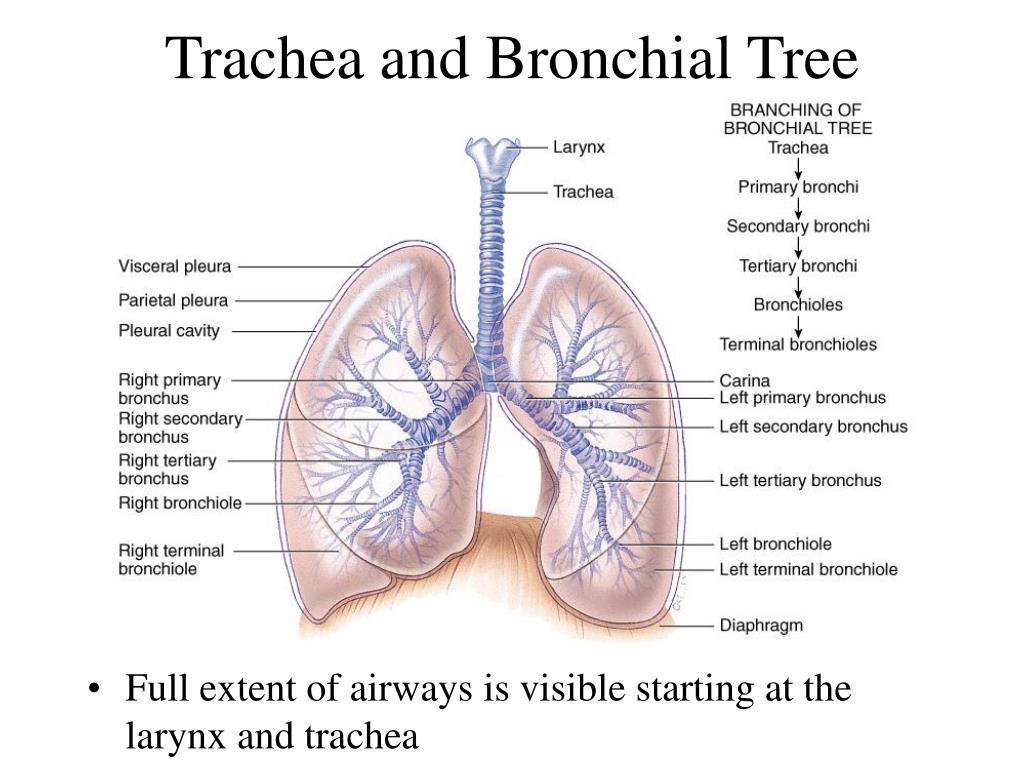

Trachea and Bronchial Tree
  • Full extent of airways is visible starting at the larynx and trachea

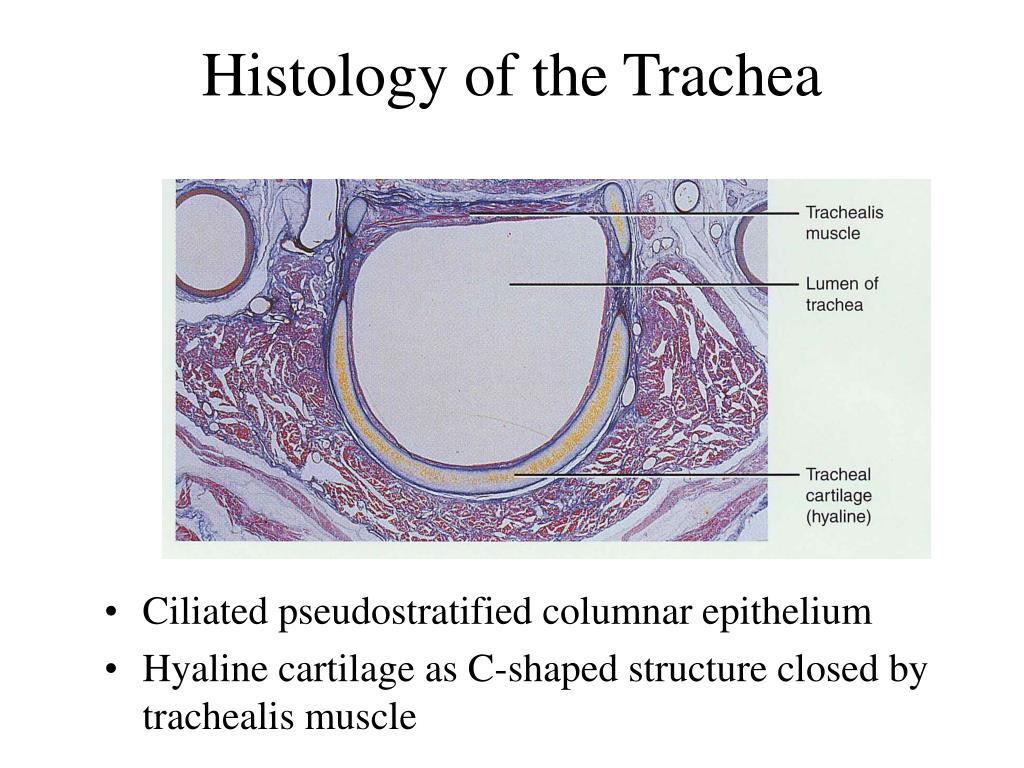

histology of the trachea
Histology of the Trachea
  • Ciliated pseudostratified columnar epithelium
  • Hyaline cartilage as C-shaped structure closed by trachealis muscle
airway epithelium
Airway Epithelium
  • Ciliated pseudostratified columnar epithelium with goblet cells produce a moving mass of mucus.
tracheostomy and intubation
Tracheostomy and Intubation
  • Reestablishing airflow past an airway obstruction
    • crushing injury to larynx or chest
    • swelling that closes airway
    • vomit or foreign object
  • Tracheostomy is incision in trachea below cricoid cartilage if larynx is obstructed
  • Intubation is passing a tube from mouth or nose through larynx and trachea

Tortora & Grabowski 9/e 2000 JWS

bronchi and bronchioles
Bronchi and Bronchioles
  • Primary bronchi supply each lung
  • Secondary bronchi supply each lobe of the lungs (3 right + 2 left)
  • Tertiary bronchi supply each bronchopulmonary segment
  • Repeated branchings called bronchioles form a bronchial tree
histology of bronchial tree
Histology of Bronchial Tree
  • Epithelium changes from pseudostratified ciliated columnar to nonciliated simple cuboidal as pass deeper into lungs
  • Incomplete rings of cartilage replaced by rings of smooth muscle & then connective tissue
    • sympathetic NS & adrenal gland release epinephrine that relaxes smooth muscle & dilates airways
    • asthma attack or allergic reactions constrict distal bronchiole smooth muscle
    • nebulization therapy = inhale mist with chemicals that relax muscle & reduce thickness of mucus
pleural membranes pleural cavity
Pleural Membranes & Pleural Cavity
  • Visceral pleura covers lungs --- parietal pleura lines ribcage & covers upper surface of diaphragm
  • Pleural cavity is potential space between ribs & lungs
gross anatomy of lungs

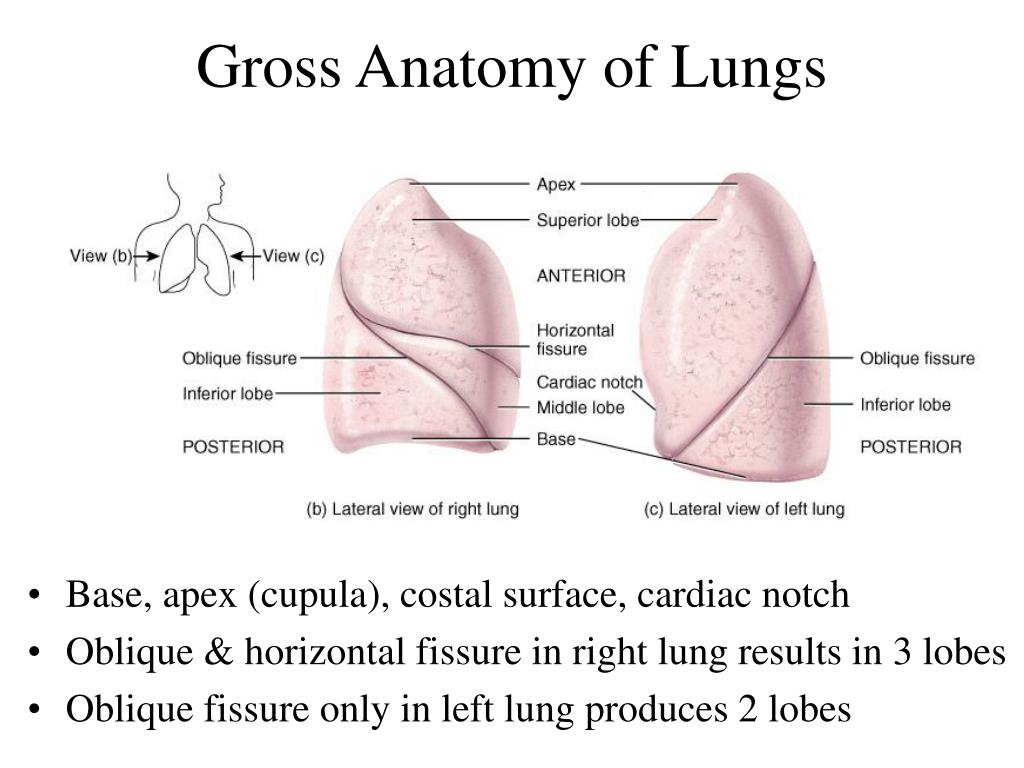

Gross Anatomy of Lungs
  • Base, apex (cupula), costal surface, cardiac notch
  • Oblique & horizontal fissure in right lung results in 3 lobes
  • Oblique fissure only in left lung produces 2 lobes
mediastinal surface of lungs
Mediastinal Surface of Lungs
  • Blood vessels & airways enter lungs at hilus
  • Forms root of lungs
  • Covered with pleura (parietal becomes visceral)
structures within a lobule of lung
Structures within a Lobule of Lung
  • Branchings of single arteriole, venule & bronchiole are wrapped by elastic CT
  • Respiratory bronchiole
    • simple squamous
  • Alveolar ducts surrounded by alveolar sacs & alveoli
    • sac is 2 or more alveoli sharing a common opening
histology of lung tissue
Histology of Lung Tissue

Photomicrograph of lung tissue showing bronchioles, alveoli and alveolar ducts.

cells types of the alveoli
Cells Types of the Alveoli
  • Type I alveolar cells
    • simple squamous cells where gas exchange occurs
  • Type II alveolar cells (septal cells)
    • free surface has microvilli
    • secrete alveolar fluid containing surfactant
  • Alveolar dust cells
    • wandering macrophages remove debris
alveolar capillary membrane
Alveolar-Capillary Membrane
  • Respiratory membrane = 1/2 micron thick
  • Exchange of gas from alveoli to blood
  • 4 Layers of membrane to cross
    • alveolar epithelial wall of type I cells
    • alveolar epithelial basement membrane
    • capillary basement membrane
    • endothelial cells of capillary
  • Vast surface area = handball court
details of respiratory membrane
Details of Respiratory Membrane
  • Find the 4 layers that comprise the respiratory membrane
double blood supply to the lungs
Double Blood Supply to the Lungs
  • Deoxygenated blood arrives through pulmonary trunk from the right ventricle
  • Bronchial arteries branch off of the aorta to supply oxygenated blood to lung tissue
  • Venous drainage returns all blood to heart
  • Less pressure in venous system
  • Pulmonary blood vessels constrict in response to low O2 levels so as not to pick up CO2 on there way through the lungs
breathing or pulmonary ventilation
Breathing or Pulmonary Ventilation
  • Air moves into lungs when pressure inside lungs is less than atmospheric pressure
    • How is this accomplished?
  • Air moves out of the lungs when pressure inside lungs is greater than atmospheric pressure
    • How is this accomplished?
  • Atmospheric pressure = 1 atm or 760mm Hg
boyle s law
Boyle’s Law
  • As the size of closed container decreases, pressure inside is increased
  • The molecules have less wall area to strike so the pressure on each inch of area increases.
dimensions of the chest cavity
Dimensions of the Chest Cavity
  • Breathing in requires muscular activity & chest size changes
  • Contraction of the diaphragm flattens the dome and increases the vertical dimension of the chest
quiet inspiration
Quiet Inspiration
  • Diaphragm moves 1 cm & ribs lifted by muscles
  • Intrathoracic pressure falls and 2-3 liters inhaled
quiet expiration
Quiet Expiration
  • Passive process with no muscle action
  • Elastic recoil & surface tension in alveoli pulls inward
  • Alveolar pressure increases & air is pushed out

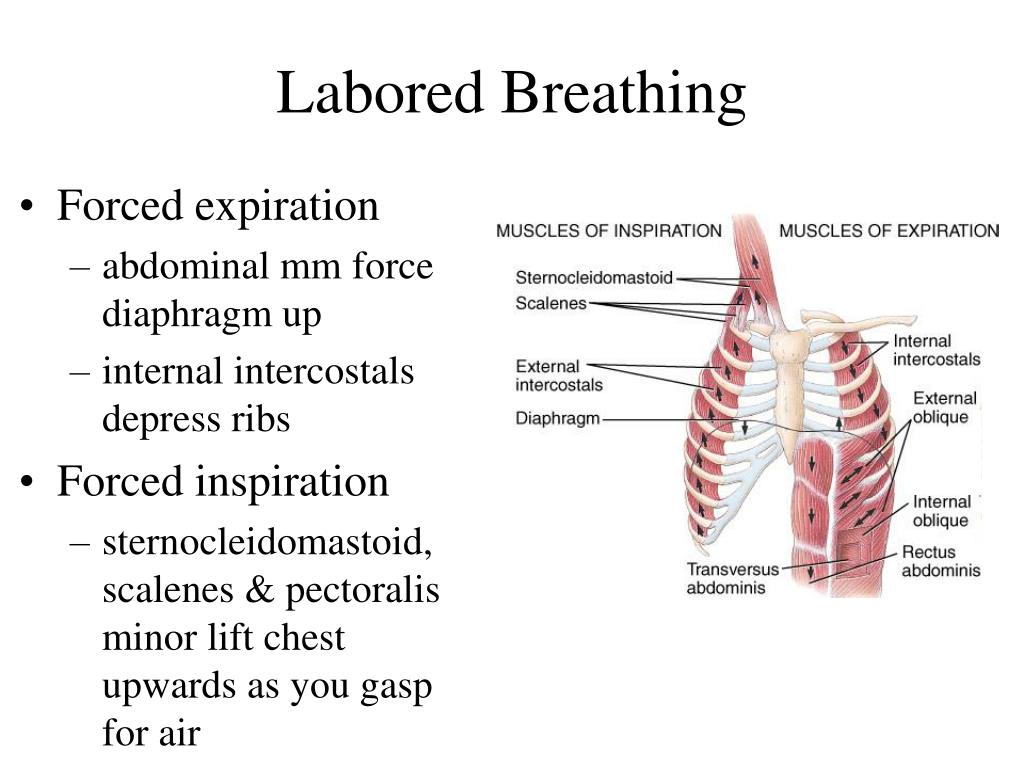

labored breathing
Labored Breathing
  • Forced expiration
    • abdominal mm force diaphragm up
    • internal intercostals depress ribs
  • Forced inspiration
    • sternocleidomastoid, scalenes & pectoralis minor lift chest upwards as you gasp for air
intrathoracic pressures
  • Always subatmospheric (756 mm Hg)
  • As diaphragm contracts intrathoracic pressure decreases even more (754 mm Hg)
  • Helps keep parietal & visceral pleura stick together
summary of breathing
Summary of Breathing
  • Alveolar pressure decreases & air rushes in
  • Alveolar pressure increases & air rushes out
alveolar surface tension
Alveolar Surface Tension
  • Thin layer of fluid in alveoli causes inwardly directed force = surface tension
    • water molecules strongly attracted to each other
  • Causes alveoli to remain as small as possible
  • Detergent-like substance called surfactant produced by Type II alveolar cells
    • lowers alveolar surface tension
    • insufficient in premature babies so that alveoli collapse at end of each exhalation
  • Pleural cavities are sealed cavities not open to the outside
  • Injuries to the chest wall that let air enter the intrapleural space
    • causes a pneumothorax
    • collapsed lung on same side as injury
    • surface tension and recoil of elastic fibers causes the lung to collapse

Tortora & Grabowski 9/e 2000 JWS

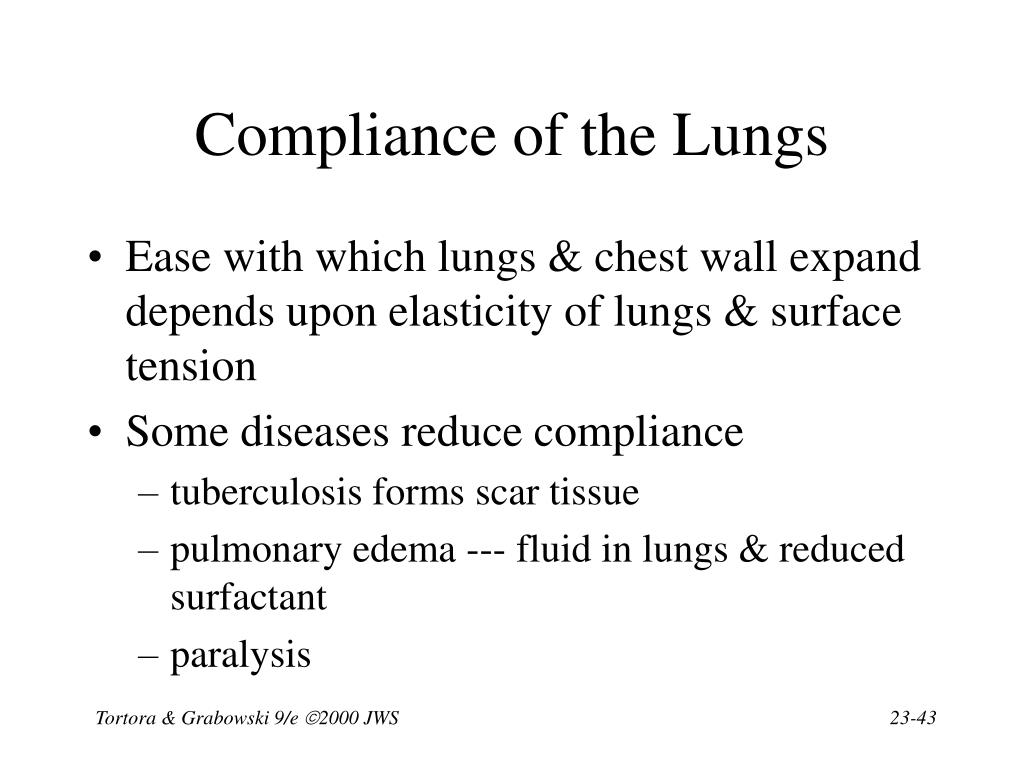

compliance of the lungs
Compliance of the Lungs
  • Ease with which lungs & chest wall expand depends upon elasticity of lungs & surface tension
  • Some diseases reduce compliance
    • tuberculosis forms scar tissue
    • pulmonary edema --- fluid in lungs & reduced surfactant
    • paralysis

Tortora & Grabowski 9/e 2000 JWS

airway resistance
Airway Resistance
  • Resistance to airflow depends upon airway size
    • increase size of chest
      • airways increase in diameter
    • contract smooth muscles in airways
      • decreases in diameter
breathing patterns
Breathing Patterns
  • Eupnea = normal quiet breathing
  • Apnea = temporary cessation of breathing
  • Dyspnea =difficult or labored breathing
  • Tachypnea = rapid breathing
  • Diaphragmatic breathing = descent of diaphragm causes stomach to bulge during inspiration
  • Costal breathing = just rib activity involved
modified respiratory movements
Modified Respiratory Movements
  • Coughing
    • deep inspiration, closure of rima glottidis & strong expiration blasts air out to clear respiratory passages
  • Hiccuping
    • spasmodic contraction of diaphragm & quick closure of rima glottidis produce sharp inspiratory sound
  • Chart of others on page 794

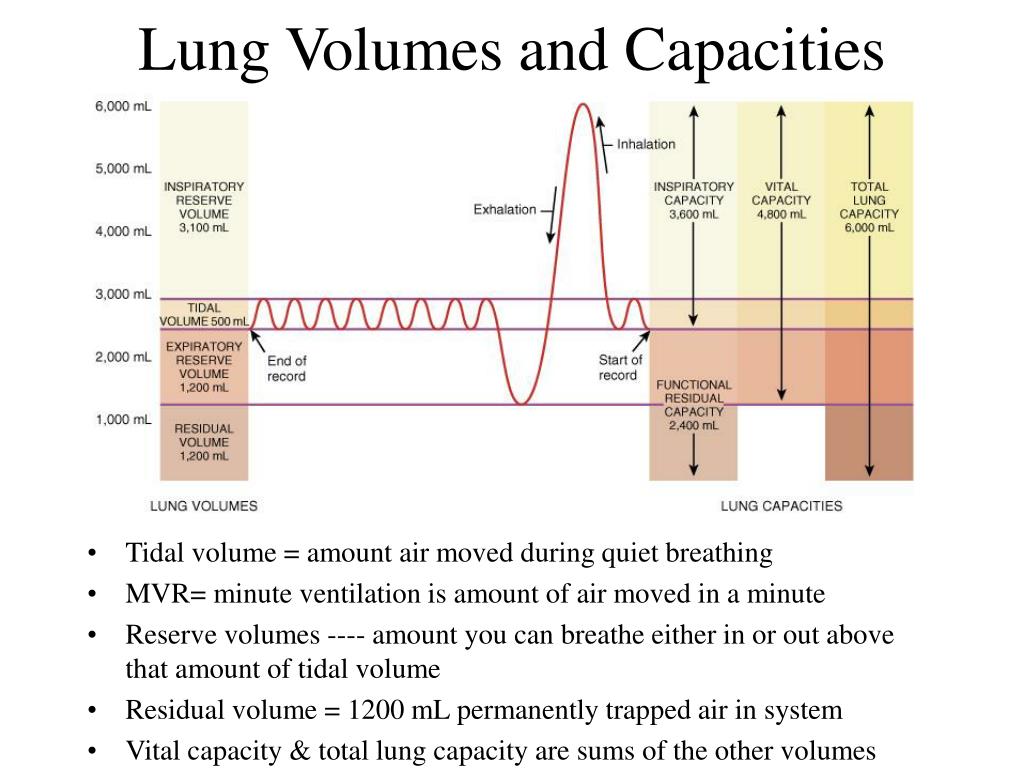

lung volumes and capacities
Lung Volumes and Capacities
  • Tidal volume = amount air moved during quiet breathing
  • MVR= minute ventilation is amount of air moved in a minute
  • Reserve volumes ---- amount you can breathe either in or out above that amount of tidal volume
  • Residual volume = 1200 mL permanently trapped air in system
  • Vital capacity & total lung capacity are sums of the other volumes
dalton s law
Dalton’s Law
  • Each gas in a mixture of gases exerts its own pressure
    • as if all other gases were not present
    • partial pressures denoted as p
  • Total pressure is sum of all partial pressures
    • atmospheric pressure (760 mm Hg) = pO2 + pCO2 + pN2 + pH2O
    • to determine partial pressure of O2-- multiply 760 by % of air that is O2 (21%) = 160 mm Hg
what is composition of air
What is Composition of Air?
  • Air = 21% O2, 79% N2 and .04% CO2
  • Alveolar air = 14% O2, 79% N2 and 5.2% CO2
  • Expired air = 16% O2, 79% N2 and 4.5% CO2
  • Observations
    • alveolar air has less O2 since absorbed by blood
    • mystery-----expired air has more O2 & less CO2 than alveolar air?
    • Anatomical dead space = 150 ml of 500 ml of tidal volume

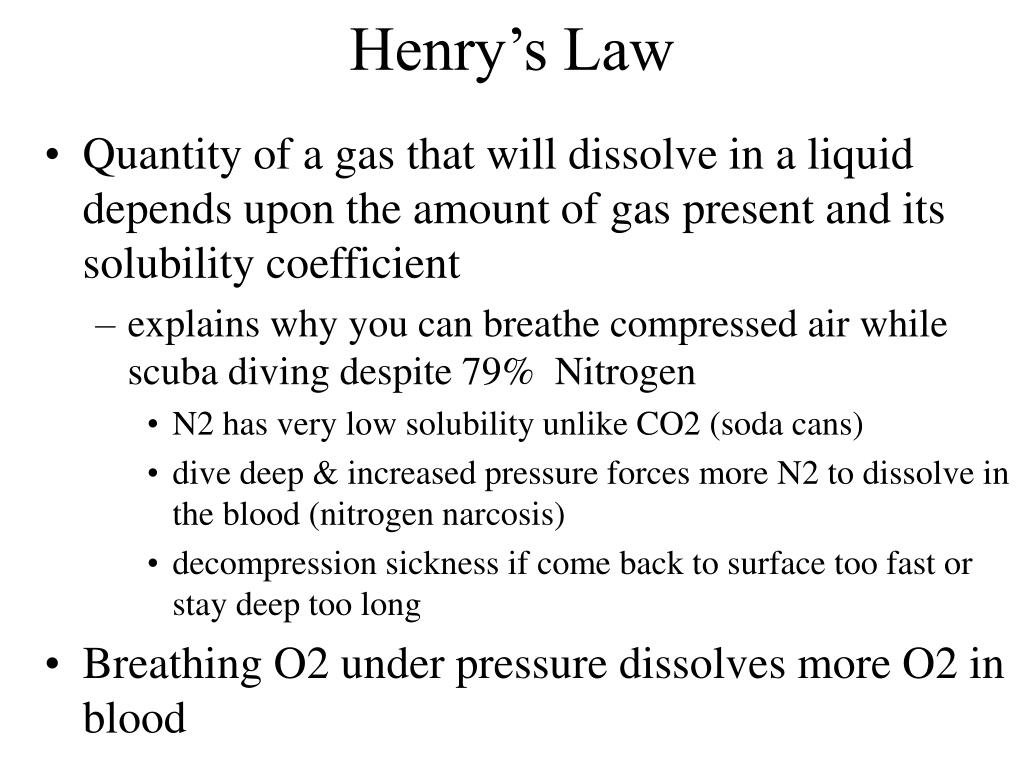

henry s law
Henry’s Law
  • Quantity of a gas that will dissolve in a liquid depends upon the amount of gas present and its solubility coefficient
    • explains why you can breathe compressed air while scuba diving despite 79% Nitrogen
      • N2 has very low solubility unlike CO2 (soda cans)
      • dive deep & increased pressure forces more N2 to dissolve in the blood (nitrogen narcosis)
      • decompression sickness if come back to surface too fast or stay deep too long
  • Breathing O2 under pressure dissolves more O2 in blood
hyperbaric oxygenation
Hyperbaric Oxygenation
  • Clinical application of Henry’s law
  • Use of pressure to dissolve more O2 in the blood
    • treatment for patients with anaerobic bacterial infections (tetanus and gangrene)
    • anaerobic bacteria die in the presence of O2
  • Hyperbaric chamber pressure raised to 3 to 4 atmospheres so that tissues absorb more O2
  • Used to treat heart disorders, carbon monoxide poisoning, cerebral edema, bone infections, gas embolisms & crush injuries

Tortora & Grabowski 9/e 2000 JWS

external respiration
External Respiration
  • Gases diffuse from areas of high partial pressure to areas of low partial pressure
  • Exchange of gas between air & blood
  • Deoxygenated blood becomes saturated
  • Compare gas movements in pulmonary capillaries to tissue capillaries
rate of diffusion of gases
Rate of Diffusion of Gases
  • Depends upon partial pressure of gases in air
    • p O2 at sea level is 160 mm Hg
    • 10,000 feet is 110 mm Hg / 50,000 feet is 18 mm Hg
  • Large surface area of our alveoli
  • Diffusion distance is very small
  • Solubility & molecular weight of gases
    • O2 smaller molecule diffuses somewhat faster
    • CO2 dissolves 24X more easily in water so net outward diffusion of CO2 is much faster
    • disease produces hypoxia before hypercapnia
        • lack of O2 before too much CO2
internal respiration
Internal Respiration
  • Exchange of gases between blood & tissues
  • Conversion of oxygenated blood into deoxygenated
  • Observe diffusion of O2 inward
    • at rest 25% of available O2 enters cells
    • during exercise more O2 is absorbed
  • Observe diffusion of CO2 outward
oxygen transport in the blood
Oxygen Transport in the Blood
  • Oxyhemoglobin contains 98.5% chemically combined oxygen and hemoglobin
    • inside red blood cells
  • Does not dissolve easily in water
    • only 1.5% transported dissolved in blood
  • Only the dissolved O2 can diffuse into tissues
  • Factors affecting dissociation of O2 from hemoglobin are important
  • Oxygen dissociation curve shows levels of saturation and oxygen partial pressures
hemoglobin and oxygen partial pressure
Hemoglobin and Oxygen Partial Pressure
  • Blood is almost fully saturated at pO2 of 60mm
    • people OK at high altitudes & with some disease
  • Between 40 & 20 mm Hg, large amounts of O2 are released as in areas of need like contracting muscle
acidity oxygen affinity for hb
Acidity & Oxygen Affinity for Hb
  • As acidity increases, O2 affinity for Hb decreases
  • Bohr effect
  • H+ binds to hemoglobin & alters it
  • O2 left behind in needy tissues
pco2 oxygen release
pCO2 & Oxygen Release
  • As pCO2 rises with exercise, O2 is released more easily
  • CO2 converts to carbonic acid & becomes H+ and bicarbonate ions & lowers pH.
temperature oxygen release
Temperature & Oxygen Release
  • As temperature increases, more O2 is released
  • Metabolic activity & heat
  • More BPG, more O2 released
    • RBC activity
    • hormones like thyroxine & growth hormone
oxygen affinity fetal hemoglobin
Oxygen Affinity & Fetal Hemoglobin
  • Differs from adult in structure & affinity for O2
  • When pO2 is low, can carry more O2
  • Maternal blood in placenta has less O2
carbon monoxide poisoning
Carbon Monoxide Poisoning
  • CO from car exhaust & tobacco smoke
  • Binds to Hb heme group more successfully than O2
  • CO poisoning
  • Treat by administering pure O2
carbon dioxide transport
Carbon Dioxide Transport
  • 100 ml of blood carries 55 ml of CO2
  • Is carried by the blood in 3 ways
    • dissolved in plasma
    • combined with the globin part of Hb molecule forming carbaminohemoglobin
    • as part of bicarbonate ion
      • CO2 + H2O combine to form carbonic acid that dissociates into H+ and bicarbonate ion
role of the respiratory center
Role of the Respiratory Center
  • Respiratory mm. controlled by neurons in pons & medulla
  • 3 groups of neurons
    • medullary rhythmicity
    • pneumotaxic
    • apneustic centers
medullary rhythmicity area
Medullary Rhythmicity Area
  • Controls basic rhythm of respiration
  • Inspiration for 2 seconds, expiration for 3
  • Autorhythmic cells active for 2 seconds then inactive
  • Expiratory neurons inactive during most quiet breathing only active during high ventilation rates
pneumotaxic apneustic areas
Pneumotaxic & Apneustic Areas
  • Pneumotaxic Area
    • constant inhibitory impulses to inspiratory area
      • neurons trying to turn off inspiration before lungs too expanded
  • Apneustic Area
    • stimulatory signals to inspiratory area to prolong inspiration
    • if pneumotaxic area is sick
regulation of respiratory center
Regulation of Respiratory Center
  • Cortical Influences
    • voluntarily alter breathing patterns
    • limitations are buildup of CO2 & H+ in blood
    • inspiratory center is stimulated by increase in either
    • if you hold breathe until you faint----breathing will resume
chemical regulation of respiration
Chemical Regulation of Respiration
  • Central chemoreceptors in medulla
    • respond to changes in H+ or pCO2
    • hypercapnia = slight increase in pCO2 is noticed
  • Peripheral chemoreceptors
    • respond to changes in H+ , pO2 or PCO2
    • aortic body---in wall of aorta
      • nerves join vagus
    • carotid bodies--in walls of common carotid arteries
      • nerves join glossopharyngeal nerve
negative feedback regulation of breathing
Negative Feedback Regulation of Breathing
  • Negative feedback control of breathing
  • Increase in arterial pCO2
  • Stimulates receptors
  • Inspiratory center
  • Muscles of respiration contract more frequently & forcefully
  • pCO2 Decreases
types of hypoxia
Types of Hypoxia
  • Deficiency of O2 at tissue level
  • Types of hypoxia
    • hypoxic hypoxia--low pO2 in arterial blood
      • high altitude, fluid in lungs & obstructions
    • anemic hypoxia--too little functioning Hb
      • hemorrhage or anemia
    • ischemic hypoxia--blood flow is too low
    • histotoxic hypoxia--cyanide poisoning
      • blocks metabolic stages & O2 usage
respiratory influences reflex behaviors
Respiratory Influences & Reflex Behaviors
  • Quick breathing rate response to exercise
    • input from proprioceptors
  • Inflation Reflex (Hering-Breurer reflex)
    • big deep breath stretching receptors produces urge to exhale
  • Factors increasing breathing rate
    • emotional anxiety, temperature increase or drop in blood pressure
  • Apnea or cessation of breathing
    • by sudden plunge into cold water, sudden pain, irritation of airway

Tortora & Grabowski 9/e 2000 JWS

exercise and the respiratory system
Exercise and the Respiratory System
  • During exercise, muscles consume large amounts of O2 & produce large amounts CO2
  • Pulmonary ventilation must increase
    • moderate exercise increases depth of breathing,
    • strenuous exercise also increases rate of breathing
  • Abrupt changes at start of exercise are neural
    • anticipation & sensory signals from proprioceptors
    • impulses from motor cortex
  • Chemical & physical changes are important
    • decrease in pO2, increase in pCO2 & increased temperature

Tortora & Grabowski 9/e 2000 JWS

smokers lowered respiratory efficiency
Smokers Lowered Respiratory Efficiency
  • Smoker is easily “winded” with moderate exercise
    • nicotine constricts terminal bronchioles
    • carbon monoxide in smoke binds to hemoglobin
    • irritants in smoke cause excess mucus secretion
    • irritants inhibit movements of cilia
    • in time destroys elastic fibers in lungs & leads to emphysema
      • trapping of air in alveoli & reduced gas exchange

Tortora & Grabowski 9/e 2000 JWS

developmental anatomy of respiratory system
Developmental Anatomy of Respiratory System
  • 4 weeks endoderm of foregut gives rise to lung bud
  • Differentiates into epithelial lining of airways
  • 6 months closed-tubes swell into alveoli of lungs

Tortora & Grabowski 9/e 2000 JWS

aging the respiratory system
Aging & the Respiratory System
  • Respiratory tissues & chest wall become more rigid
  • Vital capacity decreases to 35% by age 70.
  • Decreases in macrophage activity
  • Diminished ciliary action
  • Decrease in blood levels of O2
  • Result is an age-related susceptibility to pneumonia or bronchitis
disorders of the respiratory system
Disorders of the Respiratory System
  • Asthma
  • Chronic obstructive pulmonary disease
    • Emphysema
    • Chronic bronchitis
    • Lung cancer
  • Pneumonia
  • Tuberculosis
  • Coryza and Influenza
  • Pulmonary Edema
  • Cystic fibrosis

Tortora & Grabowski 9/e 2000 JWS
