On-column Chemical Refolding Natalia Oganesyan and Rosalind Kim Lawrence Berkeley National Laboratory PPCW, March 29-31, 2004. The work described here was supported by the National Institutes of Health GM 62412 . IB in 8 M urea Dilution into a large volume of buffer with detergent

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

The work described here was supported by the National Institutes of Health GM 62412


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
    Presentation Transcript

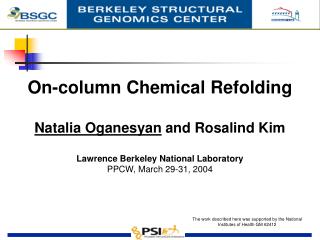

    1. On-columnChemical Refolding Natalia Oganesyan and Rosalind Kim Lawrence Berkeley National Laboratory PPCW, March 29-31, 2004 The work described here was supported by the National Institutes of Health GM 62412

    2. IB in 8 M urea Dilution into a large volume of buffer with detergent Dilution with -cyclodextrin buffer Filtration (0.2 μ) Concentration IB in 8 M urea Binding to Ni-NTA Wash with buffer containing detergent Wash with buffer containing -cyclodextrin Elution with imidazole Chemical Refolding of protein inclusion bodies (IB) Daugherty et al., 1998 JBC, vol. 273, 33961-71 BSGC on-column refolding method for non-membrane proteins Time required 2-3 days 20 hrs

    3. Detergent mini-refolding screen

    4. BSGC refolding protocol • Solubilization of IB in 8 M urea or 6 M GuHCl • Overnight binding to Ni-NTA (Qiagen) • Column wash with urea buffer and 20 mM imidazole • Wash with 0.6 mM Triton X-100 or DDM under native conditions • Wash with 5 mM -cyclodextrin • Wash with 0.5 M NaCl • Elution with 400 mM imidazole • IEX or SEC

    5. Summary of refolded BSGC targets Targets MW, kDa% “Refolded” *Crystallized • 1084B 40 40% yes • 1349B 20 100% 2.8 A data • 1105B 70 100% 3.2 A data/solved • 1113B 19 100% yes • 1049B 36 50% yes • 1277B 44 100% yes • 1089B 16.7 100% no • 3 targets failed to refold *% target eluted / % target loaded

    6. SeMet Crystals of 1105B Refolded 1105B Soluble 1105B 0.1 M Tris-HCl, pH 8.5, 0.2 MLi2SO4,30%(w/v) PEG 4K 0.1 M HEPES, pH 7.5, 1.5 M Li2SO4

    7. Crystal structure of 1105B Refolded Soluble 3.2 Å P32 2.8 Å P43 2 molecules per a.u. 6 molecules per a.u. V.Oganesyan et al. Manuscript in preparation

    8. Summary • On-column chemical refolding is fast and provides an easy way to refold various His-tagged proteins. • Mini-purification screen allows selection of the most efficient detergent. It can be formulated as a high-throughput method. • Seven out of ten tested proteins have been refolded by this method. • Effective refolding provides enough soluble protein for crystallization trials.
