Ayesha M.Khan

25th April,2012

Phylogenetic basics
Phylogenetic Basics

  • One central field in biology is to infer the relation between species. Do they possess a common ancestor? When did they separate from each other?

  • Phylogenetics is the study of evolutionary relationships among and within species.

  • Phylogenetics is the field of systematics that focuses on evolutionary relationships between organismsor genes/proteins (phylogeny).

  • Systematics: an attempt to understand the interrelationships of living things


Phylogenetic basics contd

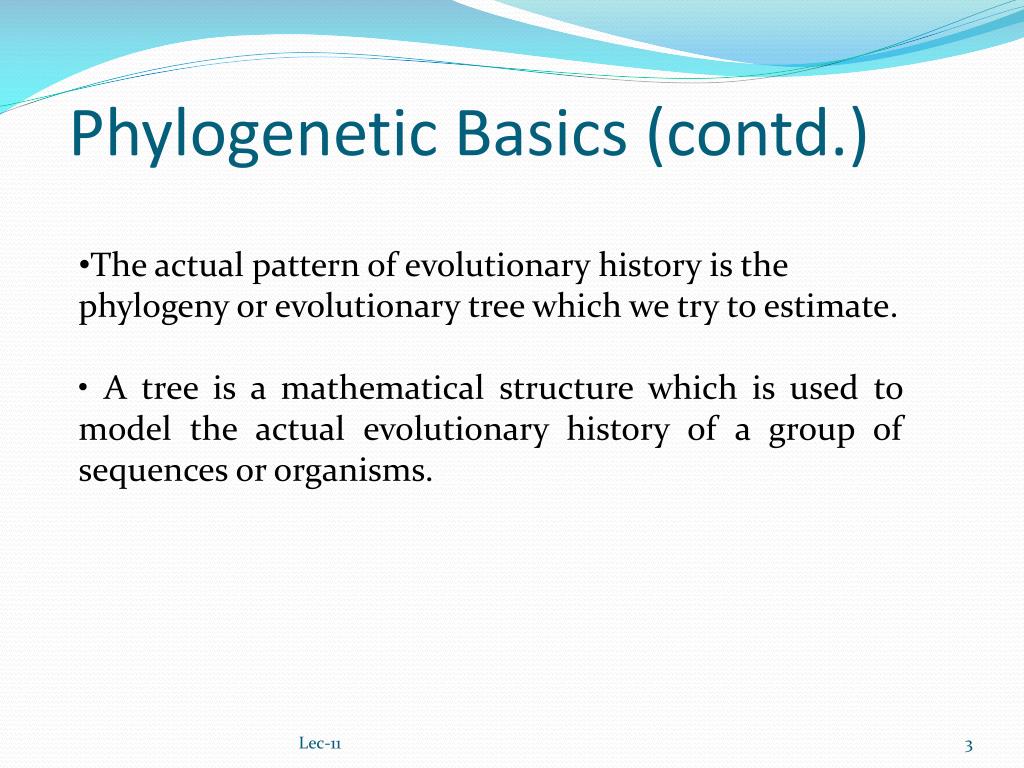

Phylogenetic Basics (contd.)

  • The actual pattern of evolutionary history is the

  • phylogeny or evolutionary tree which we try to estimate.

  • • A tree is a mathematical structure which is used to model the actual evolutionary history of a group of sequences or organisms.


Phylogenetic basics contd1
Phylogenetic Basics (contd.)

  • Homologues are similar sequences in two different organisms that have been derived from a common ancestor sequence.

  • • Orthologuesare similar sequences in two different organisms that have arisen due to a speciation event. Orthologs typically retain identical or similar functionality throughout evolution.

  • • Paraloguesare similar sequences within a single organism that have arisen due to a gene duplication event. They tend to have differing functions.

  • • Xenologuesare similar sequences that do not share the same evolutionary origin, but rather have arisen out of horizontal transfer events through symbiosis, viruses, etc.



Early globin gene

Gene Duplication

-chain gene

ß-chain gene

mouse 

human 

cattle 

cattle ß

human ß

mouse ß

Orthologs ()

Orthologs (ß)

Paralogs (cattle)


Orthologs – diverged after speciation – tend to have similar function

Paralogs – diverged after gene duplication – some functional divergence occurs

Therefore, for linking similar genes between species, or performing “annotation transfer”, identify orthologs

Molecular phylogenetics
Molecular phylogenetics

Why focus on molecular phylogenies in contrast to phylogenies which are based on characteristics like wings, feathers, etc, i.e. morphological characters?

With molecular phylogenetics, the differences between organisms are measured on the proteins and RNA coded in the DNA, i.e. on amino acid and nucleotide sequences.


Molecular phylogenetics contd
Molecular phylogenetics (contd.)

  • Also, molecular phylogenetics is more precise than its counterpart based on external features and behavior and can also distinguish small organism like bacteria or even viruses.

  • the DNA must be inherited and connects all species

  • the molecular phylogenetics can be based on mathematical and statistical methods and is even model-based as mutations can be modeled, remote homologies can be detected

  • the distance is not only based on one feature but on many genes.


Molecular phylogeny analysis
Molecular Phylogeny Analysis

Molecular phylogeny methods allow, from a given set of aligned sequences, the suggestion of phylogenetic trees (inferred trees) whichaim at reconstructing the history of successive divergence which took place during the evolution, between the considered sequences and their common ancestor. These trees may not be the same as the true tree.

• Reconstruction of phylogenetic trees is a statistical problem, and a reconstructed tree is an estimate of a true tree with a given topology and given branch length;

• In practice, phylogenetic analyses usually generate phylogenetictrees with accurate parts and imprecise parts.


Key features of molecular phylogenetic trees
Key features of molecular phylogenetic trees


Molecular phylogeny analysis contd
Molecular Phylogeny Analysis (contd.)

  • Sequences reflect relationships

  • After working with sequences for a while, one develops an intuitive understanding that for a given gene, closely related organisms have similar sequences and more distantly related organisms have more dissimilar sequences. These differences can be quantified.

  • Given a set of gene sequences, it should be possible to reconstruct the evolutionary relationships among genes and among organisms.



Example:Pseudomonas aeruginosa- one of the top three causes of opportunistic infections, noted for its antimicrobial resistance and resistance to detergents.


Phylogenetic tree construction
Phylogenetic tree construction


Phylogenetic tree construction methods

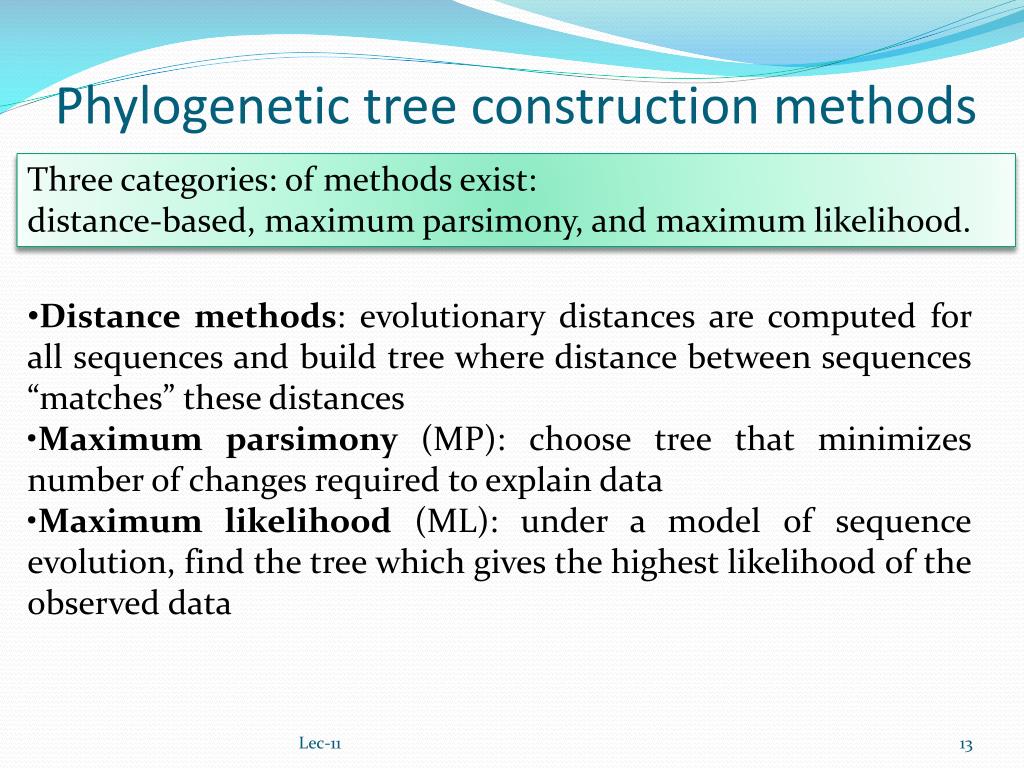

Phylogenetic tree construction methods

Three categories: of methods exist:

distance-based, maximum parsimony, and maximum likelihood.

  • Distance methods: evolutionary distances are computed for all sequences and build tree where distance between sequences “matches” these distances

  • •Maximum parsimony (MP): choose tree that minimizes number of changes required to explain data

  • •Maximum likelihood (ML): under a model of sequence evolution, find the tree which gives the highest likelihood of the observed data
