Hybrid Dynamometer Drives | Unico

Hybrid Dynamometer Drives to test powertrain components under dynamic switching loads from electric to engine power Accurate and repeatable test runs, torque pulse simulation, torque response under 1 ms.

unicous
Download Presentation

Hybrid Dynamometer Drives | Unico

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

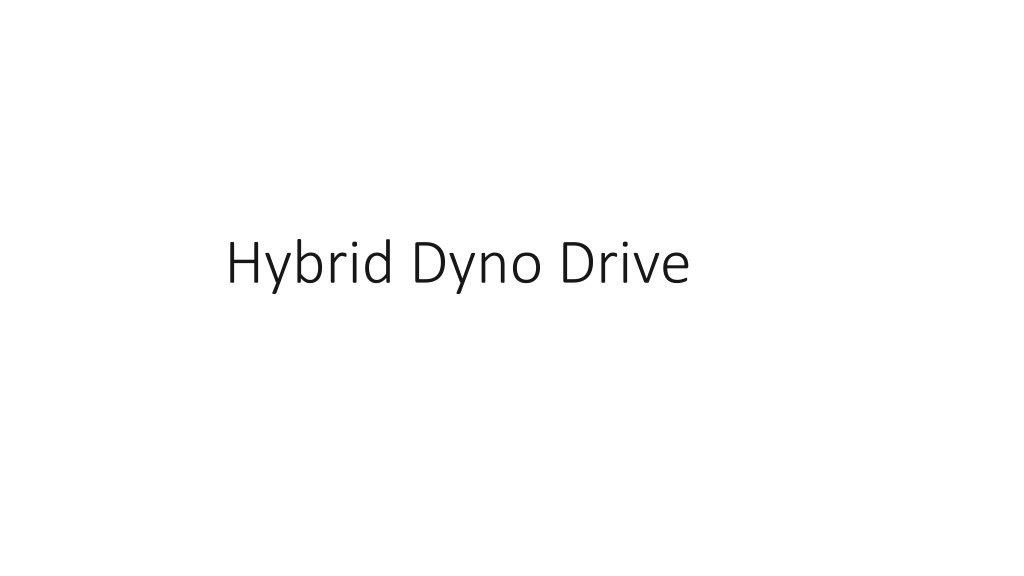

  1. Hybrid Dyno Drive Hybrid Dyno Drive Hybrid Dyno Drive

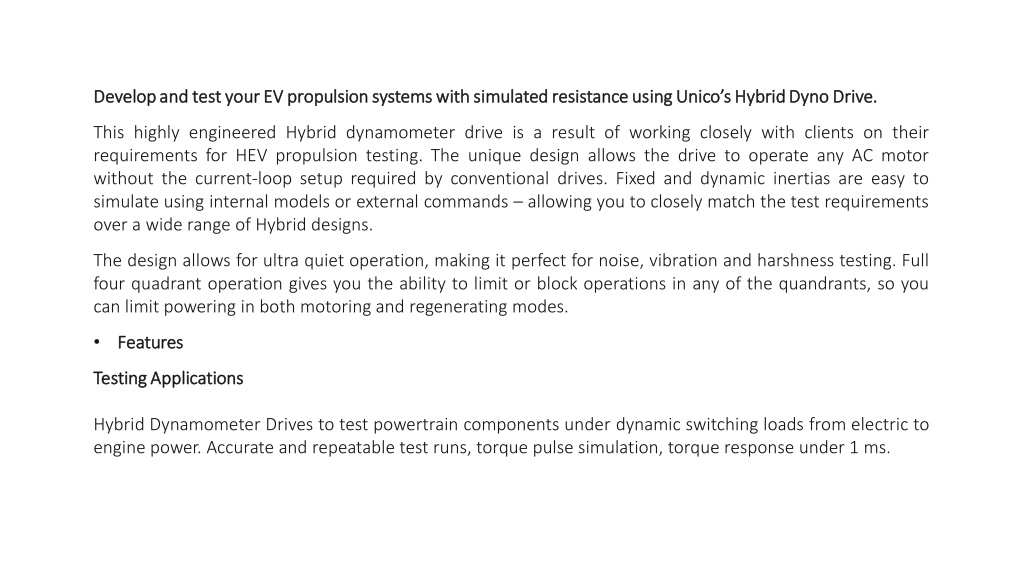

  2. Develop Developand andtest testyour yourEV EVpropulsion propulsionsystems systemswith withsimulated simulatedresistance resistanceusing usingUnico’s Unico’sHybrid HybridDyno DynoDrive Drive. . This highly engineered Hybrid dynamometer drive is a result of working closely with clients on their requirements for HEV propulsion testing. The unique design allows the drive to operate any AC motor without the current-loop setup required by conventional drives. Fixed and dynamic inertias are easy to simulate using internal models or external commands – allowing you to closely match the test requirements over a wide range of Hybrid designs. The design allows for ultra quiet operation, making it perfect for noise, vibration and harshness testing. Full four quadrant operation gives you the ability to limit or block operations in any of the quandrants, so you can limit powering in both motoring and regenerating modes. • Features Features Testing Applications Testing Applications Hybrid Dynamometer Drives to test powertrain components under dynamic switching loads from electric to engine power. Accurate and repeatable test runs, torque pulse simulation, torque response under 1 ms.

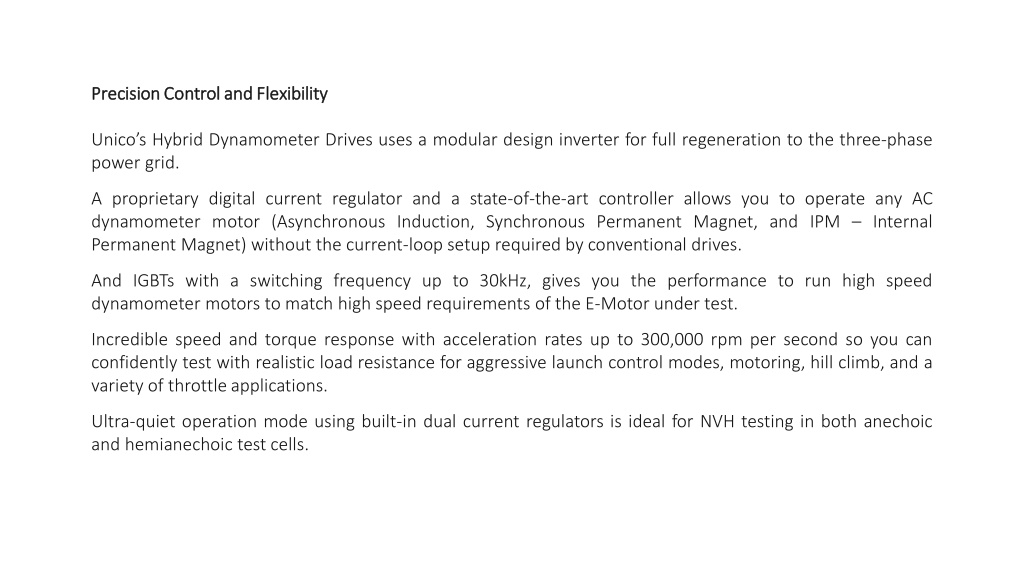

  3. Precision PrecisionControl Controland andFlexibility Flexibility Unico’s Hybrid Dynamometer Drives uses a modular design inverter for full regeneration to the three-phase power grid. A proprietary digital current regulator and a state-of-the-art controller allows you to operate any AC dynamometer motor (Asynchronous Induction, Synchronous Permanent Magnet, and IPM – Internal Permanent Magnet) without the current-loop setup required by conventional drives. And IGBTs with a switching frequency up to 30kHz, gives you the performance to run high speed dynamometer motors to match high speed requirements of the E-Motor under test. Incredible speed and torque response with acceleration rates up to 300,000 rpm per second so you can confidently test with realistic load resistance for aggressive launch control modes, motoring, hill climb, and a variety of throttleapplications. Ultra-quiet operation mode using built-in dual current regulators is ideal for NVH testing in both anechoic and hemianechoic test cells.

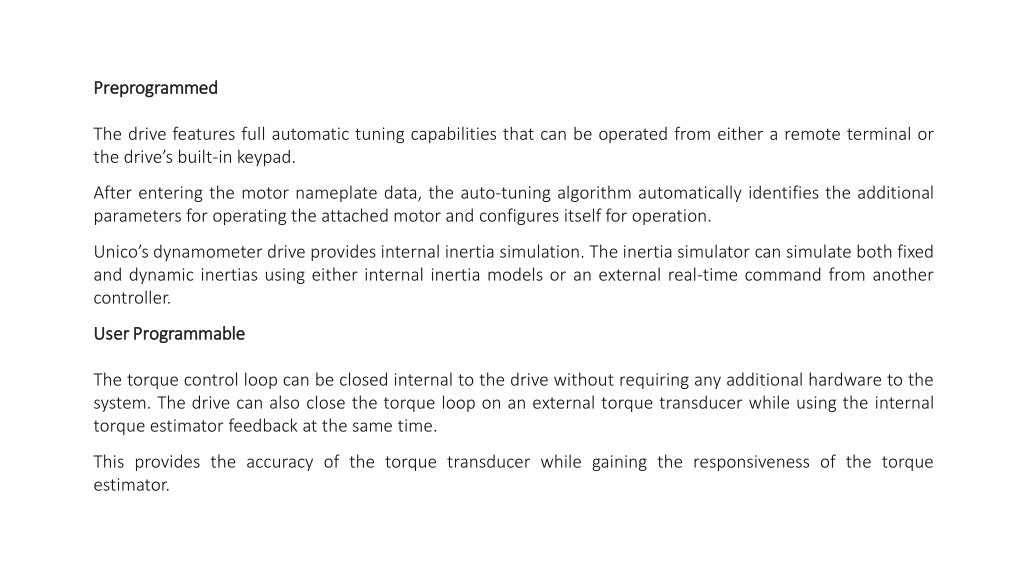

  4. Preprogrammed Preprogrammed The drive features full automatic tuning capabilities that can be operated from either a remote terminal or the drive’s built-in keypad. After entering the motor nameplate data, the auto-tuning algorithm automatically identifies the additional parameters for operating the attached motor and configures itself for operation. Unico’s dynamometer drive provides internal inertia simulation. The inertia simulator can simulate both fixed and dynamic inertias using either internal inertia models or an external real-time command from another controller. User Programmable User Programmable The torque control loop can be closed internal to the drive without requiring any additional hardware to the system. The drive can also close the torque loop on an external torque transducer while using the internal torque estimator feedback at the same time. This provides the accuracy of the torque transducer while gaining the responsiveness of the torque estimator.

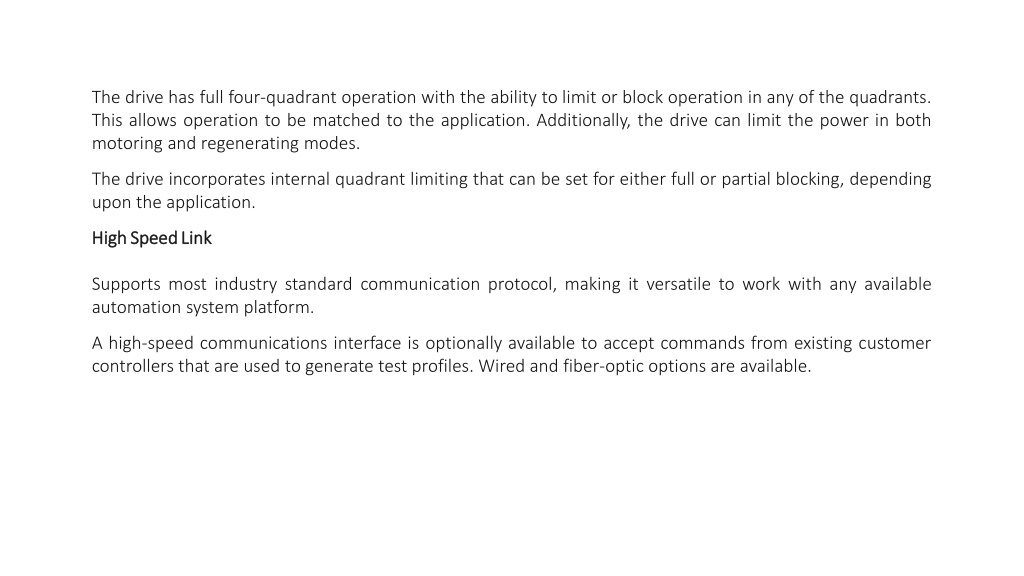

  5. The drive has full four-quadrant operation with the ability to limit or block operation in any of the quadrants. This allows operation to be matched to the application. Additionally, the drive can limit the power in both motoring and regenerating modes. The drive incorporates internal quadrant limiting that can be set for either full or partial blocking, depending upon the application. High Speed Link High Speed Link Supports most industry standard communication protocol, making it versatile to work with any available automation system platform. A high-speed communications interface is optionally available to accept commands from existing customer controllers that are used to generate test profiles. Wired and fiber-optic options are available.

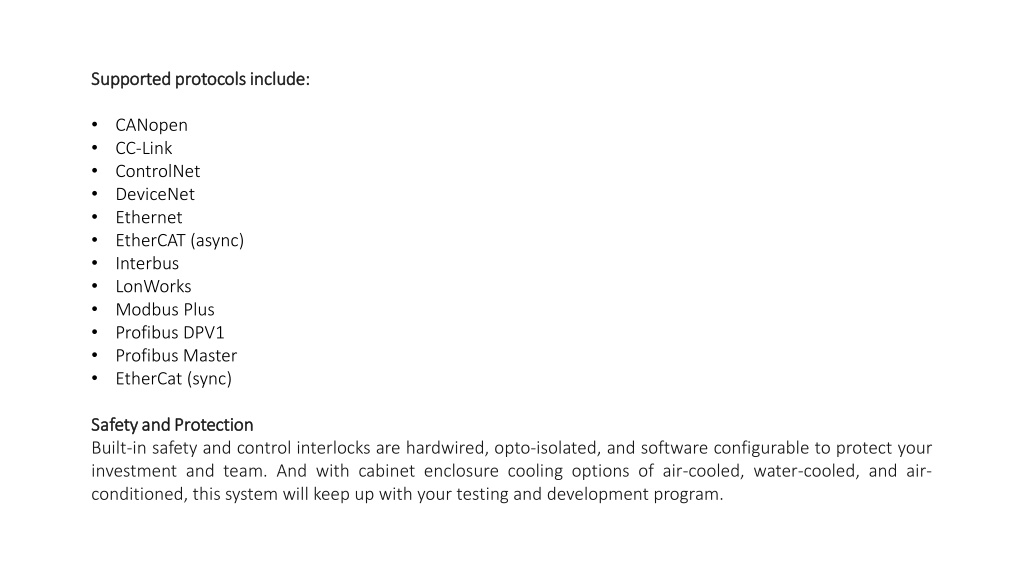

  6. Supported protocols include: Supported protocols include: • • • • • • • • • • • • CANopen CC-Link ControlNet DeviceNet Ethernet EtherCAT (async) Interbus LonWorks Modbus Plus Profibus DPV1 Profibus Master EtherCat (sync) Safety and Protection Safety and Protection Built-in safety and control interlocks are hardwired, opto-isolated, and software configurable to protect your investment and team. And with cabinet enclosure cooling options of air-cooled, water-cooled, and air- conditioned, this system will keep up with your testing and development program.

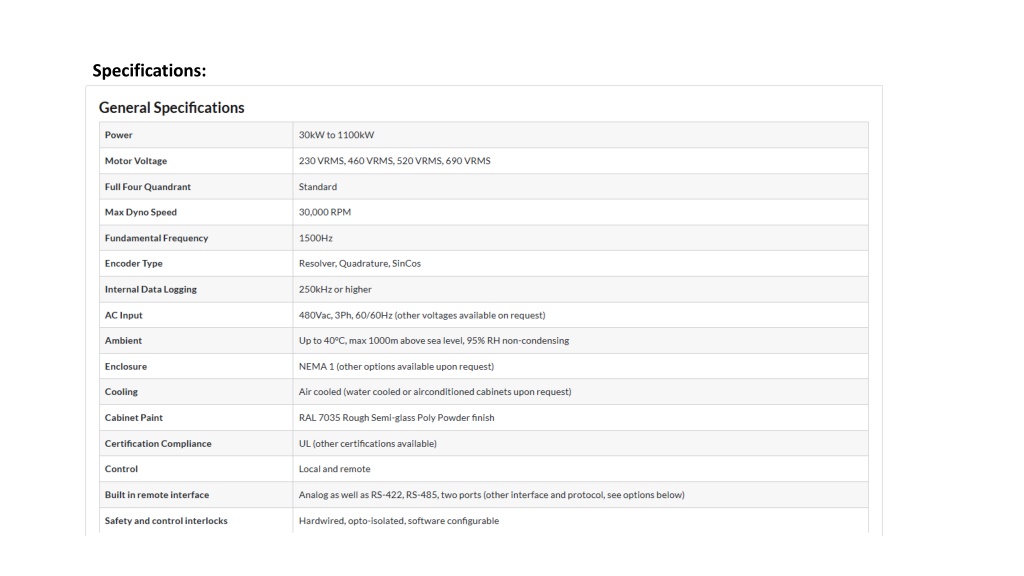

  7. Specifications:
