  1. Engineering Analysis October 23, 2006 Team Moondogs Chris Culver Rahul Kirtikar Elias Krauklis Christopher Sampson Michael Widerquist

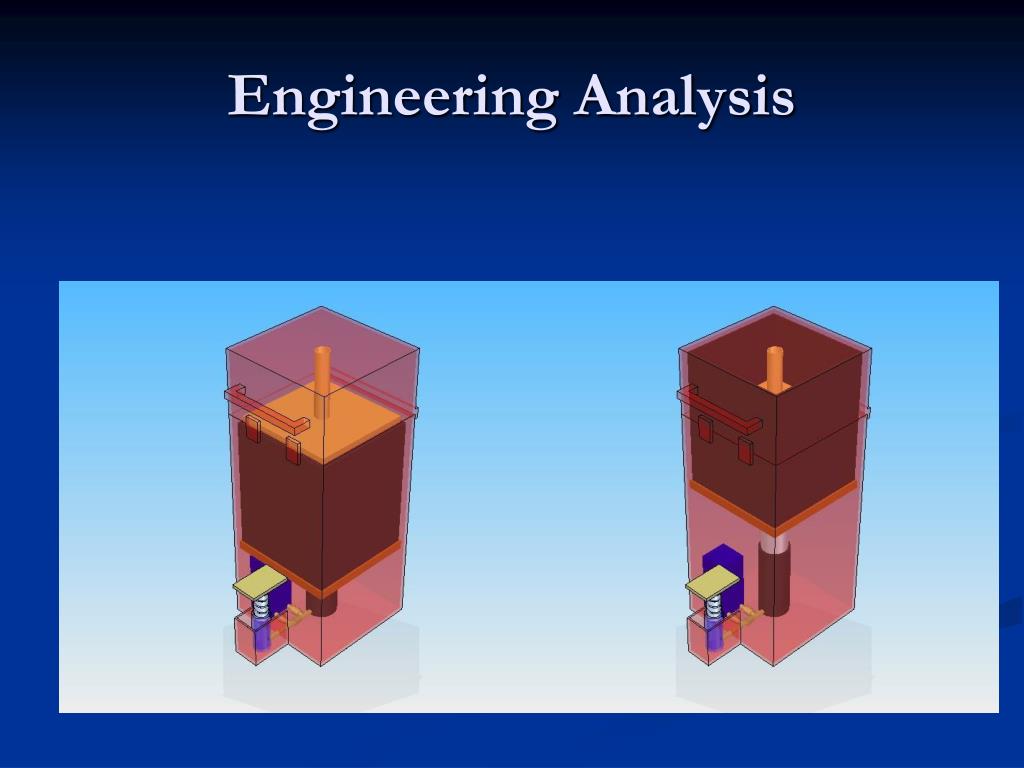

  2. Engineering Analysis

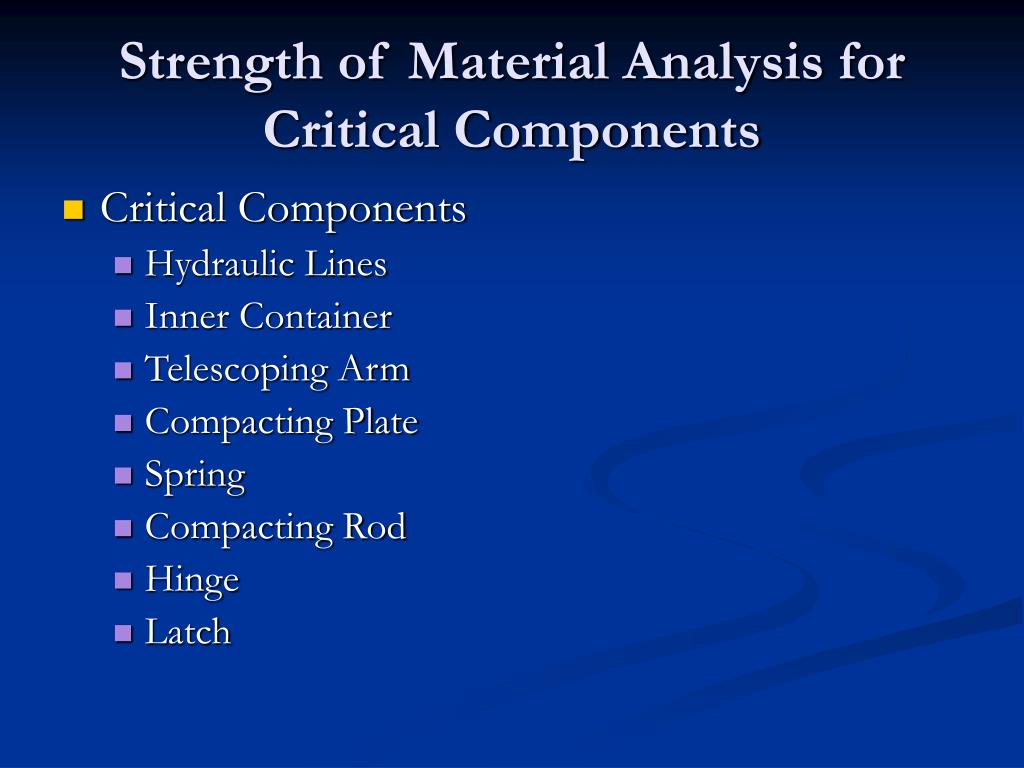

  3. Strength of Material Analysis for Critical Components • Critical Components • Hydraulic Lines • Inner Container • Telescoping Arm • Compacting Plate • Spring • Compacting Rod • Hinge • Latch

  4. Materials • Molded Polypropylene • Yield Strength = 1740 – 6240 psi • Flexural Modulus = 79.8 -350 ksi • Tensile Modulus = 72.5 – 1100 ksi • Type 304 Stainless Steel • Modulus of Elasticity = 28,000 ksi • Poisson’s Ratio = 0.29 • Yield Strength = 31.2 ksi • Thus Von mises distortion energy theory will be used

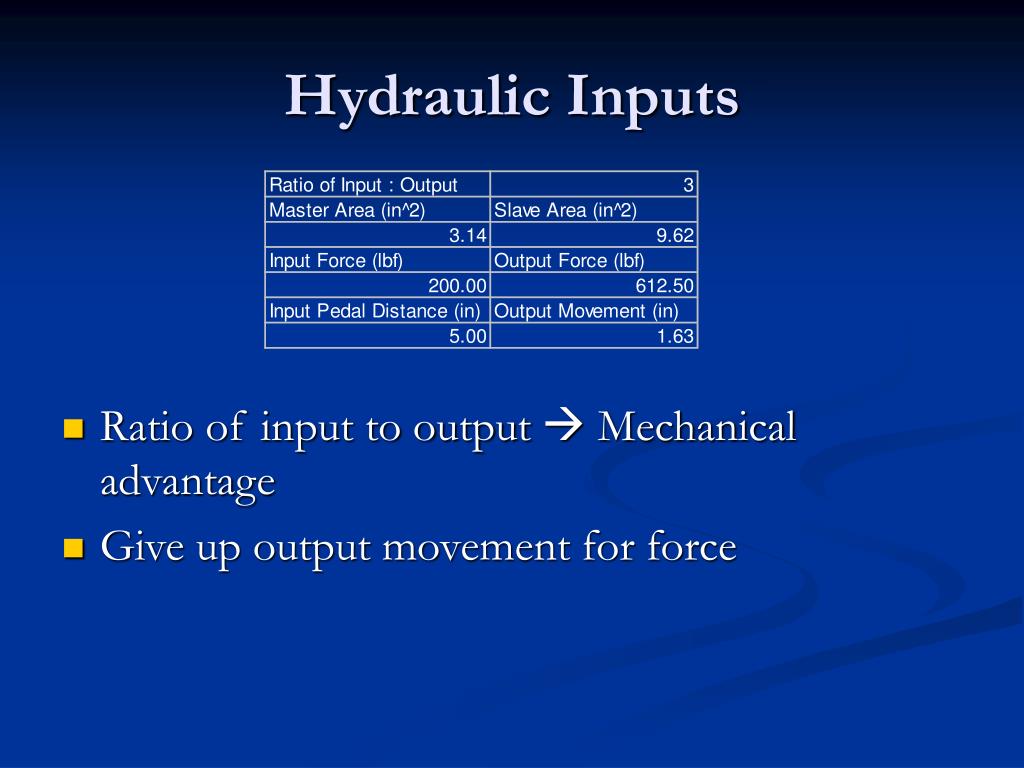

  5. Hydraulic Inputs • Ratio of input to output  Mechanical advantage • Give up output movement for force

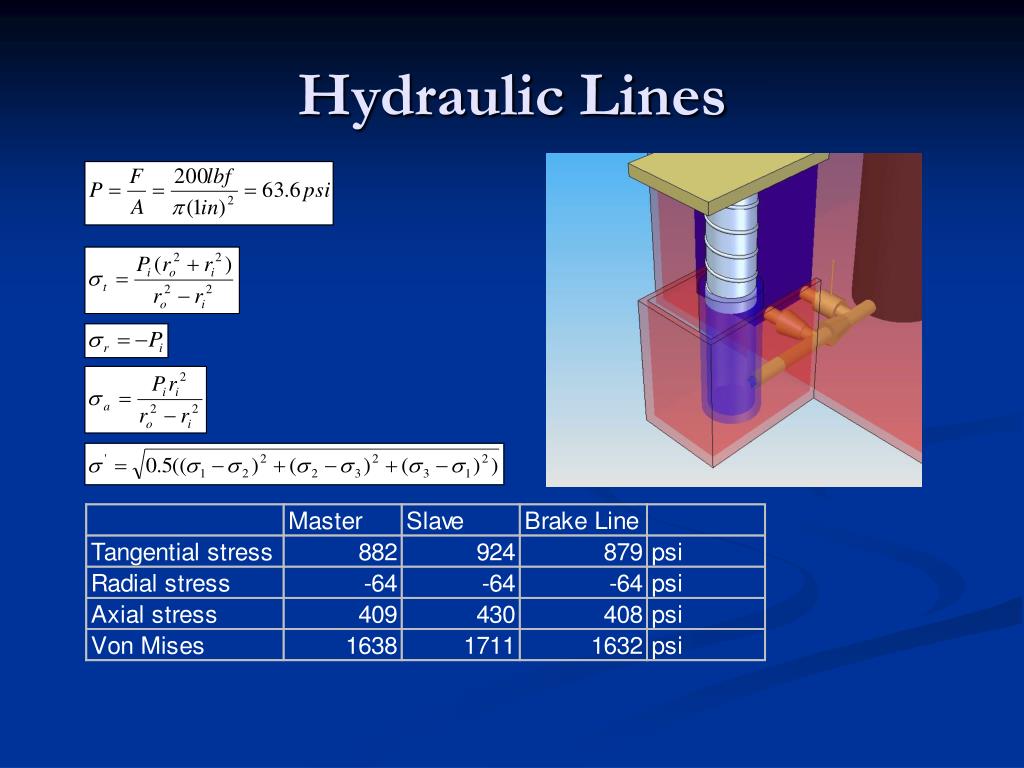

  6. Hydraulic Lines

  7. Hydraulic Material Selection • Decision: Use Stainless Steel Type 304 custom built tubing • On all three lines the yield strength is above the von Mises failure criteria even with 2.0 SF

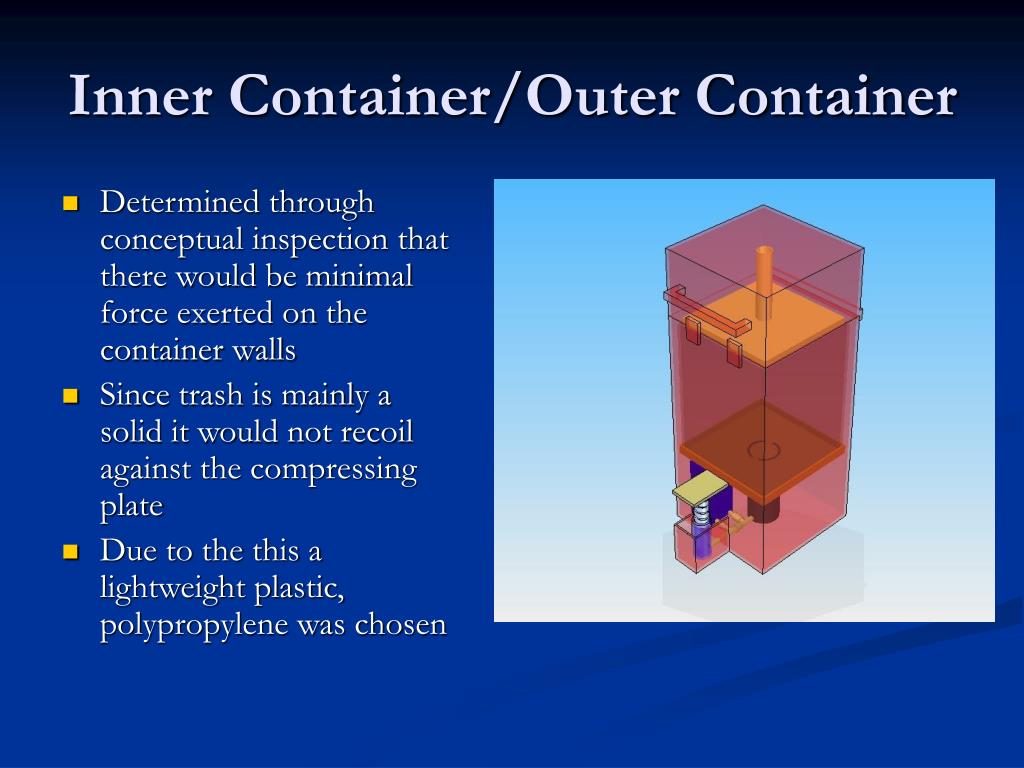

  8. Inner Container/Outer Container • Determined through conceptual inspection that there would be minimal force exerted on the container walls • Since trash is mainly a solid it would not recoil against the compressing plate • Due to the this a lightweight plastic, polypropylene was chosen

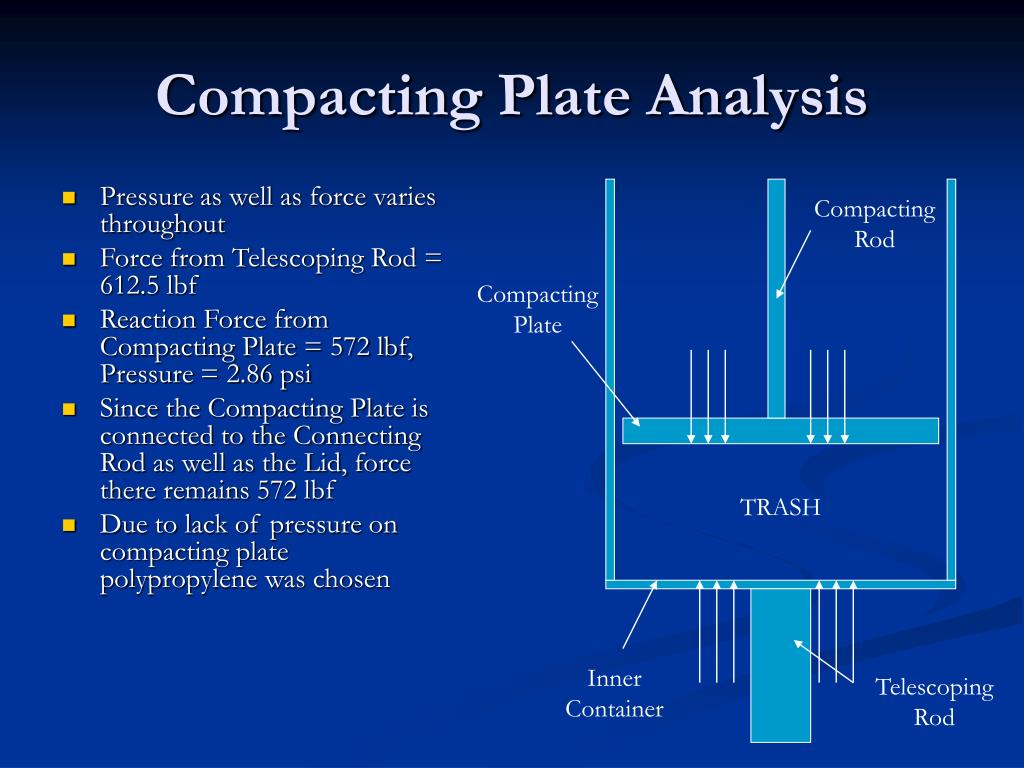

  9. Compacting Plate Analysis • Pressure as well as force varies throughout • Force from Telescoping Rod = 612.5 lbf • Reaction Force from Compacting Plate = 572 lbf, Pressure = 2.86 psi • Since the Compacting Plate is connected to the Connecting Rod as well as the Lid, force there remains 572 lbf • Due to lack of pressure on compacting plate polypropylene was chosen Compacting Rod Compacting Plate TRASH Inner Container Telescoping Rod

  10. Spring Analysis • Force necessary to lift 2.5 lb foot pedal • Spring Coefficient k equals 0.52 lbf/in • 25/32" long brass, compression spring with closed ends • k = 7.3 lbs/in

  11. Compacting Rod/Telescoping Arm • Buckling of Compacting Rod as well as Telescoping Arm • Using Type 304 Stainless Steel with Sy=31.2 ksi with max pressure at 182 psi on Compacting Rod and 2 ksi on Telescoping Arm • Deflection on Compacting Rod and Telescoping Arm • Deflection is neglible in both cases (>0.001 in)

  12. Lid Deflection • Maximum bending Stress: 10,000 psi • Only plastic supporting 572 lbf, 87 inch deflection • Add a 14”x14”, 1/8 ” thick steel plate to distribute the load • Max deflection of steel plate: ½ “ • Plastic deflection negligible now

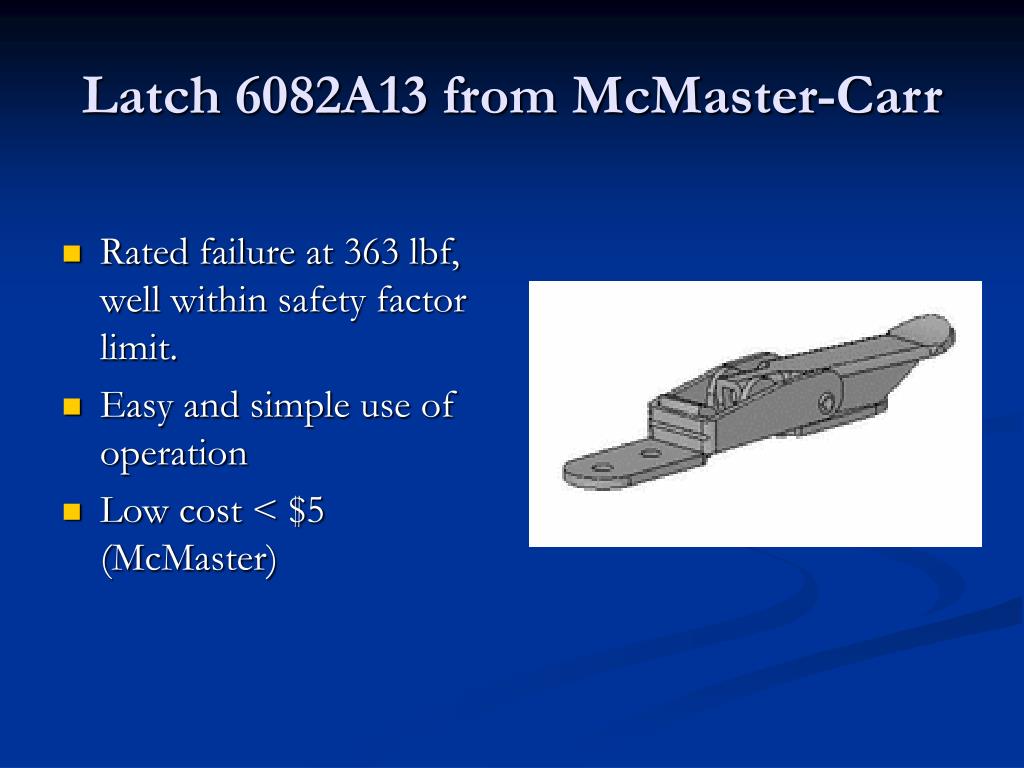

  13. Latch 6082A13 from McMaster-Carr • Rated failure at 363 lbf, well within safety factor limit. • Easy and simple use of operation • Low cost < $5 (McMaster)

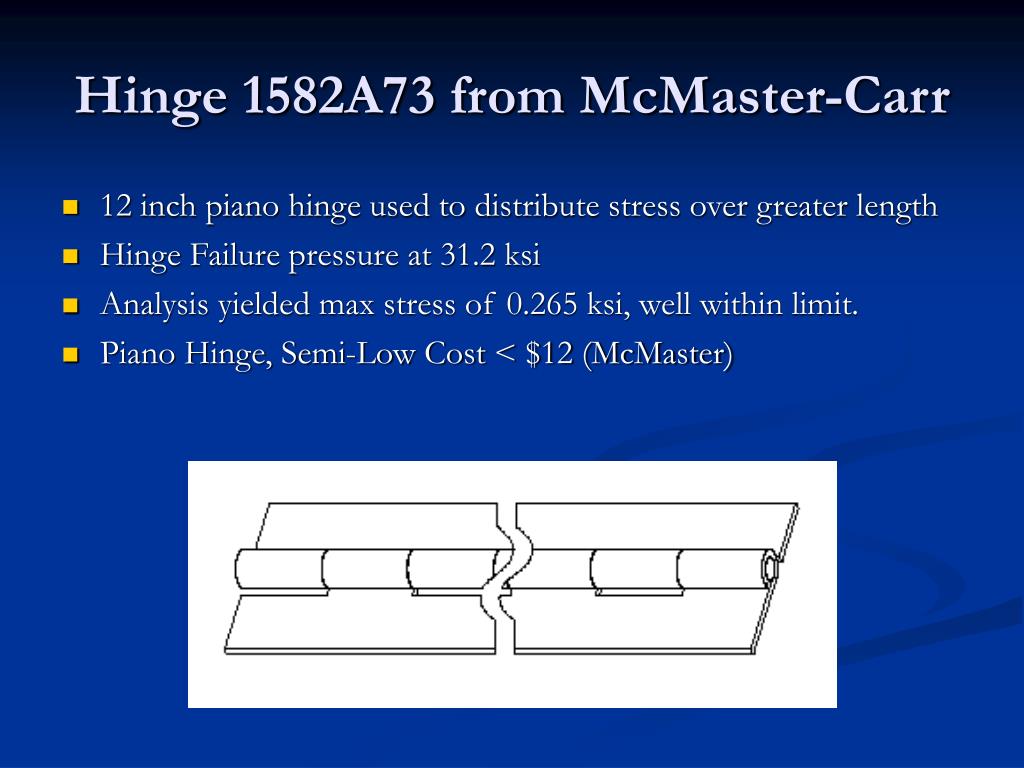

  14. Hinge 1582A73 from McMaster-Carr • 12 inch piano hinge used to distribute stress over greater length • Hinge Failure pressure at 31.2 ksi • Analysis yielded max stress of 0.265 ksi, well within limit. • Piano Hinge, Semi-Low Cost < $12 (McMaster)

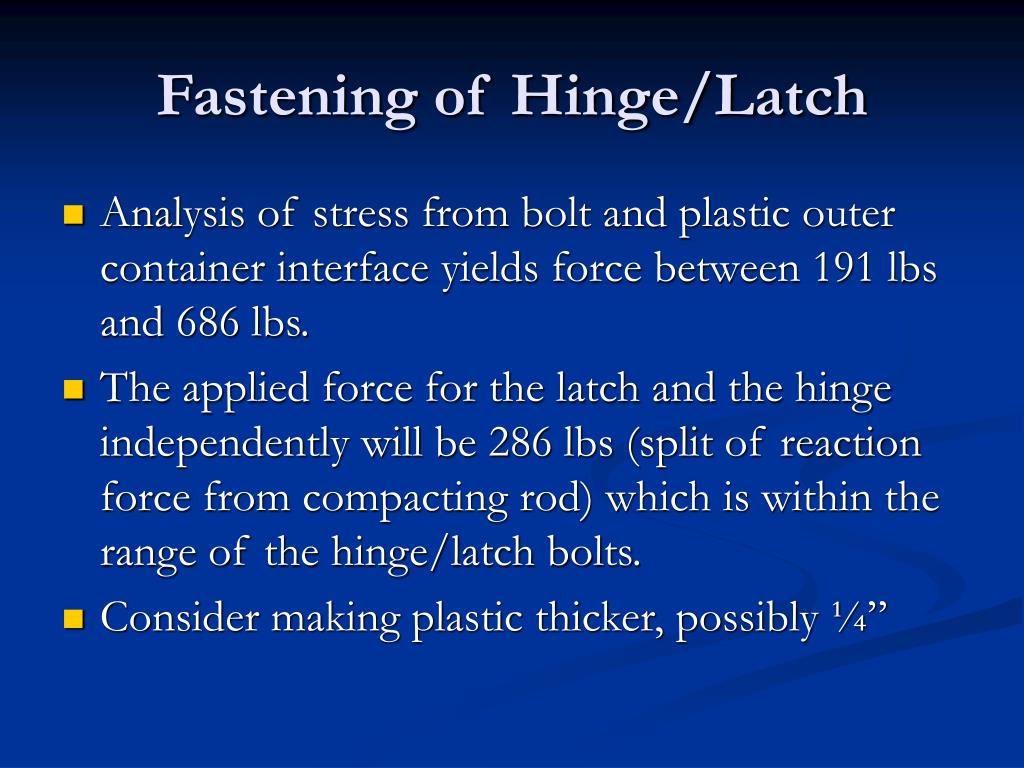

  15. Fastening of Hinge/Latch • Analysis of stress from bolt and plastic outer container interface yields force between 191 lbs and 686 lbs. • The applied force for the latch and the hinge independently will be 286 lbs (split of reaction force from compacting rod) which is within the range of the hinge/latch bolts. • Consider making plastic thicker, possibly ¼”

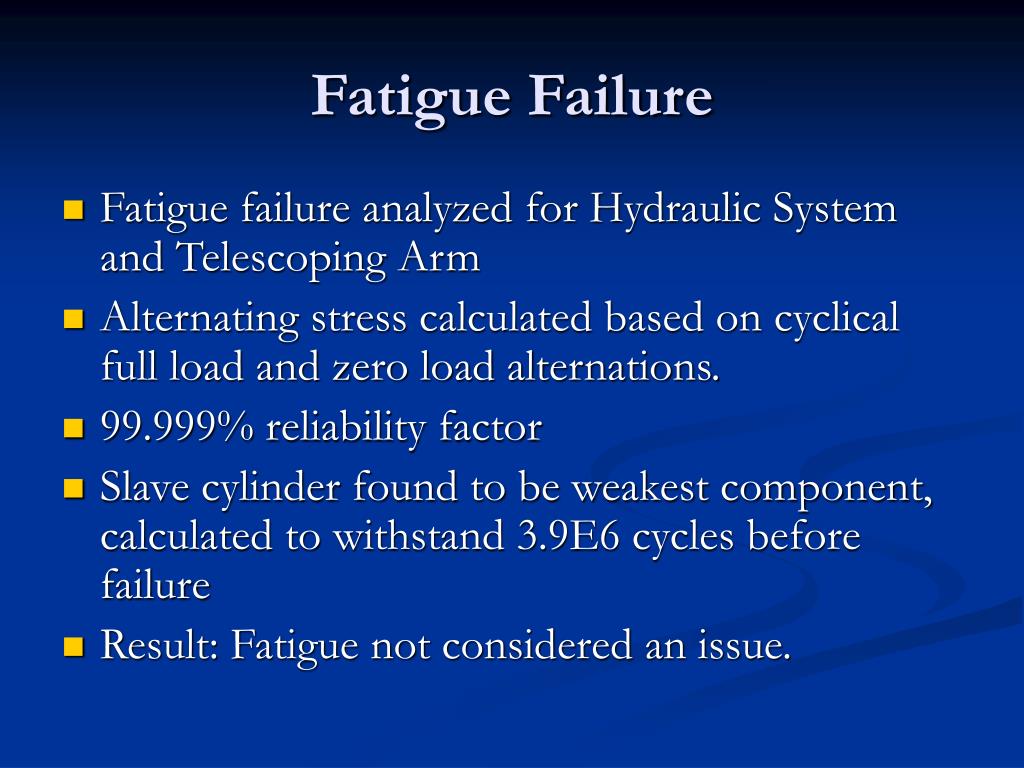

  16. Fatigue Failure • Fatigue failure analyzed for Hydraulic System and Telescoping Arm • Alternating stress calculated based on cyclical full load and zero load alternations. • 99.999% reliability factor • Slave cylinder found to be weakest component, calculated to withstand 3.9E6 cycles before failure • Result: Fatigue not considered an issue.

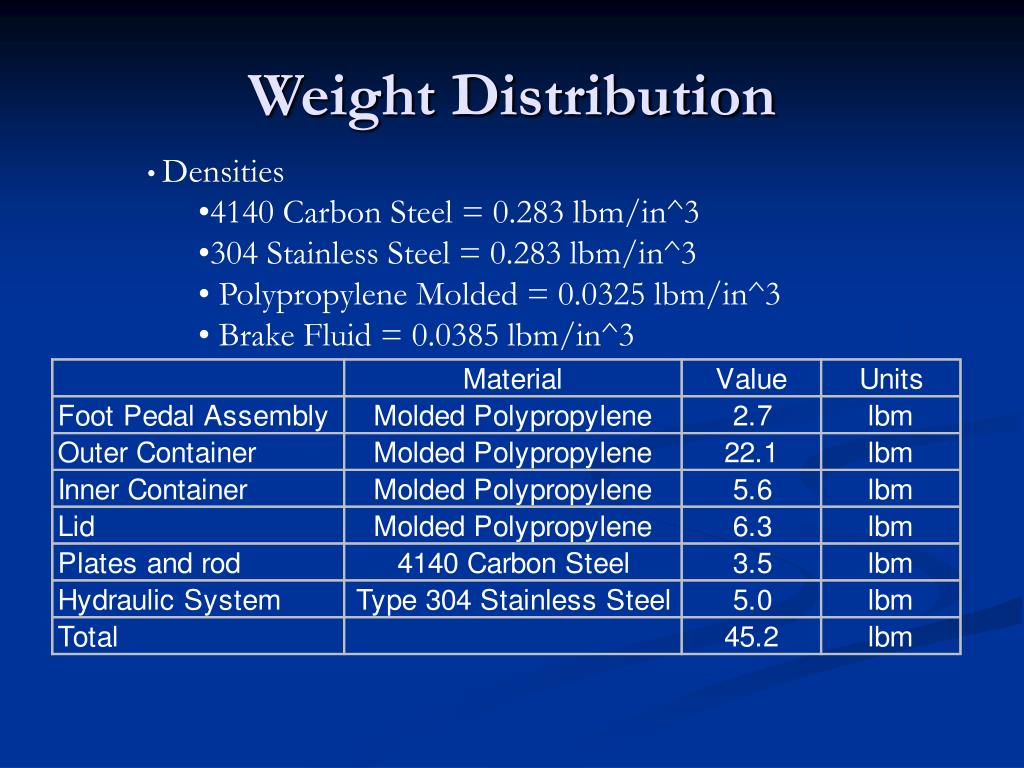

  17. Weight Distribution • Densities • 4140 Carbon Steel = 0.283 lbm/in^3 • 304 Stainless Steel = 0.283 lbm/in^3 • Polypropylene Molded = 0.0325 lbm/in^3 • Brake Fluid = 0.0385 lbm/in^3

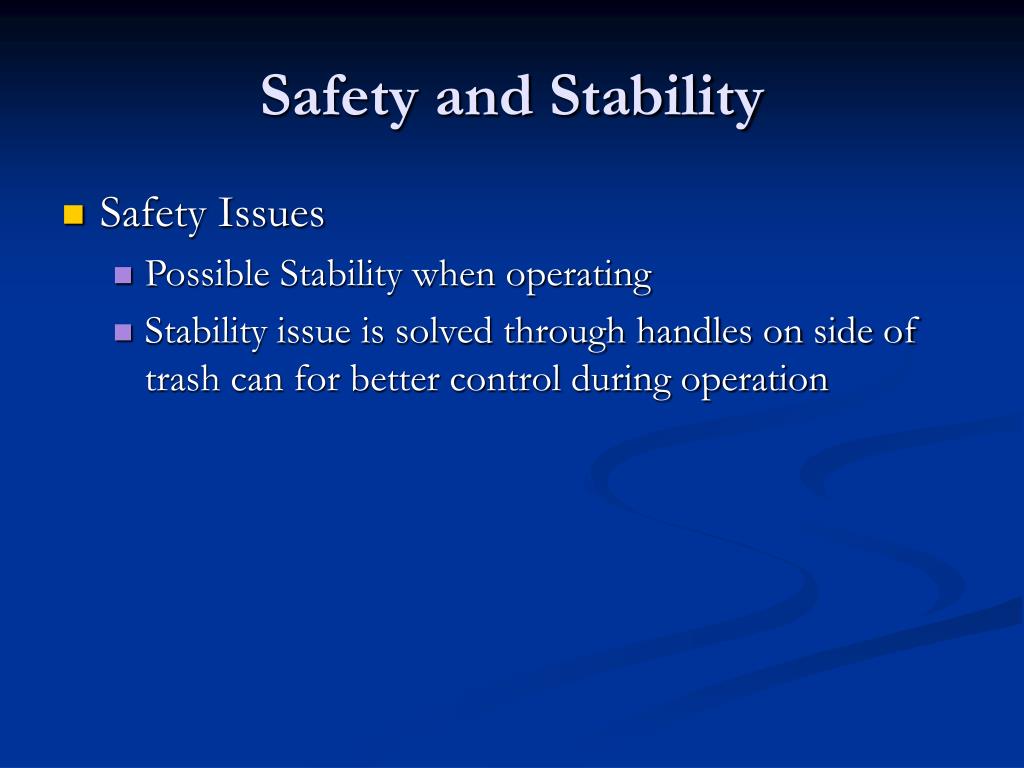

  18. Safety and Stability • Safety Issues • Possible Stability when operating • Stability issue is solved through handles on side of trash can for better control during operation

  19. Performance Analysis and Prediction • Weight = 44 lbs, within tolerable range • All components are well within stress and fatigue levels with a 2.0 SF • Initial Cost of components could be an issue, however mass produced cost would be reduced significantly • For design it is a feasible product
