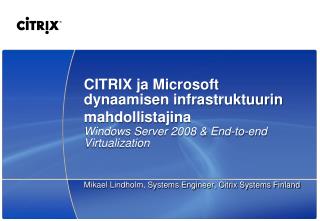

CITRIX ja Microsoft dynaamisen infrastruktuurin mahdollistajinaWindows Server 2008 & End-to-end Virtualization

Mikael Lindholm, Systems Engineer, Citrix Systems Finland

announcements on january 22 nd 2008
Announcements on January 22nd 2008
  • Citrix Virtualization Infrastructure to Support Microsoft Windows Server 2008
    • Citrix XenServer and Citrix XenDesktop to Provide Interoperability and Cross Compatibility with the Windows Platform
  • Microsoft and Citrix Expand Alliance to Deliver Virtualization Solutions from Desktops to Datacenters
    • Companies to Deliver Desktop Virtualization Solutions and Develop Interoperability between Citrix XenServer and Windows Server 2008, Microsoft System Center
slide3

Citrix Vision

Application Delivery Infrastructure

Deliver any Application

slide4

Citrix Vision

Desktopsare aservice

Apps are delivered

Datacenters are dynamic

Desktop virtualization

Application virtualization

Server virtualization

slide5

End-to-end Virtualization

Microsoft System Center

Desktop virtualization

Application virtualization

Server virtualization

Windows Server 2008, Hyper-V

…together with Microsoft

microsoft virtualization products
Microsoft Virtualization Products

A comprehensive set of virtualization products, from the data center to the desktop

Assets – both virtual and physical – are managed from a single platform

slide8

Areas of focus:

Enhanced presentation virtualization platform for partner solutions

Make it simple for new customers to adopt presentation virtualization

presentation server on windows server 2008
Presentation Server on Windows Server 2008

Citrix drives depth by enabling App Delivery

End-to-End Application Delivery

CentralizedControl

ApplicationCompatibility

Optimized UserExperience

ComprehensiveAccess

EnterpriseScalability

Security

Extensibility

Stability

Connectivity

Windows Server 2008 Terminal Services

“Presentation Virtualization Platform”

Windows Server 2008 increases the breadth of the solution

presentation server product line name change

Platinum Edition

Enterprise

Edition

Advanced

Edition

Presentation Server Product Line Name Change

Citrix Presentation Server

Citrix XenApp

Project Delaware –embrace and extendWindows Server 2008

xenapp product enhancements
XenApp Product Enhancements
  • Leverage the Terminal Server 2008 Enhancements
  • Enhanced Application Streaming
  • Preferential Load Balancing
  • New Web Interface and Monitoring Tools
  • Improved User Experience
leverage the terminal server 2008 enhancements
Leverage the Terminal Server 2008 Enhancements
  • Patch Terminal Services without rebooting and loosing sessions
  • Enhanced security of XenApp services
  • Support User Account Control (UAC)
  • Improved USB P’n’P support
streaming enhancements with xenapp for windows 2008
Streaming Enhancementswith XenApp for Windows 2008™

CLIENT-SIDE

Data Center

Application Streaming

Isolation 2.0

ApplicationHub

Application Streaming

Presentation

Virtualization

Protocol

Isolation 2.0

SERVER-SIDE

xenapp aggregate profiles
XenApp: Aggregate Profiles
  • Applications packaged separately & isolated

Aggregate

  • Aggregation allows isolated apps to communicate
  • Individual updates automatically propagate to aggregates
user application preferential load balancing xenapp for windows server 2008
User-Application Preferential Load BalancingXenApp for Windows Server 2008

Load Balancing Algorithm

Without PLB (eg: CPS 4.5). Now there is resource contention between two important sessions

Where would this session go?

With PLB. Important sessions get more “room” on a server, there is less contention.

2

2

6

6

21

Citrix Company Confidential

new application performance monitoring powered by edgesight 5 0
New Application Performance MonitoringPowered by EdgeSight 5.0
  • Improved User Interface
  • Real Time Service Level Monitoring
  • Expanded User Experience Metrics
  • Integration of Health Assistant Alerts
  • Enhanced Resource Manager
user experience enhancements
User Experience Enhancements
  • XPS printing support
  • Special folder redirection
  • ClearType font smoothing
  • IPv6 support
  • Added WAN Optimization (powered by WANScaler)

Fonts

project delaware early release program
Project Delaware Early Release Program

Pre-register at

www.citrix.com/delaware/earlyrelease

citrix virtual design studio
Citrix Virtual Design Studio
  • Deliver OpenGL design applications to enable product design anywhere, any time
  • Register for beta athttps://www.citrix.com/English/ps2/products/product.asp?contentID=1318525
two steps to a dynamic datacenter
Two Steps to a Dynamic Datacenter
  • High performance hypervisor
  • Effective provisioning
emulation virtualization
Emulation Virtualization

Legacy Hypervisor

UserApps

UserApps

Slow, expensive software emulation layer

HALT

SAFE HALT

Hardware

next generation virtualization
Next-Generation Virtualization

Paravirtualization

  • Kernel and I/O paths know they are being virtualized
  • Cooperation provides best performance

Xen

  • Hardware assisted
  • Hardware-assist allows high performance without emulation

UserApps

UserApps

HALT

Paravirtualized guests makes high-speed calls directly to the hypervisor

Other guests benefit from hardware-accelerated call translation

HALT

HYPERCALL

VT/AMD-V

Hardware

xenserver platform architecture

Xen runs on bare metal

Extremely thin; only 50K lines of code

Processor and memory access through hypervisor

Network and storage

Accessed through management domain

Uses standard Linux device drivers

OpenSource

ControlInterface

Storage

Drivers

Xen ControlInterface

Virtualized Hardware

VT/AMD-V

Hardware

XenServer Platform Architecture
xenserver architecture benefits
XenServer Architecture Benefits
  • Next Generation Hypervisor
  • Native 64-bit hypervisor with full support for 64-bit guests
  • Uses paravirtualization and hardware virtualization
  • Superb Performance
    • Linux ~ 0.5% to 3% overhead
    • Windows ~ 2 to 5% overhead
  • Leverage open source device drivers
the best platform for virtualizing xenapp optimizing xenserver for xenapp
The Best Platform for VirtualizingXenAppOptimizing XenServer for XenApp

Screenshot from Miami

Take note!

  • Create a new virtual machine using the in-built Presentation Server template

That’s It!

our microsoft partnership

Project Satori

Applications

Applications

Applications

VSC

VSP

Hypercall Adapter

Our Microsoft Partnership

Child Partitions

ParentPartition

LonghornServer

LonghornServer, Windows Server 2003

Non-hypervisor aware OS

User

Mode

Virtualization Stack

Xen Ready Linux OS:

RHEL 5, SLES 10

VM WorkerProcess

WMI Provider

VM Service

Kernel

Mode

Xen LinuxKernel

WindowsKernel

WindowsKernel

VMBus

Emulation

VMBus

VMBus

Windows Hyper-V

Linux VSC

“Designed for Windows” Server Hardware

xenserver and microsoft hyper v taking the partnership proven in the terminal services space
XenServer and Microsoft Hyper-VTaking the partnership proven in the Terminal Services space

Microsoft Hyper-V

Microsoft RDP

Windows Server

Windows Server

Citrix App Virtualization Services

Citrix Dynamic Virtualization Services

ApplicationPerformanceMonitoring

SpeedScreenProgressiveDisplay

Provisioning Server

High Availability

Single Sign-On

DRS

SmartAccess

Easyall

SmartAuditor

XenCenter

Storage Delivery Svc

Citrix XenApp

Citrix XenServer

ICA

Xen Hypervisor

fast effortless provisioning

A

Provision

Fast, Effortless Provisioning
  • Traditional "virtual" provisioning
    • Create virtual machine with XenApp workload
    • Duplicate virtual disk/virtual machine to create new virtual machines
  • XenServer improves provisioning with templates
    • Creating a virtual machine from a template is single-step
    • New virtual machines provisioned in seconds
  • XenServer Platinum Edition takes this further
    • Provisioning Server can provision virtual and physical servers
how provisioning server works

B

Silo One

C

A

Silo Two

Silo Three

How Provisioning Server Works

Provisioning Server

(streaming service)

Networkstorage

how provisioning server works1

B

C

A

How Provisioning Server Works

Silo One

Provisioning Server

(streaming service)

Silo Two

Networkstorage

Silo Three

42

how provisioning server works2

B

C

A

How Provisioning Server Works

Silo One

Provisioning Server

(streaming service)

Silo Two

Networkstorage

Silo Three

xenserver platinum
XenServer Platinum

A

XenServer Hypervisor

B

Eliminates the P2V Barrier by provisioning physical and virtual servers from the same workload image

A single virtual disk image used to provision both physical and virtual servers; no P2V conversion required

Virtualized Server

Provisioning Server (streaming service)

Network Storage

Storage and management costs are reduced and server consistency is guaranteed

Physical Server

citrix xenserver 4 1 public beta miami
Citrix XenServer 4.1 Public Beta “Miami”

Register and download atwww.citrix.com/xenserver/beta/

different virtual desktop infrastructure solutions
Different Virtual Desktop Infrastructure Solutions
  • VDI without XenDesktop
    • Single image for every desktop
    • Desktops managed individually
    • Same problems, in a new location
  • VDI with XenDesktop
    • Single OS image to store & maintain
    • Apps not installed, stored as single image, delivered on demand and maintained centrally
    • Managed Profiles

1:1

Network Storage

Network Storage

Hypervisor

Xen, Hyper-V, VM

desktop delivery vision
Desktop Delivery Vision

Profiles

Virtualized & Isolated

Profile

Apps

Windows

Apps

Dynamically

Delivered

Hardware

XenDesktop

  • Fewest possible desktop images
  • Desktop image simplicity
  • Fewer conflicts, minimized testing
  • Low-touch, self-serve re-imaging

OS

complete scenario

Controller

Complete Scenario

ThomasZ

Terminals

XenDesktop

Shared O/S

via

XenApp

Worker

High Speed Protocol (ICA)

Security & Optimization

Virtual O/S

via

XenServer

Hyper-V / VMWare

Physical O/S

via blades

PC’s

User

Datacenter

xendesktop beta
XenDesktop Beta
  • Register for beta athttp://www.citrix.com/English/ps2/products/feature.asp?contentID=1318945
slide45

End-to-end Virtualization

XenServer

XenDesktop

Desktop virtualization

Application virtualization

Server virtualization

XenApp

slide46

Compose.

Automate.

Orchestrate.

slide47
Citrix Workflow Studio

Compose. Automate. Orchestrate.

slide48

Citrix Workflow Studio Composer

Microsoft

PowerShell

APICalls

CLI

Modules

WebServices

3rd Party Plug-in

Citrix

Ready

Products

Citrix

Products

3rd Party Infrastructure

slide49

Easily Automate Administration Tasks

Automatically restart a hung application

slide50

Orchestrate Dynamic Changes of the Datacenter

Automatically change or add new servers to your farm

slide51

End-to-end Virtualization

Citrix Workflow Studio

XenServer

XenDesktop

XenApp

…transforming the Datacenter…

slide52

… into a Delivery Center

Citrix Delivery Center

slide53

Partners in Virtualization

  • Datacenter to Desktop
