  1. Pluggable Architecture for Java HPC Messaging Mark Baker, Bryan Carpenter*, Aamir Shafi Distributed Systems Group University of Portsmouth http://dsg.port.ac.uk * OMII, Southampton

  2. Presentation Outline • Introduction, • Design and Implementation of MPJ, • Preliminary Performance Evaluation, • Conclusion.

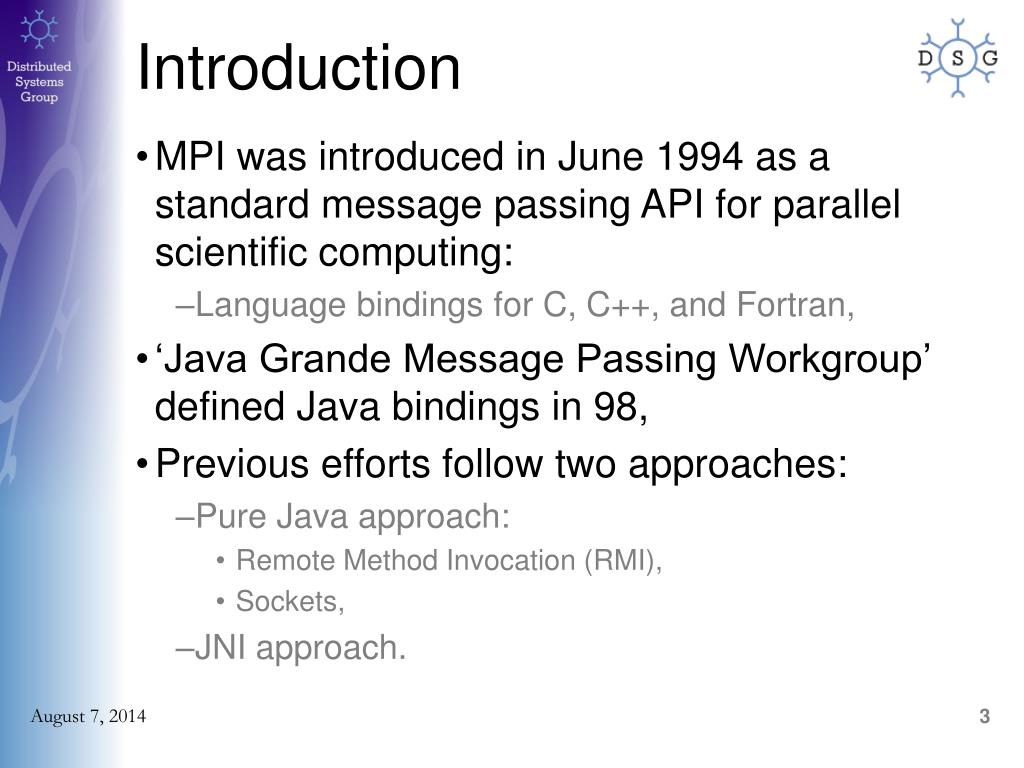

  3. Introduction • MPI was introduced in June 1994 as a standard message passing API for parallel scientific computing: • Language bindings for C, C++, and Fortran, • ‘Java Grande Message Passing Workgroup’ defined Java bindings in 98, • Previous efforts follow two approaches: • Pure Java approach: • Remote Method Invocation (RMI), • Sockets, • JNI approach.

  4. Pure Java Approach • RMI: • Meant for client server applications, • Java Sockets: • Java New I/O package: • Adds non-blocking I/O to the Java language, • Direct Buffers: • Allocated in the native OS memory and the JVM attempts to provide faster I/O, • Communication performance: • Comparison of Java NIO and C Netpipe (a Ping-Pong benchmark) drivers, • Java performance similar to C on Fast Ethernet: • A naïve comparison. • Latency: • ~125 microseconds, • Throughput: • ~90 Mbps.

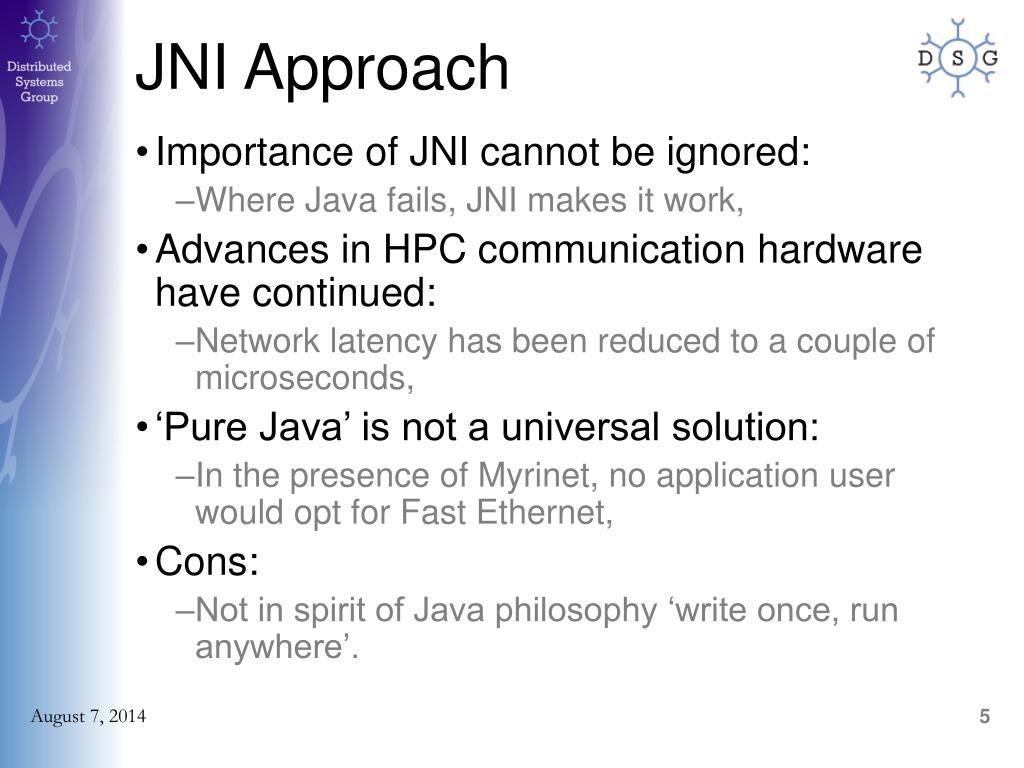

  5. JNI Approach • Importance of JNI cannot be ignored: • Where Java fails, JNI makes it work, • Advances in HPC communication hardware have continued: • Network latency has been reduced to a couple of microseconds, • ‘Pure Java’ is not a universal solution: • In the presence of Myrinet, no application user would opt for Fast Ethernet, • Cons: • Not in spirit of Java philosophy ‘write once, run anywhere’.

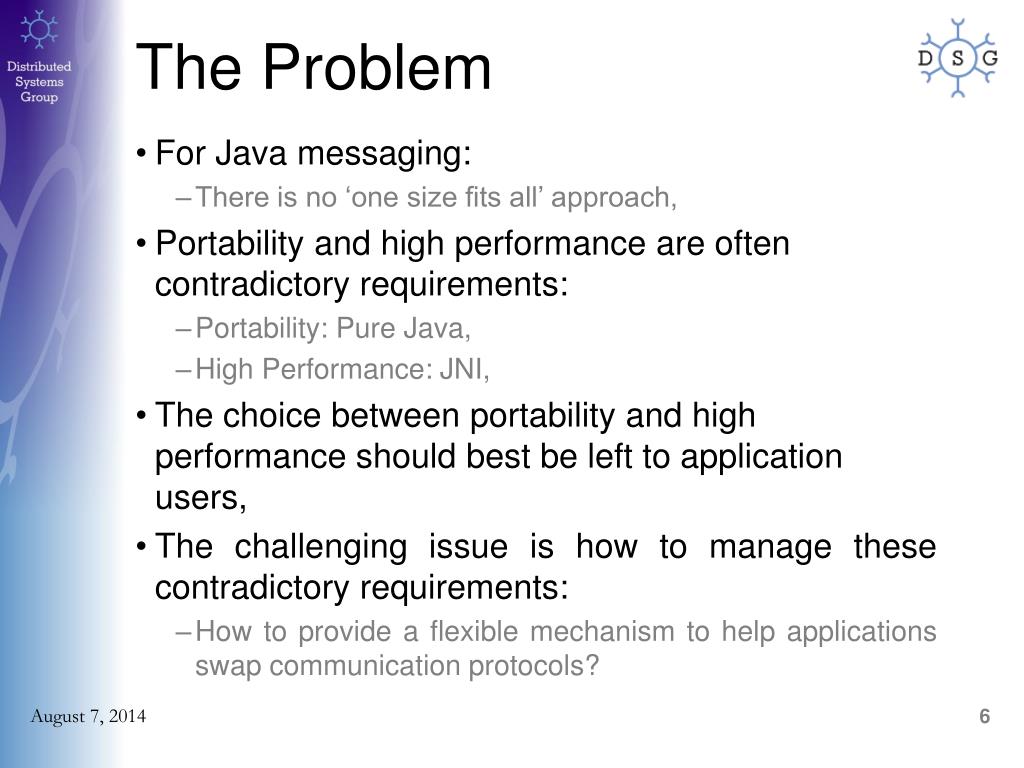

  6. The Problem • For Java messaging: • There is no ‘one size fits all’ approach, • Portability and high performance are often contradictory requirements: • Portability: Pure Java, • High Performance: JNI, • The choice between portability and high performance should best be left to application users, • The challenging issue is how to manage these contradictory requirements: • How to provide a flexible mechanism to help applications swap communication protocols?

  7. Presentation Outline • Introduction • Design and Implementation • Preliminary Performance Evaluation • Conclusion

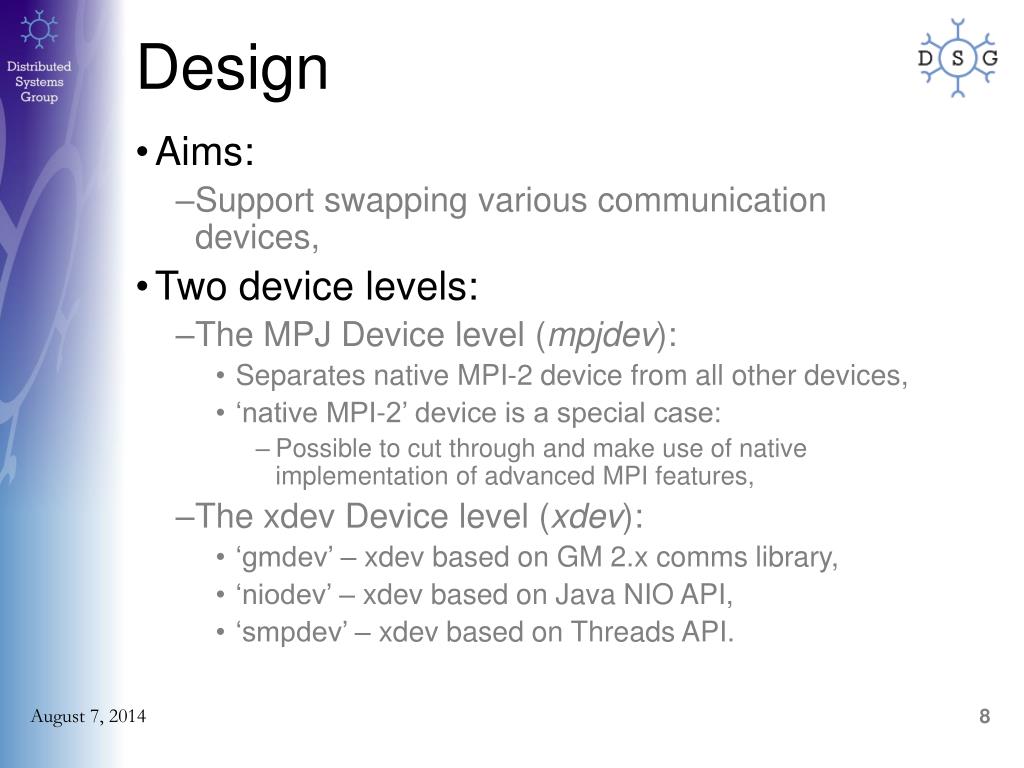

  8. Design • Aims: • Support swapping various communication devices, • Two device levels: • The MPJ Device level (mpjdev): • Separates native MPI-2 device from all other devices, • ‘native MPI-2’ device is a special case: • Possible to cut through and make use of native implementation of advanced MPI features, • The xdev Device level (xdev): • ‘gmdev’ – xdev based on GM 2.x comms library, • ‘niodev’ – xdev based on Java NIO API, • ‘smpdev’ – xdev based on Threads API.

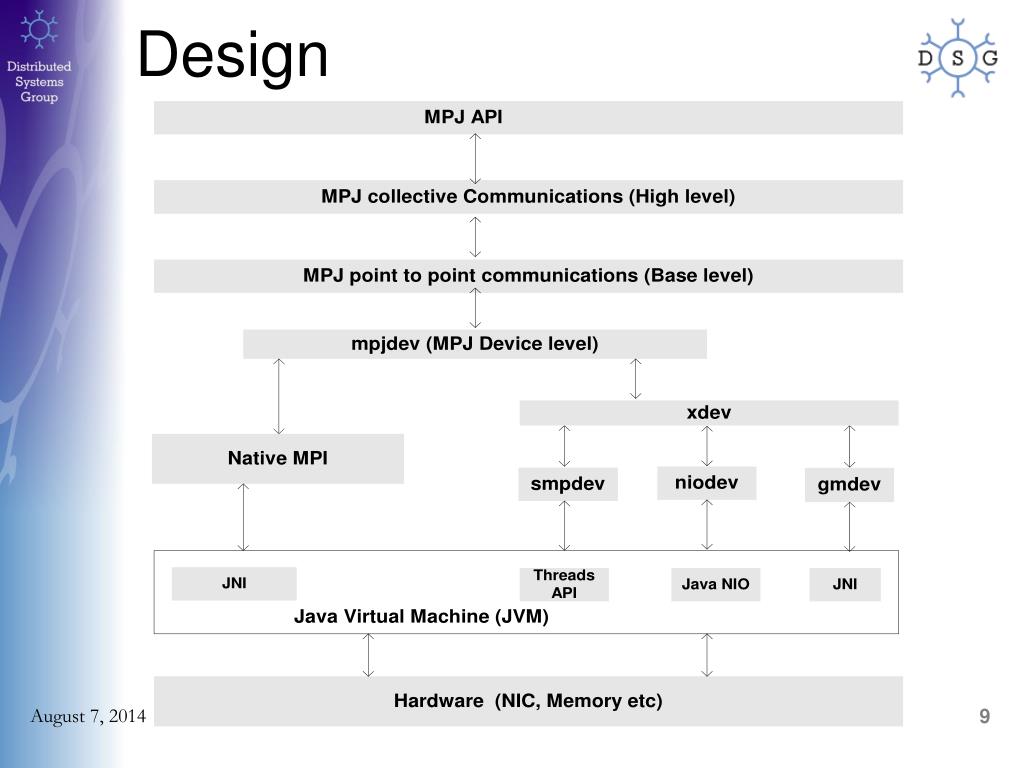

  9. Design

  10. Implementation • MPJ complies with functionality of MPI-1.2: • Point to point communications, • Collective communications, • Groups, communicators, and contexts, • Derived datatypes: • Buffering API, • Runtime infrastructure: • Allows bootstrapping MPJ processes, • MPJ Daemon could be installed as services, • Communication protocols: • Java NIO device, • GM 2.x.x device (Myrinet), • Shared memory device (using Threads API), • Native MPI-2 device.

  11. Presentation Outline • Introduction • Design and Implementation • Preliminary Performance Evaluation • Conclusion

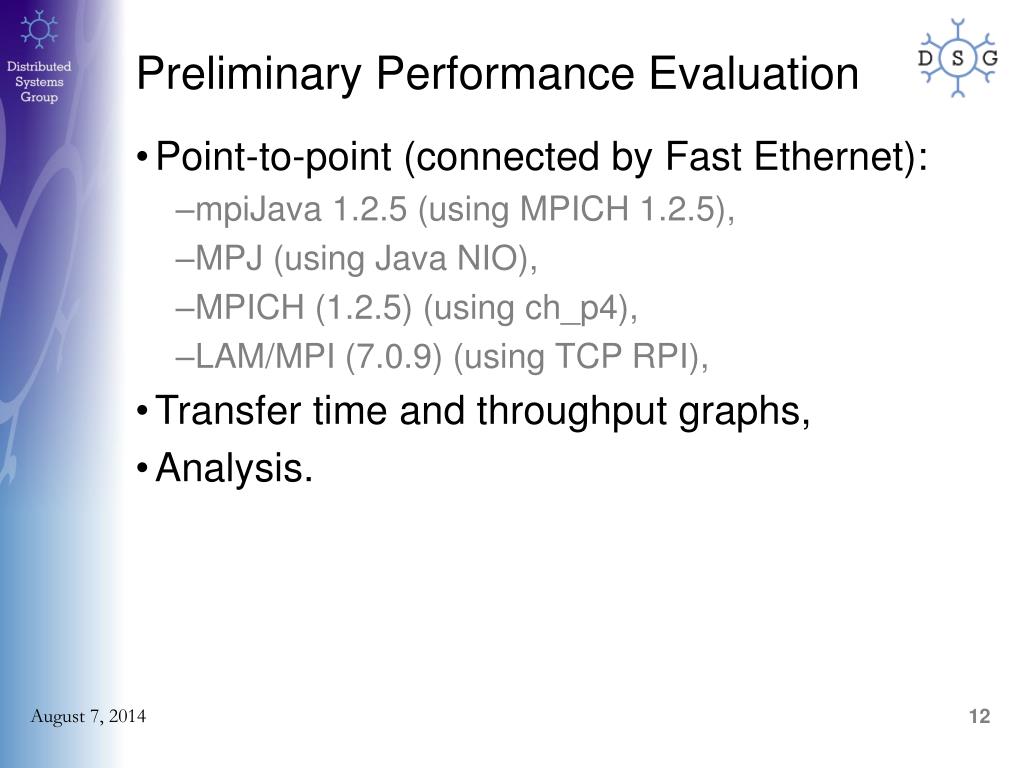

  12. Preliminary Performance Evaluation • Point-to-point (connected by Fast Ethernet): • mpiJava 1.2.5 (using MPICH 1.2.5), • MPJ (using Java NIO), • MPICH (1.2.5) (using ch_p4), • LAM/MPI (7.0.9) (using TCP RPI), • Transfer time and throughput graphs, • Analysis.

  13. Transfer Time Comparison MPJ: ~250 microseconds (latency) mpiJava, LAM/MPI, MPICH: ~125 microseconds (latency)

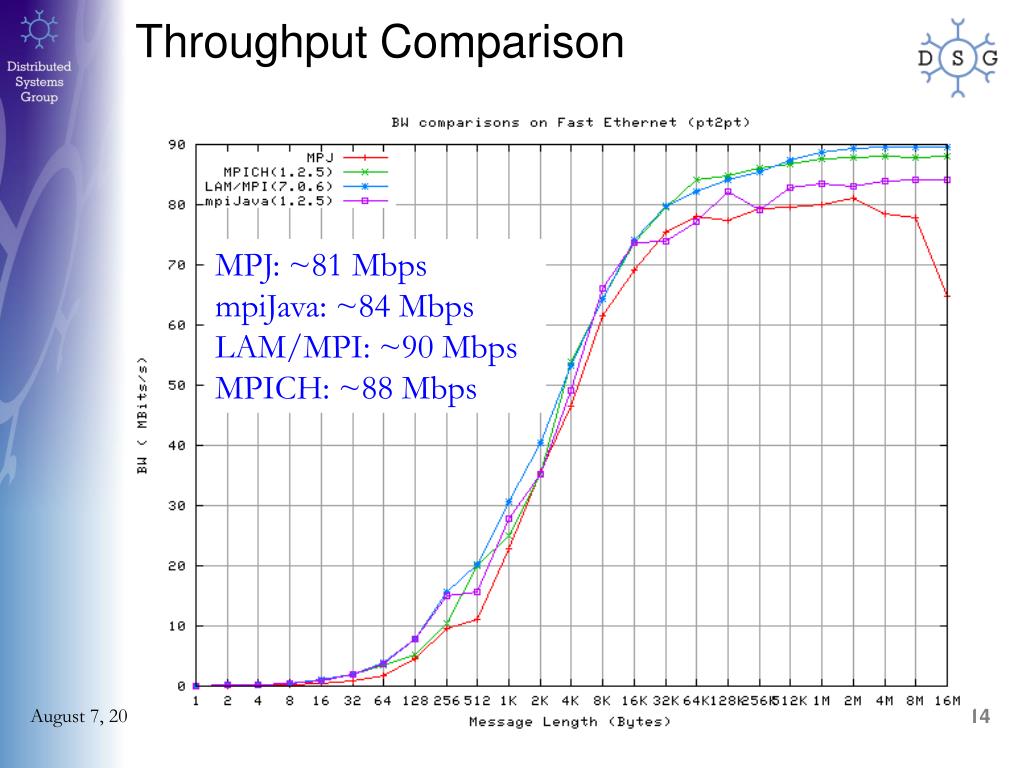

  14. Throughput Comparison MPJ: ~81 Mbps mpiJava: ~84 Mbps LAM/MPI: ~90 Mbps MPICH: ~88 Mbps

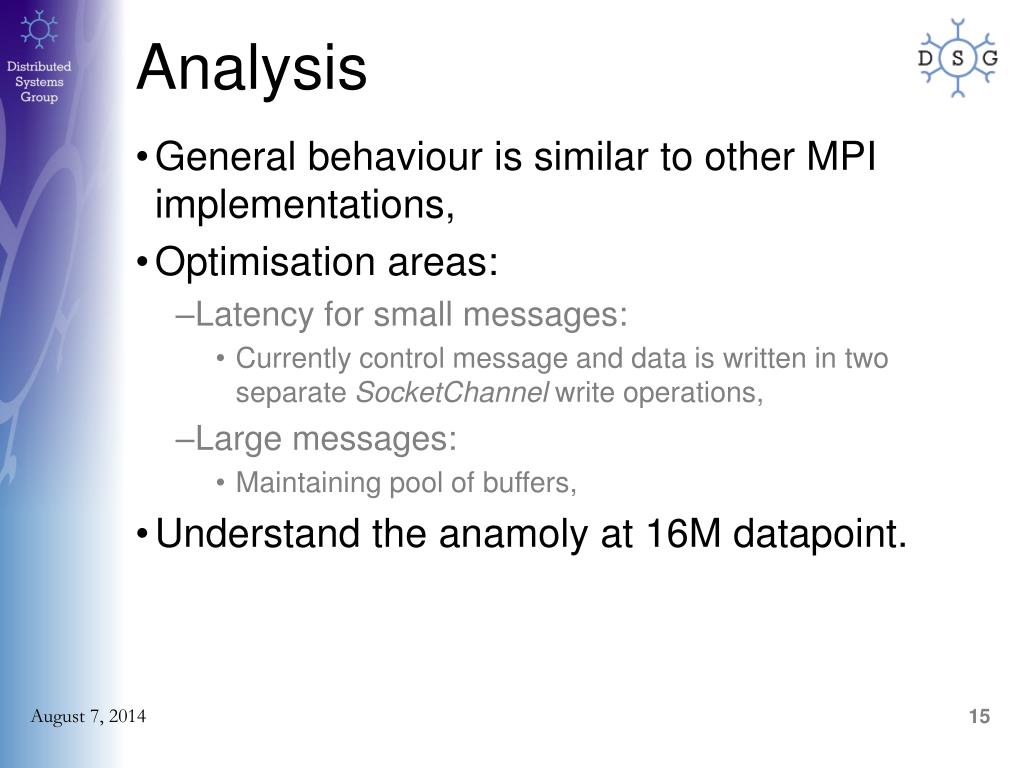

  15. Analysis • General behaviour is similar to other MPI implementations, • Optimisation areas: • Latency for small messages: • Currently control message and data is written in two separate SocketChannel write operations, • Large messages: • Maintaining pool of buffers, • Understand the anamoly at 16M datapoint.

  16. Presentation Outline • Introduction • Design and Implementation • Preliminary Performance Evaluation • Conclusion

  17. Summary • The key issue for Java messaging is not debating pure Java or JNI approach: • But, providing a flexible mechanism to swap various comm protocols, • MPJ has a pluggable architecture: • We are implementing ‘niodev’, ‘gmdev’, ‘smpdev’, and native MPI-2 device, • MPJ runtime infrastructure allows bootstrapping MPI processes across various platforms.

  18. Conclusions • MPJ is the second generation ‘MPI for Java’ • Current Status: • Unit testing, • Optimization, • Initial version of MPJ follows the same API as mpiJava (and is intended to supersede mpiJava): • The parallel applications built on top of mpiJava will work with MPJ, • There are some minor omissions: • Bsend, and explicit packing/unpacking -- see release docs for more details, • Arguably, the first “full” MPI library for Java providing a pure Java implementation.

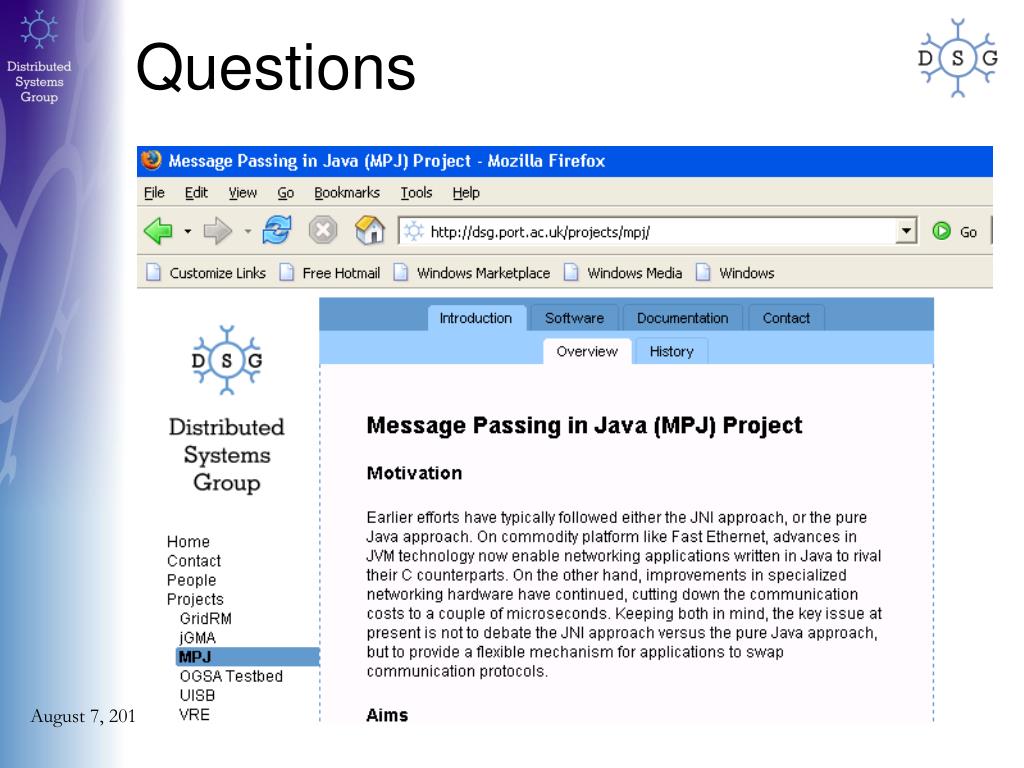

  19. Questions
