Presentation Transcript
lab session 6

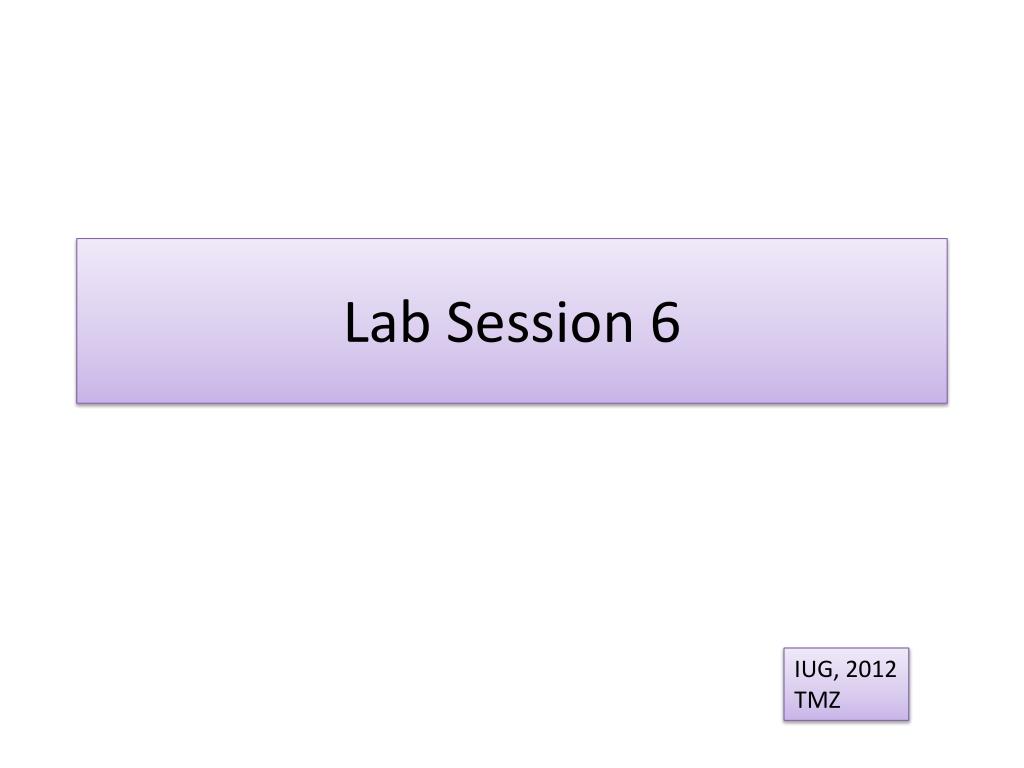

Lab Session 6

IUG, 2012


1 photosynthetic organisms

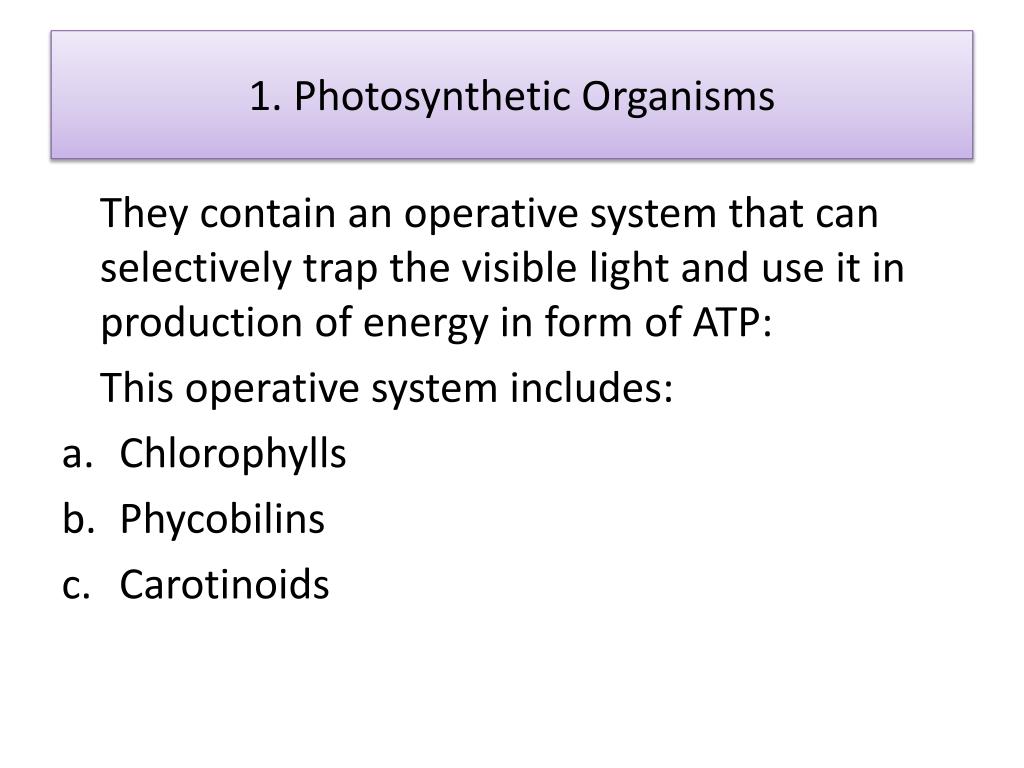

1. Photosynthetic Organisms

They contain an operative system that can selectively trap the visible light and use it in production of energy in form of ATP:

This operative system includes:

  • Chlorophylls
  • Phycobilins
  • Carotinoids
2 animal and plant cells
2. Animal and plant cells
  • In mitochondria of animal and plant cells , the energy is produced in a similar system (respiratory chain), where there are specific enzymes responsible for the production of energy
in plants
In plants…

A number of high actively enzymes called oxidases is observed:

  • Peroxidases
  • Polyphenoloxidases
  • Such enzymes are involved in oxidation of secondary metabolites
color reactions for plant pigments a extraction of pigments from nettle leaves
Color reactions for plant pigments A. extraction of pigments from nettle leaves


Pigments such as chlorophyll and others have the property to dissolve in hot ethanol

  • Reacting with ethanol, chlorophyll is converted to ethylchlorophyllide (an ester in which the phytol is replaced by the ethanol)
b separation of pigments according to kraus

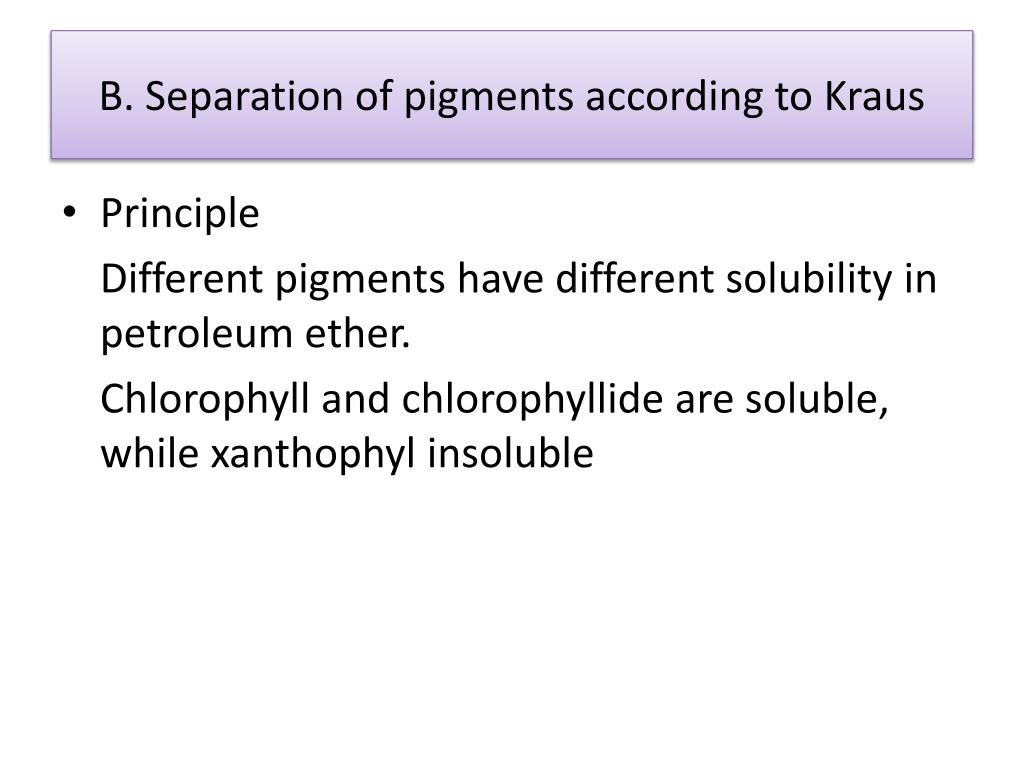

B. Separation of pigments according to Kraus
  • Principle

Different pigments have different solubility in petroleum ether.

Chlorophyll and chlorophyllide are soluble, while xanthophyl insoluble

c precipitation of chlorophyll

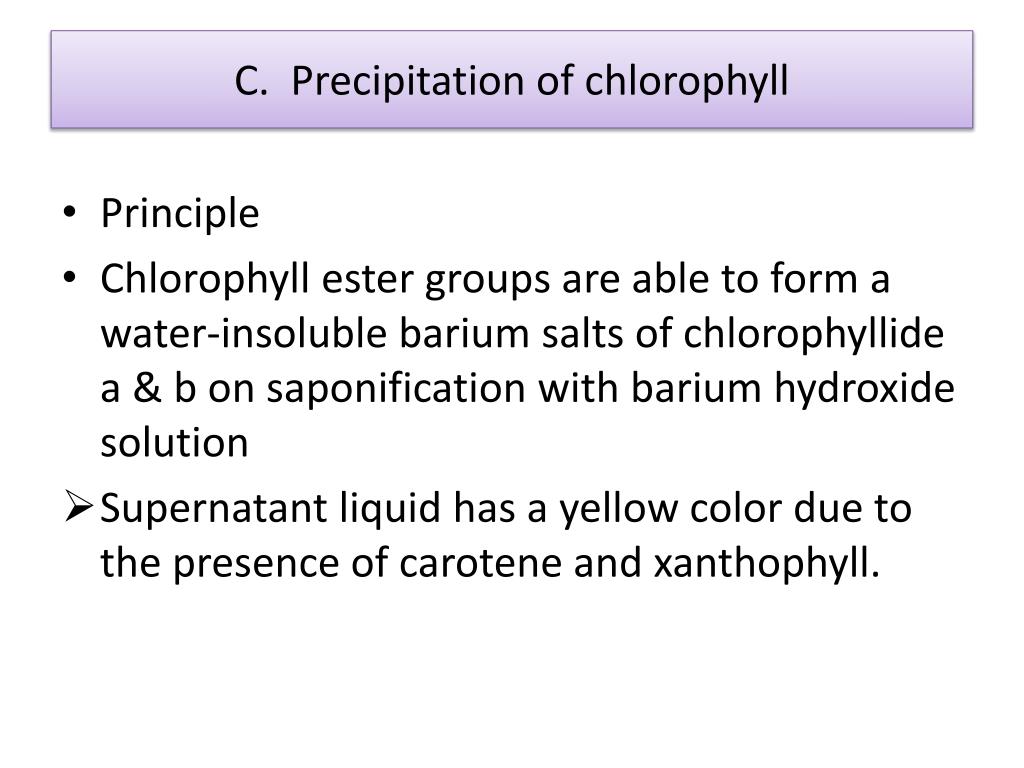

C. Precipitation of chlorophyll
  • Principle
  • Chlorophyll ester groups are able to form a water-insoluble barium salts of chlorophyllide a & b on saponification with barium hydroxide solution
  • Supernatant liquid has a yellow color due to the presence of carotene and xanthophyll.
d reduction of chlorophyll with ascorbic acid
D. Reduction of chlorophyll with ascorbic acid
  • Principle

Ascorbic acid can reduce chlorophyll that forms a yellow color in a reduced form state.

e formation of pheophytin from chlorophyll

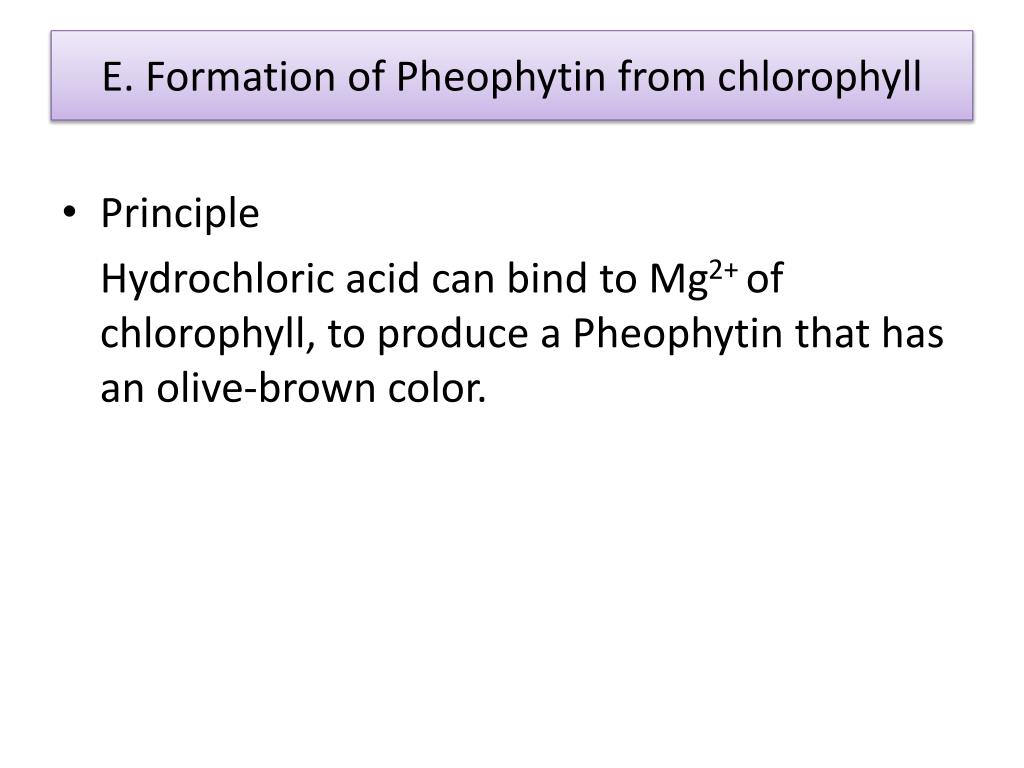

E. Formation of Pheophytin from chlorophyll
  • Principle

Hydrochloric acid can bind to Mg2+ of chlorophyll, to produce a Pheophytin that has an olive-brown color.
