what is ica

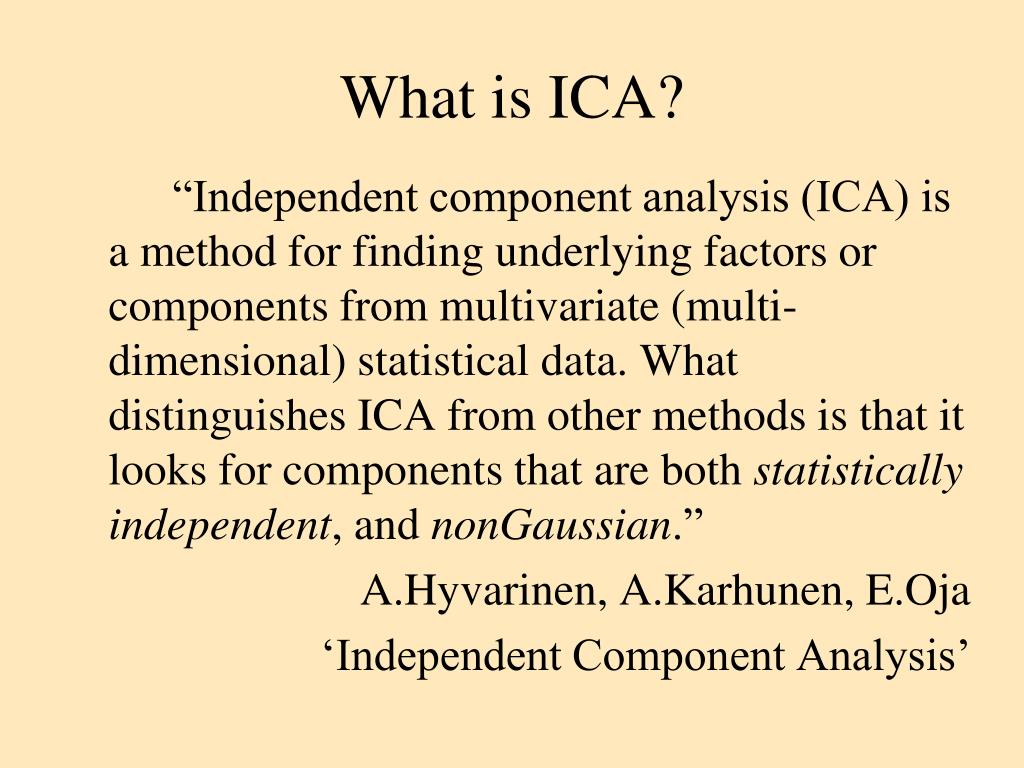

What is ICA?

“Independent component analysis (ICA) is a method for finding underlying factors or components from multivariate (multi-dimensional) statistical data. What distinguishes ICA from other methods is that it looks for components that are both statistically independent, and nonGaussian.”

A.Hyvarinen, A.Karhunen, E.Oja

‘Independent Component Analysis’

slide3
ICA

Blind Signal Separation (BSS) or Independent Component Analysis (ICA) is the identification & separation of mixtures of sources with little prior information.

  • Applications include:
    • Audio Processing
    • Medical data
    • Finance
    • Array processing (beamforming)
    • Coding
  • … and most applications where Factor Analysis and PCA is currently used.
  • While PCA seeks directions that represents data best in a Σ|x0 - x|2 sense, ICA seeks such directions that are most independent from each other.

Often used on Time Series separation of Multiple Targets

ica estimation principles by a hyvarinen a karhunen e oja independent component analysis

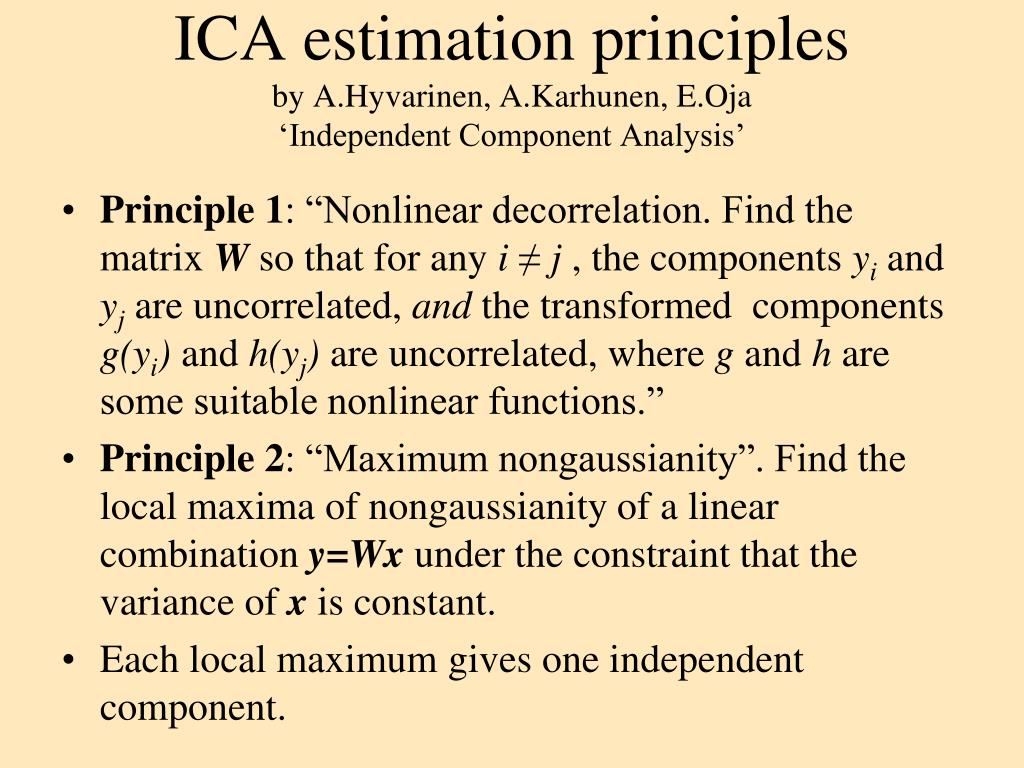

ICA estimation principles by A.Hyvarinen, A.Karhunen, E.Oja ‘Independent Component Analysis’
  • Principle 1: “Nonlinear decorrelation. Find the matrix W so that for any i ≠ j , the components yiand yjare uncorrelated, and the transformed components g(yi) and h(yj) are uncorrelated, where g and h are some suitable nonlinear functions.”
  • Principle 2: “Maximum nongaussianity”. Find the local maxima of nongaussianity of a linear combination y=Wxunder the constraint that the variance of x is constant.
  • Each local maximum gives one independent component.
ica mathematical approach from a hyvarinen a karhunen e oja independent component analysis

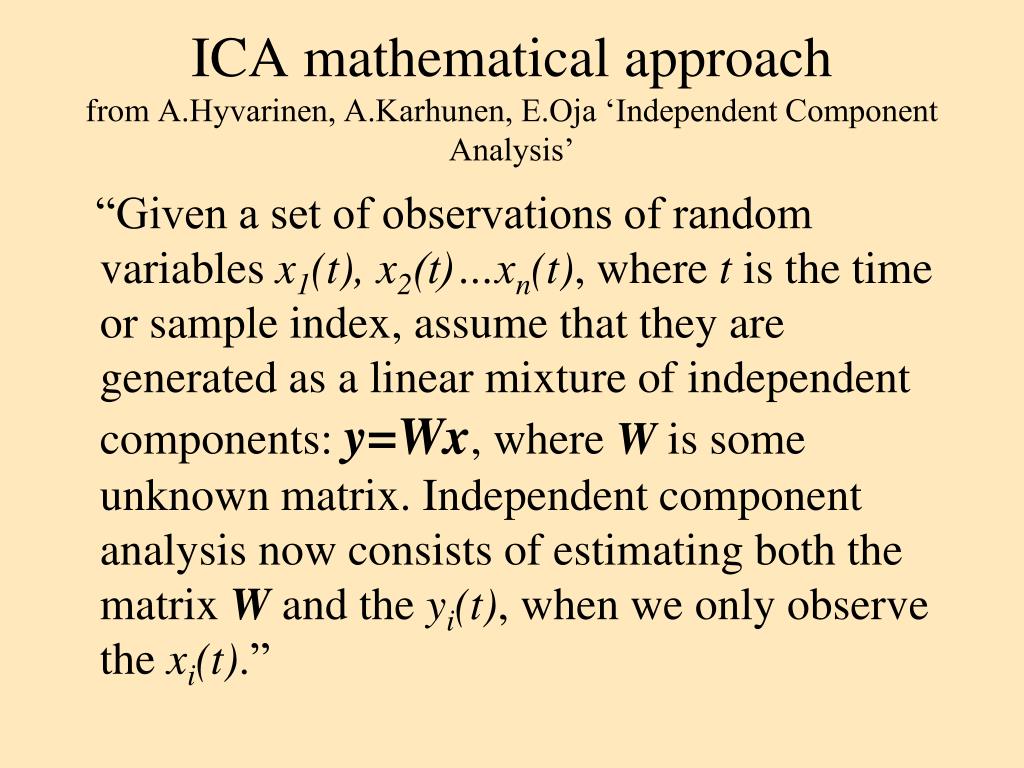

ICA mathematical approach from A.Hyvarinen, A.Karhunen, E.Oja ‘Independent Component Analysis’

“Given a set of observations of random variables x1(t), x2(t)…xn(t), where t is the time or sample index, assume that they are generated as a linear mixture of independent components: y=Wx, where W is some unknown matrix. Independent component analysis now consists of estimating both the matrix W and the yi(t), when we only observe the xi(t).”

slide6

The simple “Cocktail Party” Problem

Mixing matrix A

x1

s1

Observations

Sources

x2

s2

x = As

n sources, m=n observations

classical ica fast ica estimation

0.10

0.05

0.00

V4

-0.05

-0.10

0

50

100

150

200

250

Classical ICA (fast ICA) estimation

Observing signals

Original source signal

ICA

motivation
Motivation

Two Independent Sources

Mixture at two Mics

aIJ ... Depend on the distances of the microphones from the speakers

motivation9

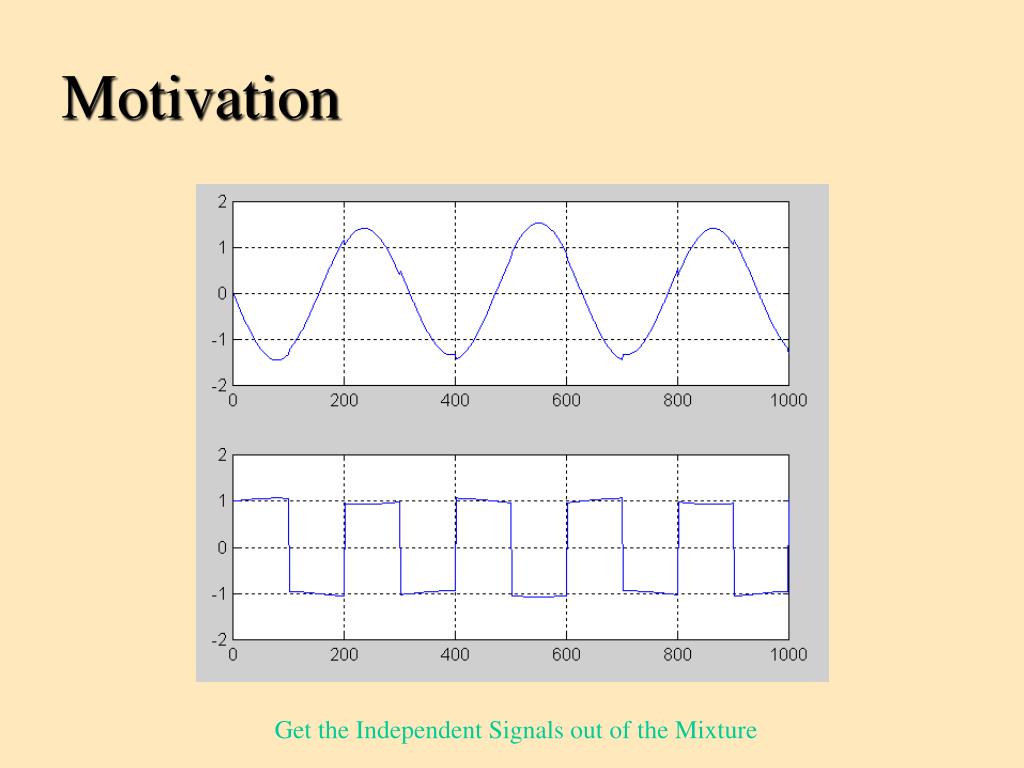

Motivation

Get the Independent Signals out of the Mixture

ica model noise free
ICA Model (Noise Free)
  • Use statistical “latent variables“ system
  • Random variable sk instead of time signal
  • xj = aj1s1 + aj2s2 + .. + ajnsn, for all j

x = As

  • IC‘s s are latent variables & are unknown AND Mixing matrix A is also unknown
  • Task: estimate A and s using only the observeable random vector x
  • Lets assume that no. of IC‘s = no of observable mixtures

and A is square and invertible

  • So after estimating A, we can compute W=A-1 and hence

s = Wx = A-1x

illustration

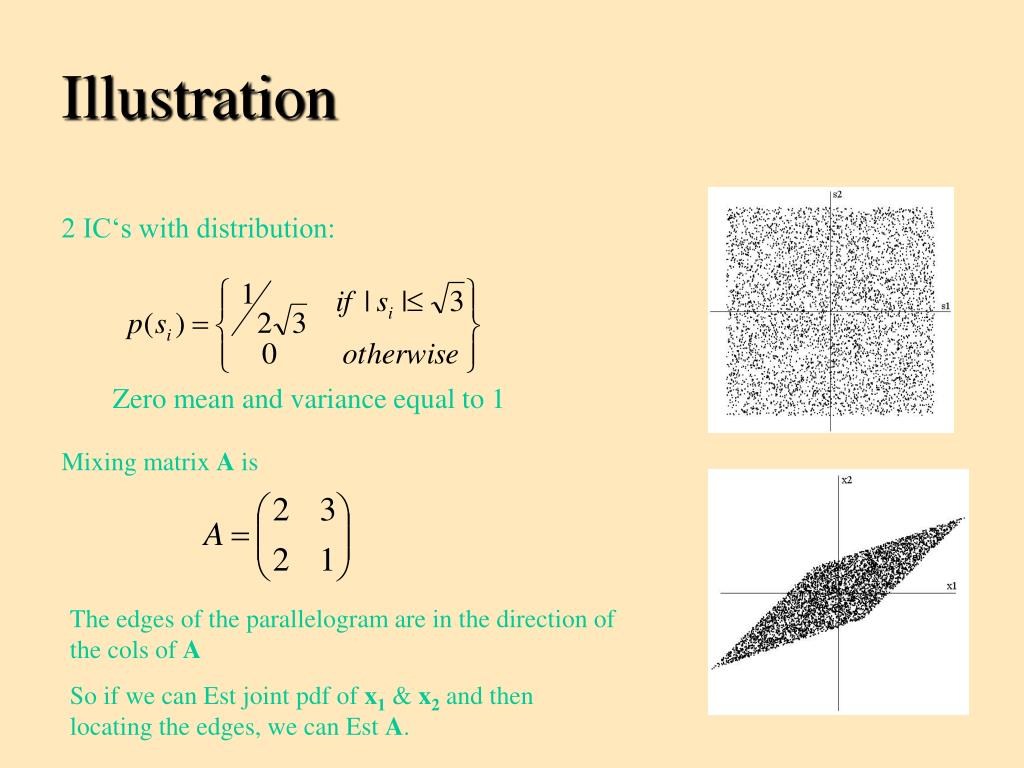

Illustration
  • 2 IC‘s with distribution:
    • Zero mean and variance equal to 1
  • Mixing matrix A is

The edges of the parallelogram are in the direction of the cols of A

So if we can Est joint pdf of x1 & x2 and then locating the edges, we can Est A.

restrictions

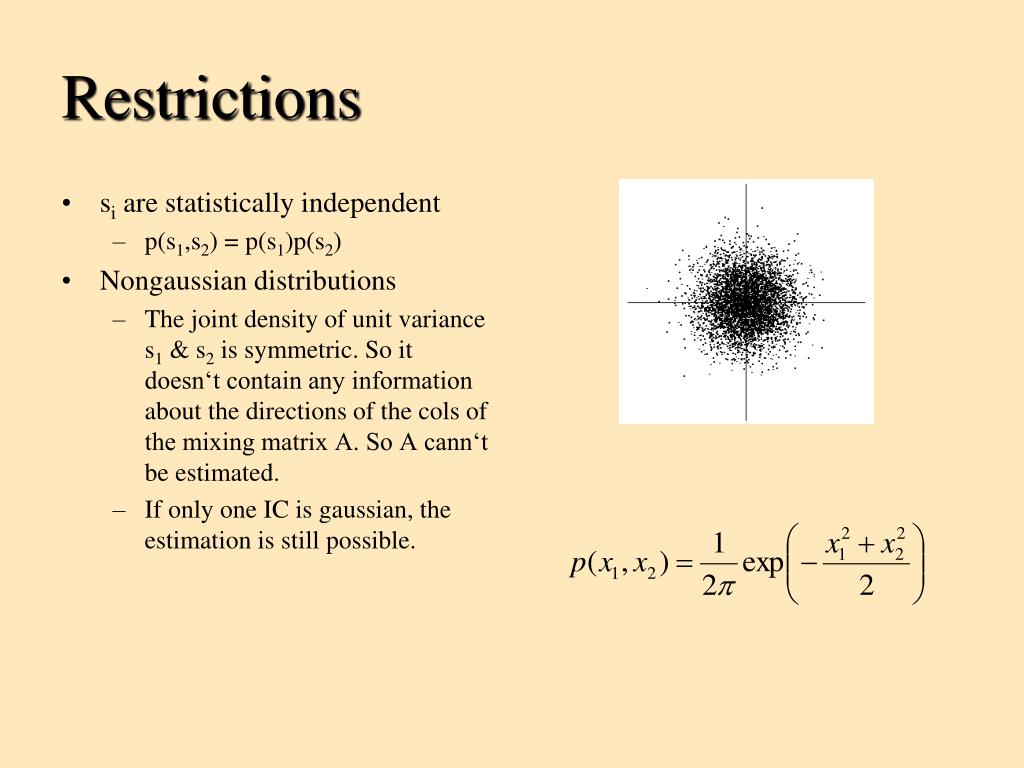

Restrictions
  • si are statistically independent
    • p(s1,s2) = p(s1)p(s2)
  • Nongaussian distributions
    • The joint density of unit variance s1 & s2 is symmetric. So it doesn‘t contain any information about the directions of the cols of the mixing matrix A. So A cann‘t be estimated.
    • If only one IC is gaussian, the estimation is still possible.
ambiguities

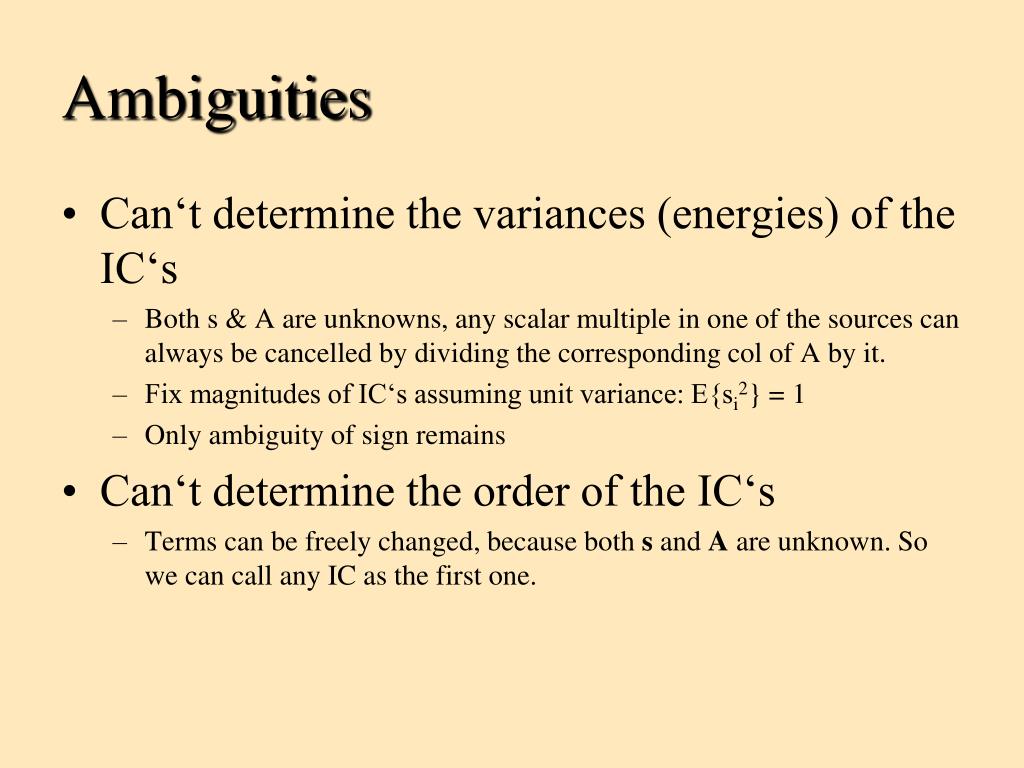

Ambiguities
  • Can‘t determine the variances (energies) of the IC‘s
    • Both s & A are unknowns, any scalar multiple in one of the sources can always be cancelled by dividing the corresponding col of A by it.
    • Fix magnitudes of IC‘s assuming unit variance: E{si2} = 1
    • Only ambiguity of sign remains
  • Can‘t determine the order of the IC‘s
    • Terms can be freely changed, because both s and A are unknown. So we can call any IC as the first one.
ica principal non gaussian is independent
ICA Principal (Non-Gaussian is Independent)
  • Key to estimating A is non-gaussianity
  • The distribution of a sum of independent random variables tends toward a Gaussian distribution. (By CLT)

f(s1) f(s2) f(x1) = f(s1 +s2)

  • Where w is one of the rows of matrix W.
  • y is a linear combination of si, with weights given by zi.
  • Since sum of two indep r.v. is more gaussian than individual r.v., so zTs is more gaussian than either of si. AND becomes least gaussian when its equal to one of si.
  • So we could take w as a vector which maximizes the non-gaussianity of wTx.
  • Such a w would correspond to a z with only one non zero comp. So we get back the si.
measures of non gaussianity
Measures of Non-Gaussianity
  • We need to have a quantitative measure of non-gaussianity for ICA Estimation.
  • Kurtotis : gauss=0 (sensitive to outliers)
  • Entropy : gauss=largest
  • Neg-entropy : gauss = 0 (difficult to estimate)
  • Approximations
  • where v is a standard gaussian random variable and :
data centering whitening

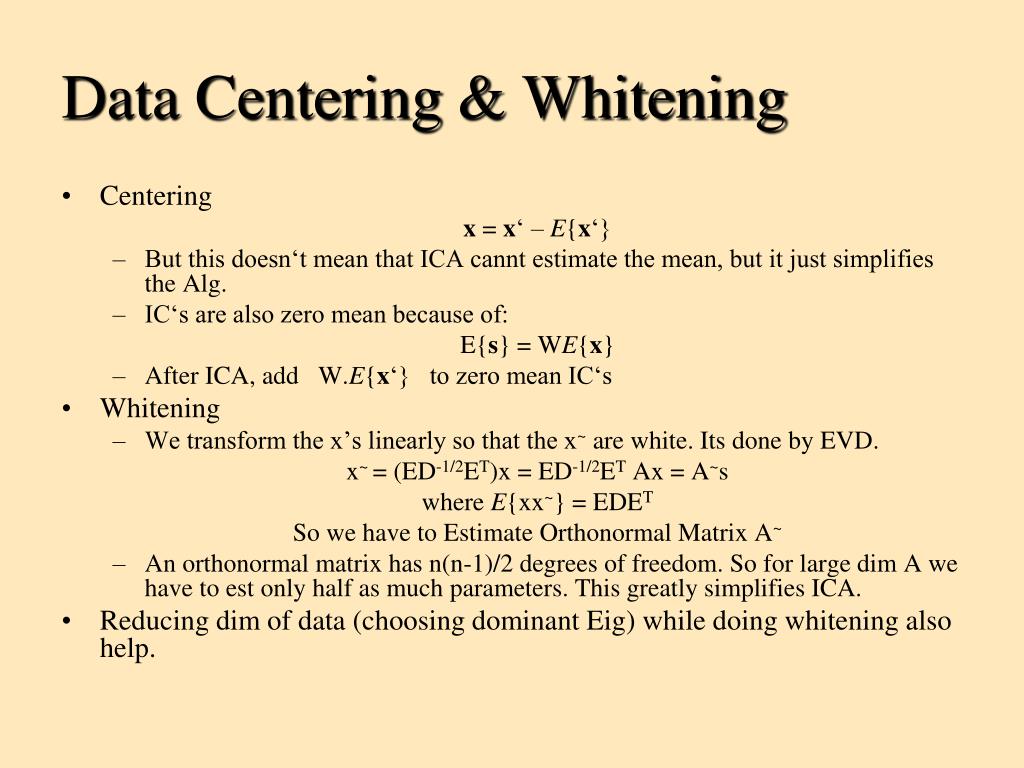

Data Centering & Whitening
  • Centering

x = x‘ – E{x‘}

    • But this doesn‘t mean that ICA cannt estimate the mean, but it just simplifies the Alg.
    • IC‘s are also zero mean because of:

E{s} = WE{x}

    • After ICA, add W.E{x‘} to zero mean IC‘s
  • Whitening
    • We transform the x’s linearly so that the x~ are white. Its done by EVD.

x~ = (ED-1/2ET)x = ED-1/2ET Ax = A~s

where E{xx~} = EDET

So we have to Estimate Orthonormal Matrix A~

    • An orthonormal matrix has n(n-1)/2 degrees of freedom. So for large dim A we have to est only half as much parameters. This greatly simplifies ICA.
  • Reducing dim of data (choosing dominant Eig) while doing whitening also help.
computing the pre processing steps for ica

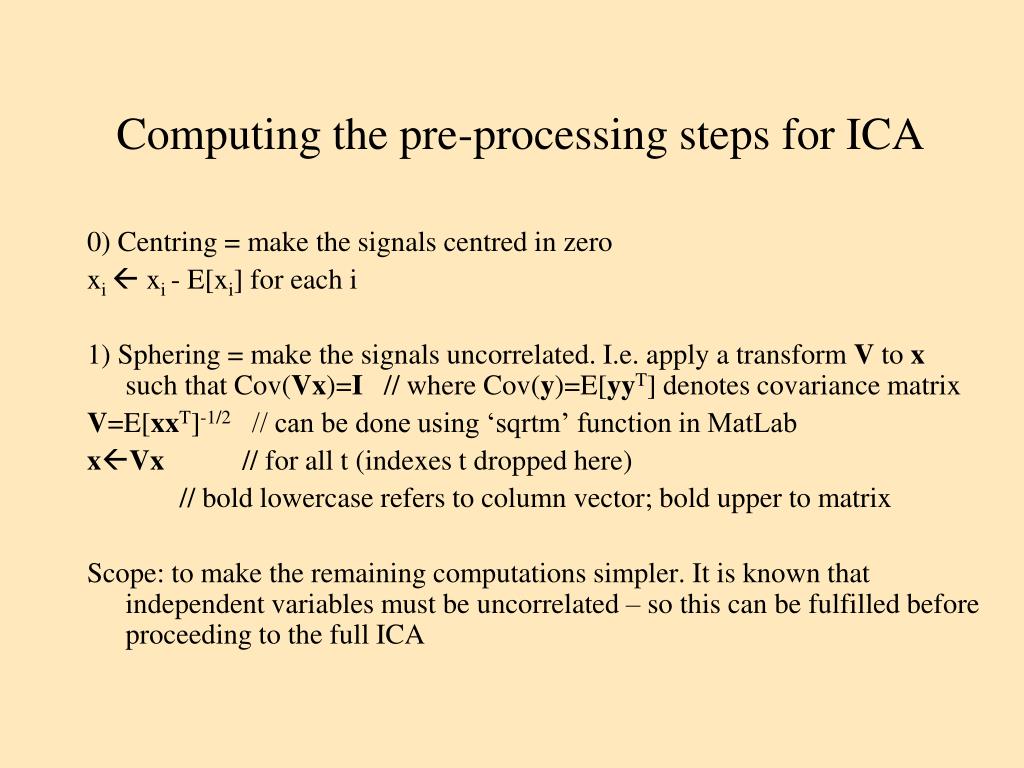

Computing the pre-processing steps for ICA

0) Centring = make the signals centred in zero

xi  xi - E[xi] for each i

1) Sphering = make the signals uncorrelated. I.e. apply a transform V to x such that Cov(Vx)=I // where Cov(y)=E[yyT] denotes covariance matrix

V=E[xxT]-1/2 // can be done using ‘sqrtm’ function in MatLab

xVx // for all t (indexes t dropped here)

// bold lowercase refers to column vector; bold upper to matrix

Scope: to make the remaining computations simpler. It is known that independent variables must be uncorrelated – so this can be fulfilled before proceeding to the full ICA

computing the rotation step

Aapo Hyvarinen (97)

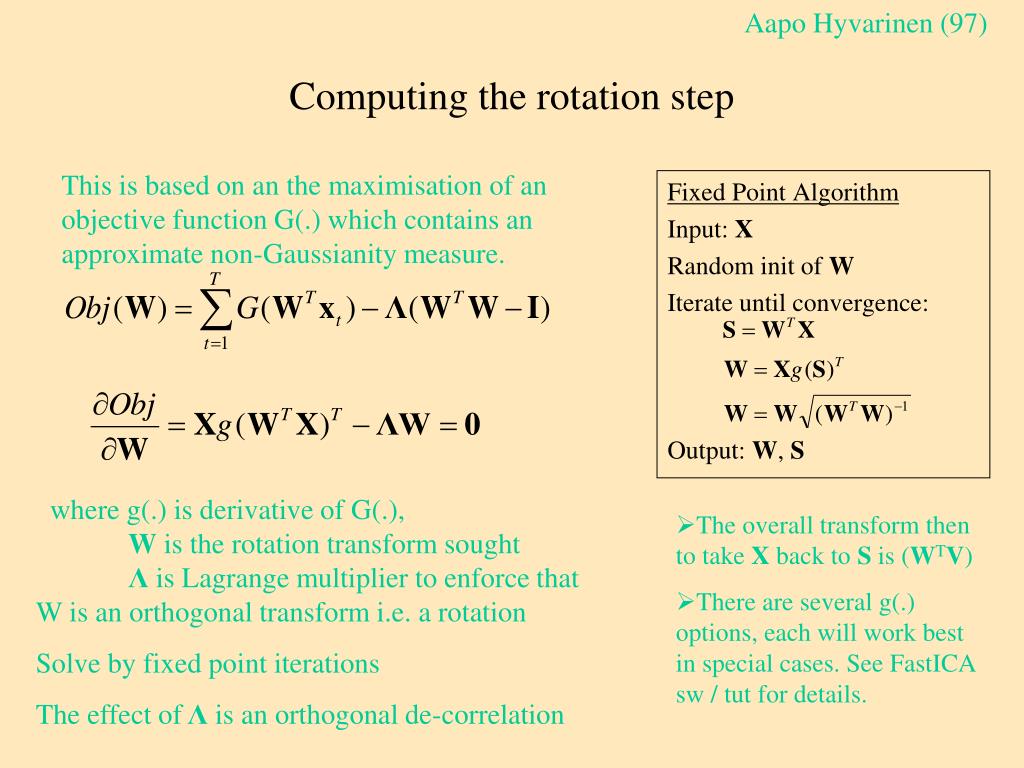

Computing the rotation step

This is based on an the maximisation of an objective function G(.) which contains an approximate non-Gaussianity measure.

Fixed Point Algorithm

Input: X

Random init of W

Iterate until convergence:

Output: W, S

where g(.) is derivative of G(.), W is the rotation transform soughtΛis Lagrange multiplier to enforce that W is an orthogonal transform i.e. a rotation

Solve by fixed point iterations

The effect ofΛ is an orthogonal de-correlation

  • The overall transform then to take X back to S is (WTV)
  • There are several g(.) options, each will work best in special cases. See FastICA sw / tut for details.
application domains of ica
Application domains of ICA

Blind source separation (Bell&Sejnowski, Te won Lee, Girolami, Hyvarinen, etc.)

Image denoising (Hyvarinen)

Medical signal processing – fMRI, ECG, EEG (Mackeig)

Modelling of the hippocampus and visual cortex (Lorincz, Hyvarinen)

Feature extraction, face recognition (Marni Bartlett)

Compression, redundancy reduction

Watermarking (D Lowe)

Clustering (Girolami, Kolenda)

Time series analysis (Back, Valpola)

Topic extraction (Kolenda, Bingham, Kaban)

Scientific Data Mining (Kaban, etc)

image denoising

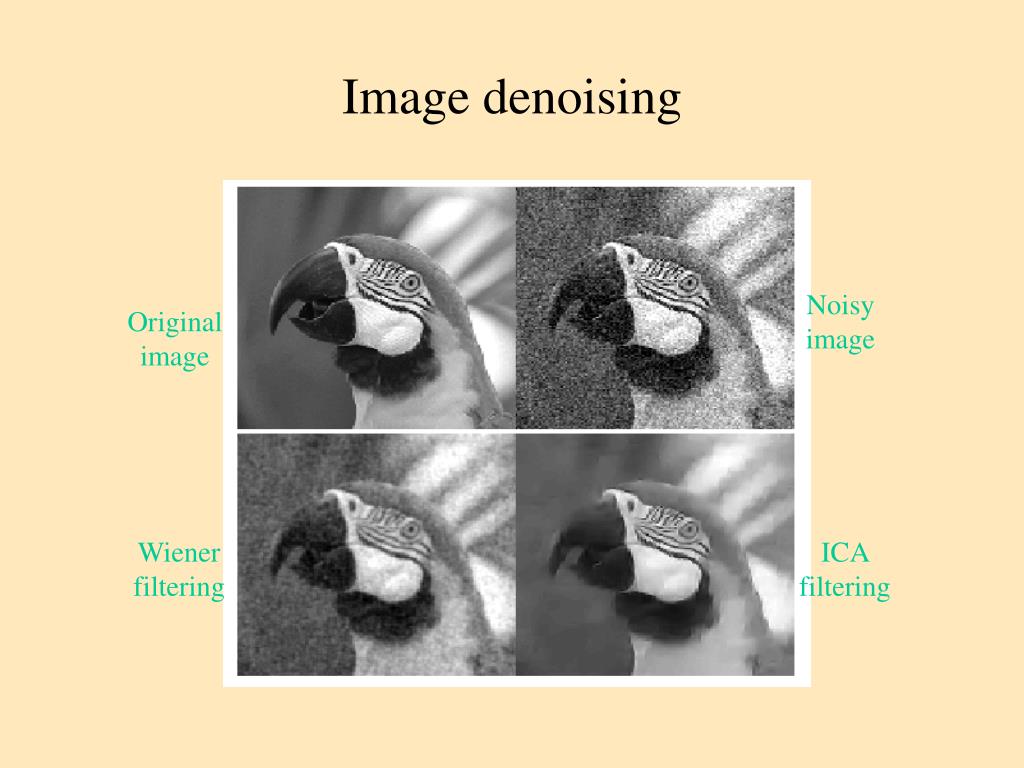

Image denoising

Noisy image

Original image

Wiener filtering

ICA filtering

noisy ica model

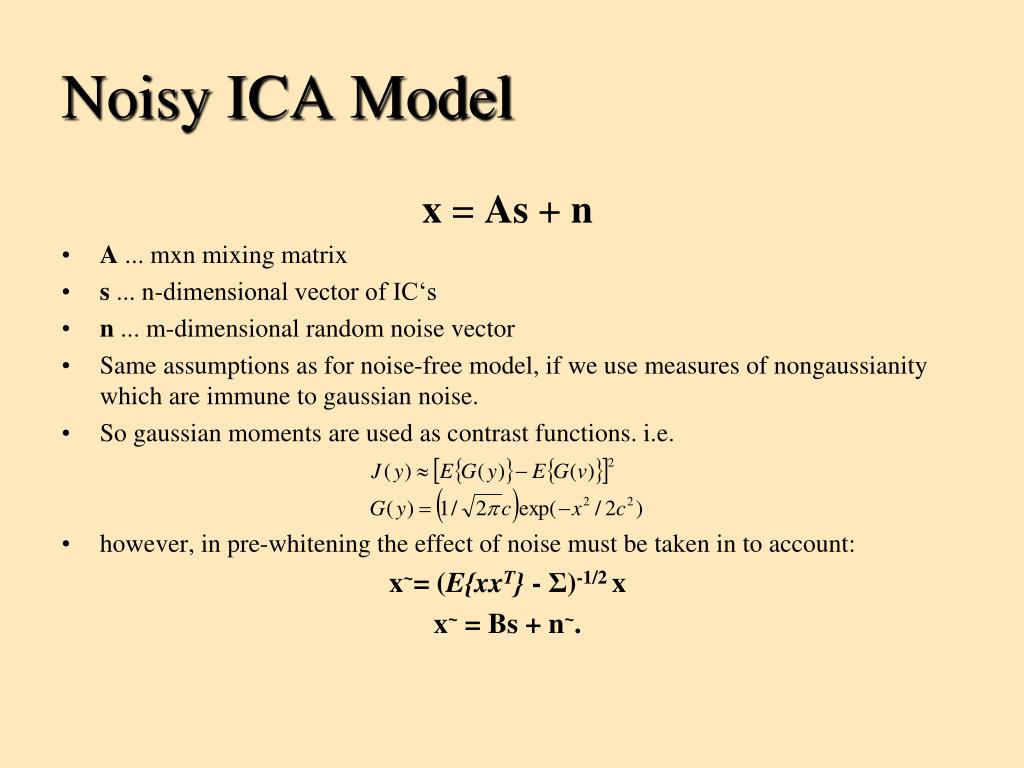

Noisy ICA Model

x = As + n

  • A ... mxn mixing matrix
  • s ... n-dimensional vector of IC‘s
  • n ... m-dimensional random noise vector
  • Same assumptions as for noise-free model, if we use measures of nongaussianity which are immune to gaussian noise.
  • So gaussian moments are used as contrast functions. i.e.
  • however, in pre-whitening the effect of noise must be taken in to account:

x~= (E{xxT} - Σ)-1/2 x

x~ = Bs + n~.

exercise part 1 updated nov 10

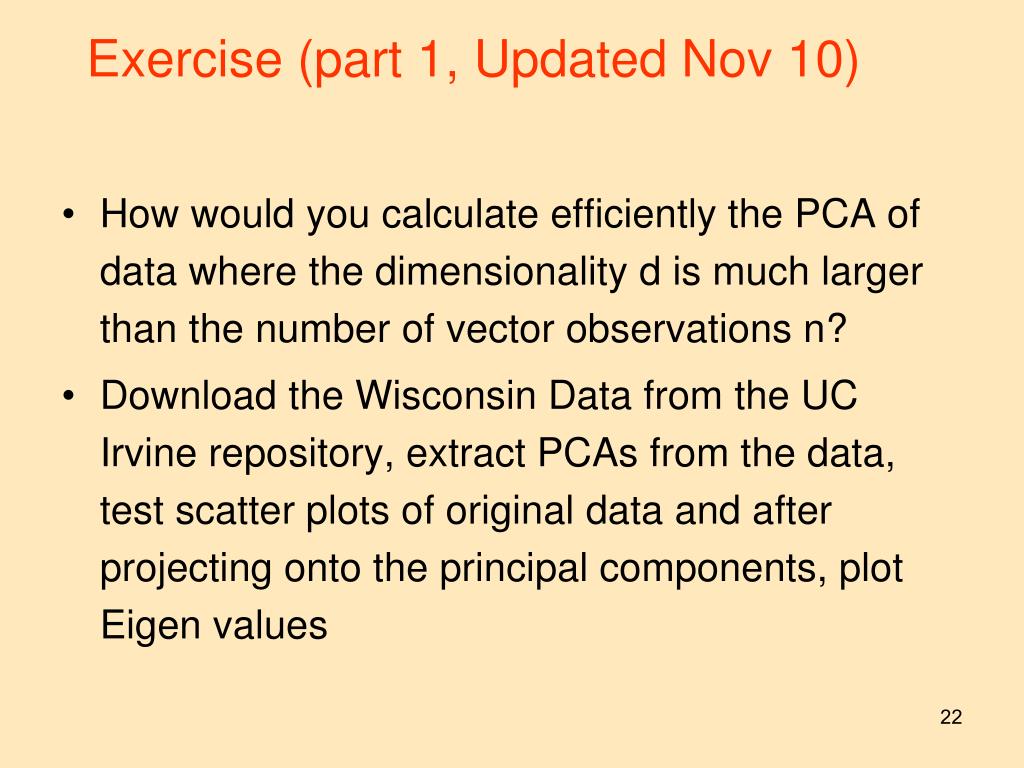

Exercise (part 1, Updated Nov 10)
  • How would you calculate efficiently the PCA of data where the dimensionality d is much larger than the number of vector observations n?
  • Download the Wisconsin Data from the UC Irvine repository, extract PCAs from the data, test scatter plots of original data and after projecting onto the principal components, plot Eigen values
ex1 part 2 to ninbbelt@gmail com subject ex1 and last names
Ex1. Part 2to ninbbelt@gmail.comsubject: Ex1 and last names
  • Given a high dimensional data, is there a way to know if all possible projections of the data are Gaussian? Explain

- What if there is some additive Gaussian noise?

ex1 cont
Ex1. (cont.)

2. Use Fast ICA (easily found in google) http://www.cis.hut.fi/projects/ica/fastica/code/dlcode.html

  • Choose your favorite two songs
  • Create 3 mixture matrices and mix them
  • Apply fastica to de-mix
ex1 cont25

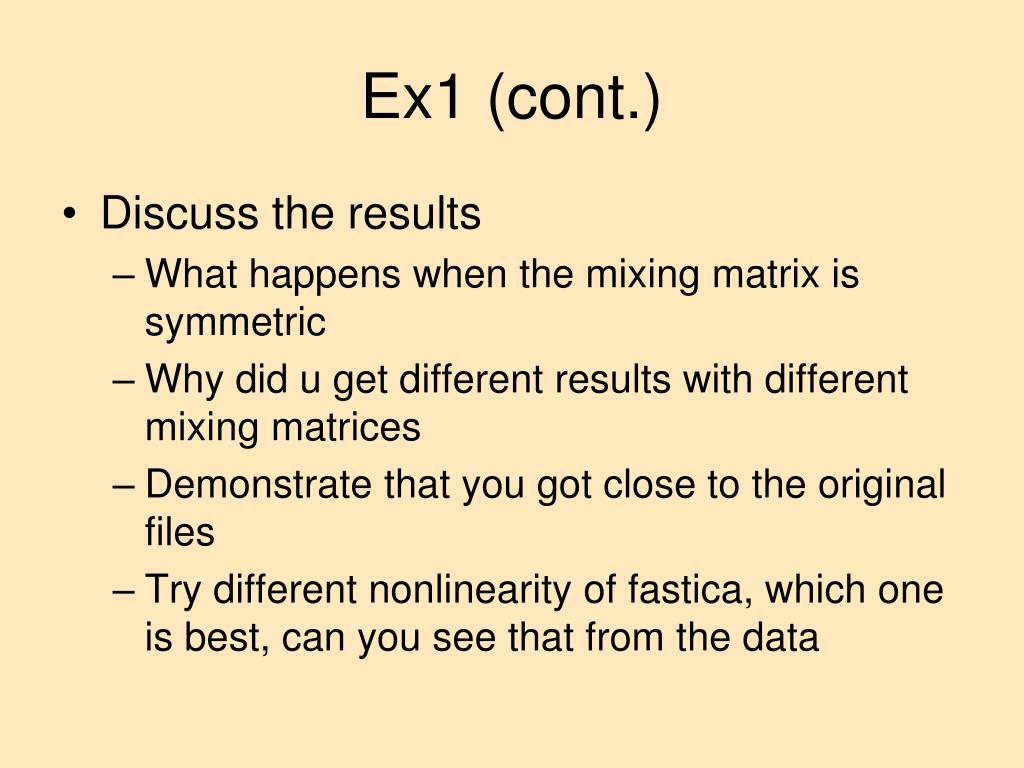

Ex1 (cont.)
  • Discuss the results
    • What happens when the mixing matrix is symmetric
    • Why did u get different results with different mixing matrices
    • Demonstrate that you got close to the original files
    • Try different nonlinearity of fastica, which one is best, can you see that from the data
references

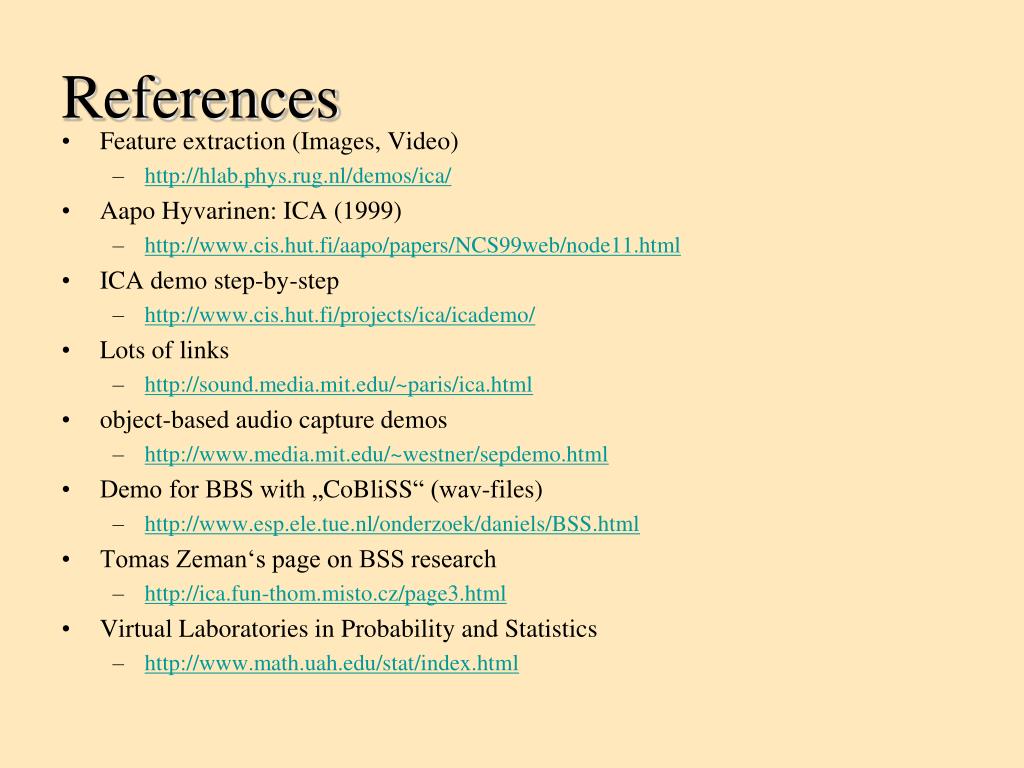

References
  • Feature extraction (Images, Video)
    • http://hlab.phys.rug.nl/demos/ica/
  • Aapo Hyvarinen: ICA (1999)
    • http://www.cis.hut.fi/aapo/papers/NCS99web/node11.html
  • ICA demo step-by-step
    • http://www.cis.hut.fi/projects/ica/icademo/
  • Lots of links
    • http://sound.media.mit.edu/~paris/ica.html
  • object-based audio capture demos
    • http://www.media.mit.edu/~westner/sepdemo.html
  • Demo for BBS with „CoBliSS“ (wav-files)
    • http://www.esp.ele.tue.nl/onderzoek/daniels/BSS.html
  • Tomas Zeman‘s page on BSS research
    • http://ica.fun-thom.misto.cz/page3.html
  • Virtual Laboratories in Probability and Statistics
    • http://www.math.uah.edu/stat/index.html
