  1. Server Consolidation Eric D. HoAdvisory Software ConsultantBMC Software, Inc.March 20, 2002

  2. Objective • This presentation is designed to show the methodology by which server consolidation study can be achieved using PATROL Perform and Predict.

  3. Server Consolidation Advantages • Reduced total cost of ownership • Lower license cost for software • Improved system manageability • System backup and recovery • Software distribution • Reduce manpower requirements • Improve infrastructure technology • Replace older servers with newer technology • Faster processors will reduce workload response times and memory requirements

  4. Server Consolidation Challenges • Need to: • Measure current usage accurately • Capture the configuration details • Characterize workloads • Understand usage patterns • Predict the consolidation effect • Evaluate alternatives • Project growth

  5. Server Consolidation Risks • You don’t know where to start !! • Methodology, Process, Tools • Wrong Size - It does not fit !! • Oops! Career change? • It fits! But.. Performance stinks • Buy more…. Spend more! • It will take a long time !! • By the time you are done, the solution is obsolete.

  6. Server Consolidation Methodology • Six steps to Success • 1. Baseline current performance • Collect detailed performance data • 2. Characterize workload • System, utility, application, database, etc. • 3. Analyze resource usage level • Time Series Graphical Analysis • Peaks, batch windows, trends, growth pattern • Workloads profiles • 4. Combine systems for sizing • Server and Workload stacking • 5. Consolidation modeling • Resource contention analysis • Response time degradation analysis • Growth sensitivity analysis • 6. Validate recommendation

  7. 1 - Baseline Current Performance • Collect detailed performance metrics • System, IO, memory, process, user • 24x7 • Data collected every 10 seconds • Data logged every 15 minutes • 96 data records per day per server • Servers: as10, db02, db14, db15, and db25

  8. PATROL Data Collection Perform AGENT Proactive Planning Performance Check Workload Analysis Bottleneck Analysis Performance Reporting Predictive Analysis Capacity Planning Proactive Monitoring Thresholds Status/Alerts Detect Problems Recovery Actions Availability Problem Determination Problem Resolution PATROLAGENT PATROL Collector Kernel Data OS KM Daily Performance Files PATROL History File

  9. PATROL Perform & Predict Architecture NT UNIX Visualizer Reports Investigate UNIX and NT Real-Time Analysis TCP: 6767, 6768 PATROL Collect TCP: 10128 UNIX or NT Performance Model Predict Predictive Analysis Analyze Performance Analysis Performance Results Visualizer (Windows-based) VisualizerDatabase Graphical Analysis

  10. Systems Users Workloads Transactions 2. Workload Characterization • Logical Grouping • Who (users) • What (processes) • Where (servers) • Dynamic • Post Data Collection • Business Perspective • Application • Business Unit/Budget • Geographic

  11. Sample Workloads • Characterize workloads • Oracle (1 process = 1 transaction) • axciom (Oracle Instance MEMPWD) • f45 (Oracle Financials Form 45) • f60 (Oracle Financials Form 60) • ar25run • RGRAGR • PMSERVER • GL • tools (BMC, HP, etc.) • system • zzz (the rest of processes)

  12. 3 - Analyze Resource Usage Level • (A) Time Series Graphical Analysis • Peaks • Batch windows • Trends • Growth pattern • (B) Workload Analysis

  13. 3 - Analyze Resource Usage Level • (A) Time Series Graphical Analysis • Peaks • Batch windows • Trends • Growth pattern • (B) Workload Analysis

  14. Workload Analysis - as10 • as10 • HP N4000/06, 440 MHz • 14 GB memory • Peak Utilizations from 9am-10pm 1pm-2pm Major Workloads • dis4ws • f45 • f60

  15. Workload Analysis - db02 • db02 • HP V2500/20, • 440 MHz • 12 GB memory • Peak Utilization: 7am-7pm Major Workloads • Oracle • RGRARG

  16. Workload Analysis - db14 • db14 • Sun F6800/08, 750 MHz • 16 GB memory • Peak Utilization from 6pm-12am Major Workload • Oracle

  17. Workload Analysis - db15 • db15 • Sun F6800/08, 750 MHz • 16 GB memory • Peak Utilization from 1pm-7pm Major Workload • Oracle-Axciom

  18. Workload Analysis - db25 • db25 • Sun E4500/06, 440 MHz • 6 GB memory • Peak Utilization: • 5pm-10pm Major Workload • Oracle

  19. 4 - Combine Systems for Sizing • Server stacking • Combined as10 and db02 into 1 server • Change db02 from HP to Sun F6800 • Combined 2 database servers (db14 and db25) into 1 server • Workload stacking • Stack up all Oracle Instances • Check total capacity requirement • Use graphical visualization for quick check!

  20. Server Stacking • Stacked as10 and db02 servers • Total CPU requirement is about 1200% • 12 processors needed?

  21. Server Stacking • Stacked 3 database servers into 1 • Total CPU requirement is less than 1000% (10 processors) • IO issue? • Paging issue?

  22. Workload Stacking • Stacked all Oracle workloads into 1 server • Total CPU requirement is slightly over 800% (on 8 processors)

  23. 5 - Consolidation Modeling • Resource contention analysis • Combined as10 and db02 into 1 server • Change db02 from HP to Sun F6800/16 @750 MHz • Consolidate Workloads from db14 and db25 into db14 • Response time degradation analysis • Growth sensitivity analysis • Use 3/18/2002 14:00 to 15:00 as baseline interval Let’s see how PATROL Predict works…...

  24. Baseline Model: Mar-18-2002, 14:00 • Prepare the baseline model • Build a model for all nodes at peak utilization • Calibrate the models to ensure measured and calculated values are accurate.

  25. Baseline Analysis - Response Time • Note: • Response Time corresponded to transaction turnaround time • Relative Response Time was set to 1. Any “what-if” scenarios would change the Relative Response Time to reflect improvement or degradation

  26. Baseline Analysis - Utilization • Note: • This report shows the current workload breakdown of as10and db02 • We would “move” the application workloads from as10 to db02 as part of the server consolidation.

  27. Baseline Analysis • Note: • This report shows the current workload breakdown of db14, db15 and db25 • We would “move” the application workloads from db25 to db14 as part of the server consolidation.

  28. What-if Analyses • Growth Sensitivity Analysis • Server Sizing • Application Server • Database Server… • Application Sizing • Disaster Planning • Hardware Purchase Planning • Capacity Planning

  29. Consolidation Modeling #1 • Resource contention analysis • Combined as10 and db02 into 1 server • Change db02 from HP to Sun F6800/16 @ 750 MHz • Used 3/18/2002 14:00 to 15:00 as baseline interval

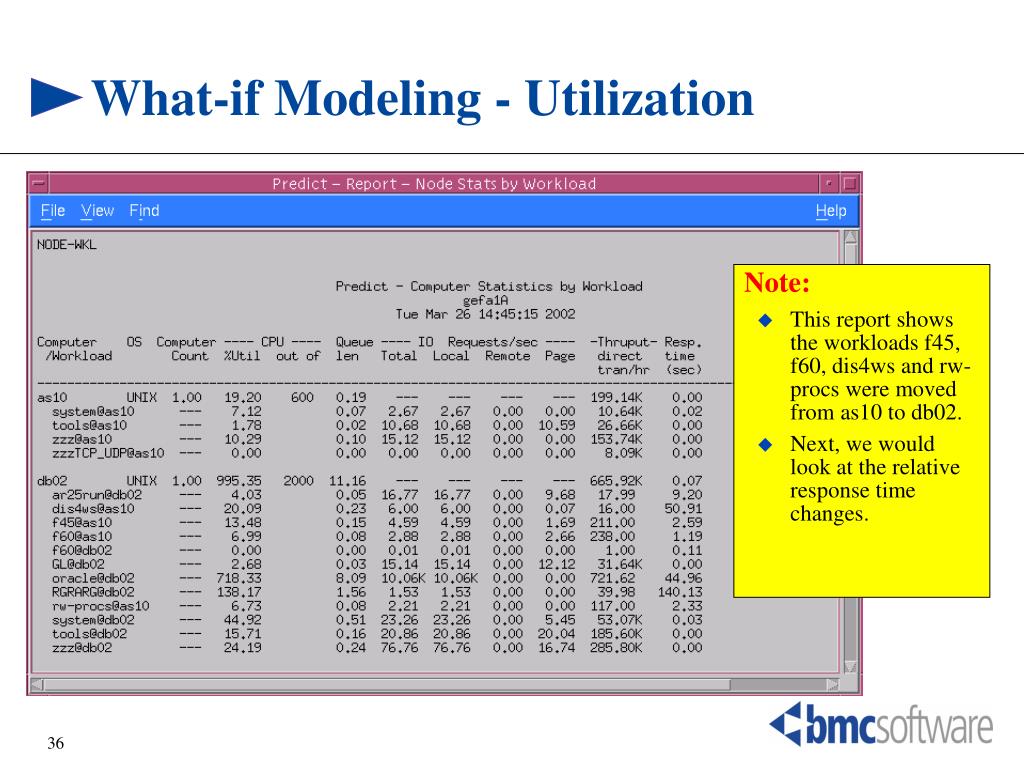

  30. What-if Modeling - Utilization • Note: • This report shows the workloads f45, f60, dis4ws and rw-procs were moved from as10 to db02. • Next, we would look at the relative response time changes.

  31. What-if Modeling - Response Time • Note: • This report shows the workloads f45, f60, dis4ws and rw-procs about 27% slower after they were moved. • The reason is that db02 has slower processor speed (25.27 specint95 per processor) than as10 (32.96 specint95), even though it has 20 processors versus 6 processors at as10. • Let’s see what happened when db02 is changed to a SUN F6800/16 machine.

  32. Note: • This report shows effect of the server upgraded. • The moved workloads are now 90% of the original time. • The oracle workload is now improved by 25%. • SUN F6800/16 at 750 Mhz is rated at 35.34 specint95 per processor)

  33. Consolidation Modeling #2 • Resource contention analysis • Consolidate Workloads from db14 and db25 into db14 • Used 3/18/2002 20:00 to 21:00 as baseline interval since db14 and db25 had higher utilization at night time.

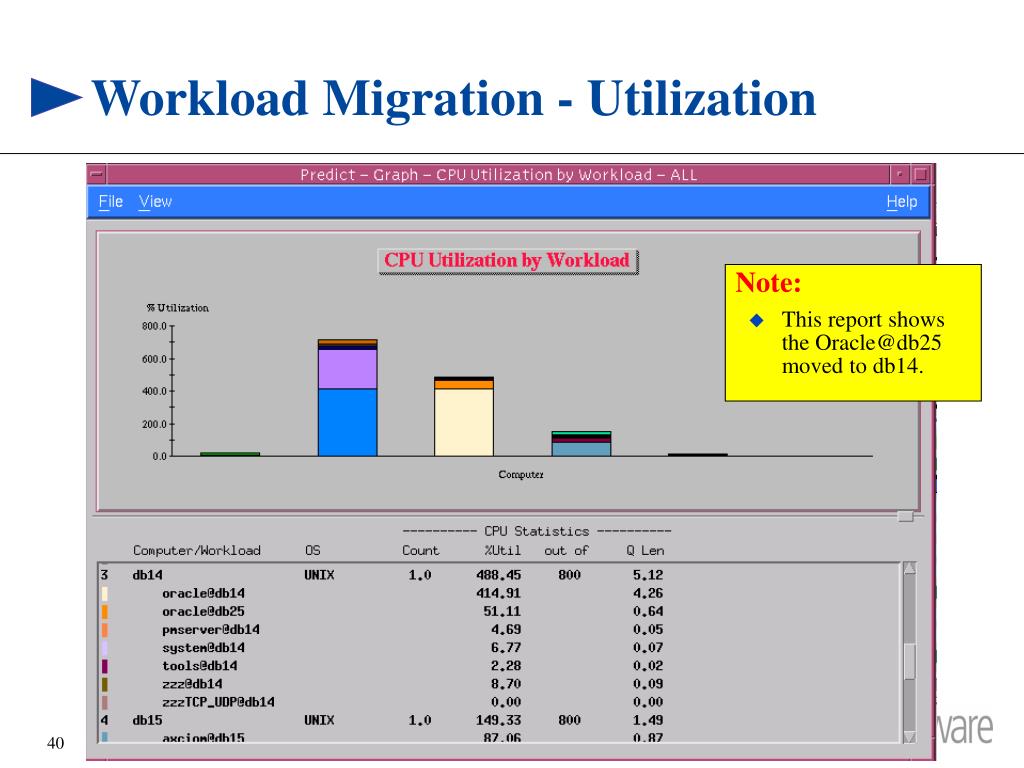

  34. Workload Migration - Utilization • Note: • This report shows the Oracle@db25 moved to db14.

  35. Workload Migration - Response Time • Note: • This report shows the Oracle@db25 workload running at db14 received a 41% improvement on response time. • Original workloads on db14 were not affected by the moved Oracle workload

  36. 6 - Validate Recommendation • Create test environment • Observe results of initial implementation • Compare modeled results with “consolidated” measurement. • Re-model the combined systems to account for un-foreseen changes

  37. Server Consolidation Review • Six steps to Success • 1. Baseline current performance • Collect detailed performance data • 2. Characterize workload • System, utility, application, database, etc. • 3. Analyze resource usage level • Time Series Graphical Analysis • Peaks, batch windows, trends, growth pattern • Workloads profiles • 4. Combine systems for sizing • Server and Workload stacking • 5. Consolidation modeling • Resource contention analysis • Response time degradation analysis • Growth sensitivity analysis • 6. Validate recommendation

  38. STORAGE Consolidation Too? • BMC’s Application Centric Storage Management (ACSM) products can be leveraged to consolidate the storage side…

  39. PATROL Performance Management Summary • An established process • An integrated suite of products and services to manage mission critical client/server applications. • A proven methodology • Performance and capacity management across multiple platforms • Multi-functional • Performance Analysis • Daily Performance Visualization • Interactive Performance Prediction • High degree of process automation

  40. ROI’s • Ensure consistent approach to take on server consolidation projects • ROI: Reduce risks and costs • Enable IT staff to understand performance information and evaluate alternatives effectively • ROI: Better IT Performance/$ Ratio • Empower IT staff to plan for and justify expenditures with confidence • ROI: Timely hardware/software acquisitions
