How to Use Ratchet Straps A Step-by-Step Tutorial

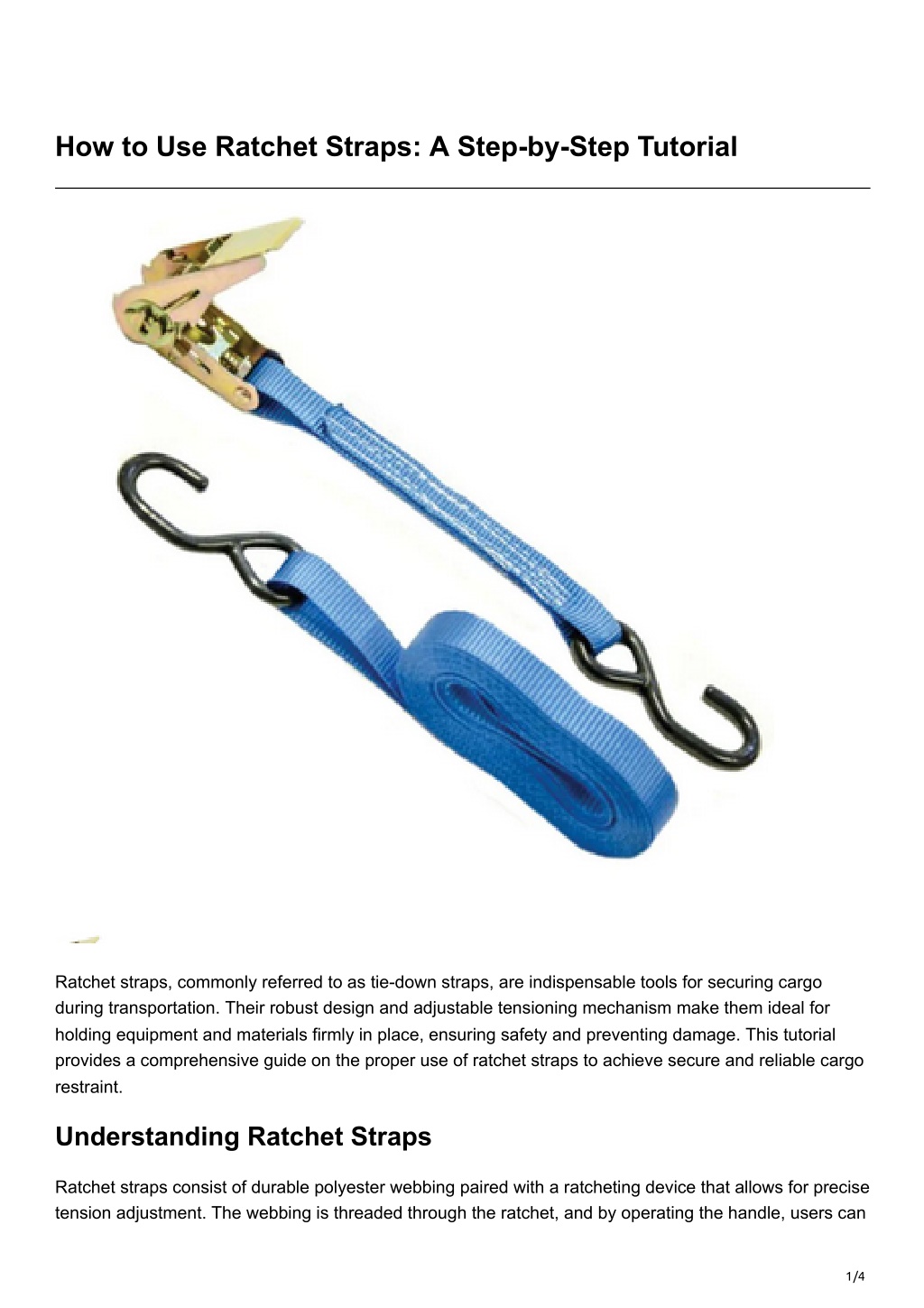

1. How to Use Ratchet Straps: A Step-by-Step Tutorial Ratchet straps, commonly referred to as tie-down straps, are indispensable tools for securing cargo during transportation. Their robust design and adjustable tensioning mechanism make them ideal for holding equipment and materials firmly in place, ensuring safety and preventing damage. This tutorial provides a comprehensive guide on the proper use of ratchet straps to achieve secure and reliable cargo restraint. Understanding Ratchet Straps Ratchet straps consist of durable polyester webbing paired with a ratcheting device that allows for precise tension adjustment. The webbing is threaded through the ratchet, and by operating the handle, users can 1/4

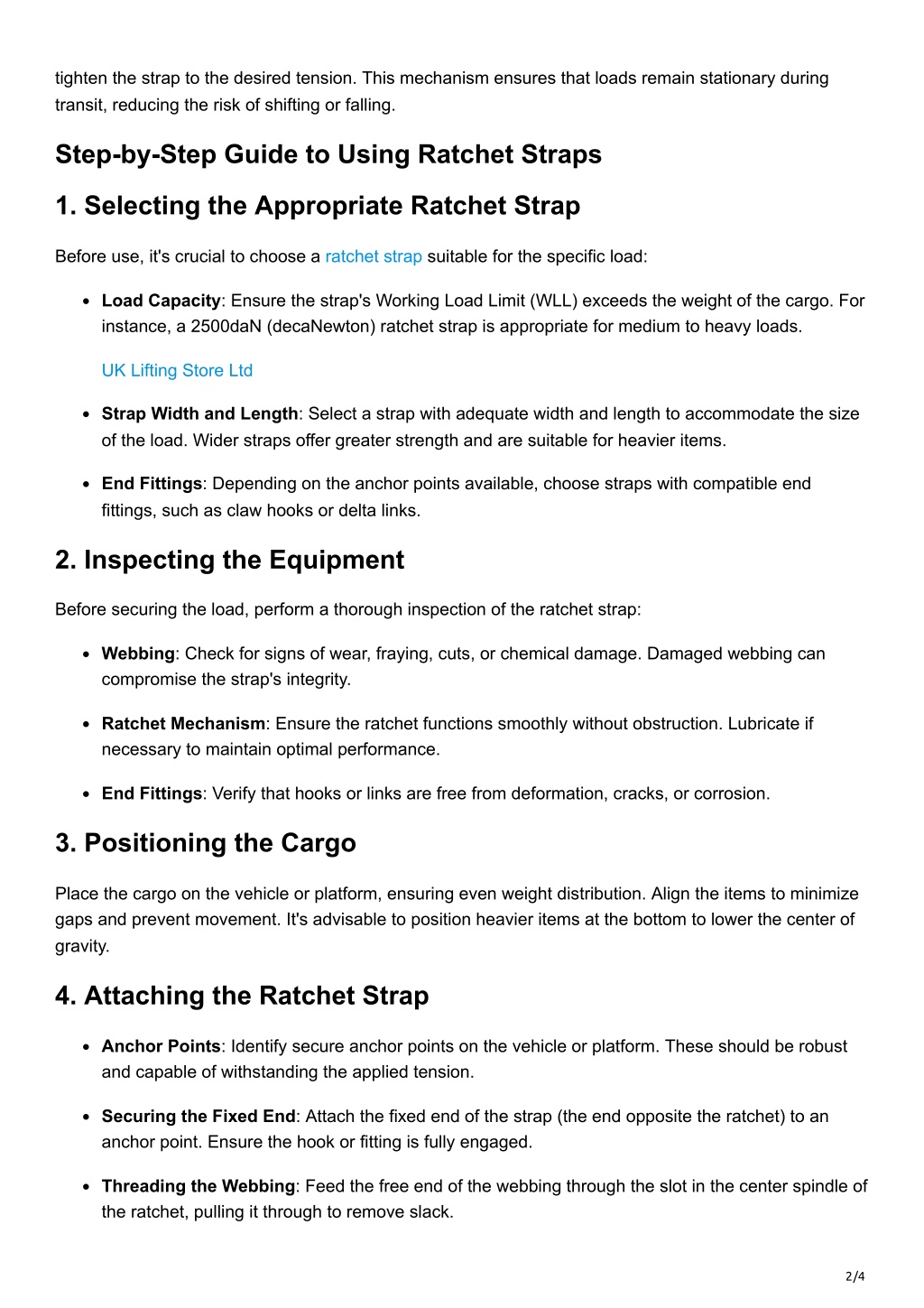

2. tighten the strap to the desired tension. This mechanism ensures that loads remain stationary during transit, reducing the risk of shifting or falling. Step-by-Step Guide to Using Ratchet Straps 1. Selecting the Appropriate Ratchet Strap Before use, it's crucial to choose a ratchet strap suitable for the specific load: Load Capacity: Ensure the strap's Working Load Limit (WLL) exceeds the weight of the cargo. For instance, a 2500daN (decaNewton) ratchet strap is appropriate for medium to heavy loads. UK Lifting Store Ltd Strap Width and Length: Select a strap with adequate width and length to accommodate the size of the load. Wider straps offer greater strength and are suitable for heavier items. End Fittings: Depending on the anchor points available, choose straps with compatible end fittings, such as claw hooks or delta links. 2. Inspecting the Equipment Before securing the load, perform a thorough inspection of the ratchet strap: Webbing: Check for signs of wear, fraying, cuts, or chemical damage. Damaged webbing can compromise the strap's integrity. Ratchet Mechanism: Ensure the ratchet functions smoothly without obstruction. Lubricate if necessary to maintain optimal performance. End Fittings: Verify that hooks or links are free from deformation, cracks, or corrosion. 3. Positioning the Cargo Place the cargo on the vehicle or platform, ensuring even weight distribution. Align the items to minimize gaps and prevent movement. It's advisable to position heavier items at the bottom to lower the center of gravity. 4. Attaching the Ratchet Strap Anchor Points: Identify secure anchor points on the vehicle or platform. These should be robust and capable of withstanding the applied tension. Securing the Fixed End: Attach the fixed end of the strap (the end opposite the ratchet) to an anchor point. Ensure the hook or fitting is fully engaged. Threading the Webbing: Feed the free end of the webbing through the slot in the center spindle of the ratchet, pulling it through to remove slack. 2/4

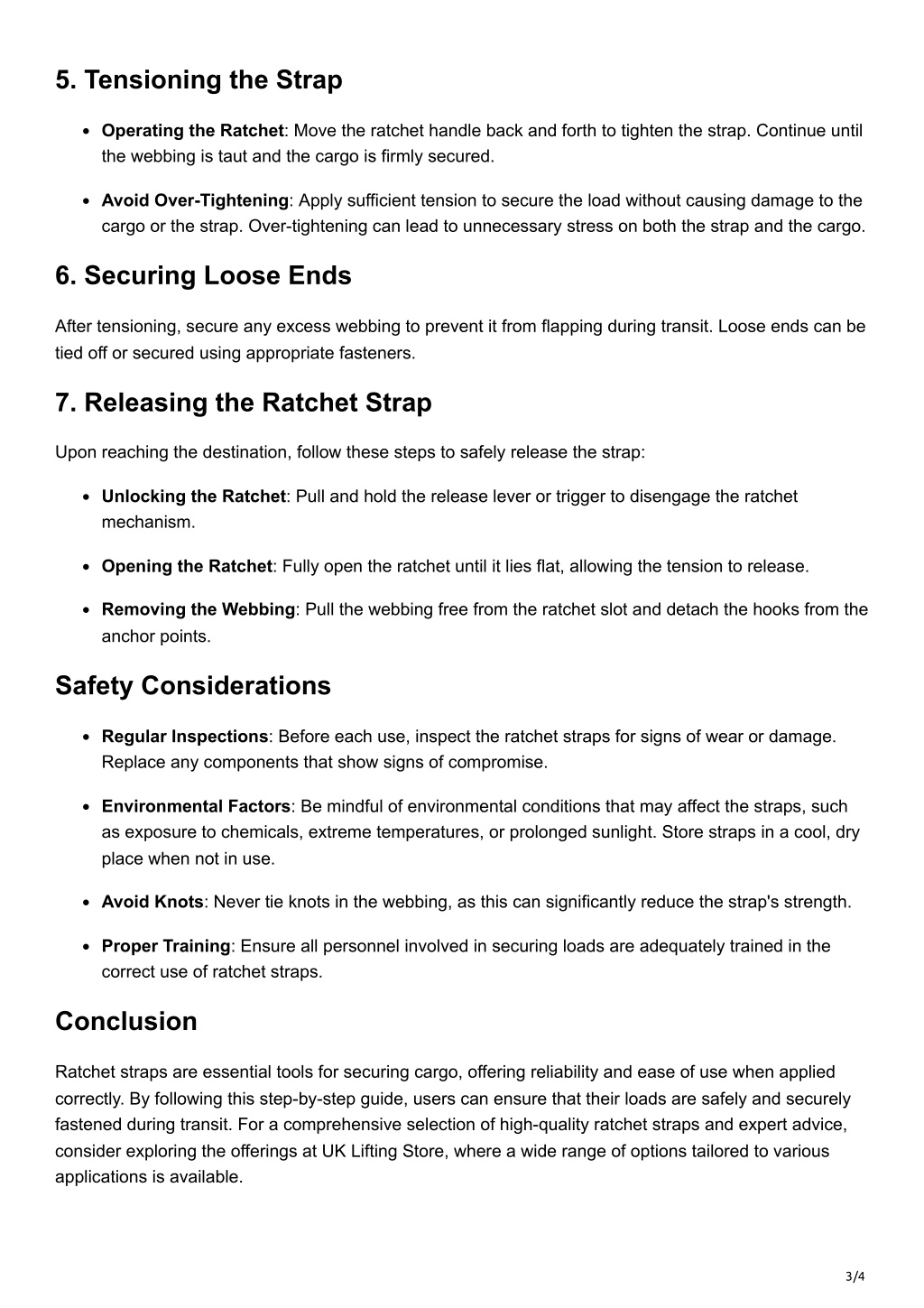

3. 5. Tensioning the Strap Operating the Ratchet: Move the ratchet handle back and forth to tighten the strap. Continue until the webbing is taut and the cargo is firmly secured. Avoid Over-Tightening: Apply sufficient tension to secure the load without causing damage to the cargo or the strap. Over-tightening can lead to unnecessary stress on both the strap and the cargo. 6. Securing Loose Ends After tensioning, secure any excess webbing to prevent it from flapping during transit. Loose ends can be tied off or secured using appropriate fasteners. 7. Releasing the Ratchet Strap Upon reaching the destination, follow these steps to safely release the strap: Unlocking the Ratchet: Pull and hold the release lever or trigger to disengage the ratchet mechanism. Opening the Ratchet: Fully open the ratchet until it lies flat, allowing the tension to release. Removing the Webbing: Pull the webbing free from the ratchet slot and detach the hooks from the anchor points. Safety Considerations Regular Inspections: Before each use, inspect the ratchet straps for signs of wear or damage. Replace any components that show signs of compromise. Environmental Factors: Be mindful of environmental conditions that may affect the straps, such as exposure to chemicals, extreme temperatures, or prolonged sunlight. Store straps in a cool, dry place when not in use. Avoid Knots: Never tie knots in the webbing, as this can significantly reduce the strap's strength. Proper Training: Ensure all personnel involved in securing loads are adequately trained in the correct use of ratchet straps. Conclusion Ratchet straps are essential tools for securing cargo, offering reliability and ease of use when applied correctly. By following this step-by-step guide, users can ensure that their loads are safely and securely fastened during transit. For a comprehensive selection of high-quality ratchet straps and expert advice, consider exploring the offerings at UK Lifting Store, where a wide range of options tailored to various applications is available. 3/4
