How to Choose the Right Lifting Shackle for Your Rigging Needs

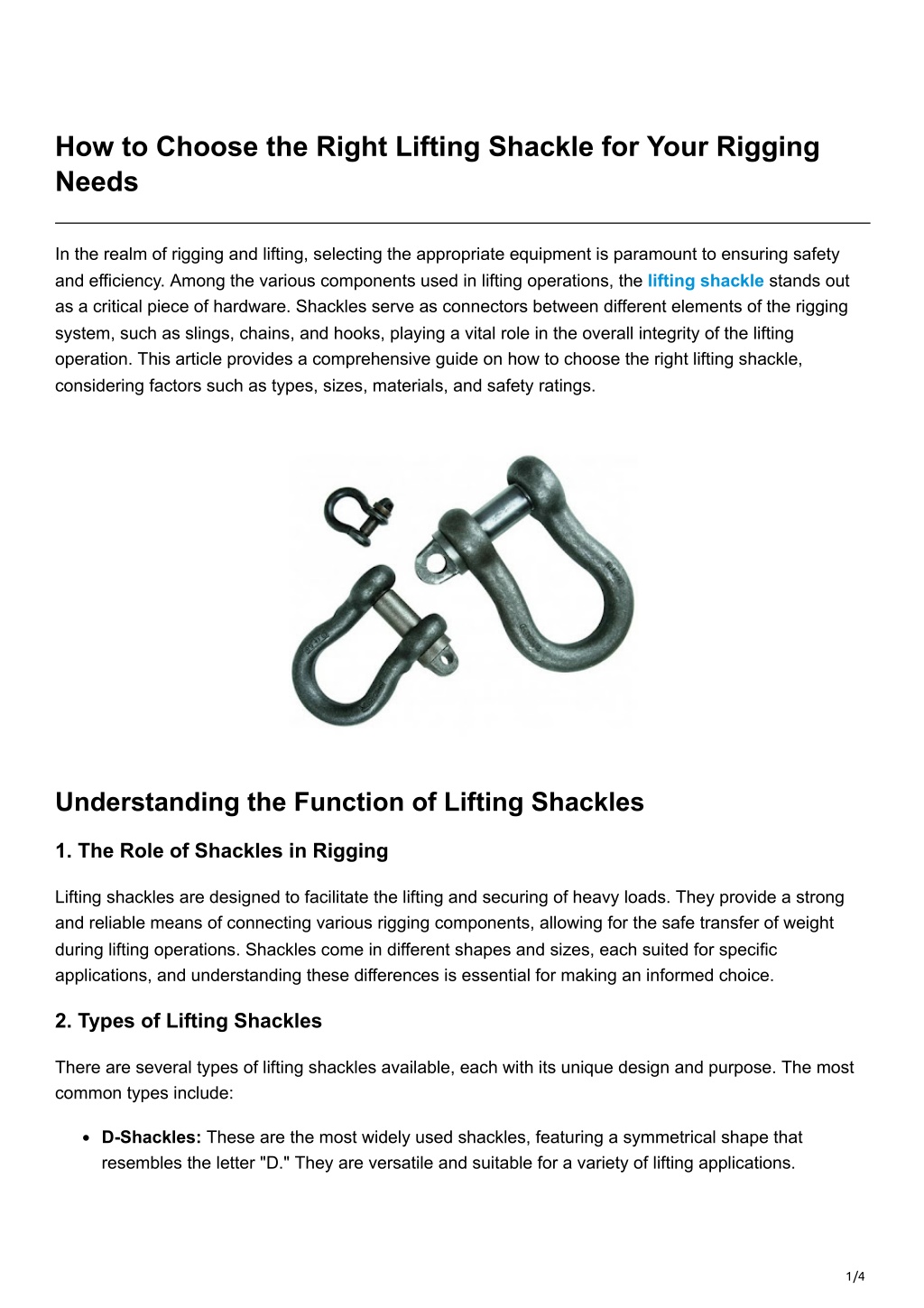

1. How to Choose the Right Lifting Shackle for Your Rigging Needs In the realm of rigging and lifting, selecting the appropriate equipment is paramount to ensuring safety and efficiency. Among the various components used in lifting operations, the lifting shackle stands out as a critical piece of hardware. Shackles serve as connectors between different elements of the rigging system, such as slings, chains, and hooks, playing a vital role in the overall integrity of the lifting operation. This article provides a comprehensive guide on how to choose the right lifting shackle, considering factors such as types, sizes, materials, and safety ratings. Understanding the Function of Lifting Shackles 1. The Role of Shackles in Rigging Lifting shackles are designed to facilitate the lifting and securing of heavy loads. They provide a strong and reliable means of connecting various rigging components, allowing for the safe transfer of weight during lifting operations. Shackles come in different shapes and sizes, each suited for specific applications, and understanding these differences is essential for making an informed choice. 2. Types of Lifting Shackles There are several types of lifting shackles available, each with its unique design and purpose. The most common types include: D-Shackles: These are the most widely used shackles, featuring a symmetrical shape that resembles the letter "D." They are versatile and suitable for a variety of lifting applications. 1/4

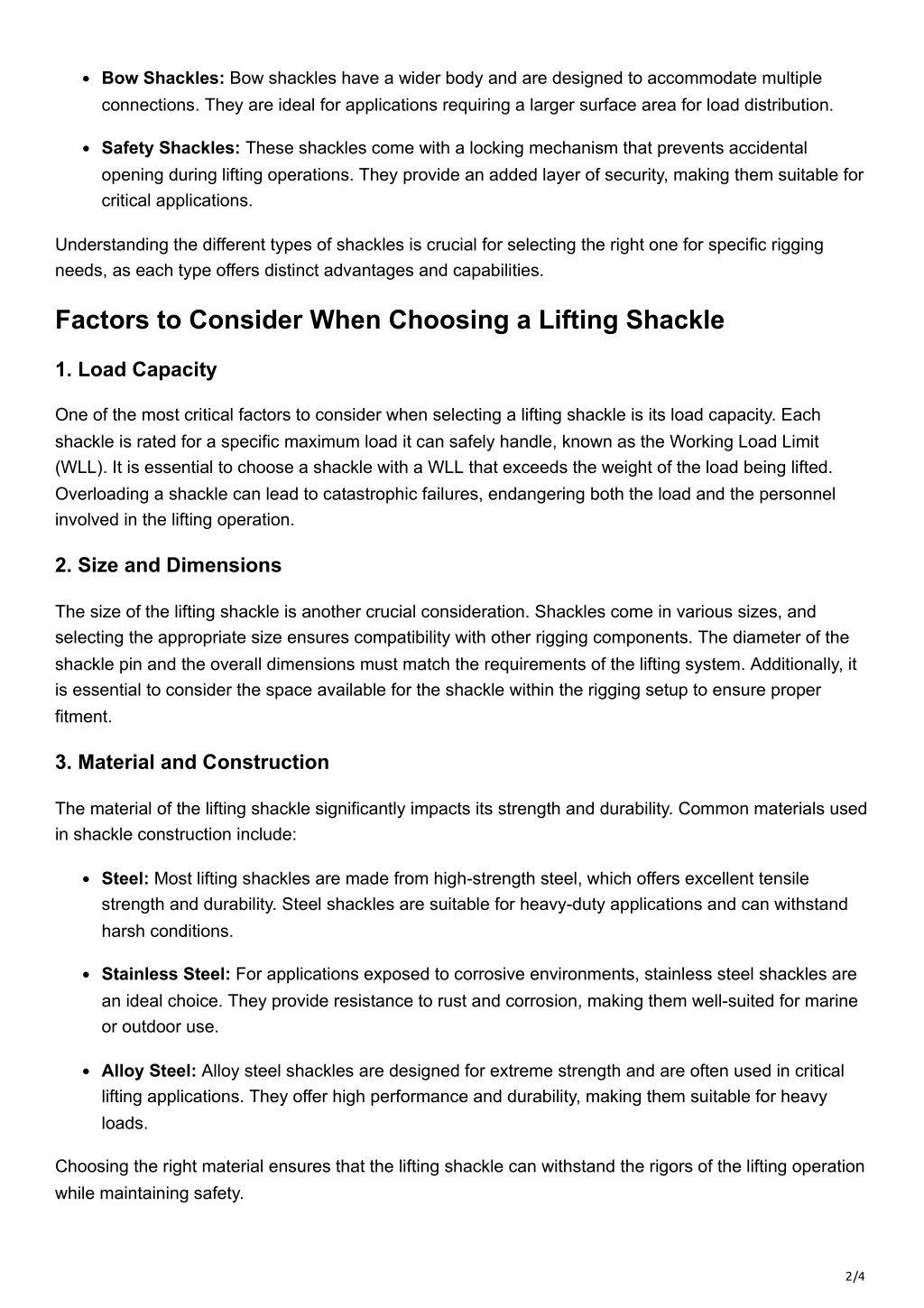

2. Bow Shackles: Bow shackles have a wider body and are designed to accommodate multiple connections. They are ideal for applications requiring a larger surface area for load distribution. Safety Shackles: These shackles come with a locking mechanism that prevents accidental opening during lifting operations. They provide an added layer of security, making them suitable for critical applications. Understanding the different types of shackles is crucial for selecting the right one for specific rigging needs, as each type offers distinct advantages and capabilities. Factors to Consider When Choosing a Lifting Shackle 1. Load Capacity One of the most critical factors to consider when selecting a lifting shackle is its load capacity. Each shackle is rated for a specific maximum load it can safely handle, known as the Working Load Limit (WLL). It is essential to choose a shackle with a WLL that exceeds the weight of the load being lifted. Overloading a shackle can lead to catastrophic failures, endangering both the load and the personnel involved in the lifting operation. 2. Size and Dimensions The size of the lifting shackle is another crucial consideration. Shackles come in various sizes, and selecting the appropriate size ensures compatibility with other rigging components. The diameter of the shackle pin and the overall dimensions must match the requirements of the lifting system. Additionally, it is essential to consider the space available for the shackle within the rigging setup to ensure proper fitment. 3. Material and Construction The material of the lifting shackle significantly impacts its strength and durability. Common materials used in shackle construction include: Steel: Most lifting shackles are made from high-strength steel, which offers excellent tensile strength and durability. Steel shackles are suitable for heavy-duty applications and can withstand harsh conditions. Stainless Steel: For applications exposed to corrosive environments, stainless steel shackles are an ideal choice. They provide resistance to rust and corrosion, making them well-suited for marine or outdoor use. Alloy Steel: Alloy steel shackles are designed for extreme strength and are often used in critical lifting applications. They offer high performance and durability, making them suitable for heavy loads. Choosing the right material ensures that the lifting shackle can withstand the rigors of the lifting operation while maintaining safety. 2/4

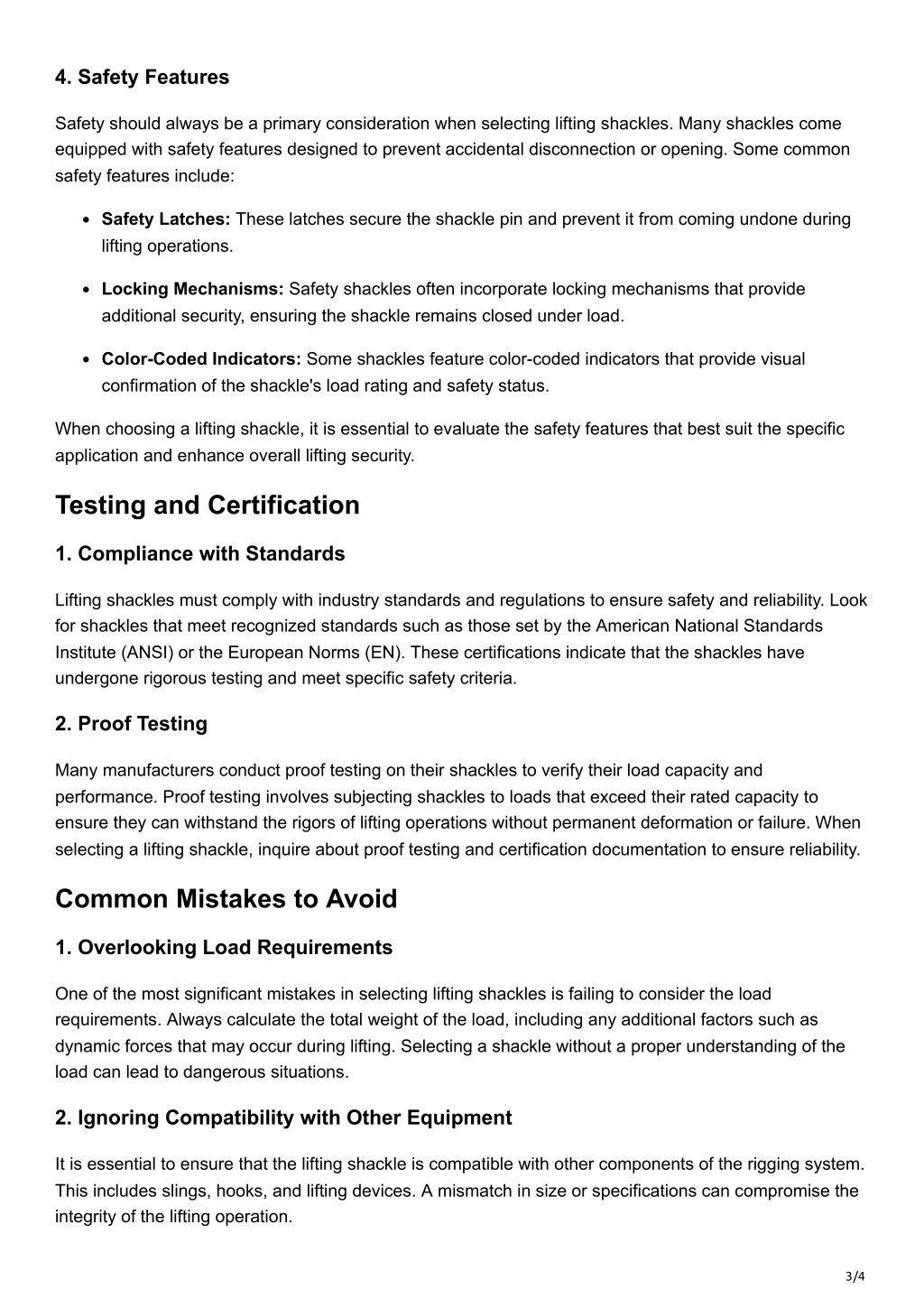

3. 4. Safety Features Safety should always be a primary consideration when selecting lifting shackles. Many shackles come equipped with safety features designed to prevent accidental disconnection or opening. Some common safety features include: Safety Latches: These latches secure the shackle pin and prevent it from coming undone during lifting operations. Locking Mechanisms: Safety shackles often incorporate locking mechanisms that provide additional security, ensuring the shackle remains closed under load. Color-Coded Indicators: Some shackles feature color-coded indicators that provide visual confirmation of the shackle's load rating and safety status. When choosing a lifting shackle, it is essential to evaluate the safety features that best suit the specific application and enhance overall lifting security. Testing and Certification 1. Compliance with Standards Lifting shackles must comply with industry standards and regulations to ensure safety and reliability. Look for shackles that meet recognized standards such as those set by the American National Standards Institute (ANSI) or the European Norms (EN). These certifications indicate that the shackles have undergone rigorous testing and meet specific safety criteria. 2. Proof Testing Many manufacturers conduct proof testing on their shackles to verify their load capacity and performance. Proof testing involves subjecting shackles to loads that exceed their rated capacity to ensure they can withstand the rigors of lifting operations without permanent deformation or failure. When selecting a lifting shackle, inquire about proof testing and certification documentation to ensure reliability. Common Mistakes to Avoid 1. Overlooking Load Requirements One of the most significant mistakes in selecting lifting shackles is failing to consider the load requirements. Always calculate the total weight of the load, including any additional factors such as dynamic forces that may occur during lifting. Selecting a shackle without a proper understanding of the load can lead to dangerous situations. 2. Ignoring Compatibility with Other Equipment It is essential to ensure that the lifting shackle is compatible with other components of the rigging system. This includes slings, hooks, and lifting devices. A mismatch in size or specifications can compromise the integrity of the lifting operation. 3/4

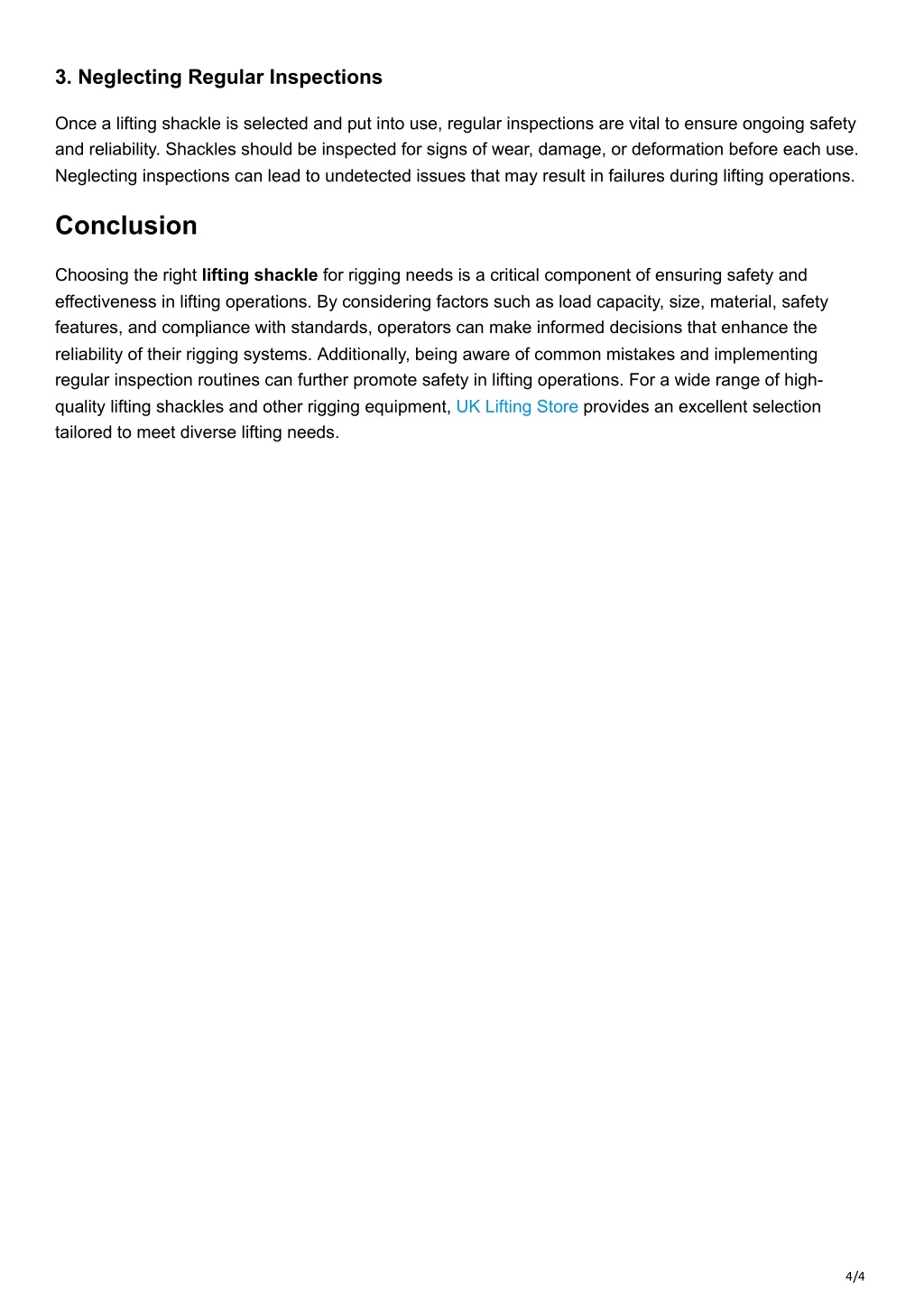

4. 3. Neglecting Regular Inspections Once a lifting shackle is selected and put into use, regular inspections are vital to ensure ongoing safety and reliability. Shackles should be inspected for signs of wear, damage, or deformation before each use. Neglecting inspections can lead to undetected issues that may result in failures during lifting operations. Conclusion Choosing the right lifting shackle for rigging needs is a critical component of ensuring safety and effectiveness in lifting operations. By considering factors such as load capacity, size, material, safety features, and compliance with standards, operators can make informed decisions that enhance the reliability of their rigging systems. Additionally, being aware of common mistakes and implementing regular inspection routines can further promote safety in lifting operations. For a wide range of high- quality lifting shackles and other rigging equipment, UK Lifting Store provides an excellent selection tailored to meet diverse lifting needs. 4/4
