pwb506 building database and synchronization applications with pocket powerbuilder

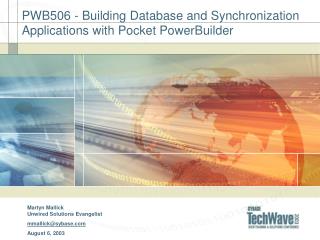

PWB506 - Building Database and Synchronization Applications with Pocket PowerBuilder

Martyn Mallick Unwired Solutions Evangelist

mmallick@sybase.com

August 6, 2003

what you will learn
What You Will Learn

How Pocket PowerBuilder simplifies the creation of ‘occasionally connected’ mobile applications that synchronize data with any of the leading enterprise databases.

B

E

G

I

N

N

I

N

G

agenda
Agenda
  • Mobile Computing Architectures
  • Pocket PowerBuilder Key Features
  • A Look at SQL Anywhere Studio
  • Developing Database Applications with Pocket PowerBuilder
    • Creating Remote Databases
    • The Power of DataWindows
    • Using the Pocket PowerBuilder Synchronization Wizard
    • Setting up Synchronization Server
    • Application Deployment – What goes where?
  • Summary
  • Additional Resources
mobile computing architectures
Mobile Computing Architectures

Three main architectures for Mobile Applications

  • Wireless Internet (online only)
    • Online access to Web content
    • Typically used for consumer applications
    • Limited user interface and capabilities
  • Smart Client
    • Incorporates mobile database technology for persistent data storage
    • Updates to data are synchronized to enterprise systems
    • Allows for offline access to important data
    • Works best in ‘occasionally connected’ environment
  • Messaging
    • Store and forward delivery of data
    • Can be used on its own, or in addition to other architectures
mobile application architectures
Mobile Application Architectures

iAnywhere m-Business Platform

mobile application architectures1
Mobile Application Architectures

Smart Client vs Thin Client

  • Smart Client
    • Some business logic resides within the client
    • Logic updates require client redistribution
    • Offline processing, can work in any environment
    • Does not required wireless connectivity
    • Synchronization required for data integration
  • Thin Client
    • All business logic is invoked from a server
    • Logic updates can occur without client redistribution
    • Online processing only, if wireless connection is not available, application is rendered useless
    • Synchronization is not required to ensure fresh data
agenda1
Agenda
  • Mobile Computing Architectures
  • Pocket PowerBuilder Key Features
  • A Look at SQL Anywhere Studio
  • Developing Database Applications with Pocket PowerBuilder
    • Creating Remote Databases
    • The Power of DataWindows
    • Using the Pocket PowerBuilder Synchronization Wizard
    • Setting up Synchronization Server
    • Application Deployment – What goes where?
  • Summary
  • Additional Resources
pocket powerbuilder key features
Pocket PowerBuilder Key Features

Smart Client Development with Pocket PowerBuilder

  • For occasionally connected application development, Pocket PowerBuilder has three key features:
    • Productive 4GL IDE
    • DataWindow Technology
    • Tight integration with SQL Anywhere Studio
pocket powerbuilder key features1
Pocket PowerBuilder Key Features

Productive 4GL Environment

  • Supports complete development cycle
  • Visual development with minimal coding
  • Painters for database creation and application development
    • Database Painter
    • DataWindow Painter
    • Synchronization …
  • Complements PowerBuilder for Windows CE deployments
    • Similar look and feel, but separate IDE
    • Ability to export PB projects and import them into Pocket PowerBuilder
  • Rich Set of components
    • Command Button, Picture Button, CheckBox, Radio Button, Static Text, List View, Tree View, List Box, DropDown List Box, Edit Mask, Single Line Edit, MultiLine Edit, Progress Bar, Scroll Bars, Line, Oval, Rectangle, Tabs, and many, many more!
pocket powerbuilder key features2
Pocket PowerBuilder Key Features

DataWindow Technology

  • Single component for displaying and manipulating data
  • Built in SQL for selects, updates, inserts and deletes
  • Available in many formats
    • Freeform
    • Graph
    • Grid
    • Group
    • Tabular
  • Reuse existing PowerBuilder DataWindows with little effort
pocket powerbuilder key features3
Pocket PowerBuilder Key Features

SQL Anywhere Integration

  • Adaptive Server Anywhere mobile database
    • Uses full data storage capabilities of Adaptive Server Anywhere on Windows CE client
    • Database access via ODBC
    • Development version comes with Pocket PowerBuilder
  • MobiLink data synchronization
    • MobiLink bi-directional data synchronization used to integrate with other enterprise databases (Sybase ASE and ASA, Oracle, MS SQL Server, IBM DB2)
    • MobiLink Synchronization Wizard for simplified synchronization development
agenda2
Agenda
  • Mobile Computing Architectures
  • Pocket PowerBuilder Key Features
  • A Look at SQL Anywhere Studio
  • Developing Database Applications with Pocket PowerBuilder
    • Creating Remote Databases
    • The Power of DataWindows
    • Using the Pocket PowerBuilder Synchronization Wizard
    • Setting up Synchronization Server
    • Application Deployment – What goes where?
  • Summary
  • Additional Resources
a look at sql anywhere studio
A Look at SQL Anywhere Studio
  • Small Footprint, full-featured, easily embeddable DBMS
    • Adaptive Server Anywhere (ASA) and UltraLite
  • Enterprise synchronization formobile and remote systems
    • MobiLink and SQL Remote

Market leading mobile, workgroup and embedded data management and enterprise synchronization solution

a look at sql anywhere studio1
A Look at SQL Anywhere Studio

SQL Design Goals

  • Ease of use
  • Performance out of the box
  • Easily Embeddable
  • Interoperability/Open
  • Being responsive to our customers
a look at sql anywhere studio2
Easy for end-users

Install in less than 5 minutes

DB binary compatible across platforms

Easy for developers

Tight integration with Pocket PowerBuilder

Referential Integrity

Row level locking

Stored procedure debugger

Easy for Administrators

Sybase Central Graphical Administration tool

Command line tools eases scripting

DB System Events enable near-zero administration

A Look at SQL Anywhere Studio

ASA – Ease of Use

a look at sql anywhere studio3
A Look at SQL Anywhere Studio

ASA – Performance Out of the Box

  • Cost-based Optimizer automatically finds the most efficient method to access the data requested
  • Optimization statistics automatically maintained
  • Auto generation of statistics on database load
  • Dynamic cache size
  • Separate storage for long values
    • LONG BINARY, LONG VARCHAR, TEXT, IMAGE
  • Automatic support for SMP machines
  • Sophisticated caching algorithm satisfies needs for OLTP and DSS
  • Index Consultant to help find locate areas where Index should be present
a look at sql anywhere studio4
A Look at SQL Anywhere Studio

ASA – Easily Embeddable

  • Small Footprint
    • ASA was originally designed to allow an application AND the database server to run on a 640k DOS PC
    • Runs on platforms ranging from Windows CE and up
  • Simple installation
    • Can be made transparent for end-user
    • Under 10 minute process
    • Can be scripted to be silent
    • Install Shield templates provided
a look at sql anywhere studio5
A Look at SQL Anywhere Studio

ASA – Responsive to Customers

  • Customer requirements and requests dictate new features
  • New innovation to solve customer problems
  • One of the best forums is our Internet newsgroups
    • Winner of InfoWorld “Best Support” in 2000
    • sybase.public.sqlanywhere.general
    • sybase.public.sqlanywhere.mobilink
    • sybase.public.sqlanywhere.product_futures_discussion
    • sybase.public.sqlanywhere.replication
    • sybase.public.sqlanywhere.ultralite
    • sybase.public.sqlanywhere.linux
a look at sql anywhere studio6
A Look at SQL Anywhere Studio

Data Synchronization

  • MobiLink
    • A two-way session-based synchronization technology for large scale mobile database deployment
    • remote database (mobile, embedded, or workgroup database server)
    • consolidated database (enterprise, workgroup, or desktop database)
    • Pocket PowerBuilder has a wizard for MobiLink synchronization!
  • SQL Remote
    • A message-based synchronization that can use multiple transport mechanisms
    • MS Mail, Lotus Notes, SMTP, FTP and File
a look at sql anywhere studio7
A Look at SQL Anywhere Studio

MobiLink Architecture

a look at sql anywhere studio8
A Look at SQL Anywhere Studio

MobiLink Remote Databases

  • Adaptive Server Anywhere (ASA)
    • Windows 2000/XP/NT/Me/98/95
    • Windows CE
    • Linux and Unix
  • UltraLite
    • Palm Computing Platform
    • Windows CE
    • Java
a look at sql anywhere studio9
A Look at SQL Anywhere Studio

MobiLink Consolidated Databases

  • Adaptive Server Anywhere (ASA)
  • Adaptive Server Enterprise (ASE)
  • Oracle
  • Microsoft SQL Server
  • IBM DB2 UDB
  • List of Recommended ODBC Drivers
        • www.sybase.com/detail?id=1011880
a look at sql anywhere studio10

1. Upload

  • ASA or UltraLite keep track of all changes since previous synchronization
  • All changes are sent in a single upload stream
  • MobiLink applies changes in a single transaction

2. Download

  • Scripts in the consolidated database determine changes that need to be downloaded
  • All changes are sent in a single download stream

3. Acknowledge download

  • Optional
A Look at SQL Anywhere Studio

MobiLink – ASA Synchronization

a look at sql anywhere studio11
A Look at SQL Anywhere Studio

MobiLink Quick Start

  • Files located in \Samples\MobiLink\Autoscripting
  • Create and setup consolidated and remote databases
    • Use Sybase database creation wizard
    • Create ODBC datasources
    • Populate databases with ISQL
    • Run setup script appropriate for consolidated DB
  • Identify tables and columns for synchronization
    • Add publications and subscriptions
  • Write scripts to upload and download data
    • Use –za switch to automatically generate scripts for you
  • You are now synchronizing!
agenda3
Agenda
  • Mobile Computing Architectures
  • Pocket PowerBuilder Key Features
  • A Look at SQL Anywhere Studio
  • Developing Database Applications with Pocket PowerBuilder
    • Creating Remote Databases
    • The Power of DataWindows
    • Using the Pocket PowerBuilder Synchronization Wizard
    • Setting up Synchronization Server
    • Application Deployment – What goes where?
  • Summary
  • Additional Resources
developing database applications
Developing Database Applications
  • Database development in Pocket PowerBuilder is similar to PowerBuilder…with a few important differences
    • The Pocket PowerBuilder application does not connect directly to the enterprise database
    • A mobile database is used on the Pocket PC device to store the information pertinent to the mobile user
    • Updated information is communicated to back end databases using synchronization
    • The synchronization technology allows for integration with all of the leading enterprise databases
developing database applications1

ASA

ML

Developing Database Applications

Application Architecture

Device

Enterprise

Consolidated

Database

(Sybase/Oracle/

Microsoft/IBM)

Pocket

PowerBuilder

Application

Pocket

PowerBuilder

VM

TCP/IP

HTTP

HTTPS

ActiveSync

(wired or wireless)

MobiLink

developing database applications2
Developing Database Applications
  • Occasionally Connected Applications have three main benefits:
  • Guaranteed access to critical data
  • High performance as wireless connectivity issues does not hinder performance
  • Extended battery life since wireless connectivity is minimized
developing database applications3
Developing Database Applications

Quick Tips

  • Good UI is very important
    • More important than on the desktop?
  • Handheld != desktop
    • No keyboard
    • Small screen
  • Platform differences are significant
  • How do you squeeze lots of information onto a small screen?
    • Tab controls, menus, etc.
  • Iterative development
    • Keep application logic separate from GUI!
developing database applications4
Developing Database Applications

Five Main Steps

  • Creating Remote Databases
  • The Power of DataWindows
  • Using the Pocket PowerBuilder Synchronization Wizard
  • Setting up Synchronization Server
  • Application Deployment – What goes where?
  • Pocket PowerBuilder simplifies all of these steps!!!
creating remote databases
Creating Remote Databases
  • Sybase Adaptive Server Anywhere is used at the remote database
  • The DBPainter allows you to create new ASA databases from scratch…
creating remote databases1
Creating Remote Databases
  • … BUT, in most cases you will want to create your remote database to reflect an existing consolidated database
  • The remote database is typically a subset of your enterprise database
    • Smaller schema
    • Less data (MobiLink synchronization can take care of this)
  • To accomplish this you have three options
    • SQL Anywhere Studio has migration assistants for ASE, Oracle, IBM and Microsoft
    • PowerDesigner can reverse engineer a database and create an ASA database with the same schema
    • You can use any other database design tool that comes with your enterprise database or otherwise
developing database applications5
Developing Database Applications
  • Once there is a remote database, the application can be developed
  • Application is developed using remote database – not consolidated!
  • Use typical development procedures to accomplish this
  • Pocket PowerBuilder has some key features that simplify the process
    • DataWindows
    • Synchronization Wizard
    • Project deployment and debugging
the power of datawindows
The Power of DataWindows

Supported DataWindow formats

  • Pocket PowerBuilder supports five DataWindow Formats
the power of datawindows1
The Power of DataWindows

DataWindow key concepts

  • Single control for all data access and manipulation
  • The most sophisticated data presentation control available!
  • DataWindows are created in painters, allowing for productive development without extra coding
  • Data retrieval occurs at design time so you see what you are getting as you develop
  • Selects, Inserts, Deletes and Updates are handled automatically
  • And more and more and more…
the power of datawindows2
The Power of DataWindows

DataWindow Example

pocket powerbuilder synchronization wizard
Pocket PowerBuilder Synchronization Wizard

MobiLink Synchronization in a Flash!

  • Develop a client/server application to start…
  • …Then add Synchronization using the Synchronization Wizard!
pocket powerbuilder synchronization wizard1
Pocket PowerBuilder Synchronization Wizard
  • The MobiLink Synchronization Wizard handles ALL aspects of enterprise database synchronization
    • Remote database connection
    • Publications for synchronization
    • Synchronization server connection information
    • Synchronization client options
    • User interface generation
  • Everything that the Wizard generates if fully modifiable later on by the application developer!
synchronization server setup
Synchronization Server Setup
  • MobiLink Server can be configured and started from Database Painter
  • Use Sybase Central to create synchronization scripts
  • Scripts can be automatically generated using –za switch on MobiLInk server, and ‘SendColumnNames=on’ on the MobiLink client
application testing and deployment
Application Testing and Deployment

Application Testing

  • Test EVERY part of your application:
    • Device
    • Application
    • Network(s)
    • Synchronization
    • Integration with back-end
application testing and deployment1

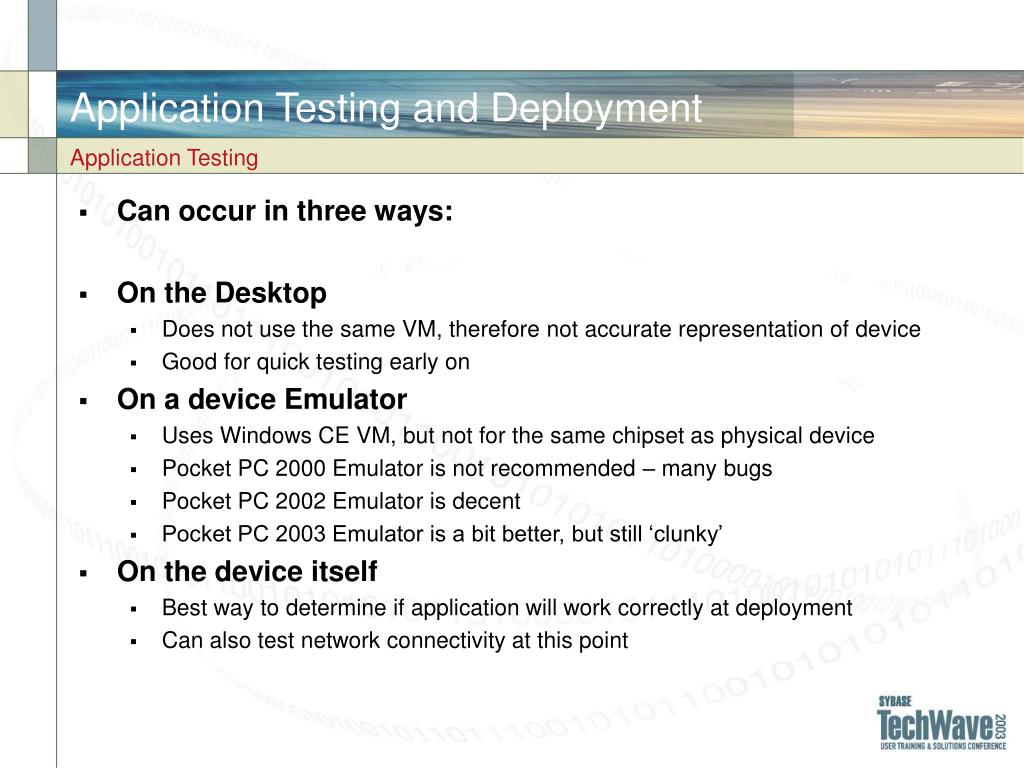

Application Testing and Deployment

Application Testing

  • Can occur in three ways:
  • On the Desktop
    • Does not use the same VM, therefore not accurate representation of device
    • Good for quick testing early on
  • On a device Emulator
    • Uses Windows CE VM, but not for the same chipset as physical device
    • Pocket PC 2000 Emulator is not recommended – many bugs
    • Pocket PC 2002 Emulator is decent
    • Pocket PC 2003 Emulator is a bit better, but still ‘clunky’
  • On the device itself
    • Best way to determine if application will work correctly at deployment
    • Can also test network connectivity at this point
application testing and deployment2
Application Testing and Deployment

Deployment Platforms

  • Pocket PowerBuilder applications can be run on the mobile device in two ways:
    • 1) Using the Applist application that is installed into the Pocket PC start menu as Pocket PowerBuilder 1.0
    • 2) By clicking directly on the application .exe (which is put into the ..\windows directory by default)
  • Deployment Platforms
    • ARM based Pocket PC devices
    • This covers all devices coming out with Pocket PC 2002 and Windows Mobile 2003 operating systems
    • MIPS, SH3 chipsets are not supported as device manufacturers have all but stopped making these devices
application testing and deployment3
Application Testing and Deployment

Application Deployment

  • Pocket PC applications are often distributed as CAB files
    • Pocket PC SDK comes with ‘cabwiz’ which is a utility to package applications into self installing CAB files
    • This technology has been incorporated into Pocket PowerBuilder for easy application packaging
application testing and deployment4
Application Testing and Deployment

Manage Anywhere Studio

  • Automated central software distribution
    • Including file distribution and collection
    • Complete device-level hardware and software inventory
  • Support mission-critical mobile environment
    • Self-healing configurations
    • Remote control – reach out and help somebody
  • Security management
    • Keep virus protection, OS up to date
    • Guard against unauthorized software, configuration
  • Optimized for mobile, remote, embedded
    • Simple for administrator and end-user
    • Offline operation, suspend & resume, minimal bandwidth use
    • Manage desktops, laptops, PDAs
agenda4
Agenda
  • Mobile Computing Architectures
  • Pocket PowerBuilder Key Features
  • A Look at SQL Anywhere Studio
  • Developing Database Applications with Pocket PowerBuilder
    • Creating Remote Databases
    • The Power of DataWindows
    • Using the Pocket PowerBuilder Synchronization Wizard
    • Application Deployment – What goes where?
  • Summary
  • Additional Resources
summary
Summary
  • Pocket PowerBuilder provides the features that are required to develop enterprise smart client applications
  • PowerBuilder users can use their existing skills and application code to develop Windows CE applications
  • Windows CE applications are similar, but yet quite different than desktop applications, so design your applications accordingly
  • Database development is facilitated by Painters and Wizards to increase productivity
additional resources
Additional Resources
  • Pocket PowerBuilder Product Site
    • www.sybase.com/pocketpowerbuilder
  • Pocket PowerBuilder CodeXchange
    • http://pocketpb.codexchange.sybase.com
  • SQL Anywhere Studio Product Site
    • www.ianywhere.com/sqlanywhere
  • Manage Anywhere Studio
    • www.ianywhere.com/manageanywherestudio
  • Mobile and Wireless Design Essentials
    • www.amazon.com/mallick
  • Microsoft Pocket PC Info
    • www.microsoft.com/pocketpc
sdn presents codexchange
SDN Presents CodeXchange

Share Pocket PowerBuilder Code and Tools

  • New SDN feature enables community collaboration
    • Download samples created by Sybase
    • Leverage contributions of others to integrate with native Pocket PC APIs
    • Contribute your own code or start your own collaborative project with input from other Pocket PowerBuilder experts
  • Any SDN member can participate
    • Log in using your MySybase account via SDN
  • Join the collaboration already underway
    • http://pocketpb.codexchange.sybase.com or via SDN at www.sybase.com/developer
  • SDN & CodeXchange at TechWave
    • Technology Boardwalk
    • Sybase Booth Theater
ianywhere solutions at techwave2003
iAnywhere Solutions at TechWave2003

Activities for iAnywhere Solutions

  • Ask the iAnywhere Experts on the Technology Boardwalk
    • Drop in during exhibit hall hours and have all your questions answered by our technical experts!
    • Appointments outside of exhibit hall hours are also available to speak one-on-one with our Senior Engineers. Ask questions or get your yearly technical review – ask us for details
  • m-Business Pavilion
    • Visit the m-Business Pavilion in the exhibit hall to see how companies like Intermec have built m-Business solutions using iAnywhere Solutions technology
  • Wi-Fi Hotspots – brought to you by Intel & iAnywhere Solutions
    • You can enjoy wireless internet access via a Wi-Fi hotspot provided by Intel and iAnywhere Solutions. Using either a laptop or PDA that is Wi-Fi 802.11b wirelessly-enabled, visitors can access personal email, the internet ,and "TechWave To Go", a My AvantGo channel providing up-to-date information about TechWave classes, events and more.
ianywhere solutions at techwave20031
iAnywhere Solutions at TechWave2003

Activities for iAnywhere Solutions

  • Developer Community
    • A one-stop source for technical information!
    • Access to newsgroups,new betas and code samples
    • Monthly technical newsletters
    • Technical whitepapers,tips and online product documentation
    • Current webcast,class,conference and seminar listings
    • Excellent resources for commonly asked questions
    • All available express bug fixes and patches
    • Network with thousands of industry experts
    • http://www.ianywhere.com/developer/
