Cross enterprise screening mammography workflow in the obsp

Cross-Enterprise Screening Mammography Workflowin the OBSP

Elizabeth Stark, Leafsprout Technologies Inc.

April 22, 2012

Ontario breast screening program obsp
Ontario Breast Screening Program (OBSP)

  • Province of Ontario, Canada

  • 155 screening facilities within program, overseen by 8 regional centres

  • 475,506 women screened in 2010 → 3068 women per unit

  • Hospitals, clinics, mobile vans

  • Applicable guidelines:

    • National guidelines: Quality Determinants of Organized Breast Cancer Screening Programs, Health Canada (2003).

    • Provincial guidelines: Ontario Health Technology Advisory Committee guidelines on screening mammography

    • CAR (Canadian Association of Radiologists) guidelines

      Early notions regarding screening:

      “There is a passion for hunting something deeply implanted in the human breast”

      – Charles Dickens



Physical breast examination and mammography

No longer eligible for OBSP

After 1 or 2 years


Single read


Woman phones screening centre and books appointment


Increased awareness of OBSP and of screening benefits

Results sent to GP



After 1 or 2 years


Reminder letter




Obsp general features

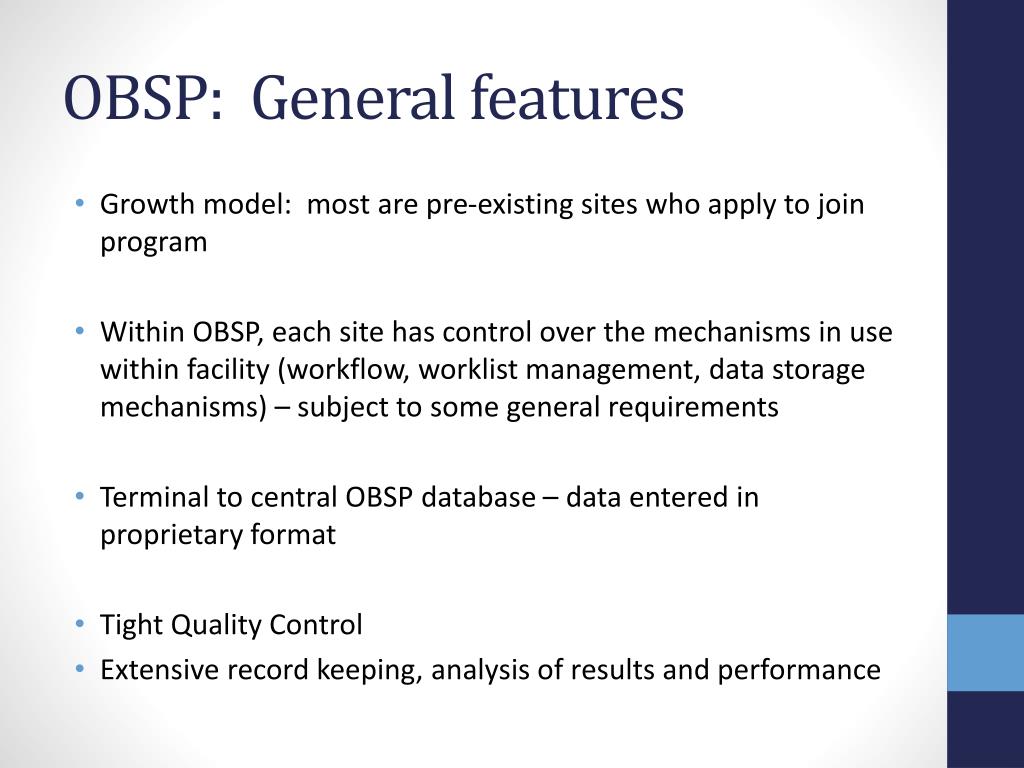

OBSP: General features

  • Growth model: most are pre-existing sites who apply to join program

  • Within OBSP, each site has control over the mechanisms in use within facility (workflow, worklist management, data storage mechanisms) – subject to some general requirements

  • Terminal to central OBSP database – data entered in proprietary format

  • Tight Quality Control

  • Extensive record keeping, analysis of results and performance


Eligible women:

  • 50 – 74(+)

    • Mammography and physical breast exam

    • Every 2 yrs.

    • If ≥ 75% mammographic density, annually

  • 30 – 69, high-risk women (hereditary risk)

    • MRI, mammography and physical breast exam

    • Screened annually

      “Formidable is the enemy that lies hid in a [wo]man’s own breast”

      – PubliliusSyrus (Roman author 1st century B.C.)


  • Recruitment and scheduling are two separate processes in Ontario

  • Privacy issues

  • Scheduling initiated by woman, not by OBSP

  • Recruitment focuses on increasing awareness

  • GPs play a large role in raising awareness -> OBSP devotes significant effort to recruiting GPs

  • Also: brochures, posters, PSAs, efforts to reach target audiences (neighbourhoods, ethnic groups, etc.) by various means (e.g., hairdressers!)

  • Reminder letter – one month before next appointment

Recruitment gps
Recruitment – GPs

  • Relationship with GPs managed by Regional Centre

  • GP refers women in his/her practice to OBSP for breast screening

  • Targeted mailout – GPs can send letters to women 50+ within their practices, inviting them to participate in OBSP (OBSP can assume costs and even workload associated with this)

  • GP can specify preferences:

    • referrals for assessments to go to specific facilities;

    • GP to handle referrals for assessments if desired.

      Trusted GPs can provide reassurance to women anxious about the screening process:

      “Your legs and breast bristle with shaggy hair but your mind, Pannicus, shows no signs of manliness”

      – Marcus Aurelius

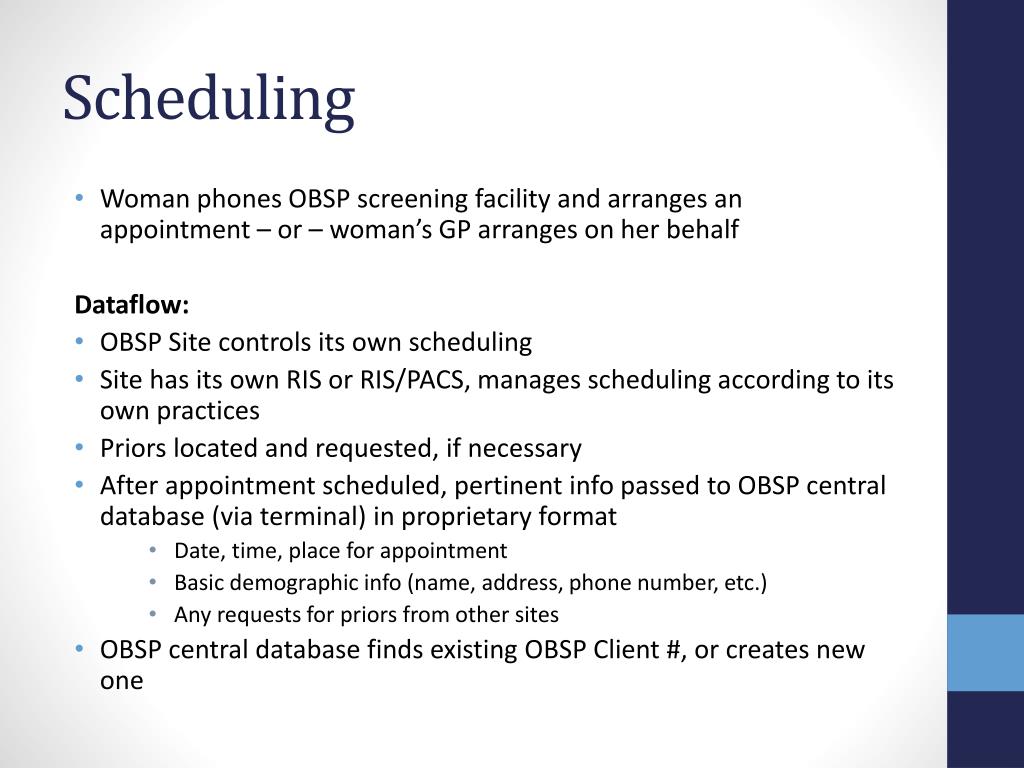

  • Woman phones OBSP screening facility and arranges an appointment – or – woman’s GP arranges on her behalf


  • OBSP Site controls its own scheduling

  • Site has its own RIS or RIS/PACS, manages scheduling according to its own practices

  • Priors located and requested, if necessary

  • After appointment scheduled, pertinent info passed to OBSP central database (via terminal) in proprietary format

    • Date, time, place for appointment

    • Basic demographic info (name, address, phone number, etc.)

    • Any requests for priors from other sites

  • OBSP central database finds existing OBSP Client #, or creates new one

  • Admission

    • Client presents herself at OBSP Site

    • Demographics collected / verified

    • Consents signed:

      • screening results to be propagated to GP;

      • OBSP to book any further assessments required;

      • info for any further assessments to be propagated back to OBSP;

      • consent to be contacted regarding participation in studies as applicable.

  • Clinical history (during Admission or Exam) – for clinical interpretation, future studies


  • Accession # assigned in RIS

  • Pertinent info transcribed and transmitted to OBSP central db:

    • Demographics

    • Consents (yes/no)

    • Clinical history

  • Worklist and original paperwork / electronic storage managed by Site according to its processes (subject to some basic requirements)

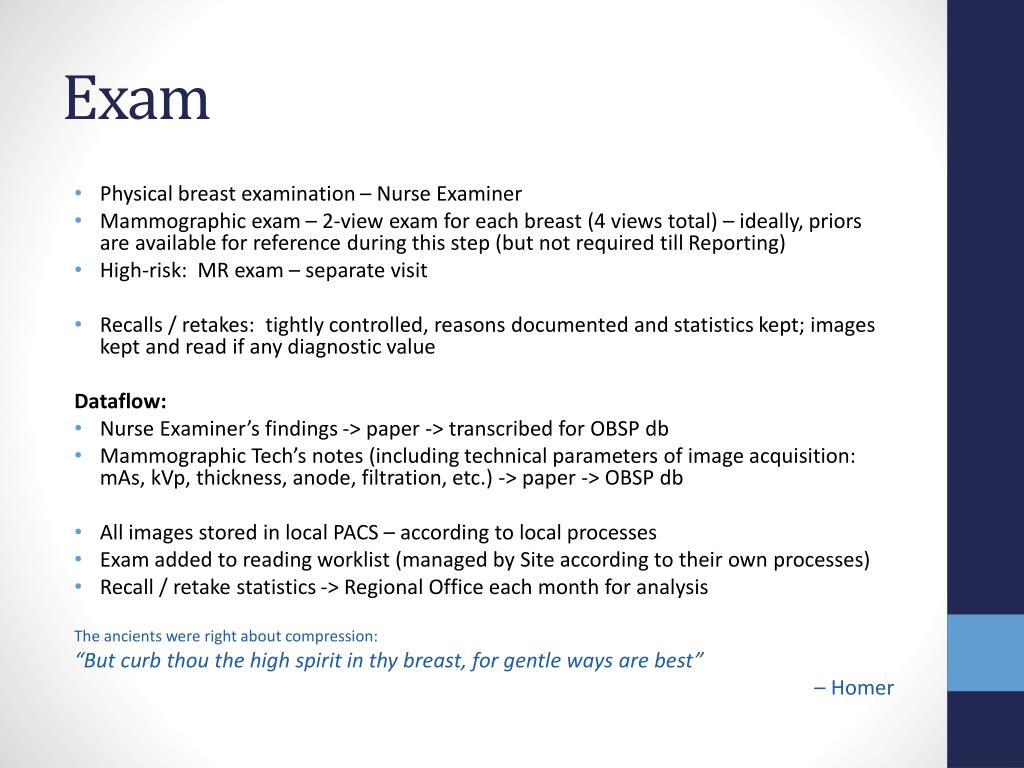

  • Exam

    • Physical breast examination – Nurse Examiner

    • Mammographic exam – 2-view exam for each breast (4 views total) – ideally, priors are available for reference during this step (but not required till Reporting)

    • High-risk: MR exam – separate visit

    • Recalls / retakes: tightly controlled, reasons documented and statistics kept; images kept and read if any diagnostic value


    • Nurse Examiner’s findings -> paper -> transcribed for OBSP db

    • Mammographic Tech’s notes (including technical parameters of image acquisition: mAs, kVp, thickness, anode, filtration, etc.) -> paper -> OBSP db

    • All images stored in local PACS – according to local processes

    • Exam added to reading worklist (managed by Site according to their own processes)

    • Recall / retake statistics -> Regional Office each month for analysis

      The ancients were right about compression:

      “But curb thou the high spirit in thy breast, for gentle ways are best”

      – Homer


    • Single reading, CAD optional, priors required (if they exist)

    • Radiologist usually onsite, but not always: mobile van, teleradiology

    • Radiologist takes into account

      • Nurse examiner’s findings

      • Mammo tech’s notes

      • Images

      • Clinical history

        … and makes a recommendation (further assessment / return in 2 yrs / return annually / etc.)

  • Radiologist requirements (CAR-MAP, Health Canada guidelines for breast screening programs)

    • ≥ 3000 mammograms / yr

    • Continuing medical education

    • Quarterly participation in rounds

    • Responsible for maintaining outcome data (positive predictive value) – OBSP does much of this


  • Report -> paper (or electronic) -> transcribed to proprietary format for OBSP db

  • Action on recommendations
    Action on Recommendations

    • Client’s GP notified of screening result immediately (max. 2 wks) – by letter

    • Client notified by letter 2 wks later

    • Or – if no GP specified – Client notified directly, immediately

    • Referral for assessment:

      • Can be handled by OBSP (OBSP-affiliated Assessment Centres)

      • Can be handled by GP (external assessment centres)

      • Results of assessment -> OBSP Central Office -> OBSP db (consent rate > 98%)

    • Outcome statistics provide feedback on performance of OBSP
