orangemesh dashboard

OrangeMesh Dashboard

ShaddiHasan

Mac MollsionWill Vogler

our client orange networking
Our Client: Orange Networking

Advocacy

Education

Wireless

Support

Local non-profit, founded in 2006

Chairman, Brian Russell

motivation
Motivation

Provide Broadband Internet access to disadvantaged communities

Make network management accessible to semi-technical users

Reduce maintenance costs by empowering the community to solve its own problems

Create an easy-to-setup system

SOLUTION: Mesh Networking

what s in a mesh
What’s in a Mesh?
  • Nodes, lots of them
  • Nodes create a “mesh cloud”
  • Gateways connect to internet and repeaters
  • Repeaters connect to other repeaters and gateways
in the beginning there was roofnet
In the Beginning, there was Roofnet
  • MIT begat Roofnet
  • Roofnet begat Meraki
  • Meraki Goes Corporate
    • 300% price increases
    • Draconian hardware restrictions
    • “Happy Hacking” no more :(
an open mesh
An Open Mesh
  • Protocol: B.A.T.M.A.N.
  • Firmware: RO.B.IN
  • Hardware: Accton MR3201A
  • Dashboard: Open-Mesh
    • Community Dasboard: OrangeMesh
open mesh orangemesh
Open-Mesh + OrangeMesh
  • Optimal Solution
  • No competition
  • Better Community Features
  • Access to pre-flashed nodes
  • Project Longevity
  • Client Request

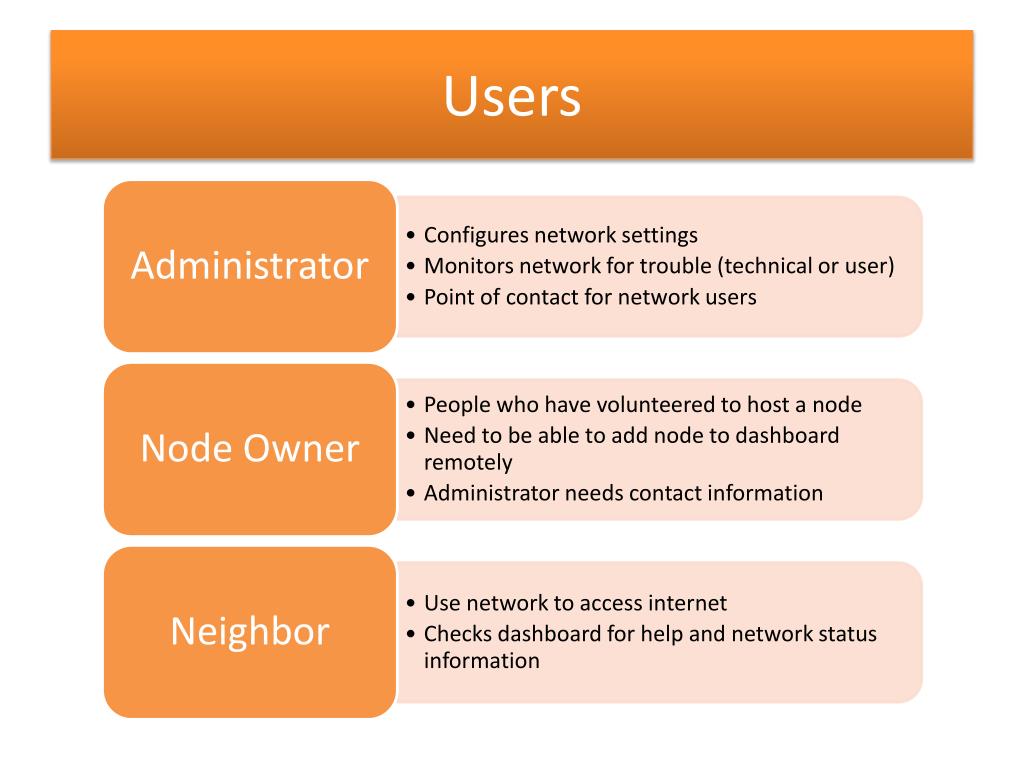

OrangeMesh

Open-Mesh

network architecture

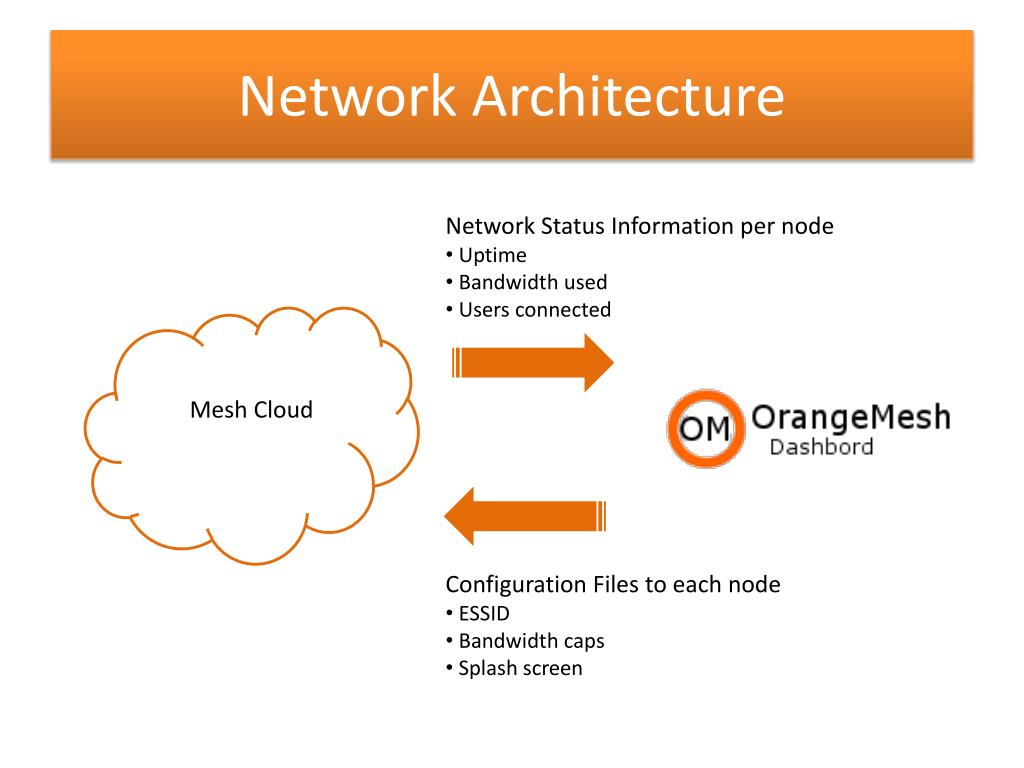

Network Architecture
  • Network Status Information per node
  • Uptime
  • Bandwidth used
  • Users connected

Mesh Cloud

  • Configuration Files to each node
  • ESSID
  • Bandwidth caps
  • Splash screen
dashboard architecture

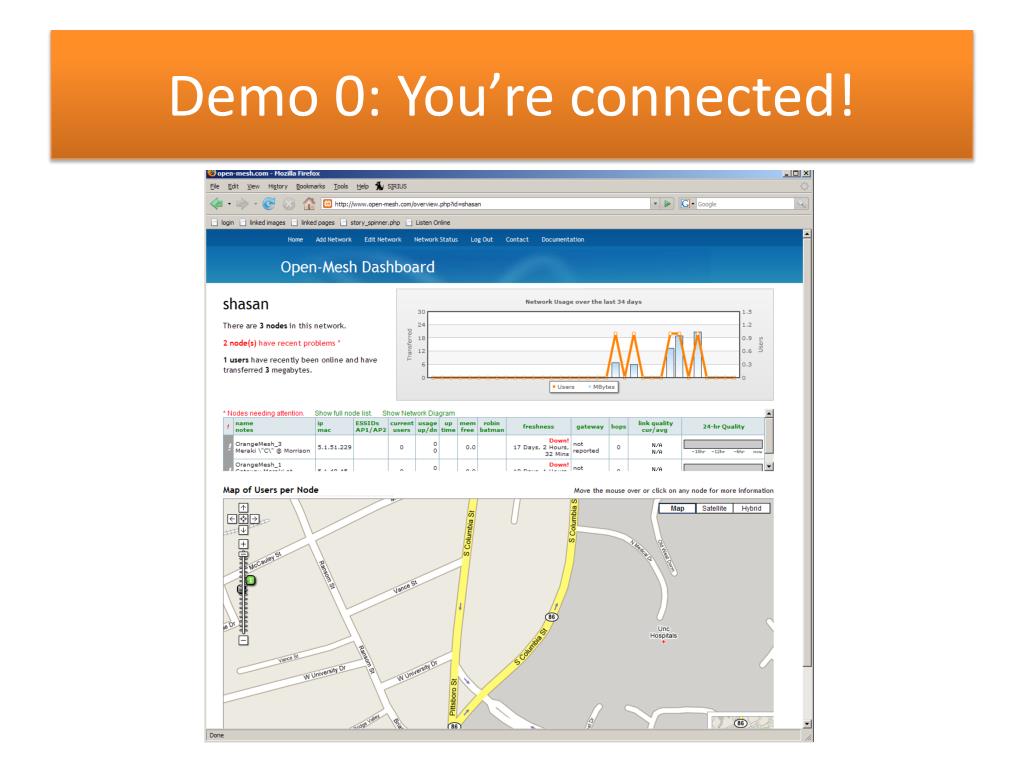

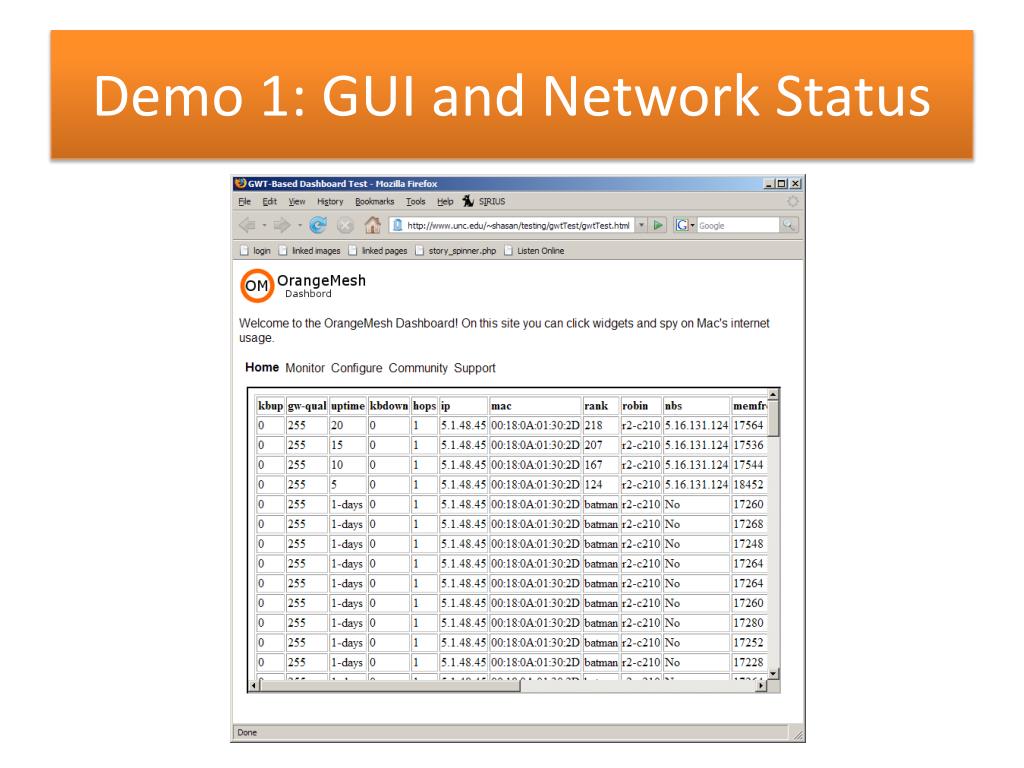

Dashboard Architecture

Remote DB

Web GUI

Network Status

Network Configuration

Node Information

Migration

MySQL:

“nodes”

“accounts”

where from here
Where from here?
  • Node Configuration Scripts
  • Temporary pending release of Open Mesh
  • Updated User Documentation
  • Integrate into dashboard
  • Educational documentation
  • Node Owner Information System
  • Link contact information to nodes
  • Pending nodes interface
  • Simplified Install Process
  • Automate setup of core components (DB, unpacking scripts)
  • “Ubuntu Beginner” level step-by-step guides
