Epidemiological Evidence for Health Effects of Nanoparticles

1. Epidemiological Evidence for Health Effects of Nanoparticles H.-Erich Wichmann GSF – Institute of Epidemiology LMU – University of Munich, Germany Conference Matform 2004 - Potentials and risks of nanoscale materials. University of Augsburg 20-21 September 2004

2. Content • Ambient concentrations • Respiratory effects • Cardiovascular effects • Summary

3. Abbreviations: PM10 fine and coarse particles (mass) < 10 m FP fine particles (mass) < 2.5 m UP ultrafine particles (number) < 0.1 m UP = nanoparticles

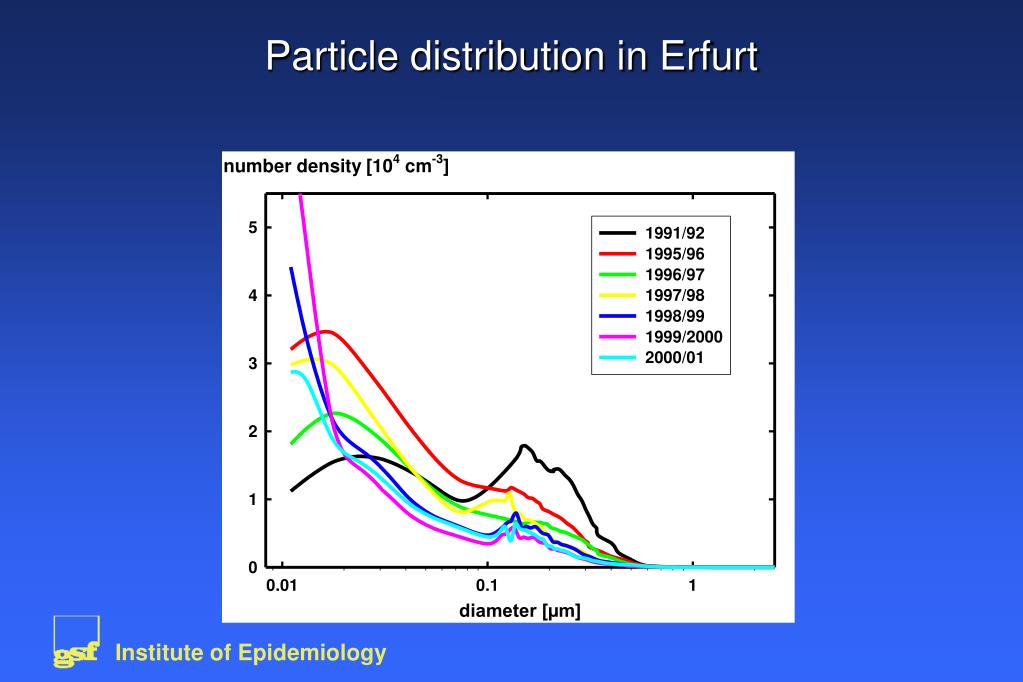

4. Particle distribution in Erfurt

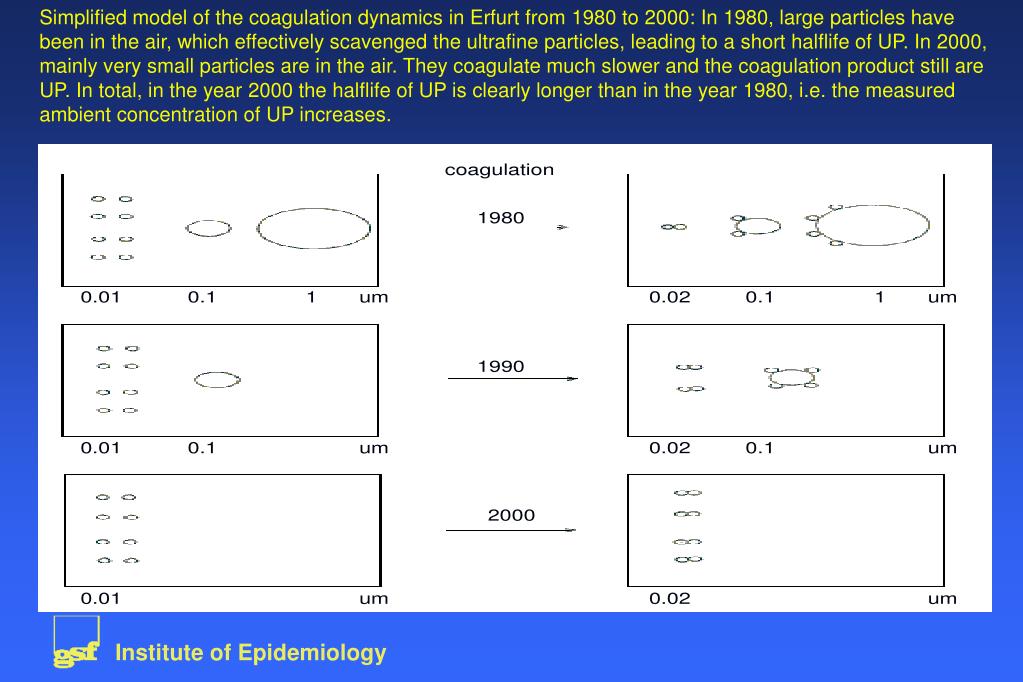

5. Simplified model of the coagulation dynamics in Erfurt from 1980 to 2000: In 1980, large particles have been in the air, which effectively scavenged the ultrafine particles, leading to a short halflife of UP. In 2000, mainly very small particles are in the air. They coagulate much slower and the coagulation product still are UP. In total, in the year 2000 the halflife of UP is clearly longer than in the year 1980, i.e. the measured ambient concentration of UP increases.

6. Relative particle number, BC, CO concentrations versus distance from the 710 freeway Zhu et al (2002)

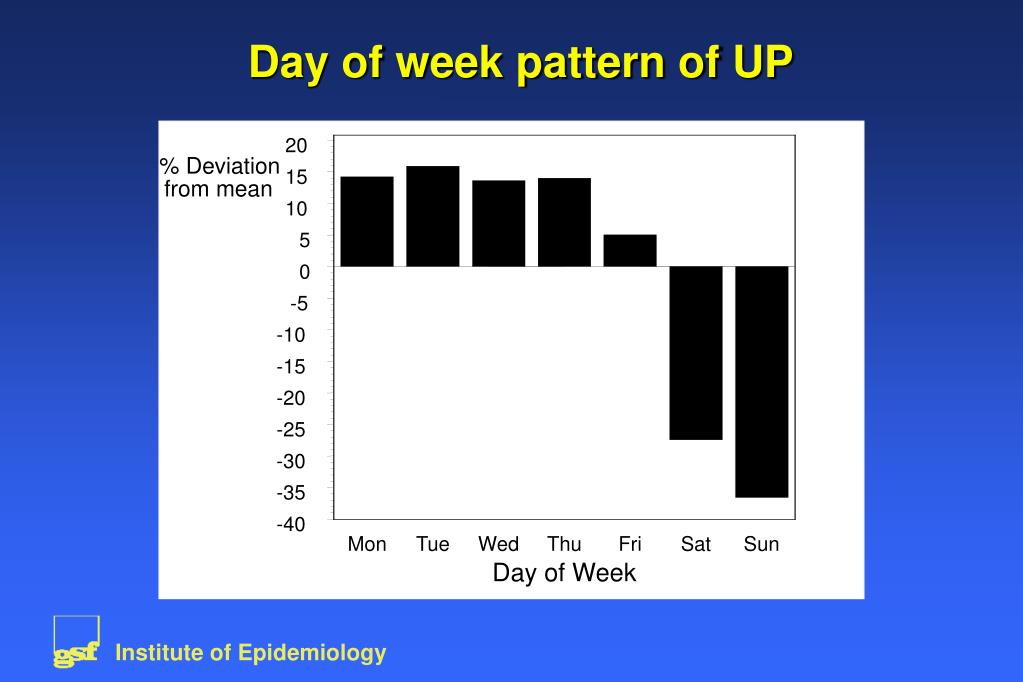

7. Day of week pattern of UP 20 % Deviation 15 from mean 10 5 0 -5 -10 -15 -20 -25 -30 -35 -40 Mon Tue Wed Thu Fri Sat Sun Day of Week

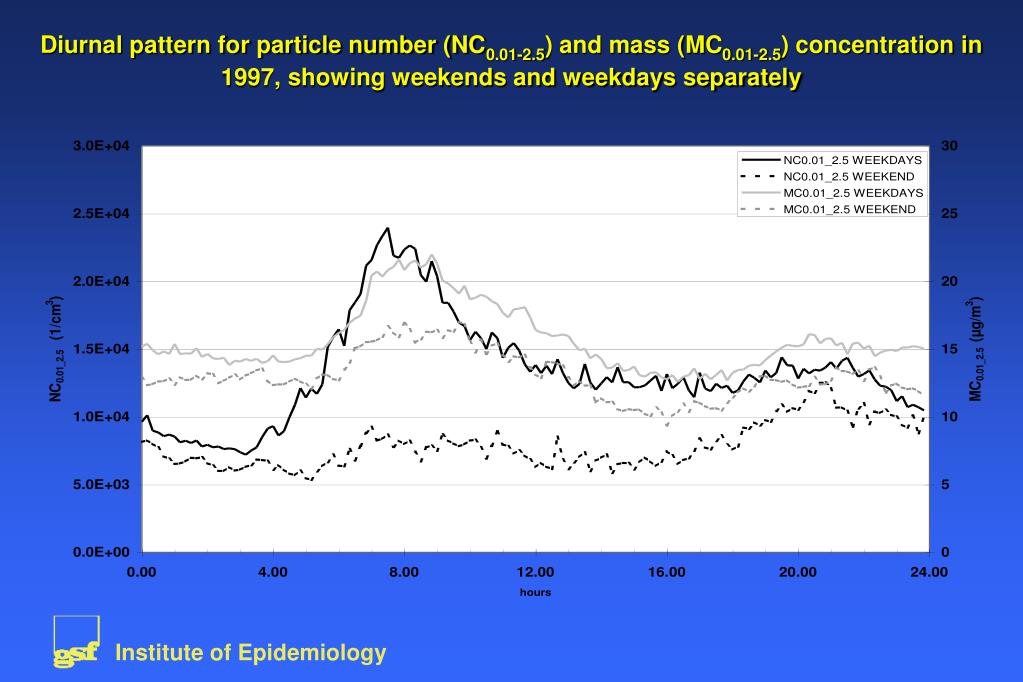

8. Diurnal pattern for particle number (NC0.01-2.5) and mass (MC0.01-2.5) concentration in 1997, showing weekends and weekdays separately

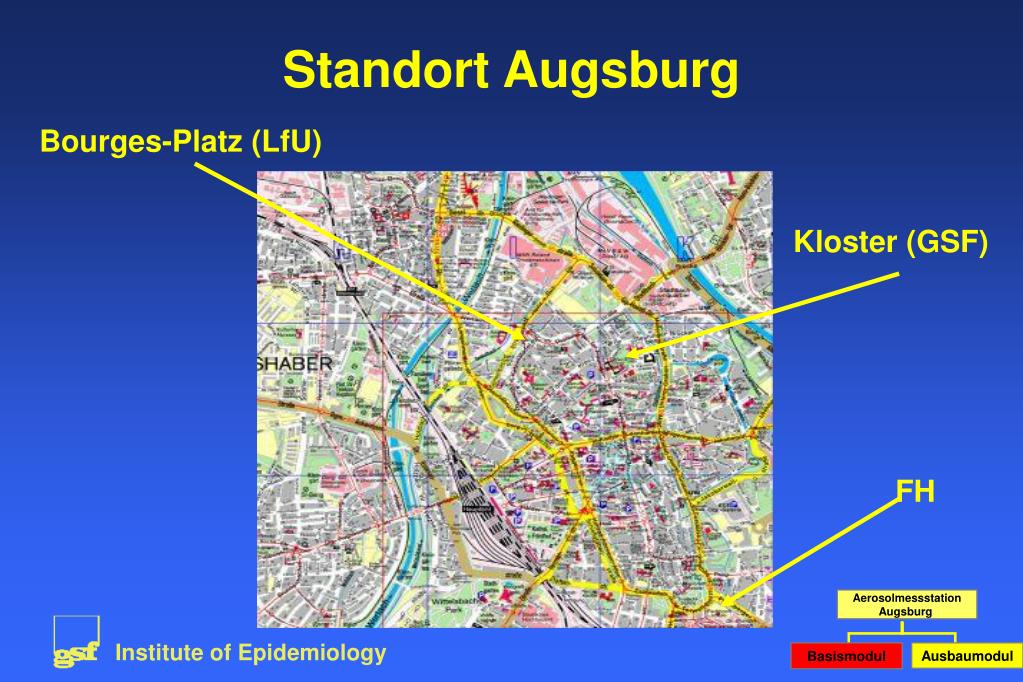

9. Standort Augsburg Bourges-Platz (LfU) Kloster (GSF) FH Aerosolmessstation Augsburg Basismodul Ausbaumodul

10. Kloster (GSF) vs. Bourges-Platz

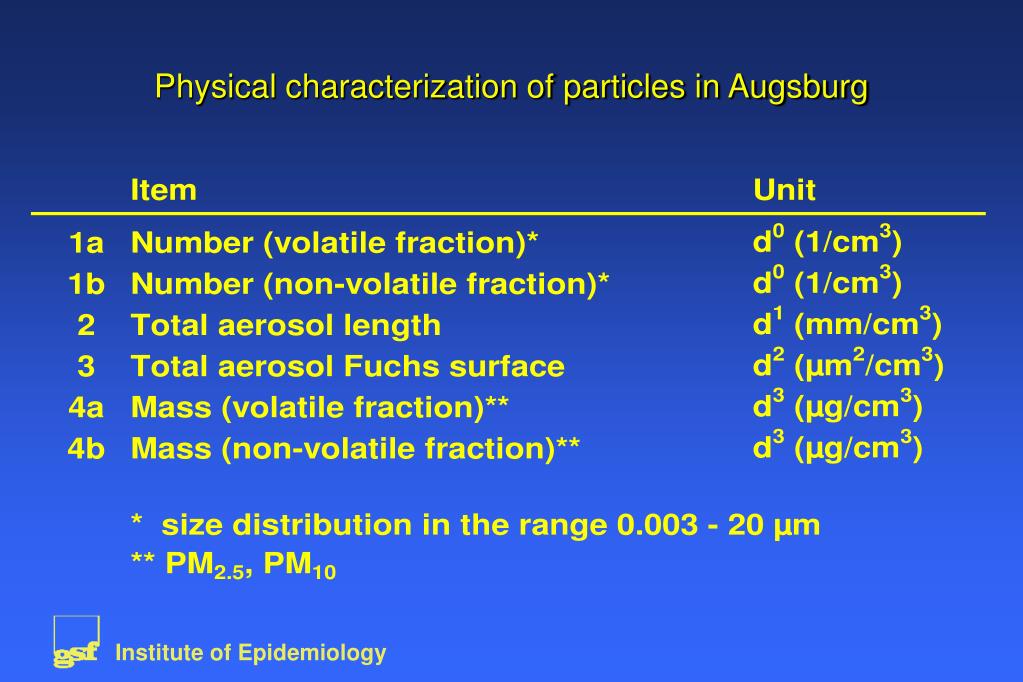

11. Physical characterization of particles in Augsburg

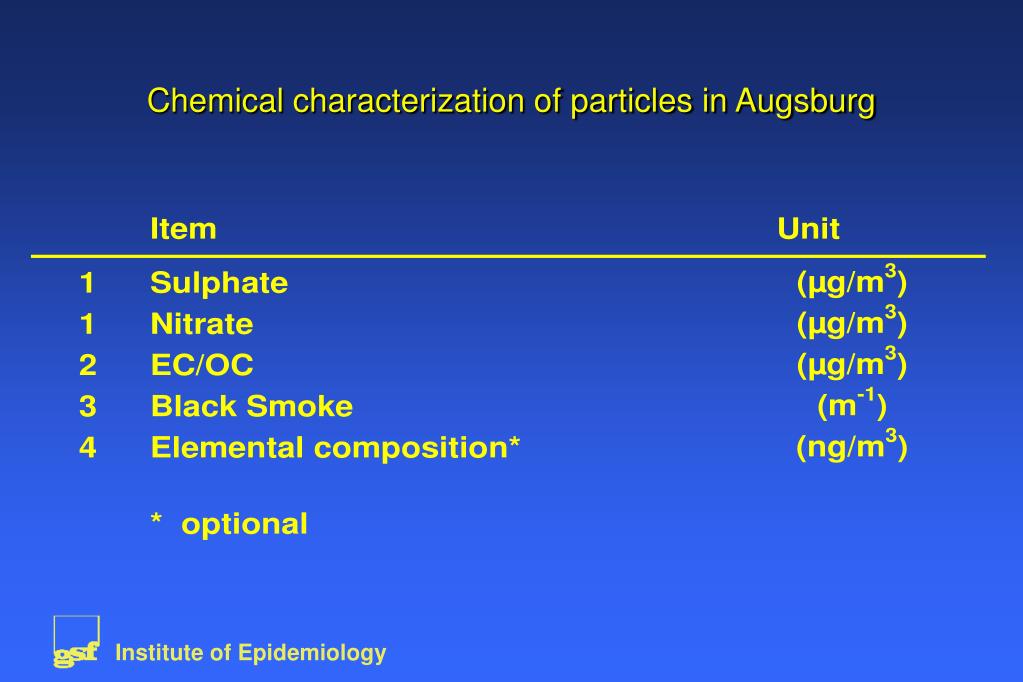

12. Chemical characterization of particles in Augsburg

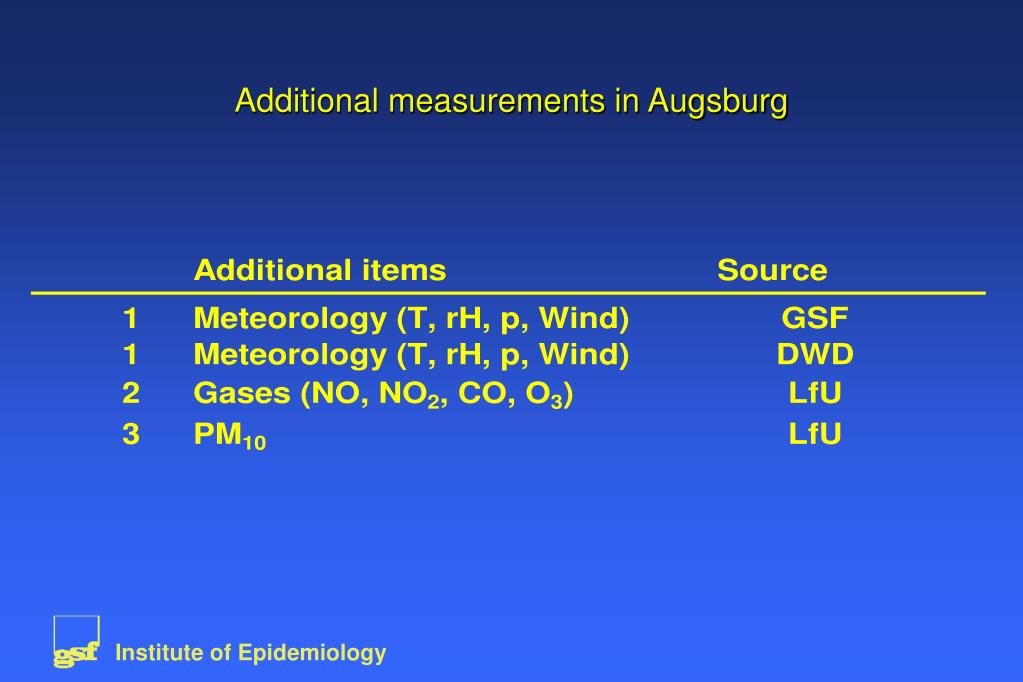

13. Additional measurements in Augsburg

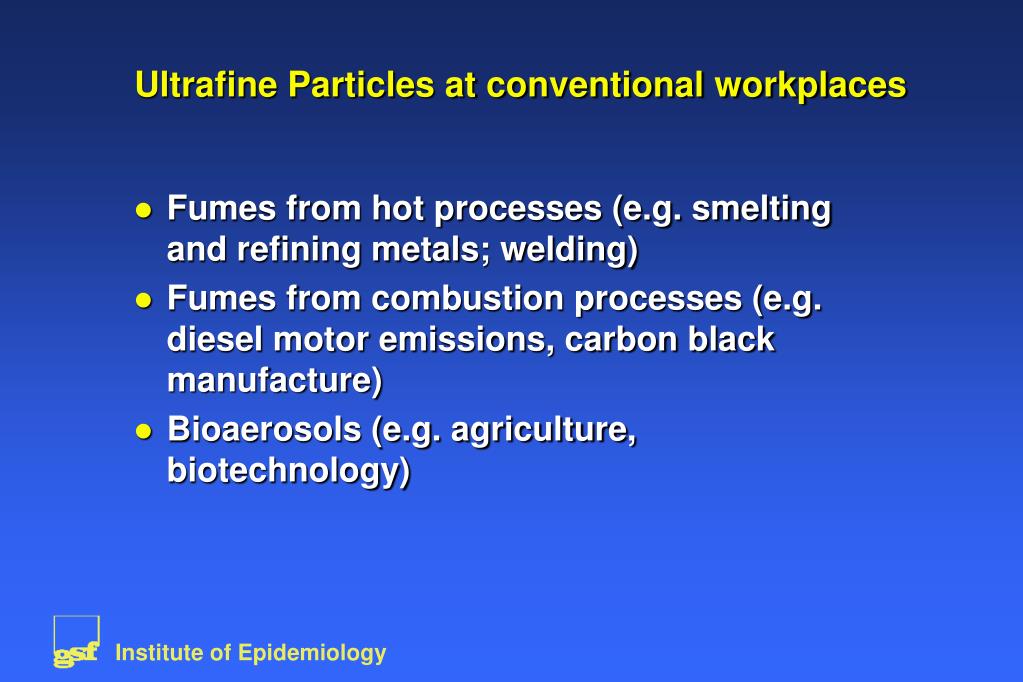

14. Ultrafine Particles at conventional workplaces • Fumes from hot processes (e.g. smelting and refining metals; welding) • Fumes from combustion processes (e.g. diesel motor emissions, carbon black manufacture) • Bioaerosols (e.g. agriculture, biotechnology)

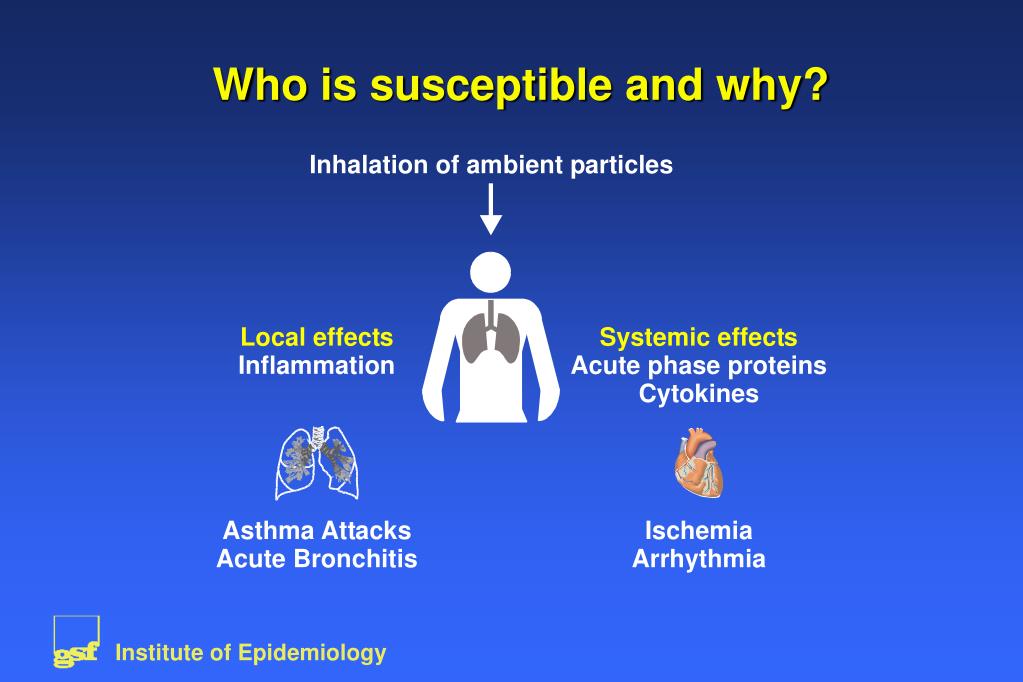

15. Who is susceptible and why?

16. Particulate matter was associated with mortality WHO , 1997

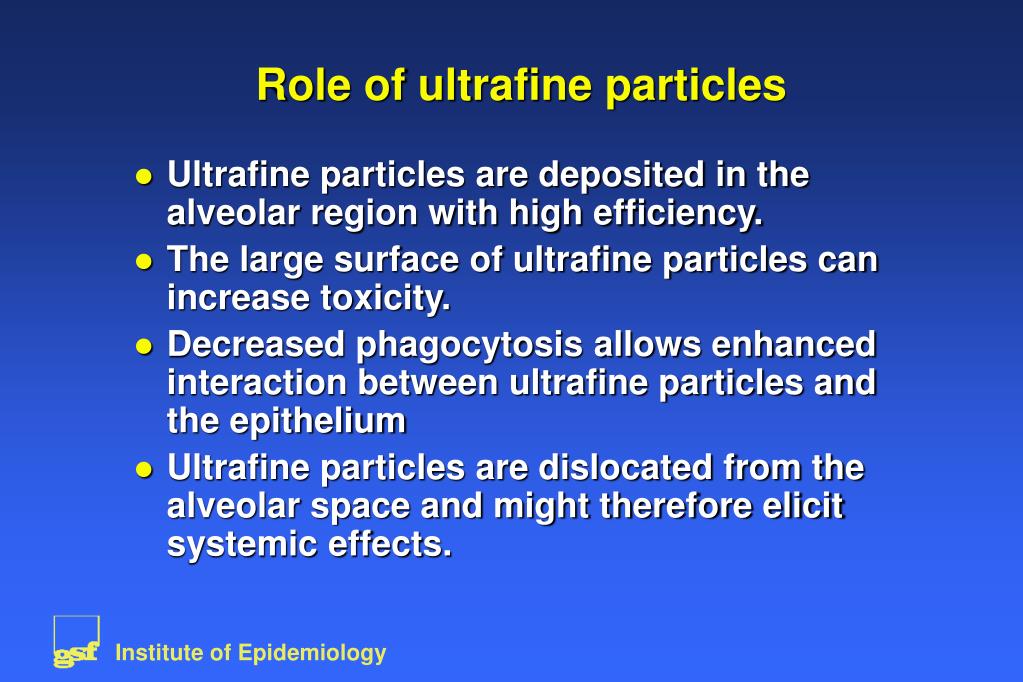

17. Role of ultrafine particles • Ultrafine particles are deposited in the alveolar region with high efficiency. • The large surface of ultrafine particles can increase toxicity. • Decreased phagocytosis allows enhanced interaction between ultrafine particles and the epithelium • Ultrafine particles are dislocated from the alveolar space and might therefore elicit systemic effects.

18. Mortality Study on ultrafine particles • Daily mortality counts were collected in Erfurt between summer 1995 and the end of 1998. • Particle size distributions were measured with an aerosol spectrometer between 10 nm and 2.5 µm. • Ultrafine particles were only moderately correlated with PM2.5. Wichmann et al. HEI Report2000

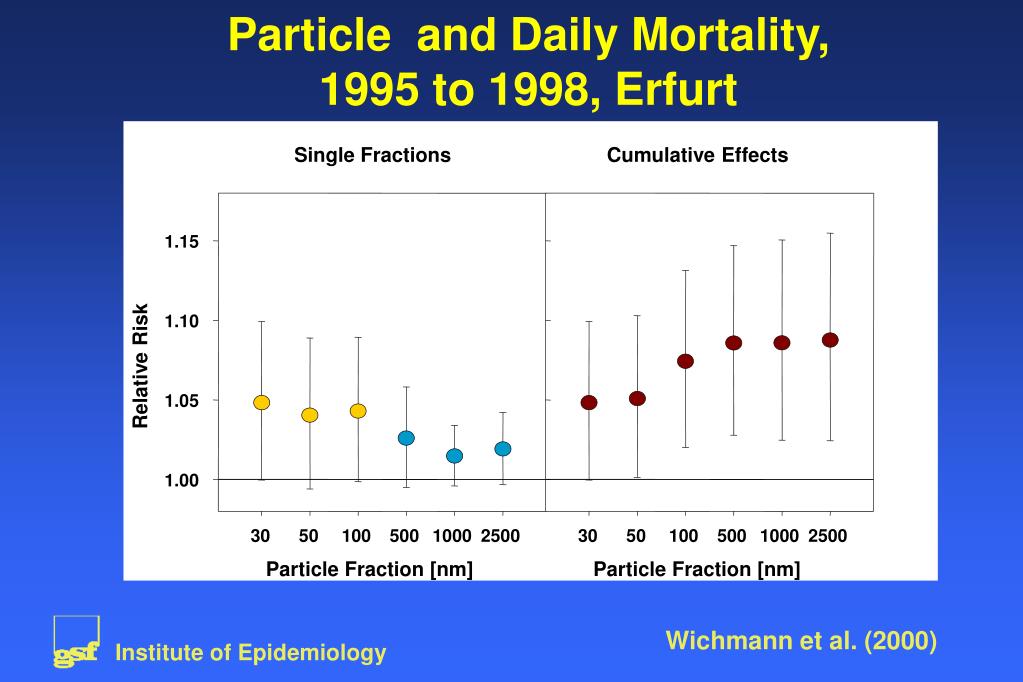

19. Particle and Daily Mortality, 1995 to 1998, Erfurt Single Fractions Cumulative Effects 1.15 NC MC 1.10 Relative Risk 1.05 1.00 30 50 100 500 1000 2500 30 50 100 500 1000 2500 Particle Fraction [nm] Particle Fraction [nm] Wichmann et al. (2000)

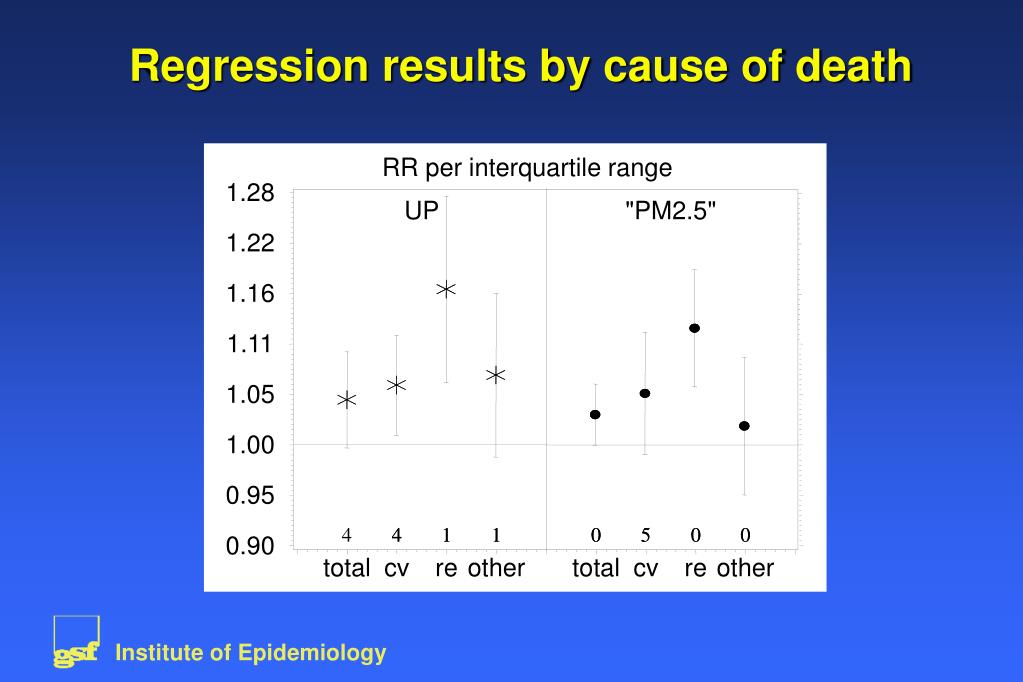

20. RR per interquartile range 1.28 UP "PM2.5" 1.22 1.16 1.11 1.05 1.00 0.95 4 4 4 1 1 1 1 0 0 5 5 0 0 0 0 0.90 total cv re other total cv re other Regression results by cause of death

21. Lung function reduction in asthmatic adults Peters et al. , 1997

22. Medication use increased in adult asthmatics (Erfurt) 52 subjects followed for 5 months during winter 96/97 von Klot et al. (2000)

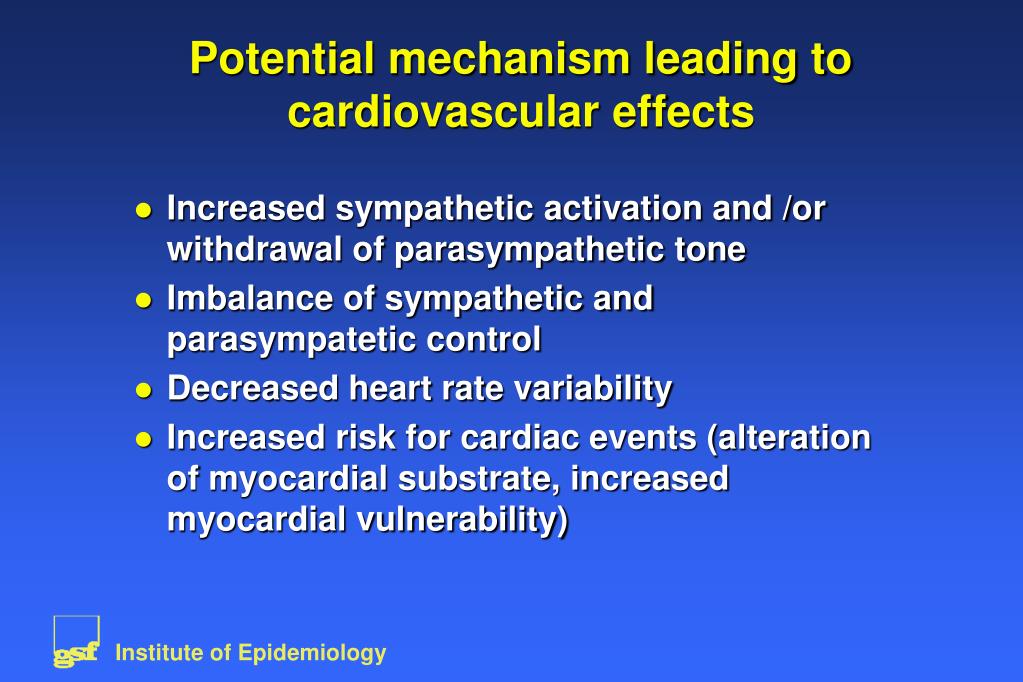

23. Potential mechanism leading to cardiovascular effects • Increased sympathetic activation and /or withdrawal of parasympathetic tone • Imbalance of sympathetic and parasympatetic control • Decreased heart rate variability • Increased risk for cardiac events (alteration of myocardial substrate, increased myocardial vulnerability)

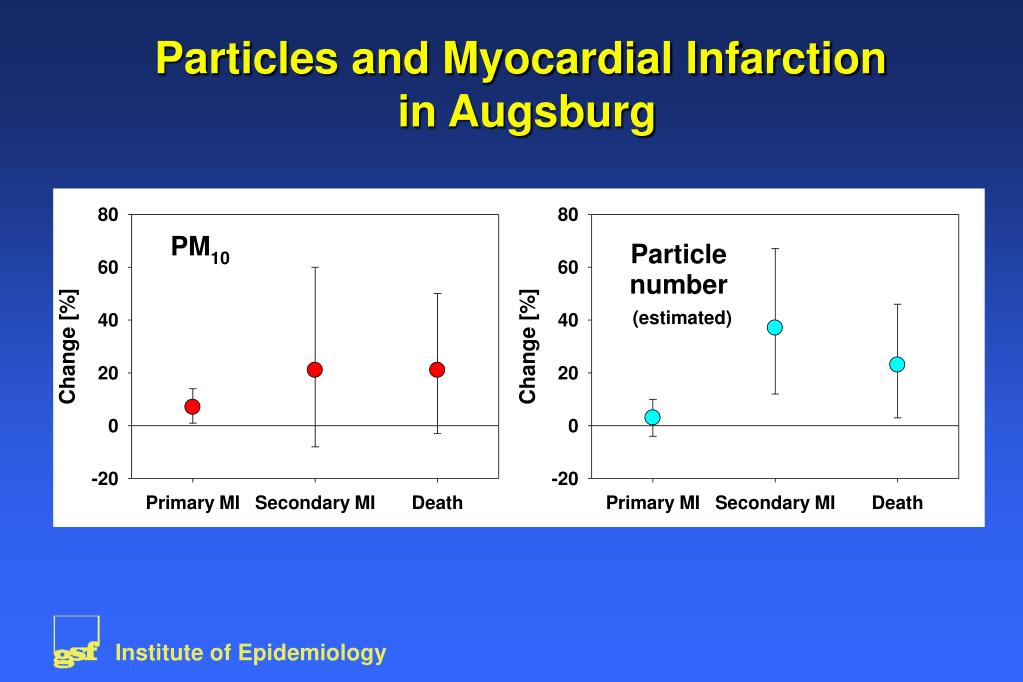

24. Particles and Myocardial Infarction in Augsburg

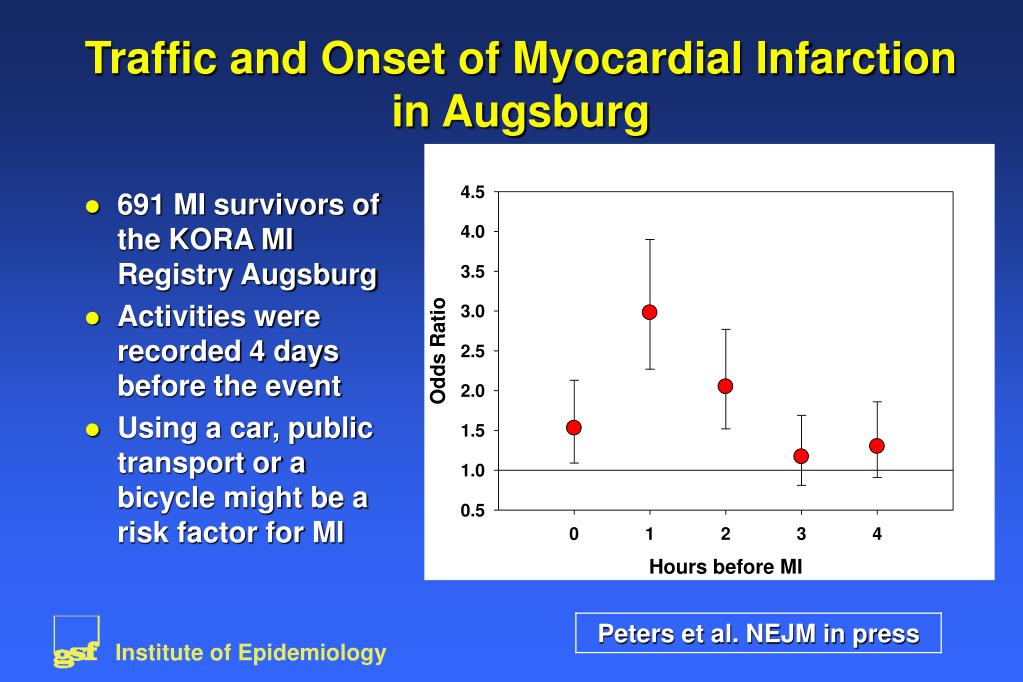

25. Traffic and Onset of Myocardial Infarction in Augsburg • 691 MI survivors of the KORA MI Registry Augsburg • Activities were recorded 4 days before the event • Using a car, public transport or a bicycle might be a risk factor for MI

26. Rochester Particle Center Study in Erfurt, Germany • Panel Study in 56 patients with coronary artery disease (winter 2000/01) • Panel Study in 37 patients with chronic obstructive pulmonary disease (winter 2001/02) • Blood biomarkers and EKG recordings at 12 clinic visits • Central monitoring of ultrafine and accumulation mode particles, PM2.5

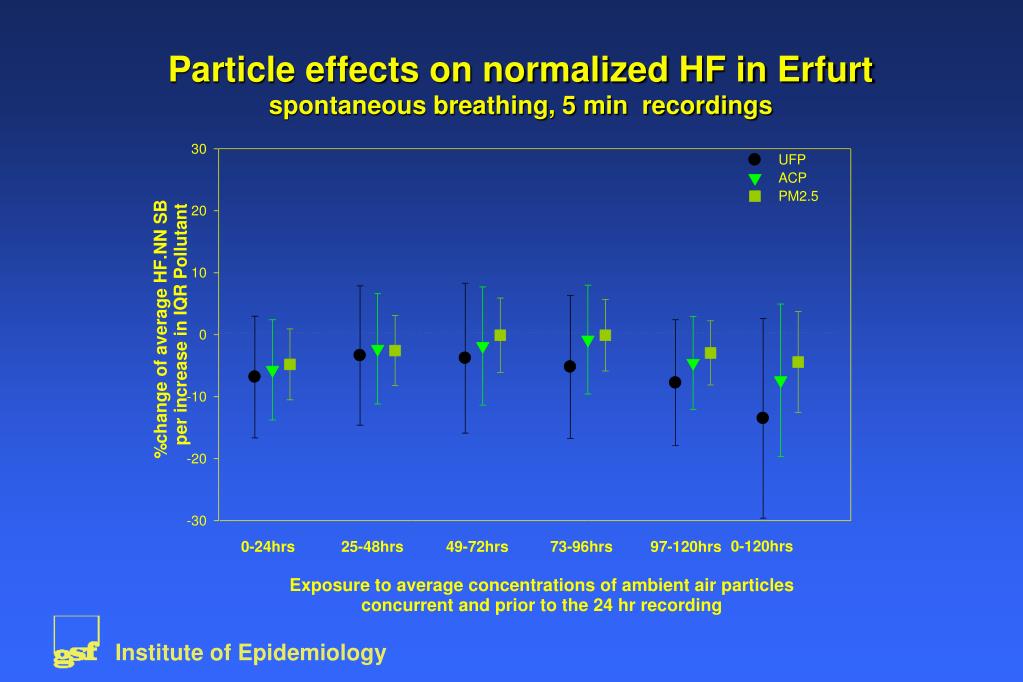

27. Particle effects on normalized HF in Erfurt spontaneous breathing, 5 min recordings

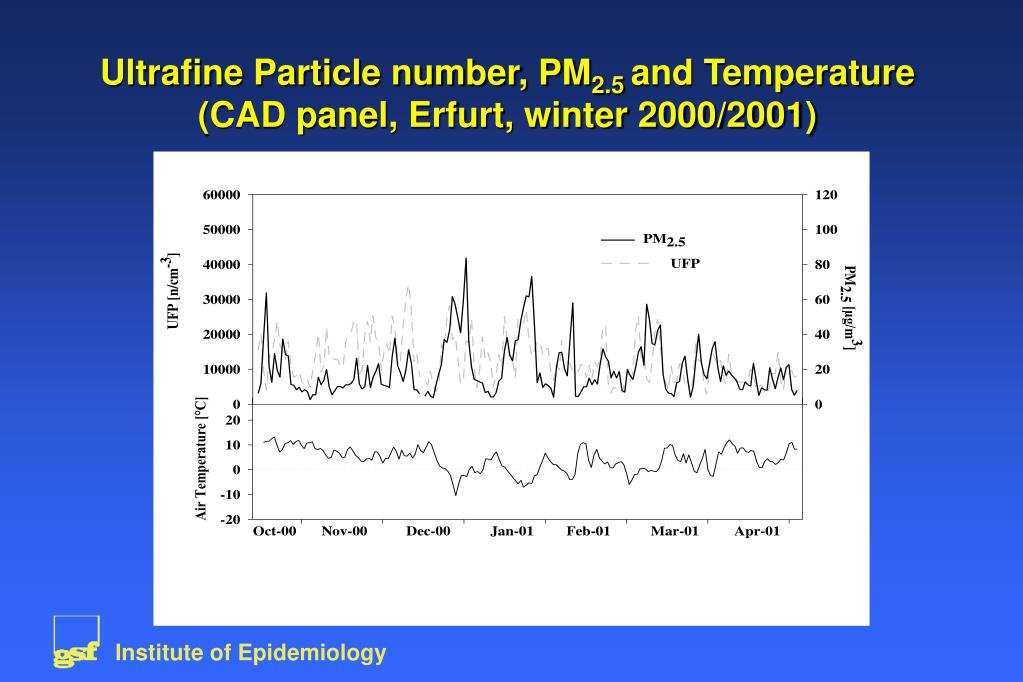

28. Ultrafine Particle number, PM2.5 and Temperature (CAD panel, Erfurt, winter 2000/2001)

29. Particle effects on T wave amplitude in Erfurt spontaneous breathing, 5 min recordings

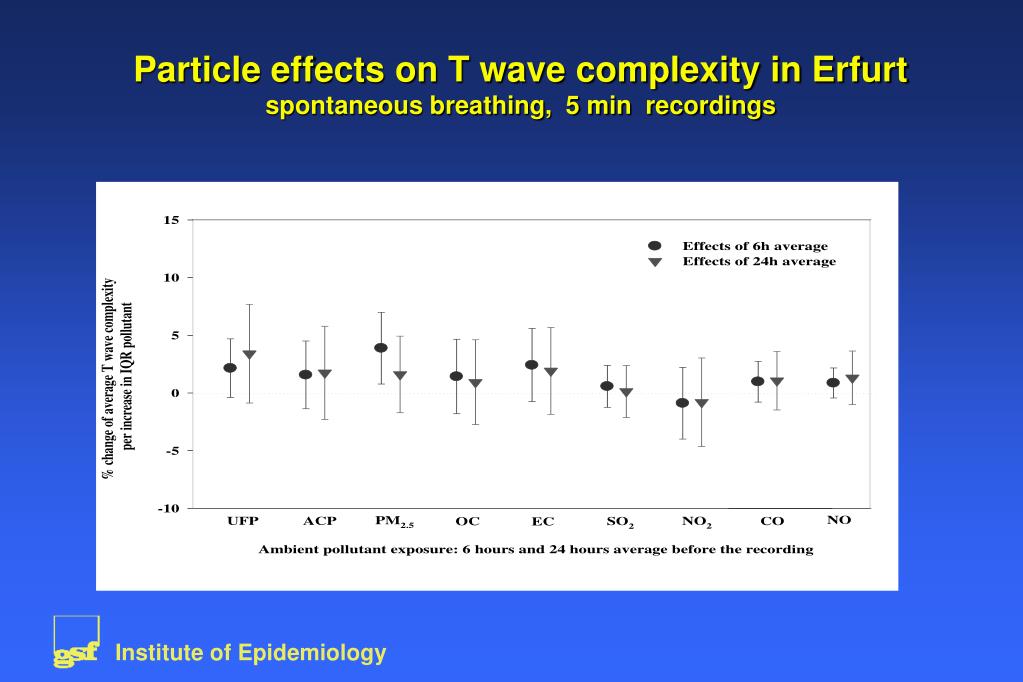

30. Particle effects on T wave complexity in Erfurt spontaneous breathing, 5 min recordings

31. Summary • Main ambient source of UP is automobile traffic • Health effects of UP on respiratory and cardiovascular endpoints shown, but open questions • Epidemiology on technically produced nanoparticles missing (work place and environment) • Epidemiology on UP from combustion may serve as model for nanoparticles
