netw 250 complete ilabs package

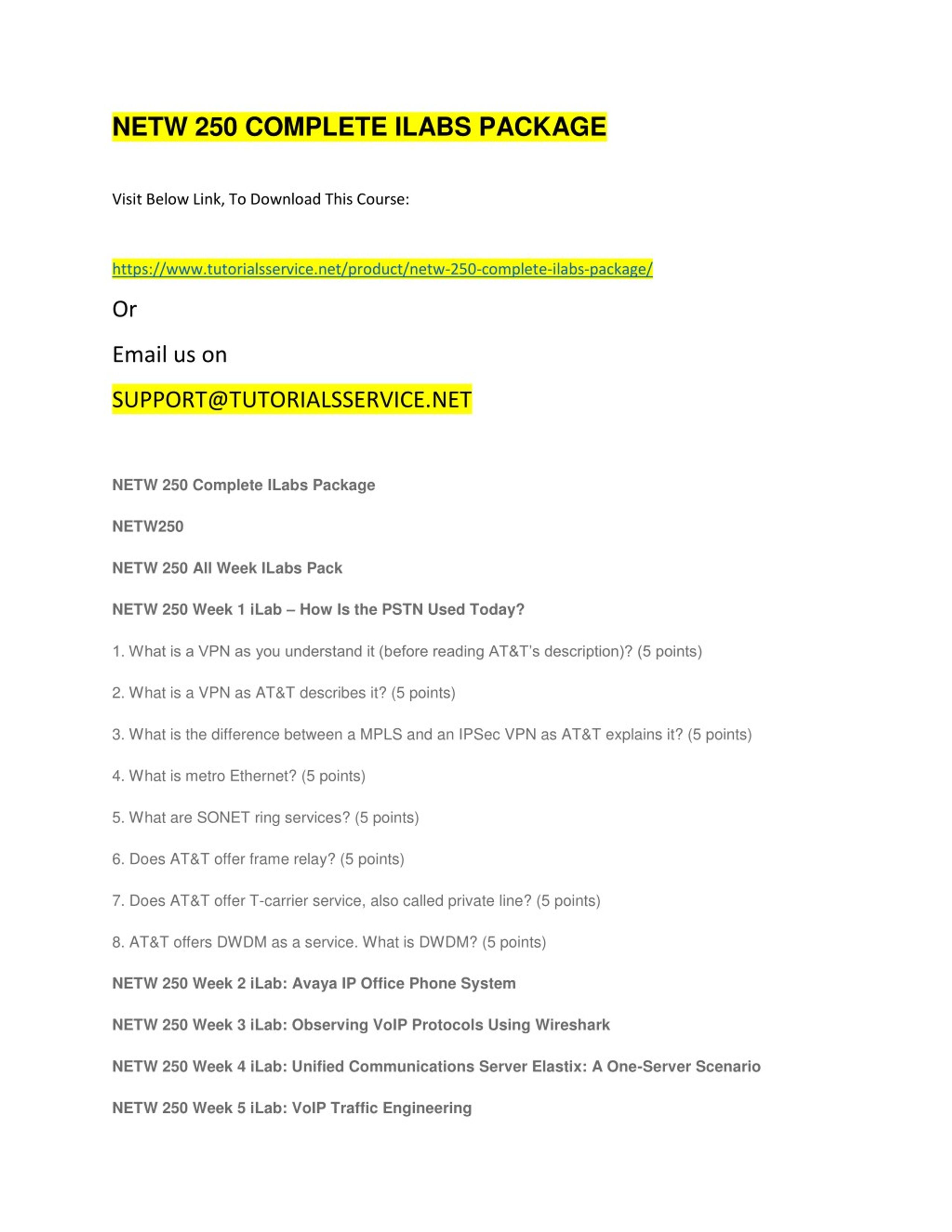

NETW 250 COMPLETE ILABS PACKAGE

Visit Below Link, To Download This Course:

https://www.tutorialsservice.net/product/netw-250-complete-ilabs-package/

Or

Email us on

SUPPORT@TUTORIALSSERVICE.NET

NETW 250 Complete ILabs Package

NETW250

NETW 250 All Week ILabs Pack

NETW 250 Week 1 iLab – How Is the PSTN Used Today?

1. What is a VPN as you understand it (before reading AT&T’s description)? (5 points)

2. What is a VPN as AT&T describes it? (5 points)

3. What is the difference between a MPLS and an IPSec VPN as AT&T explains it? (5 points)

4. What is metro Ethernet? (5 points)

5. What are SONET ring services? (5 points)

6. Does AT&T offer frame relay? (5 points)

7. Does AT&T offer T-carrier service, also called private line? (5 points)

8. AT&T offers DWDM as a service. What is DWDM? (5 points)

NETW 250 Week 2 iLab: Avaya IP Office Phone System

NETW 250 Week 3 iLab: Observing VoIP Protocols Using Wireshark

NETW 250 Week 4 iLab: Unified Communications Server Elastix: A One-Server Scenario

NETW 250 Week 5 iLab: VoIP Traffic Engineering

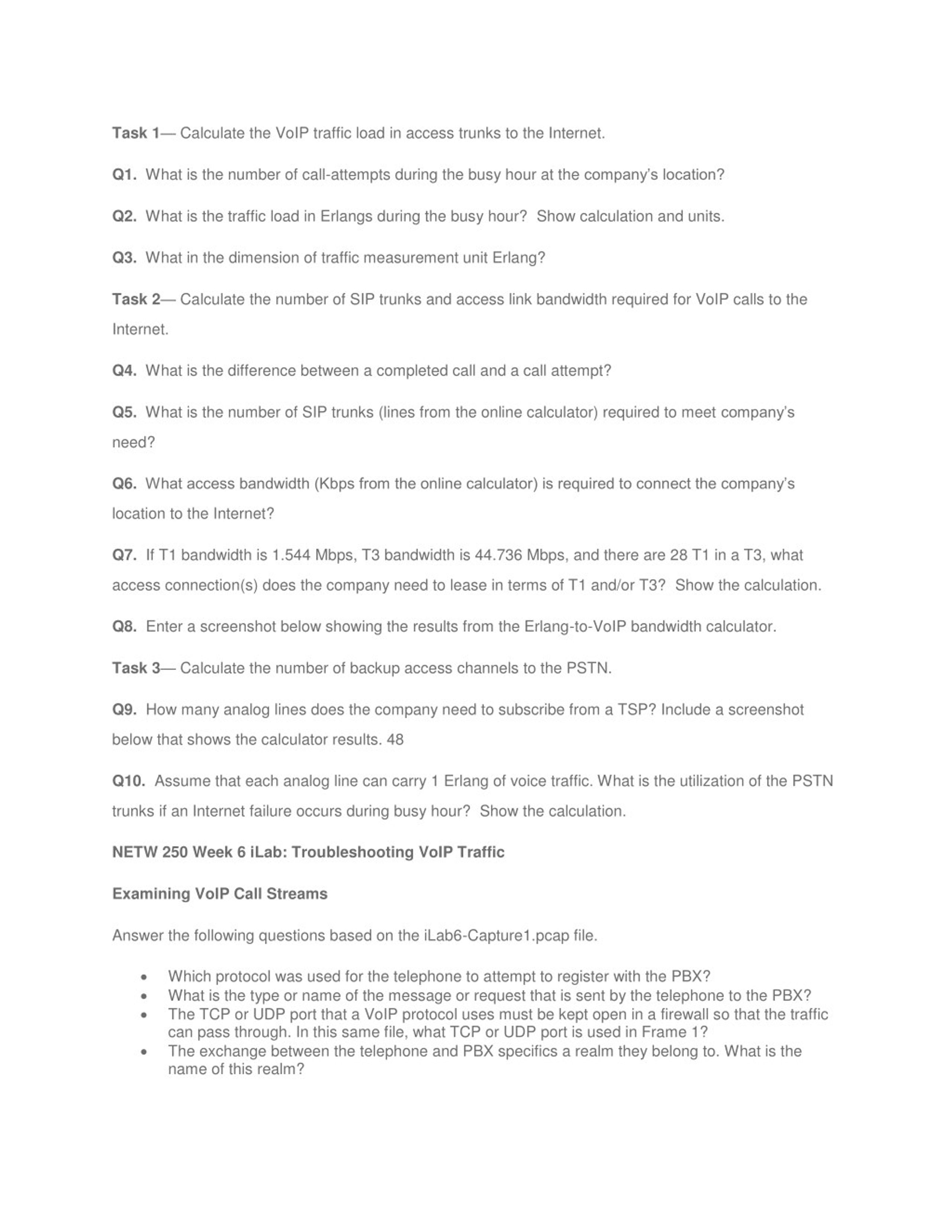

task 1 calculate the voip traffic load in access

Task 1— Calculate the VoIP traffic load in access trunks to the Internet.

Q1. What is the number of call-attempts during the busy hour at the company’s location?

Q2. What is the traffic load in Erlangs during the busy hour? Show calculation and units.

Q3. What in the dimension of traffic measurement unit Erlang?

Task 2— Calculate the number of SIP trunks and access link bandwidth required for VoIP calls to the

Internet.

Q4. What is the difference between a completed call and a call attempt?

Q5. What is the number of SIP trunks (lines from the online calculator) required to meet company’s

need?

Q6.What access bandwidth (Kbps from the online calculator) is required to connect the company’s

location to the Internet?

Q7. If T1 bandwidth is 1.544 Mbps, T3 bandwidth is 44.736 Mbps, and there are 28 T1 in a T3, what

access connection(s) does the company need to lease in terms of T1 and/or T3? Show the calculation.

Q8. Enter a screenshot below showing the results from the Erlang-to-VoIP bandwidth calculator.

Task 3— Calculate the number of backup access channels to the PSTN.

Q9. How many analog lines does the company need to subscribe from a TSP? Include a screenshot

below that shows the calculator results. 48

Q10. Assume that each analog line can carry 1 Erlang of voice traffic. What is the utilization of the PSTN

trunks if an Internet failure occurs during busy hour? Show the calculation.

NETW 250 Week 6 iLab: Troubleshooting VoIP Traffic

Examining VoIP Call Streams

Answer the following questions based on the iLab6-Capture1.pcap file.

Which protocol was used for the telephone to attempt to register with the PBX?

What is the type or name of the message or request that is sent by the telephone to the PBX?

The TCP or UDP port that a VoIP protocol uses must be kept open in a firewall so that the traffic

can pass through. In this same file, what TCP or UDP port is used in Frame 1?

The exchange between the telephone and PBX specifics a realm they belong to. What is the

name of this realm?

answer the following questions based on the ilab6

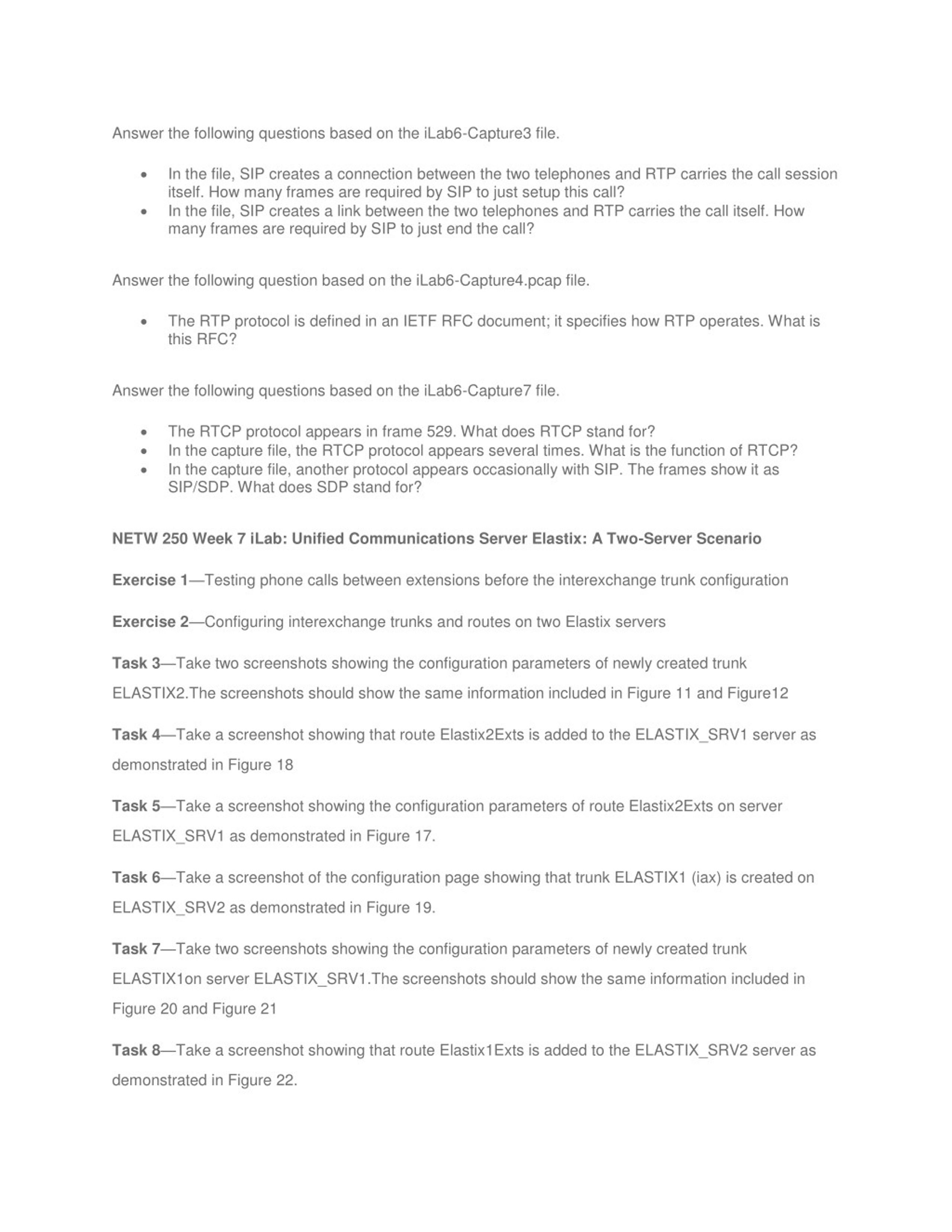

Answer the following questions based on the iLab6-Capture3 file.

In the file, SIP creates a connection between the two telephones and RTP carries the call session

itself. How many frames are required by SIP to just setup this call?

In the file, SIP creates a link between the two telephones and RTP carries the call itself. How

many frames are required by SIP to just end the call?

Answer the following question based on the iLab6-Capture4.pcap file.

The RTP protocol is defined in an IETF RFC document; it specifies how RTP operates. What is

this RFC?

Answer the following questions based on the iLab6-Capture7 file.

The RTCP protocol appears in frame 529. What does RTCP stand for?

In the capture file, the RTCP protocol appears several times. What is the function of RTCP?

In the capture file, another protocol appears occasionally with SIP. The frames show it as

SIP/SDP. What does SDP stand for?

NETW 250 Week 7 iLab: Unified Communications Server Elastix: A Two-Server Scenario

Exercise 1—Testing phone calls between extensions before the interexchange trunk configuration

Exercise 2—Configuring interexchange trunks and routes on two Elastix servers

Task 3—Take two screenshots showing the configuration parameters of newly created trunk

ELASTIX2.The screenshots should show the same information included in Figure 11 and Figure12

Task 4—Take a screenshot showing that route Elastix2Exts is added to the ELASTIX_SRV1 server as

demonstrated in Figure 18

Task 5—Take a screenshot showing the configuration parameters of route Elastix2Exts on server

ELASTIX_SRV1 as demonstrated in Figure 17.

Task 6—Take a screenshot of the configuration page showing that trunk ELASTIX1 (iax) is created on

ELASTIX_SRV2 as demonstrated in Figure 19.

Task 7—Take two screenshots showing the configuration parameters of newly created trunk

ELASTIX1on server ELASTIX_SRV1.The screenshots should show the same information included in

Figure 20 and Figure 21

Task 8—Take a screenshot showing that route Elastix1Exts is added to the ELASTIX_SRV2 server as

demonstrated in Figure 22.

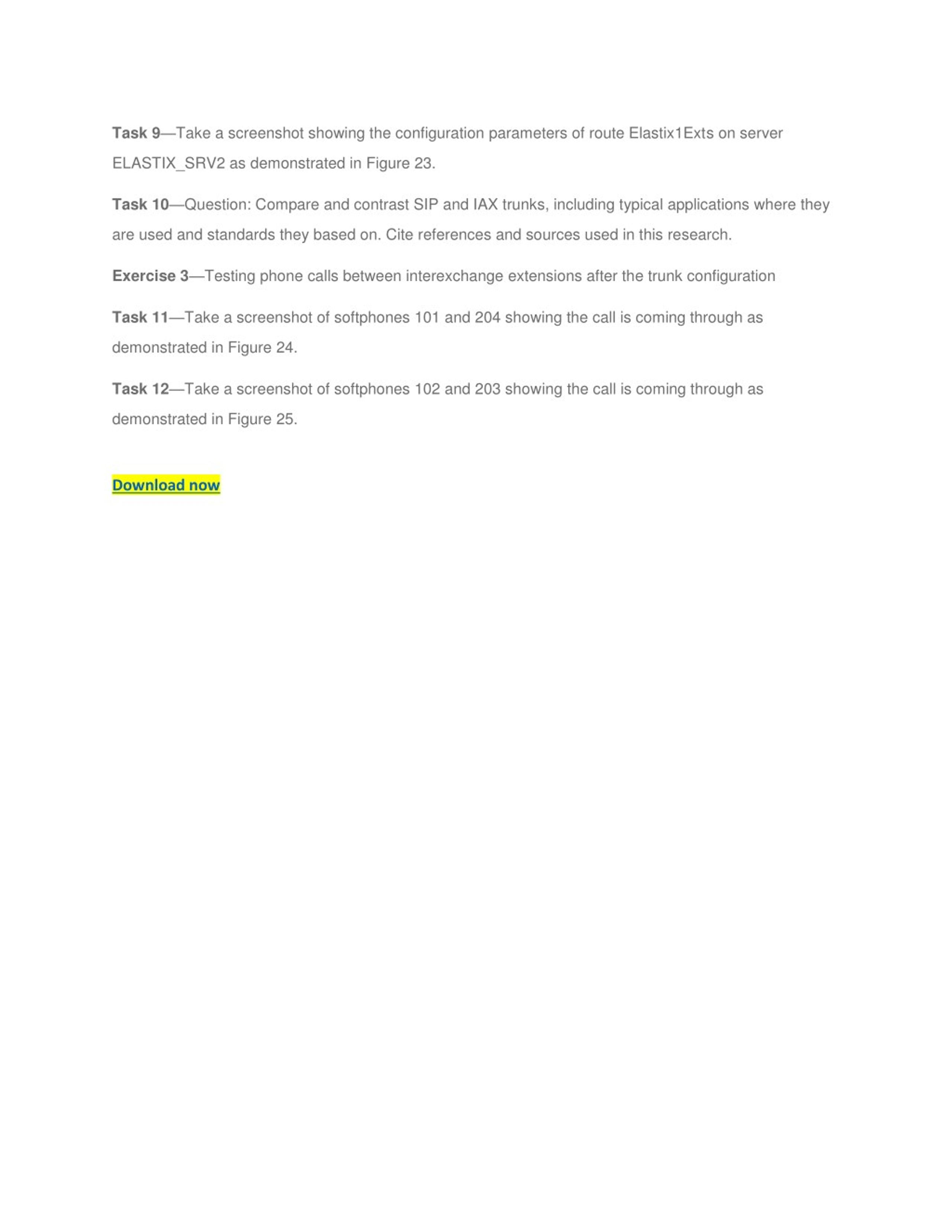

task 9 take a screenshot showing

Task 9—Take a screenshot showing the configuration parameters of route Elastix1Exts on server

ELASTIX_SRV2 as demonstrated in Figure 23.

Task 10—Question: Compare and contrast SIP and IAX trunks, including typical applications where they

are used and standards they based on. Cite references and sources used in this research.

Exercise 3—Testing phone calls between interexchange extensions after the trunk configuration

Task 11—Take a screenshot of softphones 101 and 204 showing the call is coming through as

demonstrated in Figure 24.

Task 12—Take a screenshot of softphones 102 and 203 showing the call is coming through as

demonstrated in Figure 25.
