Agenda l.jpg

  • Learning Objectives

  • Forms and Reports

  • GUI design goals

  • Individual differences

  • Some design guidelines

  • Intro to usability evaluation

Learning objectives l.jpg

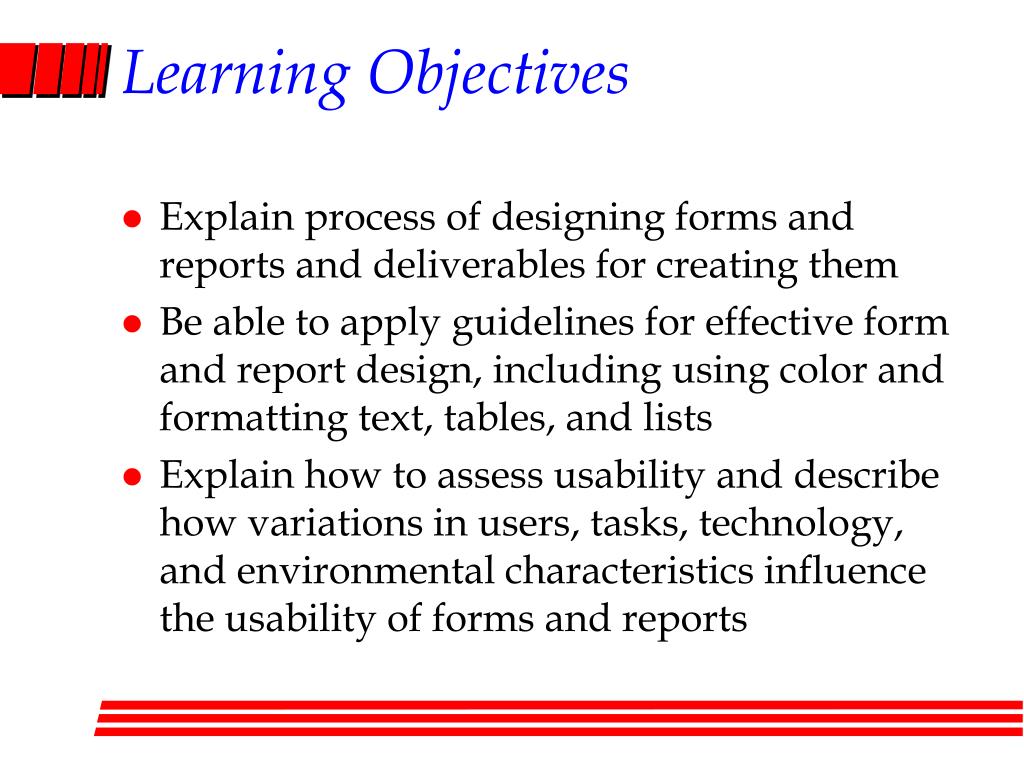

Learning Objectives

  • Explain process of designing forms and reports and deliverables for creating them

  • Be able to apply guidelines for effective form and report design, including using color and formatting text, tables, and lists

  • Explain how to assess usability and describe how variations in users, tasks, technology, and environmental characteristics influence the usability of forms and reports

Designing forms and reports l.jpg
Designing Forms and Reports

Chapter 11

© 2008 by Prentice Hall


Forms and reports l.jpg
Forms and Reports

  • Forms

    • Contain predefined data and areas for data to be filled in

    • Data elements correspond to dataflow contents on DFD

  • Reports or Query Results

    • Contain only predefined or derived data

    • Data elements correspond to dataflow contents on DFD

Designing forms and reports cont l.jpg
Designing Forms and Reports (Cont.)

Form: a business document that contains some predefined data and may include some areas where additional data are to be filled in.

An instance of a form is typically based on one database record.

Chapter 11

© 2008 by Prentice Hall


Designing forms and reports cont7 l.jpg
Designing Forms and Reports (Cont.)

Report: A business document that contains only predefined data;

It is a passive document used solely for reading or viewing data.

A report typically contains data from many unrelated records or transactions.

Chapter 11

© 2008 by Prentice Hall


Designing forms and reports cont8 l.jpg
Designing Forms and Reports (Cont.)

Common Types of Reports:

Scheduled: produced at predefined time intervals for routine information needs.

Key-indicator: provide summary of critical information on regular basis.

Chapter 11

© 2008 by Prentice Hall


Designing forms and reports cont9 l.jpg
Designing Forms and Reports (Cont.)

Exception: highlights data outside of normal operating ranges.

Drill-down: provide details behind summary of key-indicator or exception reports.

Ad-hoc: respond to unplanned requests for non-routine information needs.

Chapter 11

© 2008 by Prentice Hall


The process of designing forms and reports l.jpg
The Process of Designing Forms and Reports

User-focused activity.

Follows a prototyping approach.

First steps are to gain an understanding of the intended user and task objectives by collecting initial requirements during requirements determination.

Chapter 11

© 2008 by Prentice Hall


The process of designing forms and reports11 l.jpg
The Process of Designing Forms and Reports

Requirements determination:

Who will use the form or report?

What is the purpose of the form or report?

When is the report needed or used?

Where does the form or report need to be delivered and used?

How many people need to use or view the form or report?

Chapter 11

© 2008 by Prentice Hall


The process of designing forms and reports cont l.jpg
The Process of Designing Forms and Reports (Cont.)


Initial prototype is designed from requirements.

Users review prototype design and either accept the design or request changes.

If changes are requested, the construction-evaluation-refinement cycle is repeated until the design is accepted.

Chapter 11

© 2008 by Prentice Hall


The process of designing forms and reports cont13 l.jpg
The Process of Designing Forms and Reports (Cont.)

A coding sheet is an “old” tool for designing forms and reports, usually associated with text-based forms and reports for mainframe applications.

Visual Basic and other development tools provide computer aided GUI form and report generation.

Chapter 11

© 2008 by Prentice Hall


Deliverables l.jpg

  • Design (Content and Layout) Specifications

    • Narrative overview

      • Target users, tasks, system, environmental factors in which form or report will be used (i.e., who, what, where, when, and why or how)

    • Sample design

    • Testing and usability assessment

Uses of highlighting in forms and reports l.jpg
Uses of Highlighting in Forms and Reports

  • Notify users of errors in data entry or processing.

  • Provide warnings regarding possible problems.

  • Draw attention to keywords, commands, high-priority messages, unusual data values.

Color vs no color l.jpg

Benefits from Using Color

Soothes or strikes the eye

Accents an uninteresting display

Facilitates subtle discriminations in complex displays

Emphasizes the logical organization of information

Draws attention to warnings

Evokes more emotional reactions

Problems from Using Color

Color pairings may wash out or cause problems for some users

Resolution may degrade with different displays

Color fidelity may degrade on different displays

Printing or conversion to other media may not easily translate

Color vs. No Color

Usability evaluation l.jpg
Usability Evaluation

“Sirs, I have tested your machine. It adds a new terror to life and makes death a long felt want.”

- Sir Herbert Beerbohm Tree on examining a gramophone player

For starters l.jpg
For Starters...

What do you think makes something “usable”?

For the web: what makes a website “sticky”

What websites do you find to be the most usable? Why?

General gui design goals l.jpg
General GUI Design Goals

  • Aesthetically Pleasing

    • Contrast between screen elements

    • Groupings of like items

    • Align elements and groups

    • Use color effectively and simply

  • Clarity

  • Compatibility

    • With user

    • With task

    • The related systems

General gui design goals22 l.jpg
General GUI Design Goals

  • Comprehensibility

    • Easy to learn and understand

    • What to look at, what to do, when to do it, why to do it, how to do it

  • Configurability

    • Sense of control

    • Allow for personal preferences

  • Consistency

    • Similarity in look

    • Same action yields same result

    • Same location

General gui design goals cont d l.jpg
General GUI Design Goals (cont’d)

  • Control

    • Explicit user requests

    • Quick reaction

    • Actions capable of interruption or termination

    • Customizable, proper defaults

  • Directness

  • Efficiency

  • Familiarity

    • Familiar concepts and language

    • Mimic natural behavior

    • Use real-world metaphors

General gui design goals cont d24 l.jpg
General GUI Design Goals (cont’d)

  • Flexibility

    • Sensitive to individual differences (knowledge, skills, experience, conditions)

  • Forgiveness

    • Tolerant of common and unavoidable errors

    • Prevent errors whenever possible

    • Protect against catastrophic errors

    • Provide constructive error messages

  • Predictability

  • Recovery

    • Able to reverse actions

General gui design goals cont d25 l.jpg
General GUI Design Goals (cont’d)

  • Responsiveness

    • Rapid response

    • Acknowledge user action (visual, text, audio)

  • Simplicity

    • Hide until needed

    • Common functions first

    • Defaults

    • Make common actions simple and uncommon actions more work

  • Transparency

    • User can focus on task without unneeded information on software actions

Individual differences l.jpg
Individual Differences

  • Knowledge/Experiences -- e.g….

    • Computer literacy, Application experience, Task experience, Reading level, Native language

  • Job/Task -- e.g….

    • Frequency of use, Turnover rate, Task importance

  • Psychological Characteristics -- e.g….

    • Attitude, Motivation, Cognitive style

  • Physical Characteristics -- e.g….

    • Age, Gender, Handedness, Handicaps

Individual differences27 l.jpg
Individual Differences

  • Explain what usability guidelines for configurability, simplicity, and responsiveness would mean for the following:

    • A novice vs. experienced airline reservations clerk

    • A manager reviewing sales

    • A customer at an ATM

Evaluating usability l.jpg
Evaluating Usability

  • Role of guidelines

  • Usability engineering

  • Some basics of web usability

Metrics for assessing usability l.jpg
Metrics for Assessing Usability

  • Time to learn

  • Speed of performance

  • Rate of errors

  • Retention over time

  • Subjective satisfaction

Why do usability evaluation l.jpg
Why Do Usability Evaluation?

  • Goal of “satisfying” the user is not good enough

  • Instead, emphasis should be on “delighting” the user

    • System’s usability is THE key issue for users

    • Can differentiate product from competitors

    • Builds loyalty and goodwill from users

So what is usability l.jpg
So, what is “usability”?

  • How would you define?

  • Working definition (Shackel, 1991):

    • a system’s capability in human terms to be used easily and effectively by the specified range of users, given specified training and support, to fulfill a given set of tasks...

Perhaps this is easier l.jpg
Perhaps this is easier...

  • What usability isn’t:

    • A “stamp of approval” or “certification”

    • Easy for anyone to operate

    • Lots of features

    • Adherence to a set of “guidelines”

  • All of these may be good, but do not make a system inherently usable.

So what s wrong with guidelines l.jpg
So, what’s wrong with “guidelines”?

  • Nothing, if used the right way

  • But, not a shortcut to designing usable systems

  • Adhering to guidelines does not deem the system “usable”

Web design guidelines examples l.jpg
Web Design Guidelines, Examples

  • IBM Web Usability Guidelines

    • “Use frames in top and left areas of the page…”

  • Jakob Nielsen’s Top Ten Mistakes in Web Design

    • “Mistake #1. Use of frames”

Types of usability evaluation l.jpg
Types of Usability Evaluation

  • Expert-based

  • User-based

Expert reviews l.jpg
Expert Reviews

  • Rely on in-house experts or consultants

  • Many different varieties...

    • Heuristic

    • Consistency inspection

    • Cognitive walkthrough

  • Who is the “expert”?

    • System developer/designer?

Nielsen s 1994 heuristics l.jpg

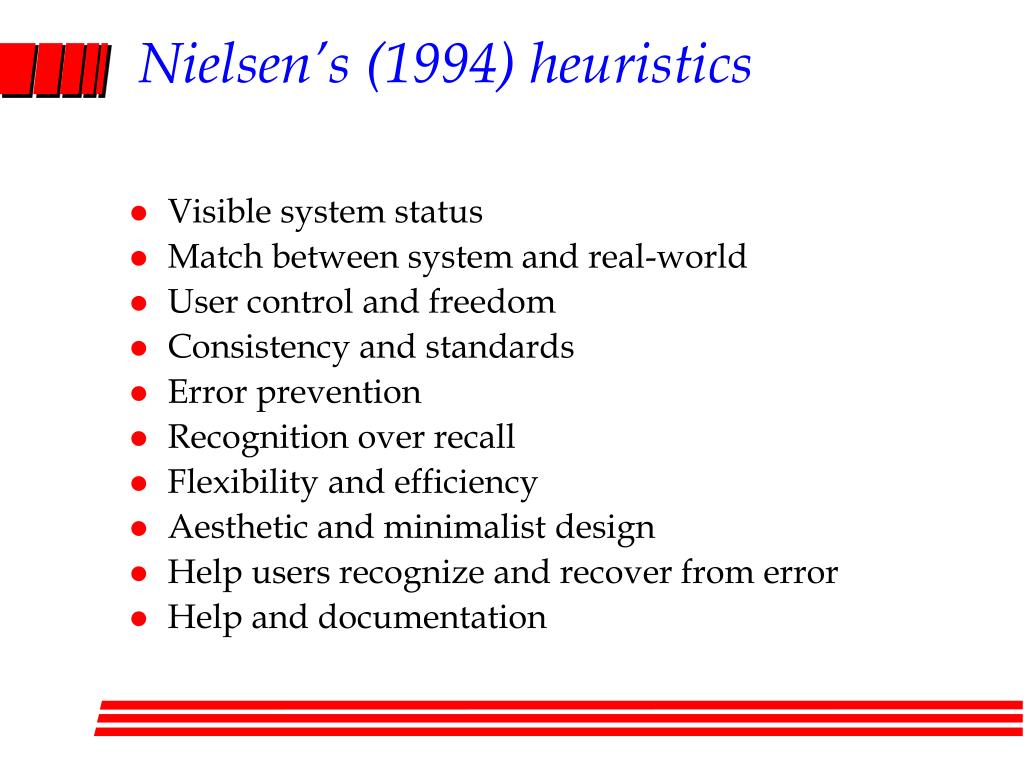

Nielsen’s (1994) heuristics

  • Visible system status

  • Match between system and real-world

  • User control and freedom

  • Consistency and standards

  • Error prevention

  • Recognition over recall

  • Flexibility and efficiency

  • Aesthetic and minimalist design

  • Help users recognize and recover from error

  • Help and documentation

Slide38 l.jpg

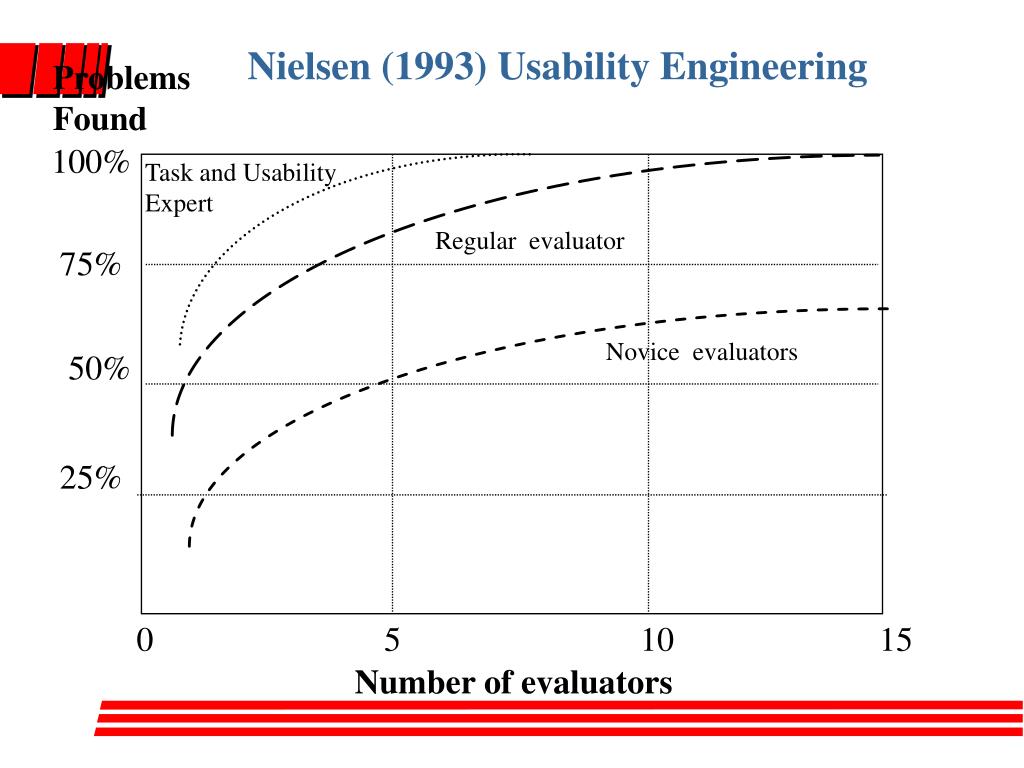

Nielsen (1993) Usability Engineering




Task and Usability


Regular evaluator


Novice evaluators







Number of evaluators

User based usability testing laboratories l.jpg

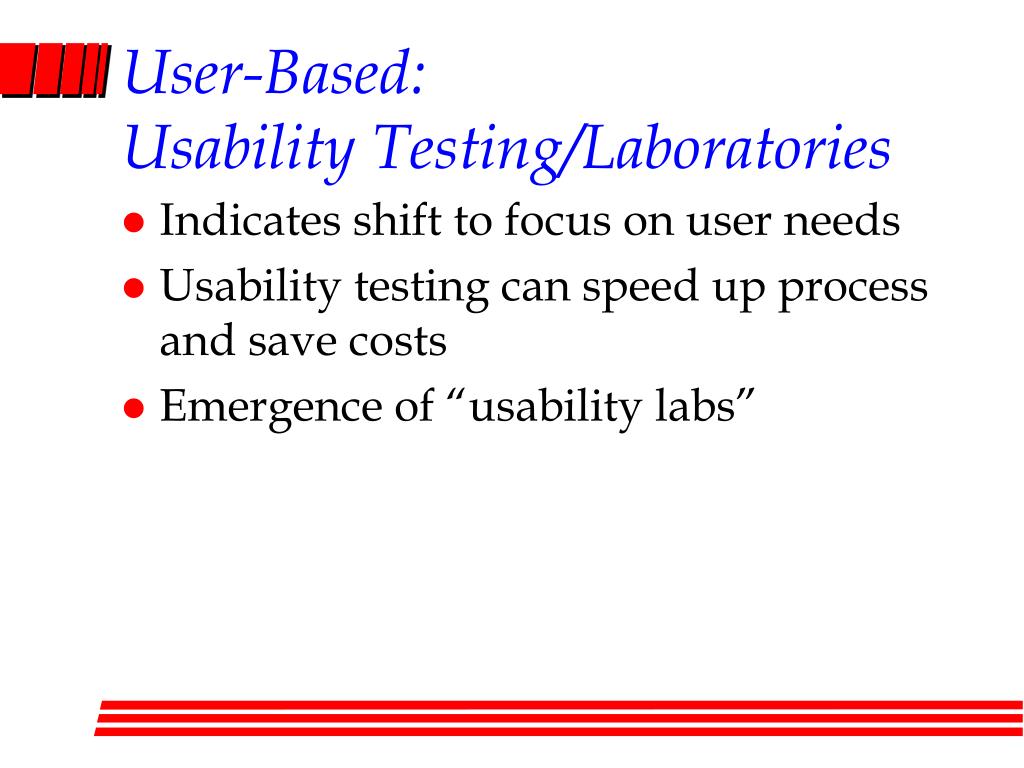

User-Based:Usability Testing/Laboratories

  • Indicates shift to focus on user needs

  • Usability testing can speed up process and save costs

  • Emergence of “usability labs”

Usability lab l.jpg
Usability Lab

  • Many varieties

  • User work area and separate observation area with mirrors, cameras, other data collection tools

  • Typically staffed by expert in testing, human factors, and/or user interface design

  • Work with designers to come up with usability evaluation plan

Usability test plan l.jpg
Usability Test Plan

  • Methodology

  • Should include

    • Users (who, where, how many, etc.)

    • Tasks (what and why)

    • Measures (what and how)

    • Analysis procedures

User testing l.jpg
User Testing

  • Up-front objective, measurable goals that must be met before system is accepted

  • Might include…

    • Time to learn

    • Speed

    • Error rates

    • User testing (i.e., recall of commands)

    • Subjective satisfaction

Summary usability evaluation l.jpg

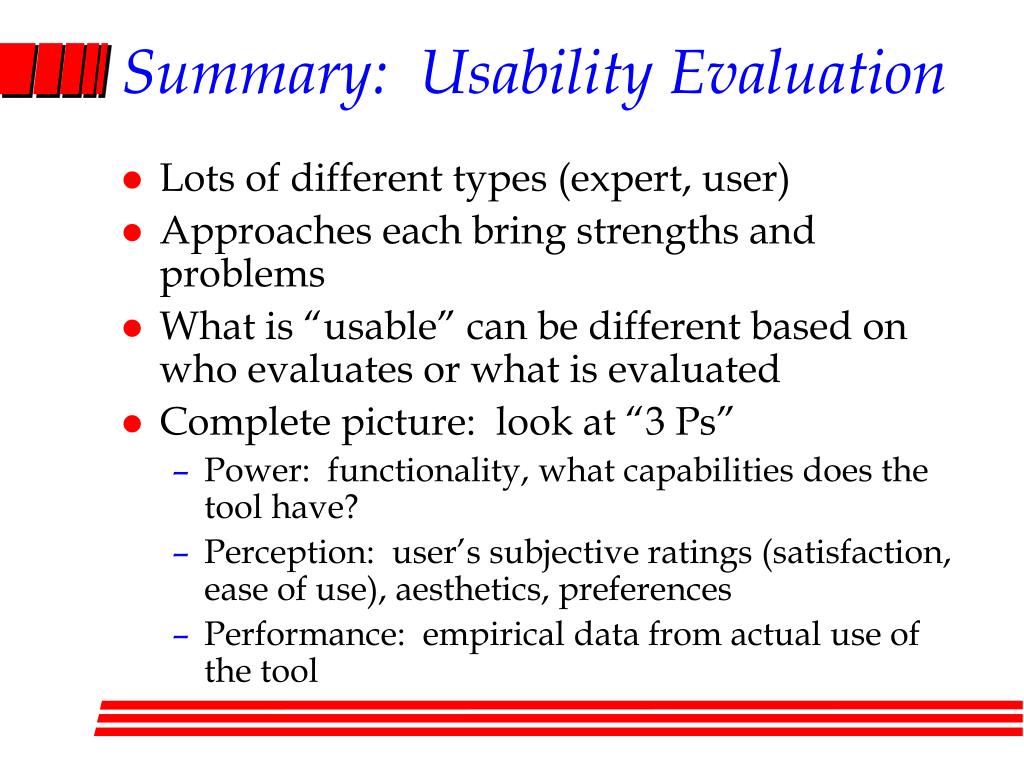

Summary: Usability Evaluation

  • Lots of different types (expert, user)

  • Approaches each bring strengths and problems

  • What is “usable” can be different based on who evaluates or what is evaluated

  • Complete picture: look at “3 Ps”

    • Power: functionality, what capabilities does the tool have?

    • Perception: user’s subjective ratings (satisfaction, ease of use), aesthetics, preferences

    • Performance: empirical data from actual use of the tool

Summary l.jpg

  • Forms and Reports are examples of user interfaces

  • Guidelines are useful in designing user interfaces

  • Take differences in users, tasks, technology, and environment into account when designing forms, reports, other user interfaces

  • Designs should be evaluated for usability
