Axio research

Axio Research


A Tool for Data ReviewBill Coar

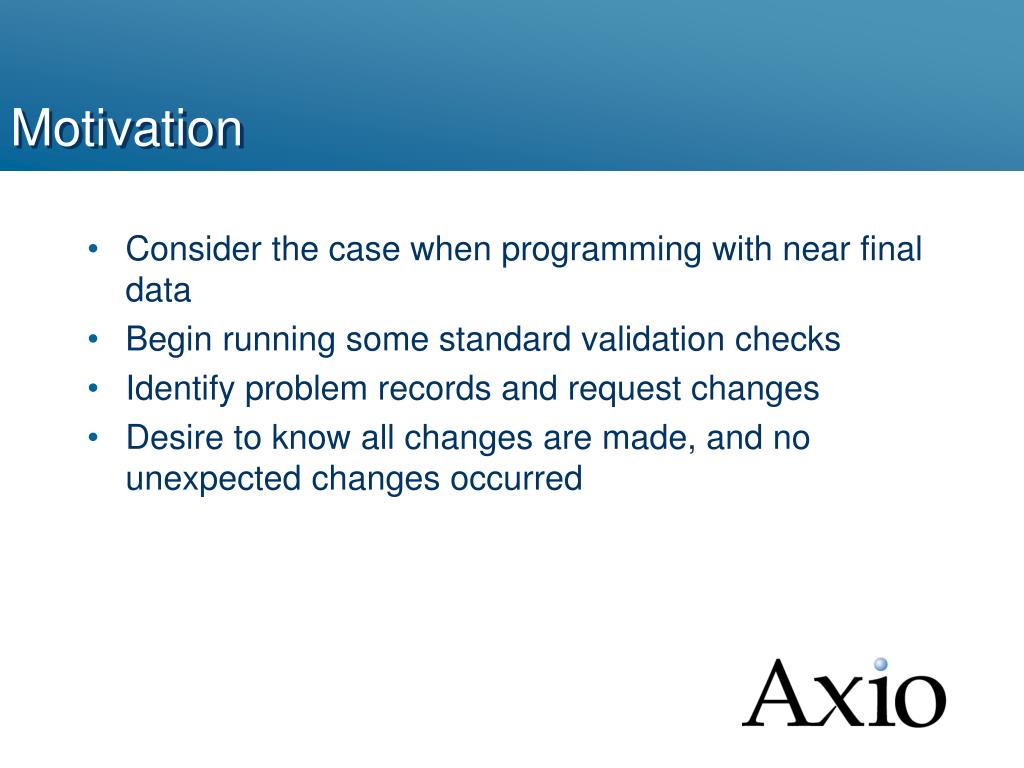

  • Consider the case when programming with near final data

  • Begin running some standard validation checks

  • Identify problem records and request changes

  • Desire to know all changes are made, and no unexpected changes occurred

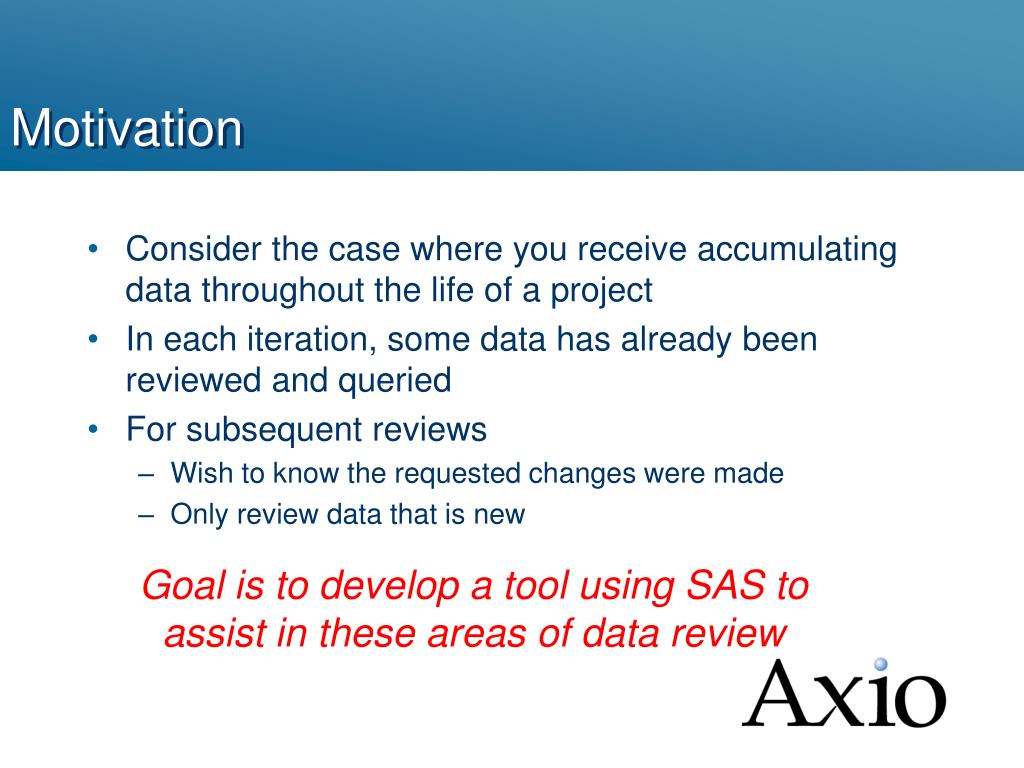

  • Consider the case where you receive accumulating data throughout the life of a project

  • In each iteration, some data has already been reviewed and queried

  • For subsequent reviews

    • Wish to know the requested changes were made

    • Only review data that is new

Goal is to develop a tool using SAS to assist in these areas of data review

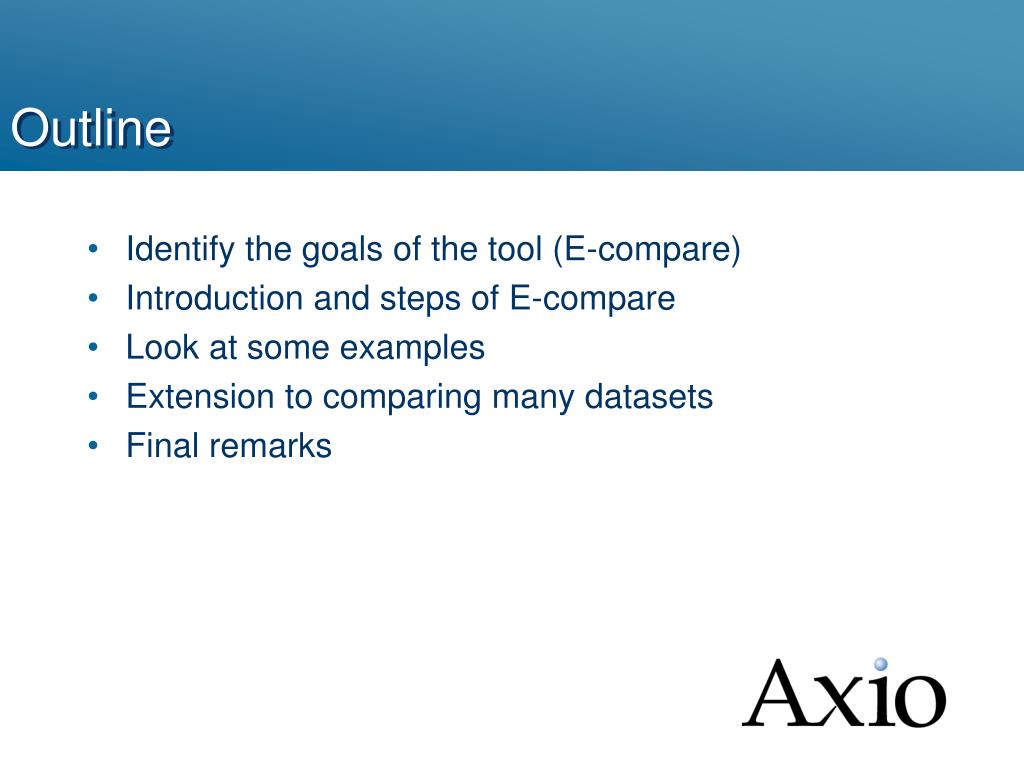

  • Identify the goals of the tool (E-compare)

  • Introduction and steps of E-compare

  • Look at some examples

  • Extension to comparing many datasets

  • Final remarks


  • Based on needs of data management group and clinical scientists

    • Identify new records

    • Identify which records were changed

      • Review new values versus old values

    • Identify records that did not change

    • Identify records that were deleted

Proc compare

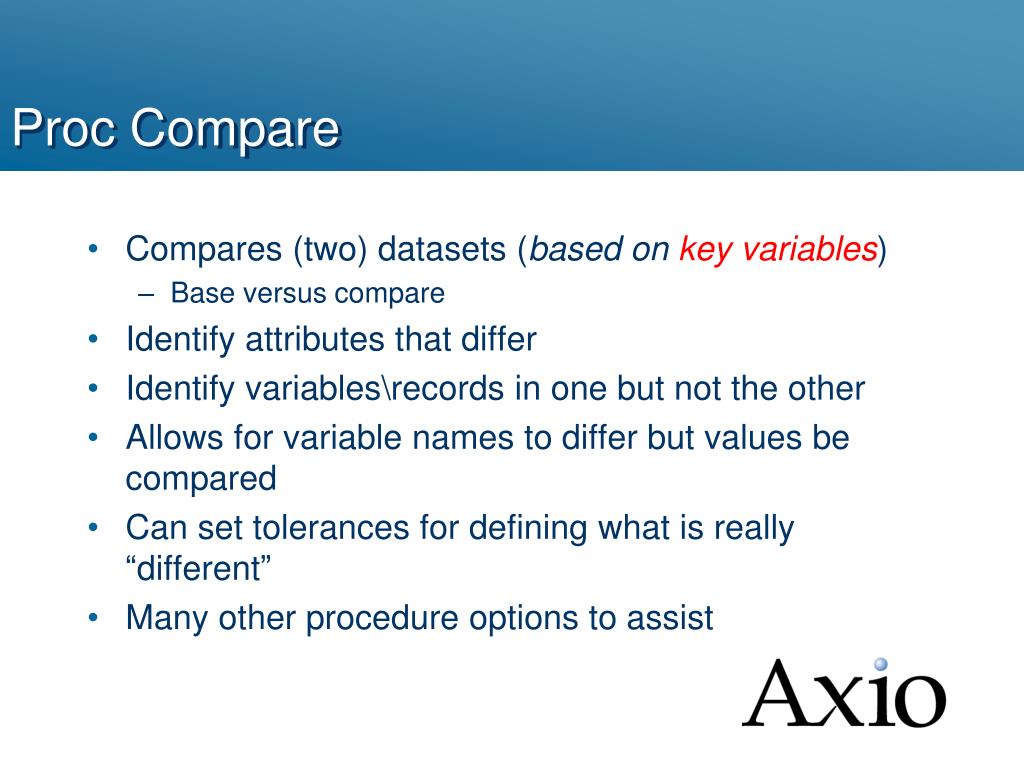

Proc Compare

  • Compares (two) datasets (based on key variables)

    • Base versus compare

  • Identify attributes that differ

  • Identify variables\records in one but not the other

  • Allows for variable names to differ but values be compared

  • Can set tolerances for defining what is really “different”

  • Many other procedure options to assist

Basics of proc compare

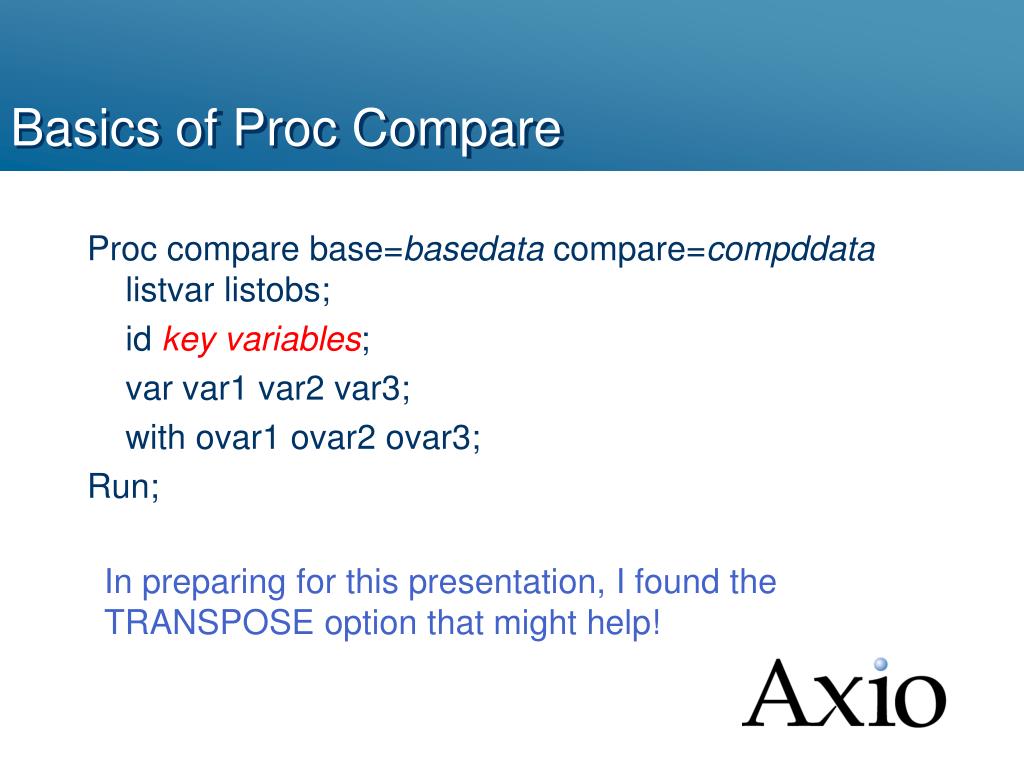

Basics of Proc Compare

Proc compare base=basedatacompare=compddatalistvarlistobs;

id key variables;

var var1 var2 var3;

with ovar1 ovar2 ovar3;


In preparing for this presentation, I found the TRANSPOSE option that might help!

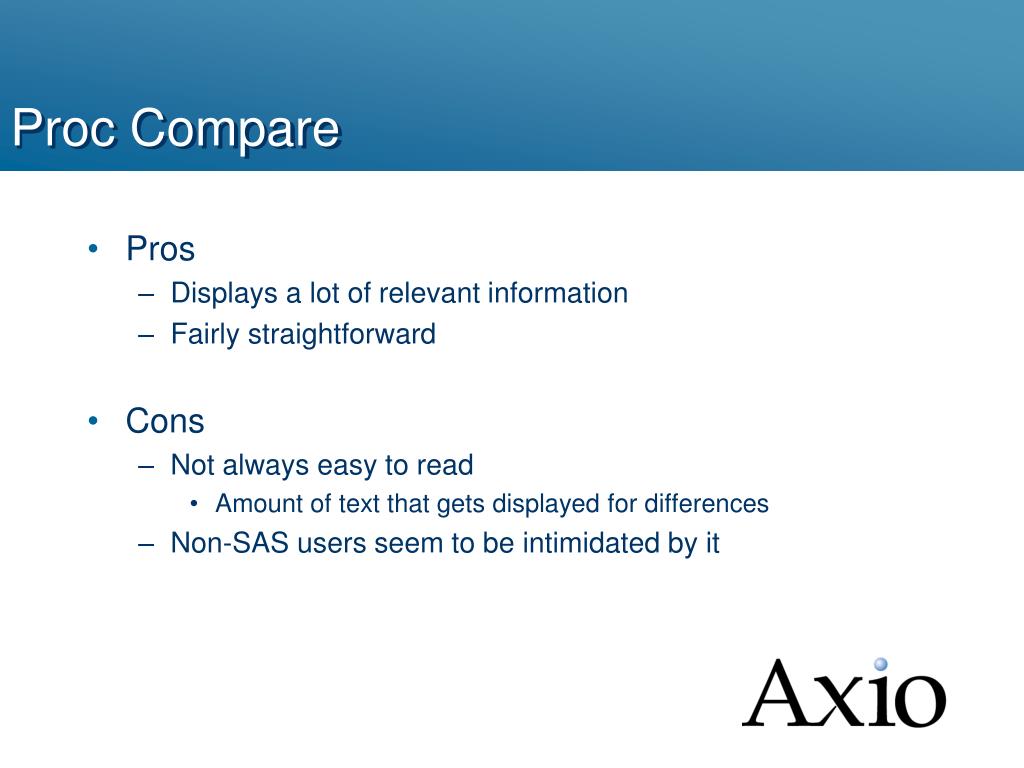

Proc compare1
Proc Compare

  • Pros

    • Displays a lot of relevant information

    • Fairly straightforward

  • Cons

    • Not always easy to read

      • Amount of text that gets displayed for differences

    • Non-SAS users seem to be intimidated by it

Introduction to e compare
Introduction to E-compare

  • Idea originated from talking with data managers and clinical scientists

  • Different group with different needs

  • Many not comfortable working within SAS

    • Excel

    • Review listings

  • Desire for repeatability

  • Extend to many datasets

    • D-compare

Introduction to e compare1
Introduction to E-compare

  • Parameters:

    • Base data, compare data, key variables, variables to compare (optional), output data, debugging indicator

  • Assumes the same data structure, and that the key variables exist

  • Uniqueness identified by key variables

  • Output is a SAS dataset with essentially the same structure as the input datasets

    • One additional flag to identify the results of the compare

Steps in e compare
Steps in E-Compare

  • Sorting and creating working copies of input datasets

  • Check for uniqueness based on key variables

    • First. and last. on the last key variable

    • Check both the base and compare datasets

  • If there are records with duplicate key variables

    • Print a message in the output and log

    • Goto the end of the macro to stop execution

%goto NOEXEC;

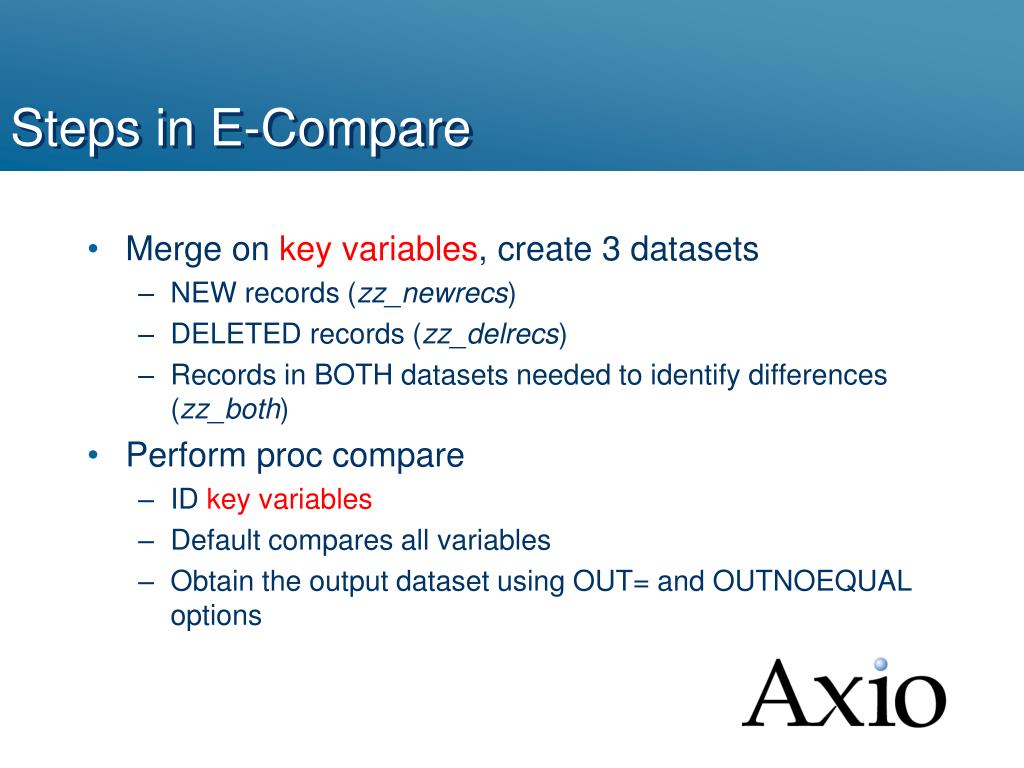

Steps in e compare1
Steps in E-Compare

  • Merge on key variables, create 3 datasets

    • NEW records (zz_newrecs)

    • DELETED records (zz_delrecs)

    • Records in BOTH datasets needed to identify differences (zz_both)

  • Perform proc compare

    • ID key variables

    • Default compares all variables

    • Obtain the output dataset using OUT= and OUTNOEQUAL options

Steps in e compare2
Steps in E-Compare

Straight-forward merge…

data zz_newrecszz_delrecszz_both;

merge zz_comp(in=a keep=&keyvar)

zz_base(in=b keep=&keyvar);

by &keyvar;

if a and ^b then output zz_newrecs;

if b and ^a then output zz_delrecs;

if (a and b) then output zz_both;


Steps in e compare3
Steps in E-Compare

Straight-forward proc compare

proc compare base=zz_base compare=zz_comp out=zz_coutnoprintoutnoequal;

id &keyvar;

%if &compvar ne ALL %then %do;

var &compvar;



Steps in e compare4
Steps in E-Compare

  • If a record changed, it is in the output data (zz_cout) from proc compare due to the OUTNOEQUAL option

  • Merge various datasets on key variables

  • Identify records that did not change

    • Remerge ZZ_COUT with ZZ_BOTH to obtain records that did not change

  • For records that did change

    • Remerge ZZ_COUT with ZZ_BASE to obtain old values

    • Remerge ZZ_COUT with ZZ_COMP to obtain new values

Steps in e compare5
Steps in E-Compare

  • Set 5 datasets together and define flags using the in= option

    • 1 - No change

    • 2 - Change from

    • 3 - Change to

    • 4 - New record

    • 5 - Deleted record

  • Clean up work space by deleting interim data, unless

    • DEBUG option is specified to be TRUE

Steps in e compare6
Steps in E-Compare

Basic set statement…

data &out;

set zz_nodiff(in=a) zz_diffbase(in=b) zz_diffcomp(in=c) zz_newcomp(in=e) zz_delbase(in=f) ;

by &keyvar;

length zz_compflg $15;

if a then zz_compflg='1 - No Change';

else if b then zz_compflg='2 - Change From';

else if c then zz_compflg='3 - Change To';

else if d then zz_compflg=‘4 - Rec Added';

else if e then zz_compflg=‘5 - Rec Deleted';

label zz_compflg='Per record comparison';

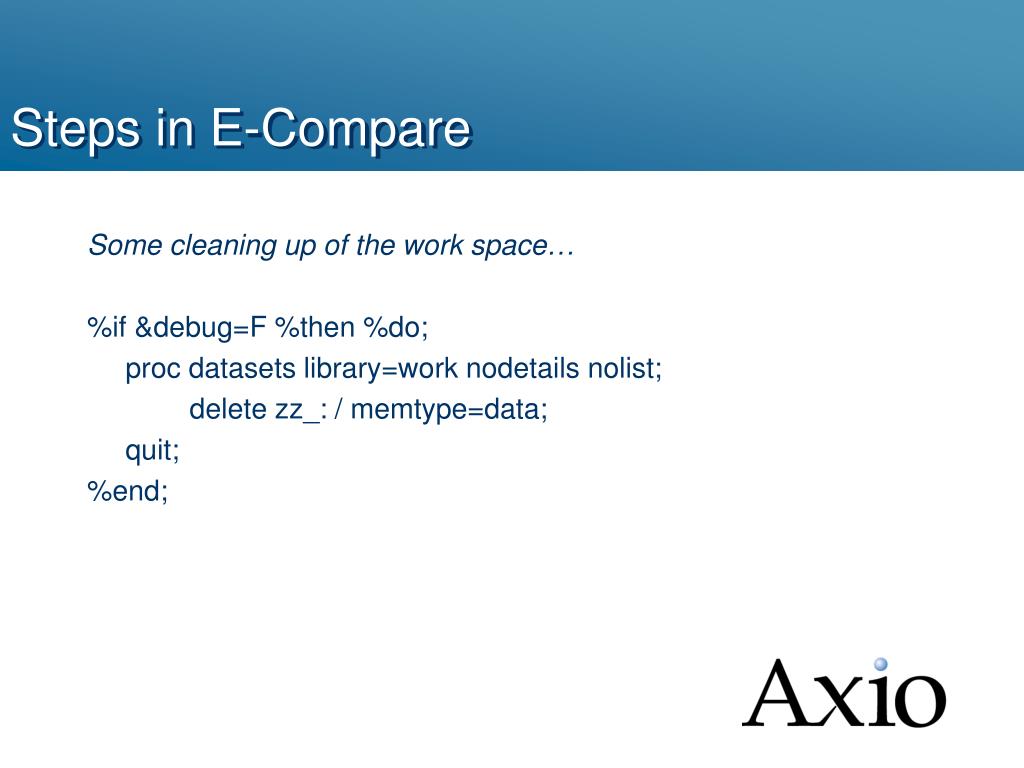

Steps in e compare7
Steps in E-Compare

Some cleaning up of the work space…

%if &debug=F %then %do;

proc datasets library=work nodetailsnolist;

delete zz_: / memtype=data;



Steps in e compare8
Steps in E-Compare

  • Note about DEBUG

    • If macro does not execute because of non-uniqueness in key variables, set DEBUG=TRUE

    • This does not delete the working datasets

    • Allows one to identify the problem records using a viewtable

E compare

  • What E-compare does not do:

    • Does not identify the variable that changed

    • Does not indicate if the attributes of a variable change

    • Does not actually generate a report

  • Generation of a report can be added, but…

    • This component was considered in extending E-compare to all corresponding datasets in two libraries allowing for a single output

    • Proc report or export to Excel

    • This part is defined by the needs of the users

E compare example output

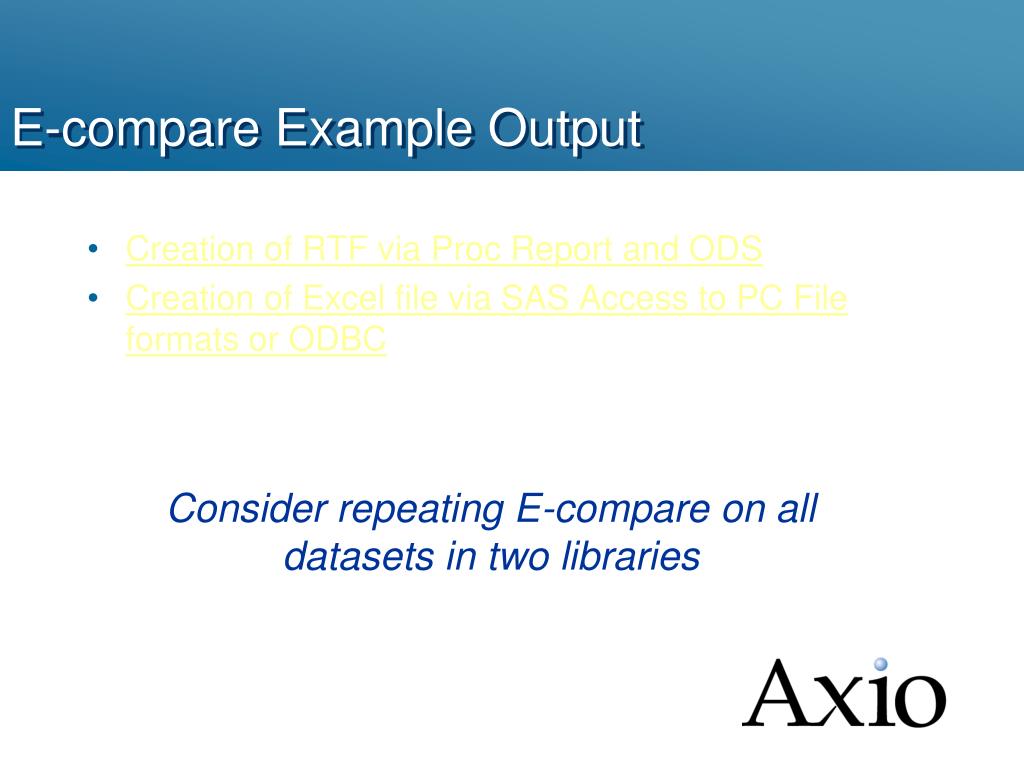

E-compare Example Output

  • Creation of RTF via Proc Report and ODS

  • Creation of Excel file via SAS Access to PC File formats or ODBC

Consider repeating E-compare on all datasets in two libraries

Schematic of d compare with excel output
Schematic of D-compare with Excel Output

  • Use proc contents output to obtain information about datasets in each

  • Identify mismatches (in one library but not the other)

  • Subset using a list of datasets to exclude

  • Obtain a list of datasets for looping

Schematic of d compare with excel output1

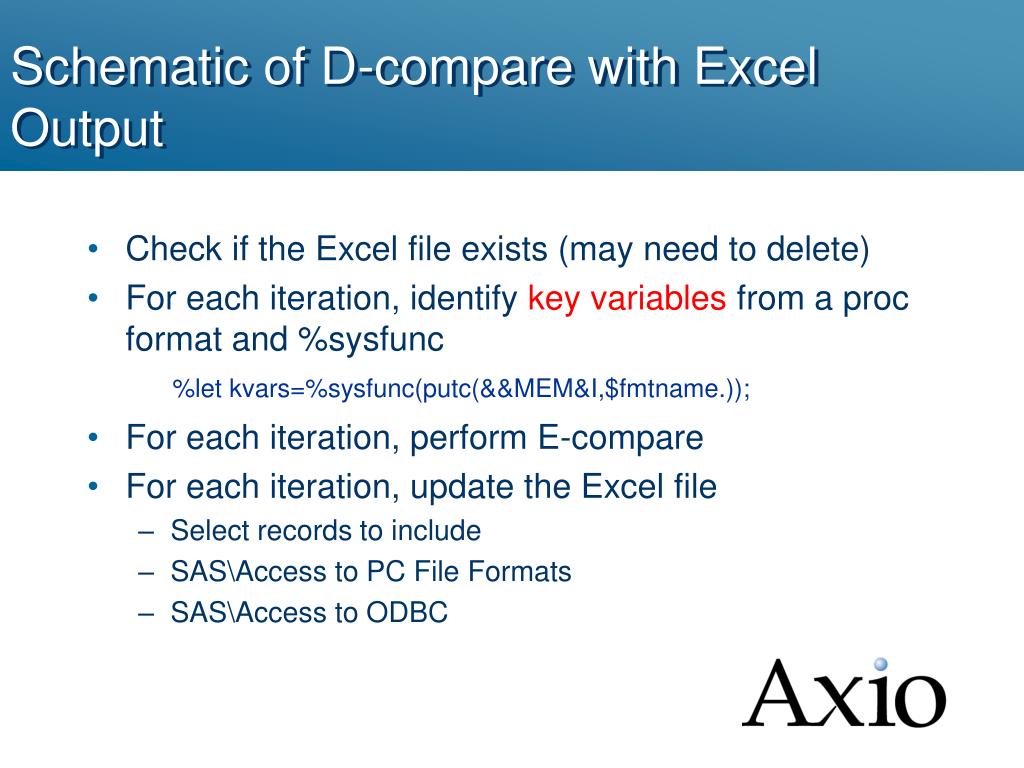

Schematic of D-compare with Excel Output

  • Check if the Excel file exists (may need to delete)

  • For each iteration, identify key variables from a proc format and %sysfunc

  • For each iteration, perform E-compare

  • For each iteration, update the Excel file

    • Select records to include

    • SAS\Access to PC File Formats

    • SAS\Access to ODBC

%let kvars=%sysfunc(putc(&&MEM&I,$fmtname.));

D compare with excel output
D-compare with Excel Output

  • Proc export

    • Requires SAS\Access to PC File Formats

    • Specify the SHEET to have the name of the dataset being compared

    • Appends to the excel file if it exists

proc export data=zz_fnloutfile="&OUTFILE" DBMS=excel; sheet="&&MEM&I.";


D compare with excel output1

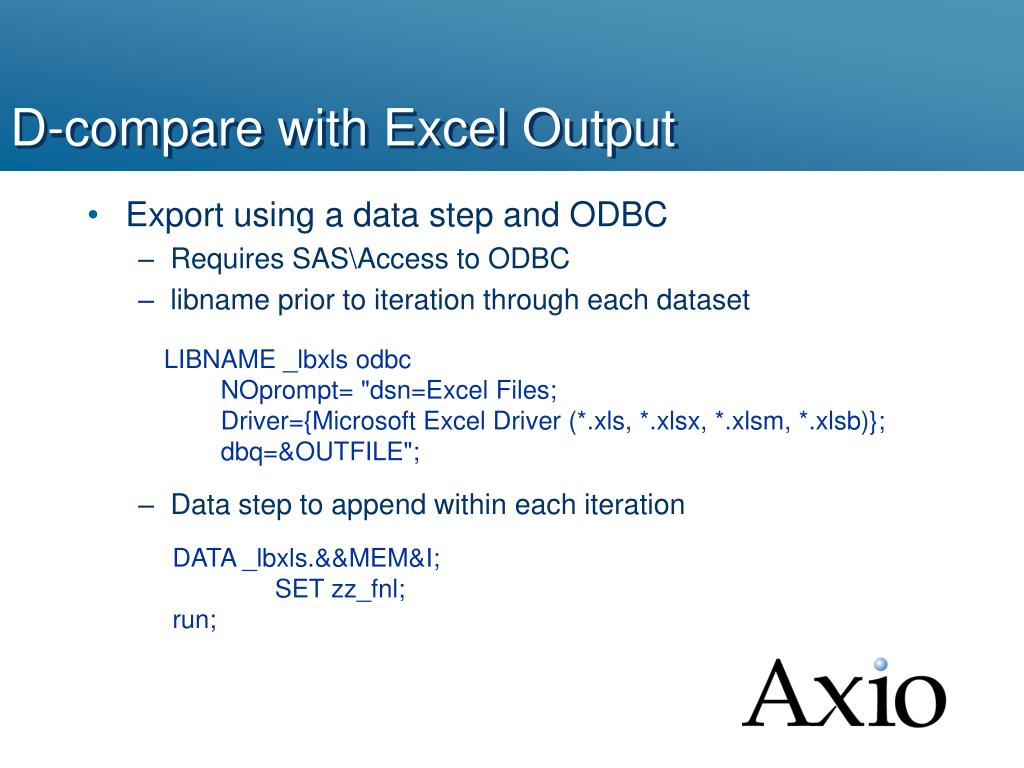

D-compare with Excel Output

  • Export using a data step and ODBC

    • Requires SAS\Access to ODBC

    • libname prior to iteration through each dataset

    • Data step to append within each iteration

LIBNAME _lbxlsodbc

NOprompt= "dsn=Excel Files;

Driver={Microsoft Excel Driver (*.xls, *.xlsx, *.xlsm, *.xlsb)};


DATA _lbxls.&&MEM&I;

SET zz_fnl;


E compare example output1
E-compare Example Output

  • Creation of Excel file via SAS Access to PC File formats or ODBC


  • E-compare is just a different way of looking at Proc Compare results

  • Provides the ability to monitor data as changes are applied to the central database

  • Reports can be printed or saved to assist in documentation

  • Strict data structures allow for simplification across studies



Any Question?
