  1. The Network Scale-Up Method (NSUM) Christopher McCarty October 30, 2012

  2. The NSUM team • H. Russell Bernard (University of Florida) • Peter D. Killworth(Southampton Oceanography Centre)† • Christopher McCarty (University of of Florida) • Eugene Johnsen (UC-Santa Barbara) • Gene A. Shelley (Georgia State University/CDC)

  3. Outline • Origin and Evolution of Network Scale-up Method (NSUM) • How to do it • Compromising assumptions • Current application in international health

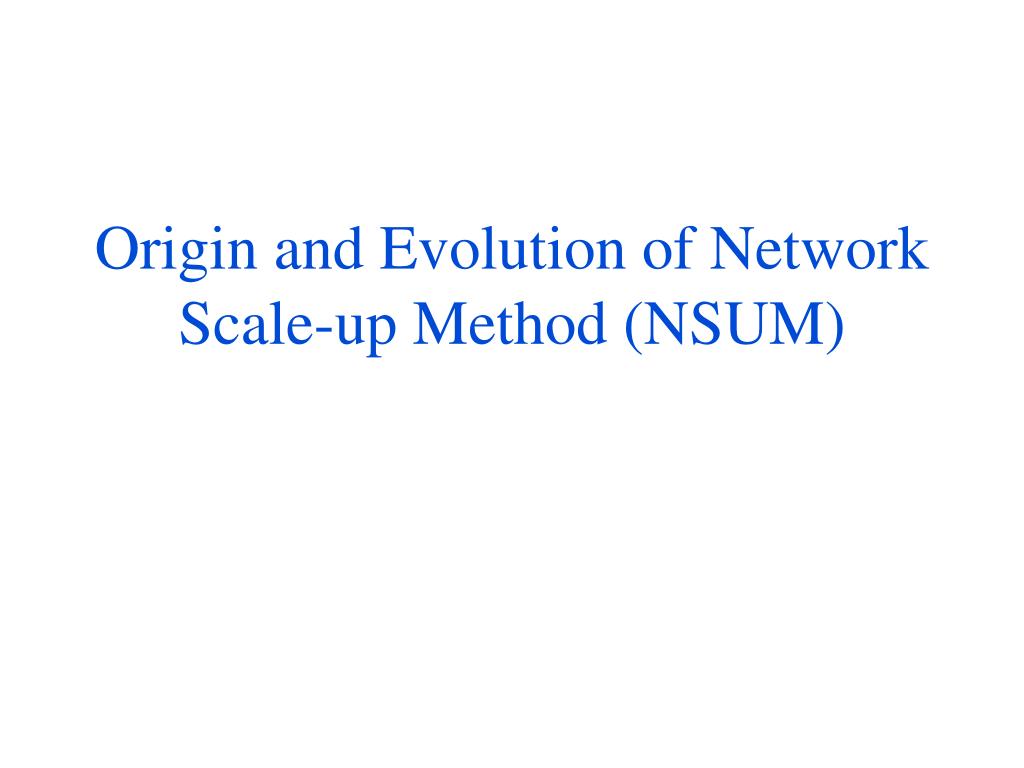

  4. Origin and Evolution of Network Scale-up Method (NSUM)

  5. Populations of Interest • Public health and public policy advocates are interested in certain populations • We know a lot about each population, but we don’t know how many there are • For many reasons these populations are virtually impossible to count • HIV positive • IV Drug Users • Migrants • Homeless • Men Who Have Sex with men (MSM) • Female Sex Workers

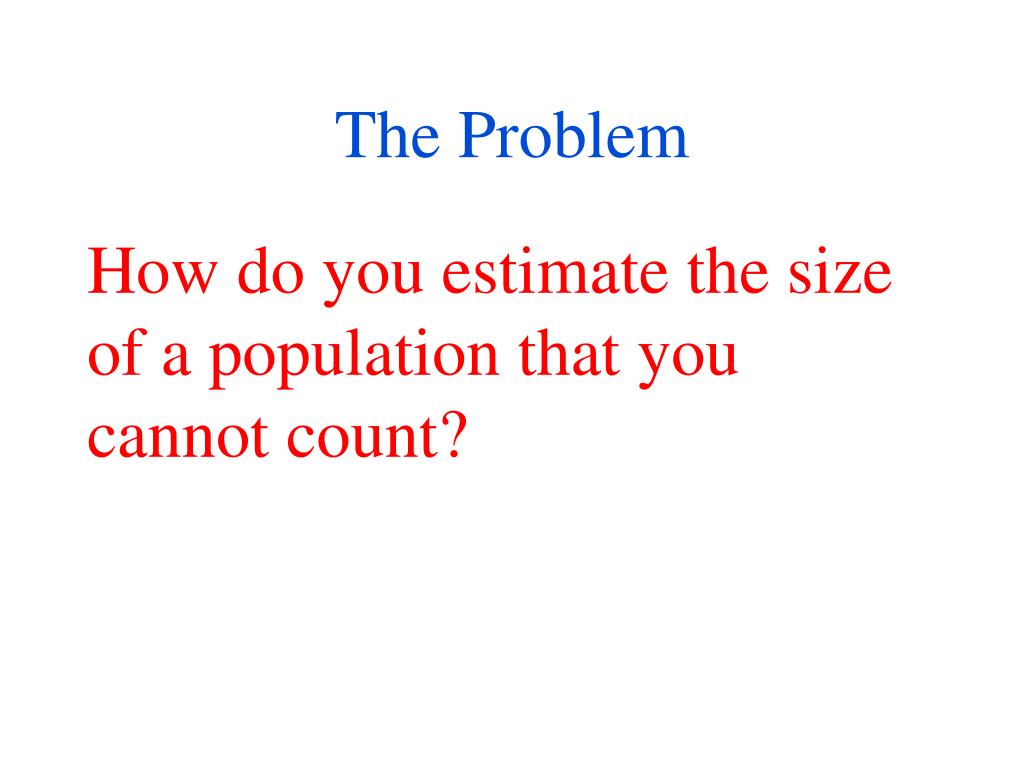

  6. The Problem How do you estimate the size of a population that you cannot count?

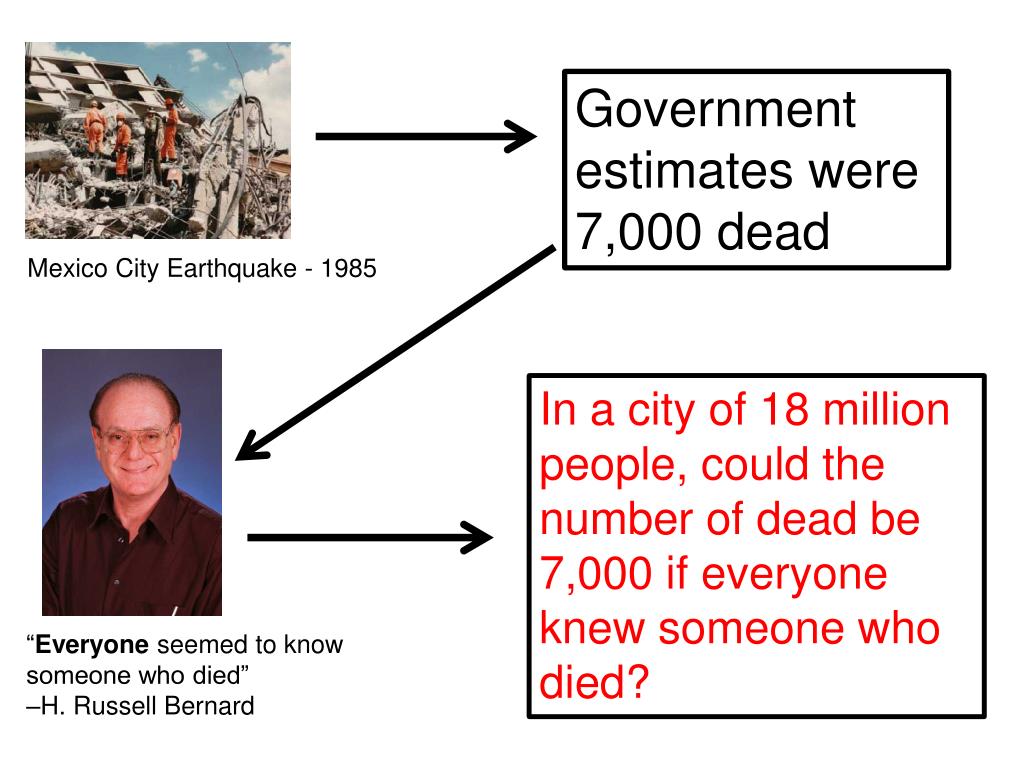

  7. Government estimates were 7,000 dead Mexico City Earthquake - 1985 In a city of 18 million people, could the number of dead be 7,000 if everyone knew someone who died? “Everyone seemed to know someone who died” –H. Russell Bernard

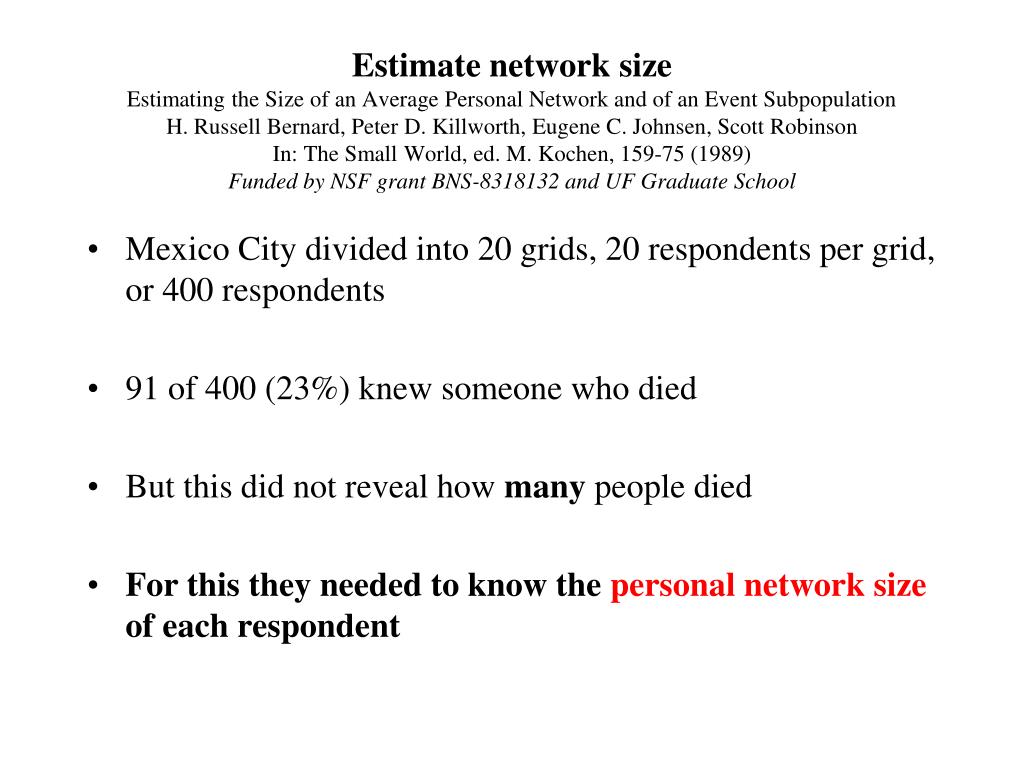

  8. Estimate network sizeEstimating the Size of an Average Personal Network and of an Event SubpopulationH. Russell Bernard, Peter D. Killworth, Eugene C. Johnsen, Scott Robinson In: The Small World, ed. M. Kochen, 159-75 (1989)Funded by NSF grant BNS-8318132 and UF Graduate School • Mexico City divided into 20 grids, 20 respondents per grid, or 400 respondents • 91 of 400 (23%) knew someone who died • But this did not reveal how many people died • For this they needed to know the personal network size of each respondent

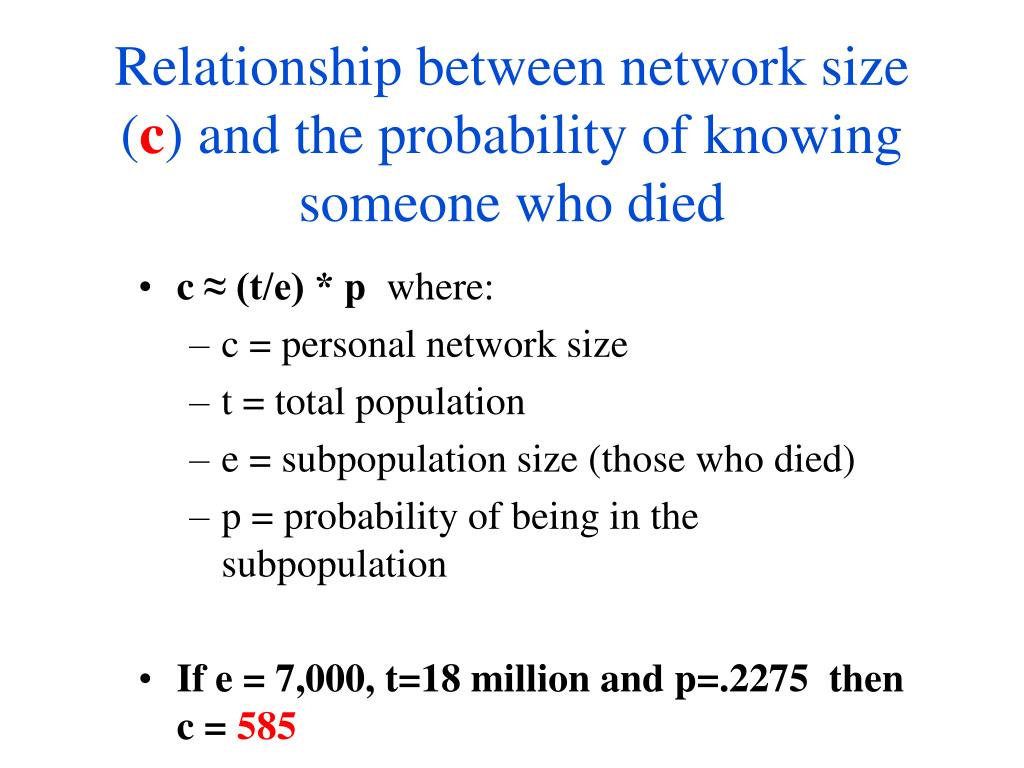

  9. Relationship between network size (c) and the probability of knowing someone who died • c ≈ (t/e) * p where: • c = personal network size • t = total population • e = subpopulation size (those who died) • p = probability of being in the subpopulation • If e = 7,000, t=18 million and p=.2275 then c = 585

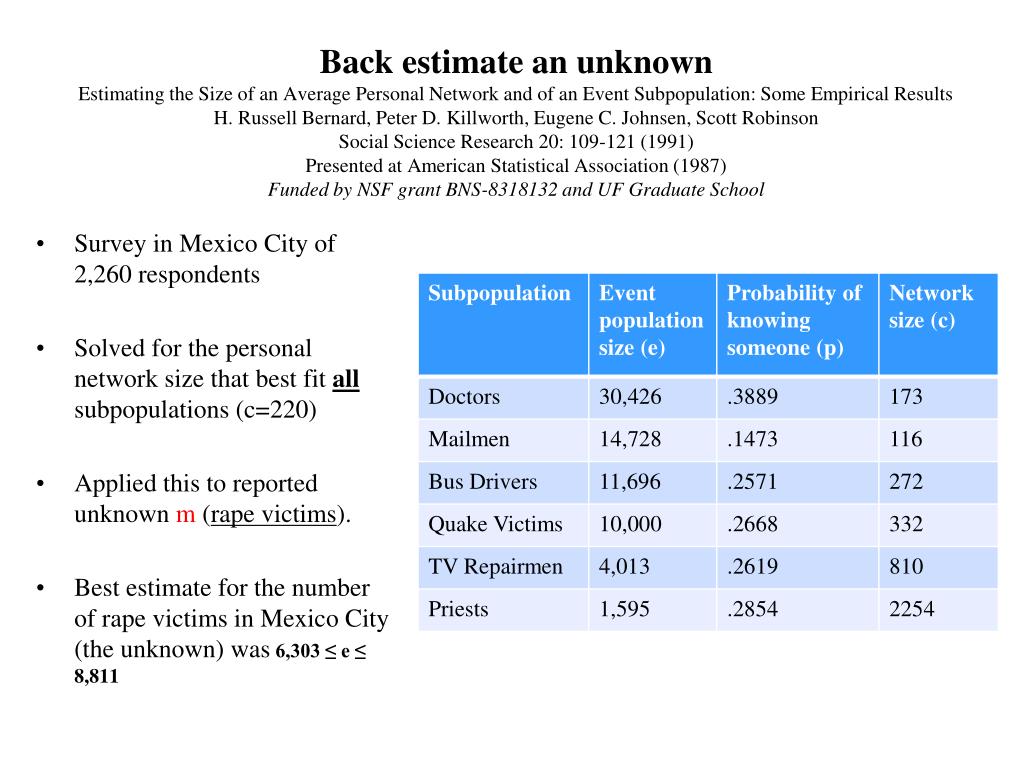

  10. Back estimate an unknownEstimating the Size of an Average Personal Network and of an Event Subpopulation: Some Empirical ResultsH. Russell Bernard, Peter D. Killworth, Eugene C. Johnsen, Scott Robinson Social Science Research 20: 109-121 (1991)Presented at American Statistical Association (1987)Funded by NSF grant BNS-8318132 and UF Graduate School • Survey in Mexico City of 2,260 respondents • Solved for the personal network size that best fit allsubpopulations (c=220) • Applied this to reported unknown m (rape victims). • Best estimate for the number of rape victims in Mexico City (the unknown) was6,303 ≤ e ≤ 8,811

  11. A Primitive modelEveryone’s network in a society reflects the distribution of subpopulations in that society • t= the size of a population (e.g. the U.S.) • e = the size of some subpopulation within it (e.g. diabetics). • m = the number of members of the subpopulation known by any one person (e.g. diabetics) • c = personal network size

  12. How to do it

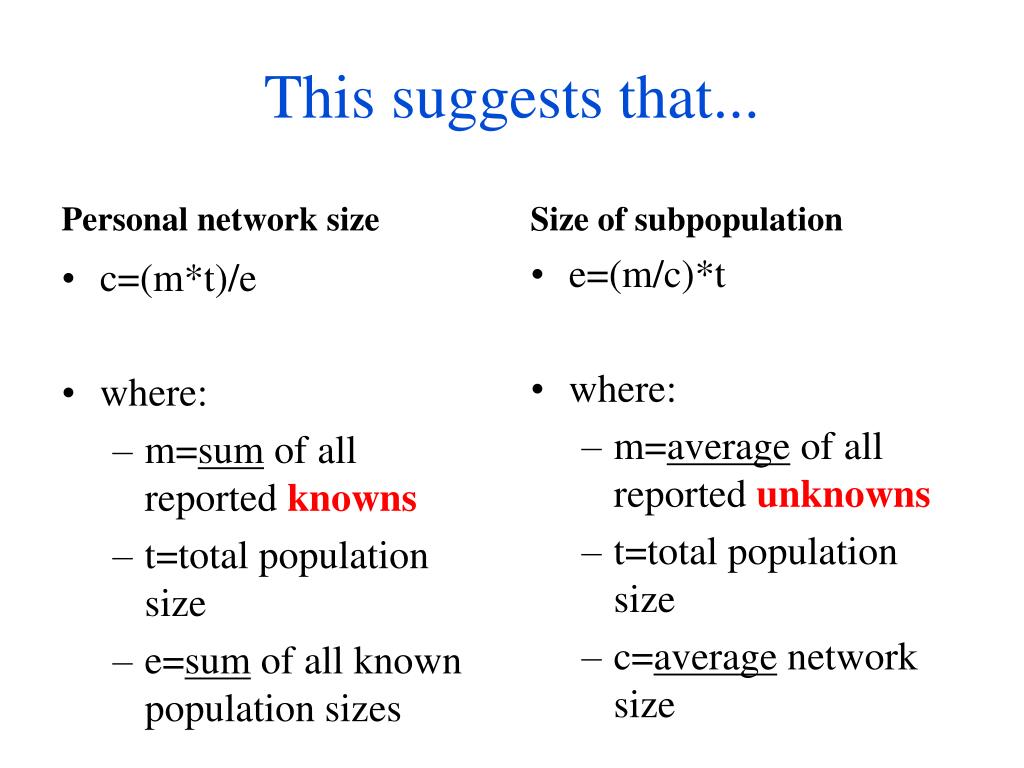

  13. This suggests that... Personal network size Size of subpopulation e=(m/c)*t where: m=averageof all reported unknowns t=total population size c=average network size • c=(m*t)/e • where: • m=sum of all reported knowns • t=total population size • e=sum of all known population sizes

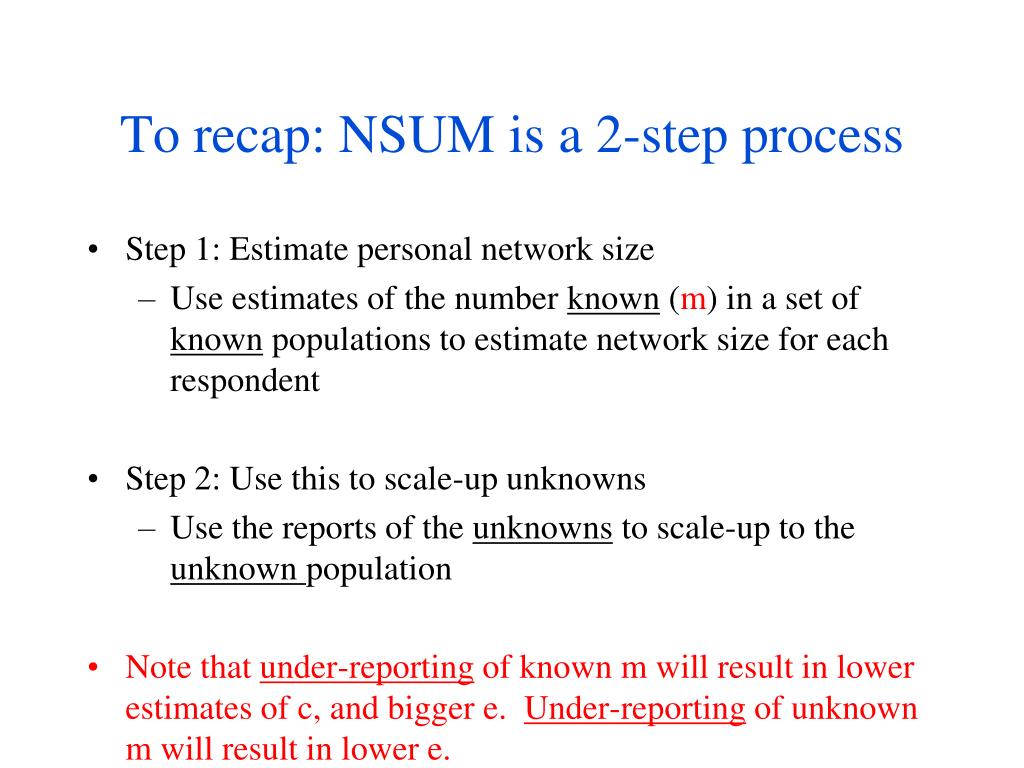

  14. To recap: NSUM is a 2-step process • Step 1: Estimate personal network size • Use estimates of the number known (m) in a set of known populations to estimate network size for each respondent • Step 2: Use this to scale-up unknowns • Use the reports of the unknowns to scale-up to the unknown population • Note that under-reporting of known m will result in lower estimates of c, and bigger e. Under-reporting of unknown m will result in lower e.

  15. NSUM is a survey approach • With any survey you must: • Define the population • Choose a sample size • Determine who is an eligible respondent • With this approach you also must • Choose a set of populations of known size

  16. Select respondent population • Respondent population is not the same as the population to be estimated (target population) • Respondents are sampled from the population within which the subpopulation exists • Interview U.S. respondents to estimate homeless population in the U.S. • Interview Barcelona respondents to estimate heroin users in Barcelona • You must know the size of the respondent population (t) (e.g. the U.S. or Barcelona)

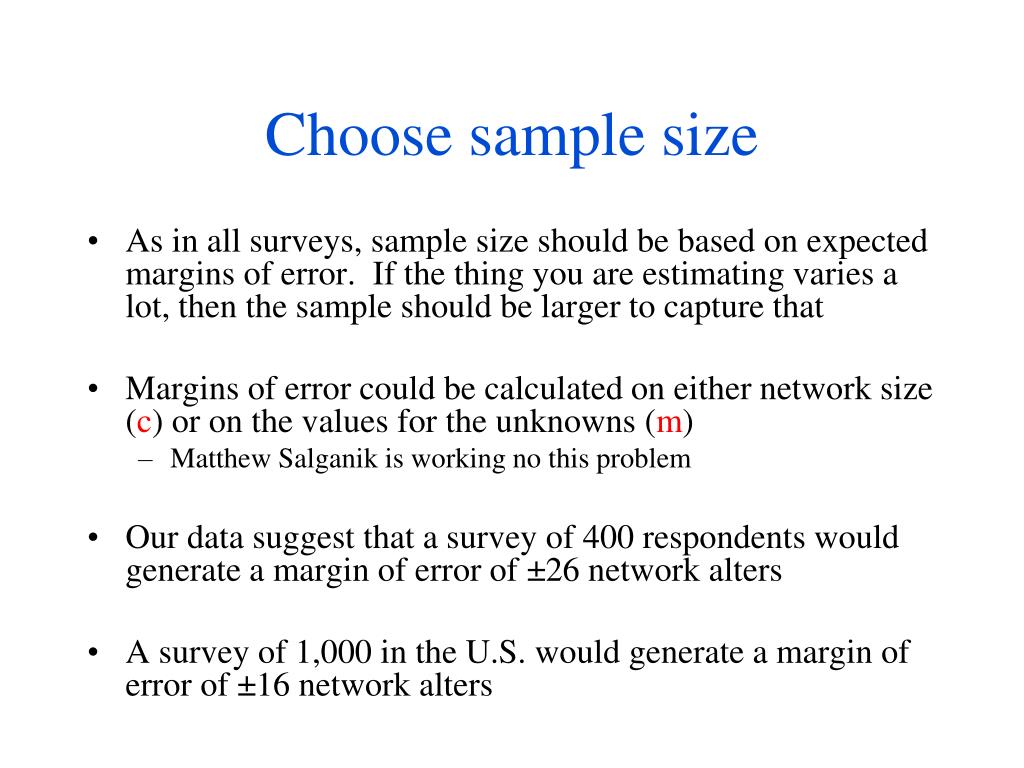

  17. Choose sample size • As in all surveys, sample size should be based on expected margins of error. If the thing you are estimating varies a lot, then the sample should be larger to capture that • Margins of error could be calculated on either network size (c) or on the values for the unknowns (m) • Matthew Salganik is working no this problem • Our data suggest that a survey of 400 respondents would generate a margin of error of ±26 network alters • A survey of 1,000 in the U.S. would generate a margin of error of ±16 network alters

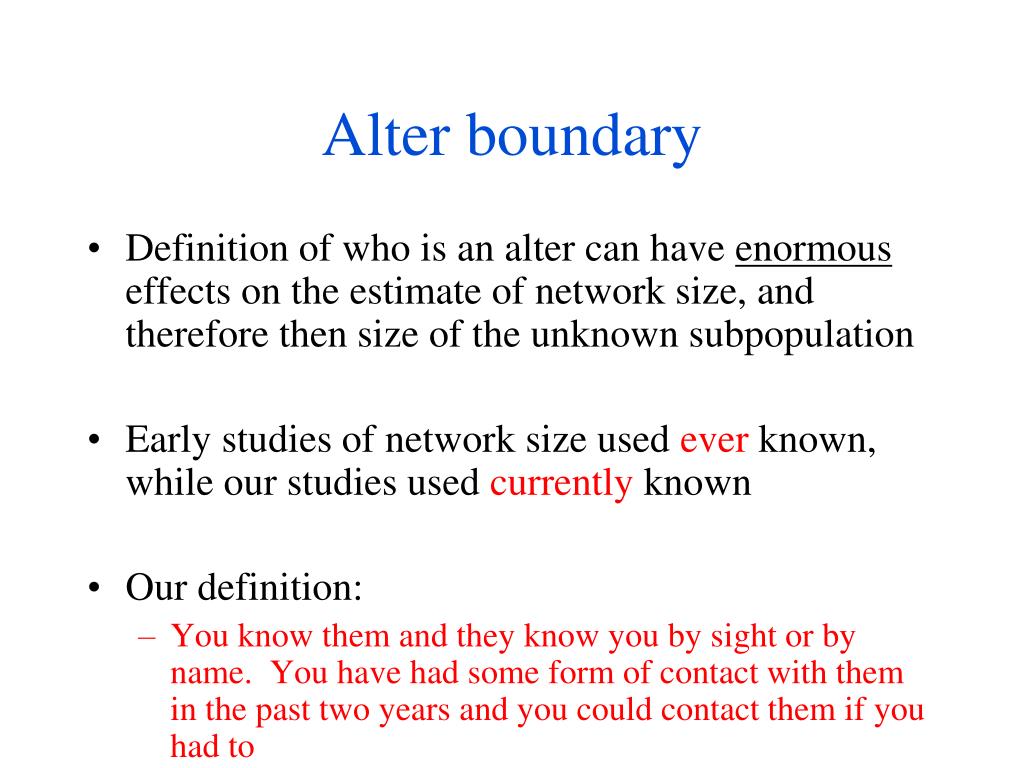

  18. Alter boundary • Definition of who is an alter can have enormous effects on the estimate of network size, and therefore then size of the unknown subpopulation • Early studies of network size used ever known, while our studies used currently known • Our definition: • You know them and they know you by sight or by name. You have had some form of contact with them in the past two years and you could contact them if you had to

  19. Selecting known populations • Known populations should vary in size and type • DO NOT limit study to populations related to, say, health conditions, although plentiful, may introduce error • DO NOT use only large populations (such as men or people over age 65). This introduces recall error • DO NOT use only small populations. This introduces error from very few hits • A rough guide is to use populations between .1% and 4% of the total population • Ideally collection of sub-population data will be recurring so that they can be used in subsequent years • It is important that the data all reflect the same year (be aware that some population data lags)

  20. Potential Sources in the U.S. • U.S. Statistical Abstract • U.S. Census • FBI Crime Statistics • State and city-level Vital Statistics • Surveys by organizations • Voter Registration databases

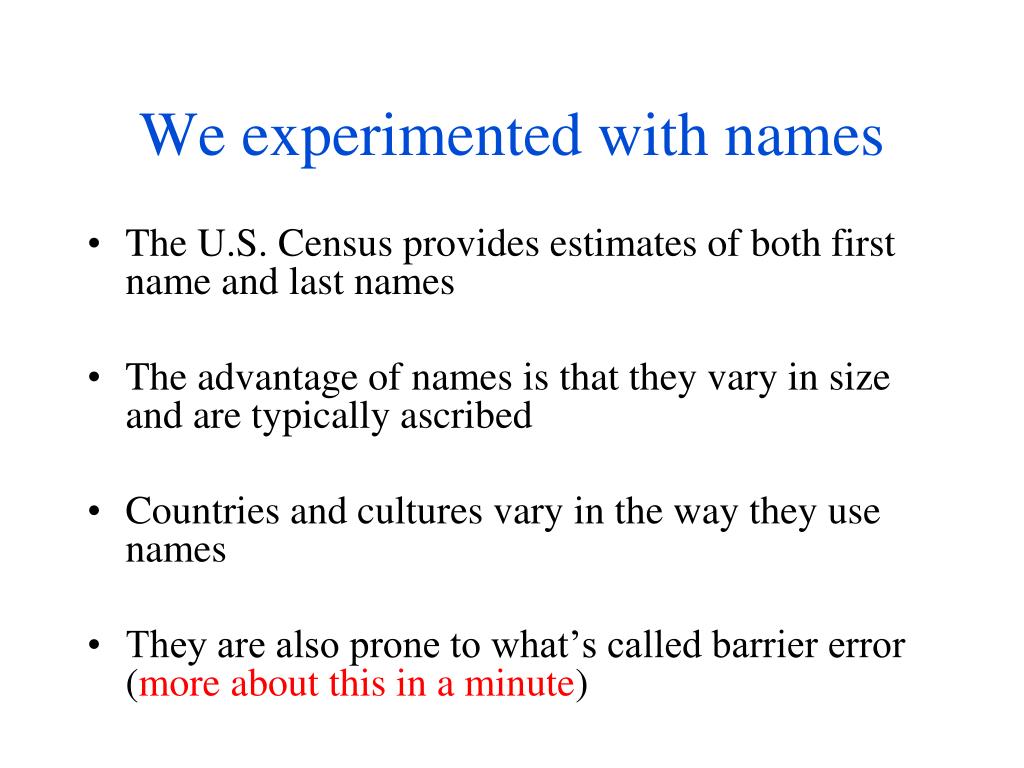

  21. We experimented with names • The U.S. Census provides estimates of both first name and last names • The advantage of names is that they vary in size and are typically ascribed • Countries and cultures vary in the way they use names • They are also prone to what’s called barrier error (more about this in a minute)

  22. Peter D. Killworth, Christopher McCarty, Eugene Johnsen, Gene A. Shelley and H. Russell Bernard. (1998) A Social Network Approach to Estimating Seroprevalence in the United States. Evaluation Review 22:289-308Funded by NSF grant SES-8803577Estimating the Size of Hard-to-Count Populations • Telephone survey of 1,524 Florida respondents • Respondents estimated: • How many they knew in six known subpopulations (four different sets of six) • If they knew someone with certain first names • How many they knew who tested positive for HIV and those with AIDS • Average network size was estimated to be 105 (s.d. 92) • This approach was limited by using only six known populations for each respondent and not asking how many people were known with first names

  23. Peter D. Killworth, Christopher McCarty, H. Russell Bernard, Gene A. Shelley and Eugene Johnsen. (1998) Estimation of Seroprevalence, Rape and Homelessness in the U.S. Using a Social Network Approach. Evaluation Review 22:289-308 • For the next survey we made two critical changes • We asked each respondent about a lot of known subpopulations (29 of them) • We asked how many they knew, not just if they knew someone in the known subpopulations • Telephone survey of 1,554 U.S. respondents • Back-estimation resulted in average network size of 286 s.d. 291 (the first instance of an estimate near 290)

  24. Summation method • Previous attempts estimated network size by back-estimating from known subpopulations • We thought of an alternative approach: • Ask respondents how many people they know in mutually exclusive and exhaustive relation categories • Sum the estimates in those categories to get network size

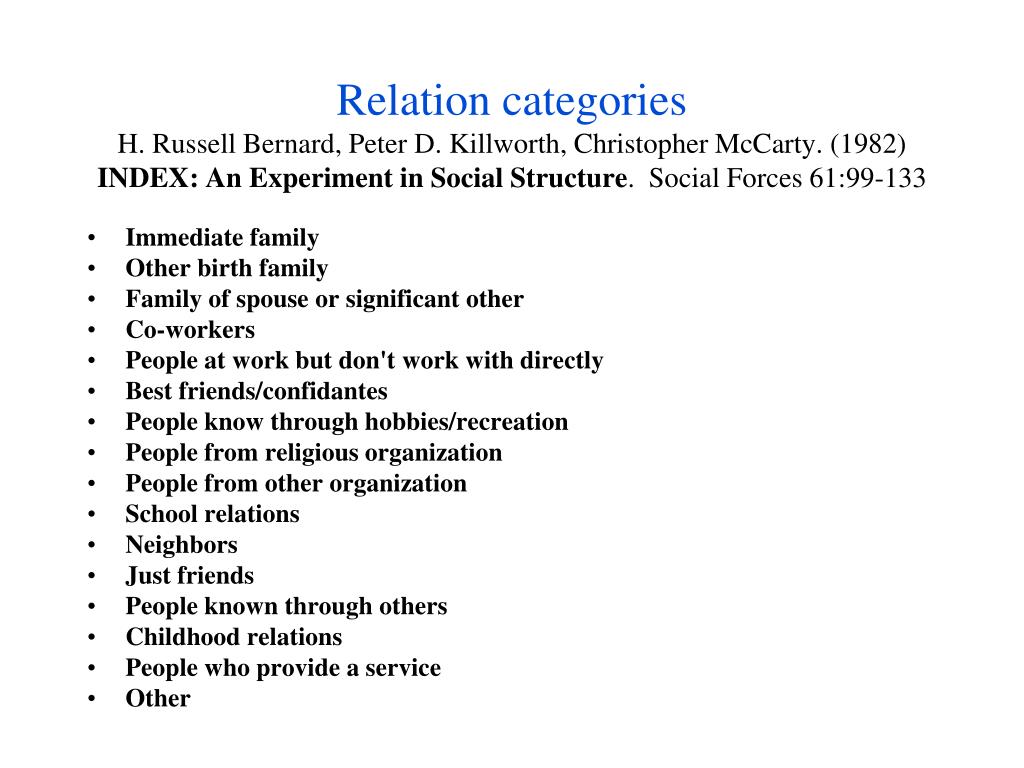

  25. Relation categoriesH. Russell Bernard, Peter D. Killworth, Christopher McCarty. (1982) INDEX: An Experiment in Social Structure. Social Forces 61:99-133 • Immediate family • Other birth family • Family of spouse or significant other • Co-workers • People at work but don't work with directly • Best friends/confidantes • People know through hobbies/recreation • People from religious organization • People from other organization • School relations • Neighbors • Just friends • People known through others • Childhood relations • People who provide a service • Other

  26. Advantages of the summation method • Unlike back-estimation from known populations, the summation method should not be subject to certain kinds of error (also, more in a minute). • It does not require finding known populations, which could be a problem in some countries where there are no reliable data on the population

  27. Christopher McCarty, Peter D. Killworth, H. Russell Bernard, Eugene Johnsen and Gene A. Shelley. (2001) Comparing Two Methods for Estimating Network Size. Human Organization60:28-39 • Two telephone surveys in U.S. • Included back-estimate and summation method for each respondent • 29 known populations for back-estimating • 16 relation categories for summation • Virtually the same result as previous study • Correlation between methods is either fully or only .56

  28. Reliability check Change the data Survey of clergy We surveyed a national sample of 159 members of the clergy – people widely thought to have large networks. Meanc= 598 for the back-estimation method Meanc = 948 for the summation method • We changed reported values at or above 5 to a value of 5 precisely. The mean dropped to 206, a change of 29%. • We set values of at least 5 to a uniformly distributed random value between 5 and 15. We repeated the random change (5 – 15), but only for large subpopulations (with >1 million). The mean increased to 402, a change of 38% -- in the opposite direction.

  29. So, 290 was not a coincidence • Two different methods of counting similar results • Changing the data produced large changes in the results, and in the expected directions • People who are widely thought to have large networks did have large networks

  30. The distribution of c

  31. The data track

  32. Over- and under-estimation • Tendency for people to overestimate small populations (<2 million) and to underestimate large ones (>3 million). • The two largest populations are people who have a twin brother or sister and diabetics. • Without these two outliers, the correlation rises from r = .79 to r = .94

  33. Compromising assumptions

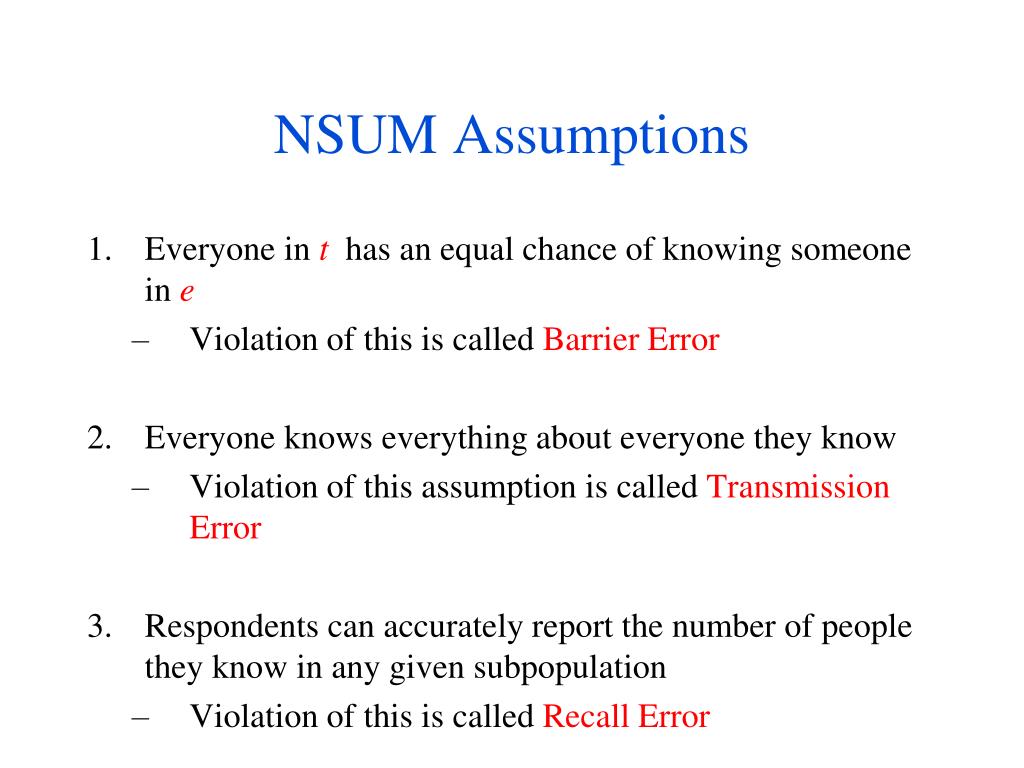

  34. NSUM Assumptions • Everyone in t has an equal chance of knowing someone in e • Violation of this is called Barrier Error • Everyone knows everything about everyone they know • Violation of this assumption is called Transmission Error • Respondents can accurately report the number of people they know in any given subpopulation • Violation of this is called Recall Error

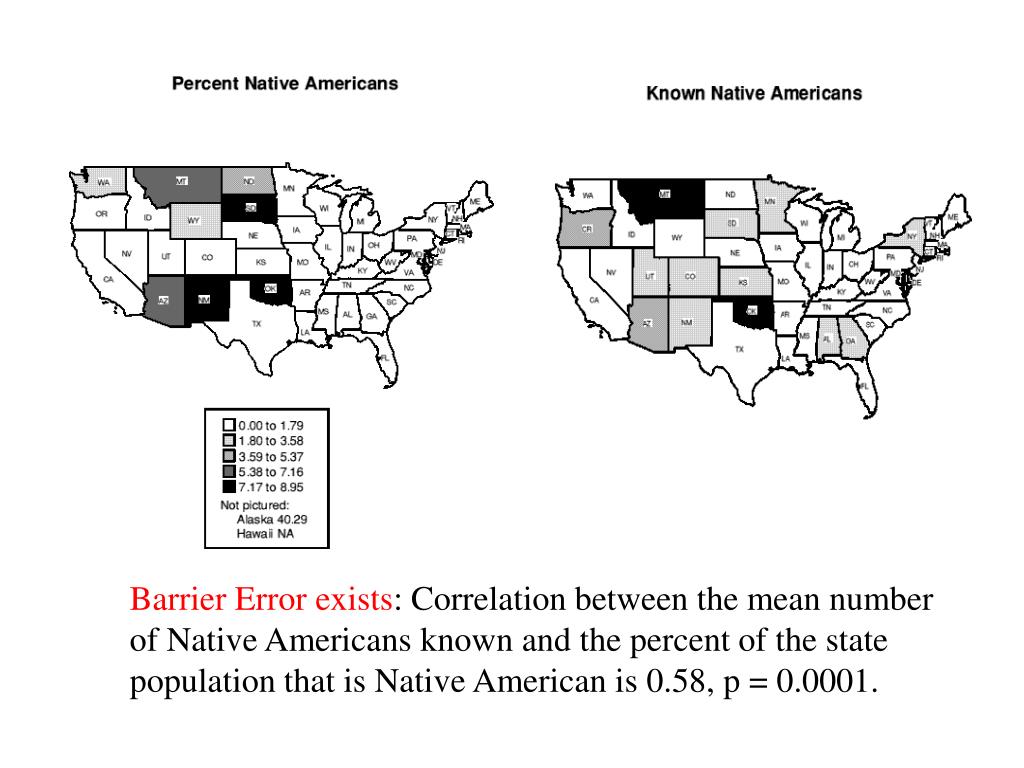

  35. Barrier Error exists: Correlation between the mean number of Native Americans known and the percent of the state population that is Native American is 0.58, p = 0.0001.

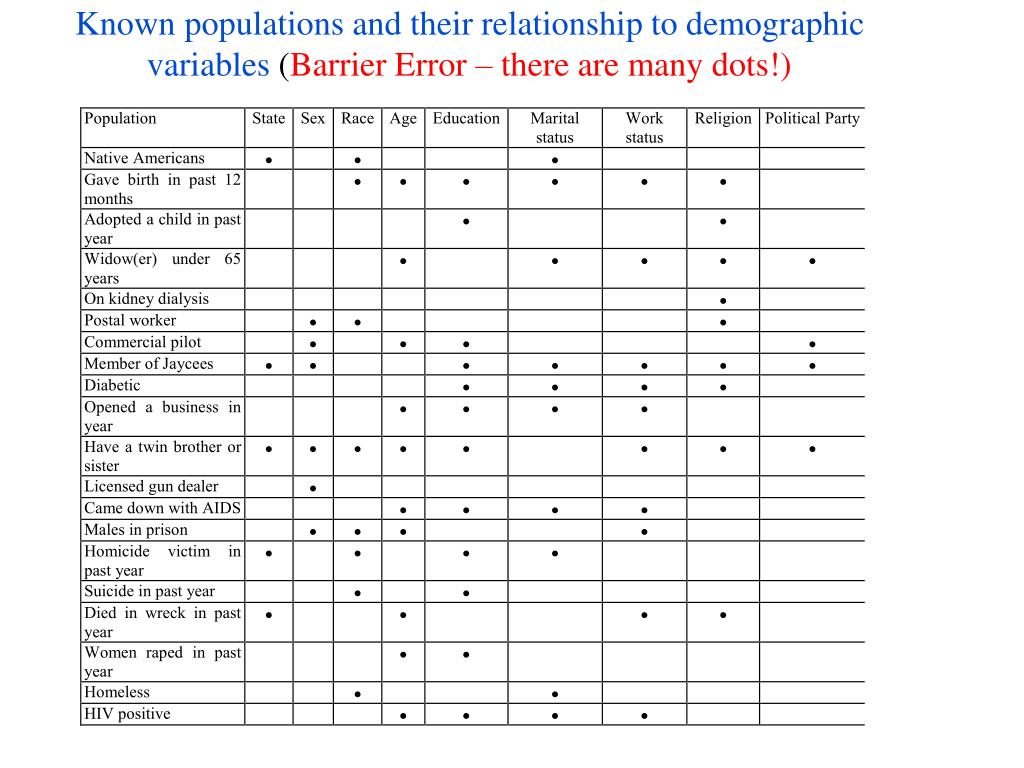

  36. Known populations and their relationship to demographic variables (Barrier Error – there are many dots!)

  37. Names and their relationship to demographic variables (Barrier Error – again, many dots) We assumed that a representative sample will eliminate barrier error. In fact, we don’t know … so far, research to improve estimates in NSUM is on transmission error.

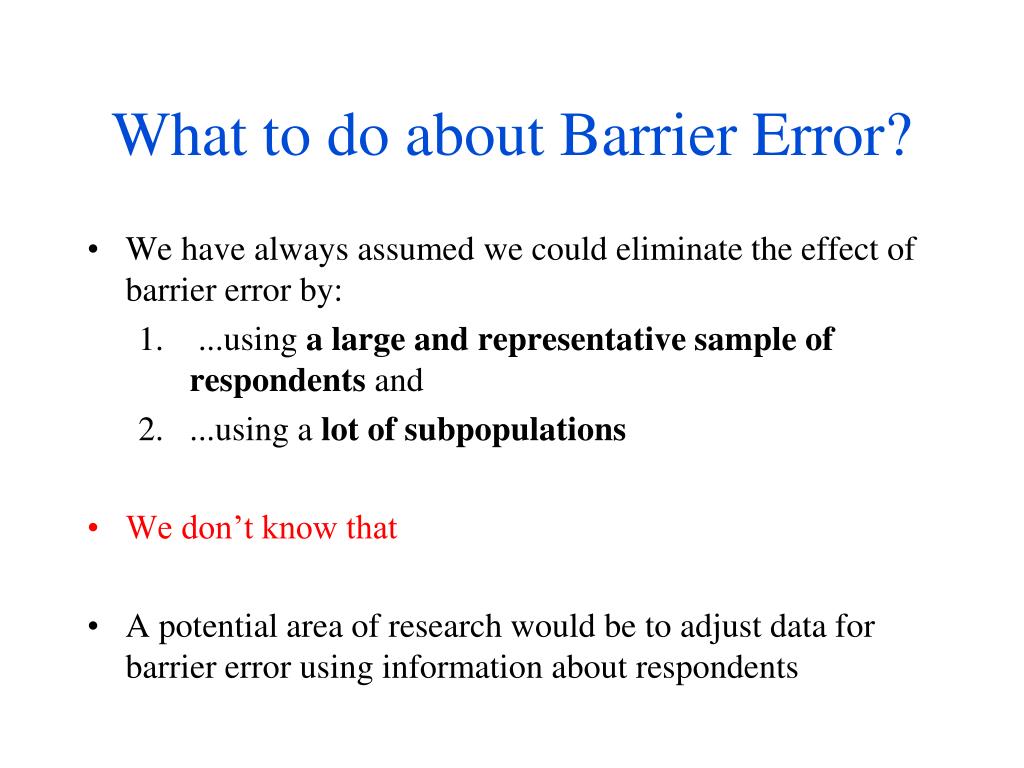

  38. What to do about Barrier Error? • We have always assumed we could eliminate the effect of barrier error by: • ...using a large and representative sample of respondents and • ...using a lot of subpopulations • We don’t know that • A potential area of research would be to adjust data for barrier error using information about respondents

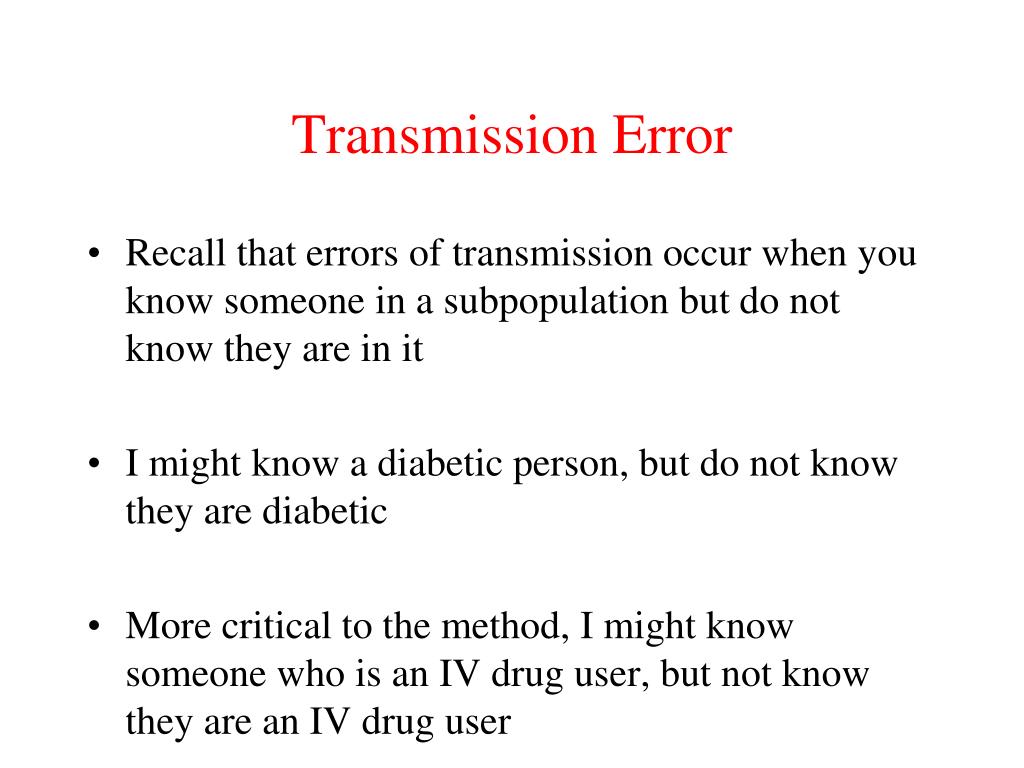

  39. Transmission Error • Recall that errors of transmission occur when you know someone in a subpopulation but do not know they are in it • I might know a diabetic person, but do not know they are diabetic • More critical to the method, I might know someone who is an IV drug user, but not know they are an IV drug user

  40. Transmission Error Study • We recruited 30 people who were members of one of the known populations (e.g. diabetics) • We elicited 25 alters from each using first names • The respondent provided the alter’s phone number (30x25=750 alters) • We contacted 220 of 750 named alters and asked them things about themselves and about ego.

  41. Results of Transmission Study

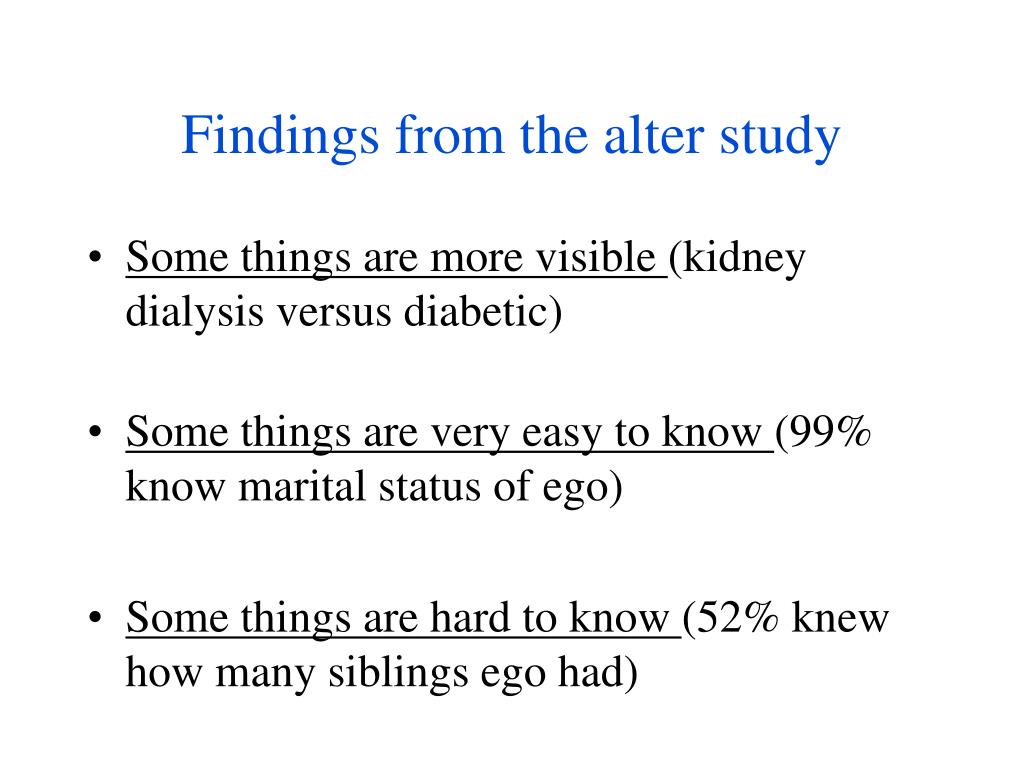

  42. Findings from the alter study • Some things are more visible (kidney dialysis versus diabetic) • Some things are very easy to know (99% know marital status of ego) • Some things are hard to know (52% knew how many siblings ego had)

  43. Some people withdrawGene A. Shelley, Peter D. Killworth, H. Russell Bernard, Christopher McCarty, Eugene C. Johnsen, Ronald E. Rice. (2006) Who knows your HIV status II: Information propagation within social networks of seropositive people. Human Organization 65: 430-445 • Gene Shelley conducted ethnographic work with a sample of HIV+ respondents • People said that they withdrew from their network in order to limit the number of people who knew their HIV status • Eugene Johnsen confirmed that HIV+ people have, on average, networks that are one-third the average of others in the U.S.

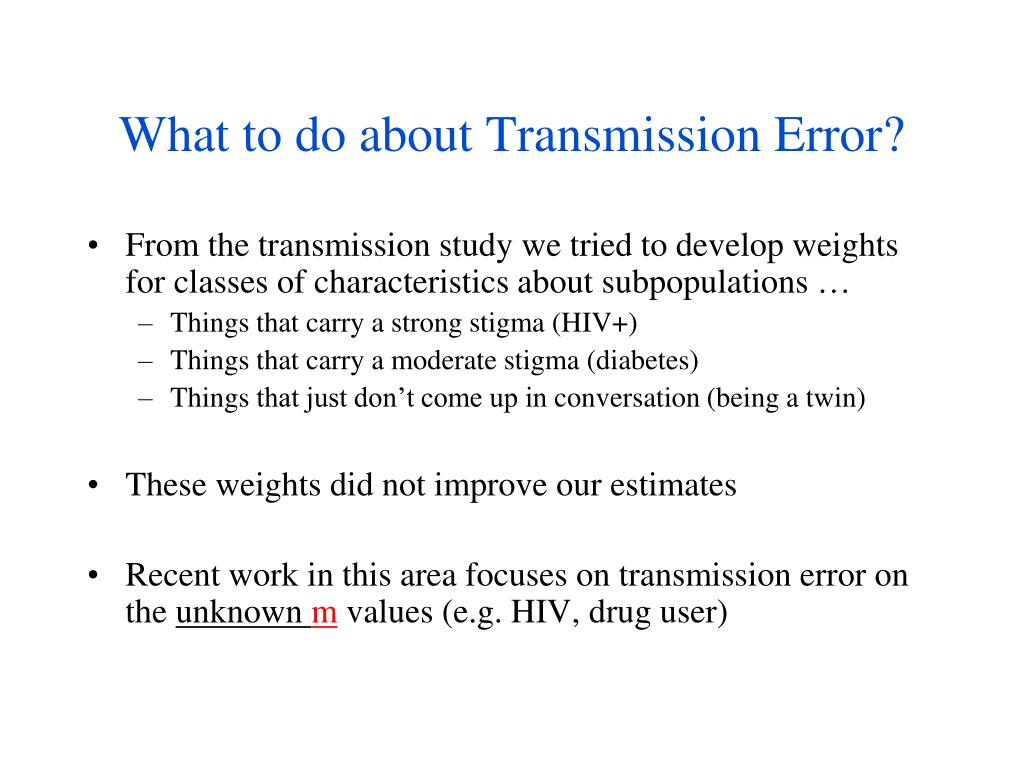

  44. What to do about Transmission Error? • From the transmission study we tried to develop weights for classes of characteristics about subpopulations … • Things that carry a strong stigma (HIV+) • Things that carry a moderate stigma (diabetes) • Things that just don’t come up in conversation(being a twin) • These weights did not improve our estimates • Recent work in this area focuses on transmission error on the unknown m values (e.g. HIV, drug user)

  45. Our estimates using NSUM • Killworth et al. 1998 of 1,554 adults in the U.S. in 1994. • HIV+: 800,000 ± 43,000 • Homeless: 526,000 ± 35,000 • Women raped in the last 12 months: 194,000 ± 21,000 • These were all close to other estimates

  46. Charles Kadushin, Pater D. Killworth, H. Russell Bernard and Andrew a. Beveridge (2006) Scale-up Methods as Applied to Estimates of Heroin Use. Journal of Drug Issues. 36: 417-439 • National survey n=17000 to estimate the prevalence of crimes in 14 cities, large and small, in the U.S. • Reported the number of people they knew who had been victims of six kinds of crime and the number of people they knew who used heroin regularly.

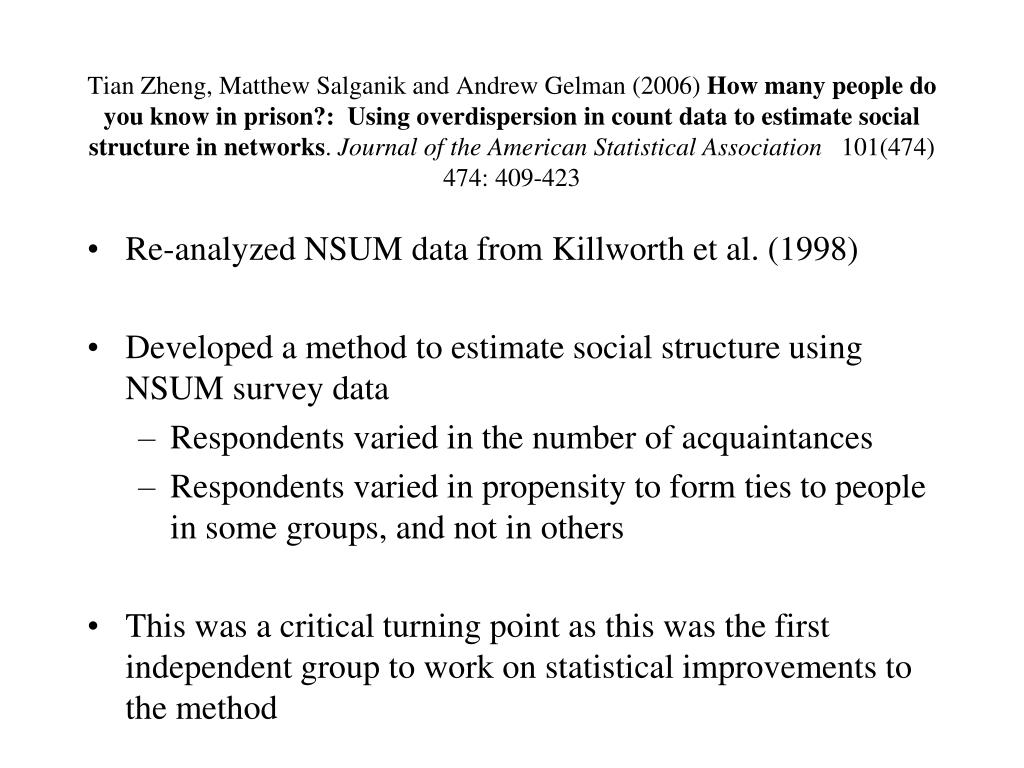

  47. TianZheng, Matthew Salganik and Andrew Gelman (2006) How many people do you know in prison?: Using overdispersion in count data to estimate social structure in networks. Journal of the American Statistical Association 101(474) 474: 409-423 • Re-analyzed NSUM data from Killworth et al. (1998) • Developed a method to estimate social structure using NSUM survey data • Respondents varied in the number of acquaintances • Respondents varied in propensity to form ties to people in some groups, and not in others • This was a critical turning point as this was the first independent group to work on statistical improvements to the method

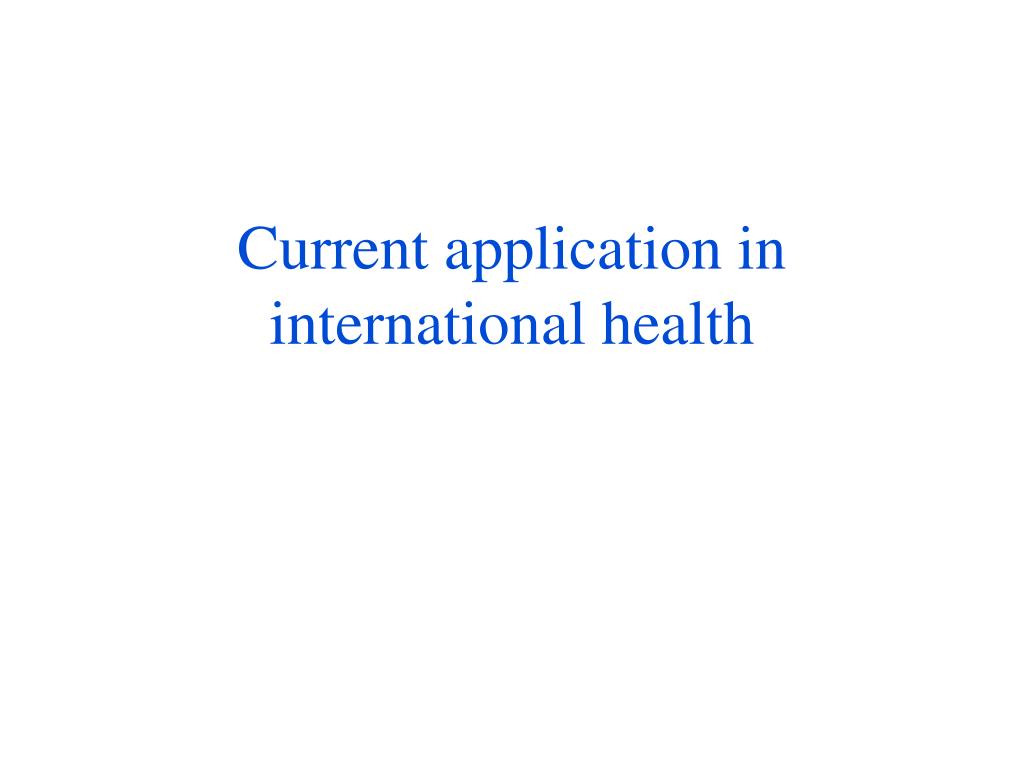

  48. Current application in international health

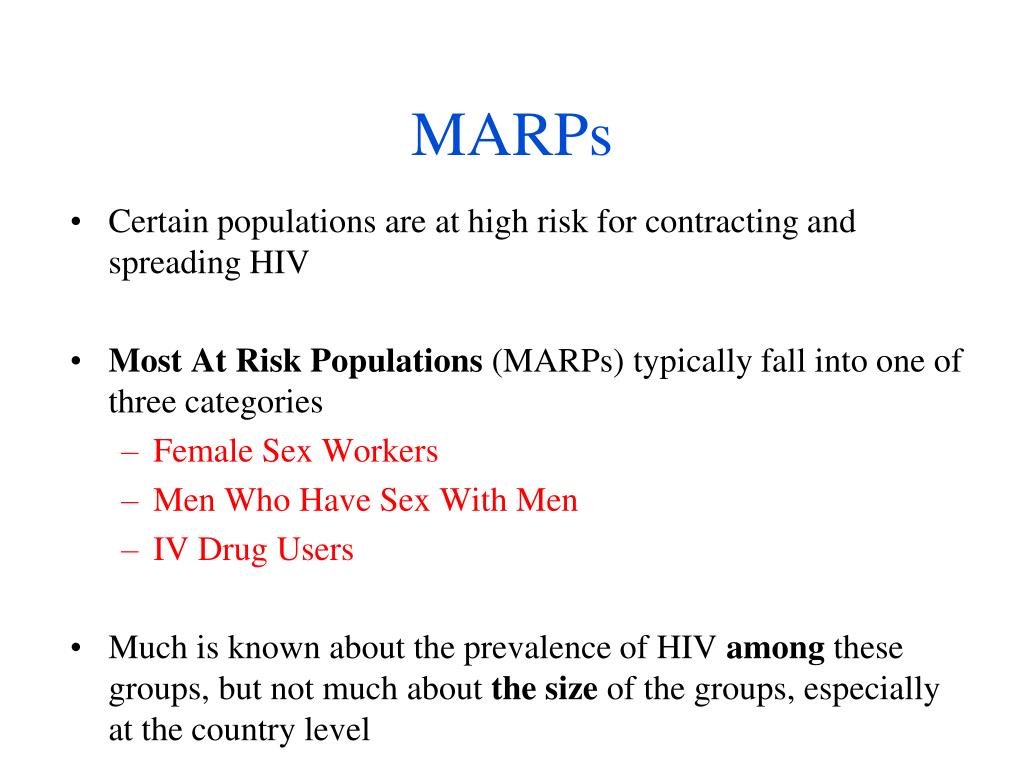

  49. MARPs • Certain populations are at high risk for contracting and spreading HIV • Most At Risk Populations (MARPs) typically fall into one of three categories • Female Sex Workers • Men Who Have Sex With Men • IV Drug Users • Much is known about the prevalence of HIV among these groups, but not much about the size of the groups, especially at the country level

  50. Methods to Estimate the Size of MARPs(http://data.unaids.org/pub/Manual/2003/20030701_gs_estpopulationsize_en.pdf) • Methods that require a sample frame • Census • Counting all members • Enumeration: • Counting members in a sample frame then scaling up • Population Survey: • Draw a representative sample (similar to enumeration) • Methods that do not require a sample frame • Capture-Recapture • Multiplier
