  1. IFC, præsentation • Jan Karlshøj • Ansat i Carl Bro siden 1992 • ... • Formand for den International Technical Management Committee in IAI

  2. IFC, what is IAI about? • IFC = Industry Foundation Classes • Vision • To enable software interoperability in the AEC/FM industry. • Mission • To provide a universal basis for process improvement and information sharing in the construction and facilities management industries. • Deliverables • The key deliverable of the IAI is the IFC Object Model. The term ‘model’ in this case means that it provides a formal specification of requirements which can then be used by software authors to create the IFC compliant software applications.

  3. To Details From IFC, what is IAI about ? • Vision

  4. IFC, how are IFC structured?

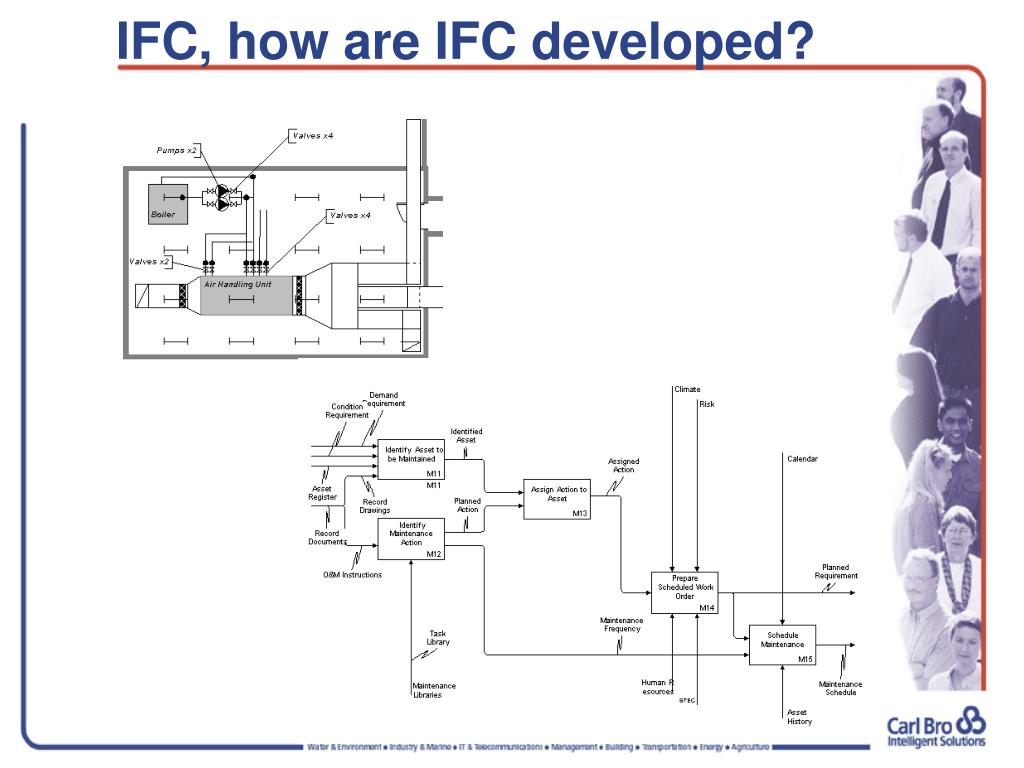

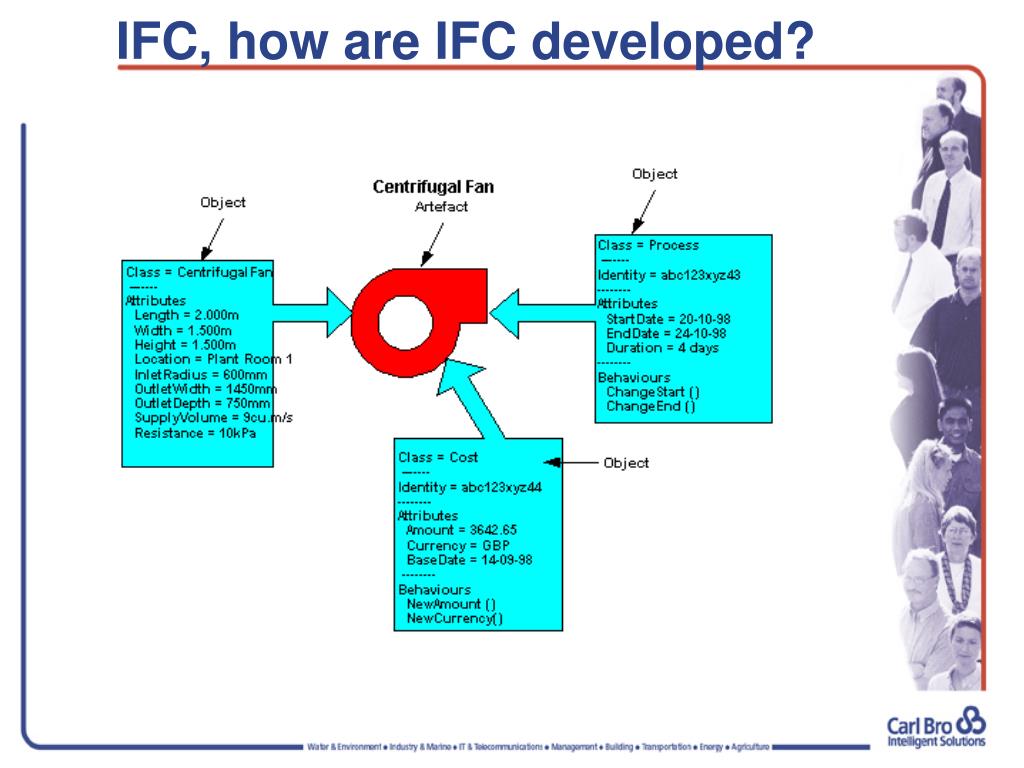

  5. IFC, how are IFC developed?

  6. IFC, how are IFC developed?

  7. IFC, how are IFC developed?

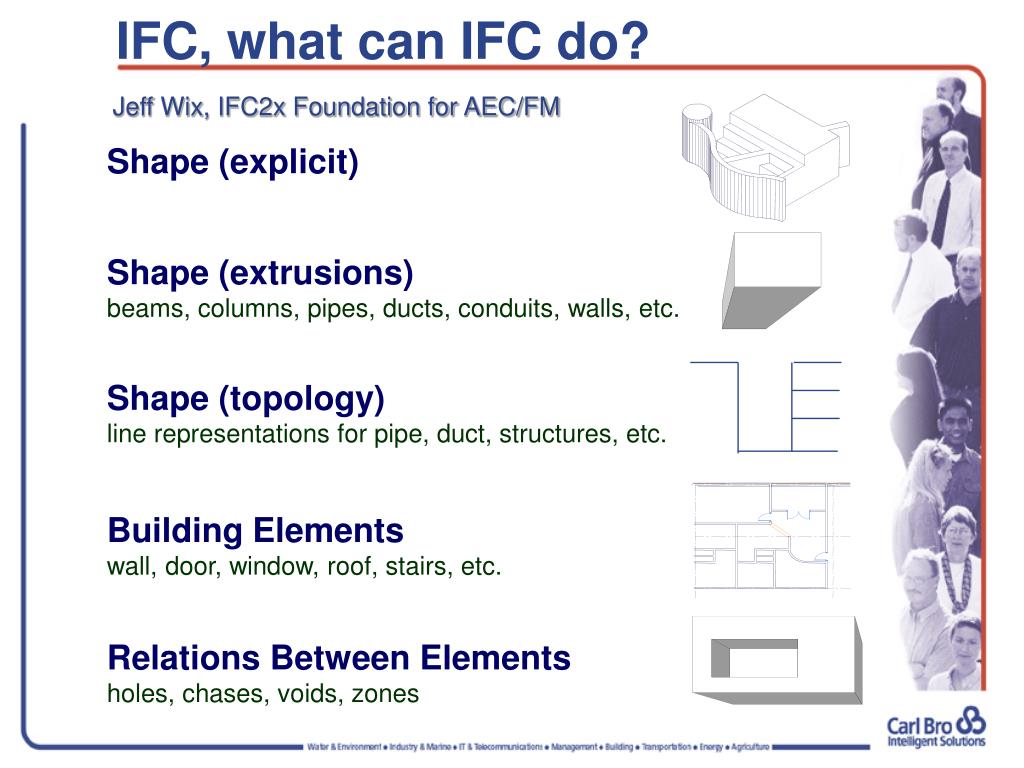

  8. IFC, what can IFC do? Jeff Wix, IFC2x Foundation for AEC/FM Shape (explicit) Shape (extrusions) beams, columns, pipes, ducts, conduits, walls, etc. Shape (topology) line representations for pipe, duct, structures, etc. Building Elements wall, door, window, roof, stairs, etc. Relations Between Elements holes, chases, voids, zones

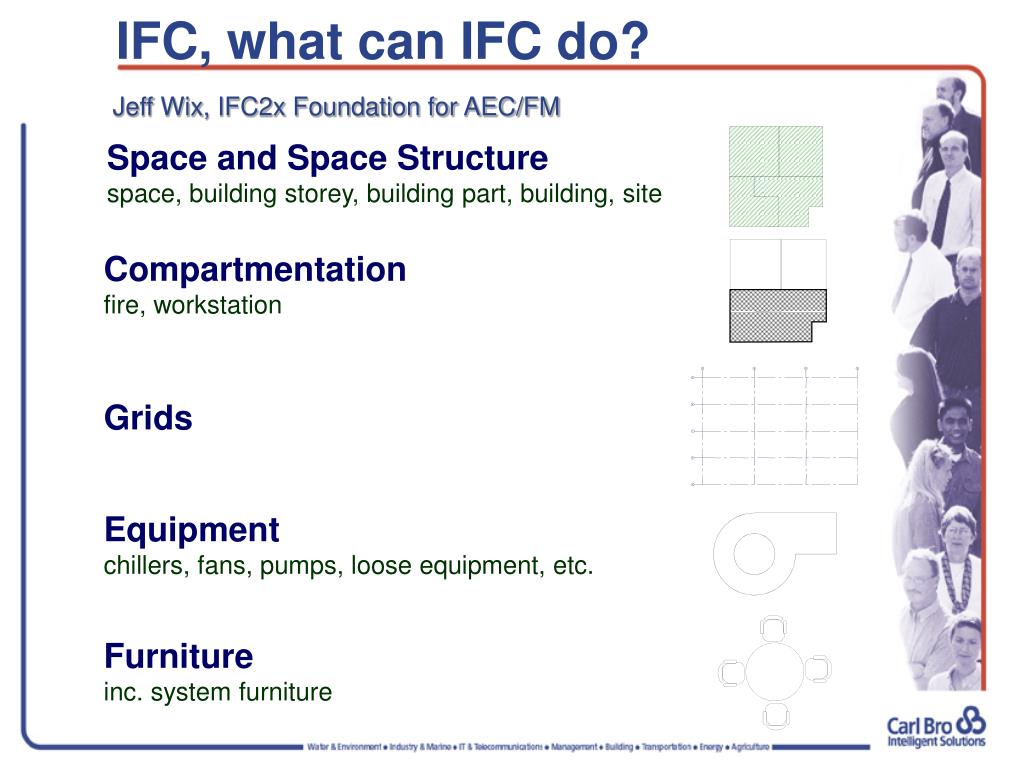

  9. IFC, what can IFC do? Jeff Wix, IFC2x Foundation for AEC/FM Space and Space Structure space, building storey, building part, building, site Compartmentation fire, workstation Grids Equipment chillers, fans, pumps, loose equipment, etc. Furniture inc. system furniture

  10. £ $ Abcd afrgf aahds jhiuhg reeiuh Hfije ewku ijijij jhdfhb O/Nr A1263 2xAbcd £ 26 3xafrgf £ 42 1xaahds £685 4xjhiu £421 30 IFC, what can IFC do? Jeff Wix, IFC2x Foundation for AEC/FM Actors people, organizations, org. structure, addresses Costing objects, cost planning, estimates, budgets Work Plans and Schedules inc. nested schedules, resource allocation Orders work orders, change orders, purchase orders

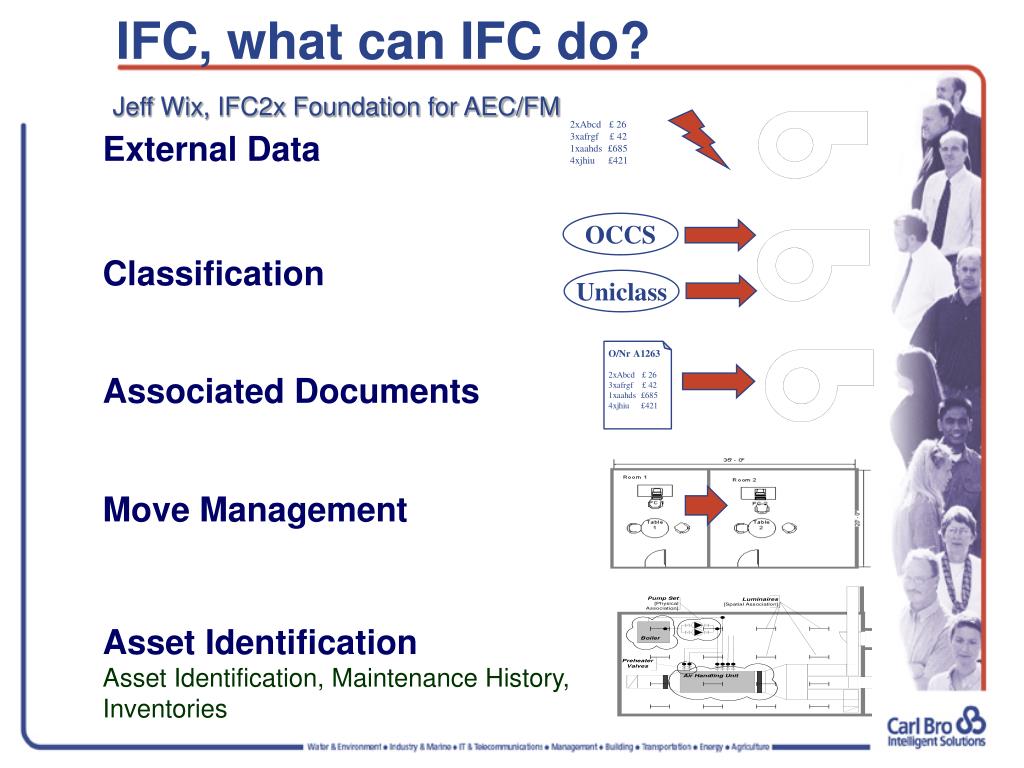

  11. 2xAbcd £ 26 3xafrgf £ 42 1xaahds £685 4xjhiu £421 OCCS Uniclass O/Nr A1263 2xAbcd £ 26 3xafrgf £ 42 1xaahds £685 4xjhiu £421 IFC, what can IFC do? Jeff Wix, IFC2x Foundation for AEC/FM External Data Classification Associated Documents Move Management Asset Identification Asset Identification, Maintenance History, Inventories

  12. IFC, who are participating? • Global • AEC/FM professionals • Software companies • Research Institutes • Governmental supported development programs • List: Graphisoft, Autodesk, Nemetschek, Microsoft, HOK, Kajima, London Underground, LBNL, Stanford ... 650 members • Vera, IT och Fastighed, Corenet, Construction Research Center and many more

  13. Express definition IFC Express definition from IAI DevelopToolkit Data in IFC format IFC InputToolkit Map-ping Map-ping OutputToolkit IFC Program IFC IFC InputToolkit OutputToolkit Program IFC IFC Program IFC, how are they implemented?

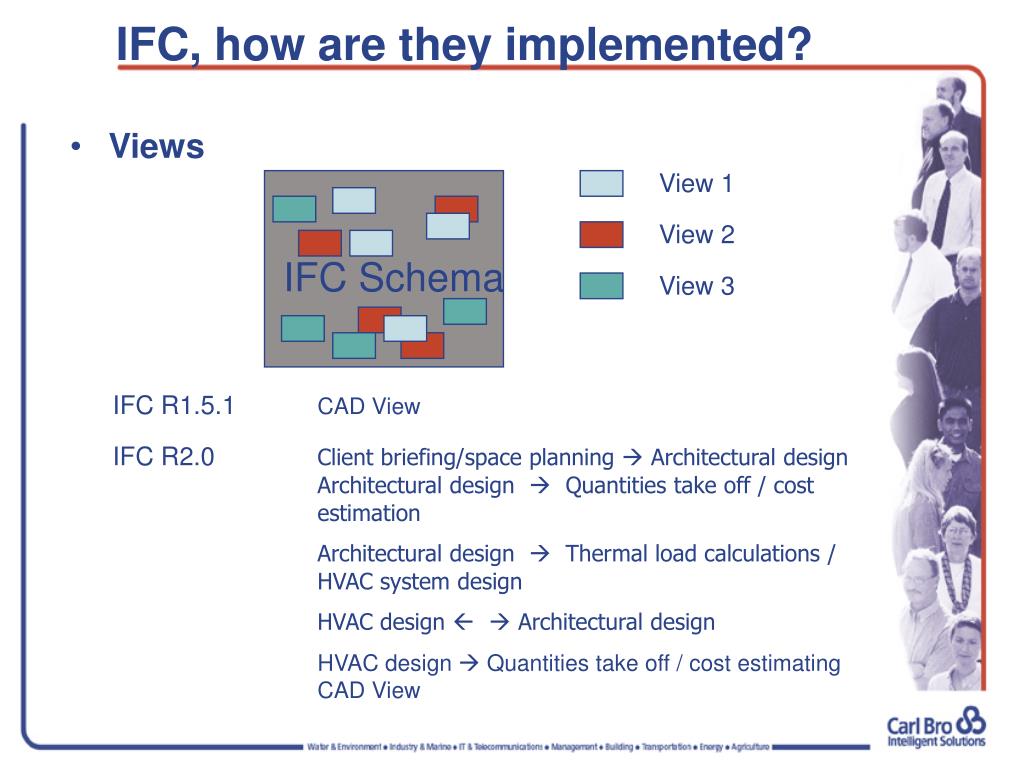

  14. IFC, how are they implemented? • Views View 1 View 2 IFC Schema View 3 IFC R1.5.1 CAD View IFC R2.0 Client briefing/space planning  Architectural design Architectural design  Quantities take off / cost estimation Architectural design  Thermal load calculations / HVAC system design HVAC design  Architectural design HVAC design  Quantities take off / cost estimating CAD View

  15. IFC, how are they implemented? • Or via XML

  16. IFC, Demonstration • IFC IFC based exchange

  17. IFC, Demonstration

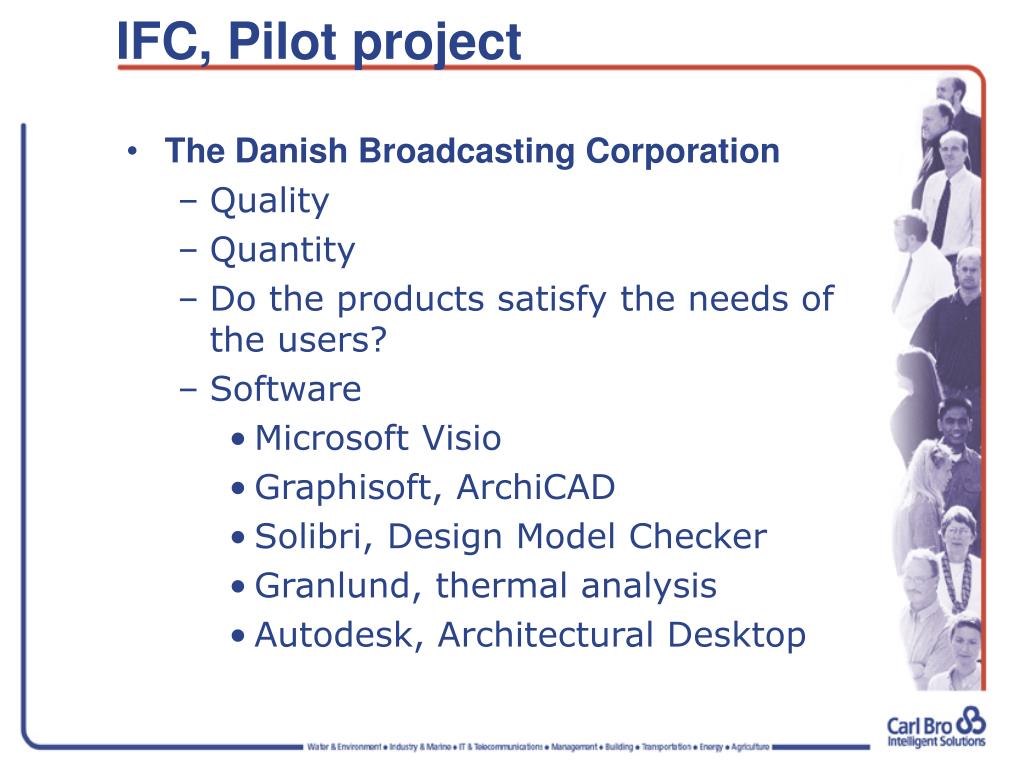

  18. IFC, Pilot project • The Danish Broadcasting Corporation • Quality • Quantity • Do the products satisfy the needs of the users? • Software • Microsoft Visio • Graphisoft, ArchiCAD • Solibri, Design Model Checker • Granlund, thermal analysis • Autodesk, Architectural Desktop

  19. Industry Foundation Classes Mere information www.iai-forum.dk
