Presentation Transcript
facs week 15 recursive descent parsers table driven recursive descent parsers

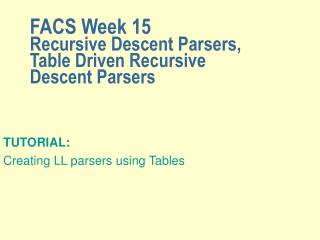

FACS Week 15Recursive Descent Parsers, Table Driven Recursive Descent Parsers
  • TUTORIAL:
  • Creating LL parsers using Tables
creating parsers
CREATING PARSERS
  • Assume you have a GRAMMAR G and a string S of Tokens of G. How can you tell if G can generate S? How can you extract the structure of S if it can be generated by G?
  • Example G, Tokens a,b,c,d

1. Z ::= d 2. Z ::=XYZ

3. Y ::= b 4. Y ::= c

5. X ::= Y 6 X ::= aZ

  • Example string ‘bbd’
creating recursive descent parsers
CREATING “RECURSIVE DESCENT” PARSERS
  • Method Outline:

(1) Each non-terminal N becomes a Method/Procedure N

(2) Each set of productions for a non-terminal N are used to define N’s body:

-the RHS forms a statement sequence where

non-terminals are method calls

-alternative productions for the same

non-terminal form if/case statements

(3) Each Method/Procedure ‘consumes’ tokens – it inputs a list and outputs a smaller list

recursive descent parser for g nb this is rough e g it does not handle failure
RECURSIVE DESCENT PARSER FOR G (NB - This is rough - e.g. it does not handle failure!)
  • Method Z(in: S: list, out: S3: list)
  • if head S == ‘d’ then record(1); S3 = tail S;
  • else record(2); call X(S,S1); call Y(S1,S2); call Z(S2,S3) END
  • Method Y(in: S:list, out S1:list)
  • if head S == ‘b’ then record(3); S1 = tail S;
  • else if head S == ‘c’ then record(4) S1 = tail S; END
  • Method X(in:S: list, out S1:list)
  • if head S == ‘a’ then record(6); call Z(tail S,S1);
  • else record(5); call Y(S,S1) END
  • PARSER_for_G(S) = call Z(S, OUT); if OUT == ““ then SUCCESS.
recursive descent parser for g in prolog nb it does not handle failure
RECURSIVE DESCENT PARSER FOR G in PROLOG(NB - it does not handle failure!)
  • z([HS|TS], TS) :- HS = ‘d’, write('rule 1 used'),nl.
  • z([HS|TS], TS0) :- write('rule 2 used '),nl, x(S,S1), y(S1,S2), z(S2,TS0).
  • y([HS|TS], TS) :- HS = ‘b’, write('rule 3 used'),nl.
  • y([HS|TS], TS) :- HS = ‘c’, write('rule 4 used'),nl.
  • x([HS|TS], TS0) :- HS = ‘a’, write('rule 6 used'),nl,z(TS,TS0).
  • x([HS|TS], TS0) :- write('rule 2 used '),nl,y(TS,TS0).
  • Eg
  • | ?- z("adbd",C).
  • rule 2 used
  • rule 6 used
  • rule 1 used
  • rule 3 used
  • rule 1 used
  • true ?
definition of ll parser
Definition of ‘LL’ Parser:
  • A Recursive Descent Parser is termed LL(1) because
  • -- It parsers from Left to right;
  • -- It calls methods corresponding to non-terminals in a Left to right fashion
  • -- It looks for the next 1 Token in the string to decide what branch to take in the parser
problems with the rd parser
PROBLEMS with the RD PARSER
  • BUT THE RD won’t work unless G is LL(1), i.e.
  • (i) G is NOT ambiguous
  • (ii) G is NOT left recursive
  • (iii) for EVERY two of G’s productions of the form X ::= W1, X ::= W2, it is the case that First(W1) and First(W2) have no common element
  • [ e.g. Add extra rule 7: Z ::= b ]
table driven parsers
TABLE DRIVEN PARSERS
  • Rather than translating a grammar straight into a program, its much better to translate in into a “machine” or “table”, forming a “table-driven parser”.
  • Translating a grammar into a table is a good form of analysis as well as one step towards a parser:

GRAMMAR => TABLE => PARSER

to automatically construct an ll 1 parsing table
TO AUTOMATICALLY CONSTRUCT AN LL(1) PARSING TABLE
  • The Table is of size i x j – it has i columns corresponding to G’s i Tokens, j rows corresponding to G’s j non-terminals
  • Entries in the table are one or more production rules

METHOD:

1. Enter the rule N ::= w in Row N Column m for each m

in the First(w)

2. For each rule N ::= w, find if w is nullable. If w is nullable, enter N ::= w in Row N Column m for each m in the set Follow(N)

slide10
TO RUN AN LL(1) PARSING TABLE ….on a string in its language (Exercise: adjust it to make it execute on any string)
  • Program Run-parsing-table:
  • % assume input string is consumed a token at a time
  • M = special symbol; a = get_token; call Loop(M,a); end
  • Loop(in: M, in/out: a)
  • 1. Apply the production P in Row M Column a;
  • 2. For each of the symbols w in the RHS of P
  • if w is a Non-Terminal: call Loop(w,a);
  • else if w is a Token: a = get_token
  • end
summary
SUMMARY
  • LL parsers are top-down - they start at the special symbol and try to parse a string from left to right.
  • We have seen how to construct two kinds of LL(1) parser - the recursive descent method and the table driven method
  • NEXT WEEK - LR table driven parsing - how JavaCup constructs its parsers
