1 / 19

Catalyst

Catalyst. Given the following equations and H o values, determine the heat of reaction (kJ) at 298 K for the reaction: B 2 H 6 (g) + 6 Cl 2 (g)  2 BCl 3 (g) + 6 HCl(g) BCl 3 (g) + 3 H 2 O(l)  H 3 BO 3 (g) + 3 HCl(g) ΔH = -112.5 kJ

trish
Download Presentation

Catalyst

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Catalyst • Given the following equations and Ho values, determine the heat of reaction (kJ) at 298 K for the reaction: • B2H6(g) + 6 Cl2(g)  2 BCl3(g) + 6 HCl(g) • BCl3(g) + 3 H2O(l) H3BO3(g) + 3 HCl(g) ΔH = -112.5 kJ • B2H6(g) + 6 H2O(l)  2 H3BO3(s) + 6 H2(g ΔH = -493.4 kJ • 1/2 H2(g) + 1/2 Cl2(g)  HCl(g) Δ H = -92.3 kJ

  2. Lecture 5.3 – Enthalpies of Formation and Bond Enthalpies

  3. Today’s Learning Targets • LT 5.6 – For a given chemical bond, I can characterize and calculate its bond enthalpy. Furthermore, I can apply this value to the type and length of bond that the molecule contains. • LT 5.8 – For a phase change, I can characterize the enthalpy of formation and what this value indicates about a given phase change. • LT 5.9 – I can apply Hess’s Law to a chemical reaction and calculate the enthalpy for a combination of chemical reactions.

  4. Enthalpies of Formation (ΔHf) • The enthalpy change for creating a compound from its constituent elements is known ΔH of formation (ΔHf) 2 C (s)+ H2 (g)  C2H2ΔHf =226.7 kJ/mol • The value of ΔHf depends on temperature, pressure, and state of products/reactants

  5. Standard Enthalpies • In order to compare ΔHf of different reactions, we define standard state of 1 atm and 298 K • Don’t confuse with STP! (1 atm and 273 K) • Standard Enthalpies (ΔHo) are ΔH values calculated under these standard conditions • ΔHfo is the change in enthalpy to produce one mole of the compound from the constituent elements • All elements that are stable at room temperature have a ΔHfo of 0 kJ/mol

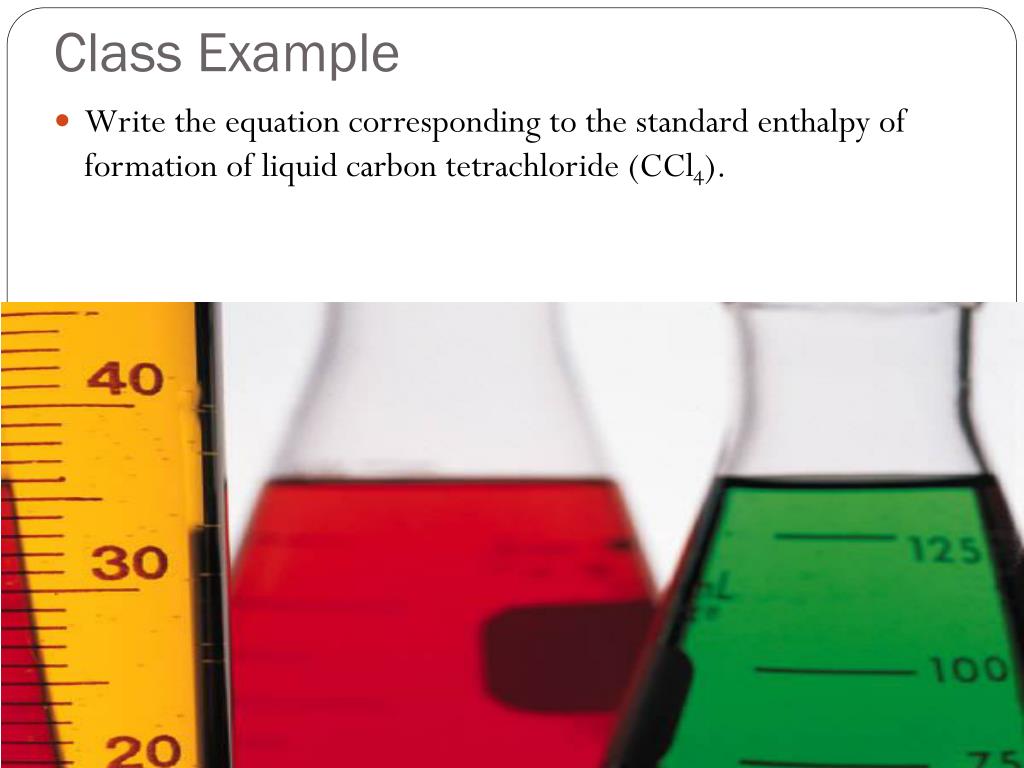

  6. Class Example • Write the equation corresponding to the standard enthalpy of formation of liquid carbon tetrachloride (CCl4).

  7. Table Talk • Write the equation corresponding to the standard enthalpy of formation of gaseous propane (C3H8).

  8. Using ΔHf to calculate ΔHrxn • We can use known ΔHfo and Hess’s Law to calculate the ΔHrxno for a given reaction of interest. • For the combustion of propane gas, C3H8 (g), to CO2 (g) and H2O (l) under standard conditions: C3H8 (g) + 5 O2 (g)  3 CO2 (g) + 4H2O (l) ΔHrxno = ? You know that: 3 C (s) + 4H2 (g)  C3H8 (g) ΔHfo = -103.85 kJ/mol C (s) + O2 (g)  CO2 (g) ΔHfo = -393.5 kJ/mol H2 (g) + ½ O2 (g)  H2O (l) ΔHfo = -285.8 kJ/mol

  9. Shortcut for Using ΔHf to calculate ΔHrxn • We can quickly calculate the ΔHrxn by using the equation: • Note that n and m represent the coefficient from the balanced chemical reaction.

  10. Class Example • Calculate the standard enthalpy change for the combustion of 1 mole of benzene (C6H6) to CO2 (g) and H2O (l). • Note: • ΔHfo (CO2) = -393.5 kJ/mol • ΔHfo (C6H6) = 49.0 kJ/mol • ΔHfo (H2O) = -285.8 kJ/mol

  11. Table Talk • Calculate the standard enthalpy change for the combustion of 1 mole of ethanol (C2H5OH) to CO2 (g) and H2O (l). • Note: • ΔHfo (CO2) = -393.5 kJ/mol • ΔHfo (C2H5OH) = -277.7 kJ/mol • ΔHfo (H2O) = -285.8 kJ/mol

  12. Bond Enthalpies and ΔHrxn • We can use bond enthalpies to estimate the ΔHrxn where certain bonds are broken and new bonds are formed. • Allows for a quick determination of exo- or endothermic • NOTE – This is an estimate • This is an application of Hess’s Law • Assume all bonds are broken and then all bonds reform:

  13. Class Example • You run the reaction: 2 C2H6 (g) + 7 O2 (g)  4 CO2 (g) + 6 H2O • Using the following ΔH values, calculate ΔHrxn for the reaction and determine if it is endothermic or exothermic: • ΔHC – H = 413 kJ/mol • ΔHC – C = 348 kJ/mol • ΔHO=O = 495 kJ/mol • ΔHC =O = 799 kJ/mol • ΔHH– O = 463 kJ/mol

  14. Table Talk • You run the reaction: 2 N2H4 (g)  N2 (g) + 2 H2 • Using the following ΔH values, calculate ΔHrxn for the reaction and determine if it is endothermic or exothermic: • ΔHN – H = 391 kJ/mol • ΔHN – N = 163 kJ/mol • ΔHN2 = 941 kJ/mol • ΔHH-H = 436 kJ/mol

  15. Problem Set 5.3 • This is a sampling of free response type questions that have been observed on past AP exams • This will be due next Monday/Tuesday!

  16. Rate Yourself • We have finished almost all of chapter 5! • Rate yourself 1 – 4 on LTs 5.1 to 5.9. • It is your responsibility to study any areas that are a 2 or lower over the long weekend

  17. Happy Thanksgiving!

  18. Closing Time • Read 5.7, 8.8 • Do book problems:
