  1. TRIMECH ENGINEERS. PVT. LTD. 22 FEBRUARY 2021 BEST WAY TO MANAGE ROTARY AIRLOCK VALVE LEAKAGE

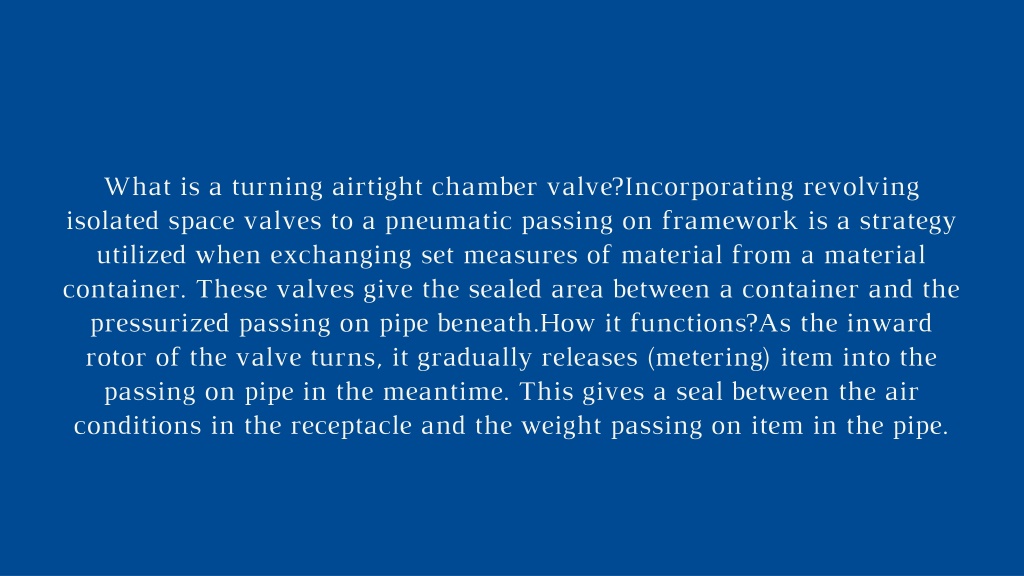

  2. What is a turning airtight chamber valve?Incorporating revolving isolated space valves to a pneumatic passing on framework is a strategy utilized when exchanging set measures of material from a material container. These valves give the sealed area between a container and the pressurized passing on pipe beneath.How it functions?As the inward rotor of the valve turns, it gradually releases (metering) item into the passing on pipe in the meantime. This gives a seal between the air conditions in the receptacle and the weight passing on item in the pipe.

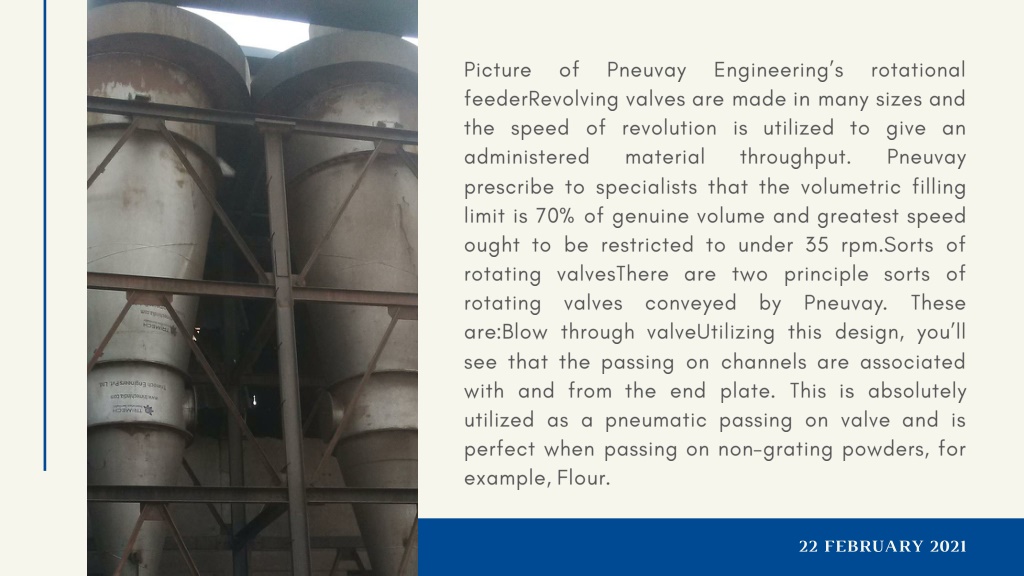

  3. Picture of Pneuvay Engineering’s rotational feederRevolving valves are made in many sizes and the speed of revolution is utilized to give an administered material throughput. Pneuvay prescribe to specialists that the volumetric filling limit is 70% of genuine volume and greatest speed ought to be restricted to under 35 rpm.Sorts of rotating valvesThere are two principle sorts of rotating valves conveyed by Pneuvay. These are:Blow through valveUtilizing this design, you’ll see that the passing on channels are associated with and from the end plate. This is absolutely utilized as a pneumatic passing on valve and is perfect when passing on non-grating powders, for example, Flour. 22 FEBRUARY 2021

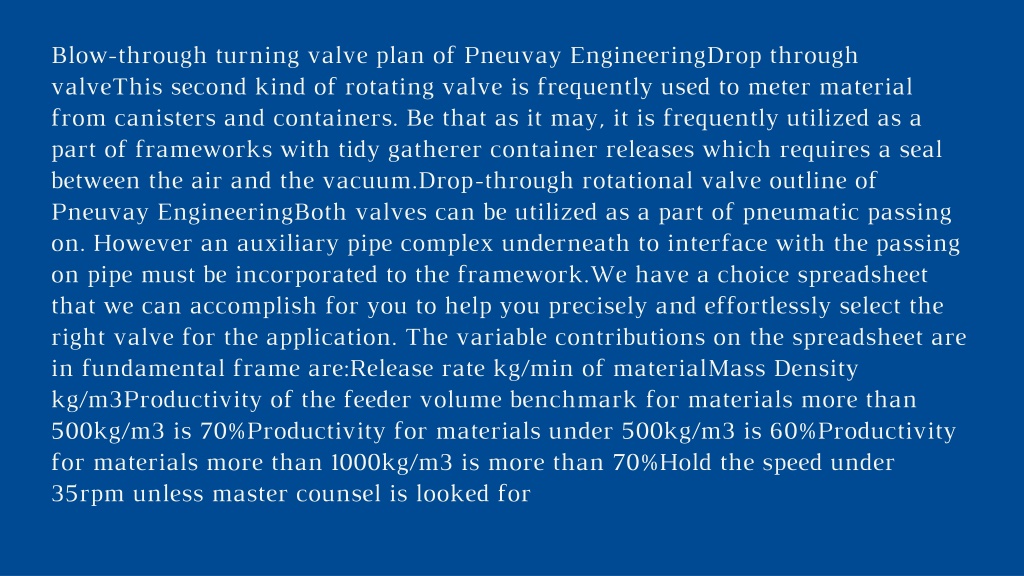

  4. Blow-through turning valve plan of Pneuvay EngineeringDrop through valveThis second kind of rotating valve is frequently used to meter material from canisters and containers. Be that as it may, it is frequently utilized as a part of frameworks with tidy gatherer container releases which requires a seal between the air and the vacuum.Drop-through rotational valve outline of Pneuvay EngineeringBoth valves can be utilized as a part of pneumatic passing on. However an auxiliary pipe complex underneath to interface with the passing on pipe must be incorporated to the framework.We have a choice spreadsheet that we can accomplish for you to help you precisely and effortlessly select the right valve for the application. The variable contributions on the spreadsheet are in fundamental frame are:Release rate kg/min of materialMass Density kg/m3Productivity of the feeder volume benchmark for materials more than 500kg/m3 is 70%Productivity for materials under 500kg/m3 is 60%Productivity for materials more than 1000kg/m3 is more than 70%Hold the speed under 35rpm unless master counsel is looked for

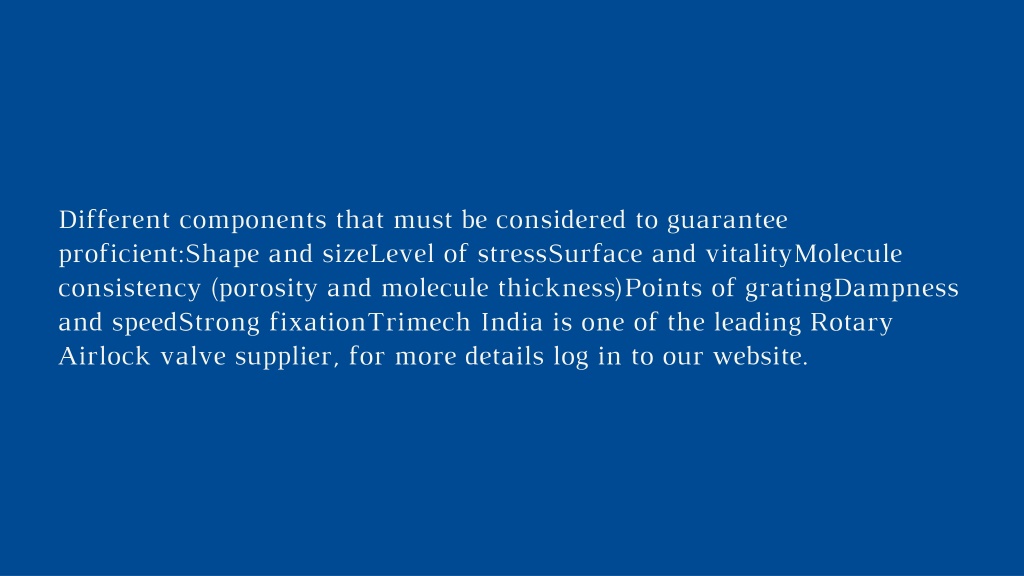

  5. Different components that must be considered to guarantee proficient:Shape and sizeLevel of stressSurface and vitalityMolecule consistency (porosity and molecule thickness)Points of gratingDampness and speedStrong fixationTrimech India is one of the leading Rotary Airlock valve supplier, for more details log in to our website.

  6. Contact Information ADDRESS 7, Giriraj Industrial Area, Opp Screenotex Engineering Pvt. Ltd., Paldi-Kankaj, Old Ahmedabad-Bhavnagar Highway, Daskroi,Ahmedabad – 382425, Gujarat, India. FEEL FREE TO REACH US ANYTIME. 22 FEBRUARY 2021 PHONE NUMBER +91-79-25840557 EMAIL ADDRESS info@trimechindia.com
