Trunk Extension Cables. Cable without connectors LBB 4116/00 100 m (328.0 ft) length Cable with connectors LBB 4116/02 2 m (6.6 ft) length LBB 4116/05 5 m (16.0 ft) length LBB 4116/10 10 m (33.0 ft) length LBB 4116/15 15 m (49.2 ft) length

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Trunk Extension Cables' - trey


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Trunk extension cables
Trunk Extension Cables

  • Cable without connectors

    • LBB 4116/00 100 m (328.0 ft) length

  • Cable with connectors

    • LBB 4116/02 2 m (6.6 ft) length

    • LBB 4116/05 5 m (16.0 ft) length

    • LBB 4116/10 10 m (33.0 ft) length

    • LBB 4116/15 15 m (49.2 ft) length

    • LBB 4116/20 20 m (66.0 ft) length

    • LBB 4116/25 25 m (82.0 ft) length

  • Set of25 cable clampsLBB 4117/00

  • Termination plug for cableLBB 4118/00

  • Set of DCN ConnectorsLBB 4119/00 25 female and 25 male connectors

  • Set of25 cable clampsDCN-DISCLM for Discussion Unit

I&U Instructions

DCNNG SA PO AIE


Extension cable wiring
Extension Cable wiring

PIN 1 - Down- link screen (ground)

PIN 2 - Down- link signal data from CCU (green)

PIN 3 - Positive supply (max. 40V) (brown)

PIN 4 - Up- link- signal data to CCU (white)

PIN 5 - Up- link screen (ground)

PIN 6 - Positive supply (max. 40V) (blue)

I&U Instructions

DCNNG SA PO AIE


Trunk splitter

1

2

3

4

Trunk Splitter

  • 1 DCN cable A2 m long cable with a male connector.

  • 2DCN socket (trunk) A female socket for loop-through.

  • 3DCN socket (tap-off 1) A female socket to create a tap-off. The signal is automatically regenerated.

  • 4DCN socket (tap-off 2) A female socket to create a tap-off. The signal is automatically regenerated.

    Note:

    it’s never allowed to put trunk cables in parallel you always have to use aTrunk Splitter or Tap-Off Unit (Trunk Splitter Protected).

LBB4114/00

tap-off 1

tap-off 2

I&U Instructions

DCNNG SA PO AIE


Trunk splitter1

Trunk-in

Trunk-out

**

*

Tap-off outlets which regenerating the digital signal.

*

*

Trunk Splitter

  • Two signal regenerated tap-off outlets.

LBB4114/00

1

n

n

n

I&U Instructions

DCNNG SA PO AIE


Tap off unit trunk splitter protected

1

2

3

4

Tap-off unit (Trunk Splitter Protected)

  • 1 DCN cable A2 m long cable with a male connector.

  • 2DCN socket (trunk) A female socket for loop-through.

  • 3DCN socket (tap-off 1) A female socket to create a tap-off. The signal is automatically regenerated. Furthermore, the tap-off is protected for short-circuits and has a maximum load of 4.5 W.

  • 4DCN socket (tap-off 2) A female socket to create a tap-off. The signal is automatically regenerated. Furthermore, the tap-off is protected for short-circuits and has a maximum load of 4.5 W.

LBB4115/00

tap-off 1

tap-off 2

I&U Instructions

DCNNG SA PO AIE


Tap off unit trunk splitter protected1

Trunk-in

Trunk-out

**

*

*

Tap-off unit (Trunk Splitter Protected)

  • Two signal regenerated AND protected tap-off outlets.

LBB4115/00

Max. 4,5W

Max. 4,5W

1

2

I&U Instructions

DCNNG SA PO AIE


Data distribution board

1

2

3

4

11

10

5

9

Description

Numeric display

Alpha-numeric display-1 with PC-only

Alpha-numeric display-2 with PC-only

Status display (GEO Vote) with PC-only

Reserved

Speak slowly singnaling

Help signaling (booth 1 to 16)

Help signaling (booth 17 to 31)

6

Data Distribution Board

  • 1DCN cable

    • A2 m long cable with a male connector.

  • 2J10 jumper

    • Two jumpers to select between system power supply or an external power supply.

  • 3S8 Dip switches

    • A series of dip switches to configure:

I&U Instructions

DCNNG SA PO AIE


Data distribution board1
Data Distribution Board

1

2

3

  • 4RS232 To Numeric Hall Displays. (see next slide).

  • 5Input A 20-pole parallel input connector to connect external devices.

  • 6Input Twenty solder pads for customized parallel input solutions.

  • 7Output Twenty solder pads for customized parallel output solutions.

  • 8Initialization buttonA button to initialize the address of the board. Next to the button is a LED that indicates the non-initialized mode.

4

11

10

5

9

8

6

7

I&U Instructions

DCNNG SA PO AIE


Numeric hall display with data distribution board
Numeric Hall Display with Data Distribution Board

Voting timer

Nevertheless the "voting time" is given by DCN but only with PC-control

Address

248

DCN-DDB

I&U Instructions

DCNNG SA PO AIE


Data distribution board2

1

2

3

4

11

10

5

9

6

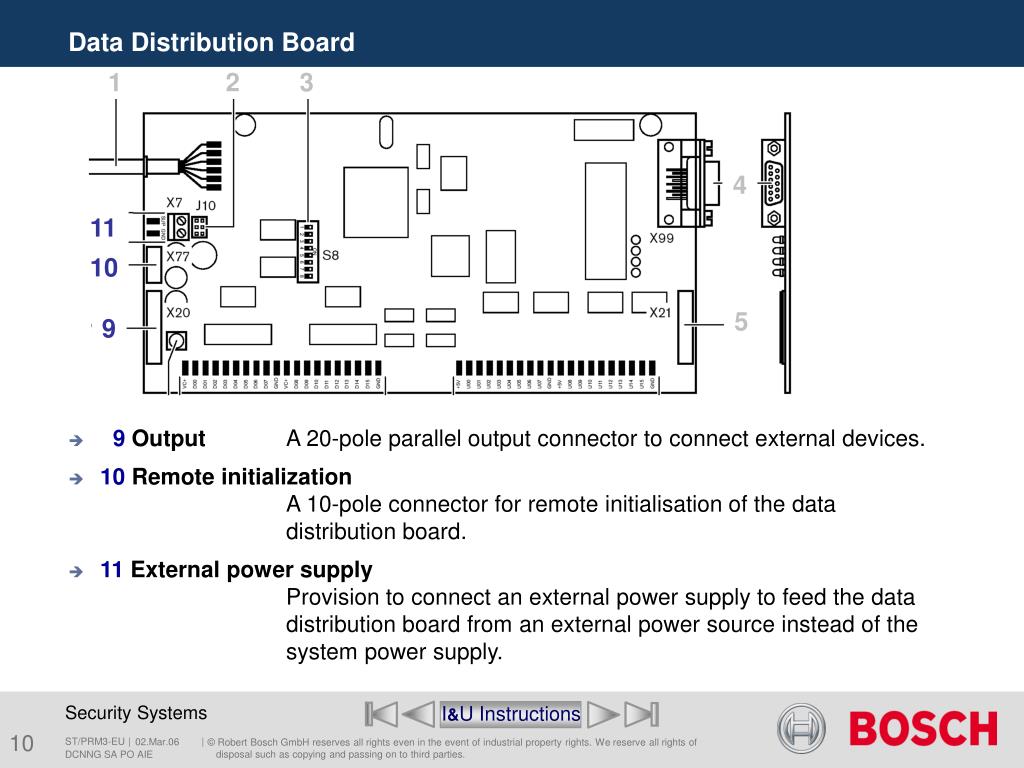

Data Distribution Board

  • 9Output A 20-pole parallel output connector to connect external devices.

  • 10Remote initializationA 10-pole connector for remote initialisation of the data distribution board.

  • 11External power supplyProvision to connect an external power supply to feed the data distribution board from an external power source instead of the system power supply.

I&U Instructions

DCNNG SA PO AIE


Ddb used for speak slowly signaling

Push on Slow button

DDB used for speak slowly signaling.

Booth and desk # not important. The first activated Slow action activates the first bit DOO. When more Slow actions are activated at the same time more bits are activated. (max. 8)

I&U Instructions

DCNNG SA PO AIE


Ddb used for help signaling

Push on Help button

DDB used for Help signaling.

Booth 3 desk #

Desk # not important. The first activated Help action within the booth activates the corresponding bit.

I&U Instructions

DCNNG SA PO AIE


Ddb used for remote functions
DDB used for remote functions.

  • External Switching device

I&U Instructions

DCNNG SA PO AIE


Optical network splitter
Optical Network Splitter

  • The Network Splitter is used to create short-circuit proof tap-off points in the optical network.

LBB4410/00

I&U Instructions

DCNNG SA PO AIE


Optical network splitter1

4

5 6

3

7

2

8

1

Optical Network Splitter

  • 1External power supplyA socket for an (optional) external power supply (48 V DC). The external power supply only feeds the tap-offs. It does not provide power to the trunk line.

  • 2Tap-off 1 An optical network socket to create a tap-off. The tap-off is protected for short-circuits and has a maximum load of 2.5 A.

  • 3 Trunk An optical network socket to connect the network splitter to the optical network.

  • 4Lid A lid that provides access to the jumpers. The rear side of the lid contains a label with explanation about the internal settings.

LBB4410/00

I&U Instructions

DCNNG SA PO AIE


Optical network splitter2

4

5 6

3

7

2

8

1

Optical Network Splitter

  • 5Status LED Yellow

  • 6Status LED Green

  • 7Trunk An optical network socket to connect the network splitter to the optical network.

  • 8Tap-off 2 An optical network socket to create a tap-off. The tap-off is protected for short-circuits and has a maximum load of 2.5 A.

LBB4410/00

I&U Instructions

DCNNG SA PO AIE


Optical network splitter internal settings
Optical Network Splitter internal settings

LBB4410/00

I&U Instructions

DCNNG SA PO AIE


Fiber interface without address
Fiber interface without address

  • The fiber interface is used to convert from plastic optical fiber cable (POF) to glass optical fiber cable (GOF) and vice versa to cover distances of more than 50 m in the optical network.

LBB4414/10

LBB4414/10

I&U Instructions

DCNNG SA PO AIE


Fiber interface without address1

4

5 6

3

2

7

1

Fiber interface without address

  • 1External power supply A connection for an optional external power supply

  • 2Control inputs for future use.

  • 3 POF socket A POF socket to connect the Fiber interface to a POF cable.

  • 4Lid for future use.

  • 5 & 6Status LED’s See next slide

  • 7GOF socket A GOF socket to connect the Fiber interface to a GOF cable.

LBB4414/10

I&U Instructions

DCNNG SA PO AIE


Fiber interface without address status led s
Fiber interface without address Status LED,s

5 6

I&U Instructions

DCNNG SA PO AIE


Accessories and installation equipment
Accessories and Installation Equipment

End of section
