  1. Equivalence, DFA, NDFA Sequential Machine Theory Prof. K. J. Hintz Department of Electrical and Computer Engineering Lecture 2 Updated and modified by Marek Perkowski

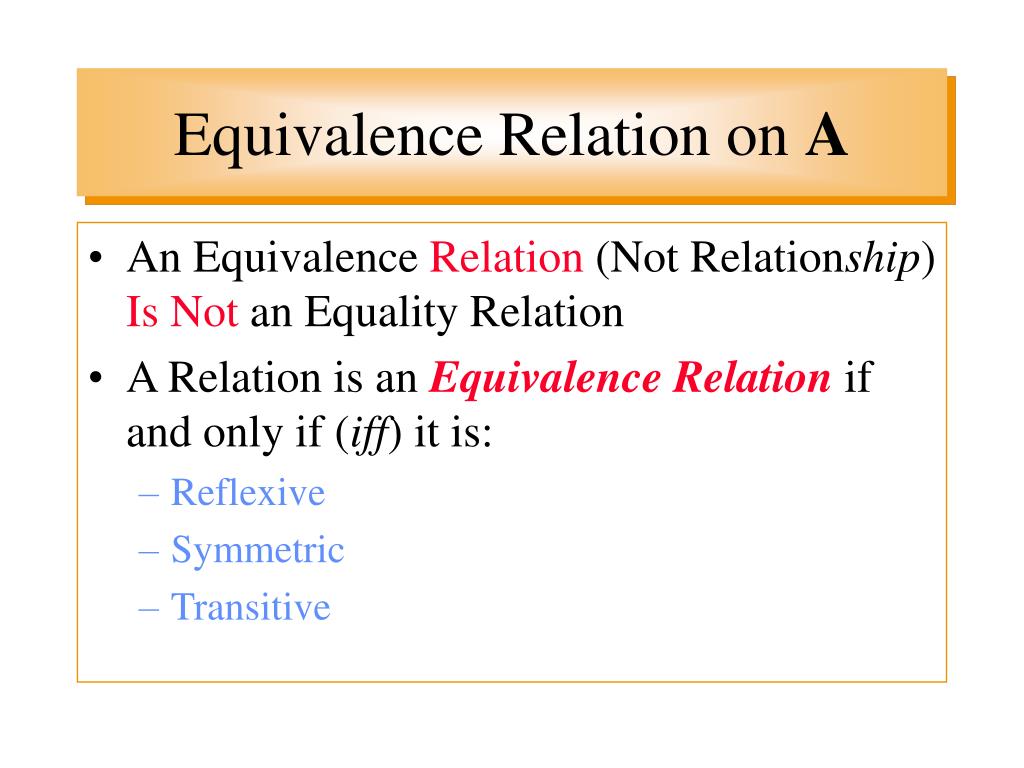

  2. Equivalence Relation on A • An Equivalence Relation (Not Relationship) Is Not an Equality Relation • A Relation is an Equivalence Relation if and only if (iff) it is: • Reflexive • Symmetric • Transitive

  3. Equivalence Relation on A

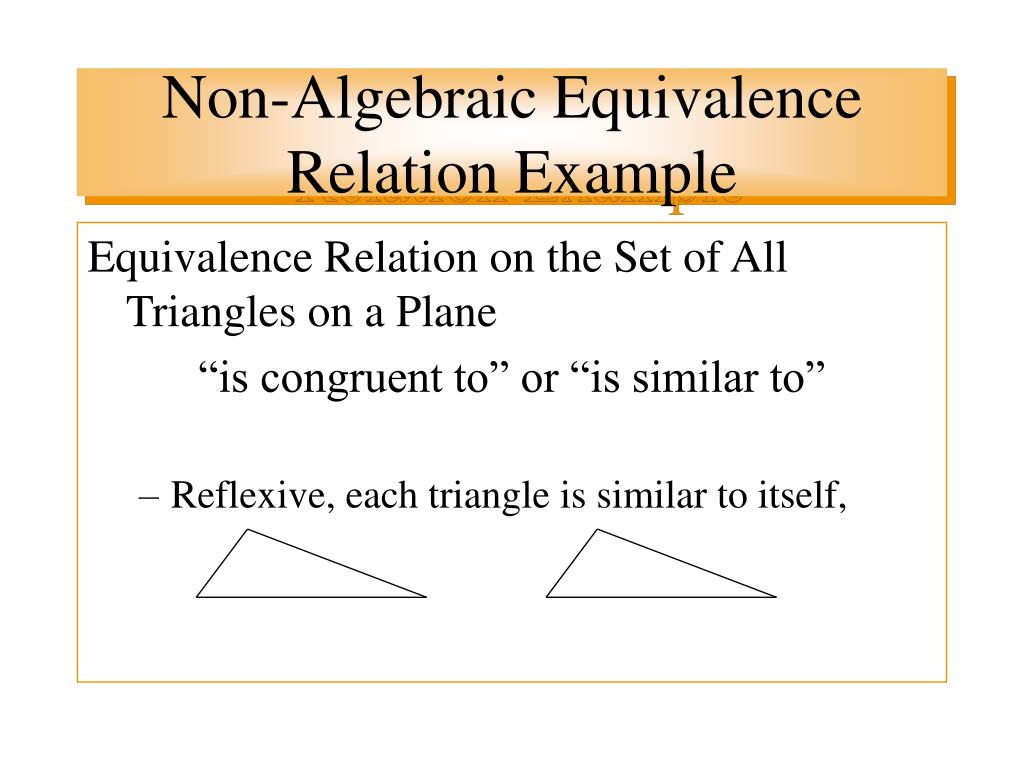

  4. Non-Algebraic Equivalence Relation Example Equivalence Relation on the Set of All Triangles on a Plane “is congruent to” or “is similar to” • Reflexive, each triangle is similar to itself,

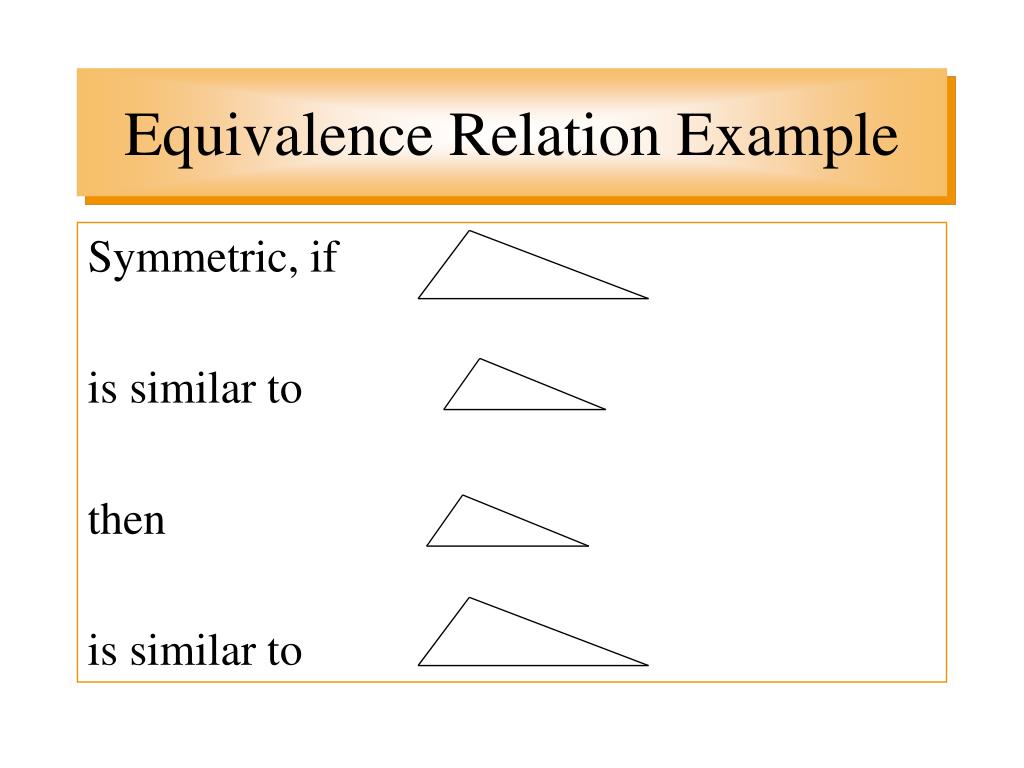

  5. Equivalence Relation Example Symmetric, if is similar to then is similar to

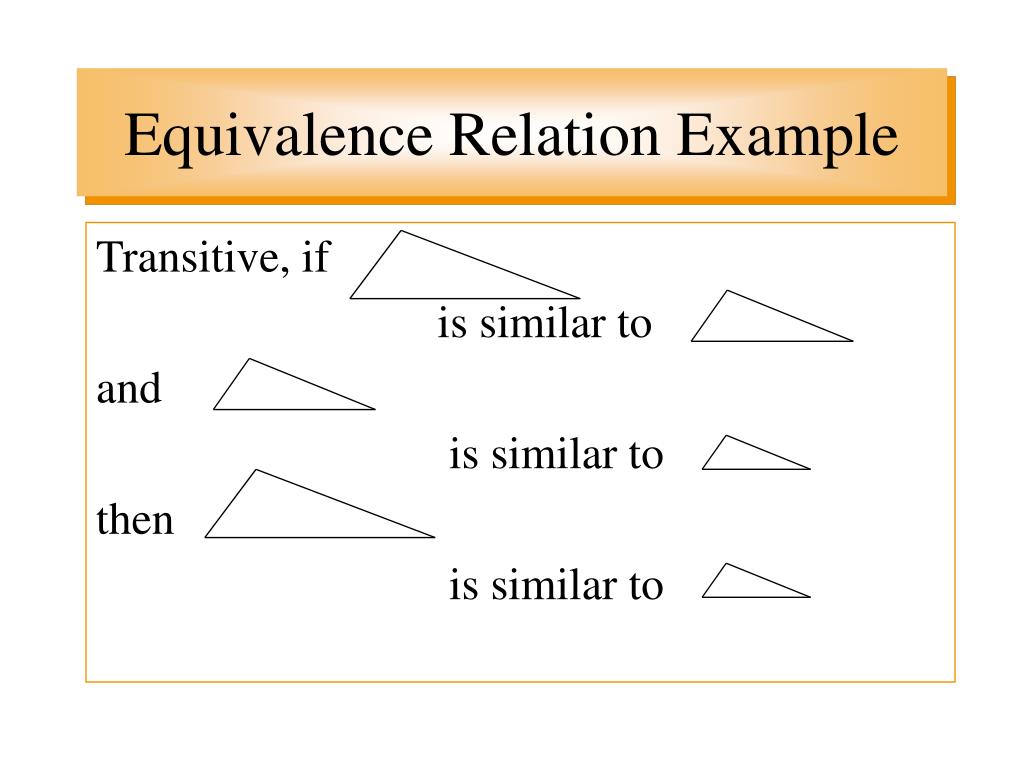

  6. Equivalence Relation Example Transitive, if is similar to and is similar to then is similar to

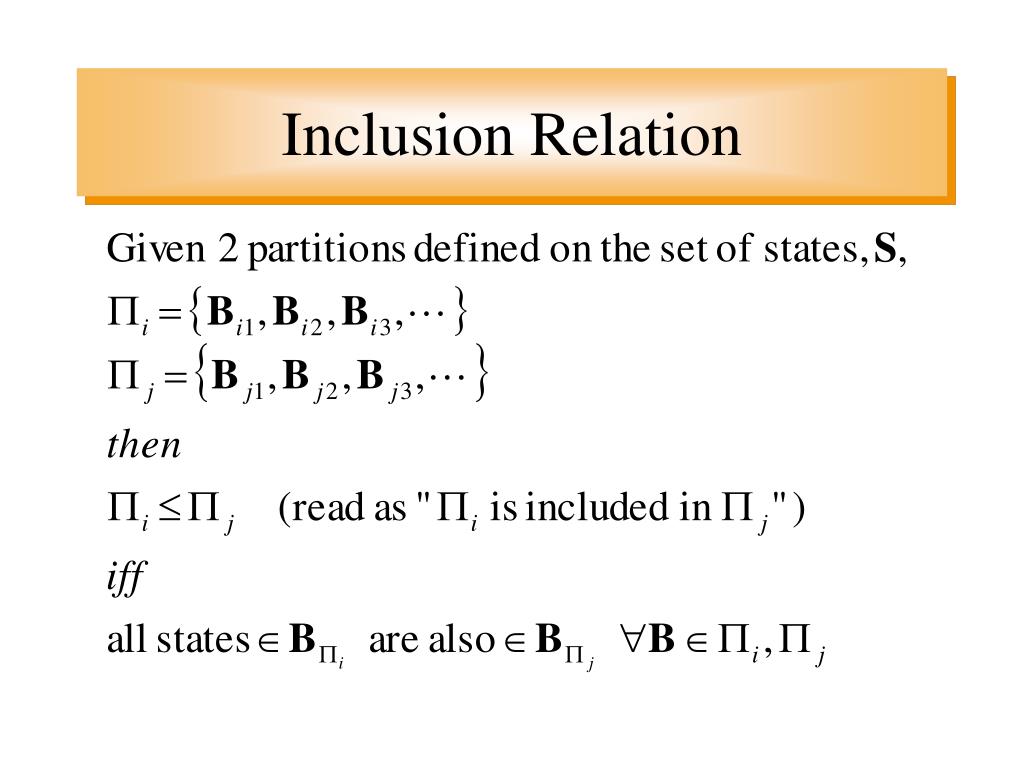

  7. Inclusion Relation

  8. Inclusion Relation Example

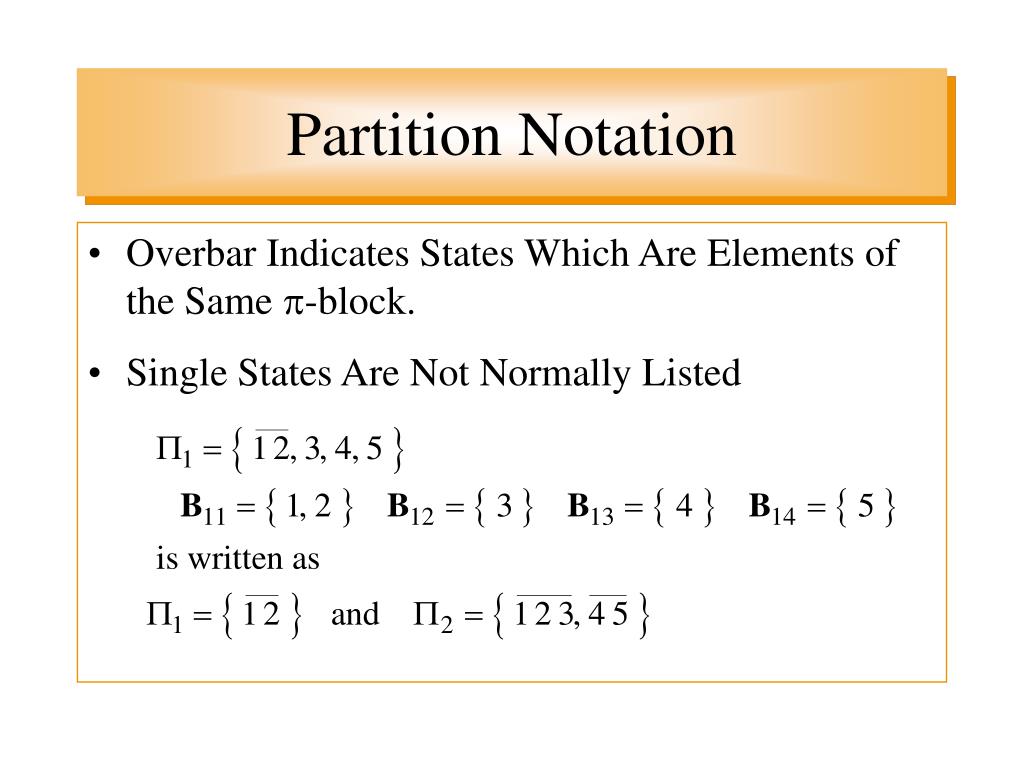

  9. Partition Notation • Overbar Indicates States Which Are Elements of the Same -block. • Single States Are Not Normally Listed

  10. Relations May Be Orderings • Partial Ordering • Total Ordering, aka Chain • Well Ordering (not discussed here)

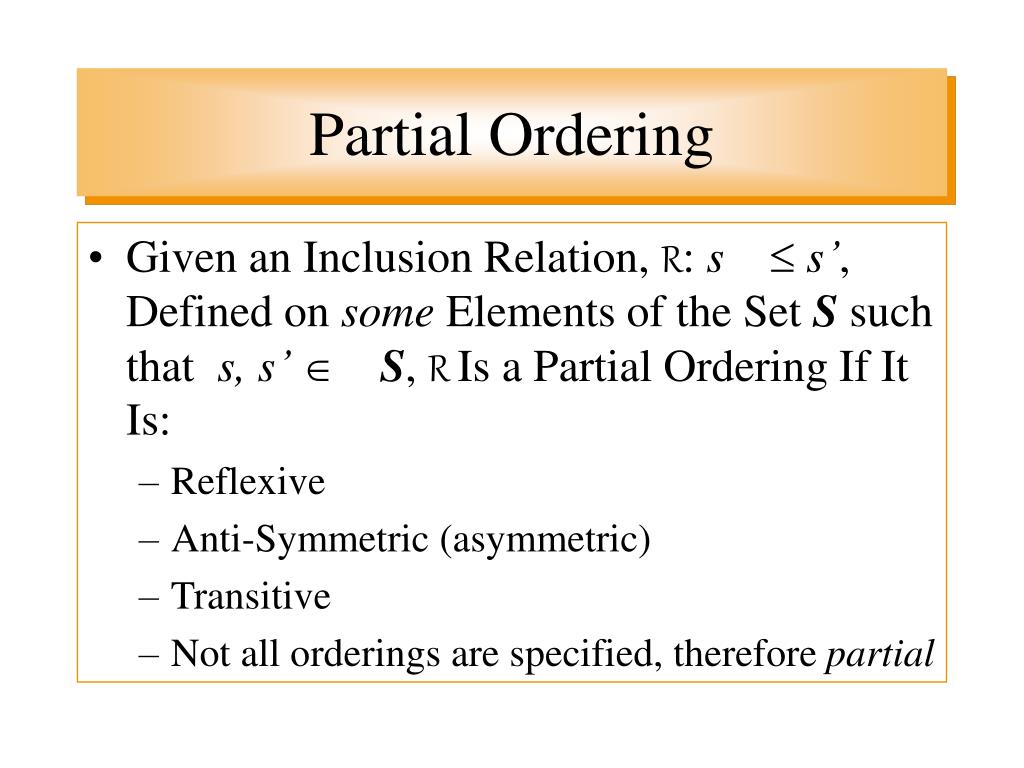

  11. Partial Ordering • Given an Inclusion Relation, R: ss’, Defined on some Elements of the Set S such that s, s’S,R Is a Partial Ordering If It Is: • Reflexive • Anti-Symmetric (asymmetric) • Transitive • Not all orderings are specified, therefore partial

  12. Properties of PO • Reflexive • ss for all sS • Anti-Symmetric (asymmetric) e.g., let : “older than” if Sam is older than Bill, then Bill cannot be older than Sam

  13. Properties of PO • Transitive e.g., If the Redskins beat the Patriots and the Patriots beat the Cowboys then the Redskins will beat the Cowboys

  14. Total Ordering • aka • Chain, simply ordered set, totally ordered set • A Partial Ordering for Which All Orderings Are Specified • A Chain Is “Connected” Because

  15. POSET • Partially Ordered SET • A set on which a partial ordering is specified • ( S,  ) where  is defined • Not a chain since not all elements are connected • We Will Revisit This Concept in a later part of the Course

  16. Finite Automata A Deterministic semi-automaton*, aka Completely Specified Deterministic Semi-automaton Is a Triple with no Mealy machine output function, Beta () * Ginzburg, 1968

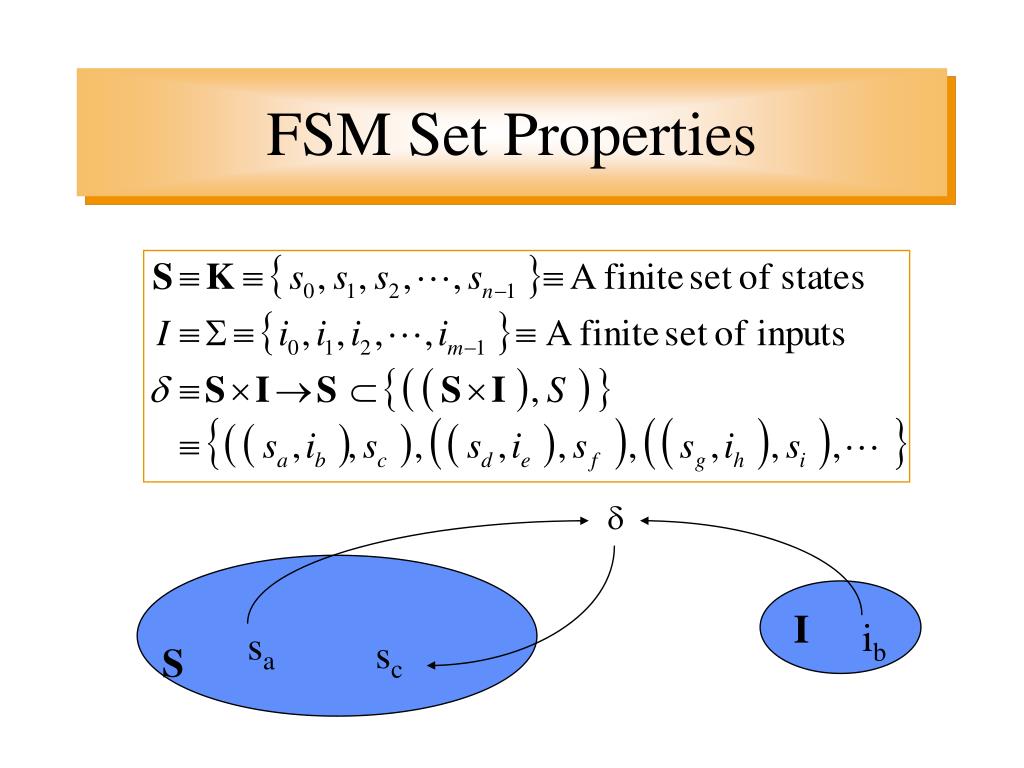

  17. FSM Set Properties I ib sa sc S

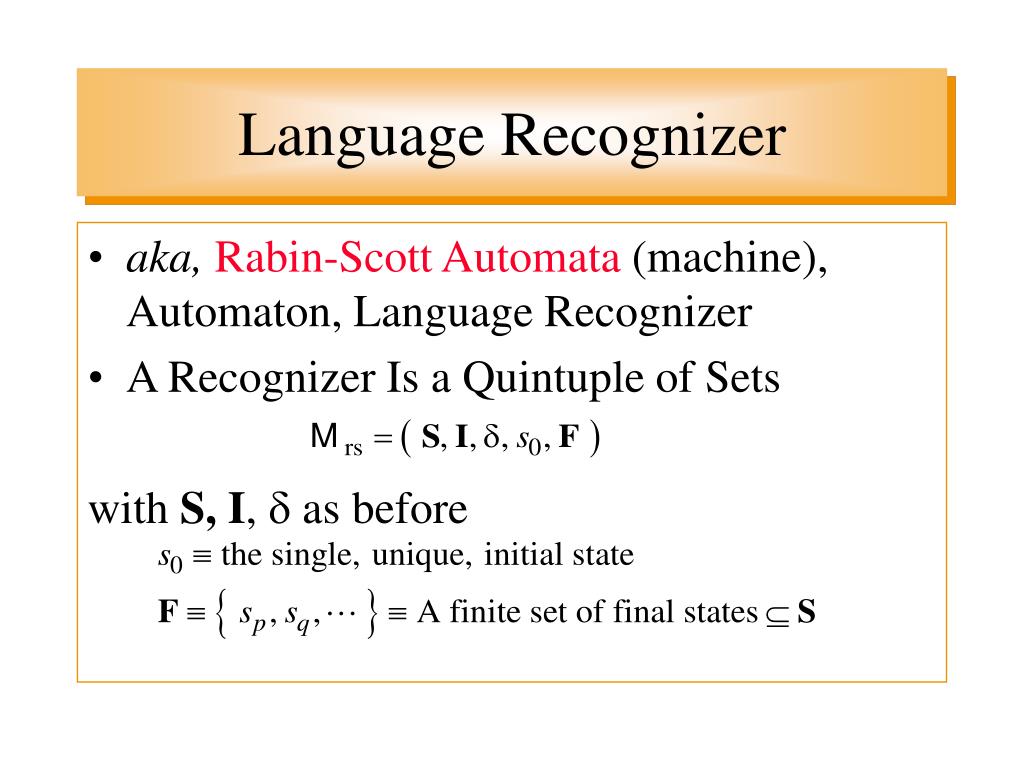

  18. Language Recognizer • aka, Rabin-Scott Automata (machine), Automaton, Language Recognizer • A Recognizer Is a Quintuple of Sets with S, I,  as before

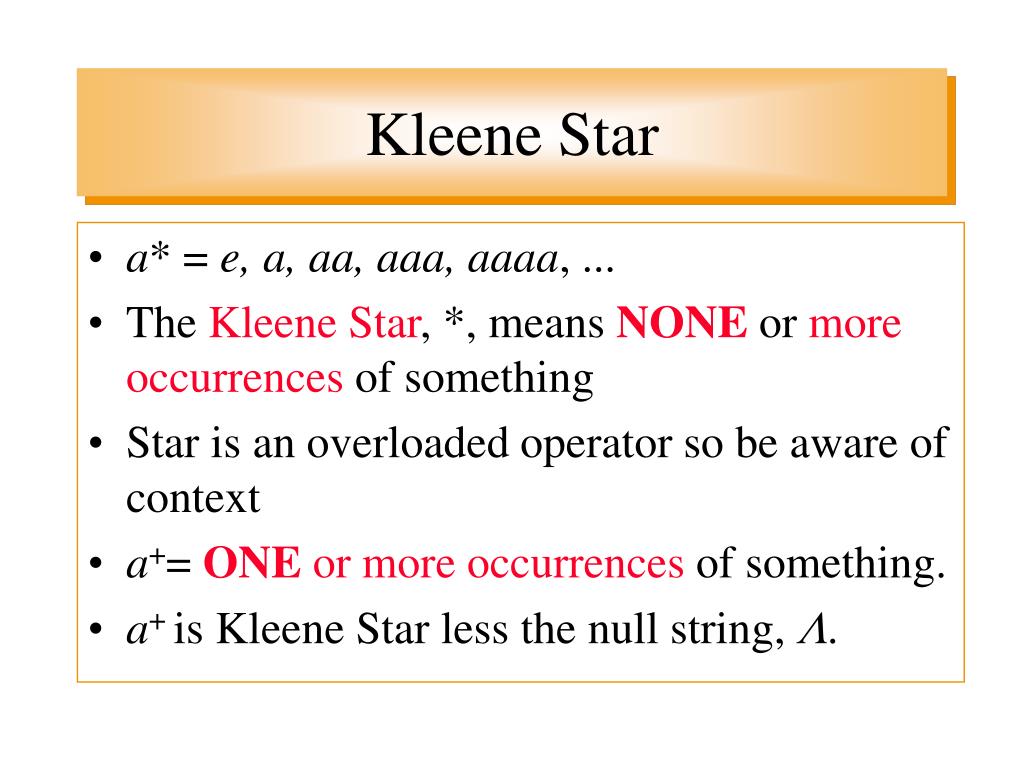

  19. Kleene Star • a* = e, a, aa, aaa, aaaa, ... • The Kleene Star, *, means NONE or more occurrences of something • Star is an overloaded operator so be aware of context • a+= ONE or more occurrences of something. • a+ is Kleene Star less the null string,.

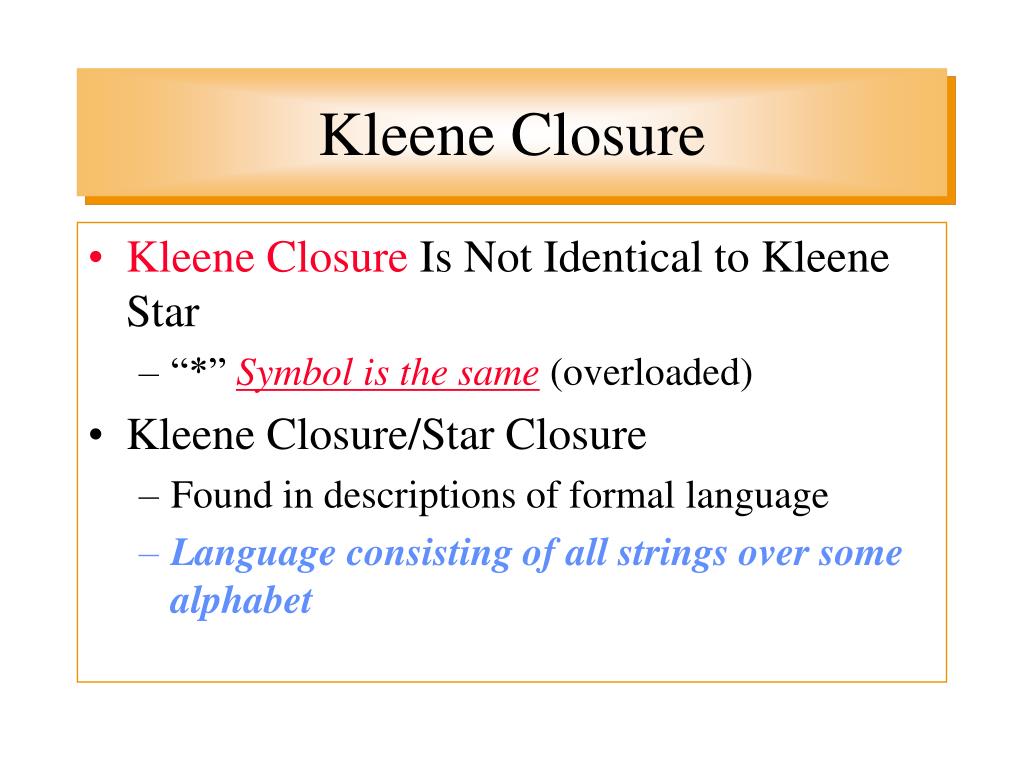

  20. Kleene Closure • Kleene Closure Is Not Identical to Kleene Star • “*” Symbol is the same (overloaded) • Kleene Closure/Star Closure • Found in descriptions of formal language • Language consisting of all strings over some alphabet

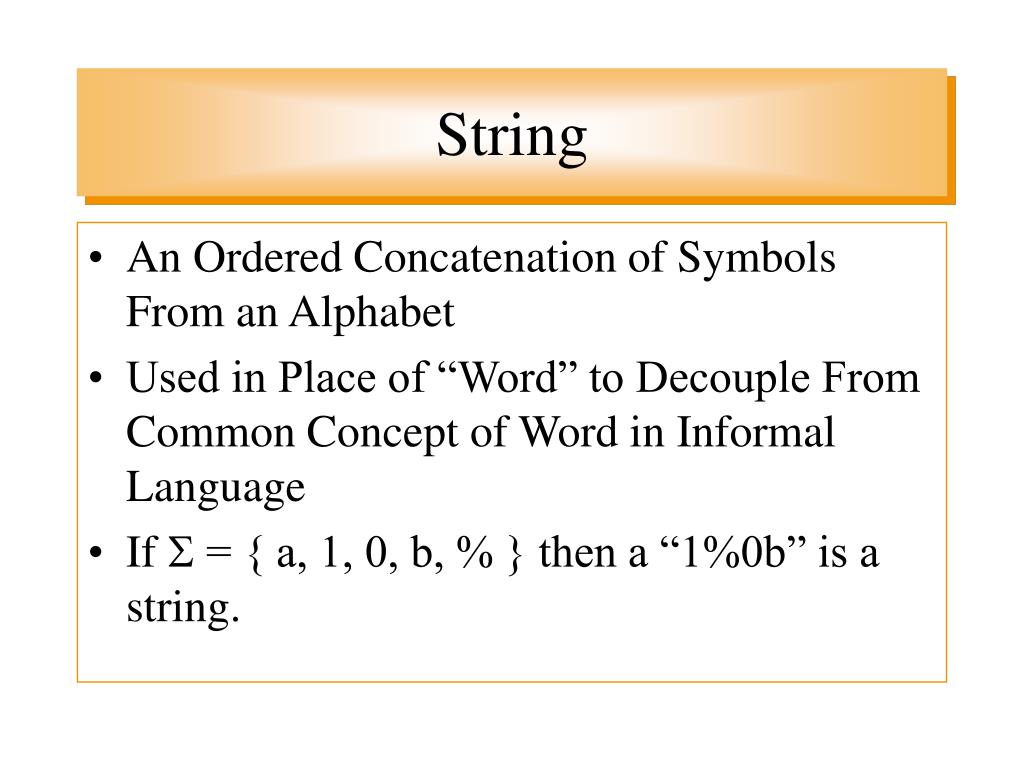

  21. String • An Ordered Concatenation of Symbols From an Alphabet • Used in Place of “Word” to Decouple From Common Concept of Word in Informal Language • If  = { a, 1, 0, b, % } then a “1%0b” is a string.

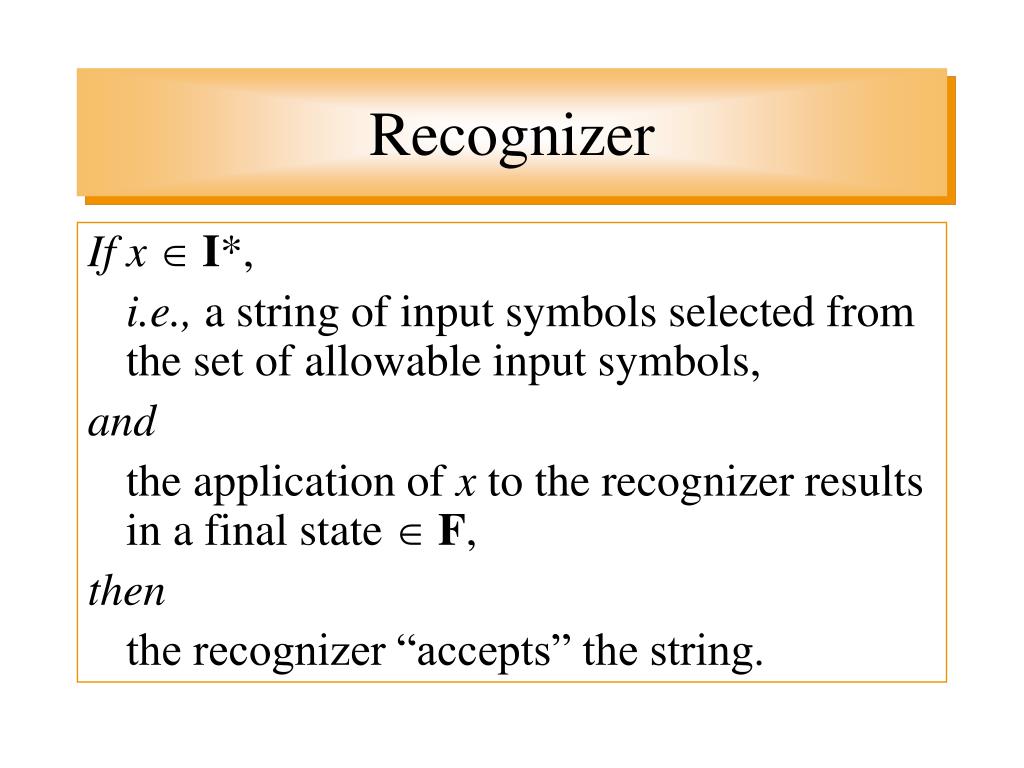

  22. Recognizer IfxI*, i.e., a string of input symbols selected from the set of allowable input symbols, and the application of x to the recognizer results in a final state F, then the recognizer “accepts” the string.

  23. Strings A String, x, Is Accepted by a Recognizer Left-most Letter First, i.e., if the input to a recognizer is a string w, and if w = w’ then  is the first letter of the string which causes a state transition. Subsequent letters from left to right do the same.

  24. State Transition Let There Be Two Configurations for a Machine 1 q q’ S

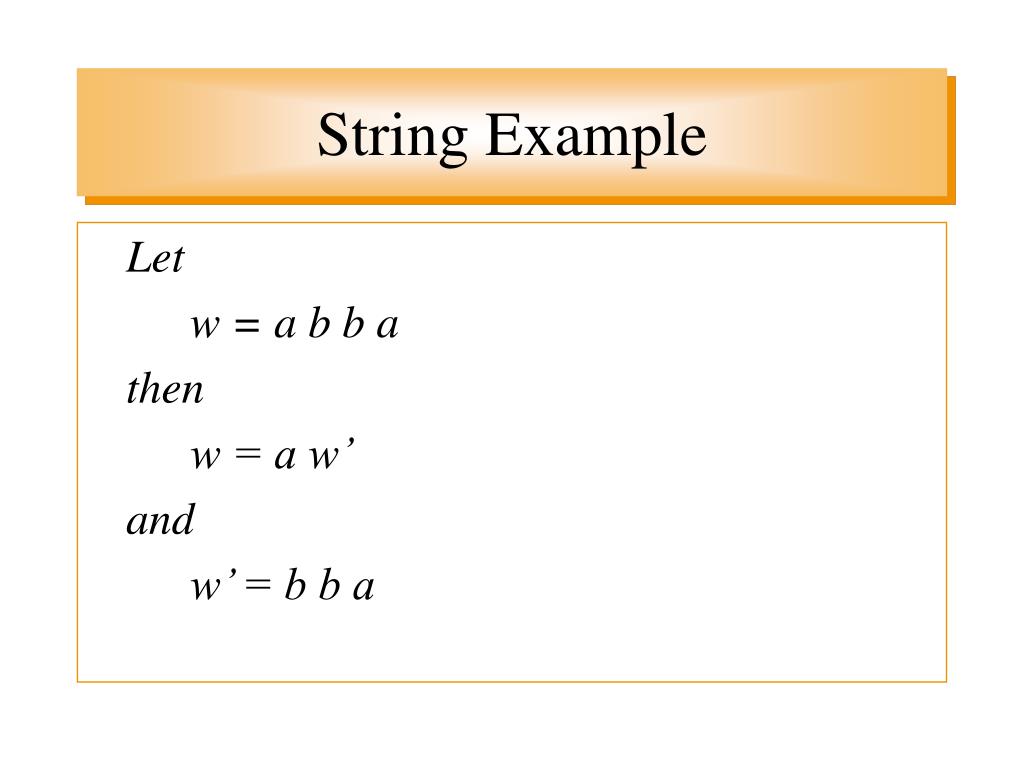

  25. String Example Let w = a b b a then w = a w’ and w’ = b b a

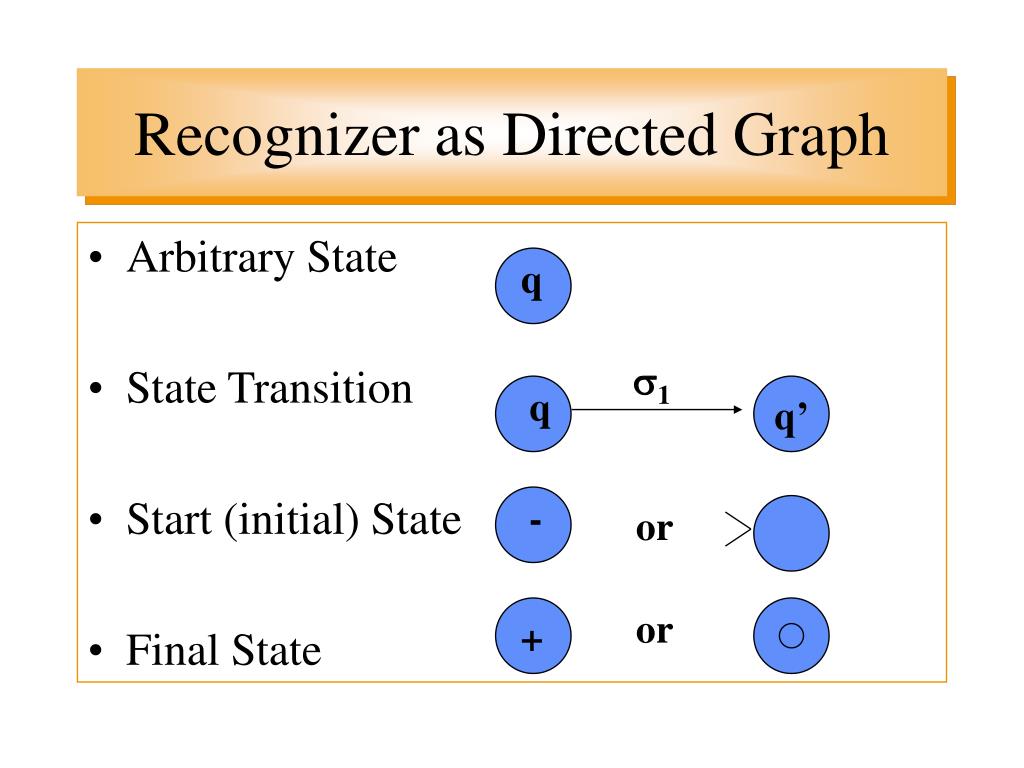

  26. q q’ Recognizer as Directed Graph • Arbitrary State • State Transition • Start (initial) State • Final State 1 q - or or +

  27. - a, b a, b Recognizer Examples Let I = { a, b } • Accepts no strings since no final state • Accepts all strings • Dead State a, b

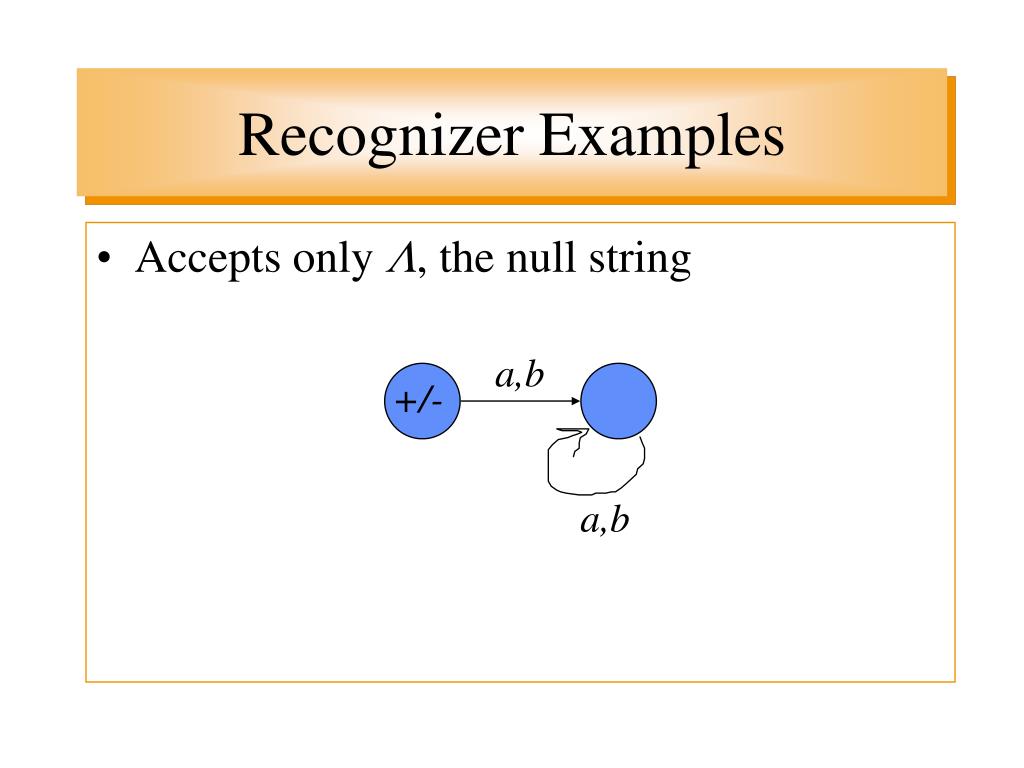

  28. a,b +/- a,b Recognizer Examples • Accepts only , the null string

  29. a - b b a Recognizer Example This Recognizer Accepts the Language L= { ab, a (aa) b, a (aa) (aa) b, ... ab (bb), ab (bb) (bb), ... } L = a (aa)* b ( b (aa)* b )*

  30. Rabin-Scott Example

  31. a ; 2 a + + ; a + ; 4 3 a + ; Rabin-Scott Example L (M) = { xI* |* ( 1, x ) = 4 } L (M) = { a; , a+a; , a+a+a; , ... } 1

  32. Non-Deterministic FSM A Non-deterministic Finite Automata Is a Quintuple with S, I,s0, F as in a recognizer, but,

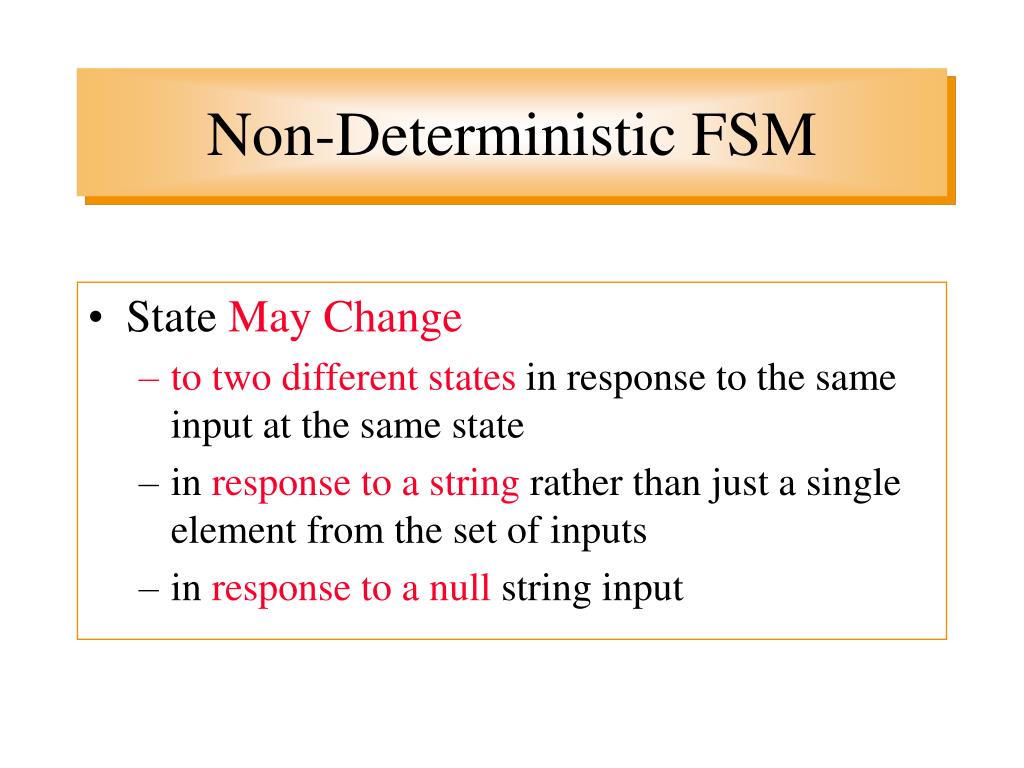

  33. Non-Deterministic FSM • State May Change • to two different states in response to the same input at the same state • in response to a string rather than just a single element from the set of inputs • in response to a null string input

  34. DFA-NDFA Theorem • Every NDFA Can Be Replaced by an Equivalent DFA • Equivalent Means Not Only Accepting All Strings Accepted by the NDFA, but Also NOT Accepting Any Others

  35. a b 2 b 1 a 4 3 NDFA Example Non-deterministic Since ( ( 1, a ), 2 ) and ( ( 1, a ), 3 ) 1

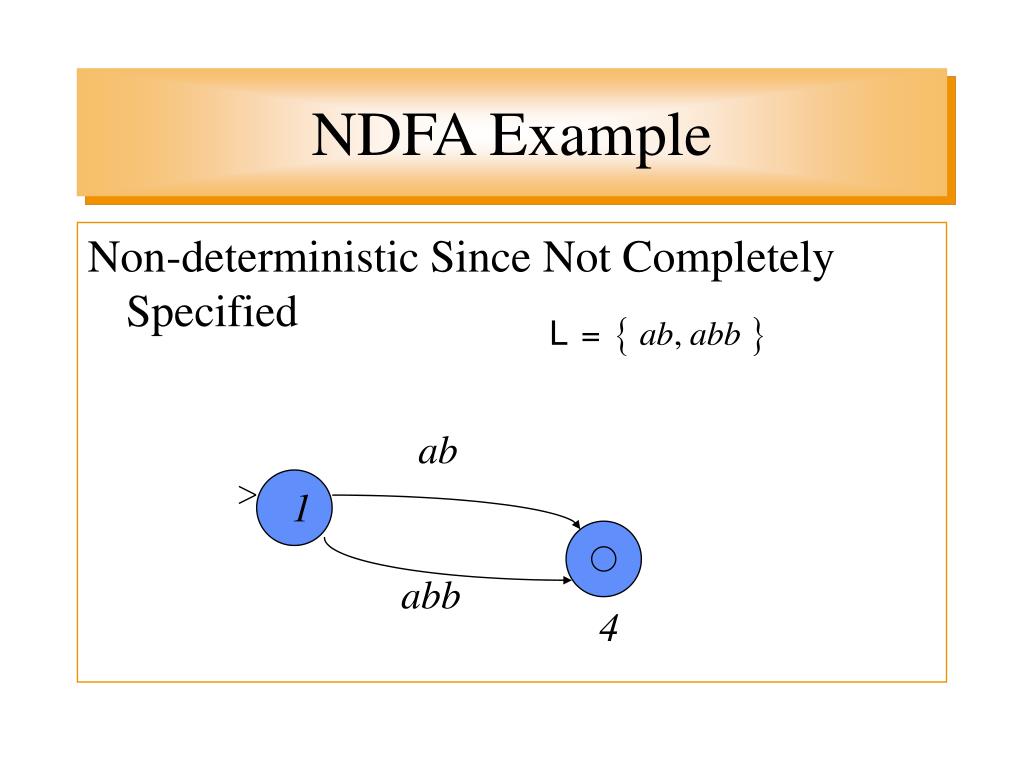

  36. 4 NDFA Example Non-deterministic Since Not Completely Specified ab 1 abb

  37. a 2 b 1 bb a 4 3 NDFA Example Non-deterministic Since State Changes in Response to a Null String.

  38. NDFA to DFA • Theorem • For each NDFA there is an equivalent DFA • Constructive Proof • 4 Difficulties to Resolve • Missing transitions • Single transitions due to | strings | > 1 • Transitions due to  strings • Multiple transitions

  39. a b Problem: Missing Transitions • I = { a, b } • In DFA, all iI must be accounted for in each state ?

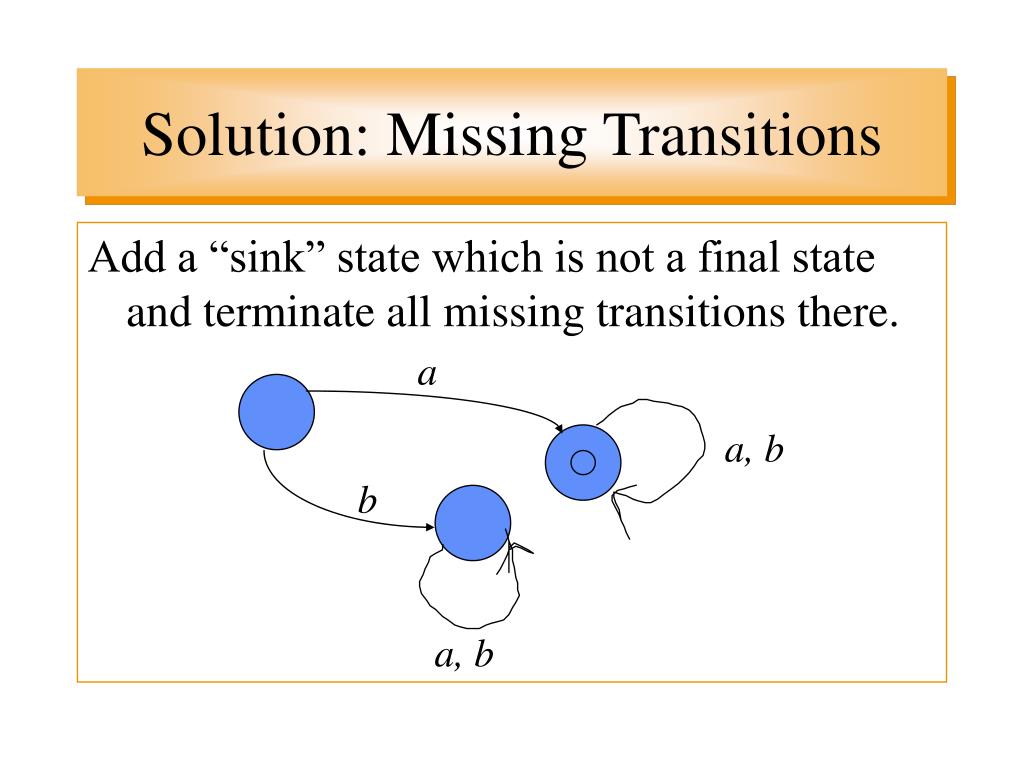

  40. a a, b b a, b Solution: Missing Transitions Add a “sink” state which is not a final state and terminate all missing transitions there.

  41. a b ab a a, b Problem: | strings | > 1 • Single transition due to string of size > 1 • Add intermediate states and “sink”, other characters in those states go to “sink” state

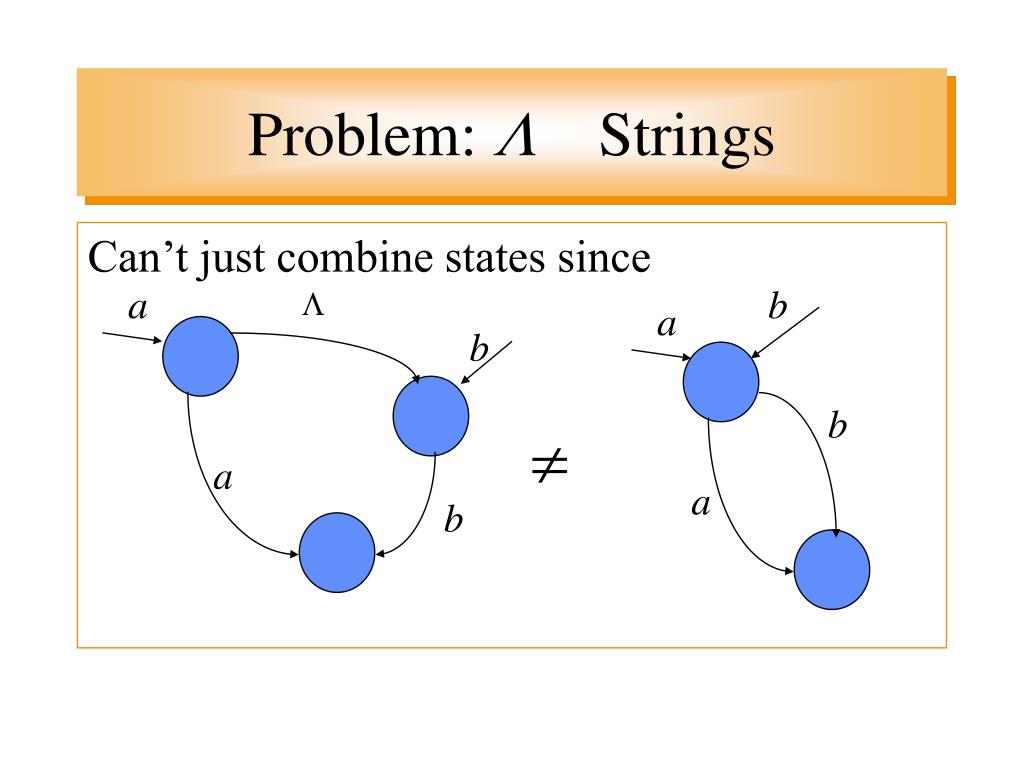

  42. a a Problem: Strings Can’t just combine states since b b b a a b

  43. Solution:  Strings & Multiple Transitions • Eliminate  by defining the set of next states which occur in response to no input, call this function E(  ) • E(  ) is called the “equivalents of (  )

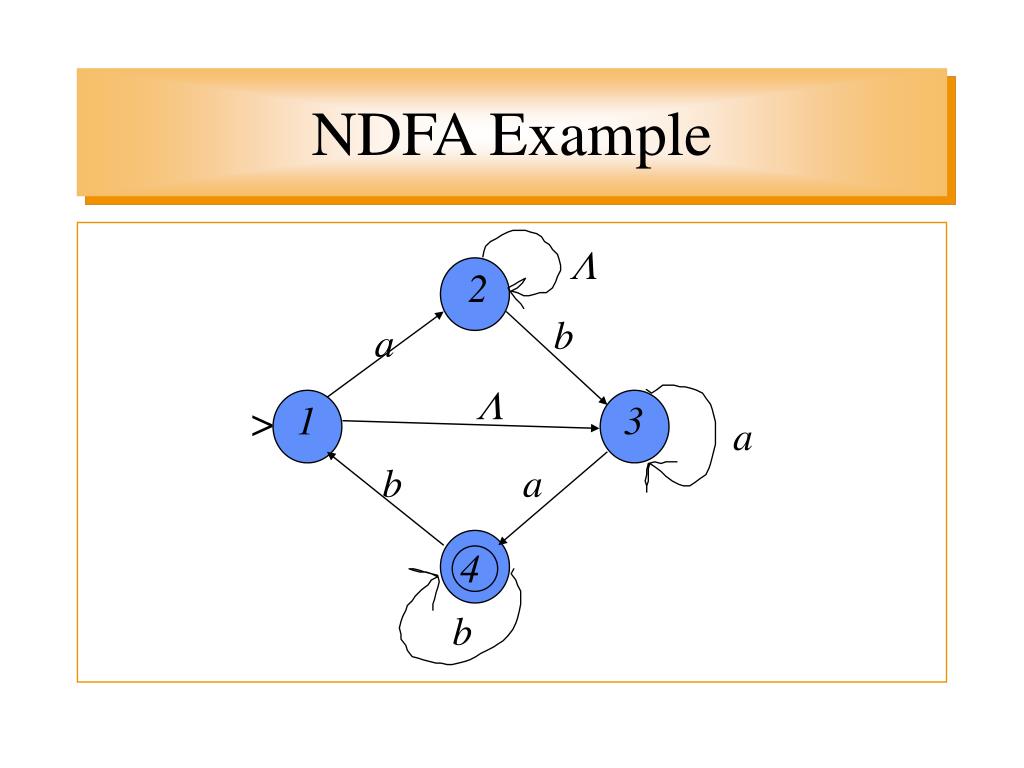

  44. 2 b a >  1 3 a b a 4 b NDFA Example

  45. State Equivalents E( 1 ) = {self, explicit alternative} = { 1, 3 } E( 2 ) = { 2 } E( 3 ) = { 3 } E( 4 ) = { 4 } • Define a new machine based on the old using the E(  ) states

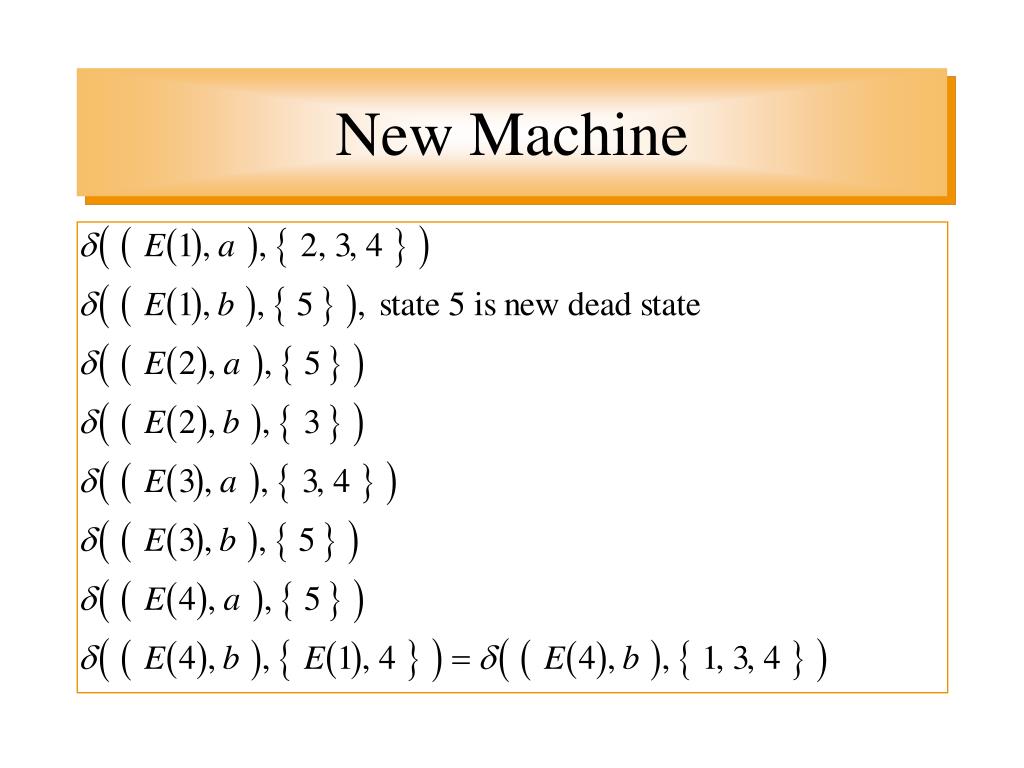

  46. New Machine

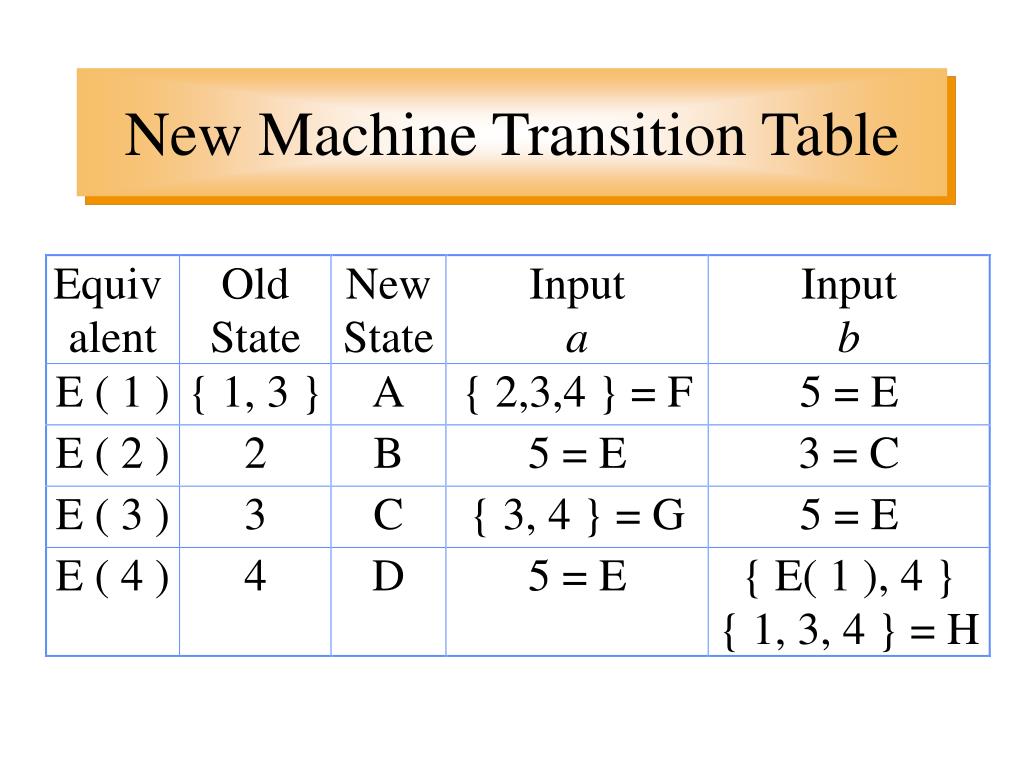

  47. New Machine Transition Table

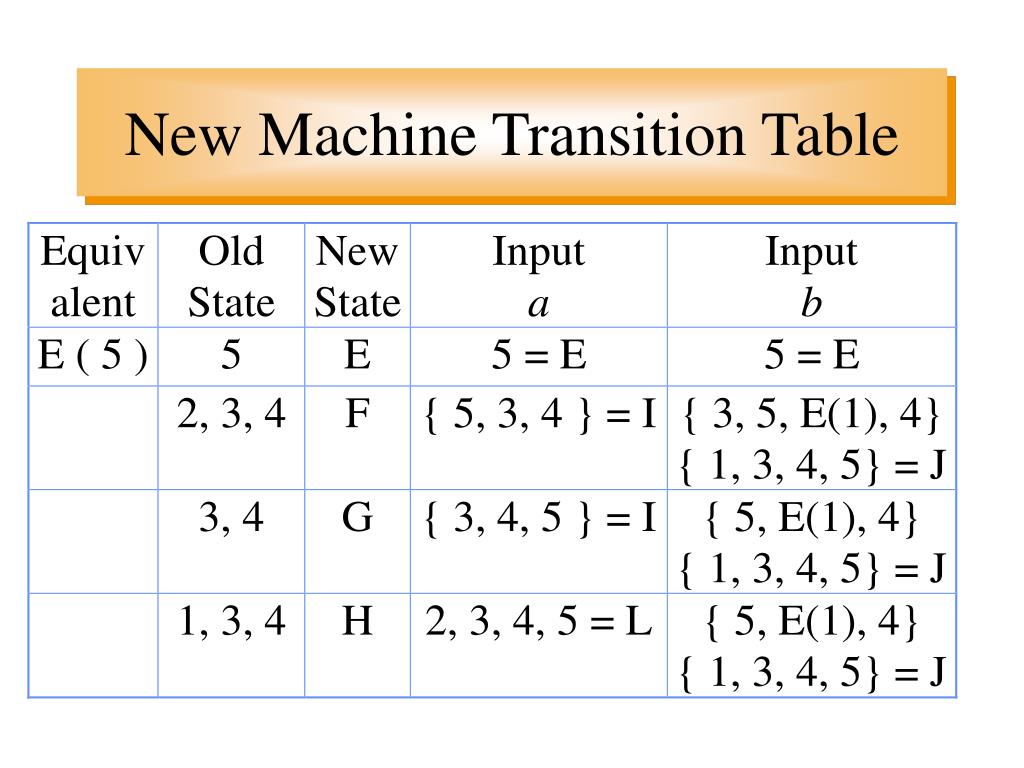

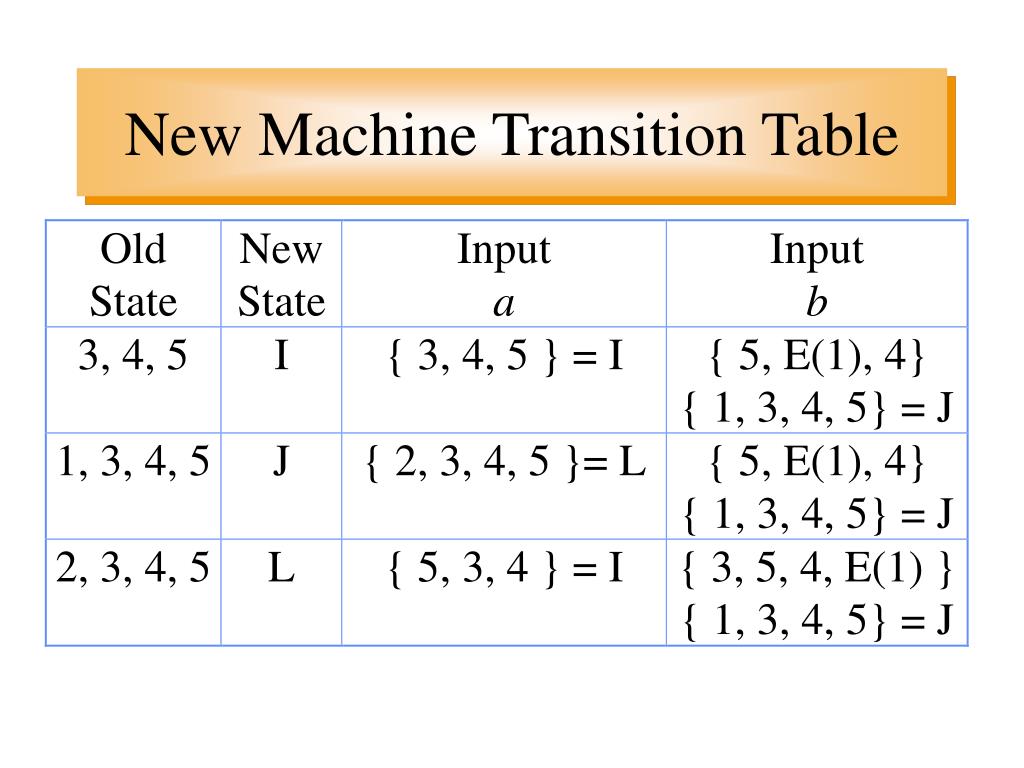

  48. New Machine Transition Table

  49. New Machine Transition Table

  50. DFA Equivalent of NDFA
