以太网连接成功后指示为绿色

以太网连接成功后指示为绿色. 推荐自建 MyProjects 文件夹统一收纳. 无仿真：已带机组运行 仿真机组：未带机组运行. 根据 0-10V/4-20mA 选择，默认电压型. 默认无源型. 模拟量输入区域 0-10V/0-20mA. 接钳形电流互感器 5A ： 5mA. 残压输入 <150V. 开关量输入. 开关量输出. 模拟量输出区域 0-10V/0-20mA. 频率输出 10V 直流方波. C ：开度传感器实际值. A ：开度传感器最小值. B ：开度传感器最大值. D ：开度. 电压： 0-10V 电流： 0-20mA.

trey
Download Presentation

以太网连接成功后指示为绿色

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 以太网连接成功后指示为绿色

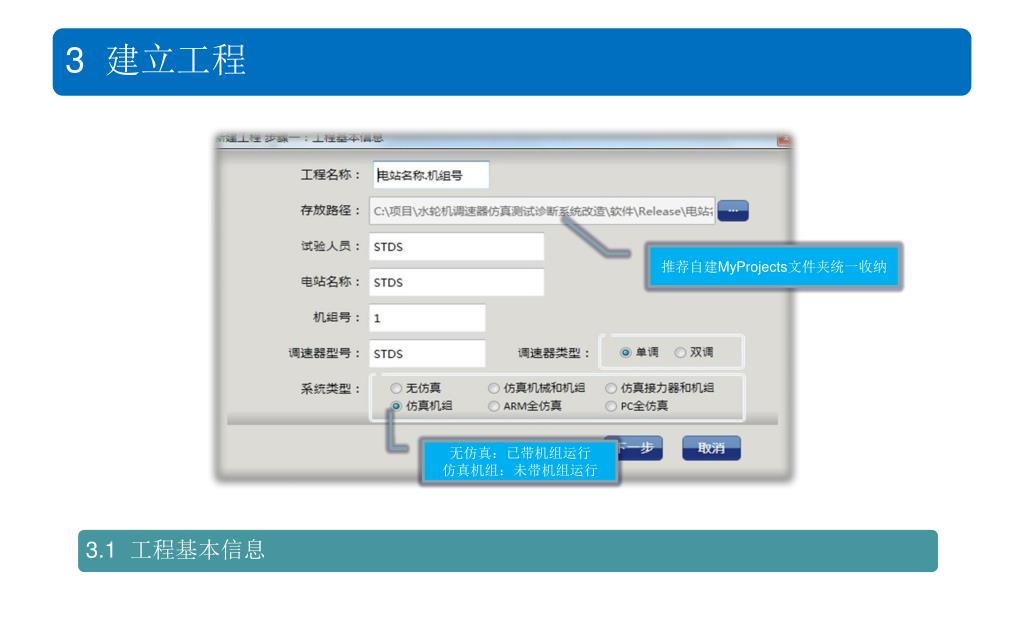

  2. 推荐自建MyProjects文件夹统一收纳 无仿真：已带机组运行 仿真机组：未带机组运行

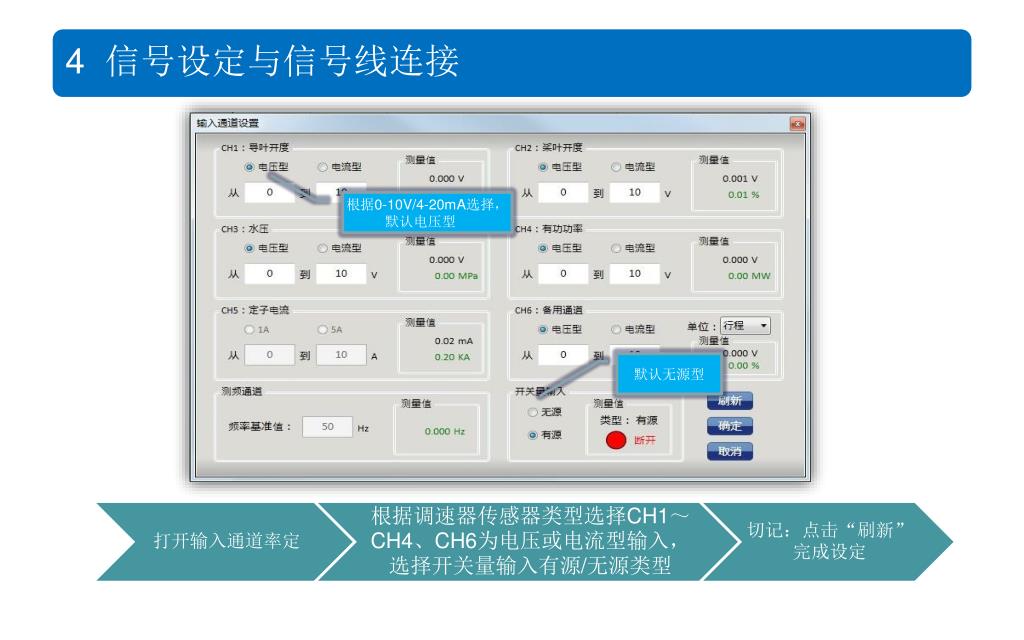

  3. 根据0-10V/4-20mA选择，默认电压型 默认无源型

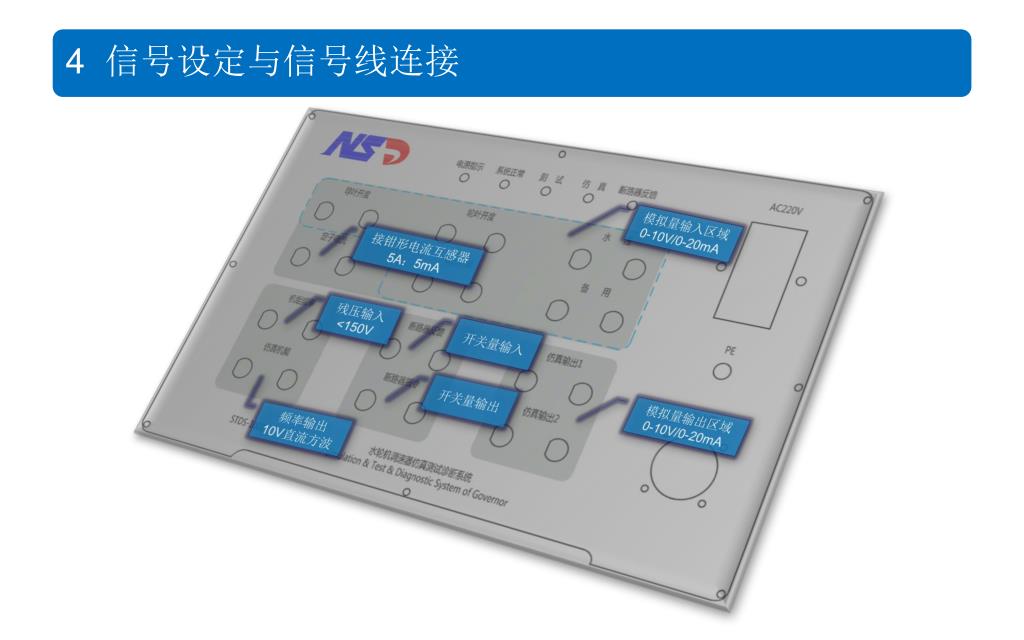

  4. 模拟量输入区域 0-10V/0-20mA 接钳形电流互感器 5A：5mA 残压输入 <150V 开关量输入 开关量输出 模拟量输出区域 0-10V/0-20mA 频率输出 10V直流方波

  5. C：开度传感器实际值 A：开度传感器最小值 B：开度传感器最大值 D：开度

  6. 电压：0-10V 电流：0-20mA 点击“生效” 控制断路器指令 精度到小数点后两位 精度到小数点后三位 刷新后更新当前值 频率渐变

  7. B：控制仿真频率变化 A：控制断路器分合

  8. 常规法静特性实验结果显示区域 其他实验显示结果区域
