PENDULUM WORKSHEET

PENDULUM WORKSHEET. 1 is where PE is the greatest 3 is where PE is the least 3 is where the KE is the greatest 1,5 is where KE is the least 2,4 is where KE = PE 0 is how many Joules of KE the pendulum has at point 1. PENDULUM WORKSHEET.

trevor-curtis
Download Presentation

PENDULUM WORKSHEET

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

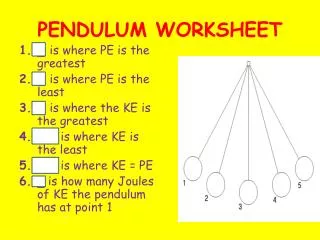

  1. PENDULUM WORKSHEET • 1is where PE is the greatest • 3is where PE is the least • 3is where the KE is the greatest • 1,5 is where KE is the least • 2,4 is where KE = PE • 0 is how many Joules of KE the pendulum has at point 1

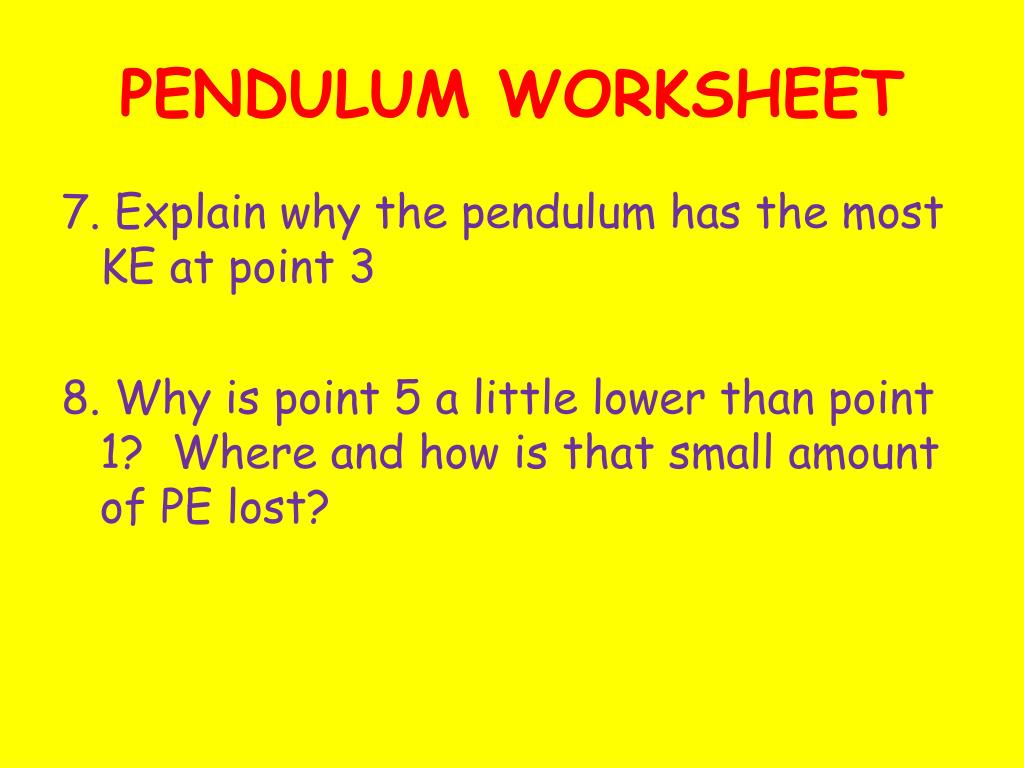

  2. PENDULUM WORKSHEET 7. Explain why the pendulum has the most KE at point 3 8. Why is point 5 a little lower than point 1? Where and how is that small amount of PE lost?

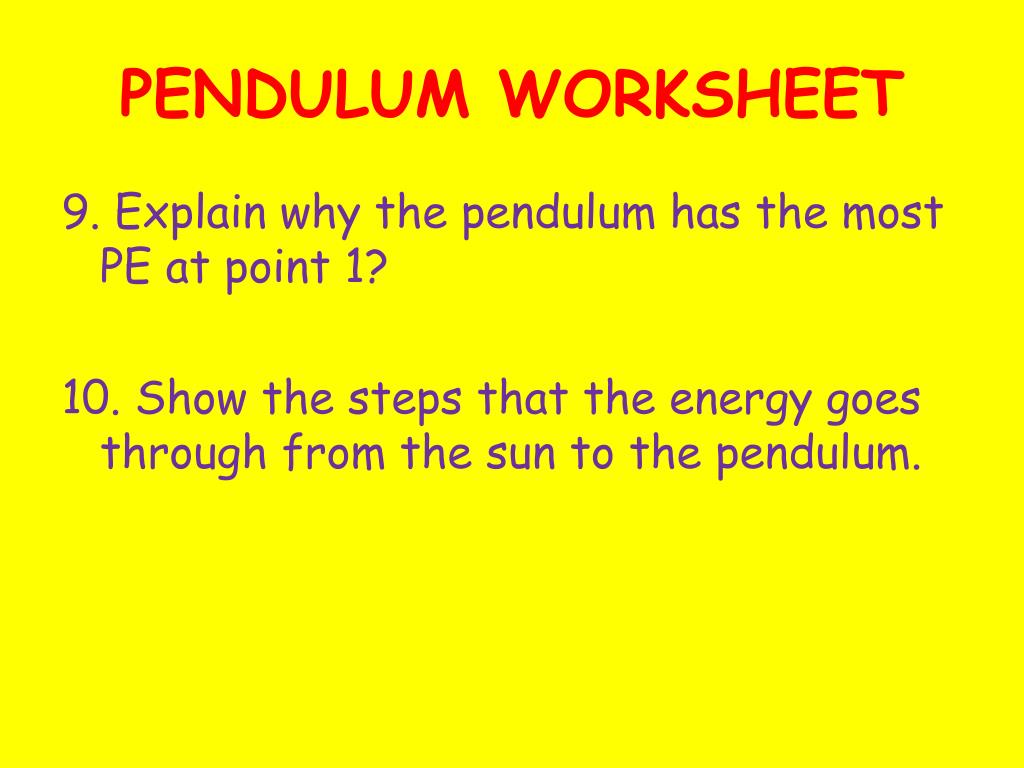

  3. PENDULUM WORKSHEET 9. Explain why the pendulum has the most PE at point 1? 10. Show the steps that the energy goes through from the sun to the pendulum.

  4. PENDULUM WORKSHEET 11. How could you have a pendulum have more KE when it gets to point 3?

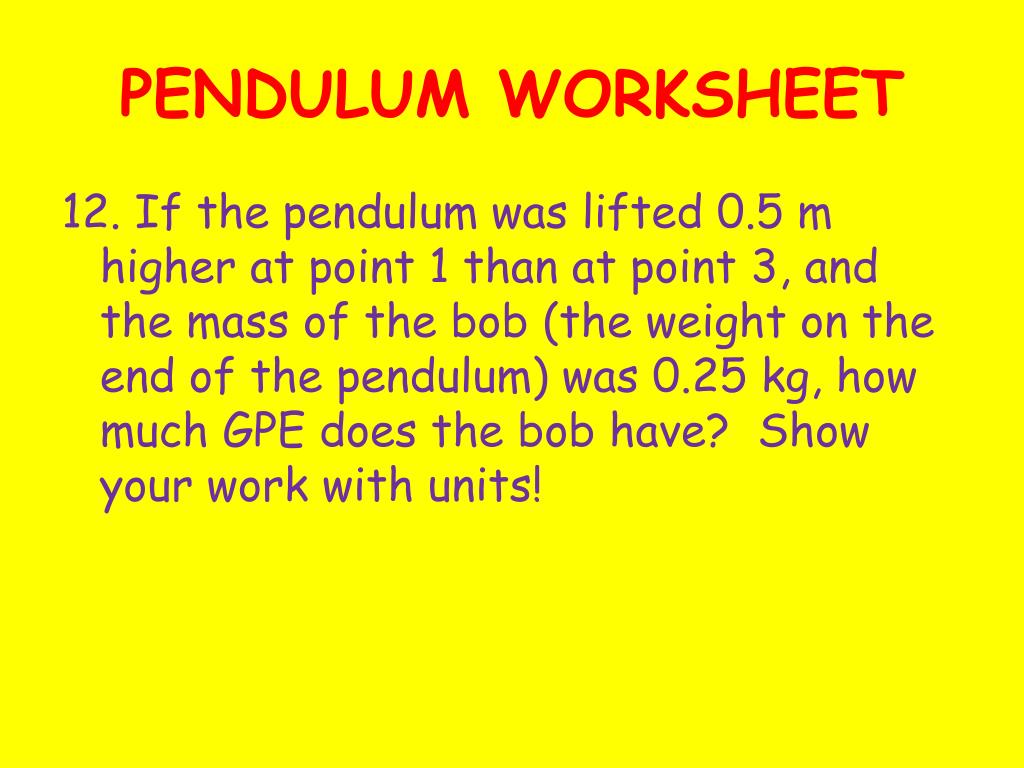

  5. PENDULUM WORKSHEET 12. If the pendulum was lifted 0.5 m higher at point 1 than at point 3, and the mass of the bob (the weight on the end of the pendulum) was 0.25 kg, how much GPE does the bob have? Show your work with units!

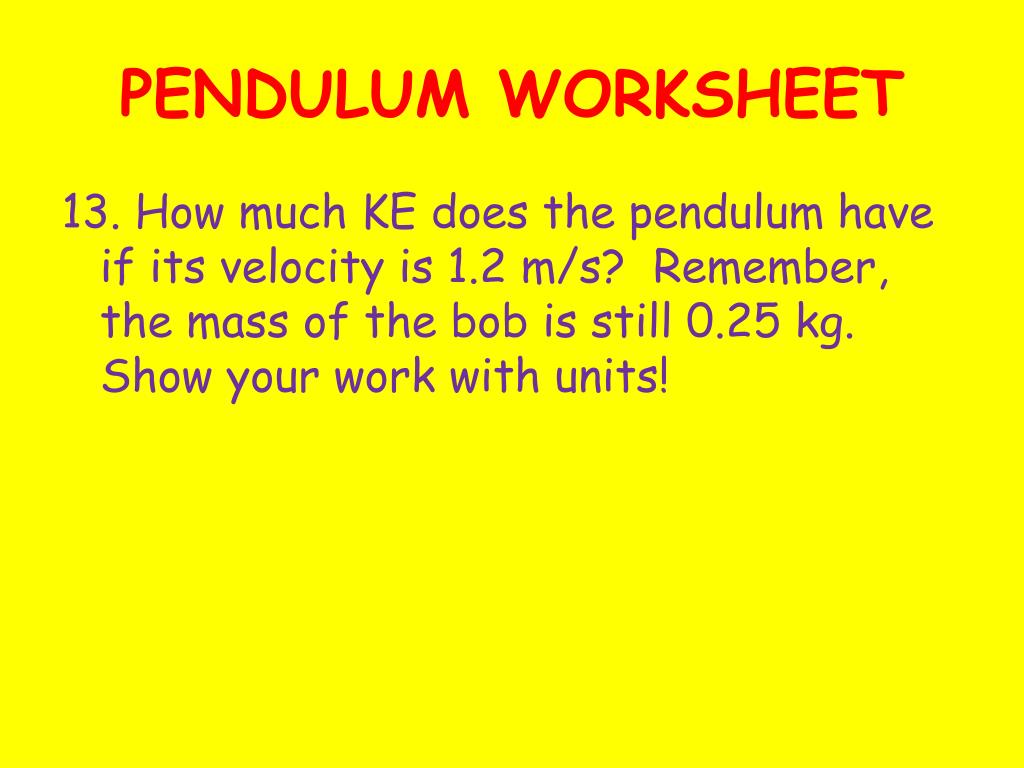

  6. PENDULUM WORKSHEET 13. How much KE does the pendulum have if its velocity is 1.2 m/s? Remember, the mass of the bob is still 0.25 kg. Show your work with units!

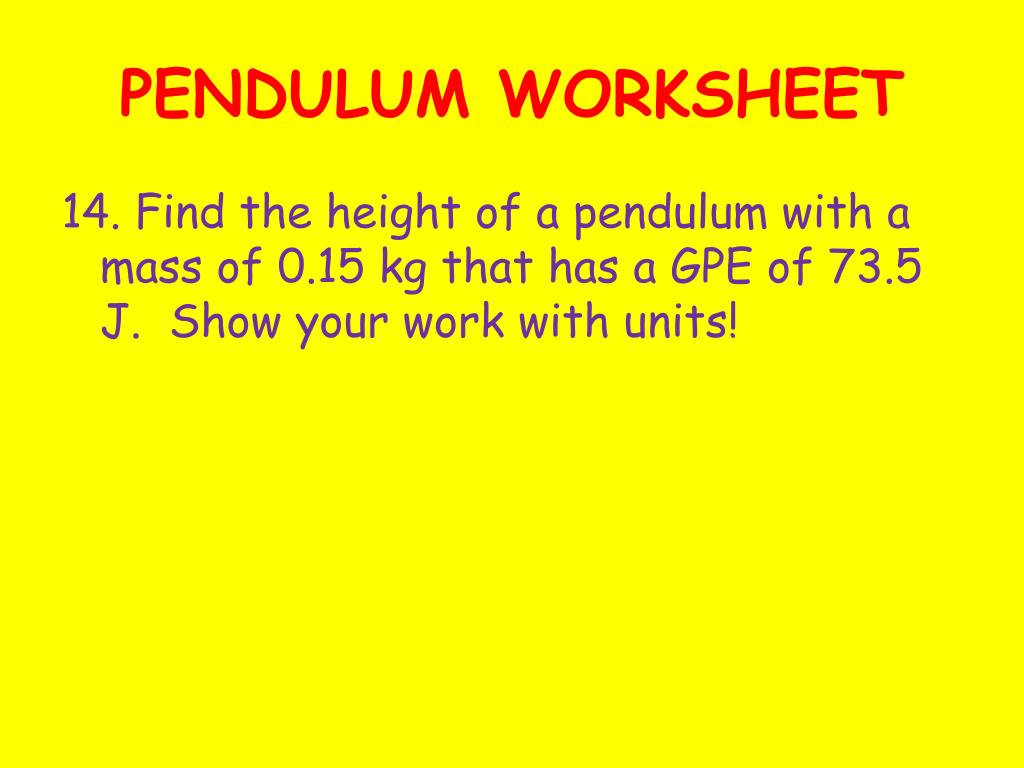

  7. PENDULUM WORKSHEET 14. Find the height of a pendulum with a mass of 0.15 kg that has a GPE of 73.5 J. Show your work with units!

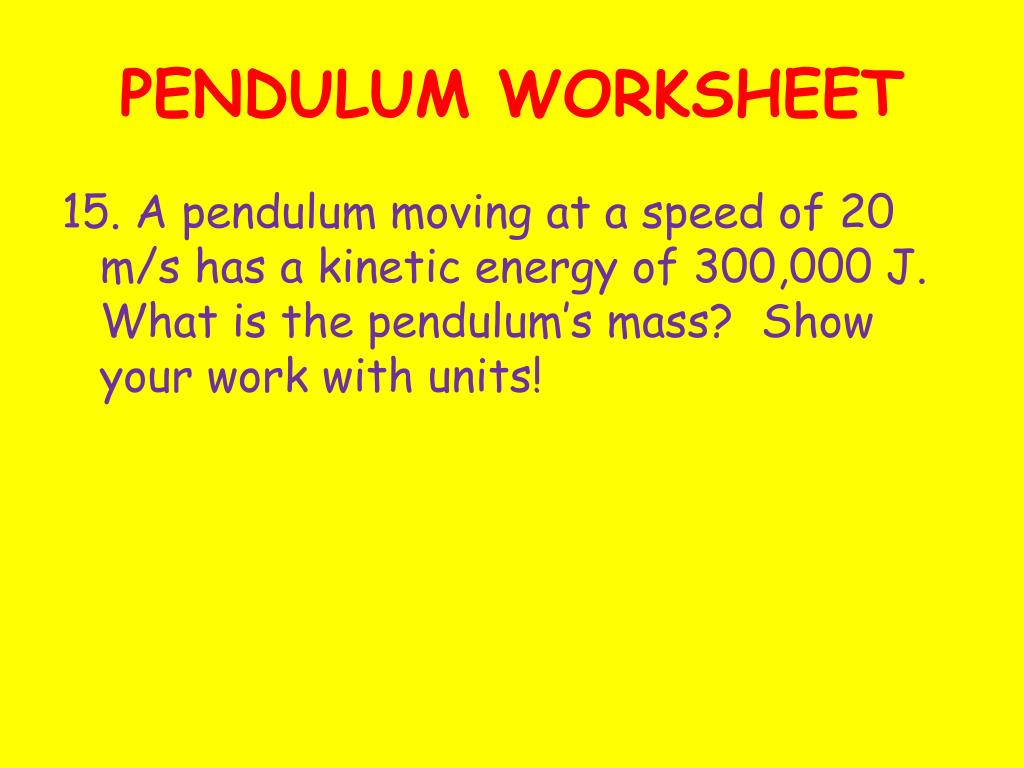

  8. PENDULUM WORKSHEET 15. A pendulum moving at a speed of 20 m/s has a kinetic energy of 300,000 J. What is the pendulum’s mass? Show your work with units!

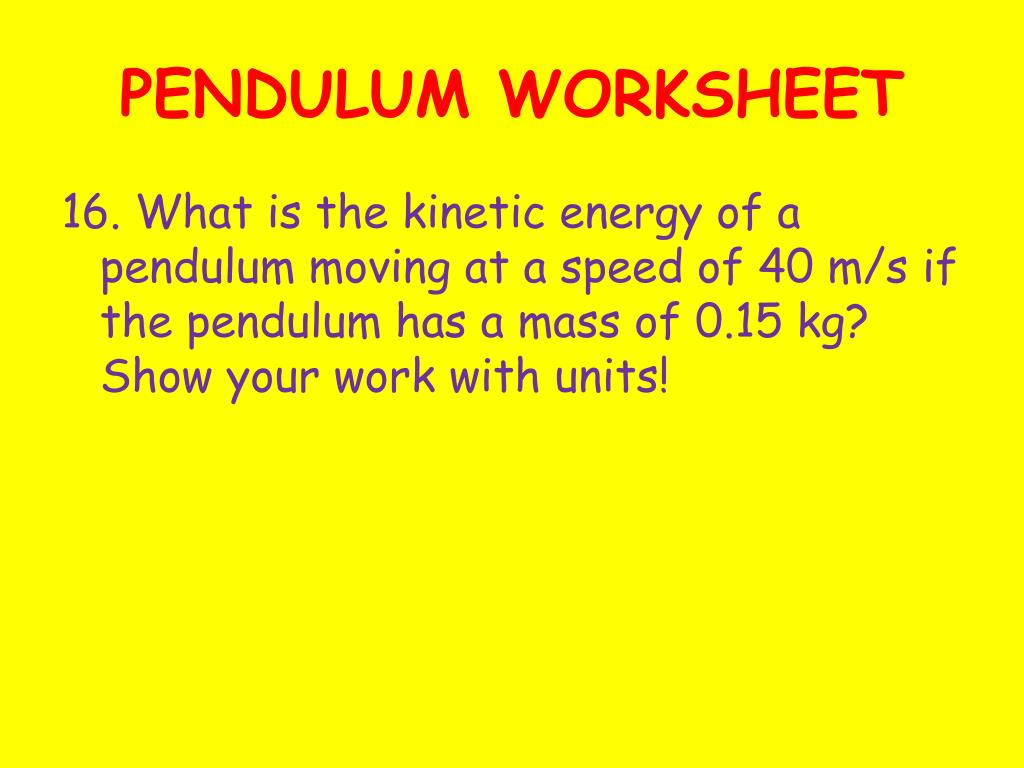

  9. PENDULUM WORKSHEET 16. What is the kinetic energy of a pendulum moving at a speed of 40 m/s if the pendulum has a mass of 0.15 kg? Show your work with units!

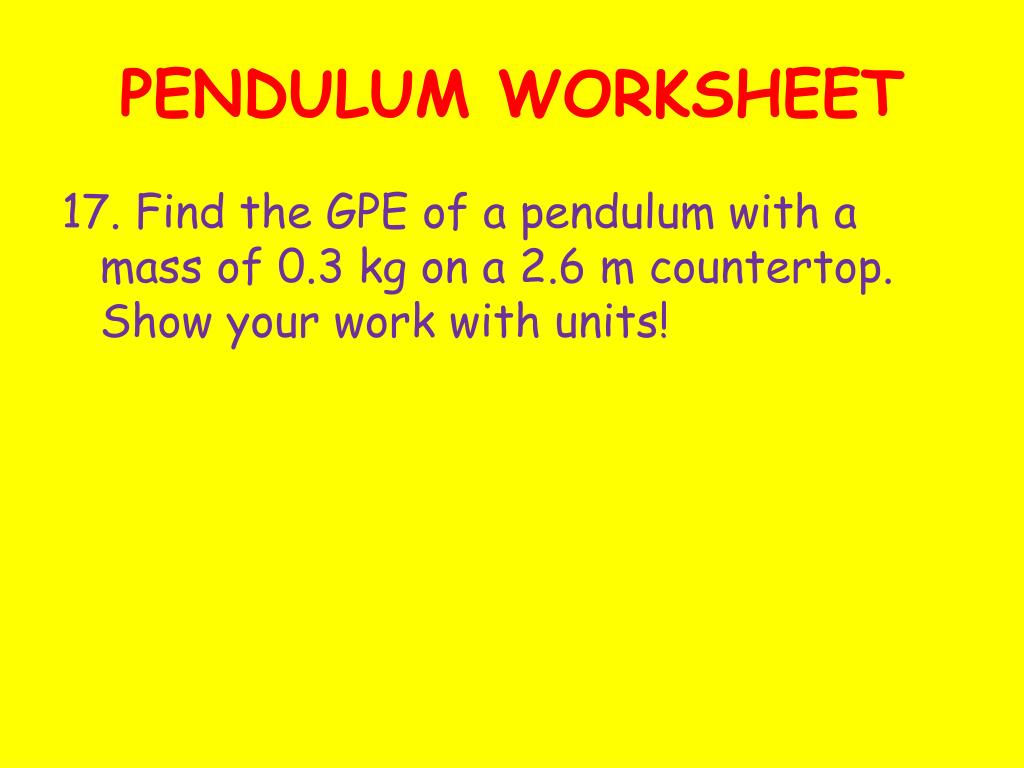

  10. PENDULUM WORKSHEET 17. Find the GPE of a pendulum with a mass of 0.3 kg on a 2.6 m countertop. Show your work with units!

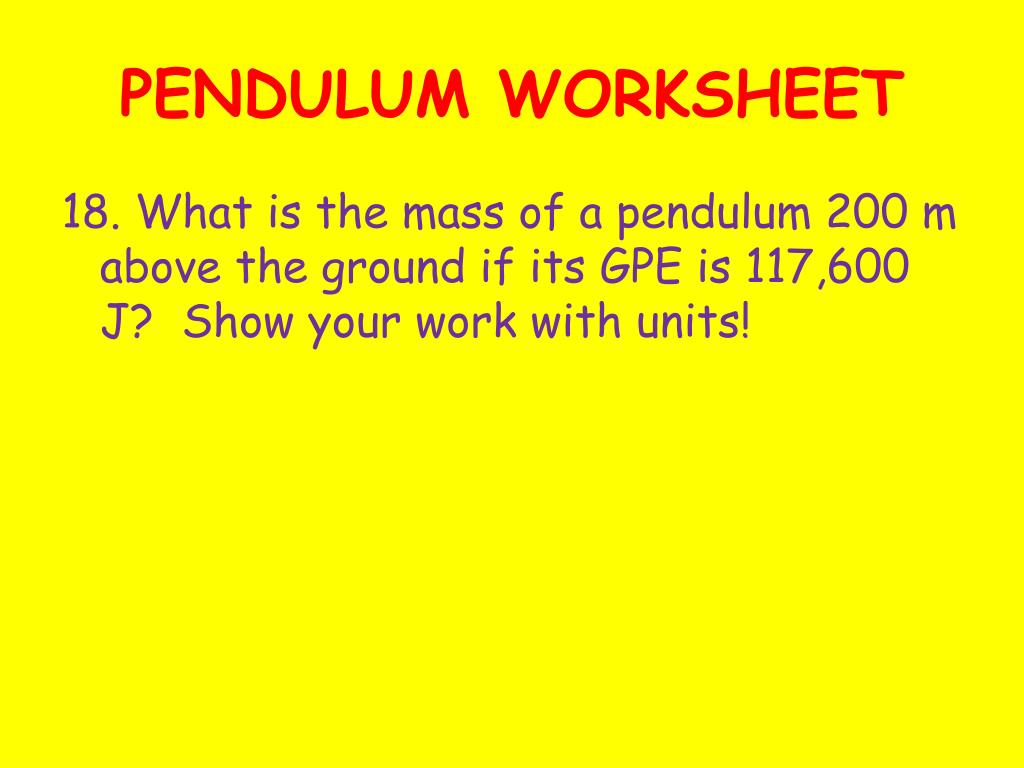

  11. PENDULUM WORKSHEET 18. What is the mass of a pendulum 200 m above the ground if its GPE is 117,600 J? Show your work with units!

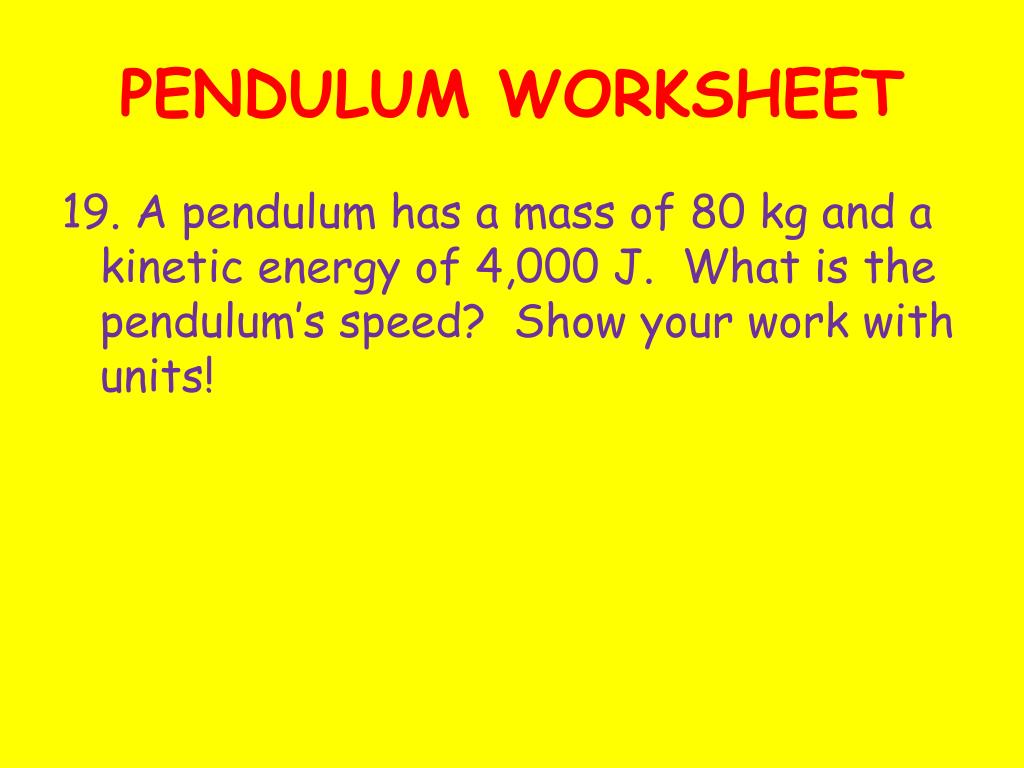

  12. PENDULUM WORKSHEET 19. A pendulum has a mass of 80 kg and a kinetic energy of 4,000 J. What is the pendulum’s speed? Show your work with units!
