  1. Willkommen zum APM – Workshop Welcome to the APM-Workshop 1

  2. RapidMask HD / HT(50µ / 100µ) Schutzfolie Klebeseite / protection-sheet Emulsion Träger / Schutzfolie / carrier sheet 2

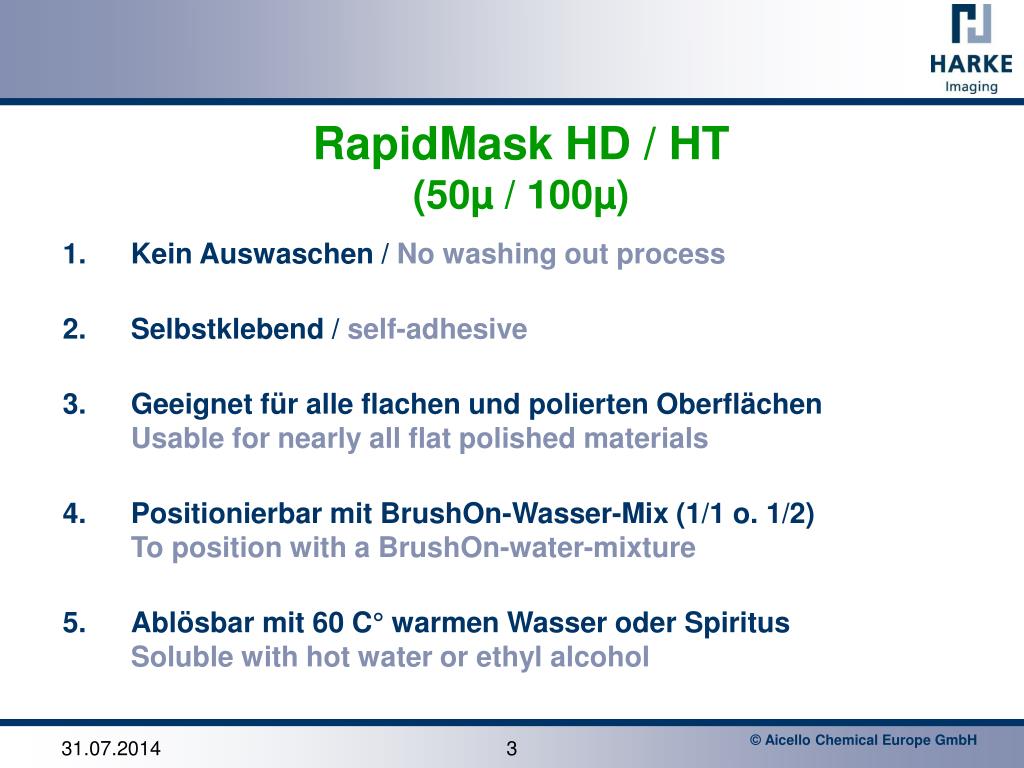

  3. Kein Auswaschen / No washing out process Selbstklebend / self-adhesive Geeignet für alle flachen und polierten OberflächenUsable for nearly all flat polished materials Positionierbar mit BrushOn-Wasser-Mix (1/1 o. 1/2)To position with a BrushOn-water-mixture Ablösbar mit 60 C° warmen Wasser oder SpiritusSoluble with hot water or ethyl alcohol RapidMask HD / HT(50µ / 100µ) 3

  4. Belichtungsgerät mit Vakuum (Wellenlänge 365 nm)Exposure unit with vacuum (wavelength = 365 nm) Strahlkabine mit AbsaugungSandblasting cabinet with suction unit Düsendurchmesser > 3 mmNozzle sized bigger than 3 mm Strahlgut Siliziumcarbid o. Edelkorund F 150 – 400Grid with mesh-size: F150 – 400 Welches Equipment für / Which equipment for:RapidMask? 4

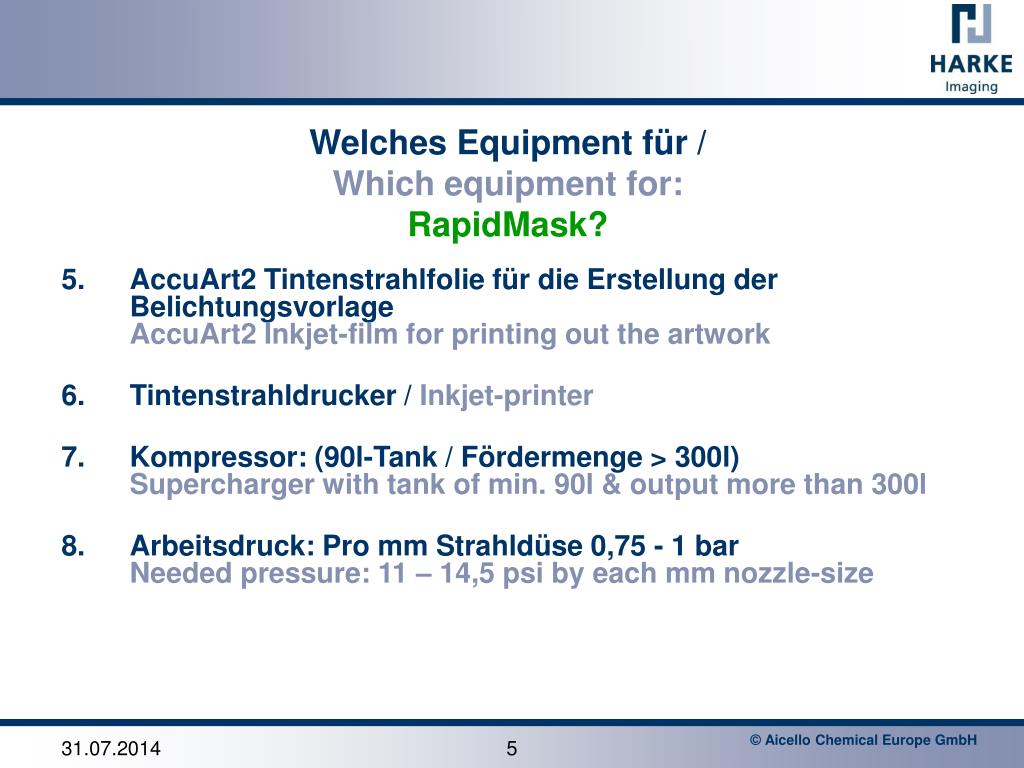

  5. 5. AccuArt2 Tintenstrahlfolie für die Erstellung der BelichtungsvorlageAccuArt2 Inkjet-film for printing out the artwork Tintenstrahldrucker / Inkjet-printer 7. Kompressor: (90l-Tank / Fördermenge > 300l)Supercharger with tank of min. 90l & output more than 300l 8. Arbeitsdruck: Pro mm Strahldüse 0,75 - 1 barNeeded pressure: 11 – 14,5 psi by each mm nozzle-size Welches Equipment für / Which equipment for:RapidMask? 5

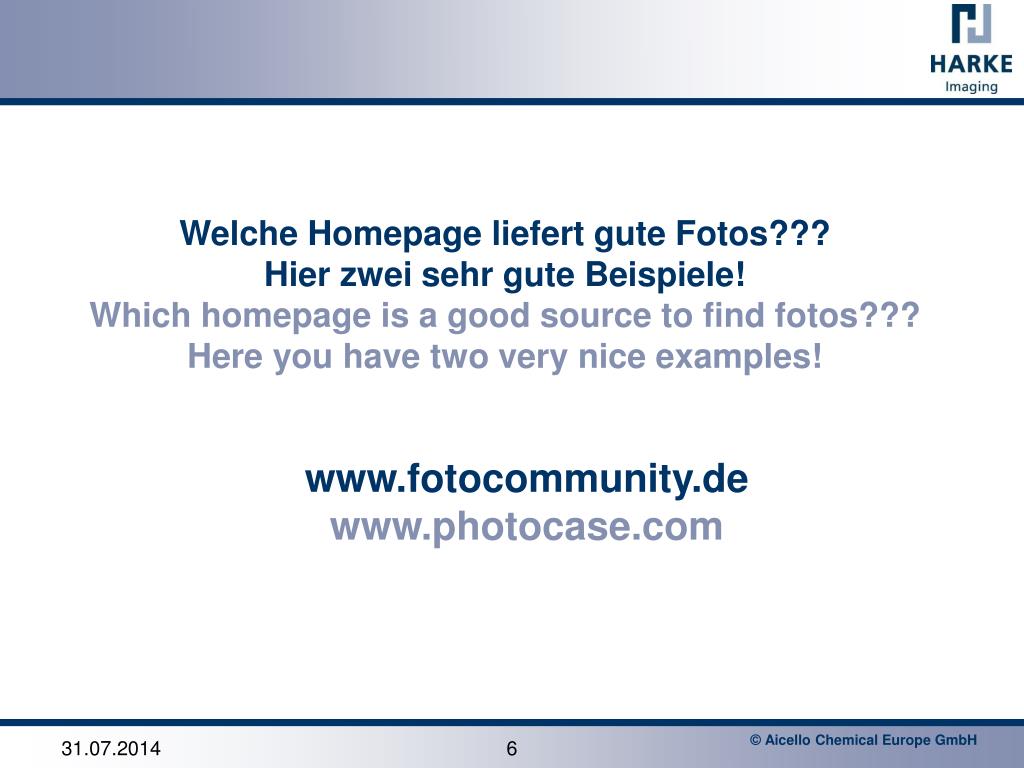

  6. Welche Homepage liefert gute Fotos??? Hier zwei sehr gute Beispiele!Which homepage is a good source to find fotos??? Here you have two very nice examples! www.fotocommunity.dewww.photocase.com 6

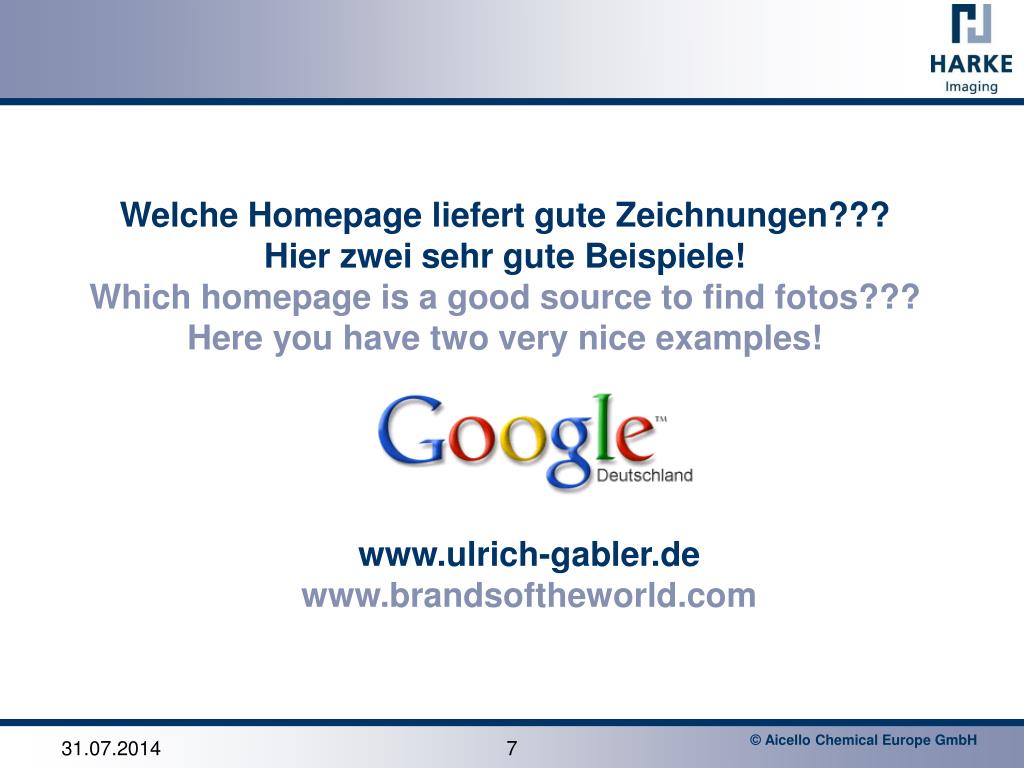

  7. Welche Homepage liefert gute Zeichnungen??? Hier zwei sehr gute Beispiele!Which homepage is a good source to find fotos??? Here you have two very nice examples! www.ulrich-gabler.dewww.brandsoftheworld.com 7
