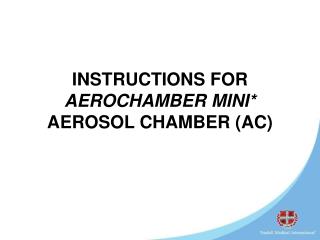

INSTRUCTIONS FOR AEROCHAMBER MINI* AEROSOL CHAMBER (AC)

Loading in 2 Seconds...

play fullscreen
1 / 12

INSTRUCTIONS FOR AEROCHAMBER MINI* AEROSOL CHAMBER (AC) - PowerPoint PPT Presentation


  • 88 Views
  • Uploaded on

INSTRUCTIONS FOR AEROCHAMBER MINI* AEROSOL CHAMBER (AC). For Use with Invasive Ventilation (ET Tube). For Use with Invasive Ventilation (ET Tube). Remove the Metered Dose Inhaler (MDI) aerosol canister from the MDI boot. For Use with Invasive Ventilation (ET Tube).

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'INSTRUCTIONS FOR AEROCHAMBER MINI* AEROSOL CHAMBER (AC)' - tress


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
for use with invasive ventilation et tube1
For Use with Invasive Ventilation (ET Tube)
  • Remove the Metered Dose Inhaler (MDI) aerosol canister from the MDI boot.
for use with invasive ventilation et tube2
For Use with Invasive Ventilation (ET Tube)
  • Insert the MDI canister into the AeroChamber mini* AC canister port.
for use with invasive ventilation et tube3
For Use with Invasive Ventilation (ET Tube)
  • Prime the MDI prior to use by shaking the MDI and chamber and then depressing the MDI. Repeat this step a second time.
for use with invasive ventilation et tube4
For Use with Invasive Ventilation (ET Tube)
  • Attach the manual resuscitator to the AeroChamber mini* AC 15mm Outside Diameter port located at the back of the Chamber.
for use with invasive ventilation et tube5
For Use with Invasive Ventilation (ET Tube)
  • Disconnect the Ventilator Circuit from the Endotracheal Tube 15mm connector.
for use with invasive ventilation et tube6
For Use with Invasive Ventilation (ET Tube)
  • Attach the AeroChamber mini* AC with the canister and Manual Resuscitator to the Endotracheal tube 15 mm connector.
for use with invasive ventilation et tube7
For Use with Invasive Ventilation (ET Tube)
  • While holding the MDI canister vertically, depress the MDI canister downward into the AeroChamber mini* AC actuator and introduce one puff of medication into the Chamber.
for use with invasive ventilation et tube8
For Use with Invasive Ventilation (ET Tube)
  • Manually ventilate the patient with the required volume for 15 -20 Breaths.
for use with invasive ventilation et tube9
For Use with Invasive Ventilation (ET Tube)

NOTE: For more than one dose, remove the MDI canister from the AeroChamber mini* AC, shake the canister and re-insert into the AeroChamber mini*AC canister actuator. Repeat steps 7 through 8.

for use with invasive ventilation et tube10
For Use with Invasive Ventilation (ET Tube)
  • Disconnect the AeroChamber mini* AC from the Endotracheal Tube connector and connect the ventilator to the Endotracheal tube and commence the normal ventilation
