VEDIC MATHEMATICS : Arithmetic Operations

VEDIC MATHEMATICS : Arithmetic Operations. T. K. Prasad http://www.cs.wright.edu/~tkprasad. Positional Number System. 4 3 2 1 0 = 4 * 10,000 + 3 * 1,000 + 2 * 100 + 1 * 10 + 0. Adding Numbers. Unary System !!! + !!!!!!!! = !!!!!!!!!!! Roman System

trenton
Download Presentation

VEDIC MATHEMATICS : Arithmetic Operations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. VEDIC MATHEMATICS : Arithmetic Operations T. K. Prasad http://www.cs.wright.edu/~tkprasad Arithmetic Operations

  2. Positional Number System 43210 = 4 * 10,000 + 3 * 1,000 + 2 * 100 + 1 * 10 + 0 Arithmetic Operations

  3. Adding Numbers • Unary System !!! + !!!!!!!! = !!!!!!!!!!! • Roman System III + VIII = XI Too laborious and unreadable! Not uniform, Not incremental! Arithmetic Operations

  4. Arabic System 45 + 31 = 4 * 10 + 5 + 3 * 10 + 1 = 7 * 10 + 6 = 76 Arithmetic Operations

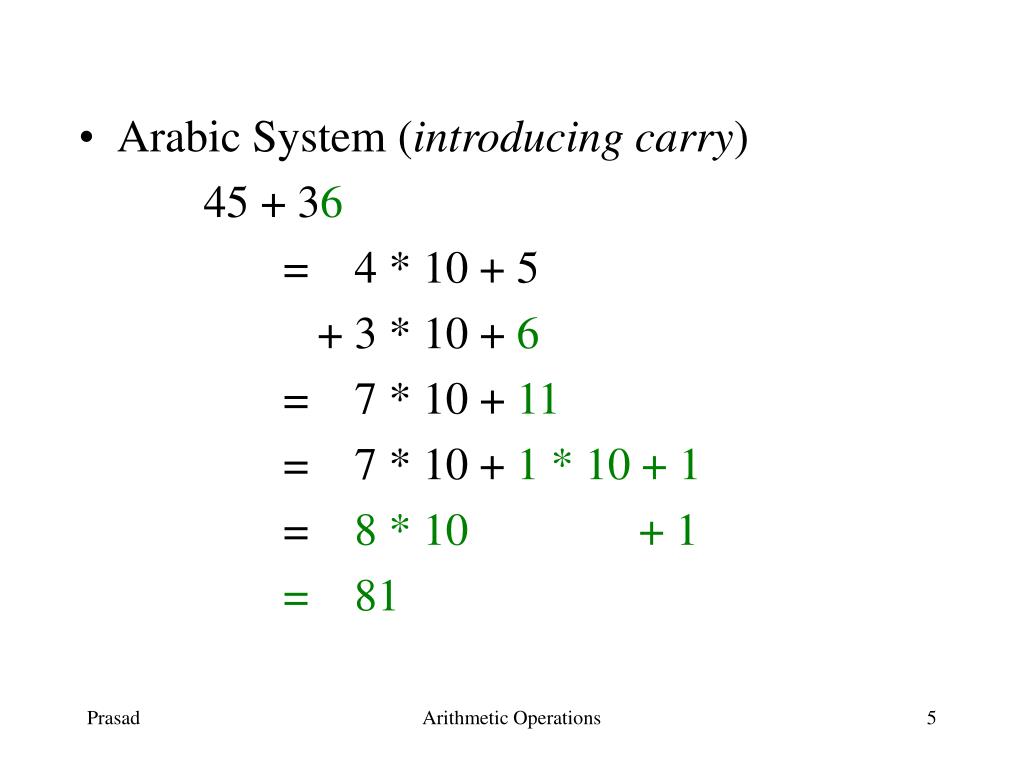

  5. Arabic System (introducing carry) 45 + 36 = 4 * 10 + 5 + 3 * 10 + 6 = 7 * 10 + 11 = 7 * 10 + 1 * 10 + 1 = 8 * 10 + 1 = 81 Arithmetic Operations

  6. Subtracting Numbers • Unary System !!!!!!!!!!! - !!!! = !!!!!!! • Roman System XI - IV = VII Arithmetic Operations

  7. Arabic System 45 – 31 = 4 * 10 + 5 – [3 * 10 + 1] = [4 – 3] *10 + [5 – 1] = 1 * 10 + 4 = 14 Arithmetic Operations

  8. Arabic System (introducing borrow) 65 - 36 = 6 * 10 + 5 – [ 3 * 10 + 6 ] = [6 – 3] * 10 + [5 – 6] = 5 * 10 + 1 * 10 + 5 – [ 3 * 10 + 6 ] = [5 – 3] * 10 + [10+ 5 – 6] = 2 * 10 + [15 – 6] = 29 Arithmetic Operations

  9. Recap: Positional Number System 43210 = 4 * 10,000 + 3 * 1,000 + 2 * 100 + 1 * 10 + 0 Arithmetic Operations

  10. Prerequisite / Background • Single Digit Addition • E.g., 4 + 5 = 9 • With carry • E.g., 4 + 8 = 12 • Single Digit Subtraction • E.g., 9 - 5 = 4 • With borrow • E.g., 12 - 04 = 08 Arithmetic Operations

  11. Multiplying Single Digit Numbers • 1 * 2 = 2 • 1 x 2 = 2 • 3 * 4 = • 4 * 3 = 12 • 5 * 5 = 25 Arithmetic Operations

  12. Single Digit Multiplication (of Large Digits in terms of Small Digits) using Vedic Approach Method : Vertically and Crosswise Sutra Correctness and Applicability Arithmetic Operations

  13. TC(1) = 9 TC(3) = 7 TC(4) = 6 TC(6) = 4 TC(8) = 2 TC(9) = 1 10’s Complement 10’s complement of a digit d is (10 – d). Arithmetic Operations

  14. Method: Multiply 7 * 8 • Write the first digit to be multiplied and its 10’s complement in the first row, and the second digit to be multiplied and its 10’s complement in the second row. 7 3 8 2 Arithmetic Operations

  15. 7 3 8 2 • To determine the 2-digit product: • subtractcrosswise to obtain the left digit • (7 – 2) = (8 – 3) = 5 • and • multiply the complements vertically to obtain the right digit. • (3 * 2) = 6 • 7 * 8 = 56 Arithmetic Operations

  16. Another Example • 8 * 9 = • 8 2 • 9 1 • 7 2 • 8 * 9 = 72 Arithmetic Operations

  17. Questions • Why do both crosswise subtractions yield the same result? • Why does this method yield the correct answer for this example? • Does this method always work for any pair of digits? Arithmetic Operations

  18. Proof Sketch • (8 – 3) = (7 – 2) = 5 • Why are they same? • That is, the difference between first digit and 10’s complement of the second digit. • (8 – (10 – 7)) = (8 + 7 – 10) = (15 – 10) = 5 • (7 – (10 – 8)) = (7 + 8 – 10) = (15 – 10) = 5 Arithmetic Operations

  19. 8 = (10 – 2) 7 = (10 – 3) 8 * 7 = (10 – 2) * 7 = 10 * 7 – 2 * 7 = 10 * 7 – 2 * (10 – 3) = 10 * 7 – 2 * 10 + (2 * 3) = 10 * (7– 2) + 6 = 10 * 5 + 6 = 56 8 = (10 – 2) 7 = (10 – 3) 8 * 7 = 8 * (10 – 3) = 8 * 10 – 8 * 3 = 8 * 10 – (10 – 2) * 3 = 8 * 10 – 10 * 3+ (2 * 3) = 10 * (8– 3) + 6 = 10 * 5 + 6 = 56 Correctness Argument:Two possibilities Right digit [Vertical Product] Right digit [Vertical Product] Left digit [Crosswise Subtraction] Left digit [Crosswise Subtraction] Arithmetic Operations

  20. Another Example • 5 * 8 5 5 8 2 3 10 4 0 Arithmetic Operations

  21. Yet Another Example • 3 * 2 3 7 2 8 – 5 56 – 5+5 6 0 6 Pointless in practice but need proof to feel comfortable! Arithmetic Operations
