  1. Pertemuan 6Finishing the Configuration

  2. Discussion Topics • Importance of configuration standards • Interface descriptions • Configuring interface description • Login banners • Configuring message-of-the-day (MOTD) • Host name resolution • Configuring host tables • Configuration backup and documentation • Backing up configuration files

  3. Importance of Configuration Standards

  4. Configuring Interface Descriptions An interface description should identify important information such as a router, a circuit number, or a specific network segment.

  5. Login Banners

  6. Configuring Message-of-the-Day (MOTD)

  7. Host Name Resolution

  8. Host Table Configuration

  9. Configuration Backup and Documentation

  10. The copy running-config tftp Command

  11. The copy tftp running-config Command

  12. Copying, editing, and pasting configurations • A TFTP server will allow image and configuration uploads and downloads over the network. • The TFTP server can be another router, or it can be a host system.

  13. Copying, editing, and pasting configurations • The TFTP host can be any system that has TFTP software loaded and operating and able to receive files from the TCP/IP network.

  14. Copying, editing, and pasting configurations startup-config running-config IOS RAM IOS (running) copy flash tftp copy tftp flash copy startup-config tftp copy tftp startup-config copy running-config tftp copy tftp running-config

  15. Copying, editing, and pasting configurations • Troubleshooting: Be sure you can ping the TFTP server.

  16. TFTP Software and Servers • When using Windows, the TFTP server software must be running. • The copy can be performed from the console port or from a telnet session. • The telnet session can be performed on the same computer where the TFTP server is running (or to a different computer). Router# copy flash tftp

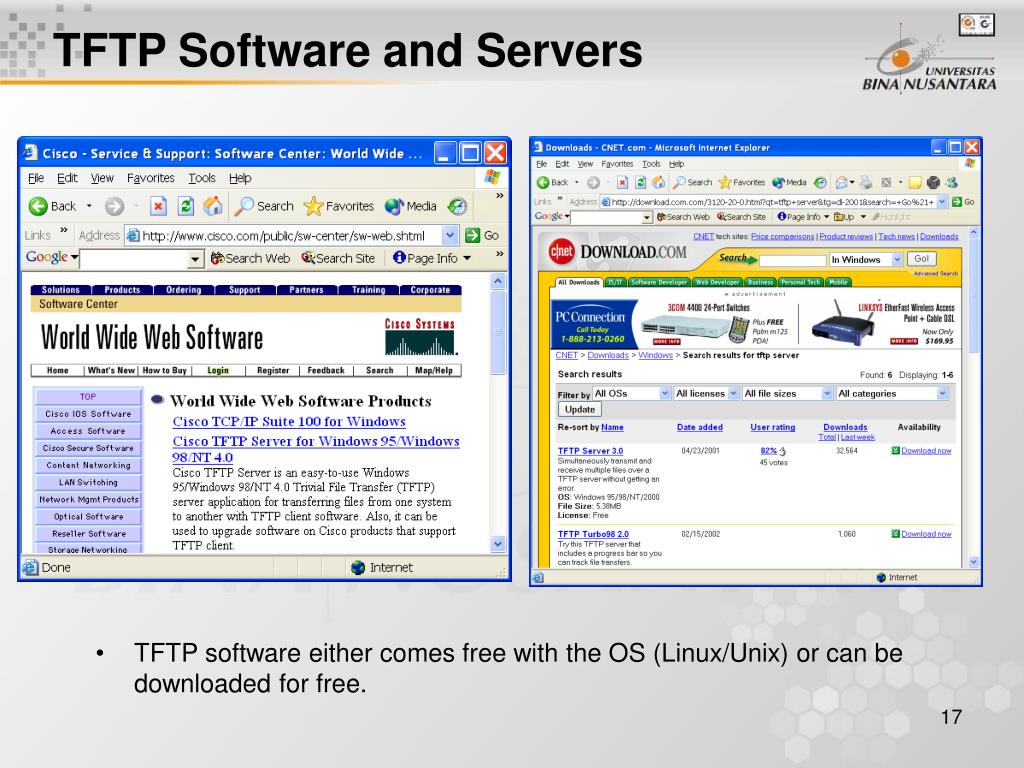

  17. TFTP Software and Servers • TFTP software either comes free with the OS (Linux/Unix) or can be downloaded for free.

  18. TFTP Software and Servers • Just double click on the shortcut… • Remember, TFTP is “Trivial” FTP: • No authentication • No login • No choice for directory • Uses UDP and verified via a TFTP checksum (not TCP ACKs)
