Presentation Transcript
slide1

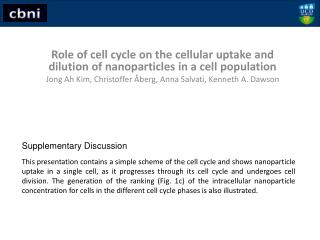

This presentation contains a simple scheme of the cell cycle and shows nanoparticle uptake in a single cell, as it progresses through its cell cycle and undergoes cell division. The generation of the ranking (Fig. 1c) of the intracellular nanoparticle concentration for cells in the different cell cycle phases is also illustrated.

Role of cell cycle on the cellular uptake and dilution of nanoparticles in a cell population

Jong Ah Kim, ChristofferÅberg, Anna Salvati, Kenneth A. Dawson

Supplementary Discussion

slide2

Cell Cycle

The cell cycle is a series of events that lead to cell division and replication, consisting of four phases: G1, S, G2 and M. The activation of each phase depends on the proper completion of the previous one. The cell cycle commences with the G1 phase, during which the cell increases its size. During the S phase the cell synthesizes DNA, and in the G2 phase it synthesizes proteins to prepare for cell division. Finally during the M phase the cell divides and the two daughter cells enter the G1 phase. Cells that have temporarily stopped dividing can enter a resting phase called G0.

slide3

G1 phase:

cell growth, protein synthesis

Cell Cycle

G0/G1

slide4

G1 phase:

cell growth, protein synthesis

S phase:

DNA synthesis

Cell Cycle

G0/G1

S

slide5

G2 phase:

preparation for cell division, protein synthesis

G1 phase:

cell growth, protein synthesis

S phase:

DNA synthesis

Cell Cycle

G2/M

G0/G1

S

slide6

G2 phase:

preparation for cell division, protein synthesis

M phase:

mitosis (cell division)

G1 phase:

cell growth, protein synthesis

S phase:

DNA synthesis

Cell Cycle

G2/M

G0/G1

S

slide7

G2 phase:

preparation for cell division, protein synthesis

M phase:

mitosis (cell division)

S phase:

DNA synthesis

Two new daughter cells in G1 phase

Cell Cycle

G2/M

G0/G1

S

slide8

G2/M

G0/G1

S

Proliferation of a cell culture

A cell culture is a mixture of cells in different phases of their cell cycle, simultaneously undergoing progression and cell division.

G0/G1

S

G2/M

Time

slide9

G2/M

G0/G1

S

Proliferation of a cell culture

A cell culture is a mixture of cells in different phases of their cell cycle, simultaneously undergoing progression and cell division.

G0/G1

S

S

G2/M

G0/G1

G2/M

Cell division

Time

slide10

G2/M

G0/G1

S

Proliferation of a cell culture

A cell culture is a mixture of cells in different phases of their cell cycle, simultaneously undergoing progression and cell division.

G0/G1

S

G2/M

S

G2/M

Cell division

G0/G1

G0/G1

G2/M

Cell division

S

Time

slide11

G2/M

G0/G1

S

Nanoparticle uptake in a cycling cell: example of a cell in G1 phase at the moment of exposure to nanoparticles

slide12

G2/M

G0/G1

S

Nanoparticles enter the cells and accumulate in the lysosomes.

Nanoparticle uptake in a cycling cell: example of a cell in G1 phase at the moment of exposure to nanoparticles

slide13

G2/M

G0/G1

S

Nanoparticles enter the cells and accumulate in the lysosomes.

Nanoparticles are taken up throughout the cell cycle.

Nanoparticle uptake in a cycling cell: example of a cell in G1 phase at the moment of exposure to nanoparticles

slide14

Uptake rate in the different phases is similar.

G2/M

G0/G1

S

Nanoparticles enter the cells and accumulate in the lysosomes.

Nanoparticles are taken up throughout the cell cycle.

Nanoparticle uptake in a cycling cell: example of a cell in G1 phase at the moment of exposure to nanoparticles

slide15

Upon cell division, cells dilute their intracellular nanoparticle concentration.

Uptake rate in the different phases is similar.

G2/M

G0/G1

S

Nanoparticles enter the cells and accumulate in the lysosomes.

Nanoparticles are taken up throughout the cell cycle.

Nanoparticle uptake in a cycling cell: example of a cell in G1 phase at the moment of exposure to nanoparticles

slide16

Upon cell division, cells dilute their intracellular nanoparticle concentration.

Uptake rate in the different phases is similar.

G2/M

G0/G1

S

Daughter cells will have (on average) half of the amount of nanoparticles compared to the parent cell.

Nanoparticles are taken up throughout the cell cycle.

Nanoparticle uptake in a cycling cell: example of a cell in G1 phase at the moment of exposure to nanoparticles

slide17

G0/G1

S

G2/M

Time

Nanoparticle uptake in a cell population

slide18

G0/G1

S

During the first 10 hours of uptake there is no major difference between the concentrations of nanoparticles in cells in the different phases.

G2/M

Time

Nanoparticle uptake in a cell population

slide19

G0/G1

S

S

G2/M

G0/G1

G2/M

Once a significant fraction of the cells in G0/G1 are cells that divided during the exposure to nanoparticles, then the G0/G1 cells show a reduced nanoparticle concentration in comparison to the other phases.

Cell division

Nanoparticle uptake in a cell population

Time

slide20

S

G2/M

G2/M

Cell division

G0/G1

G0/G1

When cells that have divided begin to populate the S phase, then those cells also show a reduced intracellular nanoparticle concentration (compared to the cells in G2/M).

S

Nanoparticle uptake in a cell population

Time
