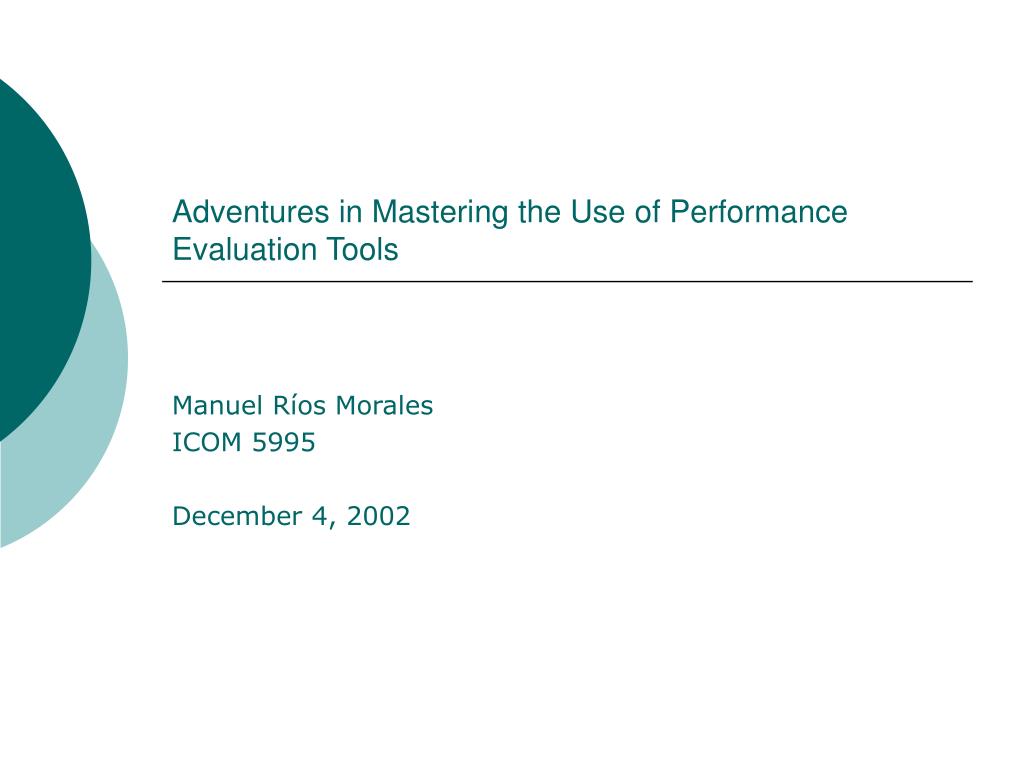

  1. Adventures in Mastering the Use of Performance Evaluation Tools Manuel Ríos Morales ICOM 5995 December 4, 2002

  2. Overview • Project Proposal • Original Goals • Problems Encountered • Project Changes • Revised Goals • New Problems • Final Revision

  3. Project Proposal • Original Goals • Master a performance evaluation tool and use it to evaluate the performance of an existing benchmark. • Tool selected: AIMS • Benchmark: FT kernel of the NPB • Why AIMS? • Provides tools for measurement and analysis of performance of parallel programs. • Can be used to highlight problem areas that can be modified to improve program execution.

  4. Problems Encountered • Installation • Quite challenging • Required modification of makefiles and debugging of some modules • Instrumentation • Couldn’t be achieved due to bugs in the software.

  5. Problems Encountered (cont.)

  6. Project Changes • Revised Goals • Performance evaluation tool changed to Vampir. • New Problems • Compilation of the FT benchmark • Installation of VampirTrace

  7. Final Revision • Project goals • Understanding basic features of Vampir with the use of an example provided in the Vampir package.

  8. Vampir Analysis Tool • Vampir consists of two packages: • Vampir: Tracefile visualization program with a graphical user interface for XWindows desktops. • VampirTrace: Instrumented MPI library to link with the user code for automatic tracefile generation on a parallel platform.

  9. VampirTrace • Tool for MPI applications that produces tracefiles that can be analyzed with Vampir. • Records all calls to the MPI library and all transmitted messages. • Allows defining and recording arbitrary user defined events. • Using it requires relinking the application with the VampirTrace profiling library.

  10. VampirTrace (cont.) • mpicc -o test test.c -L/$HOME/VampirTrace/lib/libVT.a –lVT • patch_mpicc • Modifies mpicc command to include the –vt option • Mpicc –vt –o test test.c

  11. Vampir • Tool for visualization and analysis of MPI programs • Understand the application behavior • Analyze the performance of subroutines or code blocks • Learn about communication patterns, parameters and performance • Identifycommunication hotspots

  12. Vampir (cont.) • Basics • Loading Tracefiles • Displays

  13. Global Timeline Display

  14. Global Timeline Display (cont.) • It will automatically open when paused or finished loading a tracefile. • Shows all analyzed state changes for each process over the complete period of time in one display. • Zoom ability allows getting detailed information of the runtime behavior of the traced program.

  15. Activity Chart Display • Shows a statistic about the time spent in each activity individually for each process defined in the tracefile.

  16. Summary Chart Display • Displays the sum of the time consumed by all instrumented activities over all selected processes.

  17. Final Thoughts • Tools that facilitate the instrumentation and visualization of parallel program execution are invaluable. • Programmers can benefit from using these tools since the help highlight any problem areas that can be modified to improve program execution.
