  1. BENCHTOP POWER SUPPLIES

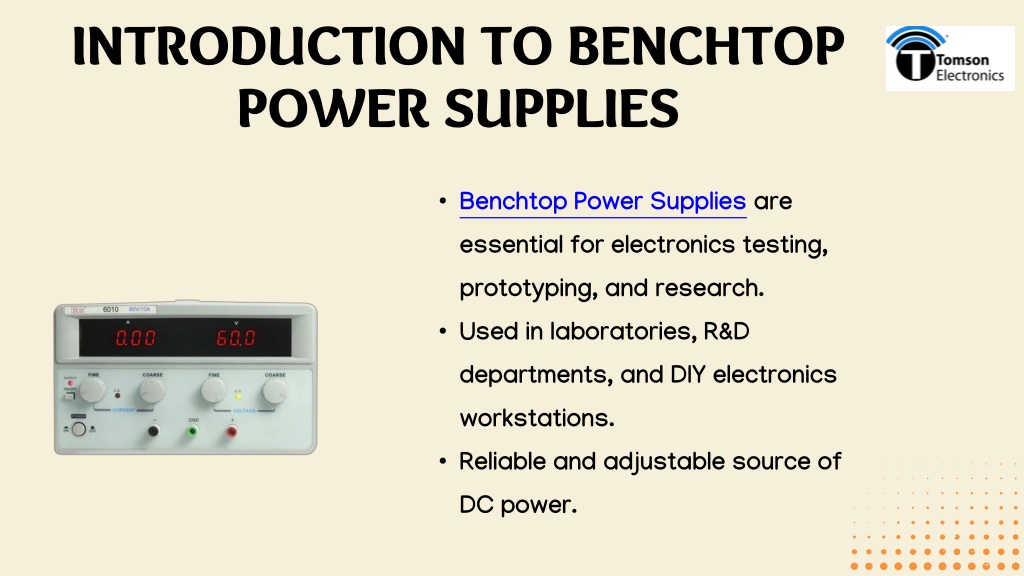

  2. INTRODUCTION TO BENCHTOP POWER SUPPLIES • Benchtop Power Supplies are essential for electronics testing, prototyping, and research. • Used in laboratories, R&D departments, and DIY electronics workstations. • Reliable and adjustable source of DC power.

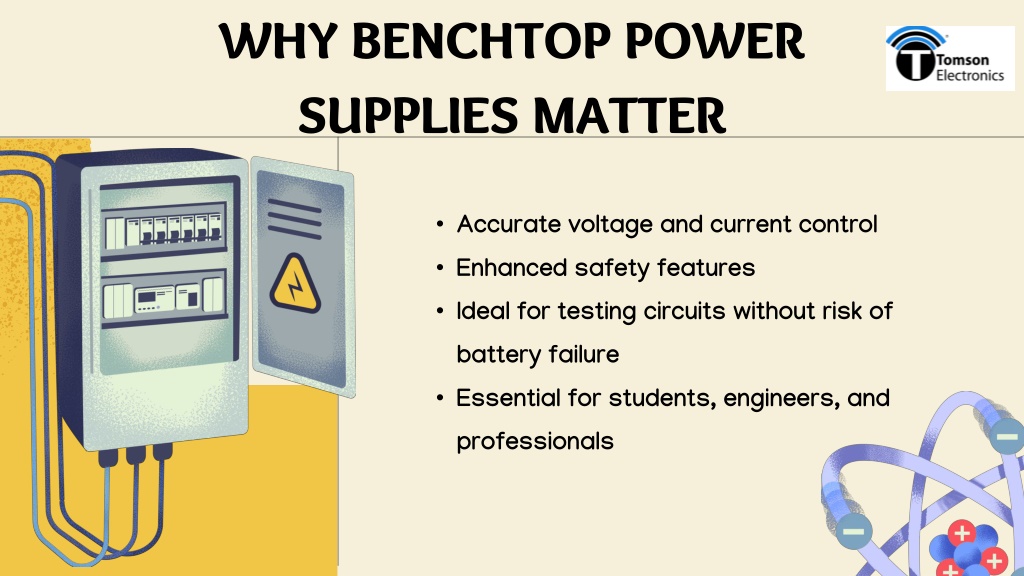

  3. WHY BENCHTOP POWER SUPPLIES MATTER • Accurate voltage and current control • Enhanced safety features • Ideal for testing circuits without risk of battery failure • Essential for students, engineers, and professionals

  4. KEY FEATURES • Digital display (LED/LCD) • Adjustable voltage and current knobs • Constant voltage (CV) and constant current (CC) modes • Multiple output channels • Overload and short circuit protection

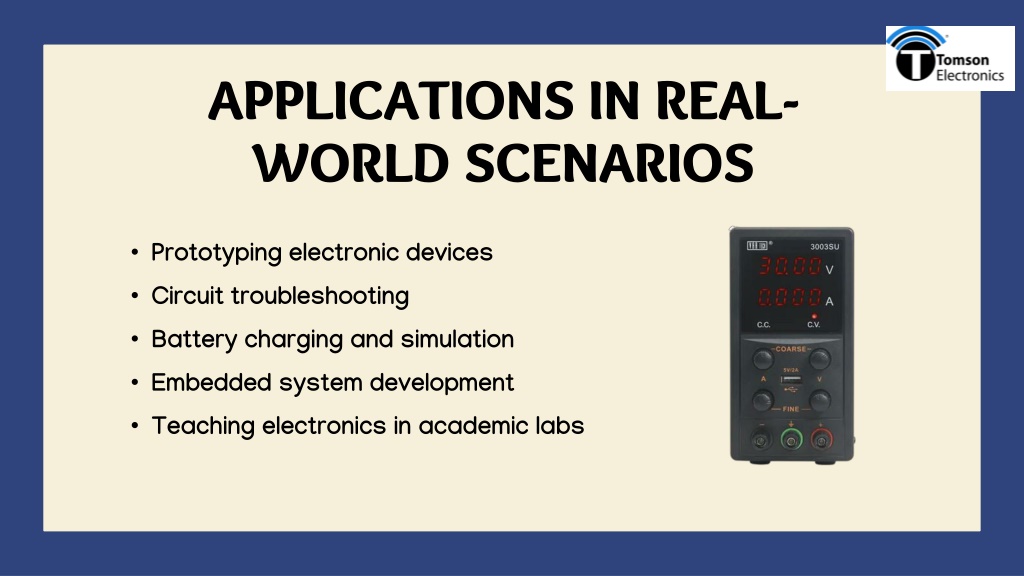

  5. APPLICATIONS IN REAL-WORLD SCENARIOS • Prototyping electronic devices • Circuit troubleshooting • Battery charging and simulation • Embedded system development • Teaching electronics in academic labs

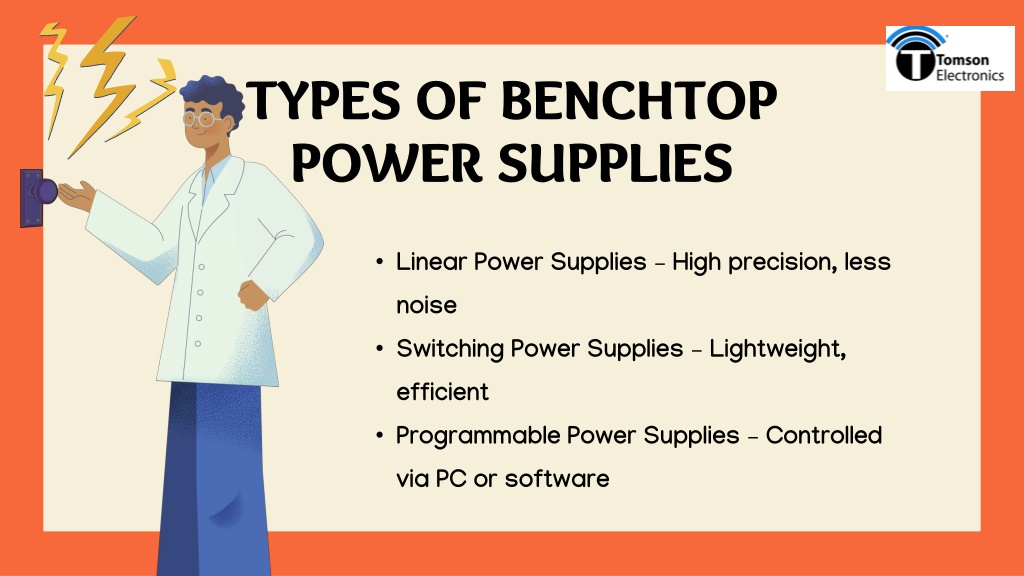

  6. TYPES OF BENCHTOP POWER SUPPLIES • Linear Power Supplies – High precision, less noise • Switching Power Supplies – Lightweight, efficient • Programmable Power Supplies – Controlled via PC or software

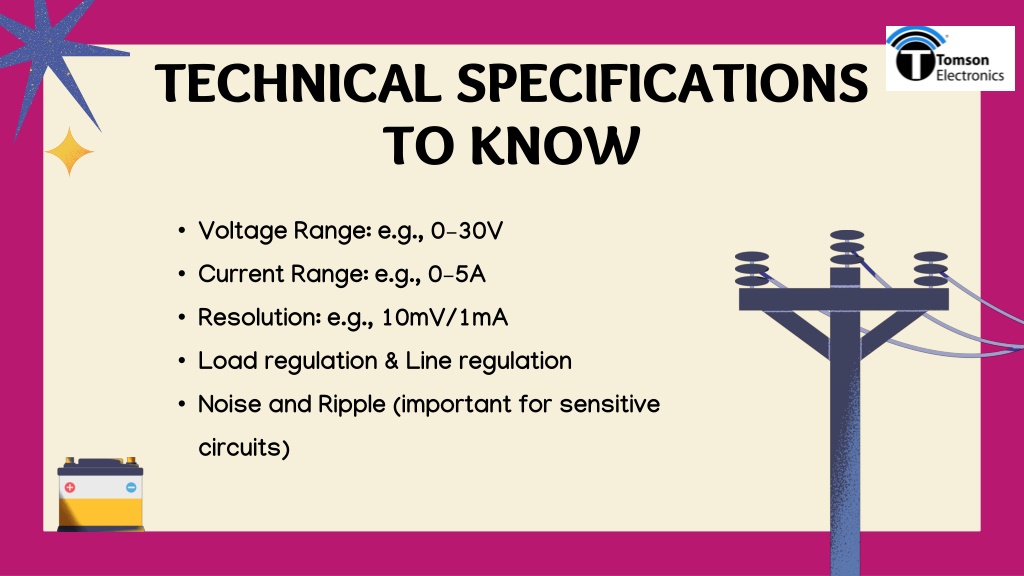

  7. TECHNICAL SPECIFICATIONS TO KNOW • Voltage Range: e.g., 0–30V • Current Range: e.g., 0–5A • Resolution: e.g., 10mV/1mA • Load regulation & Line regulation • Noise and Ripple (important for sensitive circuits)

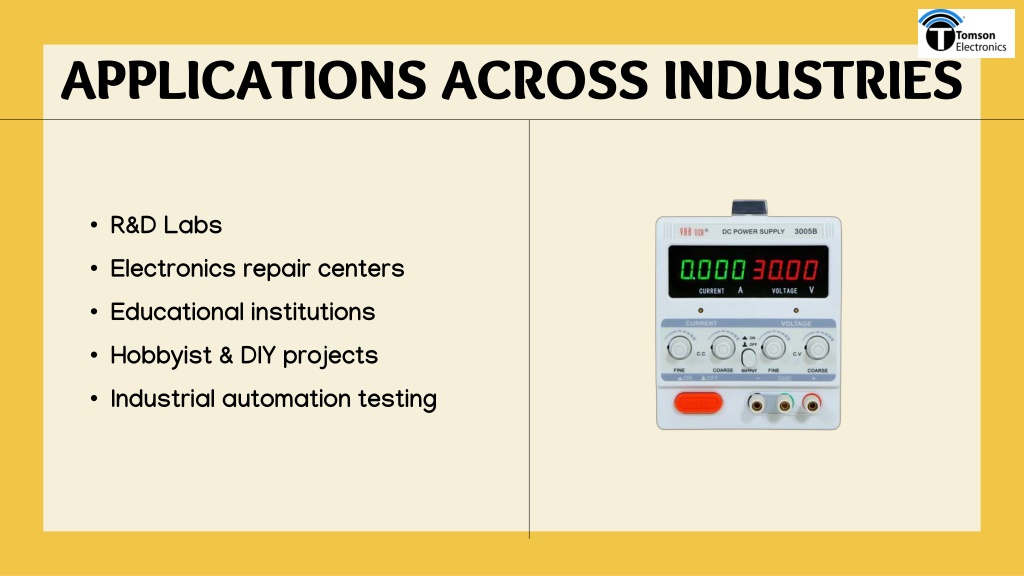

  8. APPLICATIONS ACROSS INDUSTRIES • R&D Labs • Electronics repair centers • Educational institutions • Hobbyist & DIY projects • Industrial automation testing

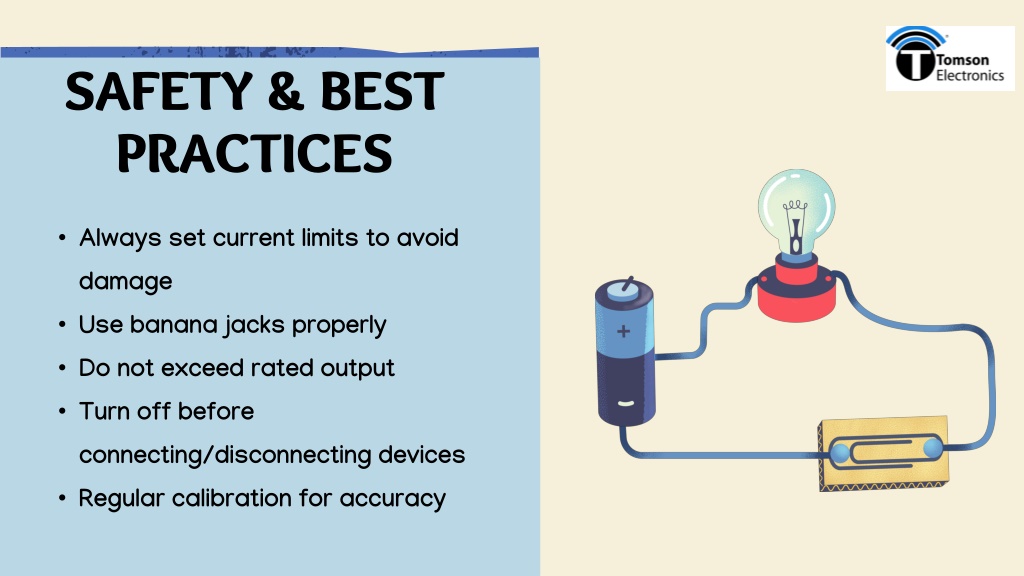

  9. SAFETY & BEST PRACTICES • Always set current limits to avoid damage • Use banana jacks properly • Do not exceed rated output • Turn off before connecting/disconnecting devices • Regular calibration for accuracy

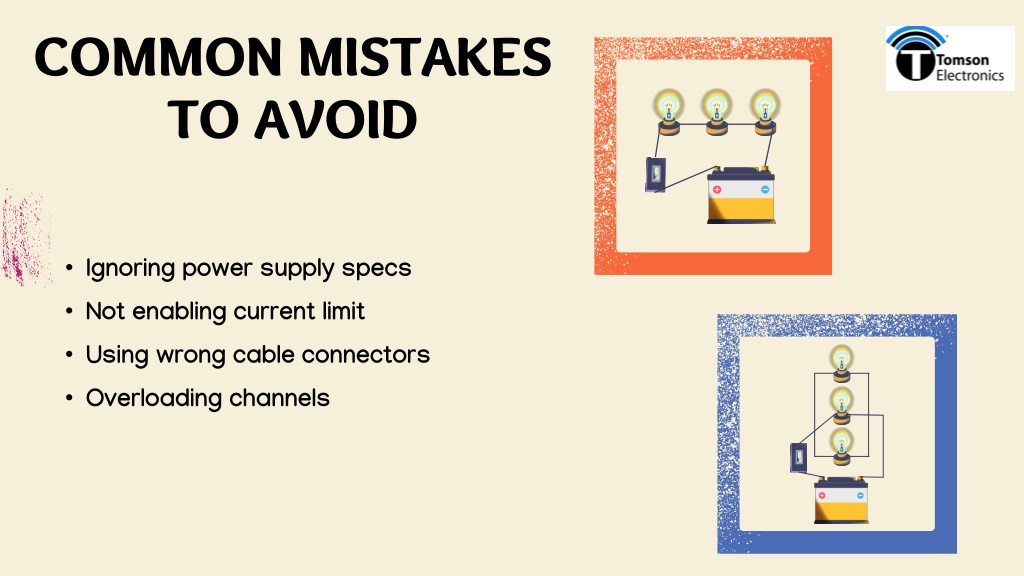

  10. COMMON MISTAKES TO AVOID • Ignoring power supply specs • Not enabling current limit • Using wrong cable connectors • Overloading channels

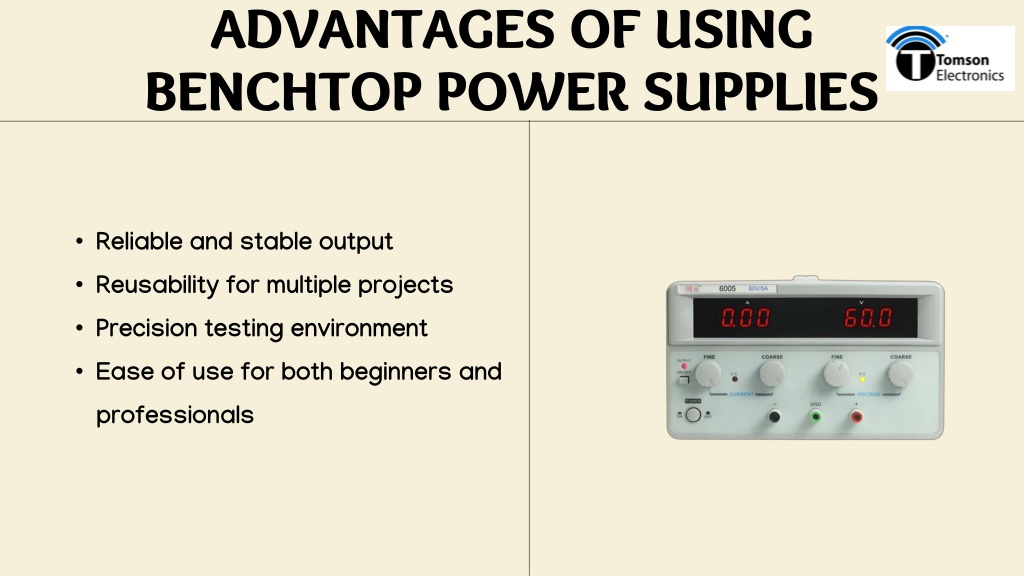

  11. ADVANTAGES OF USING BENCHTOP POWER SUPPLIES • Reliable and stable output • Reusability for multiple projects • Precision testing environment • Ease of use for both beginners and professionals

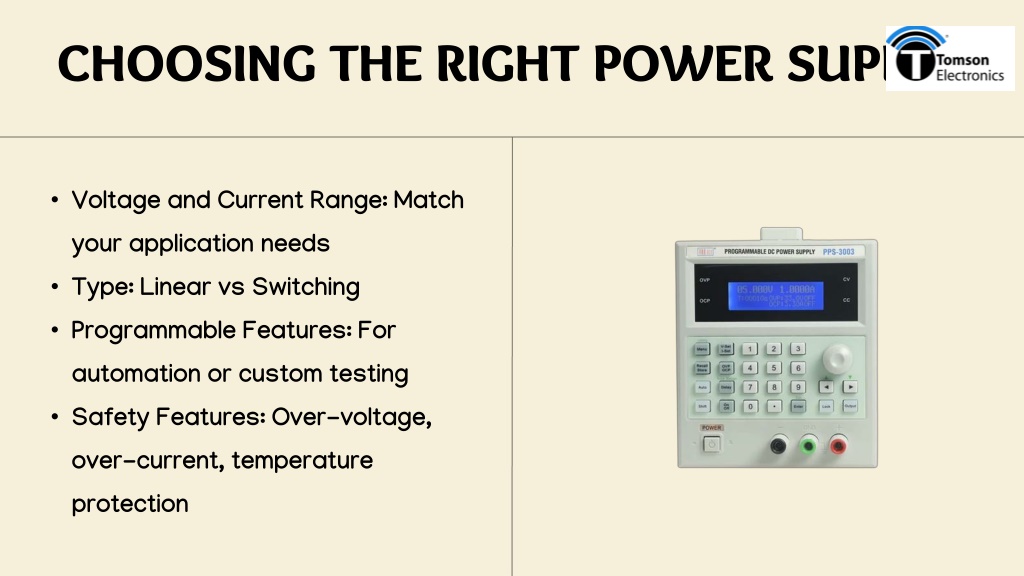

  12. CHOOSING THE RIGHT POWER SUPPLY • Voltage and Current Range: Match your application needs • Type: Linear vs Switching • Programmable Features: For automation or custom testing • Safety Features: Over-voltage, over-current, temperature protection

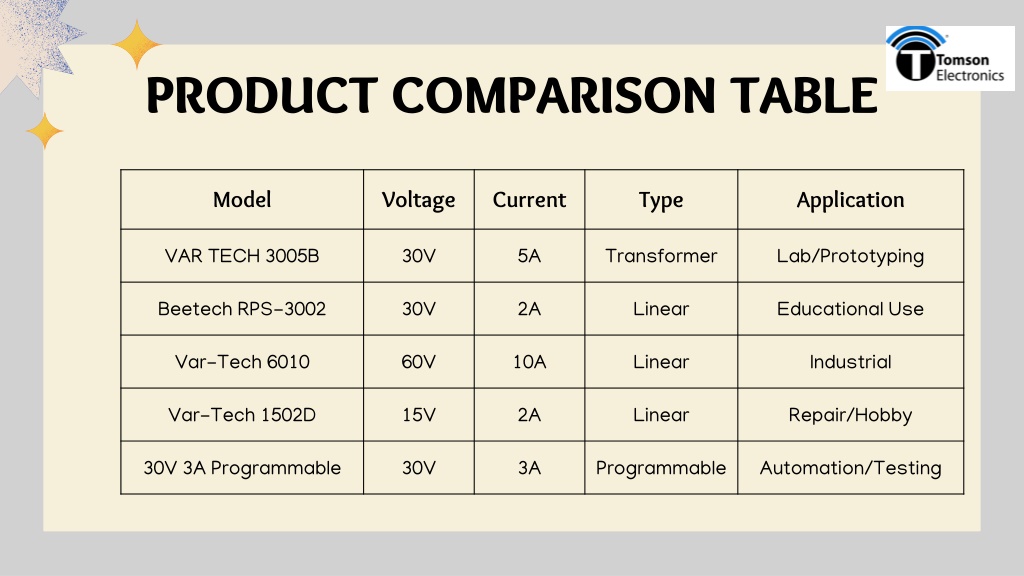

  13. PRODUCT COMPARISON TABLE

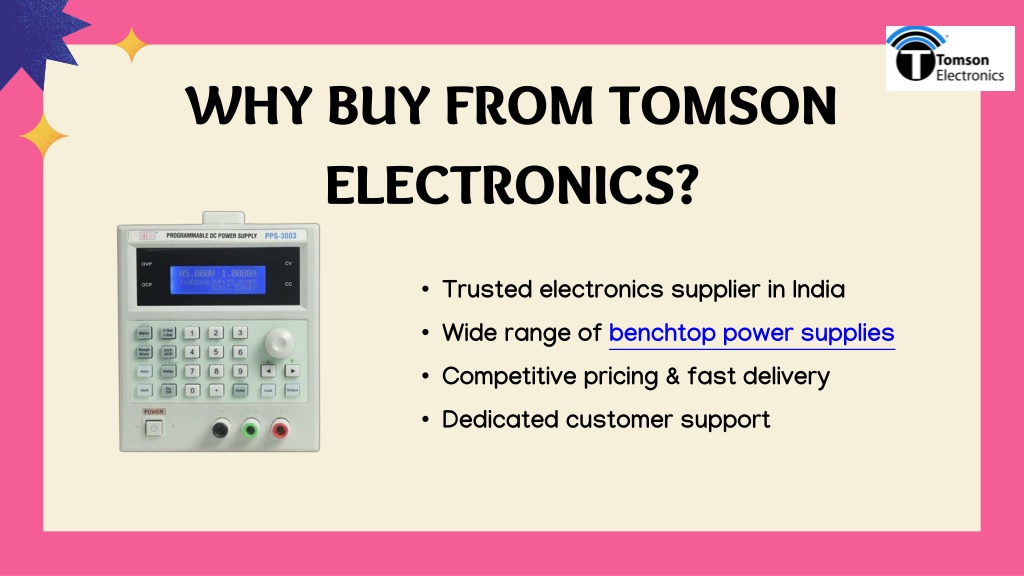

  14. WHY BUY FROM TOMSON ELECTRONICS? • Trusted electronics supplier in India • Wide range of benchtop power supplies • Competitive pricing & fast delivery • Dedicated customer support

  15. CONTACT US help@tomsonelectronics.com www.tomsonelectronics.com 8606650999
