Lecture # 22

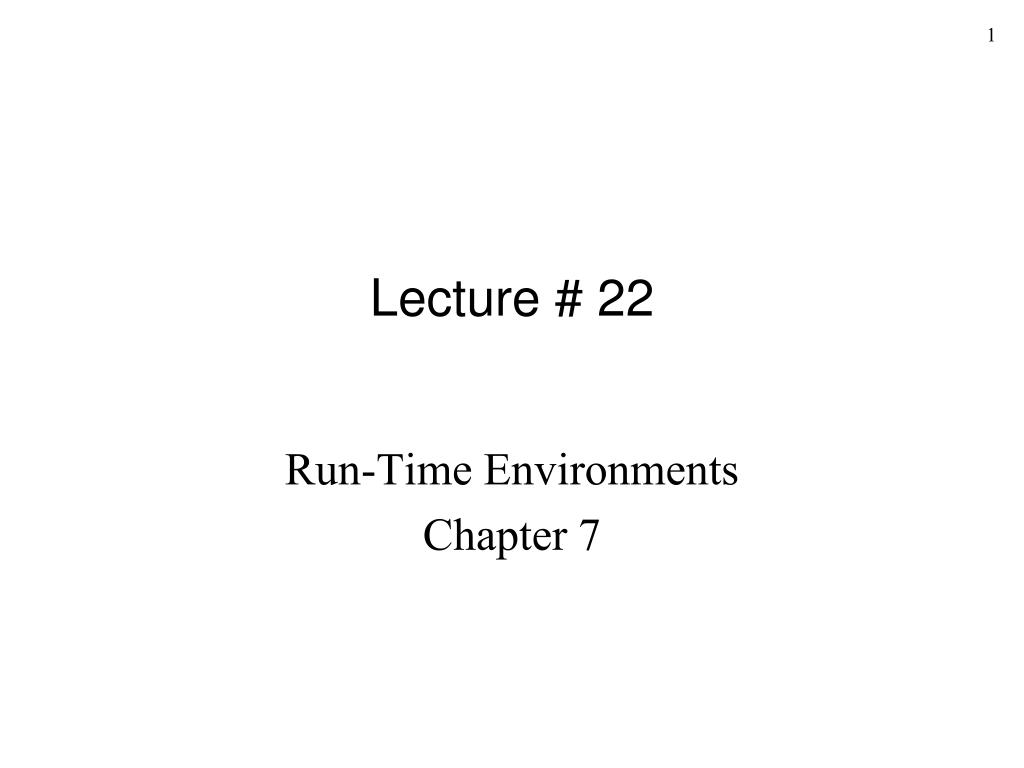

1. Lecture # 22 Run-Time Environments Chapter 7

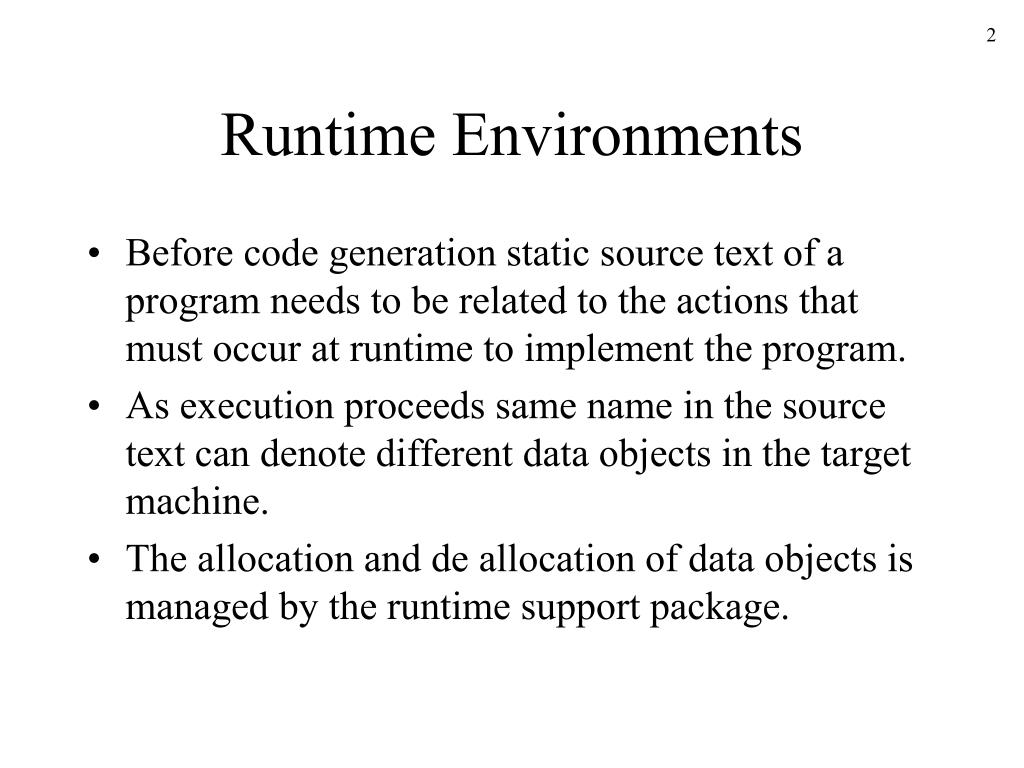

2. Runtime Environments • Before code generation static source text of a program needs to be related to the actions that must occur at runtime to implement the program. • As execution proceeds same name in the source text can denote different data objects in the target machine. • The allocation and de allocation of data objects is managed by the runtime support package.

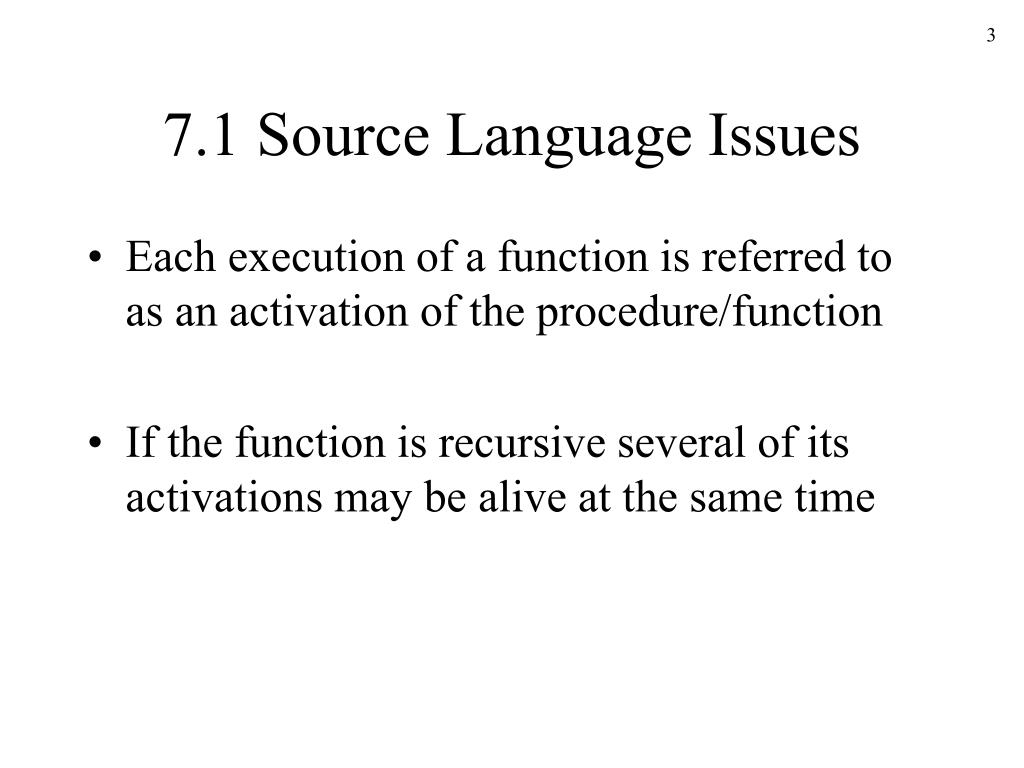

3. 7.1 Source Language Issues • Each execution of a function is referred to as an activation of the procedure/function • If the function is recursive several of its activations may be alive at the same time

4. Procedure Activation and Lifetime • A procedure is activated when called • The lifetime of an activation of a procedure is the sequence of steps between the first and last steps in the execution of the procedure body • A procedure is recursive if a new activation can begin before an earlier activation of the same procedure has ended

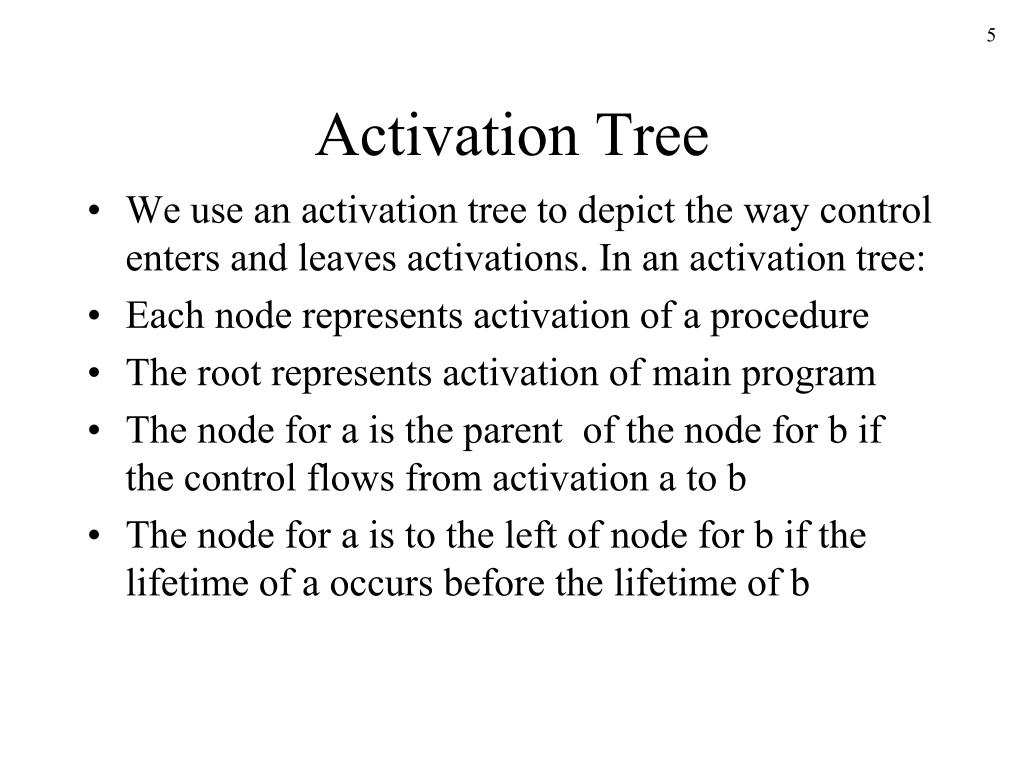

5. Activation Tree • We use an activation tree to depict the way control enters and leaves activations. In an activation tree: • Each node represents activation of a procedure • The root represents activation of main program • The node for a is the parent of the node for b if the control flows from activation a to b • The node for a is to the left of node for b if the lifetime of a occurs before the lifetime of b

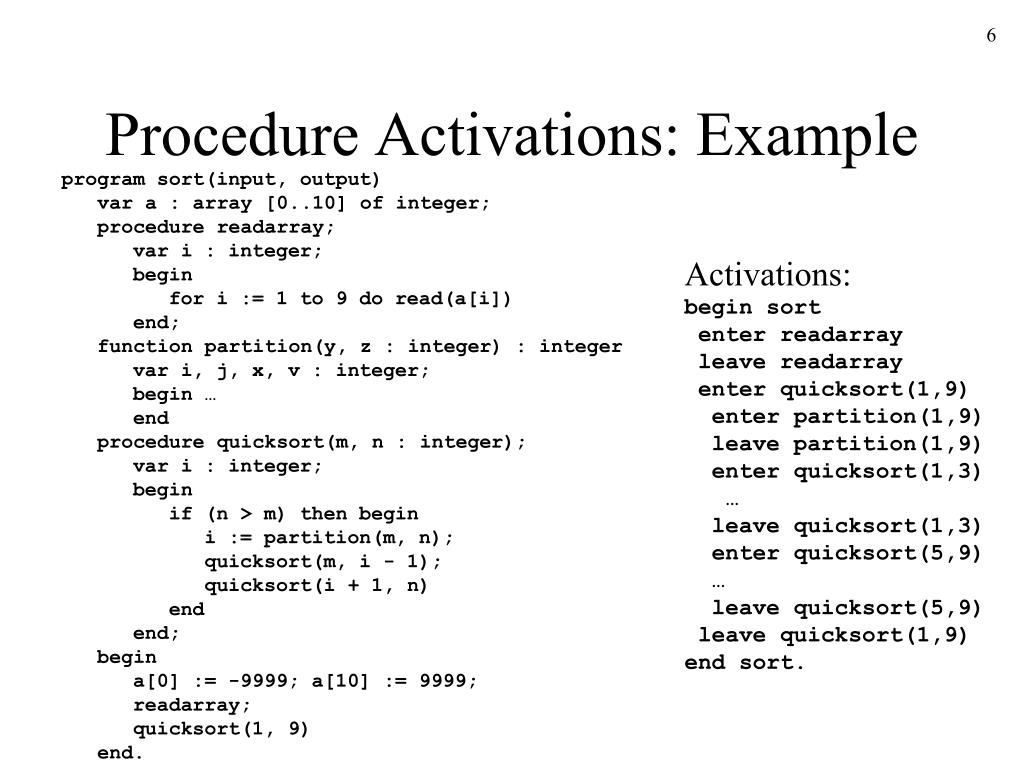

6. Procedure Activations: Example program sort(input, output) var a : array [0..10] of integer; procedure readarray; var i : integer; begin for i := 1 to 9 do read(a[i]) end; function partition(y, z : integer) : integer var i, j, x, v : integer; begin … end procedure quicksort(m, n : integer); var i : integer; begin if (n > m) then begin i := partition(m, n); quicksort(m, i - 1); quicksort(i + 1, n) end end; begin a[0] := -9999; a[10] := 9999; readarray; quicksort(1, 9) end. Activations:begin sort enter readarray leave readarray enter quicksort(1,9) enter partition(1,9) leave partition(1,9) enter quicksort(1,3) … leave quicksort(1,3) enter quicksort(5,9) … leave quicksort(5,9) leave quicksort(1,9)end sort.

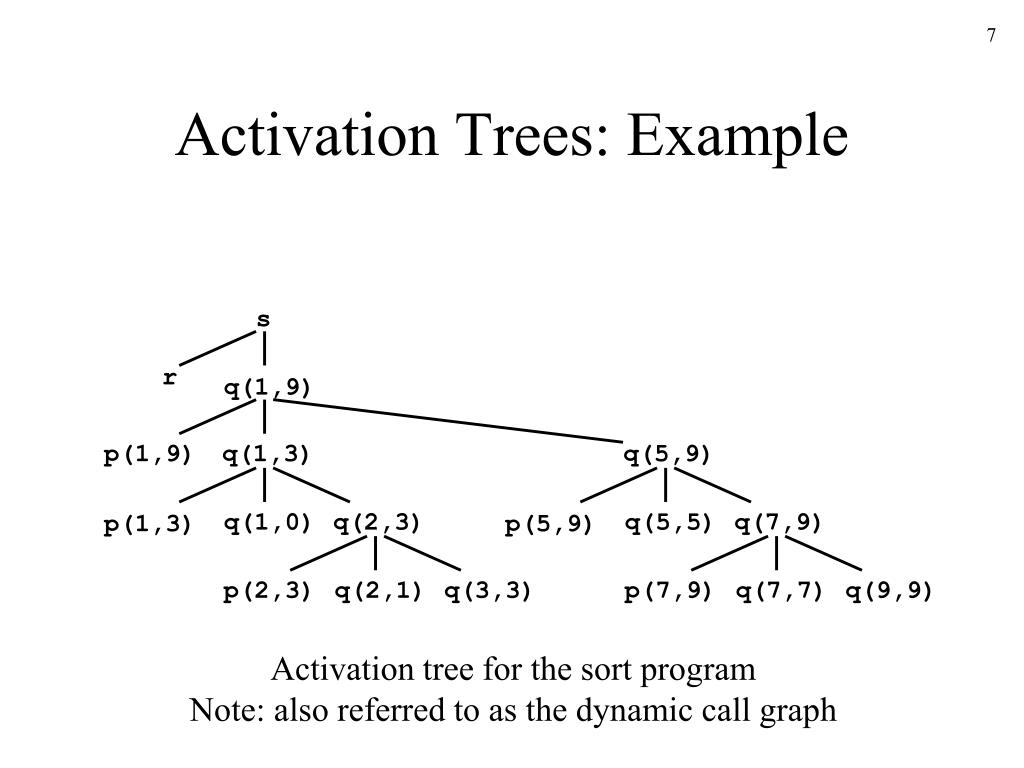

7. Activation Trees: Example s r q(1,9) p(1,9) q(1,3) q(5,9) q(1,0) q(2,3) q(5,5) q(7,9) p(1,3) p(5,9) p(2,3) q(2,1) q(3,3) p(7,9) q(7,7) q(9,9) Activation tree for the sort programNote: also referred to as the dynamic call graph

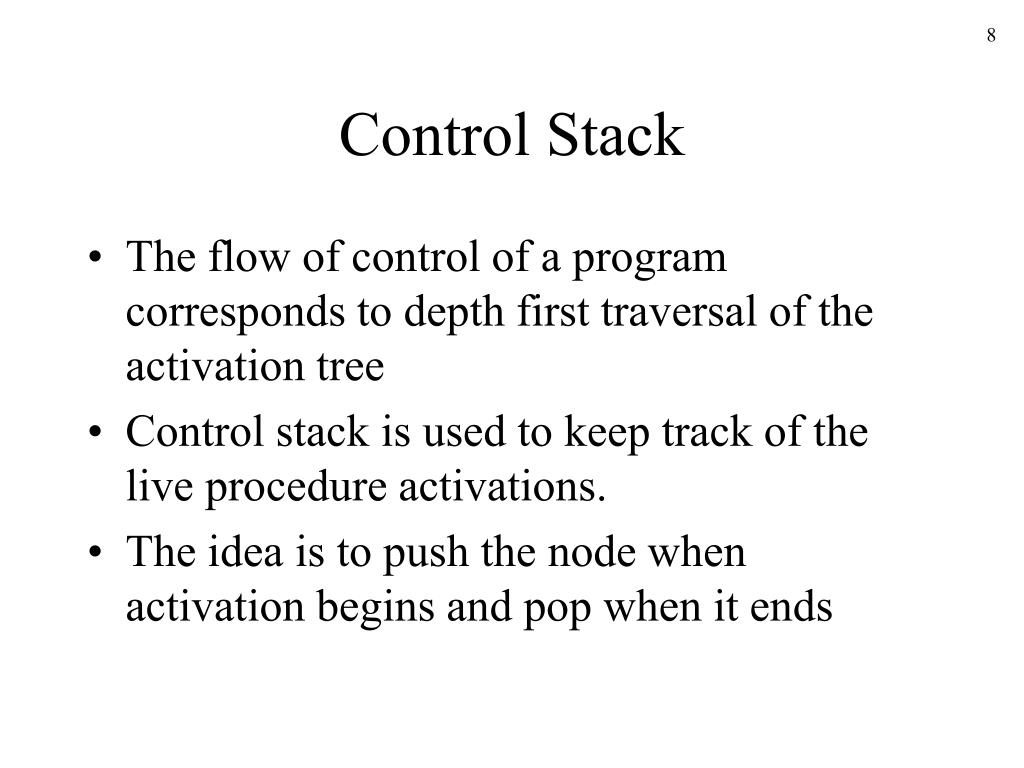

8. Control Stack • The flow of control of a program corresponds to depth first traversal of the activation tree • Control stack is used to keep track of the live procedure activations. • The idea is to push the node when activation begins and pop when it ends

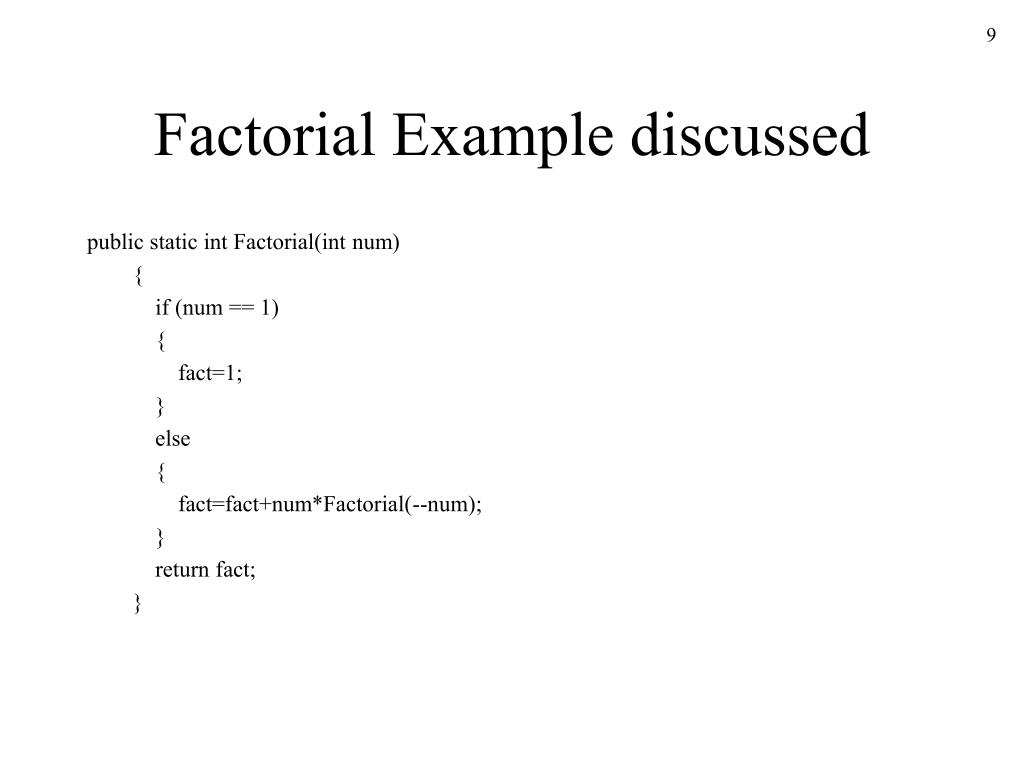

9. Factorial Example discussed public static int Factorial(int num) { if (num == 1) { fact=1; } else { fact=fact+num*Factorial(--num); } return fact; }

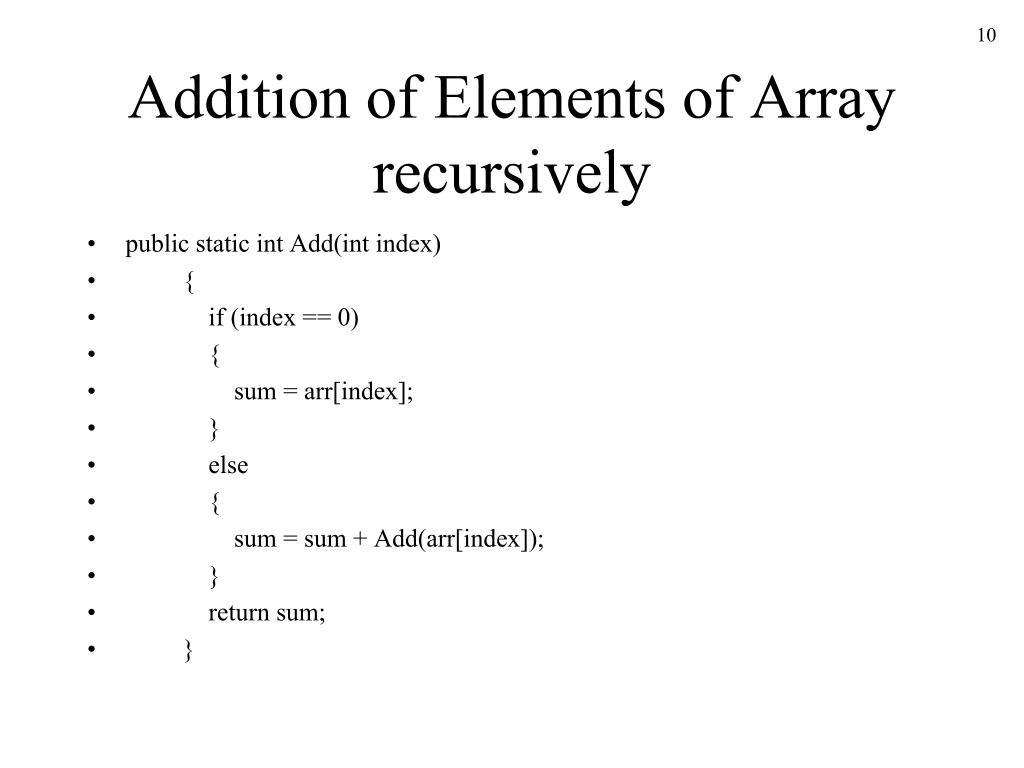

10. Addition of Elements of Array recursively • public static int Add(int index) • { • if (index == 0) • { • sum = arr[index]; • } • else • { • sum = sum + Add(arr[index]); • } • return sum; • }

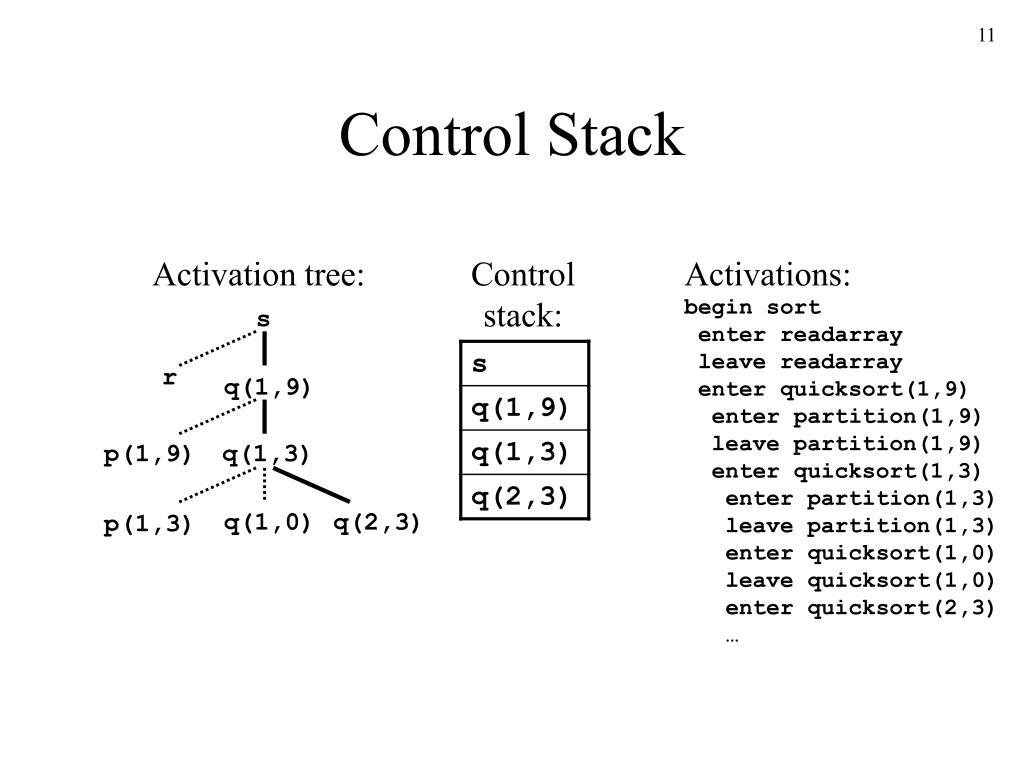

11. Control Stack Activation tree: Controlstack: Activations:begin sort enter readarray leave readarray enter quicksort(1,9) enter partition(1,9) leave partition(1,9) enter quicksort(1,3) enter partition(1,3) leave partition(1,3) enter quicksort(1,0) leave quicksort(1,0) enter quicksort(2,3) … s r q(1,9) p(1,9) q(1,3) q(1,0) q(2,3) p(1,3)

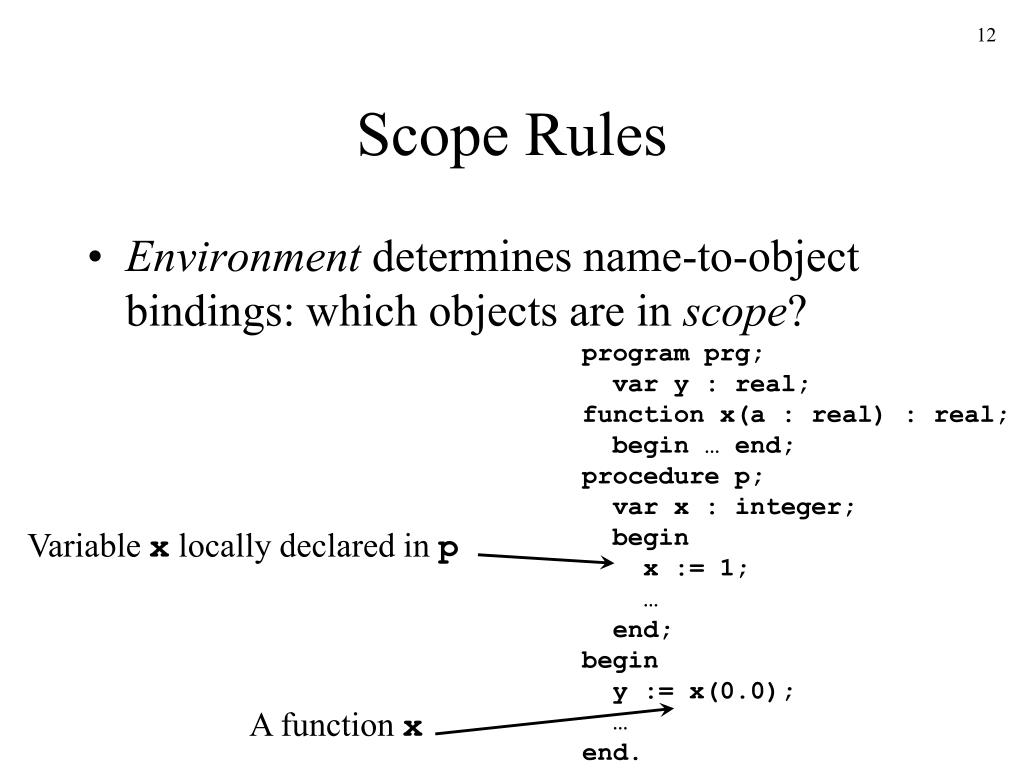

12. Scope Rules • Environment determines name-to-object bindings: which objects are in scope? program prg; var y : real;function x(a : real) : real; begin … end;procedure p; var x : integer; begin x := 1; … end;begin y := x(0.0); …end. Variable x locally declared in p A function x

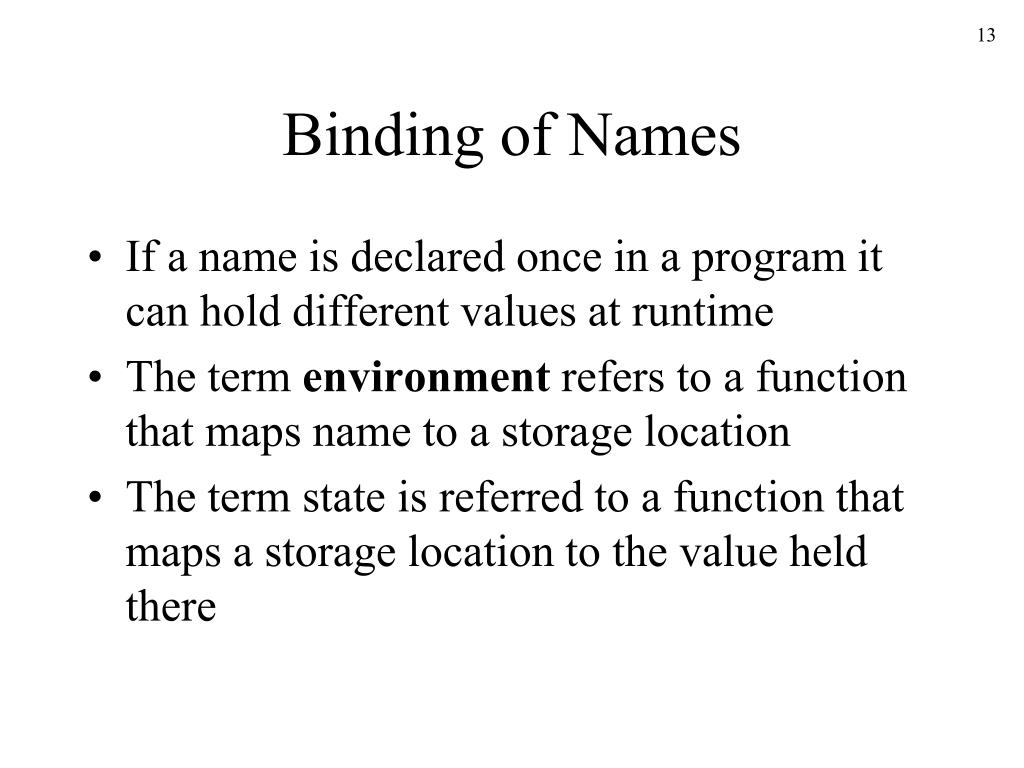

13. Binding of Names • If a name is declared once in a program it can hold different values at runtime • The term environment refers to a function that maps name to a storage location • The term state is referred to a function that maps a storage location to the value held there

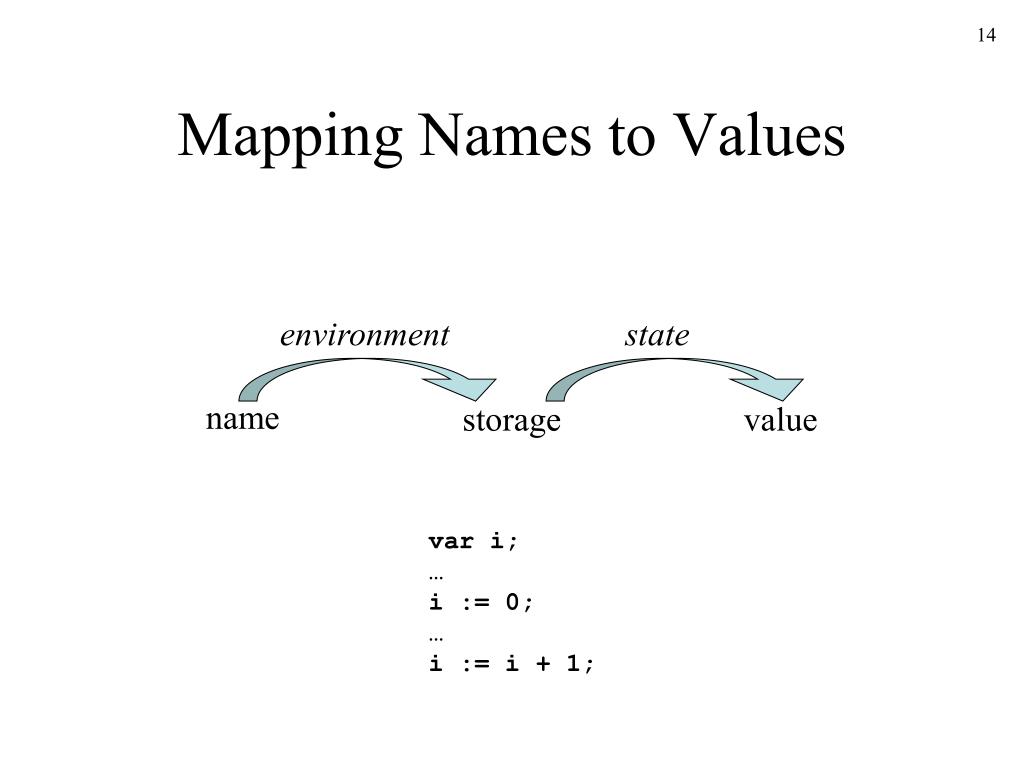

14. Mapping Names to Values environment state name storage value var i;…i := 0;…i := i + 1;

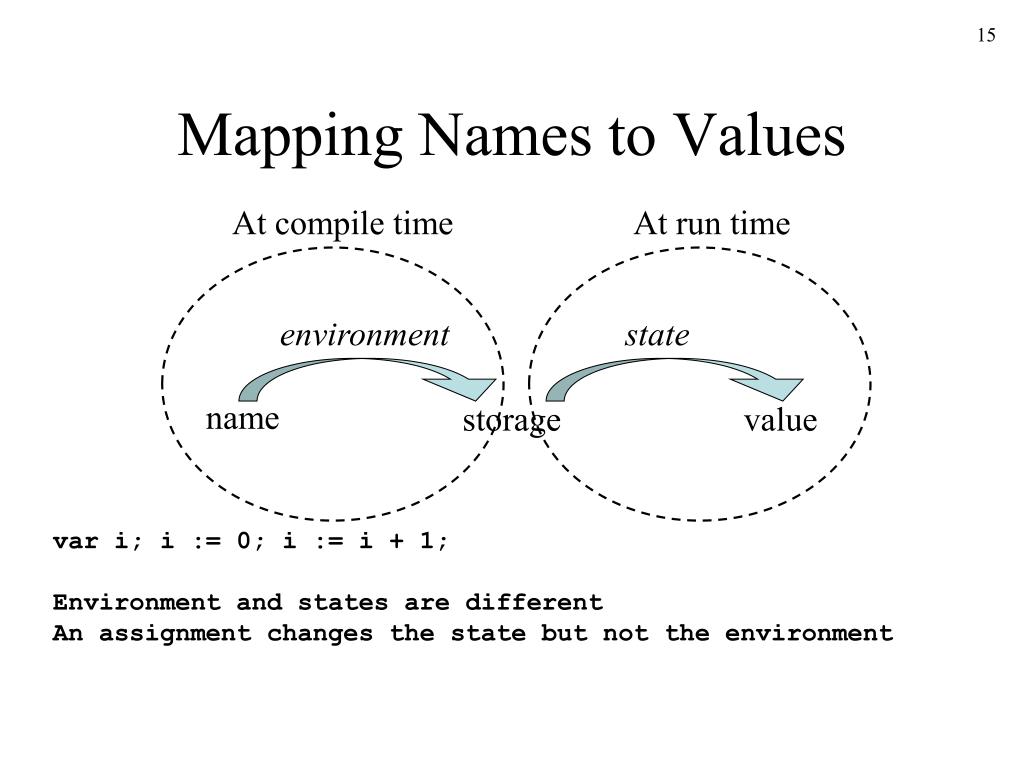

15. Mapping Names to Values At compile time At run time environment state name storage value var i; i := 0; i := i + 1; Environment and states are different An assignment changes the state but not the environment

16. Static and Dynamic Notions of Bindings

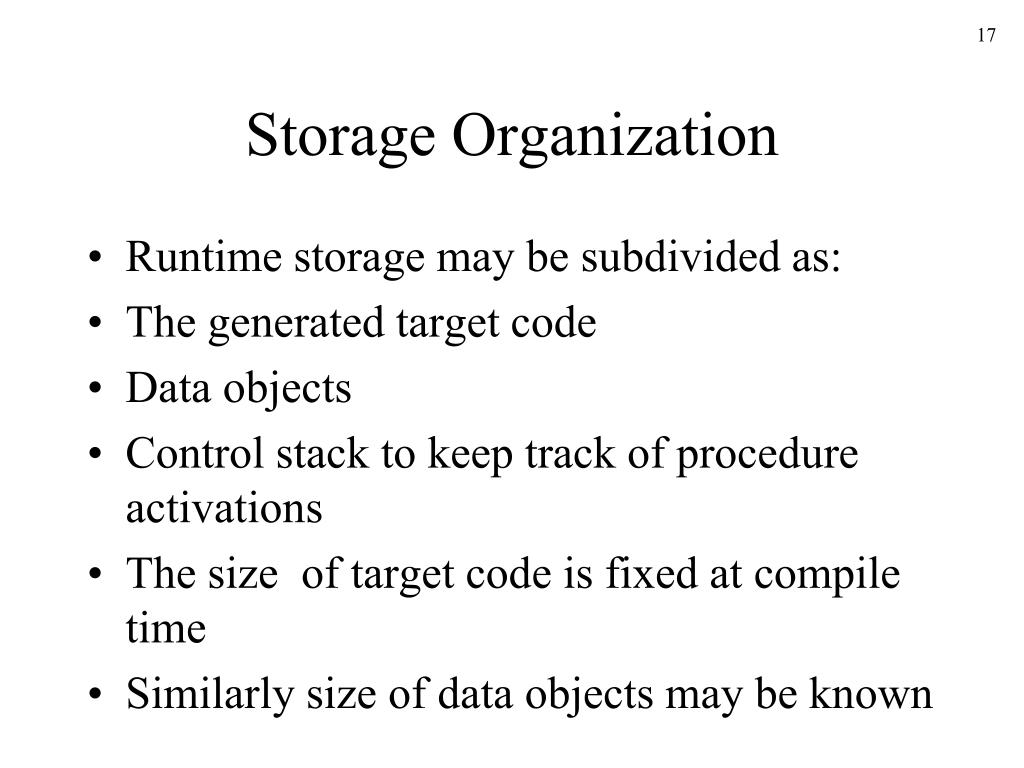

17. Storage Organization • Runtime storage may be subdivided as: • The generated target code • Data objects • Control stack to keep track of procedure activations • The size of target code is fixed at compile time • Similarly size of data objects may be known

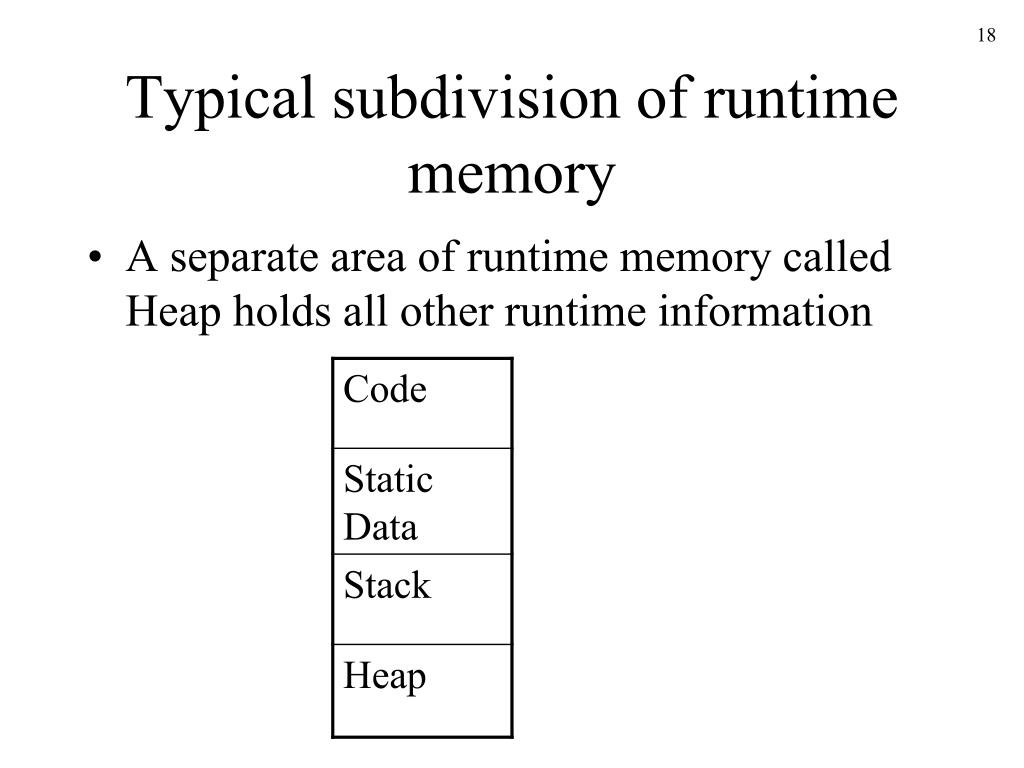

18. Typical subdivision of runtime memory • A separate area of runtime memory called Heap holds all other runtime information

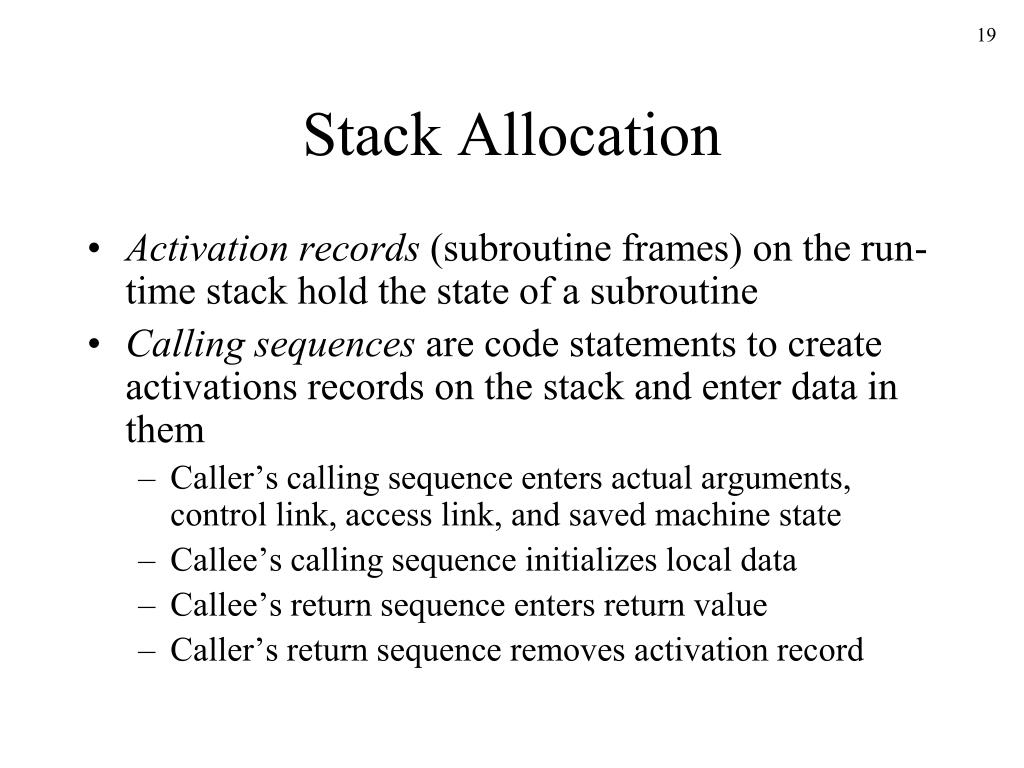

19. Stack Allocation • Activation records (subroutine frames) on the run-time stack hold the state of a subroutine • Calling sequences are code statements to create activations records on the stack and enter data in them • Caller’s calling sequence enters actual arguments, control link, access link, and saved machine state • Callee’s calling sequence initializes local data • Callee’s return sequence enters return value • Caller’s return sequence removes activation record

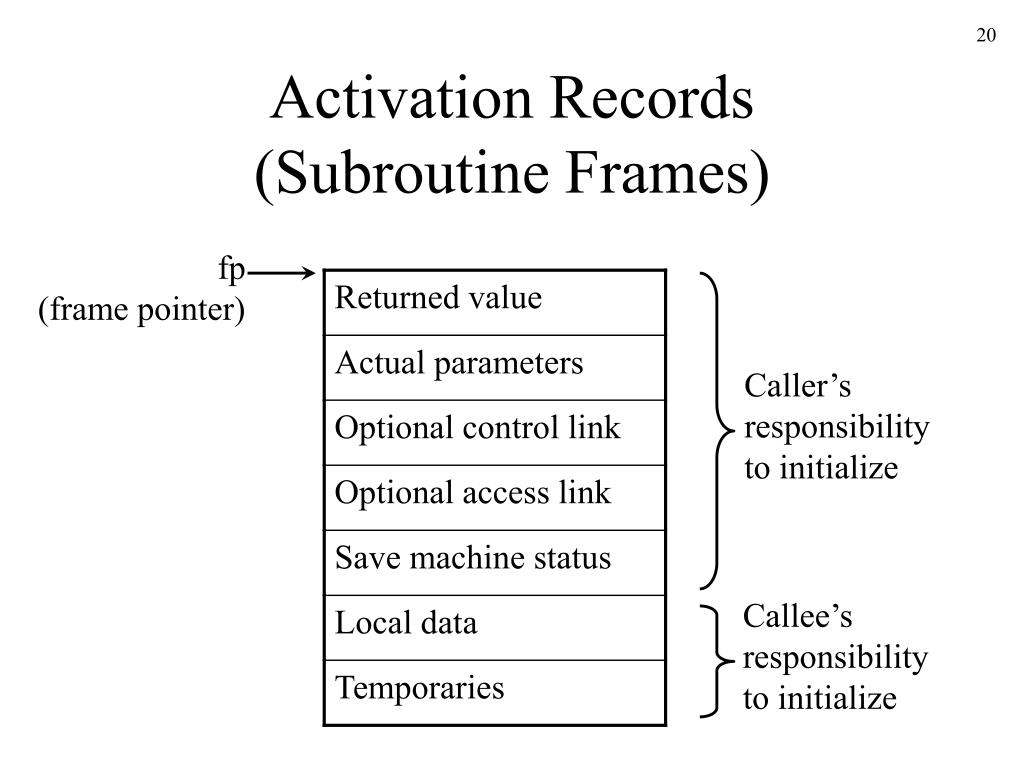

20. Activation Records(Subroutine Frames) fp(frame pointer) Caller’sresponsibilityto initialize Callee’sresponsibilityto initialize

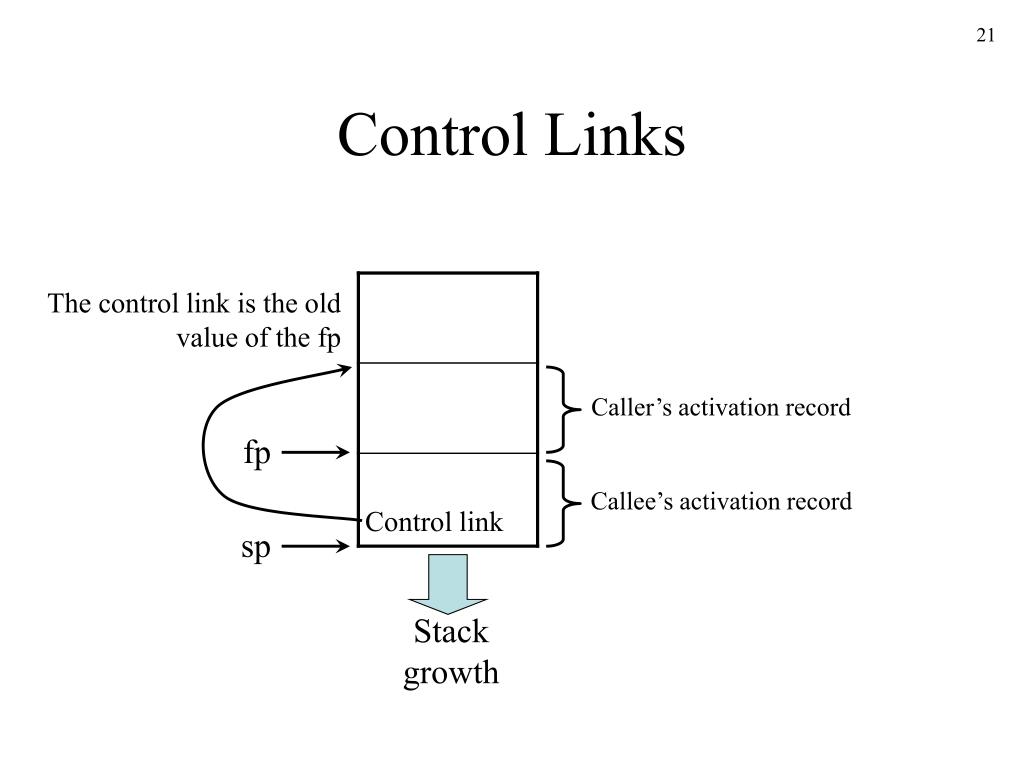

21. Control Links The control link is the old value of the fp Caller’s activation record fp Callee’s activation record Control link sp Stackgrowth

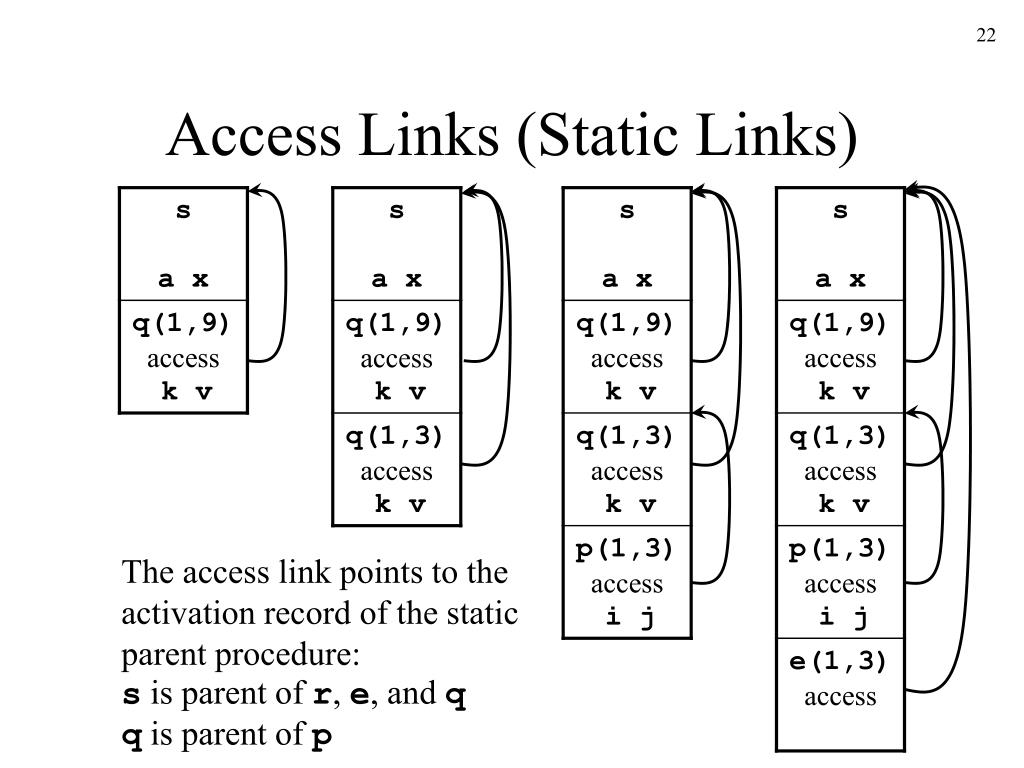

22. Access Links (Static Links) The access link points to the activation record of the static parent procedure: s is parent of r, e, and qq is parent of p

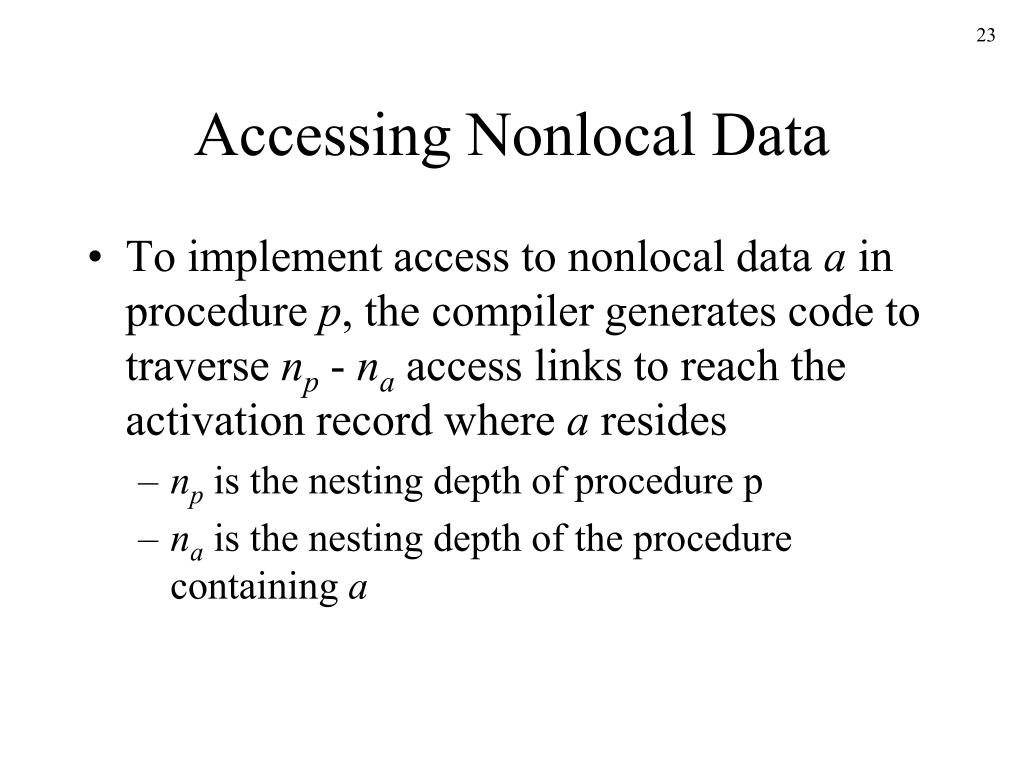

23. Accessing Nonlocal Data • To implement access to nonlocal data a in procedure p, the compiler generates code to traverse np - na access links to reach the activation record where a resides • np is the nesting depth of procedure p • na is the nesting depth of the procedure containing a

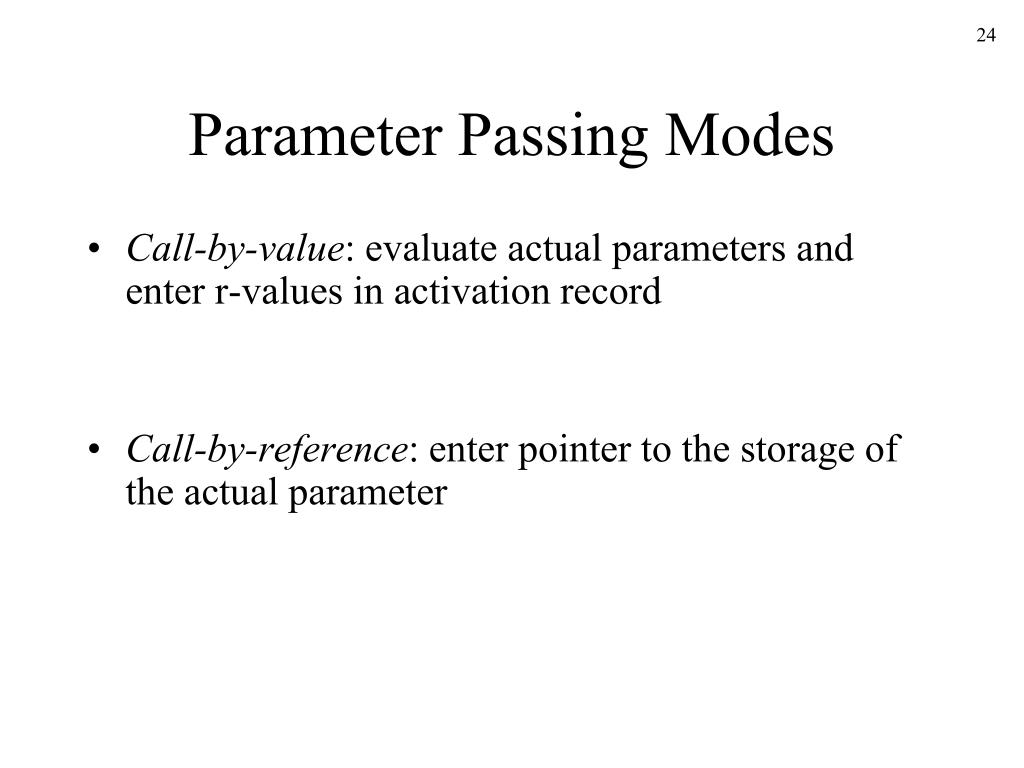

24. Parameter Passing Modes • Call-by-value: evaluate actual parameters and enter r-values in activation record • Call-by-reference: enter pointer to the storage of the actual parameter
