COP 3530: Data Structures, Algorithms, & Applications

1. COP 3530: Data Structures, Algorithms, & Applications Instructor: Kristian Linn Damkjer

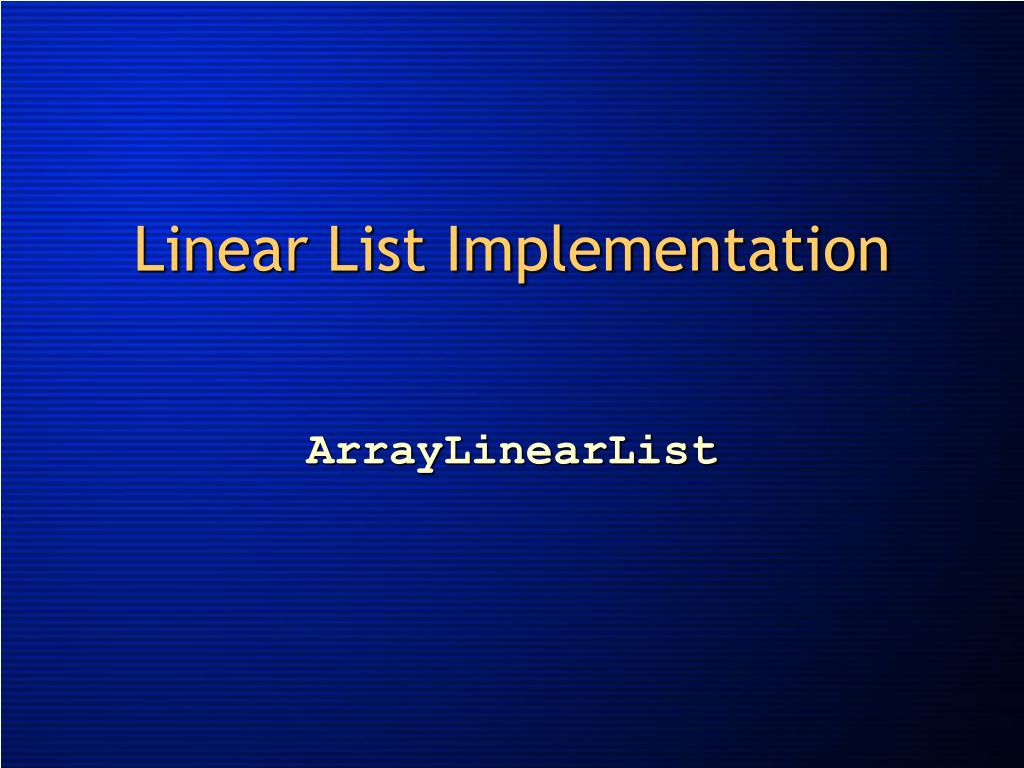

2. Linear List Implementation ArrayLinearList

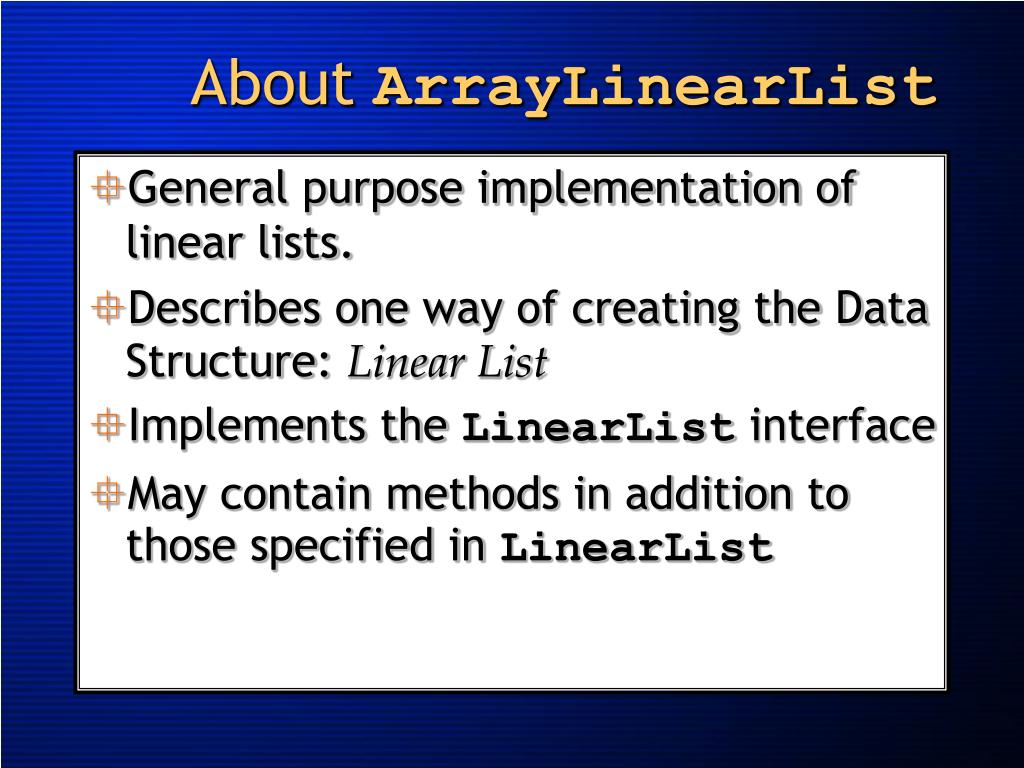

3. About ArrayLinearList • General purpose implementation of linear lists. • Describes one way of creating the Data Structure: Linear List • Implements the LinearList interface • May contain methods in addition to those specified in LinearList

4. Creating New Lists • All lists are initially empty • This is simply by design, not a limitation • What must we consider? • Use of data structure in program • Initial size of array • Examples: ArrayLinearList a = new ArrayLinearList(100), b = new ArrayLinearList(), c; LinearList d = new ArrayLinearList(100), e = new ArrayLinearList(), f;

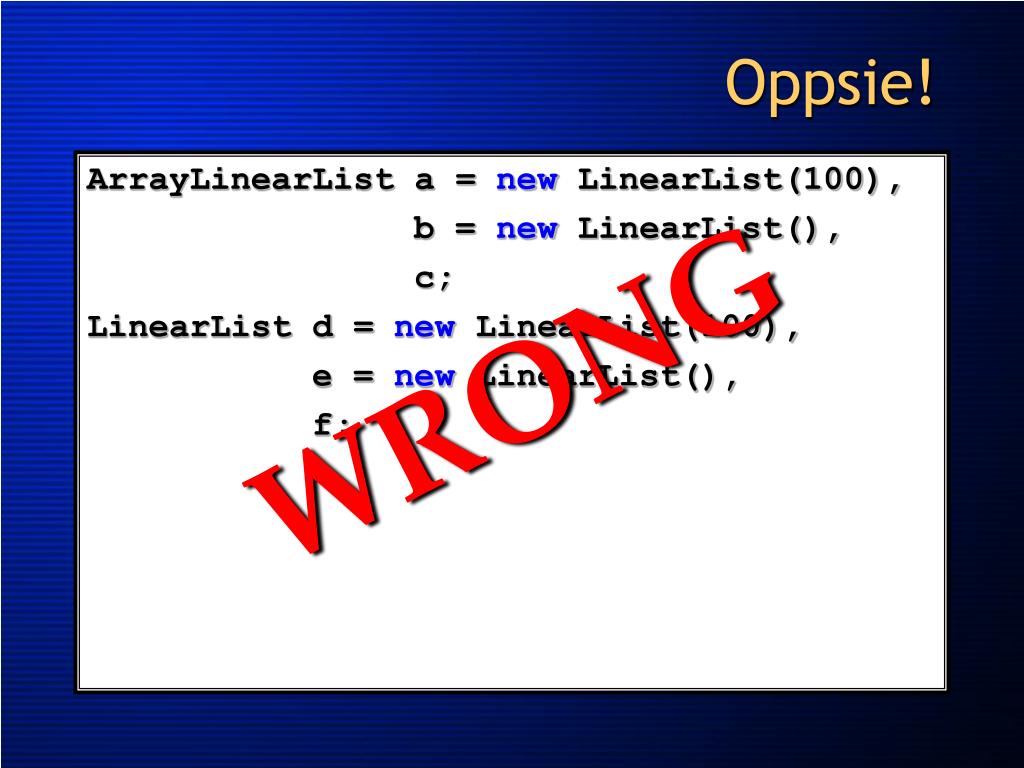

5. Oppsie! ArrayLinearList a = new LinearList(100), b = new LinearList(), c; LinearList d = new LinearList(100), e = new LinearList(), f; WRONG

6. Using Linear Lists • Should not depend on the implementation • Example: System.out.println(a.size()); a.add(0, new Integer(2)); b.add(0, new Integer(4)); System.out.println(a); b.remove(0); if (a.isEmpty()) a.add(0, new Integer(5));

7. Why keep it generic? • Consider an array of Linear Lists • By declaring the array as type LinearList, we may store any instances of any implementation we wish. • Example: LinearList[] x = new LinearList[4]; x[0] = new ArrayLinearList(20); x[1] = new Chain(); x[2] = new Chain(); x[3] = new ArrayLinearList(); for (int i = 0; i < 4; i++) x[i].add(0, new Integer(i));

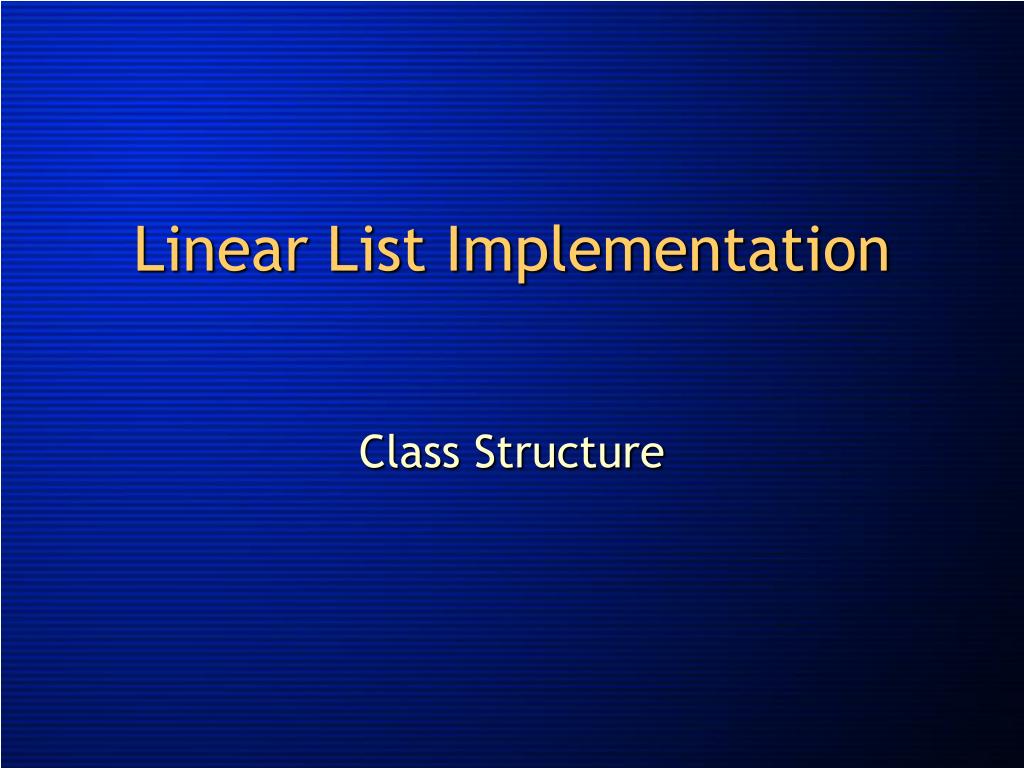

8. Linear List Implementation Class Structure

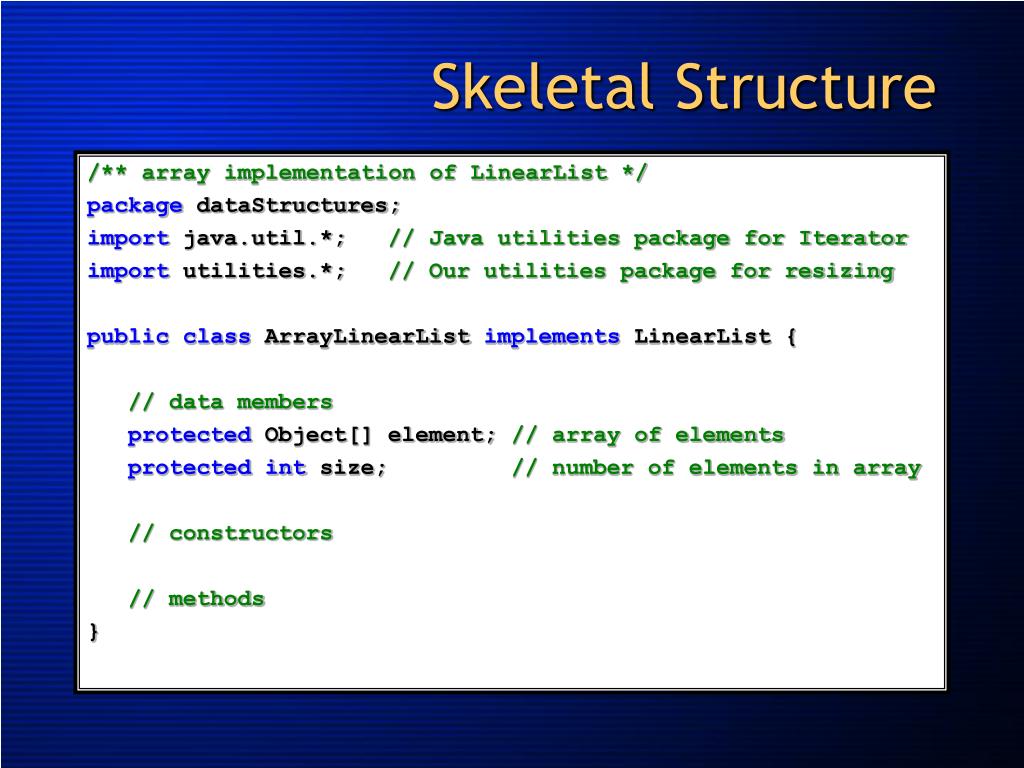

9. Skeletal Structure /** array implementation of LinearList */ package dataStructures; import java.util.*; // Java utilities package for Iterator import utilities.*; // Our utilities package for resizing public class ArrayLinearList implements LinearList { // data members protected Object[] element; // array of elements protected int size; // number of elements in array // constructors // methods }

10. Linear List Implementation Constructors

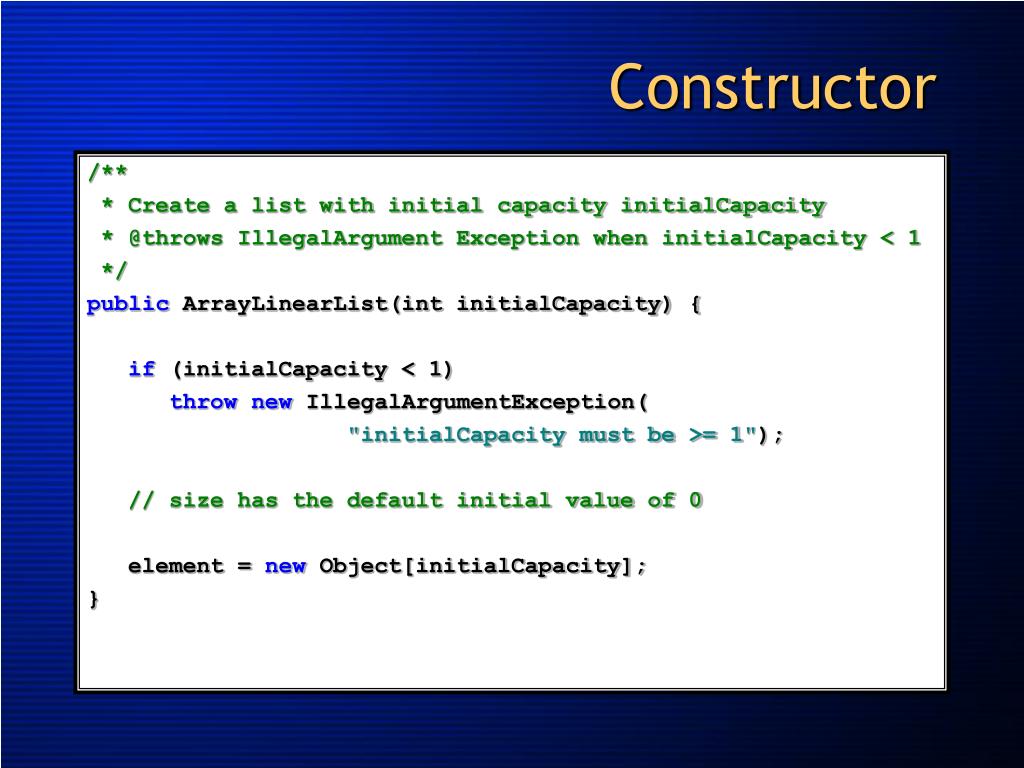

11. Constructor /** * Create a list with initial capacity initialCapacity * @throws IllegalArgument Exception when initialCapacity < 1 */ public ArrayLinearList(int initialCapacity) { if (initialCapacity < 1) throw new IllegalArgumentException( "initialCapacity must be >= 1"); // size has the default initial value of 0 element = new Object[initialCapacity]; }

12. No-Argument Constructor /** * Create a list with initial capacity 10 */ public ArrayLinearList() { // use the default capacity of 10 this(10); }

13. Linear List Implementation Methods

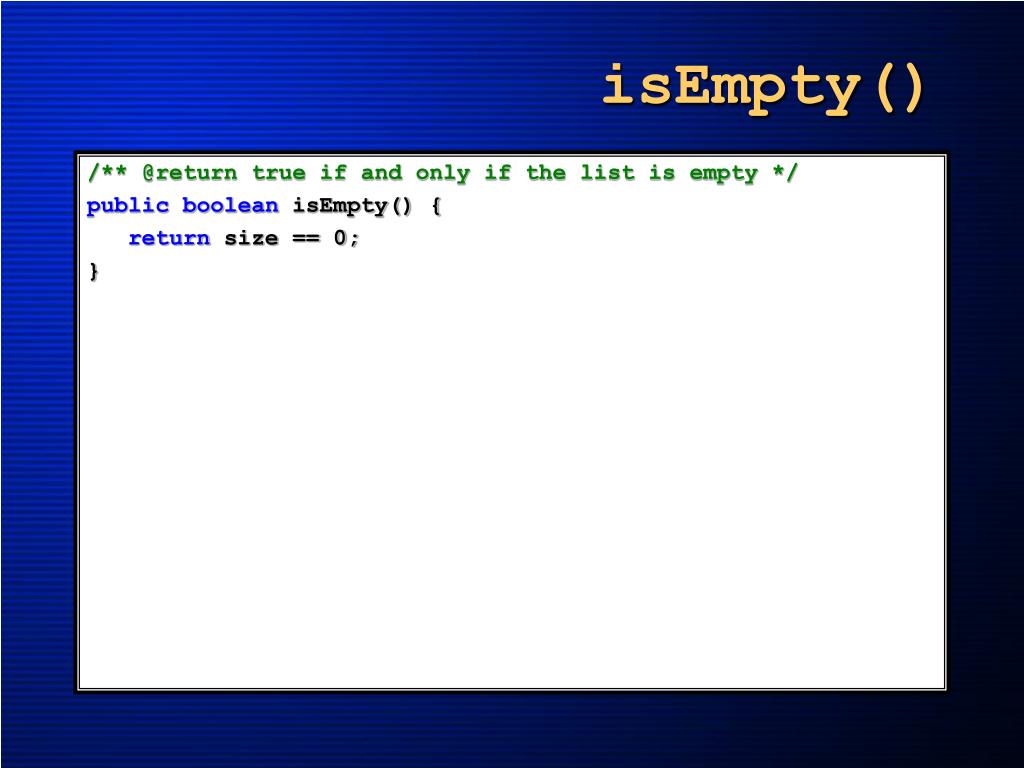

14. isEmpty() /** @return true if and only if the list is empty */ public boolean isEmpty() { return size == 0; }

15. size() /** @return current number of elements in the list */ public int size() { return size; }

16. checkIndex() /** @throws IndexOutOfBoundsException */ void checkIndex(int index) { if (index < 0 || index >= size) throw new IndexOutOfBoundsException( "index = " + index + "size = " + size); }

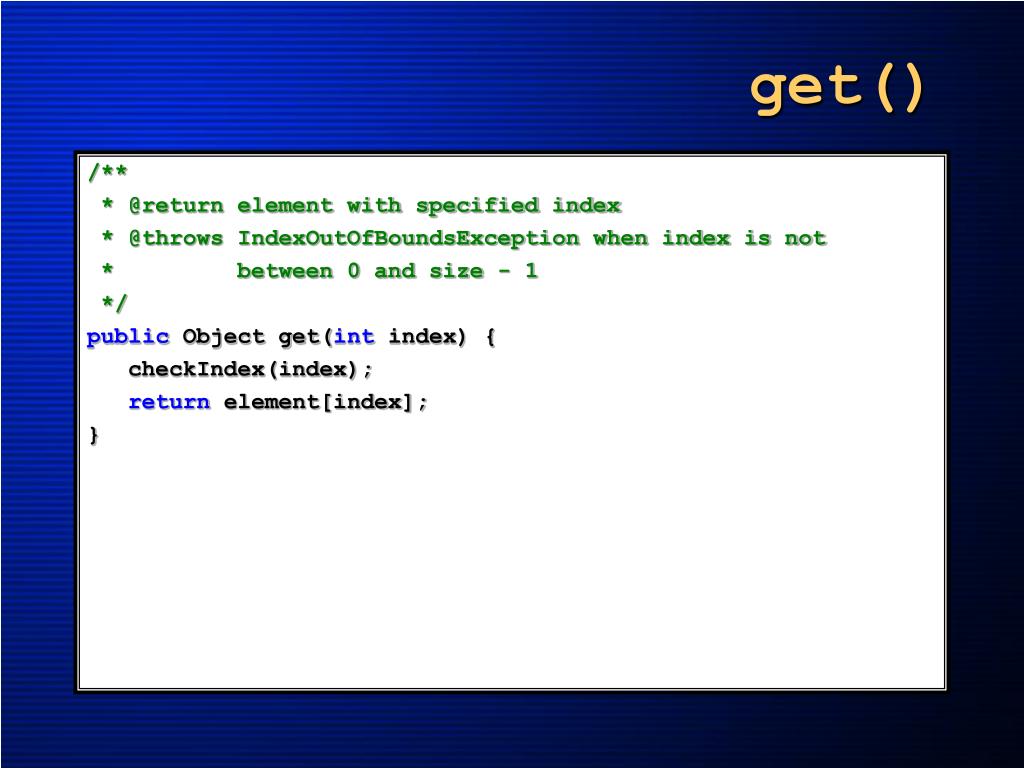

17. get() /** * @return element with specified index * @throws IndexOutOfBoundsException when index is not * between 0 and size - 1 */ public Object get(int index) { checkIndex(index); return element[index]; }

18. indexOf() /** * @return index of first occurrence of theElement, * return -1 if theElement is not in the list */ public int indexOf(Object theElement) { // search element[] for theElement for (int i = 0; i < size; i++) if (element[i].equals(theElement)) return i; // return -1 if theElement was not found return -1; }

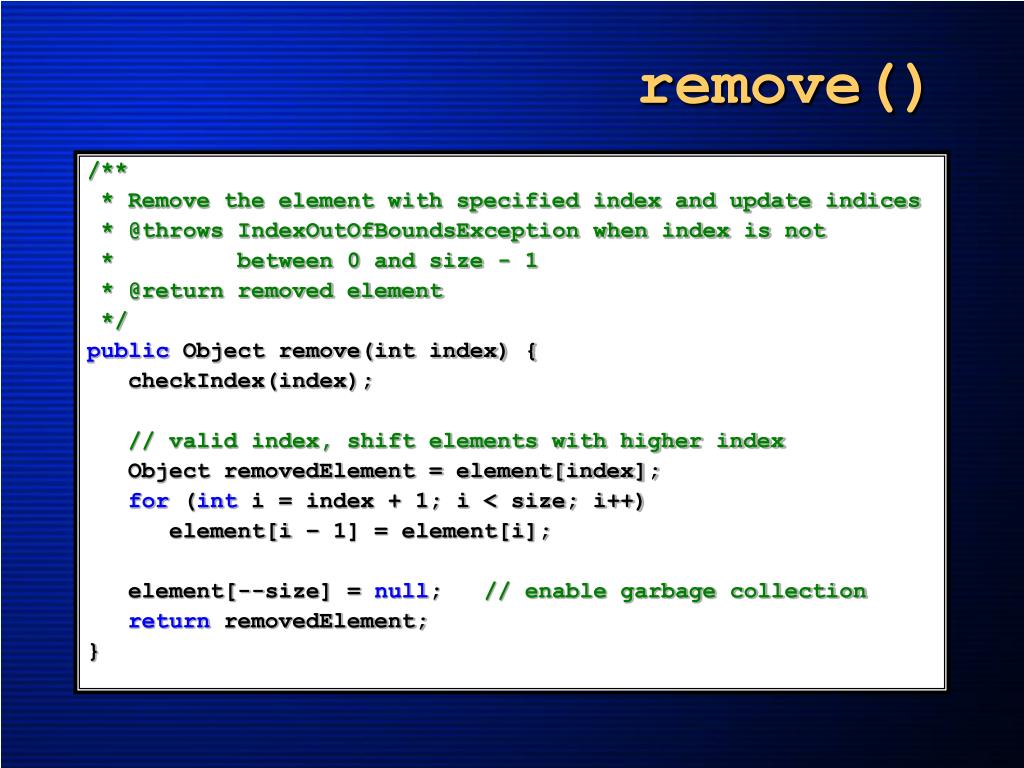

19. remove() /** * Remove the element with specified index and update indices * @throws IndexOutOfBoundsException when index is not * between 0 and size - 1 * @return removed element */ public Object remove(int index) { checkIndex(index); // valid index, shift elements with higher index Object removedElement = element[index]; for (int i = index + 1; i < size; i++) element[i – 1] = element[i]; element[--size] = null; // enable garbage collection return removedElement; }

20. add() /** * Insert an element with specified index. All elements with * equal or higher index have their index increased by 1. * @throws IndexOutOfBoundsException when index is not * between 0 and size */ public void add(int index, Object theElement) { if (index < 0 || index > size) // invalid list position throw new IndexOutOfBoundsException( "index = " + index + "size = " + size);

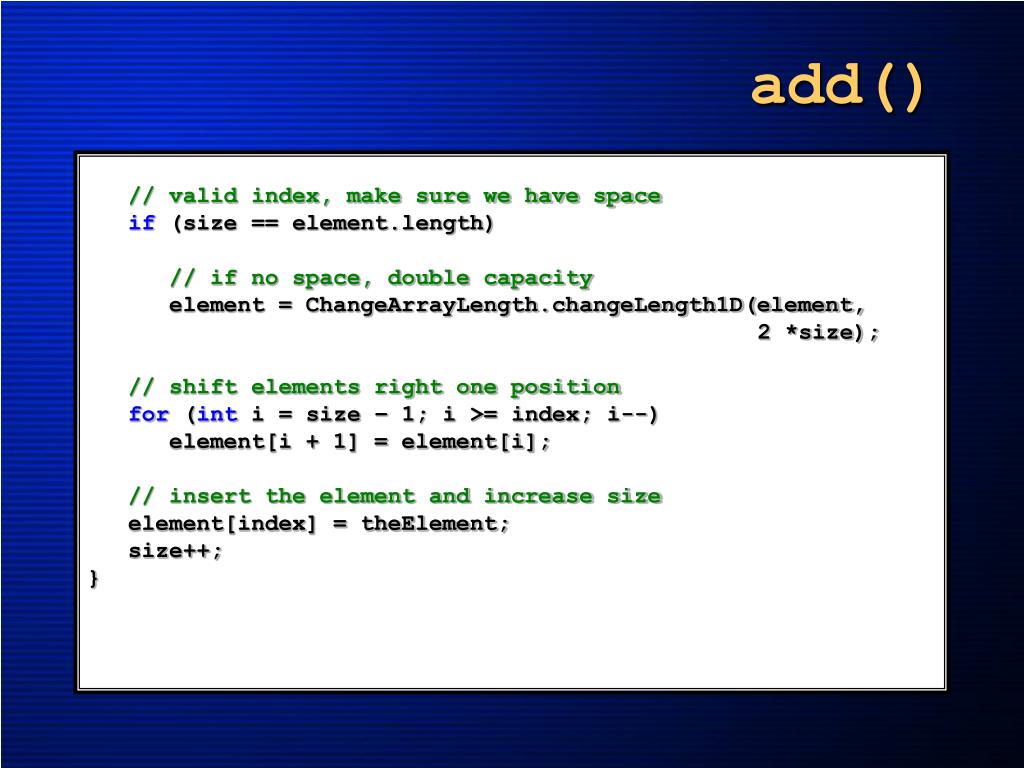

21. add() // valid index, make sure we have space if (size == element.length) // if no space, double capacity element = ChangeArrayLength.changeLength1D(element, 2 *size); // shift elements right one position for (int i = size – 1; i >= index; i--) element[i + 1] = element[i]; // insert the element and increase size element[index] = theElement; size++; }

22. Faster Shift System.arraycopy( // original array element, // starting index in original index, // target array element, // starting index in target index + 1, // number of elements to copy size – index );

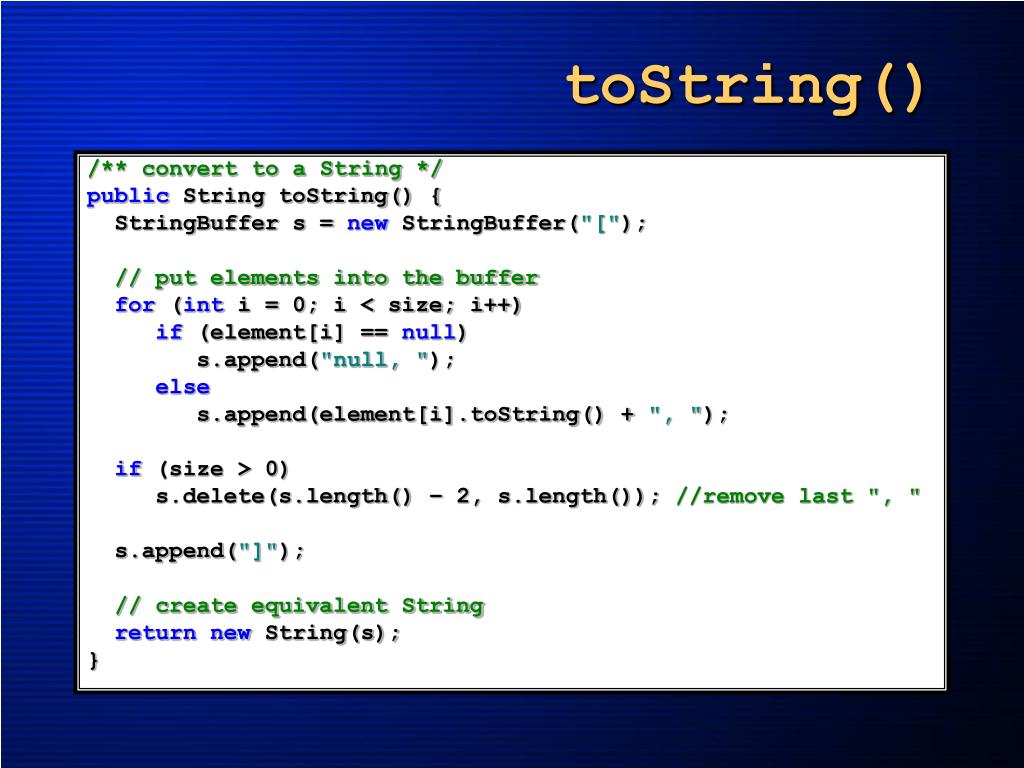

23. toString() /** convert to a String */ public String toString() { StringBuffer s = new StringBuffer("["); // put elements into the buffer for (int i = 0; i < size; i++) if (element[i] == null) s.append("null, "); else s.append(element[i].toString() + ", "); if (size > 0) s.delete(s.length() – 2, s.length()); //remove last ", " s.append("]"); // create equivalent String return new String(s); }

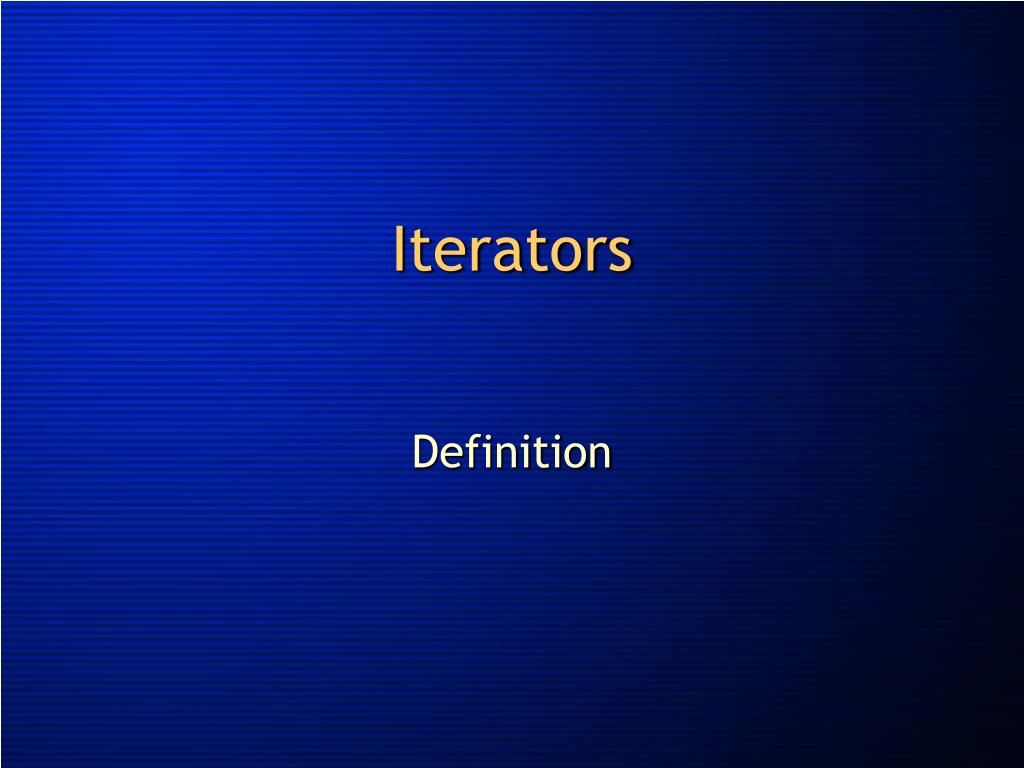

24. Iterators Definition

25. What is an iterator? • An iterator facilitates the iterative examination of data structure elements • We will often need to examine all elements in a data structure • Repeated get operations usually have a lot of unnecessary overhead • Not all structures have a get behavior • Java provides Iterator as an interface

26. Iterator Methods

27. Creating Iterators • Contrary to what you’re used to, iterators are generally not instantiated directly. Iterator ix = new IteratorImplementation(); • Instead you should use the iterator method which must be defined for Iterator implementations Iterator ix = myObject.iterator(); DON’T DO THIS

28. What can iterators do? • Iterators are very simple, they only have three behaviors in addition to iterator • They can correctly identify whether or not there is an element immediately after the current element • They can tell us what the next element is, if there is one • Has the side-effect of making the next element the currently examined element • They may be able to remove the current element, though this is not always guaranteed

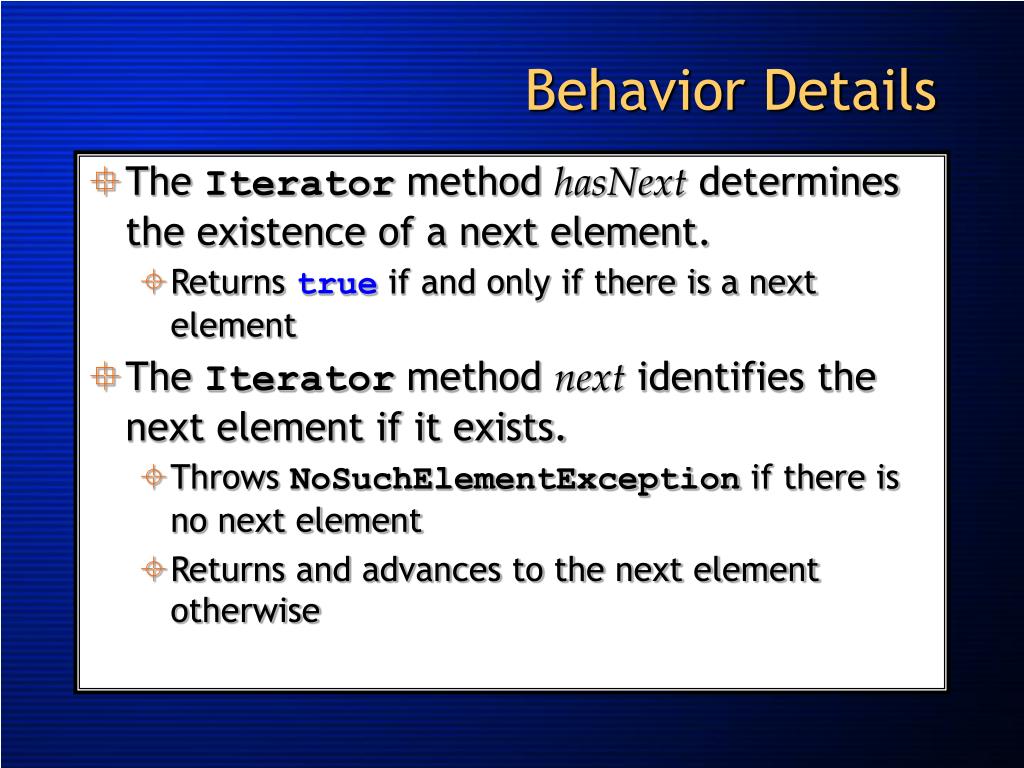

29. Behavior Details • The Iterator method hasNext determines the existence of a next element. • Returns true if and only if there is a next element • The Iterator method next identifies the next element if it exists. • Throws NoSuchElementException if there is no next element • Returns and advances to the next element otherwise

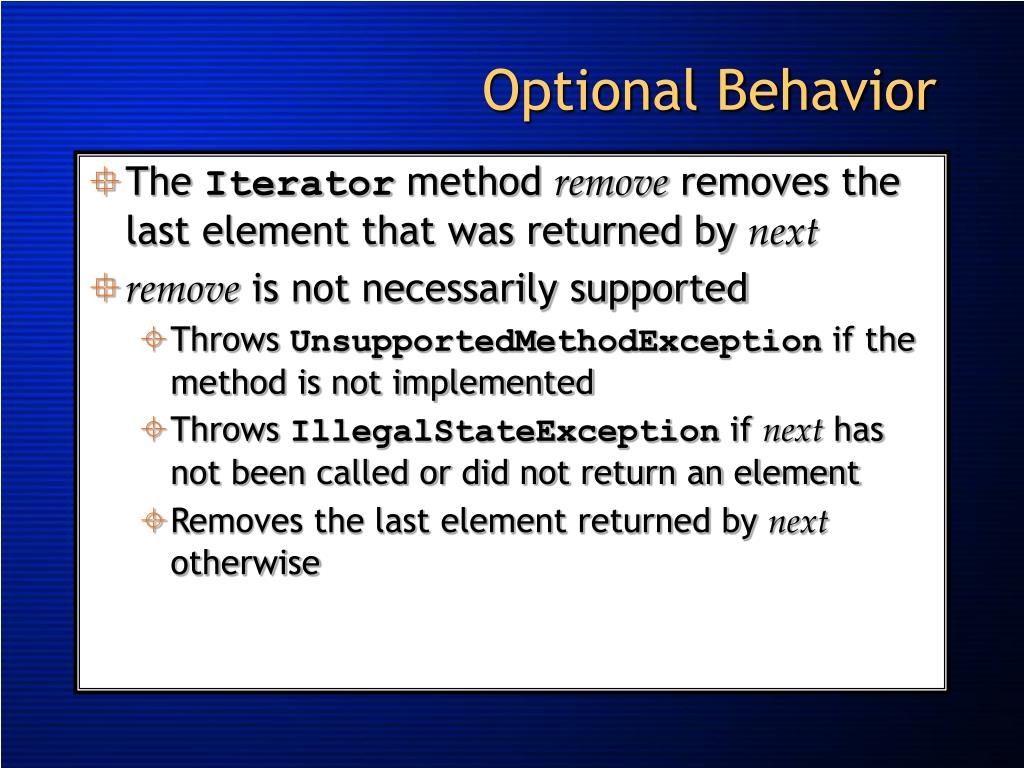

30. Optional Behavior • The Iterator method remove removes the last element that was returned by next • remove is not necessarily supported • Throws UnsupportedMethodException if the method is not implemented • Throws IllegalStateException if next has not been called or did not return an element • Removes the last element returned by next otherwise

31. Using Iterators • What you’re used to doing: for (int i = 0; i < x.size(); i++) doSomthingWith(x.get(i)); • Now with an iterator: Iterator ix = x.iterator(); while(ix.hasNext()) doSomethingWith(ix.next());

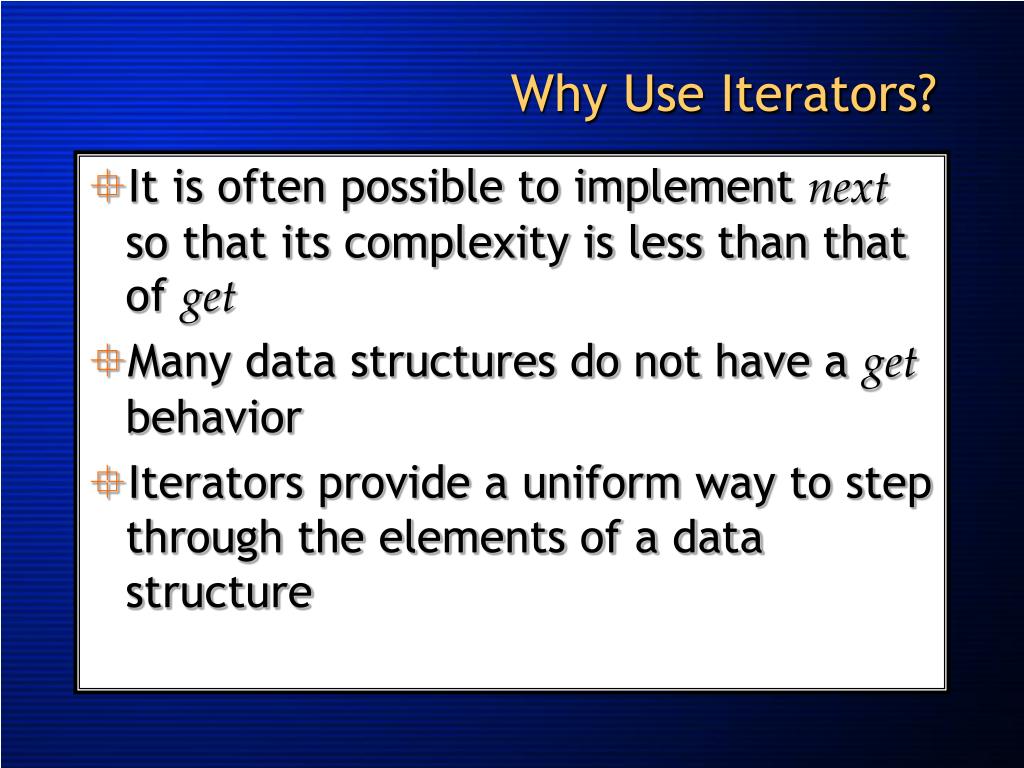

32. Why Use Iterators? • It is often possible to implement next so that its complexity is less than that of get • Many data structures do not have a get behavior • Iterators provide a uniform way to step through the elements of a data structure

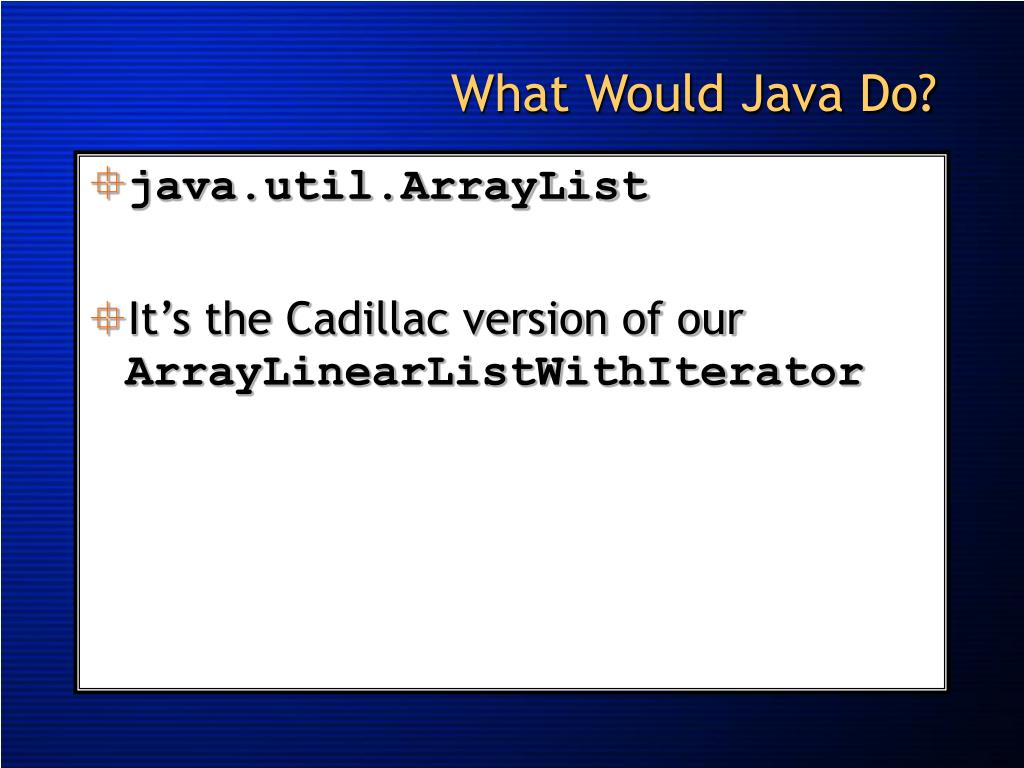

33. What Would Java Do? • java.util.ArrayList • It’s the Cadillac version of our ArrayLinearListWithIterator

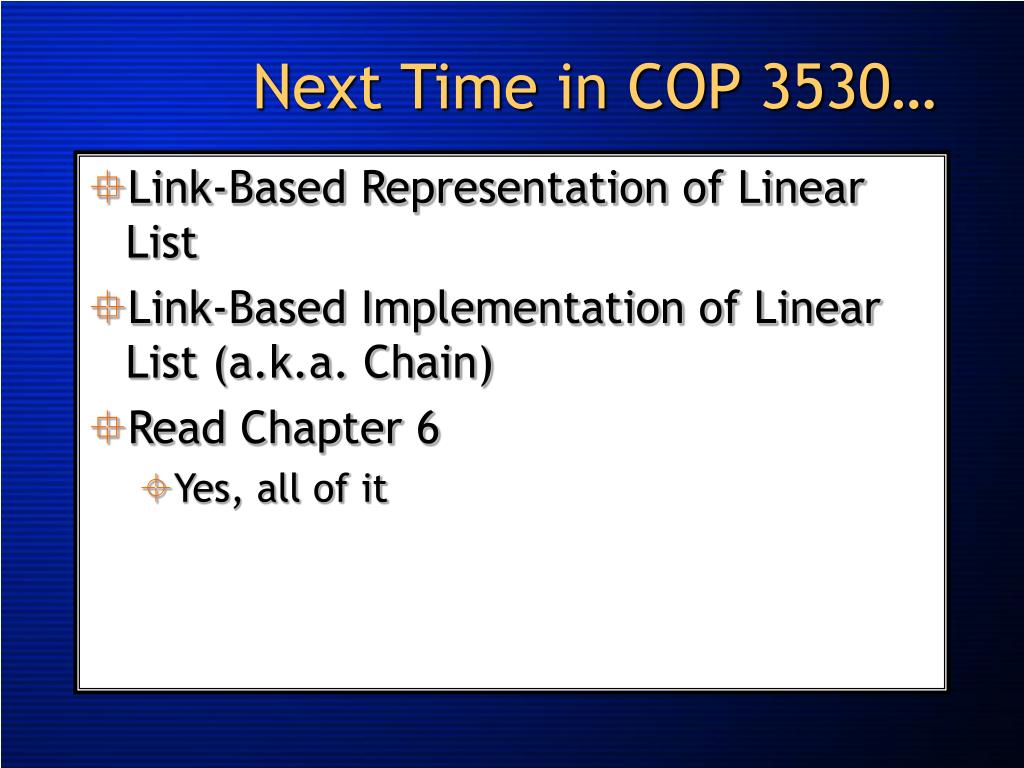

34. Next Time in COP 3530… • Link-Based Representation of Linear List • Link-Based Implementation of Linear List (a.k.a. Chain) • Read Chapter 6 • Yes, all of it
