realizing the performance potential of the virtual interface architecture

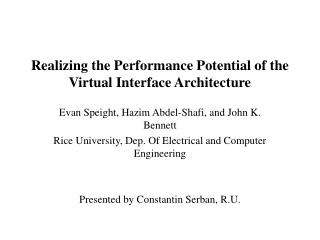

Realizing the Performance Potential of the Virtual Interface Architecture

Evan Speight, Hazim Abdel-Shafi, and John K. Bennett

Rice University, Dep. Of Electrical and Computer Engineering

Presented by Constantin Serban, R.U.

via goals
VIA Goals
  • Communication infrastructure for System Area Networks (SANs)
  • Targets mainly high speed cluster applications
  • Efficiently harnesses the communication performance of underlying networks
trends
Trends
  • The peak bandwidth increase two order of magnitude over past decade while user latency decreased modestly.
  • The latency introduced by the protocol is typically several times the latency of the transport layer.
  • The problem becomes acute especially for small messages
targets
Targets

VI architecture addresses the following issues:

  • Decrease the latency especially for small messages (used in synchronization)
  • Increase the aggregate bandwidth (only a fraction of the peak bandwidth is utilized)
  • Reduce the CPU processing due to the message overhead
overhead
Overhead

Overhead mainly comes from two sources:

  • Every network access requires one-two traps into the kernel
    • user/kernel mode switch is time consuming
  • Usually two data copies occur:
    • From the user buffer to the message passing API
    • From message layer to the kernel buffer
via approach
VIA approach
  • Remove the kernel from the critical path
    • Moving communication code out of the kernel into user space
  • Provide 0-copy protocol
    • Data is sent/received directly into the user buffer, no message copy is performed
slide7
VIA emerged as a standardization effort from Compaq, Intel, and Microsoft

It was built on several academic ideas:

  • The main architecture most similar to U-Net
  • Essential features derived from VMMC

Among current implementations :

    • GigaNet cLan – VIA implemented in hardware
    • Tandem ServerNet –VIA software driver emulated
    • Myricom Myrinet - software emulated in firmware
via operations
VIA operations

Set-Up/Tear-Down :

  • VIA is point-to-point connection oriented protocol
  • VI-endpoint : the core concept in VIA
  • Register/De-Register Memory
  • Connect/Disconnect
  • Transmit
  • Receive
  • RDMA
via operations1
VIA operations

Set-Up/Tear-Down :VIA is point-to-point connection oriented protocol

  • VI-endpoint : the core concept in VIA
  • VipCreateVi function creates a VI endpoint in the user space.
  • The user-level library passes the call to the kernel agent which passes the creation information to the NIC.
  • OS thus controls the application access to the NIC
via operations cont d
VIA operations - cont’d

Register/De-Register Memory:

  • All data buffers and descriptors reside in a registered memory
  • NIC performs DMA I/O operation in this registered memory
  • Registration pins down the pages into the physical memory and provides a handle to manipulate the pages and transfer the addresses to the NIC
  • It is performed once, usually at the beginning of the communication session
via operations cont d1
VIA operations - cont’d

Connect/Disconnect:

  • Before communication, each endpoint is connected to a remote endpoint
  • The connection is passed to the kernel agent and down to the NIC
  • VIA does not define any addressing scheme, existing schemes can be used in various implementations
via operations cont d2
VIA operations - cont’d

Transmit/receive:

  • The sender builds a descriptor for the message to be sent. The descriptor points to the actual data buffer. Both descriptor and data buffer resides in a registered memory area.
  • The application then posts a doorbell to signal the availability of the descriptor.The doorbell contains the address of the descriptor.
  • The doorbells are maintained in an internal queue inside the NIC
via operations cont d3
VIA operations - cont’d

Transmit/receive (cont’d):

  • Meanwhile, the receiver creates a descriptor that points to an empty data buffer and posts a doorbell in the receiver NIC queue
  • When the doorbell in the sender queue has reached the top of the queue, through a double indirection the data is sent into the network.
  • The first doorbell/ descriptor is picked up from the receiver queue and the buffer is filled out with data
via operations cont d4
VIA operations - cont’d

RDMA:

  • As a mechanism derived from VMMC, VIA allows Remote DMA operations:

RDMA Read and Write

  • Each node allocates a receive buffer and registers it with the NIC. Additional structures that contain read and write pointers to the receive buffers are exchanged during connection setu
  • Each node can read and write to the remote node address directly.
  • These operations posts potential implementation problems.
evaluation benchmarks
Evaluation Benchmarks
  • Two VI implementations :
    • GigaNet cLan B:125MB/sec, Latency 480ns
    • Tandem ServerNet, 50MB/S, Latency 300ns
  • Performance measured:
    • Bandwidth and Latency
    • Poling vs. Blocking
    • CPU Utilization
mpi performance using via
MPI performance using VIA
  • The challenge is to deliver performance to distributed application
  • Software layers such MPI are mostly used between VIA and the application: provide increased usability but they bring additional overhead
  • How to optimize this layer in order to use it efficiently with VIA ?
mpi observations
MPI observations
  • Difference between MPI-UDP and MPI-VIA-baseline is remarkable
  • MPI-VIA-baseline is dramatically far from VIA-Native
  • Several improvements proposed to shift MPI-Via to be closer to VIA native : reduce MPI overhead
mpi improvements
MPI Improvements
  • Eliminating unnecessary copies:

MPI UDP and VIA use a single set of receiving buffers, thus data should be copied to the application : allow the user to register any buffer

  • Choosing a synchronization primitive:

All synchronization formerly using OS constructs/events. Better implementation using swap processor commands

  • No Acknowledge:

Remove the acknowledge of the message by switching to a reliable VIA mode

via disadvantages
VIA - Disadvantages
  • Polling vs. blocking synchronization – a tradeoff between CPU consumption and overhead
  • Memory registration: locking large amount of memory makes virtual memory mechanisms inefficient. Registering / deregistering on the fly is slow
  • Point-to-point vs. multicast: VIA lacks multicast primitives. Implementing multicast over the actual mechanism, makes communication inefficient
conclusion
Conclusion
  • Small latency for small messages. Small messages have a strong impact on application behavior
  • Significant improvement over UDP communication (still after recent TCP/UDP hardware implementations?)
  • At the expense of an uncomfortable API
