How to use Caterpillar ET Software Injection Actuation Pressure Test

The Injection Actuation Pressure Test function checks for leaks on all hydraulic components. This test allows the user to change the desired pressure and then view the actual pressure results.<br><br>https://caterpillarsolution.blogspot.com/2022/03/how-to-use-caterpillar-et-software.html

toccarakindermannlos52
Download Presentation

How to use Caterpillar ET Software Injection Actuation Pressure Test

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

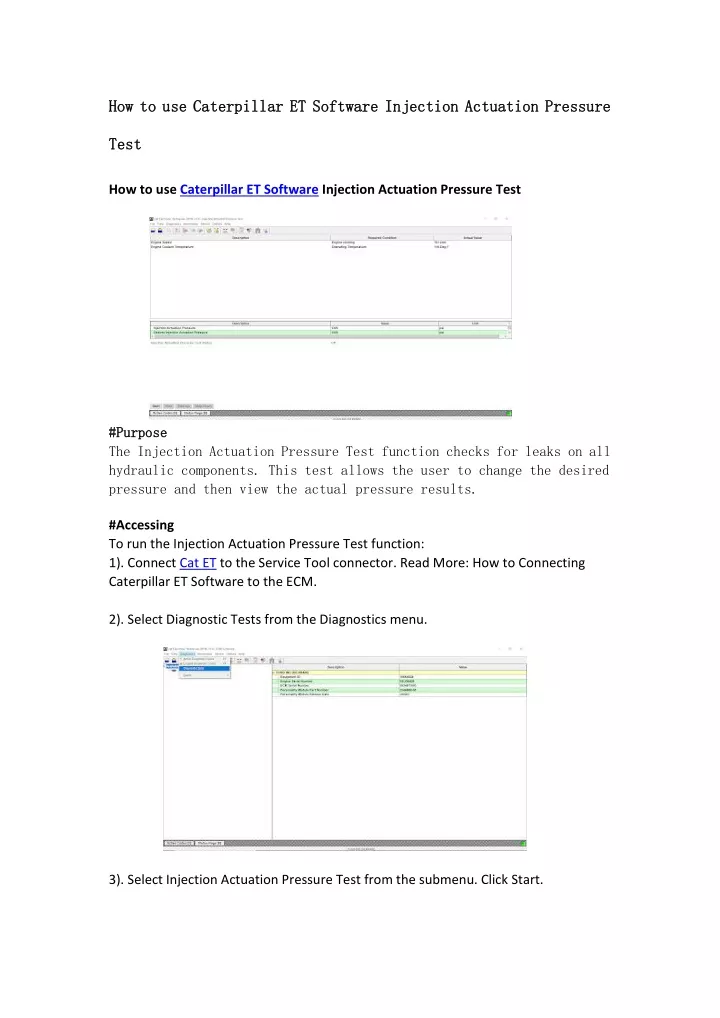

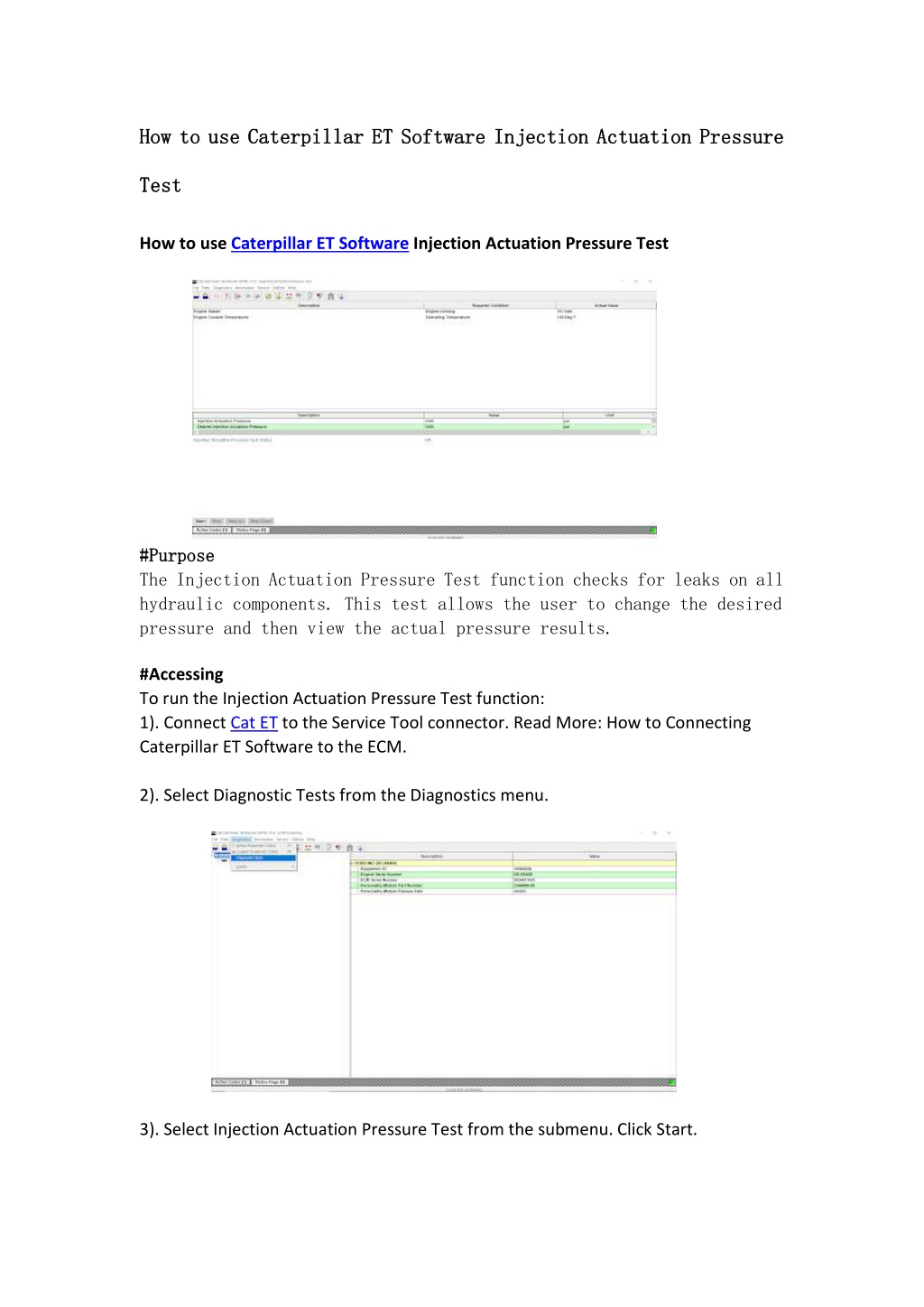

  1. How How to to use use Caterpillar Caterpillar ET ET Software Software Injection Injection Actuation Actuation Pressure Pressure Test Test How to use Caterpillar ET Software Injection Actuation Pressure Test #Purpose #Purpose The Injection Actuation Pressure Test function checks for leaks on all hydraulic components. This test allows the user to change the desired pressure and then view the actual pressure results. #Accessing To run the Injection Actuation Pressure Test function: 1). Connect Cat ET to the Service Tool connector. Read More: How to Connecting Caterpillar ET Software to the ECM. 2). Select Diagnostic Tests from the Diagnostics menu. 3). Select Injection Actuation Pressure Test from the submenu. Click Start.

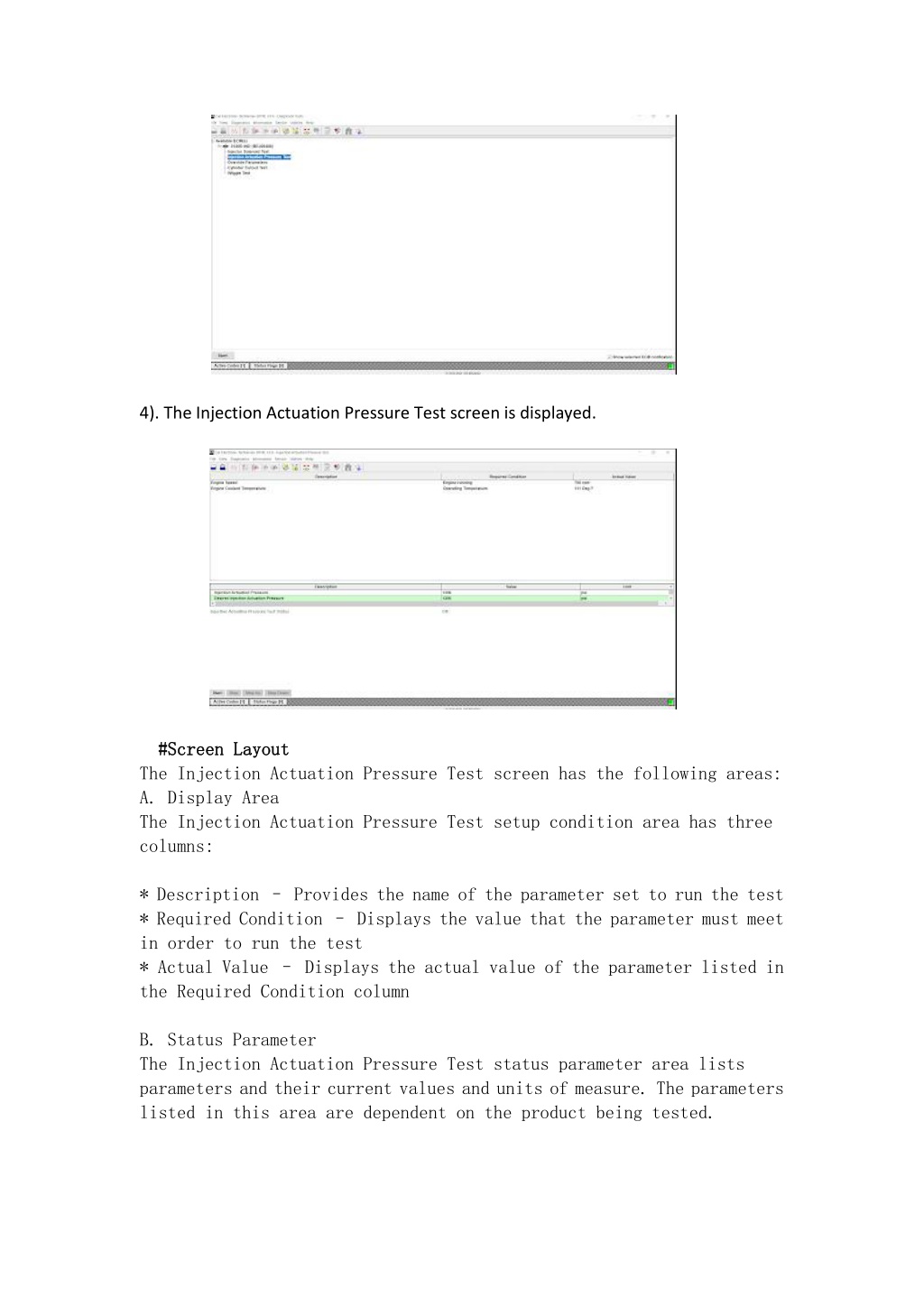

  2. 4). The Injection Actuation Pressure Test screen is displayed. #Screen #Screen Layout The Injection Actuation Pressure Test screen has the following areas: A. Display Area The Injection Actuation Pressure Test setup condition area has three columns: Layout * Description – Provides the name of the parameter set to run the test * Required Condition – Displays the value that the parameter must meet in order to run the test * Actual Value – Displays the actual value of the parameter listed in the Required Condition column B. Status Parameter The Injection Actuation Pressure Test status parameter area lists parameters and their current values and units of measure. The parameters listed in this area are dependent on the product being tested.

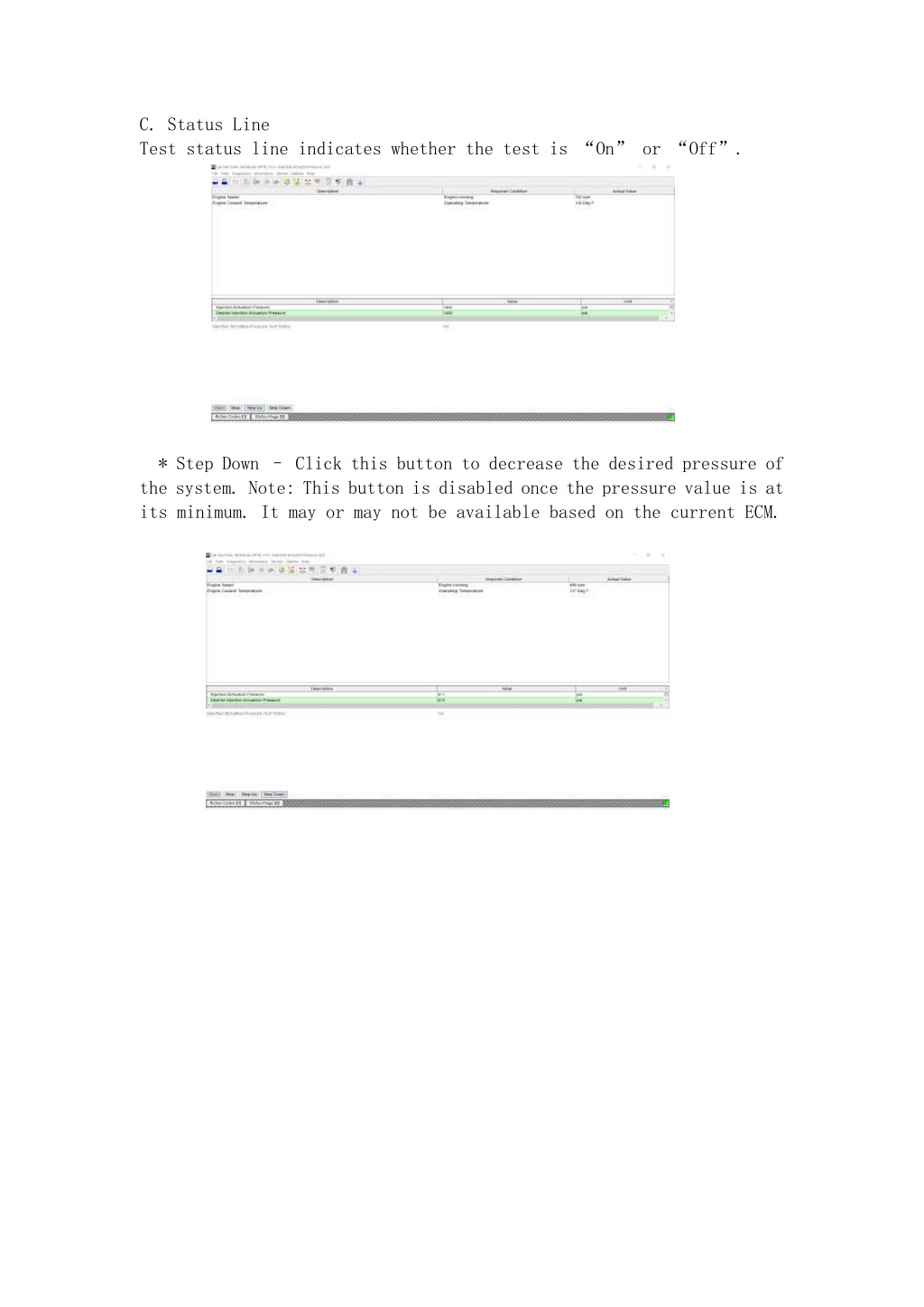

  3. C. Status Line Test status line indicates whether the test is “On” or “Off”. * Step Down – Click this button to decrease the desired pressure of the system. Note: This button is disabled once the pressure value is at its minimum. It may or may not be available based on the current ECM.
