BMW 7279625 Lear 532384808 03 Tms Headlight Driver Module

Xenon Planet is the leading high quality and affordable car parts provider in USA, Australia, Canada and around globe. We offer BMW 7279625 LEAR 532384808 03 TMS Headlight Driver Module. It is responsible for many different functions of the headlamp, we have described some of the malfunctions to identify when module is required to be replaced. For more information visit our website.

tobymolina11
Download Presentation

BMW 7279625 Lear 532384808 03 Tms Headlight Driver Module

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

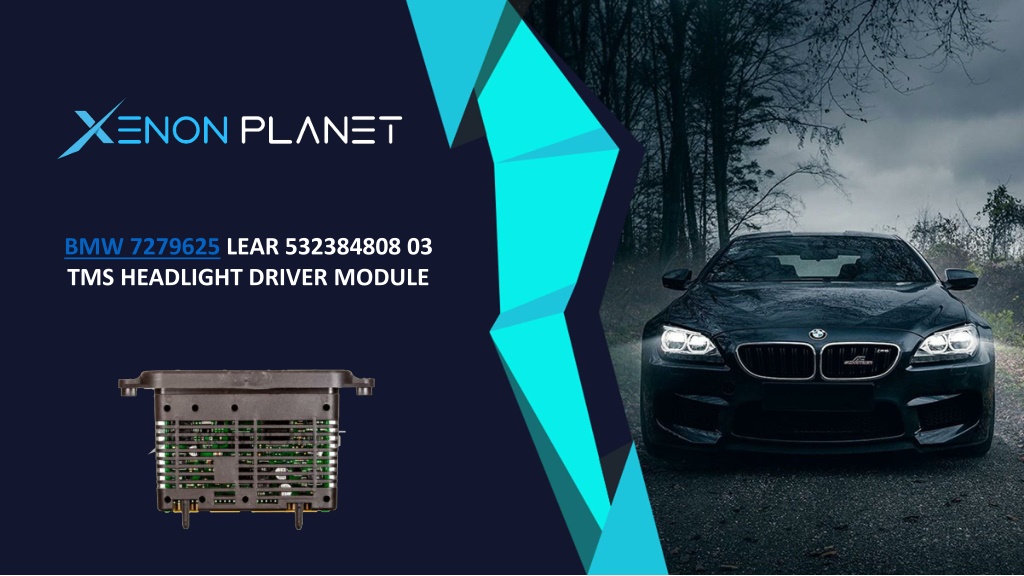

  1. BMW 7279625 LEAR 532384808 03 TMS HEADLIGHT DRIVER MODULE

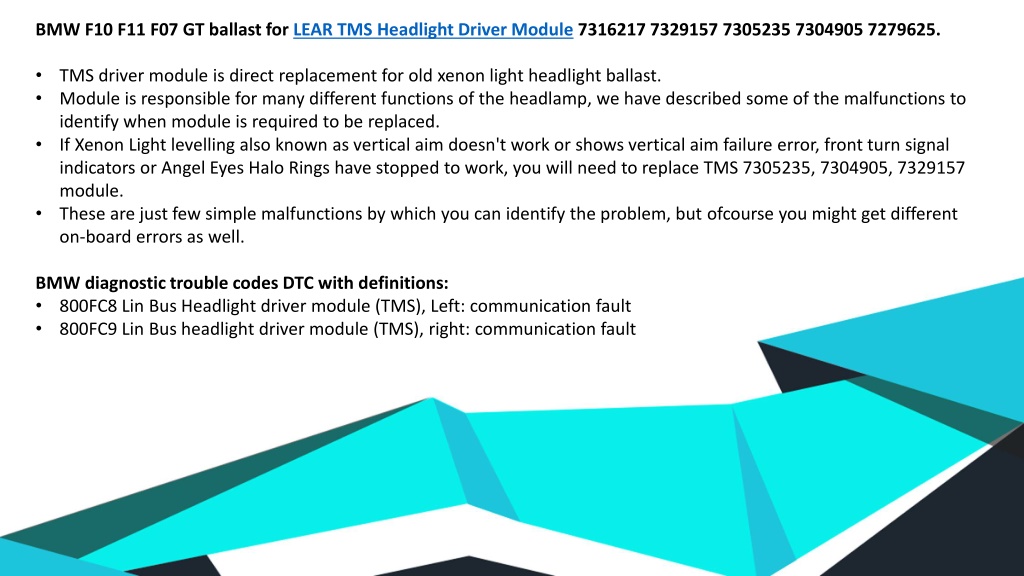

  2. BMW F10 F11 F07 GT ballast for LEAR TMS Headlight Driver Module 7316217 7329157 7305235 7304905 7279625. • TMS driver module is direct replacement for old xenon light headlight ballast. • Module is responsible for many different functions of the headlamp, we have described some of the malfunctions to identify when module is required to be replaced. • If Xenon Light levelling also known as vertical aim doesn't work or shows vertical aim failure error, front turn signal indicators or Angel Eyes Halo Rings have stopped to work, you will need to replace TMS 7305235, 7304905, 7329157 module. • These are just few simple malfunctions by which you can identify the problem, but ofcourse you might get different on-board errors as well. • BMW diagnostic trouble codes DTC with definitions: • 800FC8 Lin Bus Headlight driver module (TMS), Left: communication fault • 800FC9 Lin Bus headlight driver module (TMS), right: communication fault

  3. BMW PART NUMBERS: • 7269494 01 - 726949401 - 726949402 • 63117269531 -7269531 01 - 726953101 - 7269531 02 - 726953102 • 63117316208 - 7316208 01 - 731620801 • 63117279625 - 7279625 • 63117274400 - 7274400 • 63117316217 - 7316217 • 63117329157 - 7329157 • 63117305235 - 7305235 • 63117304905 - 7304905 • 63117267044 - 7267044 • 63117304593 - 7304593 • 7304592 02 - 730459202 • 7262947 03 - 726294703 • WARNING MESSAGES, WHEN TMS MODULE FAILS: • Daytime/parking lamp malfunction • Left turn signal malfunction • Right turn signal malfunction • Turn indicator front left failure • Turn indicator front right failure • Adaptive headlights failure • Headlight Vertical Aim Control Failure • Side/daytime lights fault • TYPES OF TMS MODULES: • BIX/TFL, BIX TFL, BIXTFL • AHL F07, AHLF07 • BIX F07, BIXF07 • AHL/TFL, AHL TFL, AHLTFL

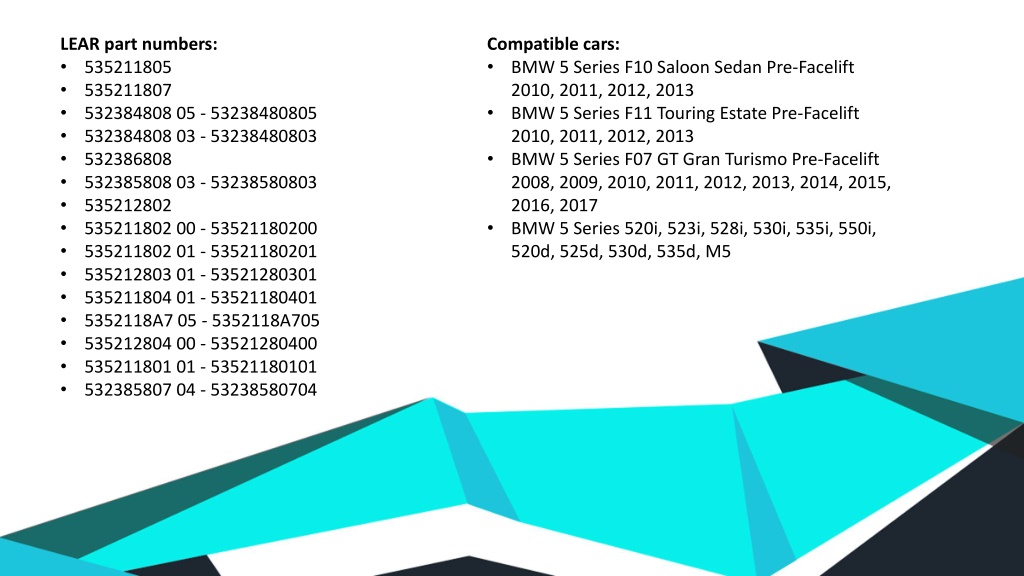

  4. LEAR part numbers: • 535211805 • 535211807 • 532384808 05 - 53238480805 • 532384808 03 - 53238480803 • 532386808 • 532385808 03 - 53238580803 • 535212802 • 535211802 00 - 53521180200 • 535211802 01 - 53521180201 • 535212803 01 - 53521280301 • 535211804 01 - 53521180401 • 5352118A7 05 - 5352118A705 • 535212804 00 - 53521280400 • 535211801 01 - 53521180101 • 532385807 04 - 53238580704 • Compatible cars: • BMW 5 Series F10 Saloon Sedan Pre-Facelift 2010, 2011, 2012, 2013 • BMW 5 Series F11 Touring Estate Pre-Facelift 2010, 2011, 2012, 2013 • BMW 5 Series F07 GT Gran Turismo Pre-Facelift 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 • BMW 5 Series 520i, 523i, 528i, 530i, 535i, 550i, 520d, 525d, 530d, 535d, M5

  5. CONTACT US www.xenonplanet.com
