  1. Leviton Occupancy Sensor Controls April 16, 2012 Leviton Manufacturing, Inc. Headquarters, Melville, NY

  2. Leviton Exclusive Leviton Advantage Leviton Exclusive Leviton Exclusive Leviton Advantage

  3. MULTI - TECH SensorTechnology • Passive Infrared (PIR) • Sense difference in heat emitted by humans in motion from background • Detect motion in a field of view that requires line of sight • Cannot see through obstacles • “FALSE OFF” is the biggest concern • Ultrasonic (US) • Uses Doppler – transmits ultrasonic frequencies (32kHz – 40kHz) and monitor changes in the return signal in order to detect occupancy • Not a “line of sight” device since the transmitted sound signals can bounce or wrap around objects • No gaps, greater sensitivity, but more vulnerable to nuisance switching • “FALSE ON” is the biggest concern • Multi-Technology (MT) • Passive infrared (PIR) and Ultrasonic (US) together • Advantage : PIR turns the lights ON & US keeps them ON • Eliminates the false OFF history of PIR and mitigates the false ON tendencies of US

  4. Ultrasonic Multi-Tech +47 % +17 % MULTI - TECH Technology Cost Comparison This is why it is important to understand sensor technologies and applications. PIR Lowest Cost Sensor Heads Only – 1000 SF Coverage

  5. Low Voltage Ceiling Sensors Technology and upgrading – it is important to understand sensor technologies and applications for layout design and operation. PIR Ultrasonic Multi-Tech OSC05-U OSC10-U OSC20-U OSC05-M OSC10-M OSC20-M OSC04-I OSC15-I Sensor Head Coverage – 150, 500, 1000, 1500 or 2000 SF

  6. Low Voltage Wall Mount/Corner Sensors OSWHB-I0W OSWWV-I0W OSWLR-I0W OSW12-M0W

  7. Power Base Adaptor Combine Power Base Adaptor with any Leviton low voltage sensor for a Leviton stocking advantage. Patented

  8. Low Voltage Sensors with Isolated Relay • Isolated relay allows for direct connection to the BAS or HVAC system • Multiple voltages 24VAC/VDC allows for the sensor to pull power directly from AC designs control systems • Multiple mounting heights allow for today’s vaulted ceiling and open architecture style • Leviton advantage – OSC models include both 8-12ft lens and additional 12-20ft “mid-range” lens • True white color blends with today’s daylighting trends • Existing off-white sensors are color blend matched with shaded ceiling spaces and ceiling tiles OSC04-RIOSC15-RI OSC05-RMOSC10-RMOSC20-RM OSC05-RUOSC10-RUOSC20-RU OSW12-RM OSWWV-RIOSWHB-RIOSWLR-RI

  9. Low Voltage Sensors • Field of View • PIR Masking • Time Delay • Sensitivity • Photocell • Auto Adapt for both Time Delay and US • Walk-Through • Field Configurable • Walk Test

  10. Field of View (FOV) Major Motion vs. Minor Motion • Correct selection of sensors and the FOV is essential for optimal occupancy sensor operation. • Major Motion is large side to side movement • Minor Motion is typing or conversational movement • Passive Infrared (PIR) sensor with a 360 degree field-of-view (FOV) capable of monitoring and area up to 450 square feet. The sensor will detect Major Motion up to 12 feet from the sensor (24ft diameter) and Minor Motion up to 6.5 feet (13ft diameter). • Each FOV must be matched to the ROOM USAGE. • Example: • OSC04 is better for minor motion applications (See chart Diagram 1) • OSC15 is better for major motion applications (bigger is not always better) FOV for WSC04, OSC04 Dark Gray = Minor Motion Light Gray = Major Motion

  11. Field of View (FOV) Mounting Height Effect on FOV • Low voltage sensors are ideal for control of any fluorescent fixture mounted 8-10’ • FOV narrows at lower heights • Detection zones are precise at lower heights • OSC04 can be mounted higher is major motion application

  12. PIR Masking - Leviton Advantage

  13. Photocell • Photocell – Ambient Light Hold OFF • Holds lights off unless natural light falls below a user selected level • DOE indicates an average of 46% savings can be achieved when photocells are used in combination with occupancy sensors • Photocells come standard with Leviton sensors • Reality – market has not accepted or understood Ambient Light Hold OFF • Ambient Light Hold OFF is NOT daylight harvesting

  14. Auto-Adapt • Auto Adapting or Self Adjusting - most efficient for energy savings • Sensor has a built in adapting intelligence that changes the adapting time-out duration in response to the occupancy conditions of the room it is installed in • Adjusts ultrasonic sensitivity (air flow) – Leviton Advantage • decreases sensitivity when consistent U/S triggering is occurring to prevent false ON’s and unwanted energy use • increases sensitivity when false OFF occurs to counter end user complaints for lights turning OFF • Reduces time-out duration (energy) • initializes with 2.5 minute walk-thru time delay auto-adapt uses this time delay even if walk-thru is not enabled. To enable walk-thru for additional savings, A4 dip switch must be in OFF position. • is decreased when no secondary motion is detected within 2 minutes of initializing this is a decrease by intellectual algorithm within firmware (7 day history in memory) • (after 2.5 min) reverts to configured time delay which could be the adjustment dial time delay or a calculated auto-adapt time delay • increases when lights OFF (false off) occurs and motion is detected within 30 seconds this is an increase by intellectual algorithm within firmware (7 day history in memory)

  15. Walk-Through • Adaptive Walk-Through • When the lights turn on, the sensor initially enters the “Walk-Through” mode. Once the room is occupied for longer than 2.5 minutes, the sensor exits the “Walk-Through” mode and enters the “Occupied” mode.

  16. Walk Test - Leviton Advantage • Built in testing modes enable the installer to fine tune sensors faster than any other sensor on the market • Occupied Operational Test Mode • By using the dip switch B3, an installer can enter a 15 min test mode withAuto Exit (Leviton Advantage) where the sensor will Auto-ON/Auto-OFF every 15 sec. This is for testing the room use specifics (occupied sensitivity) to assure the lights will not shut off on a single occupant in a specific location • Perimeter Walk Test Mode • By reducing the time delay dial to 30 sec, the installer is able to test the true perimeter of the FOV (unoccupied sensitivity) for entry points and/or total FOV coverage OccupiedOperationalTest Mode Perimeter Walk Test Mode

  17. Application & Design Tool Select Coverage Pattern • Partition larger spaces into control zones, with one sensor/zone • Ensure coverage overlaps by 20% • If partitions >48 in. high, de-rate sensor range by 50% • Don’t reduce the optimal number of sensors!

  18. Application & Design Tool – Public Restroom with 6 Stalls - Ceiling Sensor Ceiling mount sensor is located about 2ft out from the stall door to cover the entire space.

  19. Application & Design Tool – Study Hall

  20. Application & Design Tool – Private Office with Wall Switch Sensor

  21. Application & Design Tool – Private Office with Ceiling Sensor

  22. Application & Design Tool – Open Office with No FOV

  23. Application & Design Tool – Open Office with Ceiling Sensors and FOV

  24. Application & Design Tool – Open Office, Wall Mount with No FOV

  25. Application & Design Tool – Open Office with Wall Mount Sensors and FOV

  26. Application & Design Tool – Corridor

  27. Application & Design Tool – Classroom with Ceiling Sensors

  28. Application & Design Tool – Classroom with Wall Mount Sensors

  29. Which Two Wall Switch Sensors Have a Service Switch? • Wall Switch Sensors • Additionally • OSSNL adds nightlight to ODS10 • OSSMD-FT is Dual and Fan time (add 10min) • Select Models (-Txx) for Vacancy (ManualON) • Select Models (-xQx) for AutoONLY • Select Models (-xxR) for Red ODS10-IDx ODS15-IDx OSSMT-MD Leviton Advantage Breath of line with least amount of SKU’s ODS0D-IDx Wall box line – least amount of SKUs to cover largest amount of applications OSSMD-MD

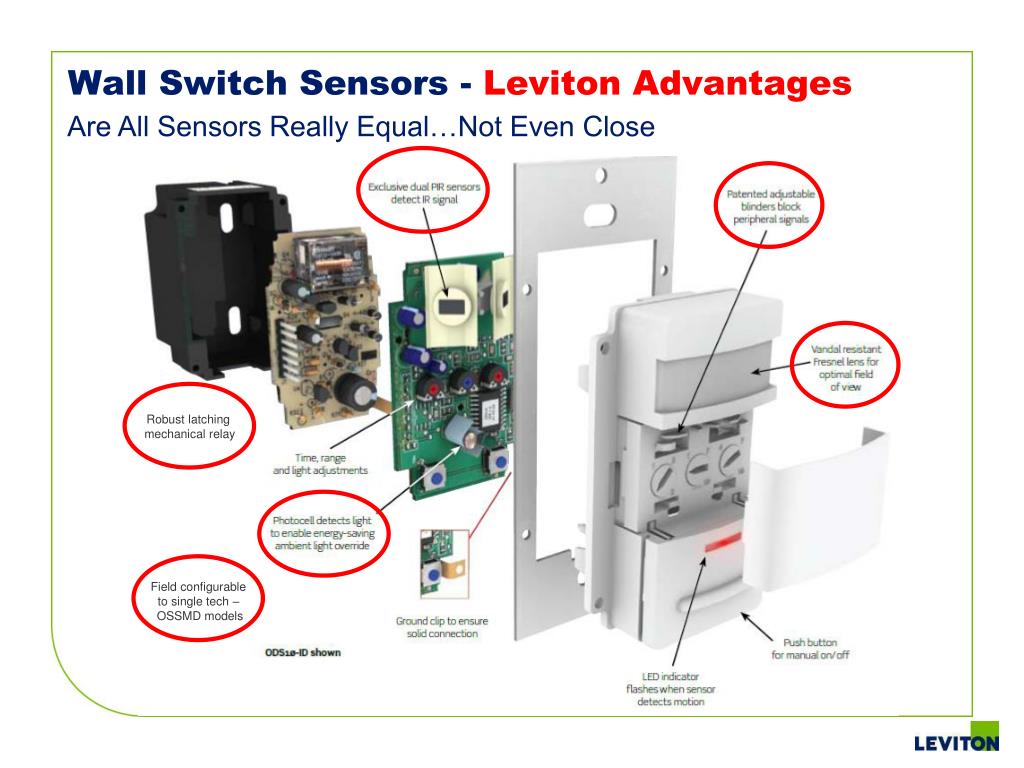

  30. Wall Switch Sensors - Leviton Advantages Are All Sensors Really Equal…Not Even Close Robust latching mechanical relay Field configurable to single tech – OSSMD models

  31. Wall Switch Sensors - Leviton Advantages • Field of View • PIR Masking • Time Delay • Sensitivity • Photocell • Auto Adapt for both Time Delay and US • Walk-Through • Field Configurable • Walk Test • Vacancy Confirmation • Presentation Mode

  32. Wall Switch Sensors - Leviton Advantages • Exclusive Dual Pyrometers (PIR) Sensors • Provides for largest Field of View, 40’x40’, 180 degrees • 2x as many detection points and best in class minor motion • Vandal Resistant PIR Fresnel Lens • Dual Pyros allow for thicker lens, smaller profile lens and re-enforced bridge to support the lens which prevents the sensor from being poked, tampered-with or damaged • Multi-Technology Sensing • Combination of PIR and ultrasonic (U/S) sensing

  33. Wall Switch Sensors - Leviton Advantages • Internal Photocell • Standard in Leviton sensors, the internal photocell prevents lights from turning on when there is ample natural light. The result, ambient light hold-off which maximizes energy savings in a low cost device. • Field Configurable to Single Tech (on select models) • OSSMD models can be configured to become a single tech device by turning off the PIR or U/S. This allows the sensor to be modified to fit the unique needs of an application while in the field • Field of View and PIR Masking • Switches designed for multiple points of view: sensors range from 20 to 40 feet of coverage, allowing customers to tailor an occupancy sensor plan to their specific needs • PIR Masking: patented blinders allow for customized blocking of false-ON sensing areas (adjacent hallways, etc.) so loads only activate when necessary, preventing unnecessary energy consumption • Presentation Mode - Manual-OFF occupant override

  34. Wall Switch Sensors - Leviton Advantages • H.I.S (High Inrush Stability) • Zero-Crossing • Mechanically Held Relay • Return to last state (Latching) • Safety and energy savings • Self-Adaptive Technologies • Reduced time-out durations: optimize energy savings. Sensors auto-adjust the U/S sensitivity to compensate for air flow to prevent false-ON from HVAC • Walk-Through: adapts the time-out duration of the sensors in response to the most common occupancy conditions of the room it is installed in to guarantee the sensor best meets the customer’s needs • Walk Test: To verify a correct field of view, a walk test is completed by installer walking around the perimeter of the coverage pattern, which allows the PIR technology to divide the area into “detection zones.” This initial test improves sensor performance and reduces labor and maintenance associated with returning to adjust the sensors

  35. Application & Design Tool Pick the correct sensor for the application usage patterns • Private Office • PIR • Cost effective and reliable • Ideal in rooms with direct line of sight workspace • Allows masking of doorways • US • A reflective and highly sensitive technology • Provides coverage around furniture/body obstructions

  36. Application & Design Tool Pick the correct sensor for the application usage patterns • Lavatories with Partitions • Perfect for multi-technology solution • PIR activates upon entry • US detects motion behind partitions • Cost effective retrofit

  37. Application & Design Tool Bi-Level Code Compliance with Dual Relay Wall Switch Sensors The left switch can control a series of lights while the right switch can control another series. Code Compliance: Relay 1 Auto-ON; Relay 2 Manual-ON Either the OSSMD or OSD0D can accomplish this. • Pro: • Single Device • Single Gang • Existing Wires • Multi-Tech • Con: • Poor Location Auto-ON/Auto-OFF Manual-ON/Auto-OFF or A B OSSMD ODS0D

  38. Power Pack and Add-A-Relay • OSP20-0D0 • Highly competitive low cost solutions • Electrically held relays – Normally Open • 20A Fluorescent, Incandescent @120/230/277VAC • Regulated 24VDC, 150mA sensor control output • OSP15-R30 • 15A Fluorescent @ 347V • OSP20-RD0 • Self contained transformer plus a isolated relay (HVAC) • Regulated 24VDC, 150mA sensor control output • OSA20-R00 (Add-A-Relay) • Highly competitive low cost 2nd relay solution • 20A Fluorescent, Incandescent @120/230/277VAC

  39. Power Pack – Title 24 & Robust • OSP20-RDH • Leviton Advantage –Leviton’s Power Pack delivers the most features for today’s energy management market demands. This unit is designed specifically for Energy Saving specifications. • Extreme Durability – exceeds Federal Spec WS-896 duty cycle requirements • 20A Fluorescent, Incandescent @120/230/277VAC • Regulated 24VDC, 225mA sensor control output • H.I.S (High Inrush Stability) • Zero-Crossing • Mechanically Held Relay • Return to last state (Latching) • Safety and energy savings • Bi-level Lighting (CEC Title 24) – Auto-ON and Manual-ON • Fail-Safe Circuit • Load Shedding, Behavioral Timer and BAS Override – Hold-ON and Hold-OFF • VAV systems, motorized damper controls and setback thermostats • Self contained air conditioners • Pumps, fans, motors • 277V Remote Load Switching • UL2043 – Plenum Rated

  40. Power Pack Nipple Adapter - Leviton Advantage

  41. Application & Design Tool Occupancy Sensor with Manual Override Power Packs Connect the OSP20-RDH’s to the controlled loads, along with a low voltage occupancy sensor (ceiling or wall mount) and a low voltage switch. • Pro: • Large Load • Single Switch • Low Voltage to • devices • Con: • More devices Auto ON/Auto OFF Manual ON/Auto OFF Power Packs A B LV Switch

  42. High Bay Sensor - Leviton Advantage • 42” wire lead reduces time and materials inside the fixture • Quick-snap fits Double D knockout eliminating need for lock-nut • Instant ON allows fixture wiring to be tested within 30 seconds • Adjustable Time Delay (no power required) – reduces ladder time • LED indicator light blinks when sensor detects motion, visible from long distance • Interchangeable 360° High Bay, Low Bay and aisle lens included • False Detection Circuitry – saves energy reducing nuisance tripping • Auto-Temperature adjustment – increases PIR sensitively for human body temperature • H.I.S. Circuitry • Zero Crossing Technology • Mechanical Latching Relay • Return to Close and Non-Volatile Memory • Safety after power outage assures lights return-to-ON if building is occupied • Energy savings at night assures lights remain OFF after a power outage restore

  43. High Bay Sensor with Light Sensor - Leviton Advantage • All advantages from the previous slide apply • PLUS • Rotating adjustable photocell for light hold-off • 24 hour auto calibration for set-it and forget-it (patented) • Dual relays for bi-level lighting control • Alternating relay software for increased lamp life (no photocell)

  44. Benefits of Daylight Harvesting • 35-60+% energy savings • Lights turned down or OFF when not required: • Code compliance • Saves money and electricity • Efficient design optimizes use of natural and artificial light • Reduces greenhouse gas emissions

  45. High Bay Sensor with Light Sensor * All models are also offered in have bulk (unique SANs) ** All models are offered with interchangeable lenses

  46. Surface Mount High Bay Sensor - Leviton Advantage • Specifically designed to reduce the amount of labor required during fixture assembly process and time of installation • Suitable for high bay applications ranging from 8-40’ • Supplied with three interchangeable lenses • Most versatile mounting options in the market • ½ knockout: surface mounted using the mounting nipple on the back of the sensor it can be snapped into a standard ½” knockout • Keyhole slot: surface mounted using the integral keyhole slots and #8-32 pan head screws • Recessed: mounted internally to the fixture using the side clips. Accommodatessheet metal from 18-22 gauge

  47. Surface Mount High Bay Sensor

  48. Surface Mount High Bay Sensor – Competitive Comparison • Leviton Advantages: • Multiple mounting options in one design • Interchangeable lenses included in the packaging • Non-power configuration, set it then forget it • Long wire leads, connect to the ballast anywhere in the fixture

  49. Internal Fixture Sensor • OSF10 Single Piece • Single unit for compact installation • Sensor for 8’ mounting • 38” wire leads • Adjustable threaded mounting for any thickness • Time Delay: 30s-20m • No Light Sensor/Photocell • OSF10 Split utilizes the same technology as the standard OSF10 • Sensor Head utilizes PIR technology • Fresnel lens designed for mounting at 8-10’ • Compact Power Pack • Fits nicely inside the ballast cavity • H.I.S. Technology • Mechanical latching relay • Zero crossing • Field Configurable • Time delay: 30s-20m • Light sensor/photocell: 0-120FC • PIR sensitivity • Long 36” Wire Leads – both to the power pack and to the sensor head

  50. Occupancy Sensor Product Guide
