Presentation Transcript
slide1

FINAL WORLD CUP 2010

VS

WhaT is the score???

slide7

CHARACTERISTICS

  • Molluscamolluscus means soft,
                • are group of soft-body animals.
  • Second largest phylum in the animal kingdom
  • A milimeter till 18 meter length.
  • Occur in a wide variety of environments
slide8

CHARACTERISTIC

  • General Body Plan
    • Head
    • Ventrally located muscular foot
    • Dorsally located visceral mass
    • Covered by a fleshy outgrowth of the body wall called a mantle/pallium
  • Radula a tongue-like structure bearing transvers rows of chitinous teeth (except for bivalves)
  • Complete digestive tract, mouth, esophagus, stomach, intestine, and anus.
  • Gonads in visceral mass
slide9

System Function

  • Skeletal- Mantle may secretes a shell. Use hydrostatic pressure for ventral muscular foot.
  • Muscles -Ventral muscular foot and other muscles present.
  • Digestive- complete complex with salivary glands, digestive gland and Rasping tongue (Radula).
  • Circulatory - Open Circulatory System except for Cephalopoda. Dorsal heart, usually in a pericardial cavity.
  • Respiratory - Ctenidia (gills) in mantle cavity, respiratory pigment.
slide10

Excretory- by nephridia act as kidney usually connecting to the pericardial cavity,

  • Nervous - Nerve ring with various pairs of ganglia—two pairs of nerve cords, one innervating the foot, the other the visceral mass (modified ventral ladder-like system)
  • Integumentary - Mantle
  • Endocrine - nervous systems produces hormones.
  • Reproductive - varied- monoecious, or dioecious. Larva in marine = trochophore and veliger, in freshwater clam is glochidium.
slide11

CLASSIFICATION

  • Class Gastropoda
  • Class Bivalvia
  • Class Cephalopoda
slide12

ClassGastropoda

  • Gastropodagaster=belly, podos=food
  • Members usually sluggish and sedentary
  • Mostly with asymmetrical bodies
  • Move couse muscular contraction, that satrt from posterior till anterior
  • Univalves, Shell usually spiral, distinct head, scraping radula.
  • Visceral mass typically turned 180° counterclockwise = torsion.
slide15

RADULA

  • Toothed chitinous ribbon in the mouth of most mollusks
  • used for cutting and chewing food before it enters the esophagus
  • It is present in all molluscs except bivalves
slide16

Pila (freshwater kuhol)

Class Gastropoda

slide20

Spanish shawl

Nudibranchs

Sea slug

slide21

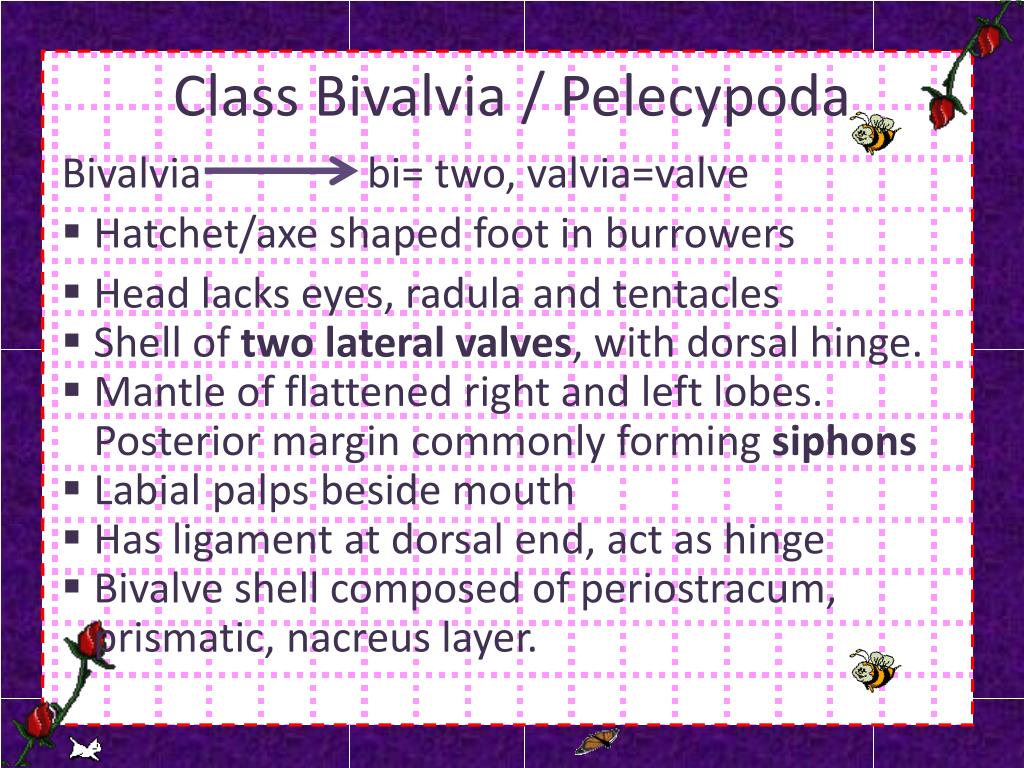

Class Bivalvia / Pelecypoda

  • Bivalvia bi= two, valvia=valve
  • Hatchet/axe shaped foot in burrowers
  • Head lacks eyes, radula and tentacles
  • Shell of two lateral valves, with dorsal hinge.
  • Mantle of flattened right and left lobes. Posterior margin commonly forming siphons
  • Labial palps beside mouth
  • Has ligament at dorsal end, act as hinge
  • Bivalve shell composed of periostracum, prismatic, nacreus layer.
slide24

S. princeps

Spondylus (scallop) Class Bivalvia

slide25

C. swifti

C. islandicus

Chlamys (scallop) Class Bivalvia

slide27

A. suborbiculata

Anodonta (freshwater clam) Class Bivalvia

A. anatina

slide29

Class Cephalopoda

  • Cephalopodachepalo= head, podos=food
  • Free-swimming
  • Fast moving
  • Active carnivores
  • Elongated body
  • Skeleton may be external, internal or

absent

  • Foot developed into prehensile arms or tentacles
  • Large head with conspicuous eyes
  • Ventral foot modified into tentacles(are arms) with suckers
slide30

Class Cephalopoda

  • Well-defined head
  • Complex eyes
  • Brain in cartilaginous cranium
  • (+) radula
  • Beak-like jaws
  • Tentacles surrounding mouth
slide34

The Role of Mollusca for Human

  • A high-protein source
  • Jewelry such as pearl oyster
  • Decoration and buttons such as the shell of rock oyster
  • Terrazo materials such as the shell of Tricadacnasp
