  1. ASPfun: A Distributed Object Calculus and its Formalization in Isabelle Ludovic HENRIO Work realized in collaboration with Florian Kammüller and Henry Sudhof (Technische Universität Berlin) Montevideo, Nov 2007

  2. Context • -calculus: A Theory of Objects (Abadi,Cardelli) • Formalizes objects and typing • Several calculi: a functional and an imperative one • ASP: Asynchronous Sequential Processes (Caromel, Henrio) • Based on imp-calculus • Distributed active object calculus • Asynchronous method calls (requests), futures • Properties of confluence/determinism, e.g. execution insensitive to the order of replies Objective Provide a framework for (mechanically) proving properties on distributed object-oriented languages and programs  typing, confluence, …

  3. Each method is a function with a parameter: “self” Functional -calculus • Syntax • Semantics (Abadi - Cardelli) • Why functional?  updating a field creates a new object (copy)

  4. Contribution • ASPfun calculus • Based on functional -calculus • Distributed with active objects and futures • Good representation of functional distributed programs (workflows, services) • A type system for ASPfun: • Typing active objects and futures • Proof of subject-reduction and progress  no dead-lock • A Formalization in Isabelle/HOL • Calculus and semantics • Type-system • Proofs ASPfun is simpler Easier to formalize in Isabelle/HOL A lot of interesting properties (no dead-lock) BUT further from a “real life” complete programming language

  5. Agenda 1 - ASPfun: syntax, semantics and properties 2 - A type system for ASPfun 3 - Formalization in Isabelle/HOL

  6. ASPfun Syntax (static) • One new construct: Active 1 - ASPfun: syntax, semantics and properties

  7. ASPfun Syntax (dynamic) • Configurations are sets of activities, each activity has: • A name • An active object • A list of requests being treated Requests map terms to future identifiers Add reference to futures (result of requests) and activities   f0 f2 f1 f3 1 - ASPfun: syntax, semantics and properties

  8. ASPfun Semantics (1/5): Local reduction f0 Reduced according to -calculus semantics f1 1 - ASPfun: syntax, semantics and properties

  9. ASPfun Semantics (2/5): Activity creation  f0 a is “self contained”  f1  1 - ASPfun: syntax, semantics and properties

  10. ASPfun Semantics (3/5):Remote Method Invocation  f0 f2 f1 f2 fresh  f2 1 - ASPfun: syntax, semantics and properties

  11. ASPfun Semantics (4/5): Reply  f0 … … f2 f1  f2 1 - ASPfun: syntax, semantics and properties

  12. ASPfun Semantics (5/5): Field update on an active object  f0 is “self contained” f1   f2 1 - ASPfun: syntax, semantics and properties

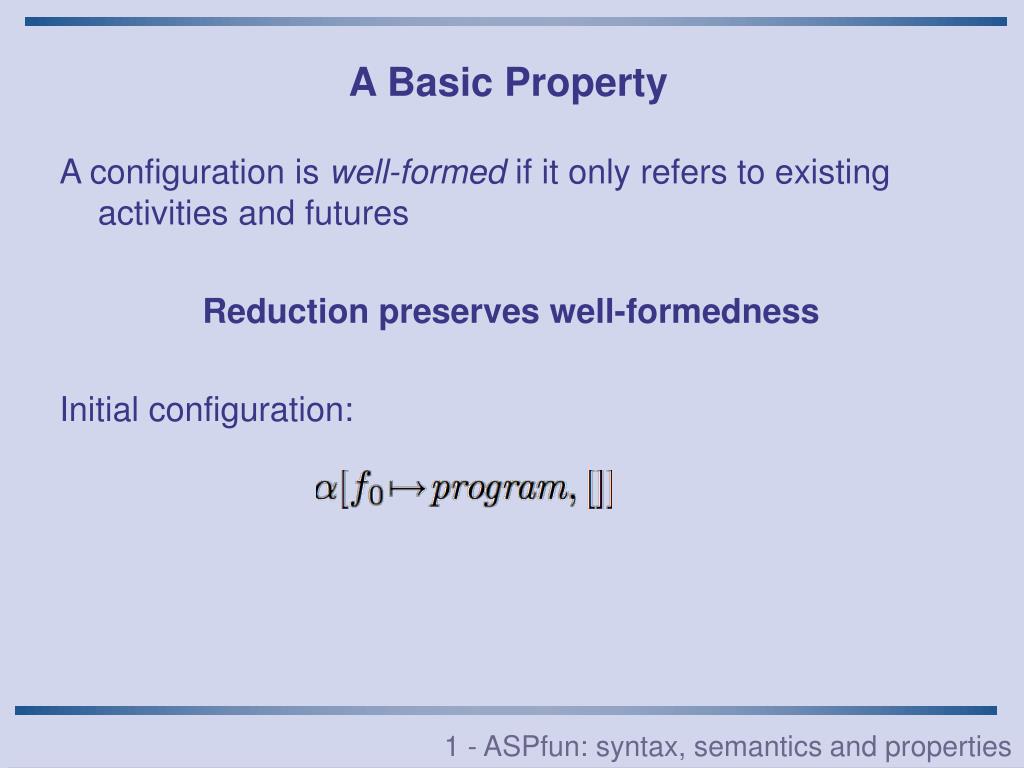

  13. A Basic Property • A configuration is well-formed if it only refers to existing activities and futures • Reduction preserves well-formedness • Initial configuration: 1 - ASPfun: syntax, semantics and properties

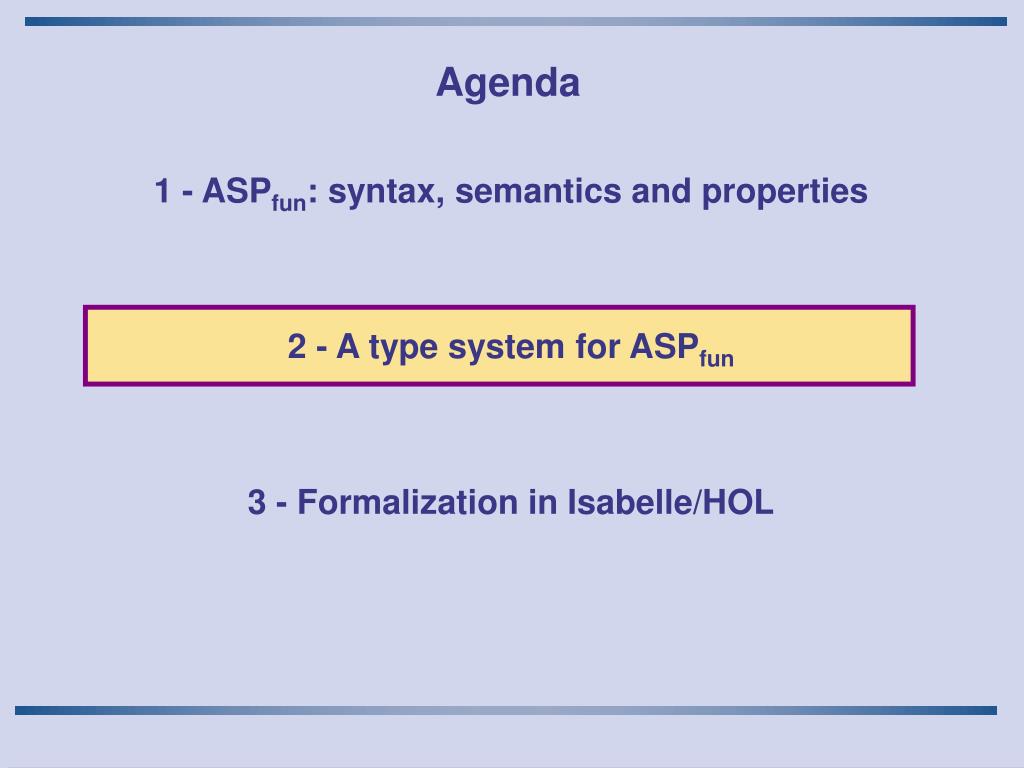

  14. Agenda 1 - ASPfun: syntax, semantics and properties 2 - A type system for ASPfun 3 - Formalization in Isabelle/HOL

  15. Static Terms • Re-uses typing for -calculus • Syntax: • Typing judgement • Basic idea: the type of an active object is the type of the contained object Typing environment (mapping from variables to types) How to type active object and future references? 2 - A type system for ASPfun

  16. f0 f1 Typing Configurations • The type of a configuration is two mappings: • From activity to types • From futures to types • A configuration is well-typed if: • Futures and activities defined in C and are the same • All the active objects of C are well-typed • All the requests of C are well-typed • Then, typing terms: • -calculus terms and Active are typed as usual • Future and active object references are typed using the environment 2 - A type system for ASPfun

  17. Typing Properties • Each term has a unique type • Subject-reduction (reduction preserves typing) • Progress: • C is well-typed  C can be reduced or all its requests are values • Where a value is an object or a reference to an activity  Absence of dead-locks 2 - A type system for ASPfun

  18. Agenda 1 - ASPfun: syntax, semantics and properties 2 - A type system for ASPfun 3 - Formalization in Isabelle/HOL

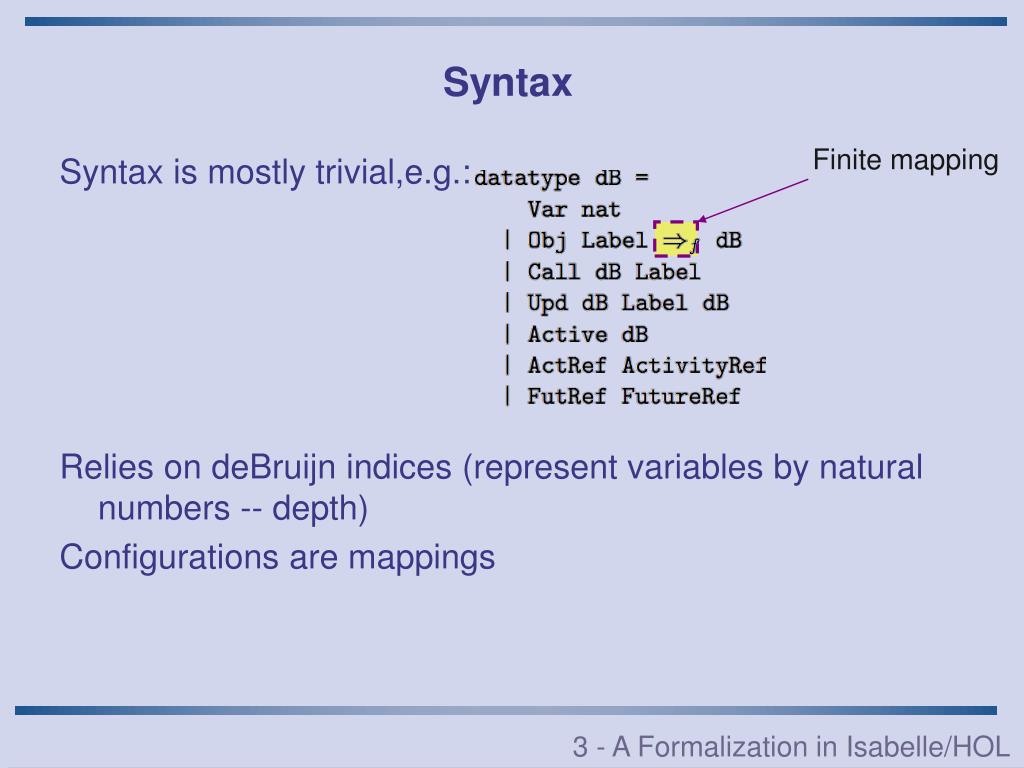

  19. Syntax Finite mapping • Syntax is mostly trivial,e.g.: • Relies on deBruijn indices (represent variables by natural numbers -- depth) • Configurations are mappings 3 - A Formalization in Isabelle/HOL

  20. Semantics • Almost direct translation, e.g.: • Like on paper, reduction relies on reduction contexts (expression with a hole: the reduction occurs in the single hole) 3 - A Formalization in Isabelle/HOL

  21. Properties and Proofs • deBruijn indices induce a lot of (easy) additional lemmas • Reduction preserves well-formedness (long) • Typing relatively easy to define • Proofs (subject-reduction, progress, …) relatively long but not difficult (>1000 lines each) • Main difficulties: • Long repetitive proofs • A lot of design choices (e.g. define reduction contexts) • Finite maps, and associated recurrence • Two axioms remaining (fresh futures and activities exist)  requires configurations as finite maps of an unbounded length 3 - A Formalization in Isabelle/HOL

  22. Future Works / Todo list • Introduce methods with a parameter: (x,y) / a.l(b) (ongoing) • Prove confluence of ASPfun • Define a parallel reduction (reducing severl terms in parallel) • ASPfun as it is specified is not confluent • Introduce new rules for merging/garbage collecting activities • Or reduce the conditions of reduction (!! progress) • Remove De Bruijn indices  “nominal techniques”?

  23. Conclusion • A new distributed calculus and its formalization in Isabelle • A Type system: • Progress  no dead-lock • A base framework for developments on objects, confluence and distribution • A lot of possible applications (distribution / typing / AOP …) Experiments on Isabelle (a few months development) • User-friendly, relatively fast development • Finding the right structure/representation is crucial • Proofs are long repetitive and unstructured • Difficulties when modifying / reusing code http://www.cs.tu-berlin.de/~flokam/isabelle/sigma/

  24. THANK YOU !!!If you prefer the Greek version …

  25. AppendixTyping Rules • Configuration • ASP

  26. An Example 1 - Functional -calculus in Isabelle

  27. An Example 1 - Functional -calculus in Isabelle

  28. What are De Bruijn Indices? • De Bruijn indices avoid having to deal with -conversion • Variables are natural numbers depending on the depth of the parameter 1 - Functional -calculus in Isabelle

  29. Why De Bruijn Indices? • Drawbacks: • Terms are “ugly”  We are interested ingeneral properties / not for extracting an interpreter … • Lot of additional definitions/lemmas are necessary: • Definition of subst and lift: semantics more complex • Proofs of several additional (easy) lemmas • Advantages • Established approach • Reuse Nipkow’s framework for confluence of the -calculus • Alternative approaches, e.g. nominal techniques  probably better on the long term De Bruijn indices are perhaps not the best solution but allowed a fast implementation 1 - Functional -calculus in Isabelle
