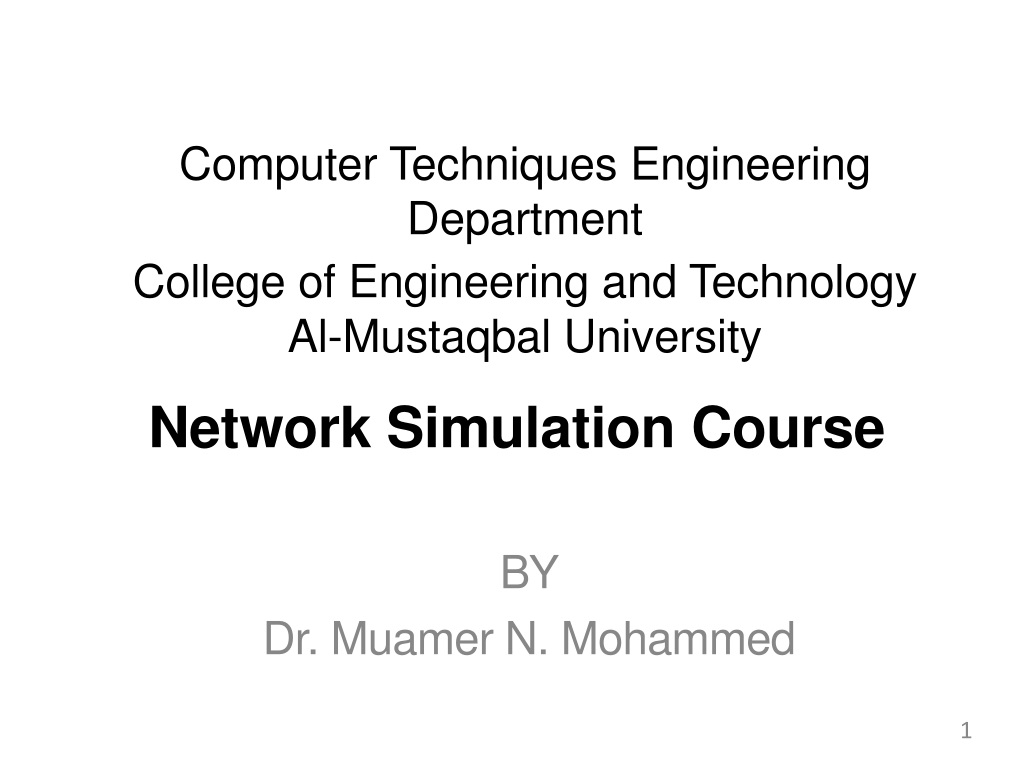

  1. Computer Techniques Engineering Department College of Engineering and Technology Al-Mustaqbal University Network Simulation Course BY Dr. Muamer N. Mohammed 1

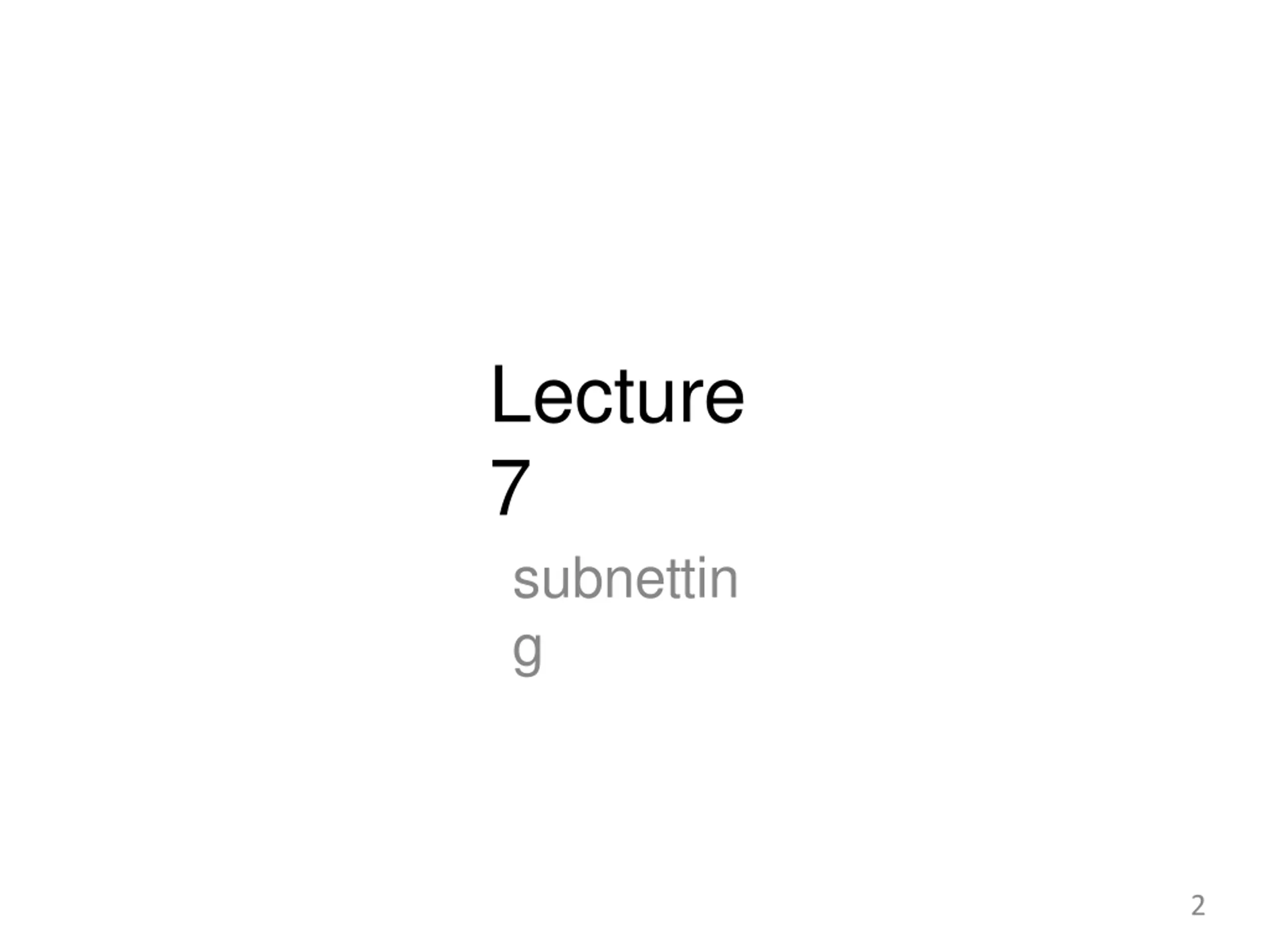

  2. Lecture 7 subnettin g 2

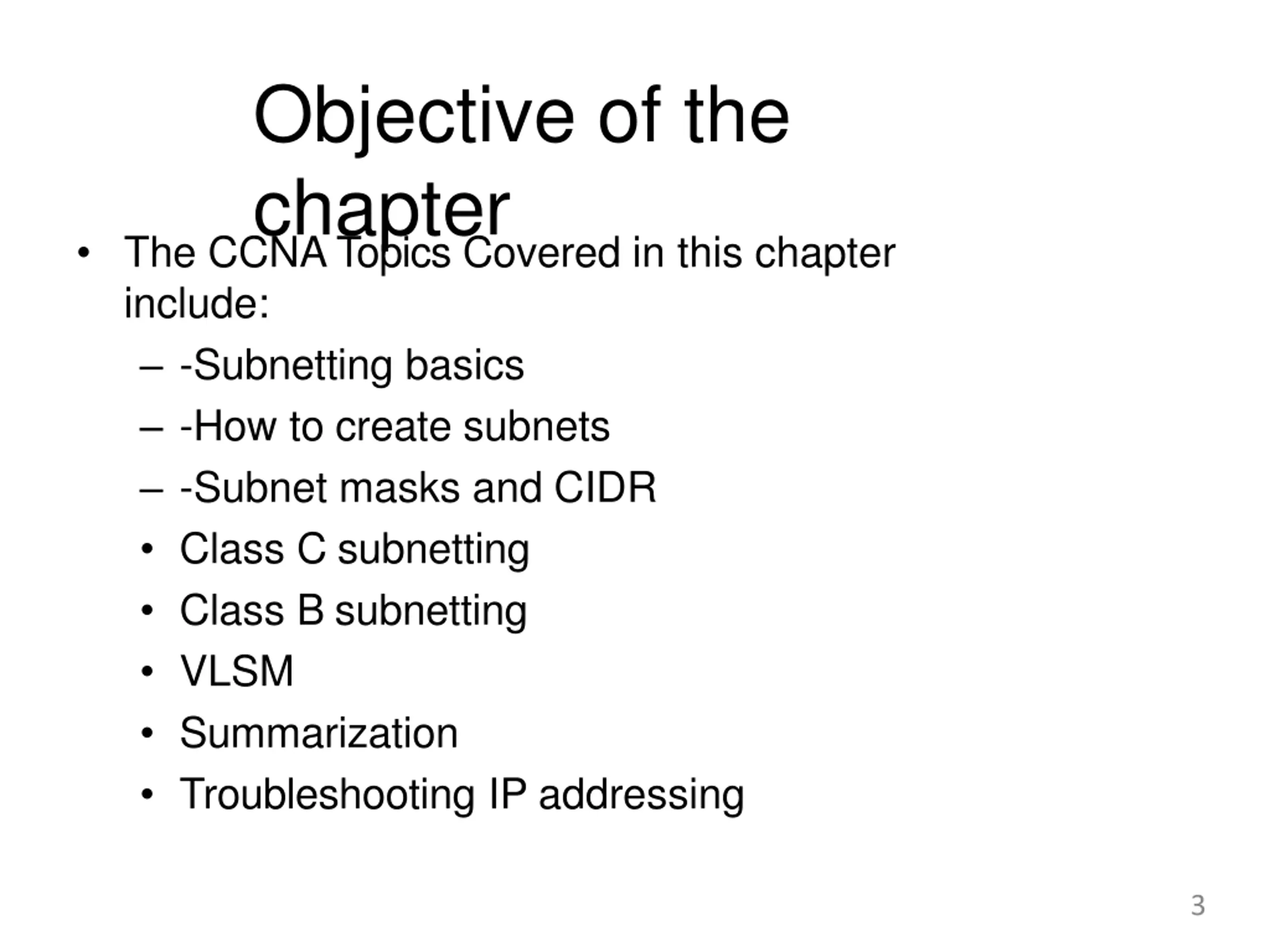

  3. Objective of the chapter • The CCNA Topics Covered in this chapter include: – -Subnetting basics – -How to create subnets – -Subnet masks and CIDR • Class C subnetting • Class B subnetting • VLSM • Summarization • Troubleshooting IP addressing 3

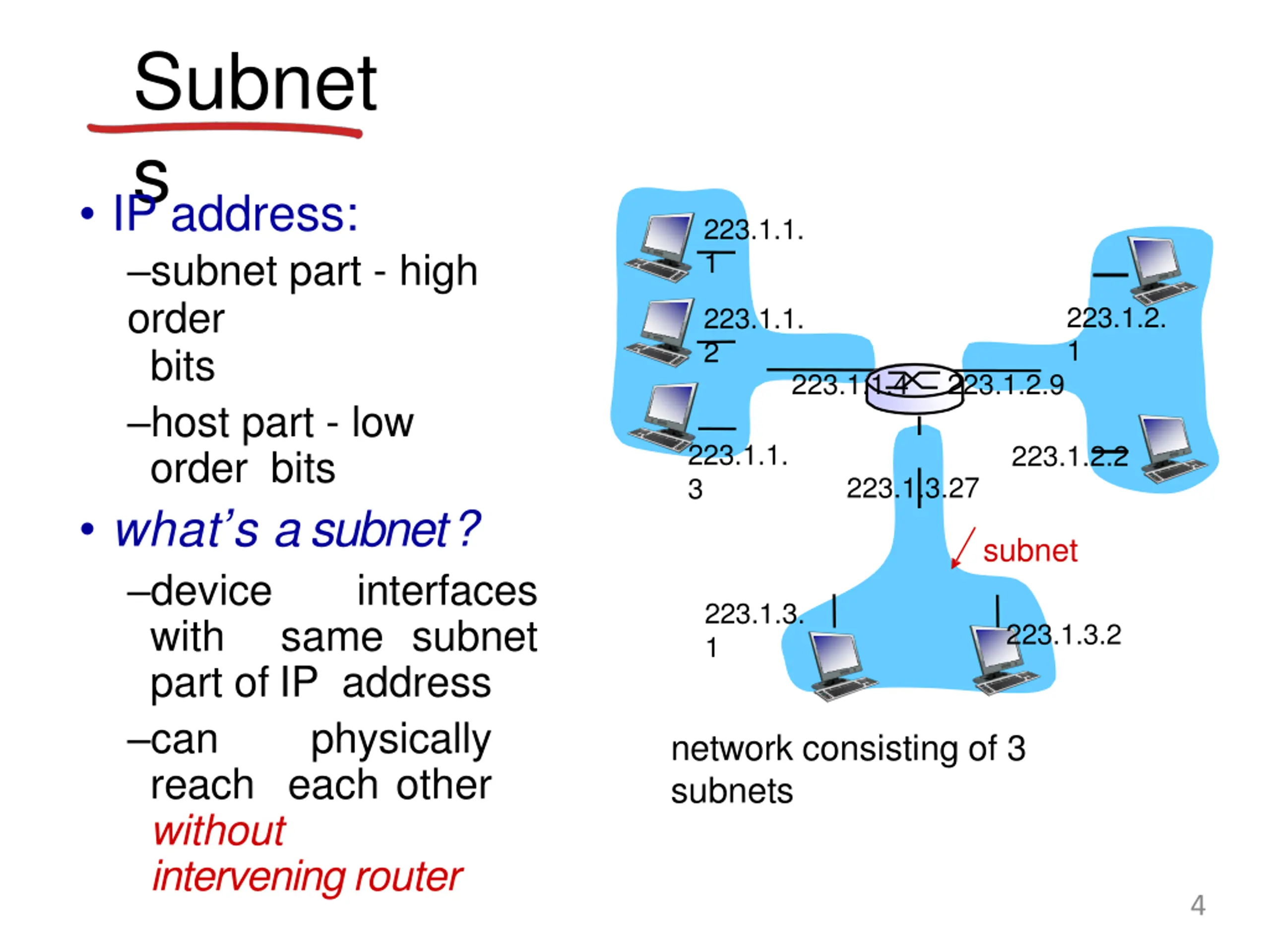

  4. Subnet s • IP address: –subnet part - high order bits –host part - low order bits • what’s a subnet? –device with part of IP address –can reach each other without interveningrouter 223.1.1. 1 223.1.2. 1 223.1.1. 2 223.1.1.4 223.1.2.9 223.1.1. 3 223.1.2.2 223.1.3.27 subnet interfaces same subnet 223.1.3. 1 223.1.3.2 physically network consisting of 3 subnets 4

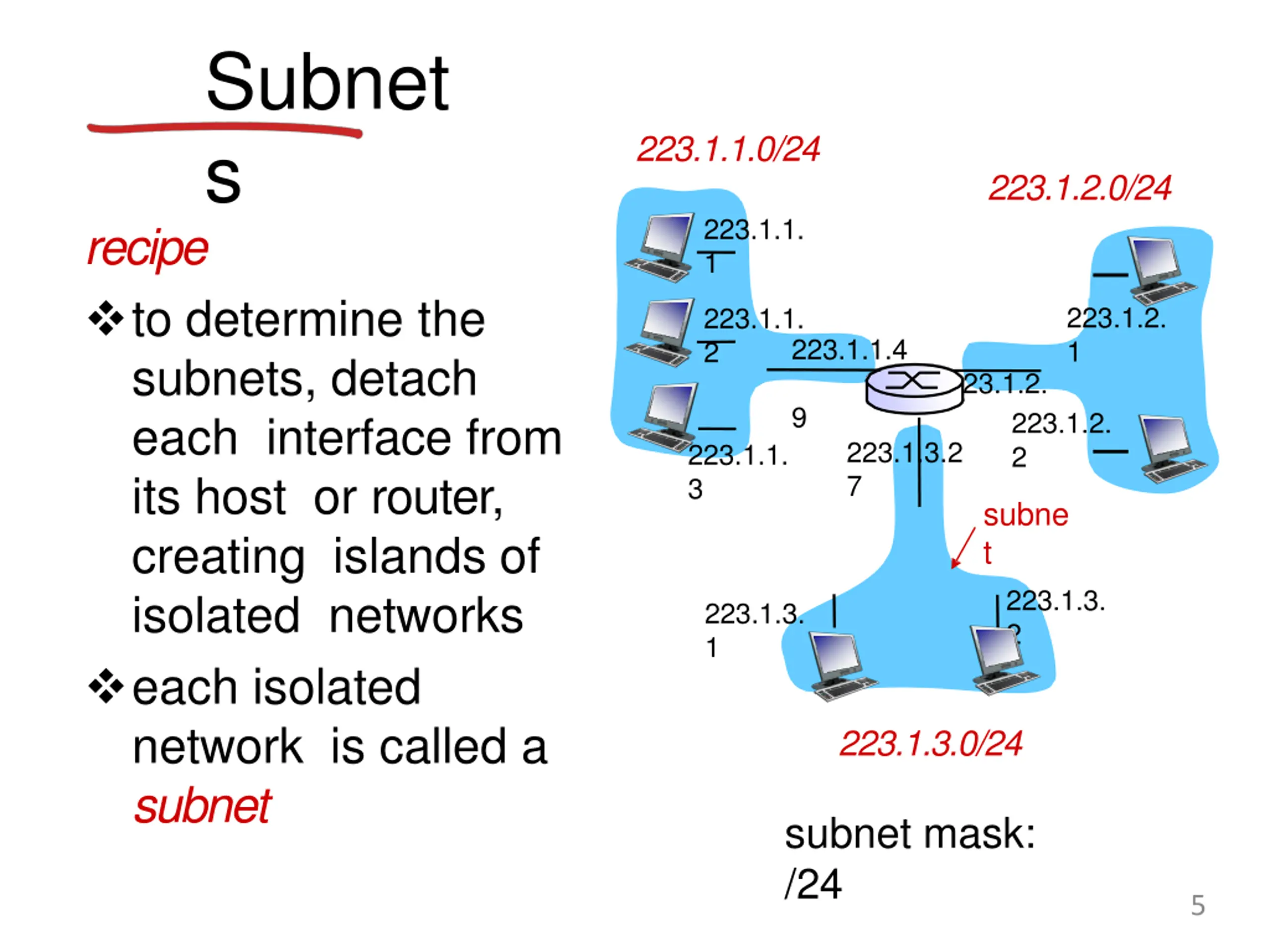

  5. Subnet s 223.1.1.0/24 223.1.2.0/24 223.1.1. 1 recipe to determine the subnets, detach each interface from its host or router, creating islands of isolated networks each isolated network is called a subnet 223.1.2. 1 223.1.1. 2 223.1.1.4 223.1.2. 9 223.1.2. 2 223.1.3.2 7 223.1.1. 3 subne t 223.1.3. 2 223.1.3. 1 223.1.3.0/24 subnet mask: /24 5

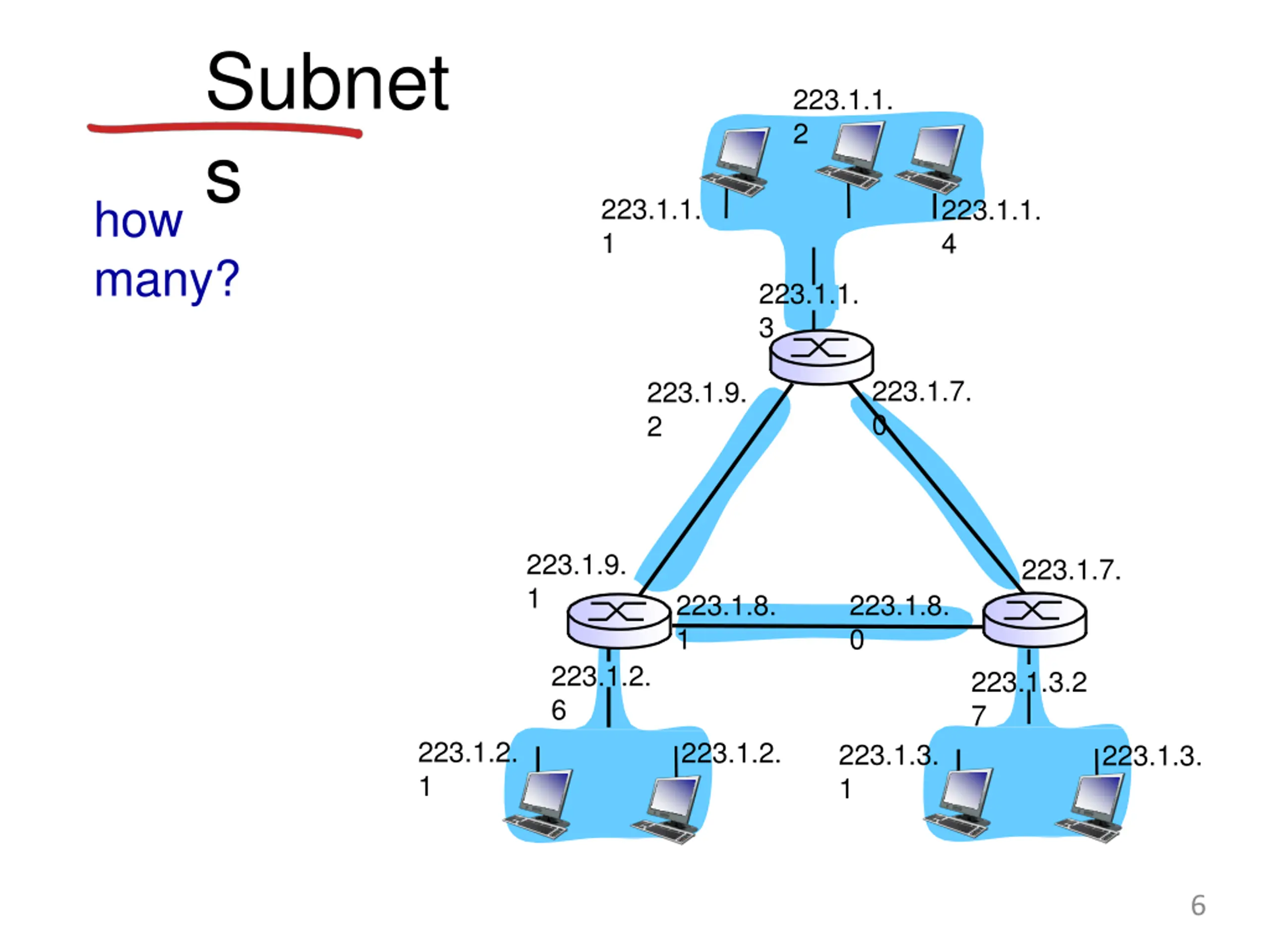

  6. Subnet s 223.1.1. 2 how many? 223.1.1. 1 223.1.1. 4 223.1.1. 3 223.1.7. 0 223.1.9. 2 223.1.9. 1 223.1.7. 1 223.1.8. 1 223.1.8. 0 223.1.2. 6 223.1.3.2 7 223.1.2. 1 223.1.2. 2 223.1.3. 1 223.1.3. 2 6

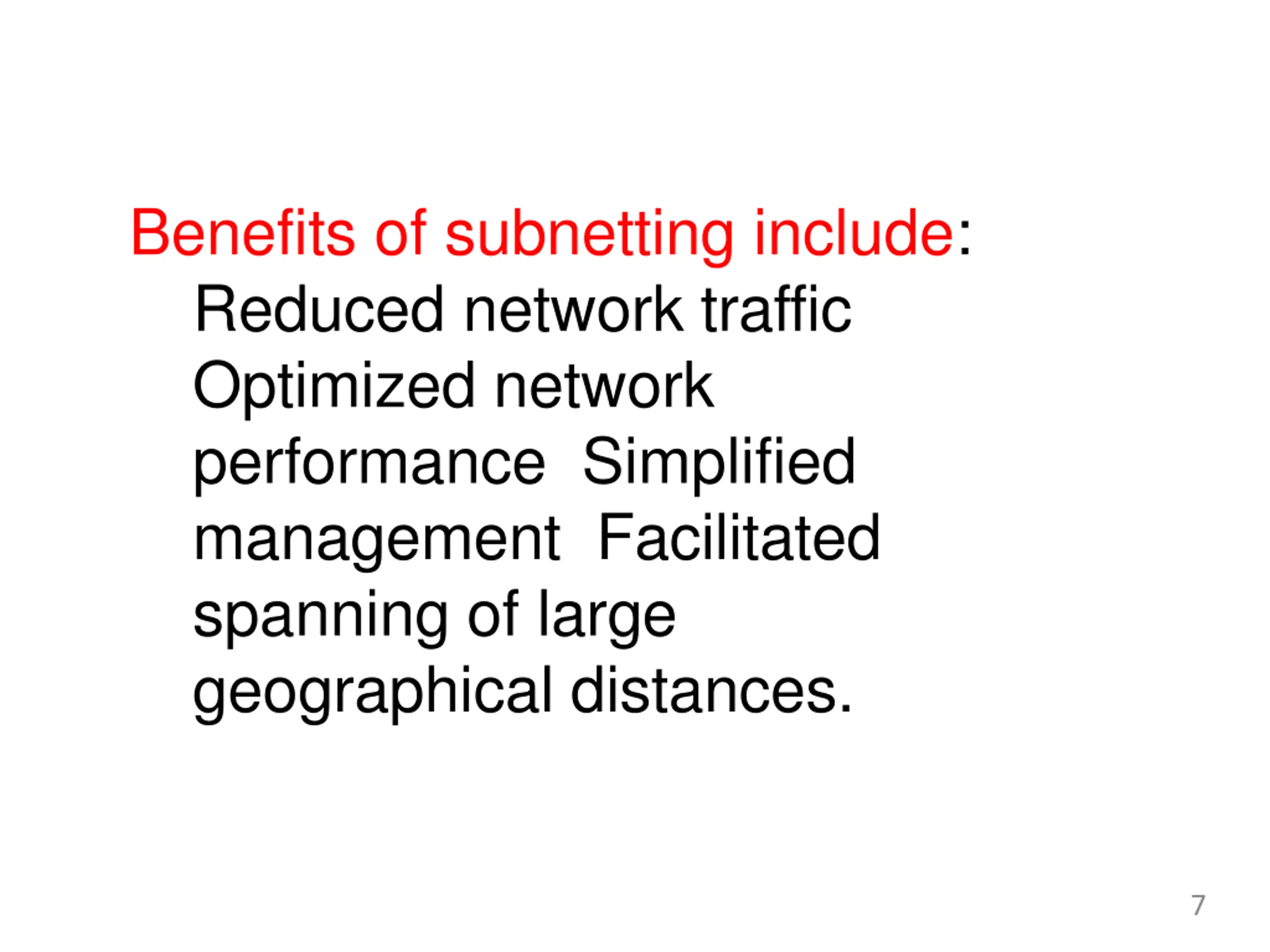

  7. Benefits of subnetting include: Reduced network traffic Optimized network performance Simplified management Facilitated spanning of large geographical distances. 7

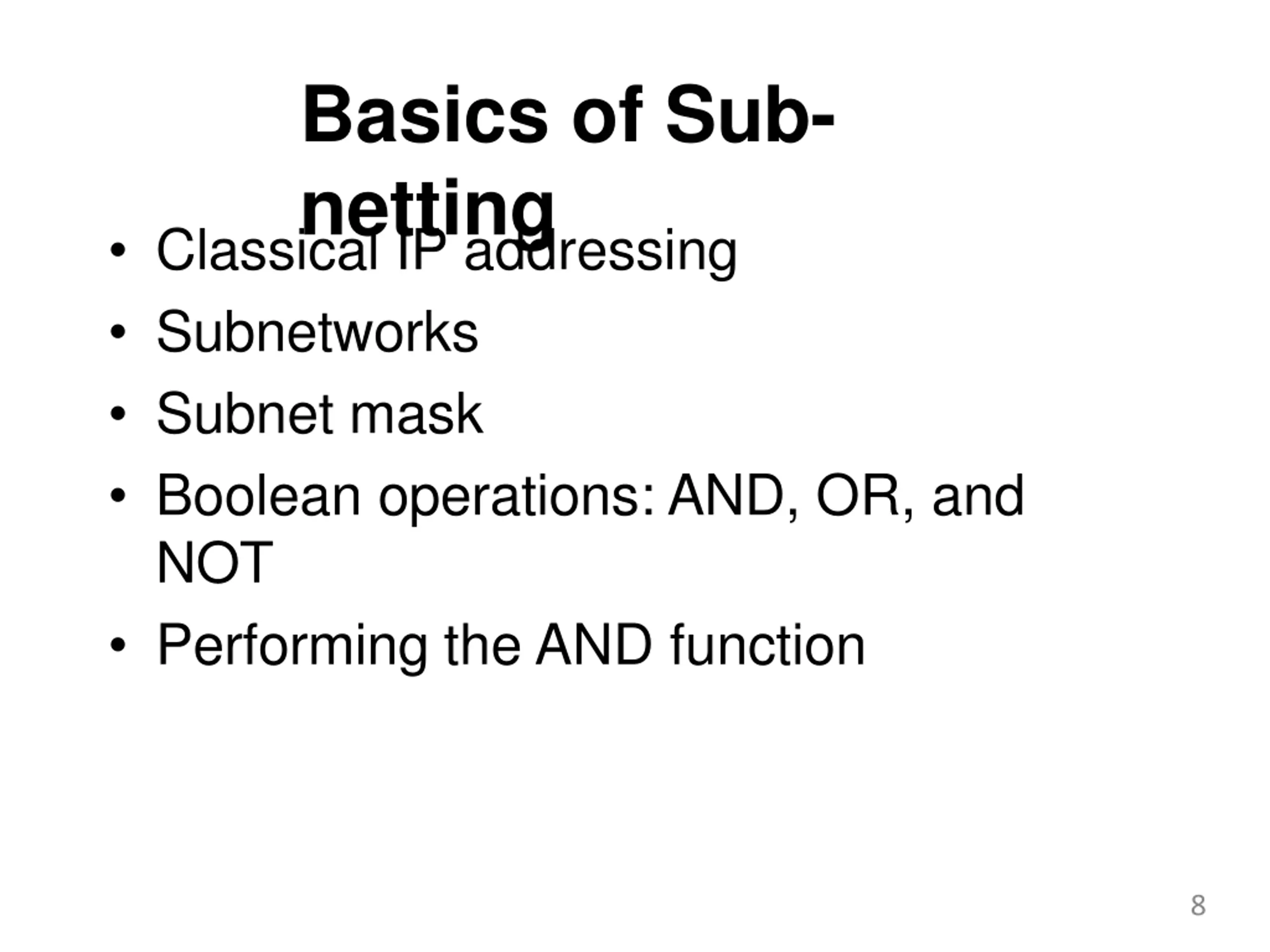

  8. Basics of Sub- netting • Classical IP addressing • Subnetworks • Subnet mask • Boolean operations: AND, OR, and NOT • Performing the AND function 8

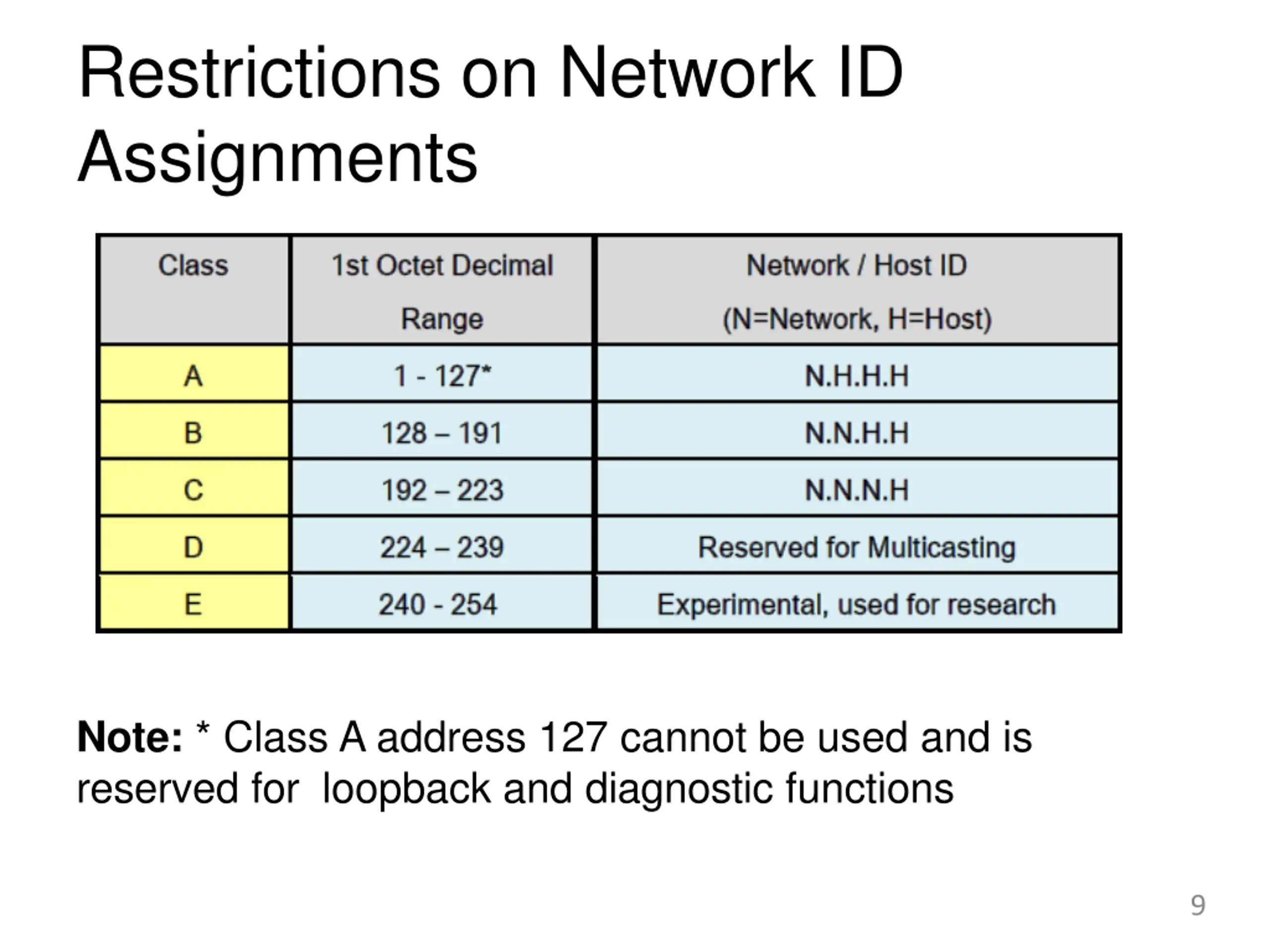

  9. Restrictions on Network ID Assignments Note: * Class A address 127 cannot be used and is reserved for loopback and diagnostic functions 9

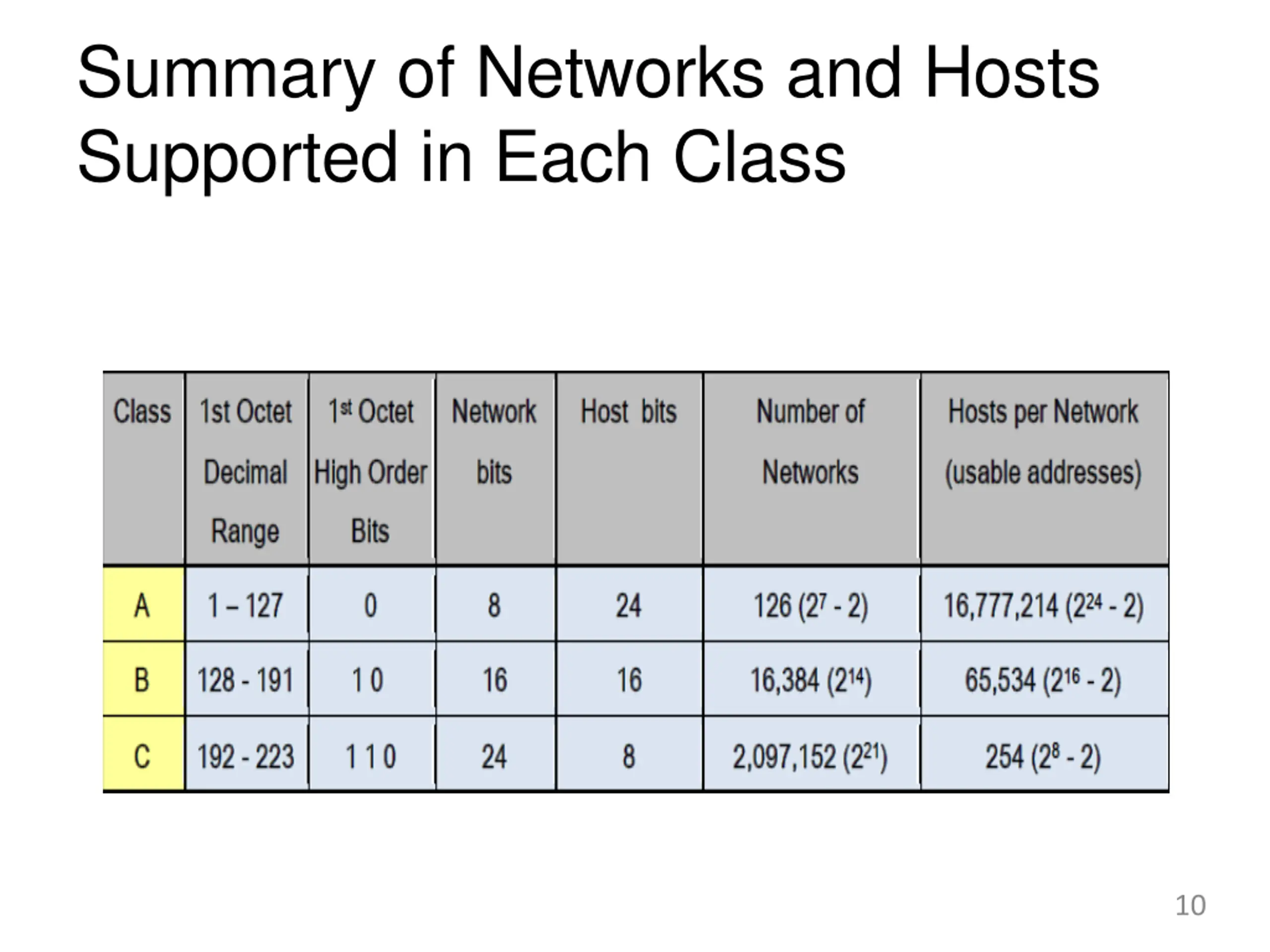

  10. Summary of Networks and Hosts Supported in Each Class 10

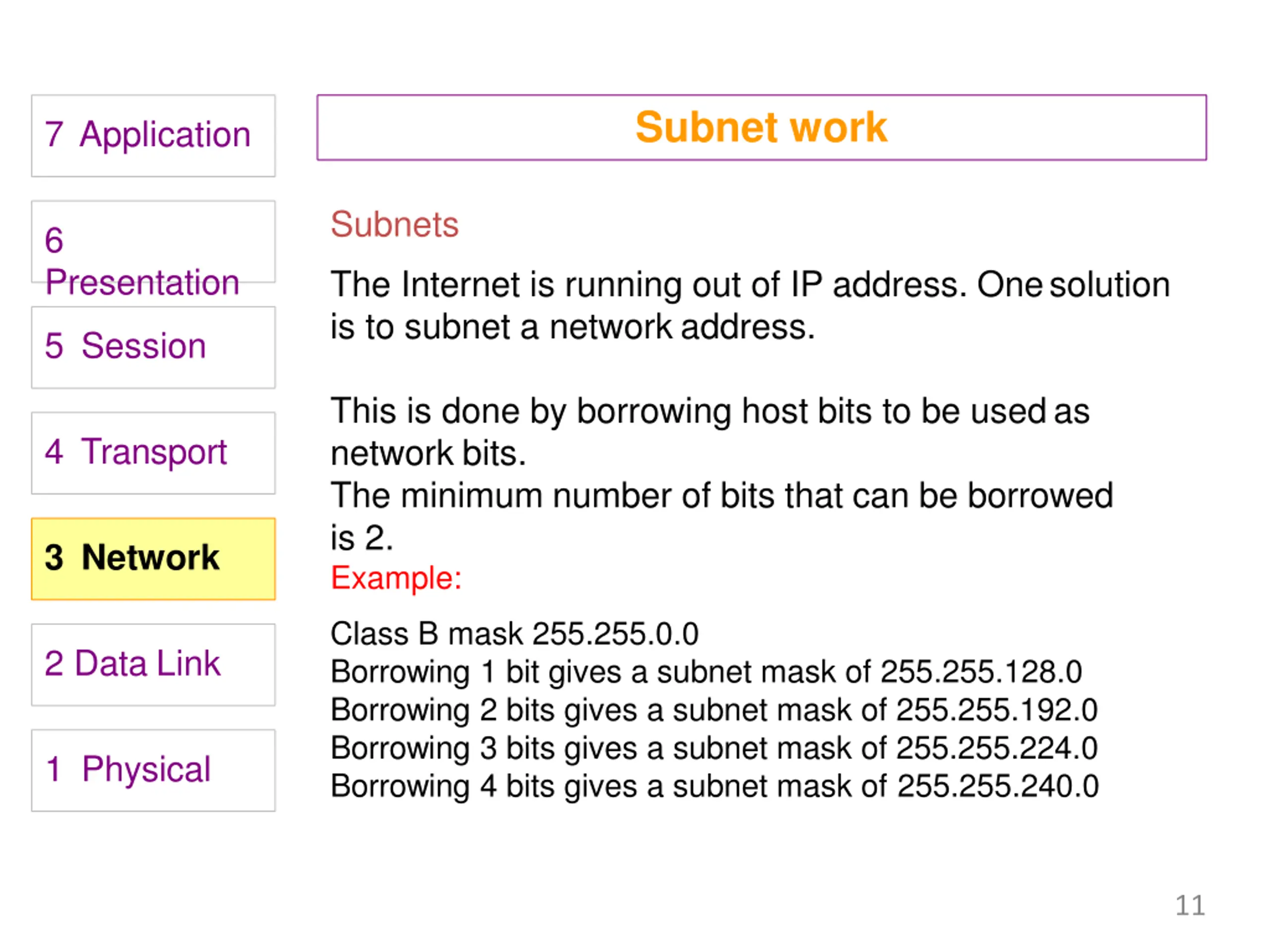

  11. Subnet work 7 Application Subnets 6 Presentation The Internet is running out of IP address. Onesolution is to subnet a network address. 5 Session This is done by borrowing host bits to be usedas network bits. The minimum number of bits that can be borrowed is 2. Example: 4 Transport 3 Network Class B mask 255.255.0.0 Borrowing 1 bit gives a subnet mask of 255.255.128.0 Borrowing 2 bits gives a subnet mask of 255.255.192.0 Borrowing 3 bits gives a subnet mask of 255.255.224.0 Borrowing 4 bits gives a subnet mask of 255.255.240.0 2 Data Link 1 Physical 11

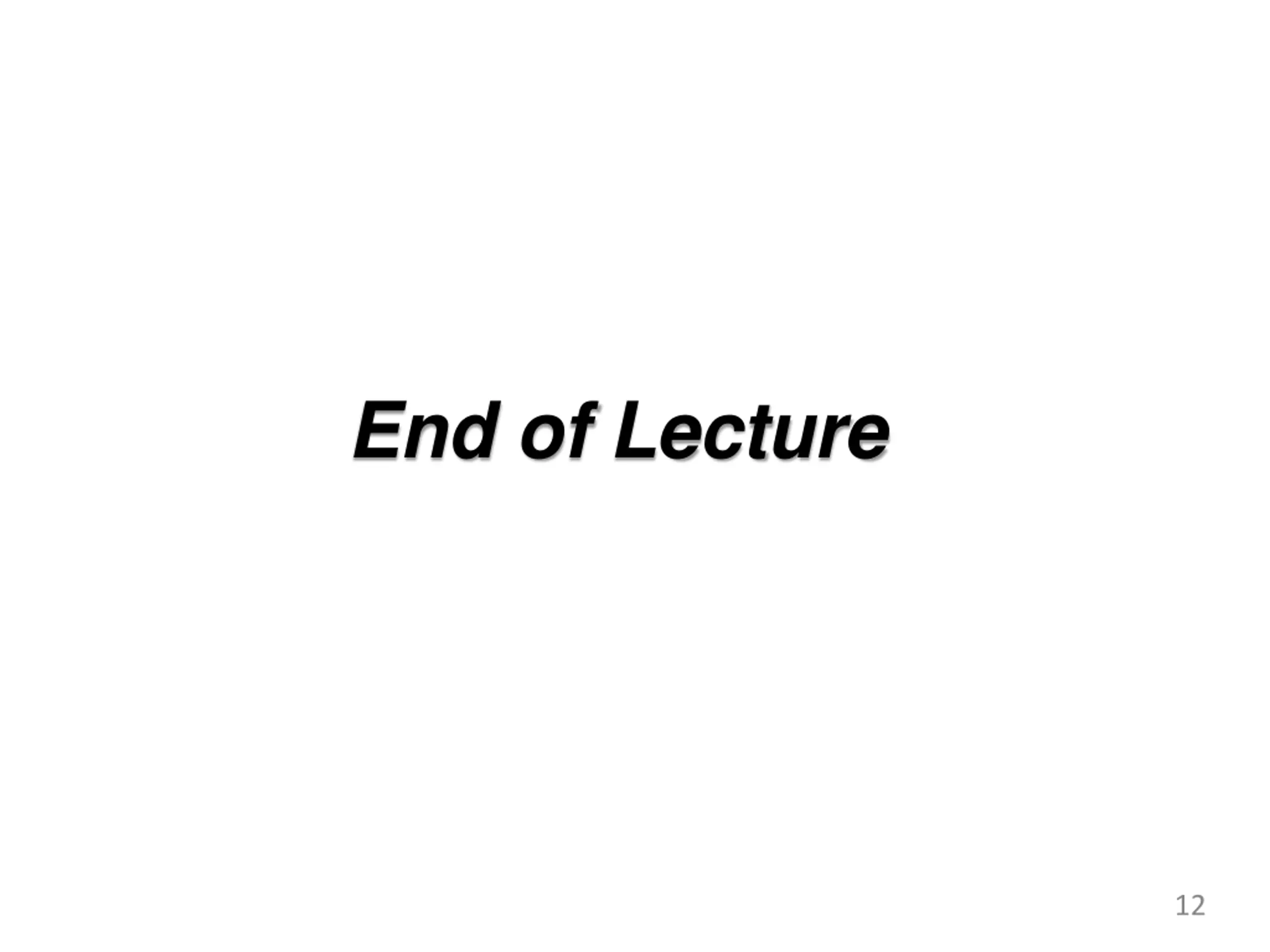

  12. End of Lecture 12
