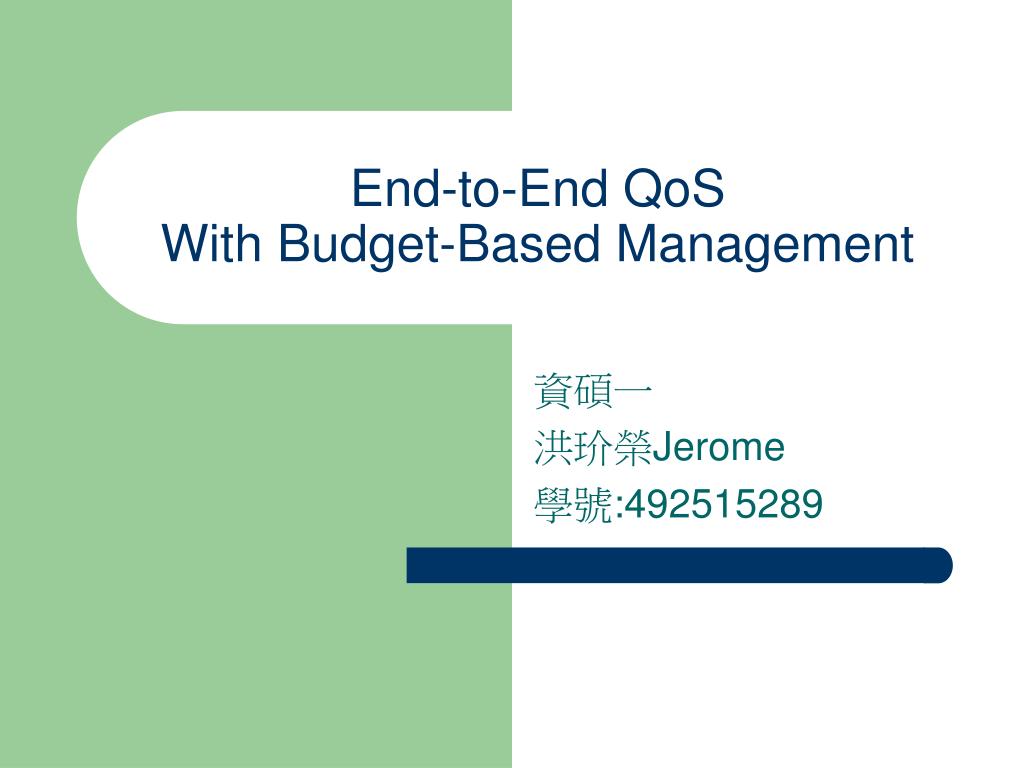

  1. End-to-End QoS With Budget-Based Management 資碩一 洪玠榮Jerome 學號:492515289

  2. Outline • Introduce • The concept of budget-based QoS • End-to-end QoS • The concept of budget allocation • To allocate the limited resource to satisfy all the requests as possible • The concept of revenue management • How to use the limited budget to obtain the maximum profit

  3. Introduce • ALL-IP network • QoS over All-IP network • End-to-End QoS

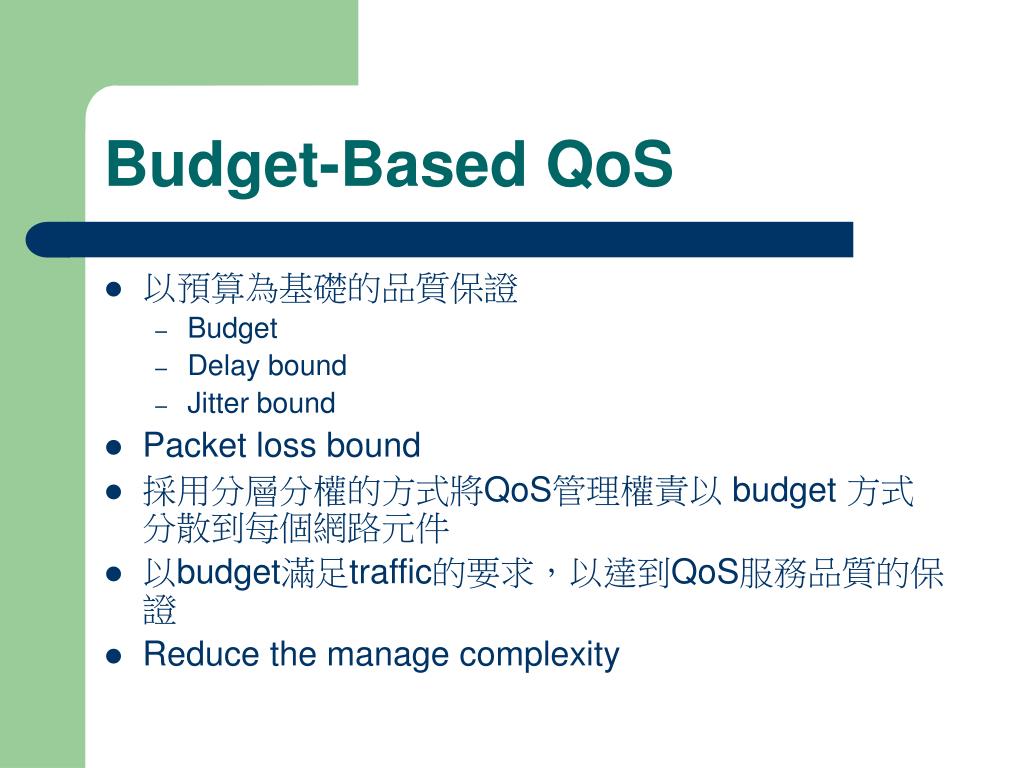

  4. Budget-Based QoS • 以預算為基礎的品質保證 • Budget • Delay bound • Jitter bound • Packet loss bound • 採用分層分權的方式將QoS管理權責以 budget 方式分散到每個網路元件 • 以budget滿足traffic的要求，以達到QoS服務品質的保證 • Reduce the manage complexity

  5. End-to-End QoS Architecture

  6. End-to-End QoS • User 要求 end-to-end QoS 保證 • 兩個端點間事實上是經過好幾個網路介接。 End-to-end是由好幾個網路介接而成，因此end-to-end QoS可由各個subnet的budget共同達成

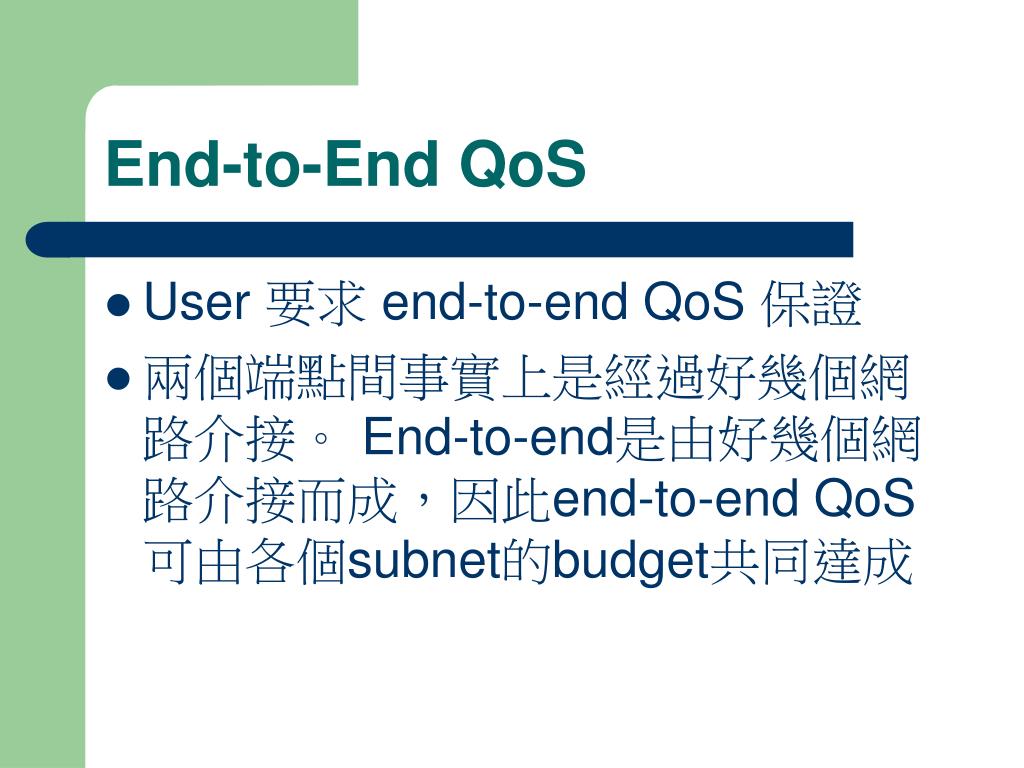

  7. End-to-End QoS

  8. System Architecture • All-IP Network Architecture Model •  End-to-End QoS Model • Short Path Attribute

  9. All-IP Network Architecture Model 骨幹網路（Backbone） • a.       骨幹網路由核心網路（Core networks）相互連結組成。 • b.       骨幹網路之Edge router均稱為Border Gateway（BG）。 因此，Border Gateway為接取網路連接上骨幹網路之入口閘道器。 • c.       核心網路間以Internal domain Gateway（IG）互連成骨幹網路，Internal domain Gateway間則以Domain inter-connection link相連。核心網路之間不一定只有一條Domain inter-connection link，會依照實際的需求建置。 • d.       由於骨幹網路所需負載之交通流量相當繁重。因此，骨幹網路通常可提供較大之頻寬和較小之delay time[6]。 接取網路（Access Network） • a.       接取網路為直接提供服務給終端使用者的網路，可能為無線接取網路（ex. UMTS、GPRS、802.11）、固接式接取網路（Fixed network）或是其他類型之接取網路。 • b.       接取網路以Access Gateway（AG）連接骨幹網路上的Border Gateway，Access Gateway和Border Gateway間則以Access link相連。Access link通常只會有Alternative link作備援線路，因此，在本研究當中的架構模型，將會視為只有單一Access link。 • c.       接取網路由Network Access Server（NAS）負責連結至終端使用者。 • d.       由於接取網路所需負載之交通流量為局部的。因此相較於骨幹網路，接取網路通常只能提供較小之頻寬。

  10. End-to-End QoS Model

  11. Short Path Attribute

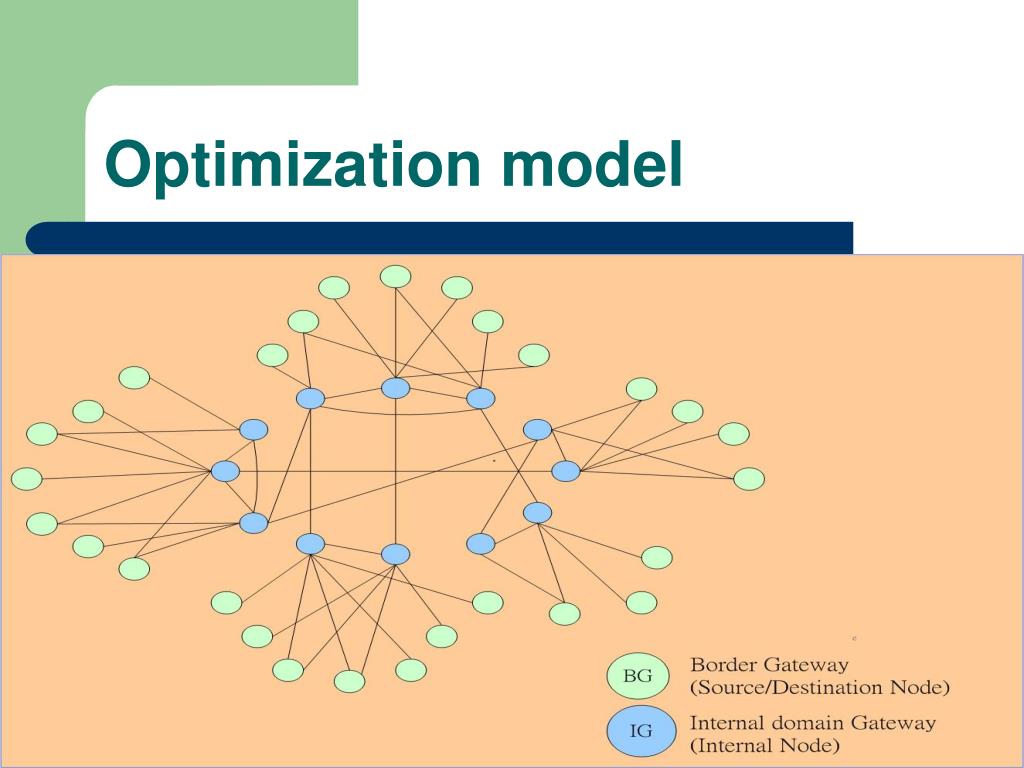

  12. Optimization model

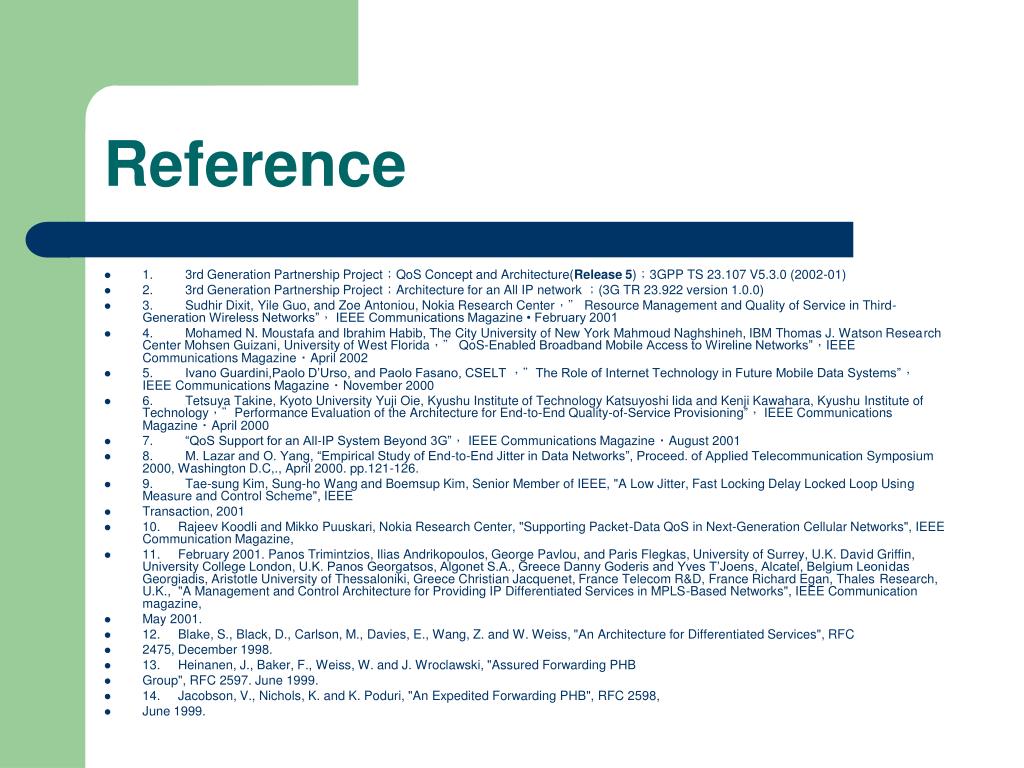

  13. Reference • 1.         3rd Generation Partnership Project；QoS Concept and Architecture(Release 5)；3GPP TS 23.107 V5.3.0 (2002-01) • 2.         3rd Generation Partnership Project；Architecture for an All IP network ；(3G TR 23.922 version 1.0.0) • 3.         Sudhir Dixit, Yile Guo, and Zoe Antoniou, Nokia Research Center，” Resource Management and Quality of Service in Third-Generation Wireless Networks”， IEEE Communications Magazine • February 2001 • 4.         Mohamed N. Moustafa and Ibrahim Habib, The City University of New York Mahmoud Naghshineh, IBM Thomas J. Watson Research Center Mohsen Guizani, University of West Florida，” QoS-Enabled Broadband Mobile Access to Wireline Networks”，IEEE Communications Magazine ‧ April 2002 • 5.         Ivano Guardini,Paolo D’Urso, and Paolo Fasano, CSELT ，”The Role of Internet Technology in Future Mobile Data Systems”， IEEE Communications Magazine ‧ November 2000 • 6.         Tetsuya Takine, Kyoto University Yuji Oie, Kyushu Institute of Technology Katsuyoshi Iida and Kenji Kawahara, Kyushu Institute of Technology，”Performance Evaluation of the Architecture for End-to-End Quality-of-Service Provisioning”， IEEE Communications Magazine ‧ April 2000 • 7.         “QoS Support for an All-IP System Beyond 3G”， IEEE Communications Magazine ‧ August 2001 • 8.         M. Lazar and O. Yang, “Empirical Study of End-to-End Jitter in Data Networks”, Proceed. of Applied Telecommunication Symposium 2000, Washington D.C,., April 2000. pp.121-126. • 9.         Tae-sung Kim, Sung-ho Wang and Boemsup Kim, Senior Member of IEEE, "A Low Jitter, Fast Locking Delay Locked Loop Using Measure and Control Scheme", IEEE • Transaction, 2001 • 10.     Rajeev Koodli and Mikko Puuskari, Nokia Research Center, "Supporting Packet-Data QoS in Next-Generation Cellular Networks", IEEE Communication Magazine, • 11.     February 2001. Panos Trimintzios, Ilias Andrikopoulos, George Pavlou, and Paris Flegkas, University of Surrey, U.K. David Griffin, University College London, U.K. Panos Georgatsos, Algonet S.A., Greece Danny Goderis and Yves T’Joens, Alcatel, Belgium Leonidas Georgiadis, Aristotle University of Thessaloniki, Greece Christian Jacquenet, France Telecom R&D, France Richard Egan, Thales Research, U.K., "A Management and Control Architecture for Providing IP Differentiated Services in MPLS-Based Networks", IEEE Communication magazine, • May 2001. • 12.     Blake, S., Black, D., Carlson, M., Davies, E., Wang, Z. and W. Weiss, "An Architecture for Differentiated Services", RFC • 2475, December 1998. • 13.     Heinanen, J., Baker, F., Weiss, W. and J. Wroclawski, "Assured Forwarding PHB • Group", RFC 2597. June 1999. • 14.     Jacobson, V., Nichols, K. and K. Poduri, "An Expedited Forwarding PHB", RFC 2598, • June 1999.
