12.2 Chords and Arcs

12.2 Chords and Arcs. Theorem 12.4 and Its Converse Theorem – Within a circle or in congruent circles, congruent central angles have congruent arcs. Converse – Within a circle or in congruent circles, congruent arcs have congruent central angles. Theorem 12.5 and Its Converse.

Download Presentation

12.2 Chords and Arcs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

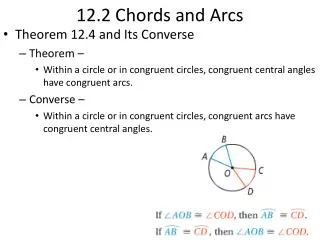

  1. 12.2 Chords and Arcs • Theorem 12.4 and Its Converse • Theorem – • Within a circle or in congruent circles, congruent central angles have congruent arcs. • Converse – • Within a circle or in congruent circles, congruent arcs have congruent central angles.

  2. Theorem 12.5 and Its Converse • Theorem - Within a circle or in congruent circles, congruent central angles have congruent chords. • Converse – Within a circle or in congruent circles, congruent chords have congruent central angles.

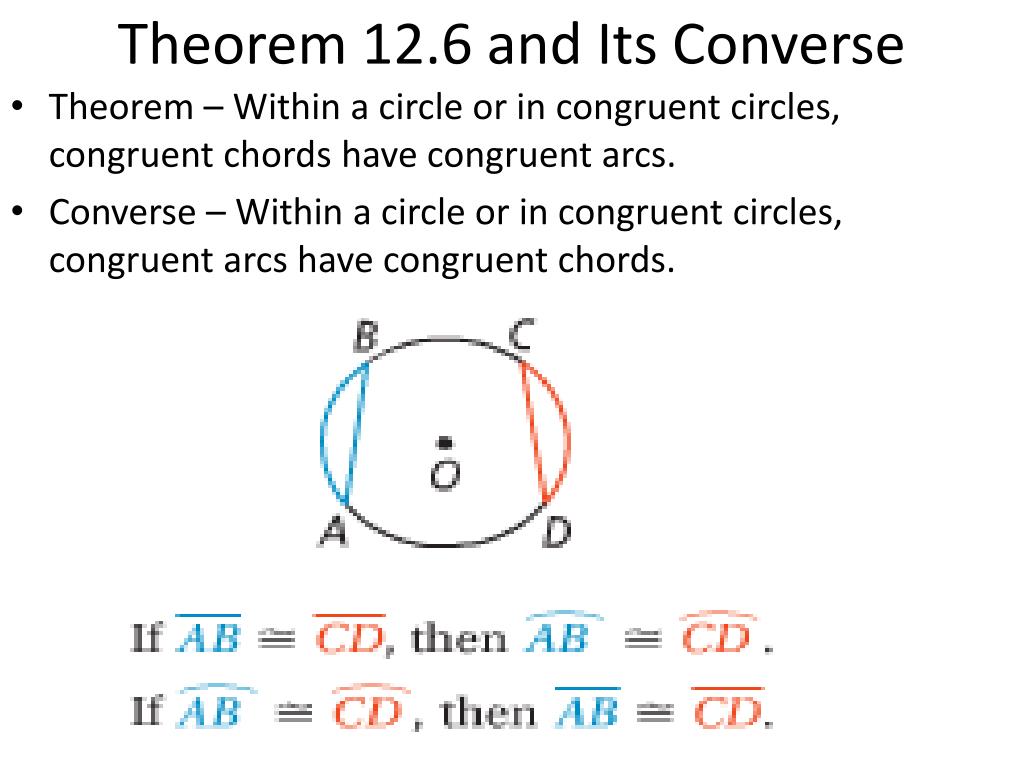

  3. Theorem 12.6 and Its Converse • Theorem – Within a circle or in congruent circles, congruent chords have congruent arcs. • Converse – Within a circle or in congruent circles, congruent arcs have congruent chords.

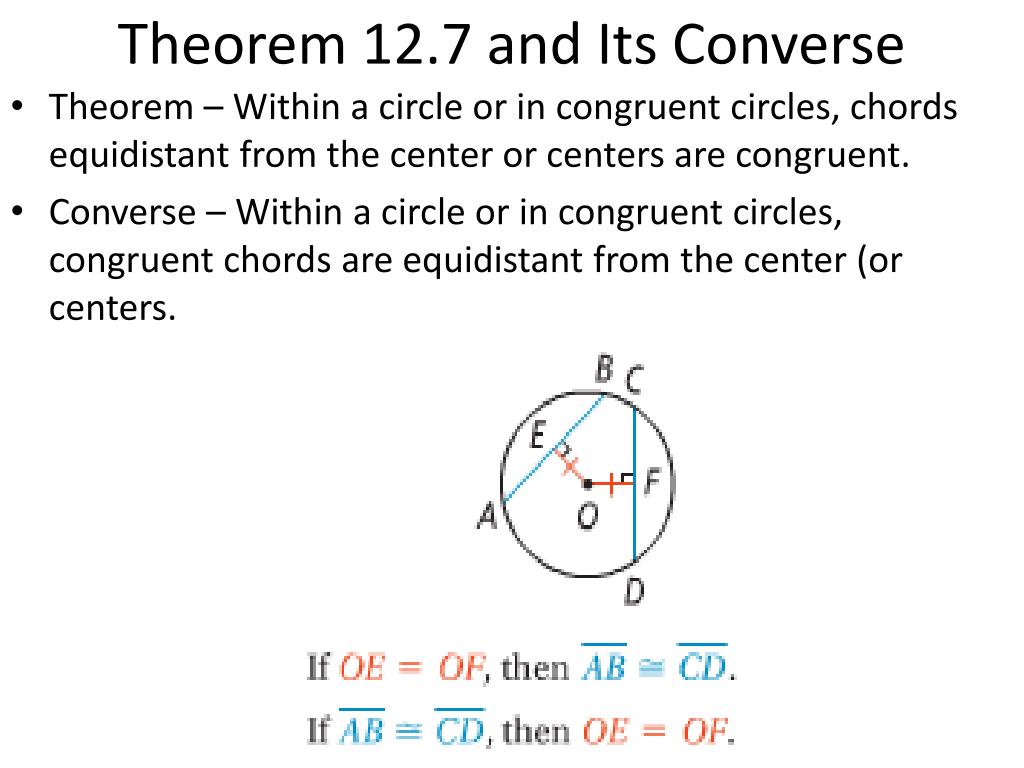

  4. Theorem 12.7 and Its Converse • Theorem – Within a circle or in congruent circles, chords equidistant from the center or centers are congruent. • Converse – Within a circle or in congruent circles, congruent chords are equidistant from the center (or centers.

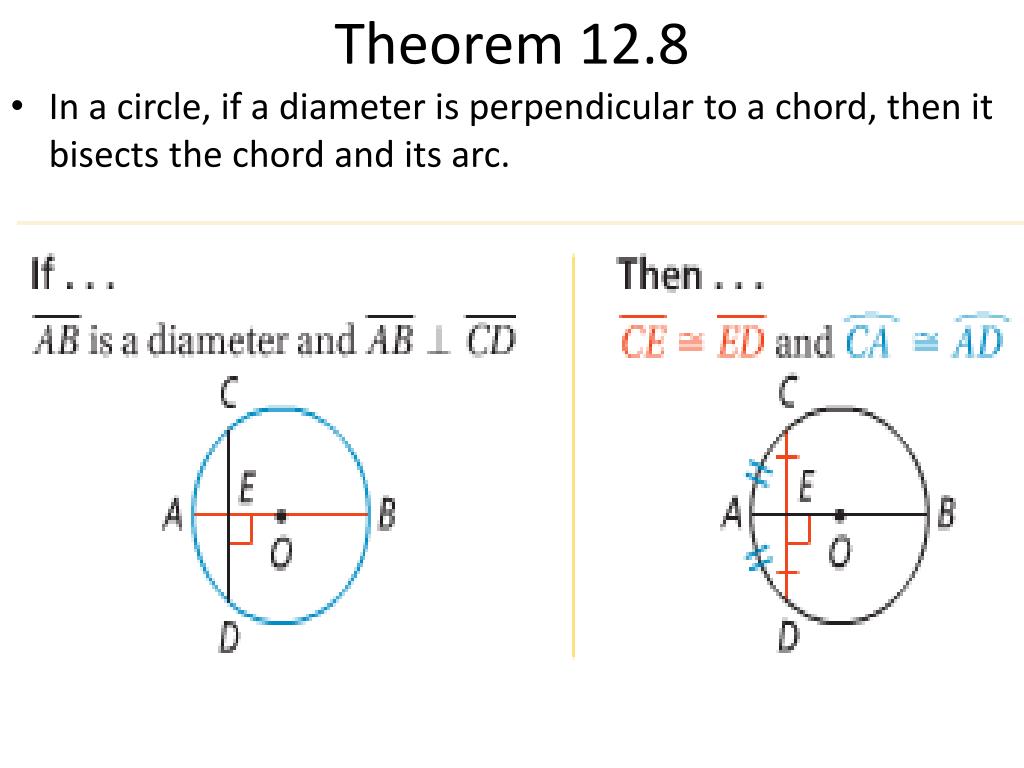

  5. Theorem 12.8 • In a circle, if a diameter is perpendicular to a chord, then it bisects the chord and its arc.

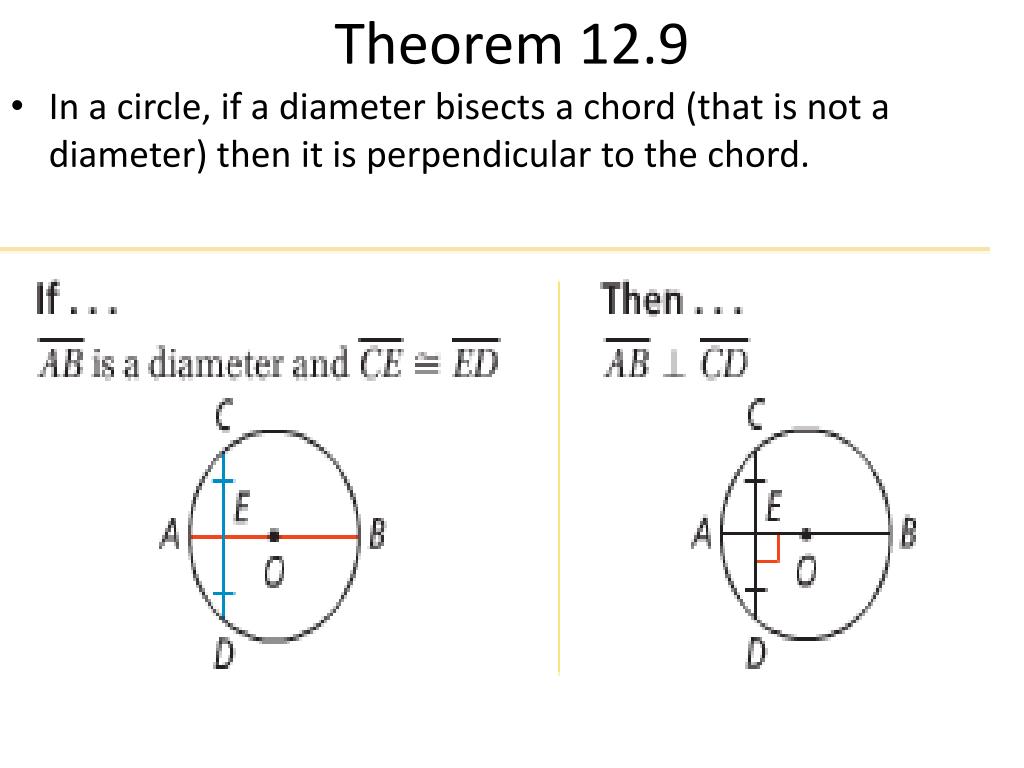

  6. Theorem 12.9 • In a circle, if a diameter bisects a chord (that is not a diameter) then it is perpendicular to the chord.

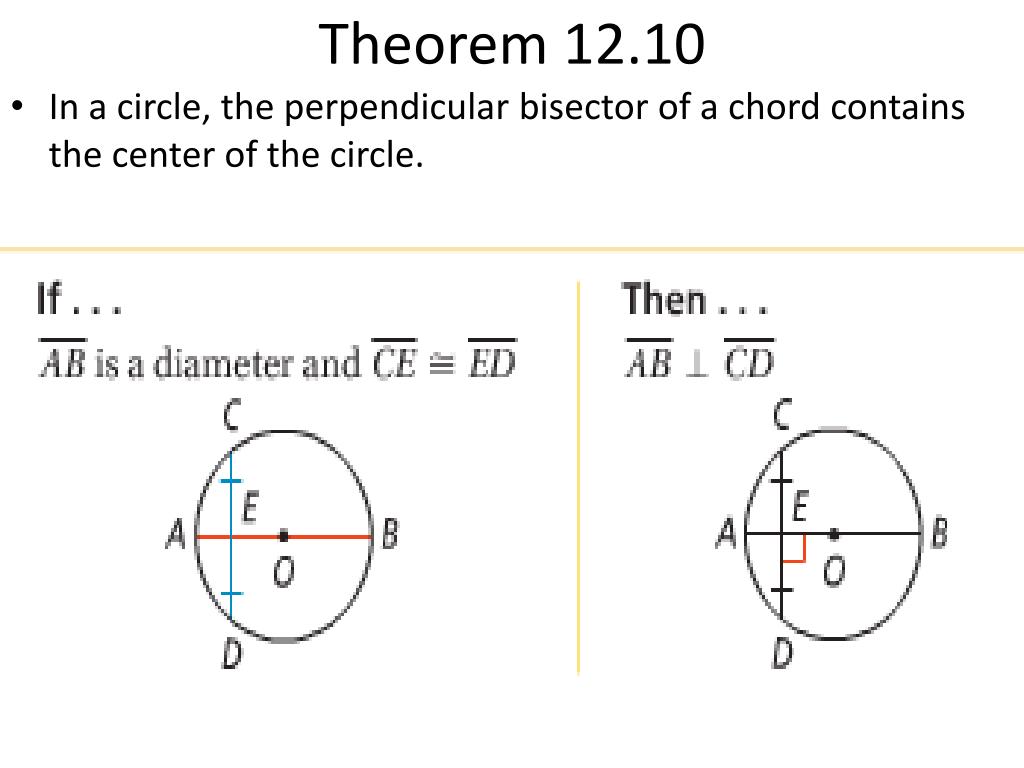

  7. Theorem 12.10 • In a circle, the perpendicular bisector of a chord contains the center of the circle.

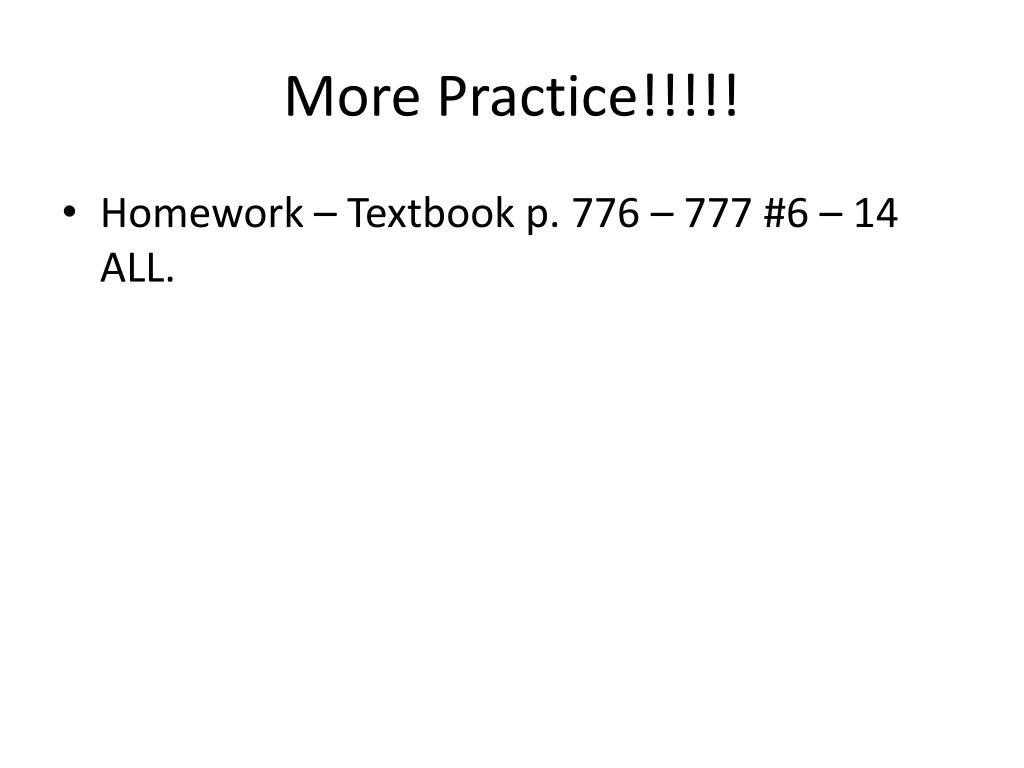

  8. More Practice!!!!! • Homework – Textbook p. 776 – 777 #6 – 14 ALL.
