  1. D-RATS • Not Just for D-STAR radios Based on a presentation by Debbie Fligor, N9DN TCARC meeting 3/9/2010 Presented at 2011 Orlando Hamcation by: John Davis, WB4QDX Georgia D-STAR Morphed by: Cary Beuershausen Duval County Emergency Coordinator

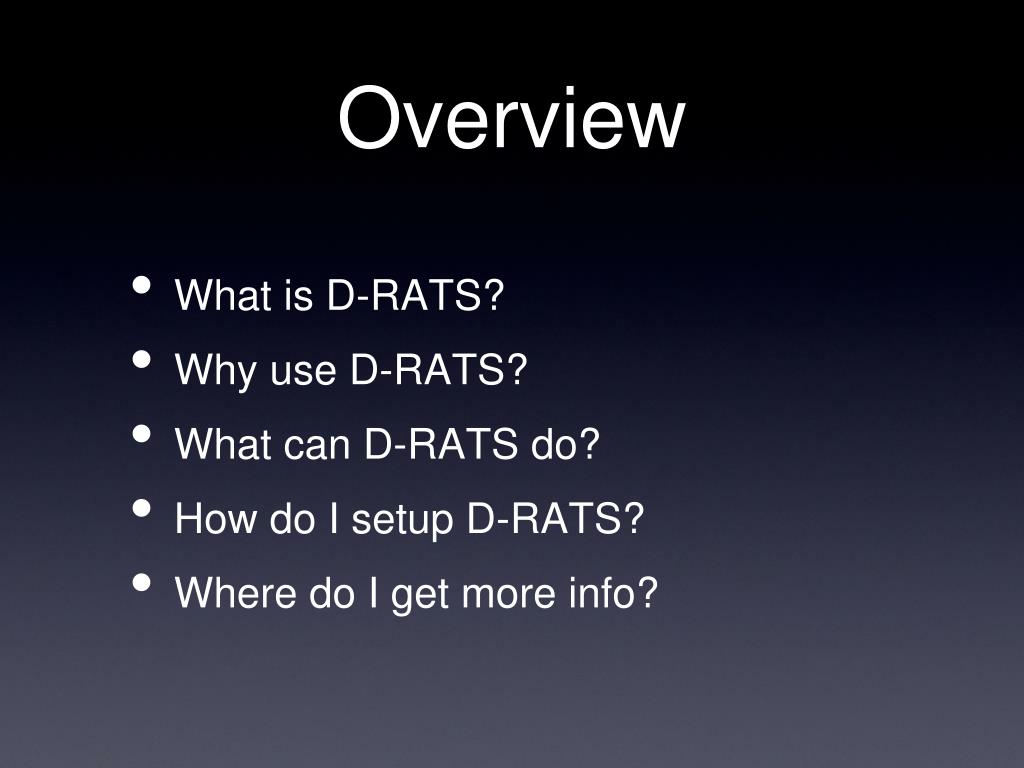

  2. Overview • What is D-RATS? • Why use D-RATS? • What can D-RATS do? • How do I setup D-RATS? • Where do I get more info?

  3. What is D-RATS? • A multi-platform communications package written by Dan Smith, KK7DS, in python/GTK • Windows (2000 or later) • Mac OS X • Linux • Emergency Communications tool • distribute data reliably • Internet to RF gateway (and back again) • Mapping program/position reporting system

  4. Why use D-RATS? • Works on multiple interfaces • D-STAR radio • Internet reflector • KISS-mode TNC • DV-Dongle • Traffic routing • Manual • Automatic • WinLink2000 interface

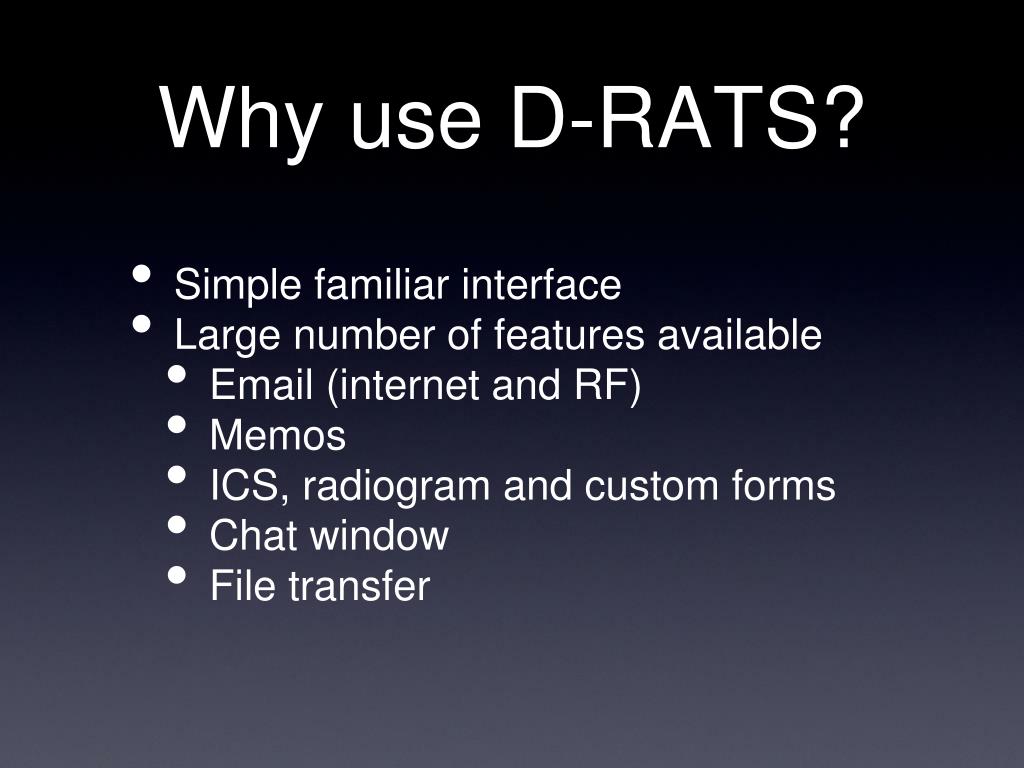

  5. Why use D-RATS? • Simple familiar interface • Large number of features available • Email (internet and RF) • Memos • ICS, radiogram and custom forms • Chat window • File transfer

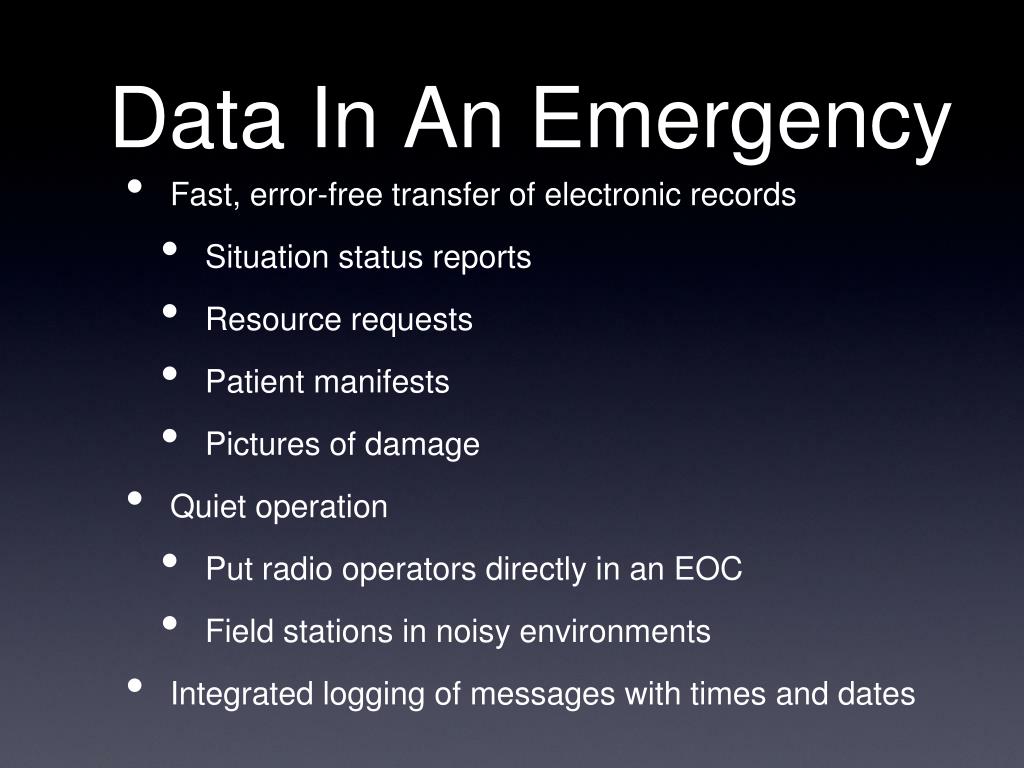

  6. Data In An Emergency • Fast, error-free transfer of electronic records • Situation status reports • Resource requests • Patient manifests • Pictures of damage • Quiet operation • Put radio operators directly in an EOC • Field stations in noisy environments • Integrated logging of messages with times and dates

  7. What can D-RATS do? • Messages • Chat • Files • Forms • Email • Event Log • Map View

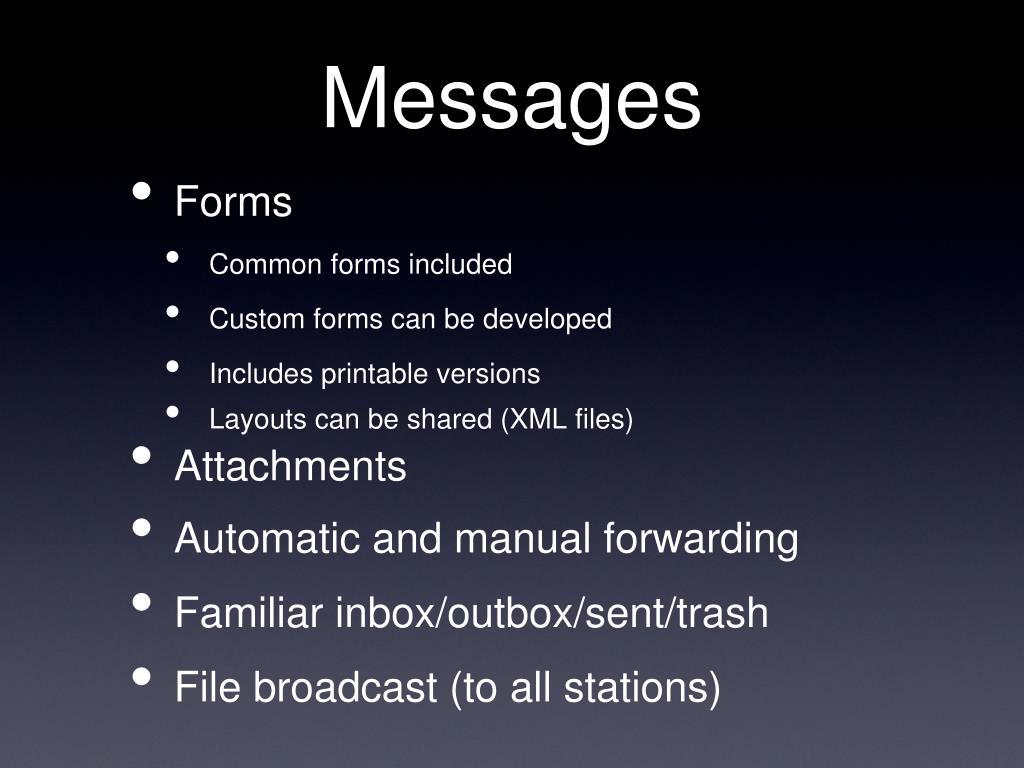

  8. Messages • Forms • Common forms included • Custom forms can be developed • Includes printable versions • Layouts can be shared (XML files) • Attachments • Automatic and manual forwarding • Familiar inbox/outbox/sent/trash • File broadcast (to all stations)

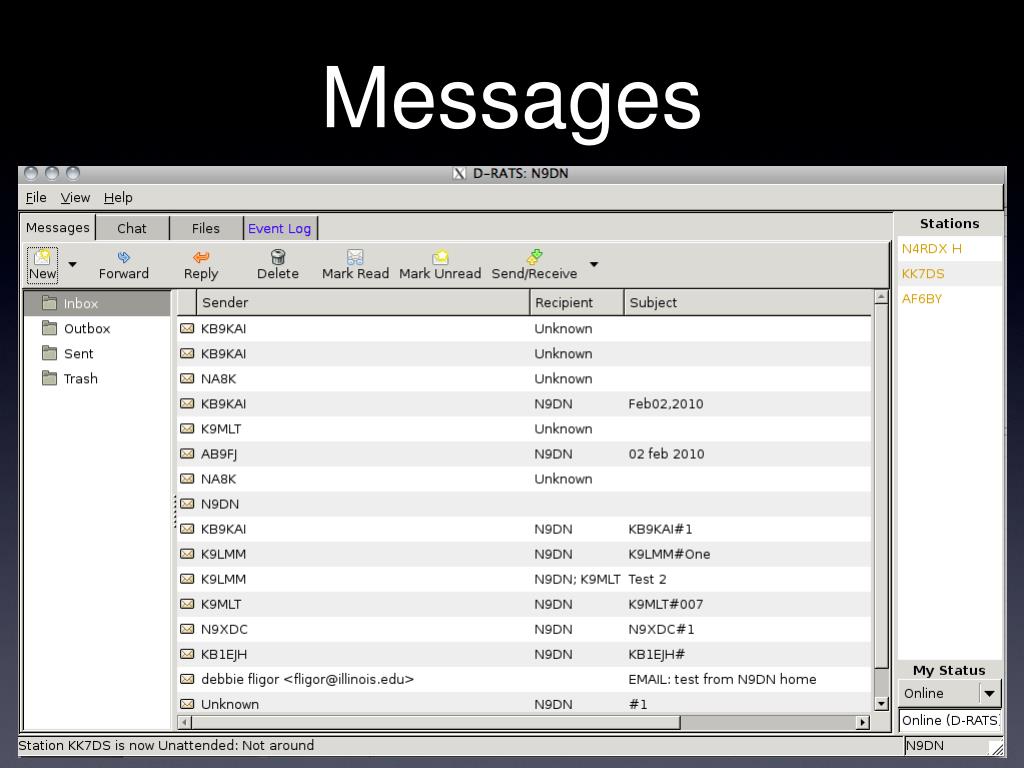

  9. Messages

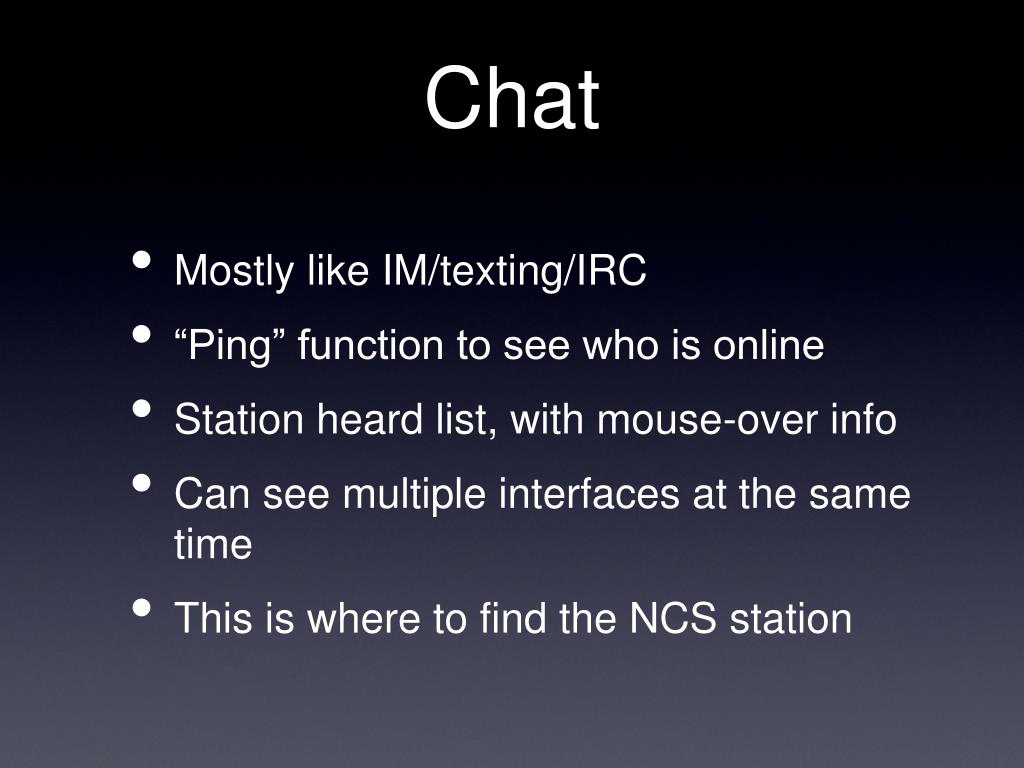

  10. Chat • Mostly like IM/texting/IRC • “Ping” function to see who is online • Station heard list, with mouse-over info • Can see multiple interfaces at the same time • This is where to find the NCS station

  11. Chat

  12. Files • See your local files that others can connect and access • Connect to other stations • Upload • Download • Uses the integrated data subchannel • Send any arbitrary file

  13. Files • Instead of reading a document over voice, send it exactly in its natural form • Interactive image resize and resample • Compresses files where possible for speed • Resume interrupted transfers

  14. Files

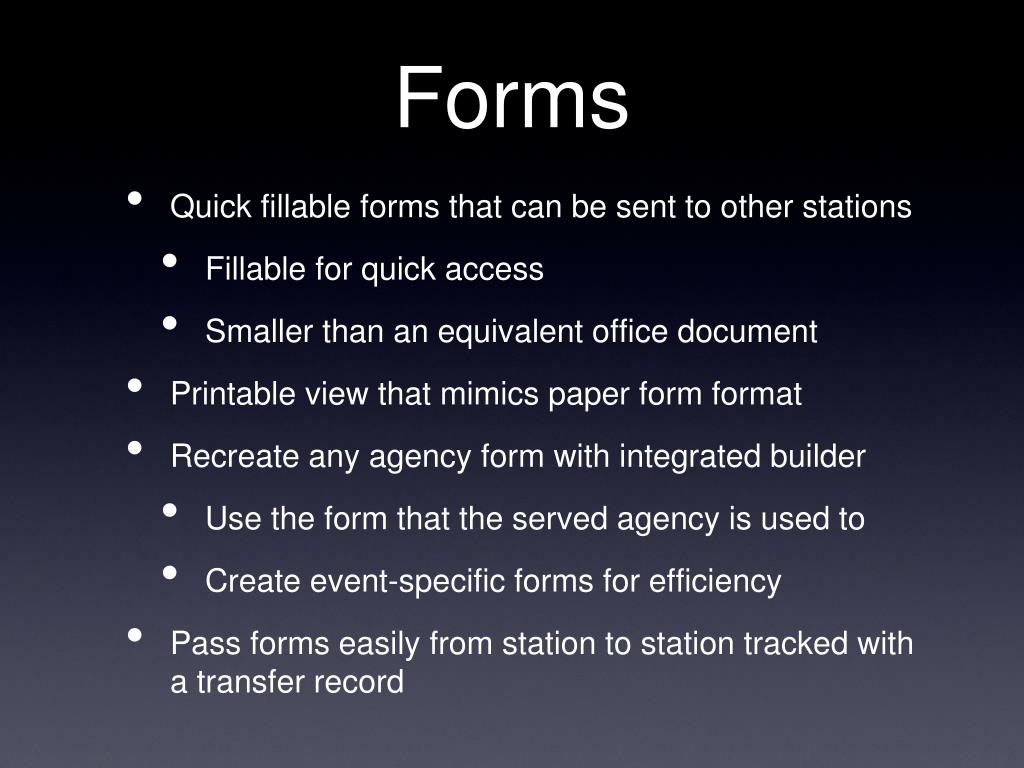

  15. Forms • Quick fillable forms that can be sent to other stations • Fillable for quick access • Smaller than an equivalent office document • Printable view that mimics paper form format • Recreate any agency form with integrated builder • Use the form that the served agency is used to • Create event-specific forms for efficiency • Pass forms easily from station to station tracked with a transfer record

  16. Forms

  17. Email • Send and receive email from D-RATS station • Any station with internet access can be a gateway • Provide gateway access to RF stations with no other infrastructure • Easy to setup in an event • Requires only an internet connection and email account • Contact served agencies or out-of-area stations through the nearest internet node

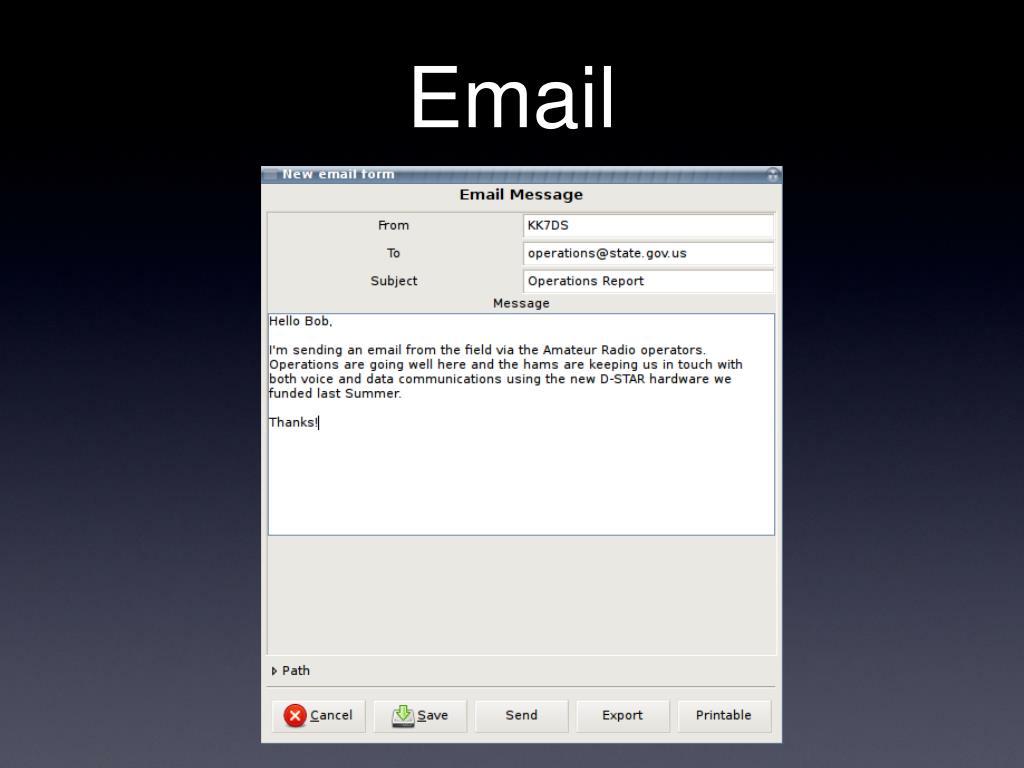

  18. Email

  19. Event Log • Provides log of activities • See ping responses • Monitor file transfers • Monitor form transfers

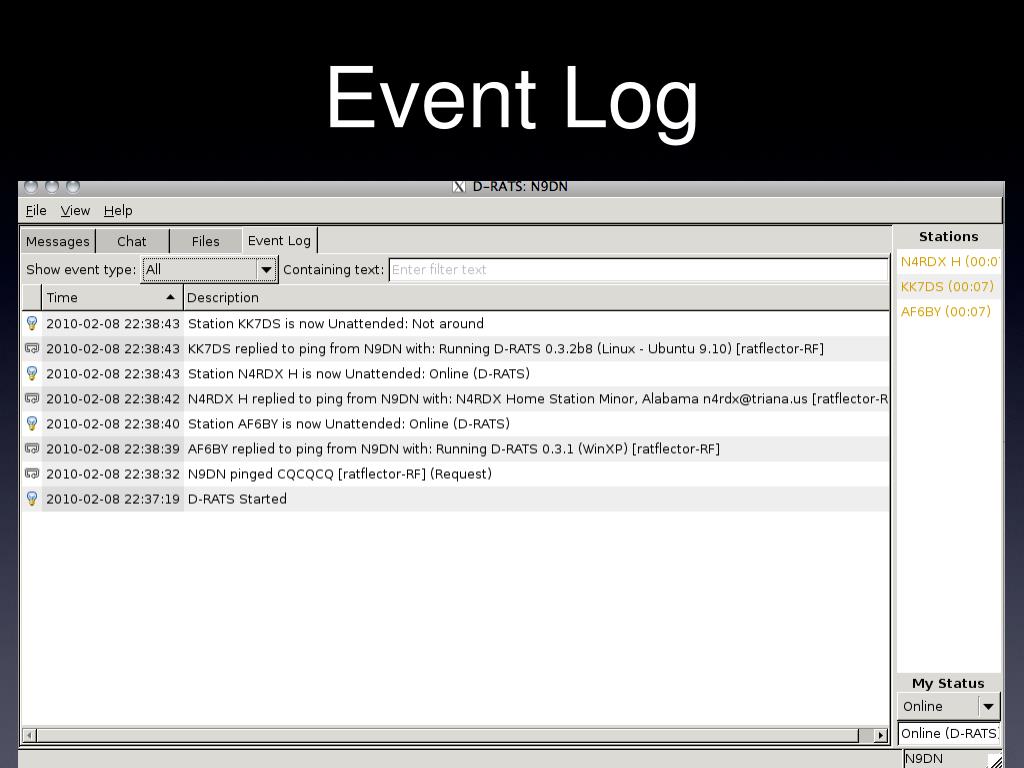

  20. Event Log

  21. Map View • Position tracking • Moving stations updated in real-time • Captures and sends ICOM GPS strings • Can add fixed points to the map • Distance and direction calculation • Internet based free map data included • Can use external GPS while on radio

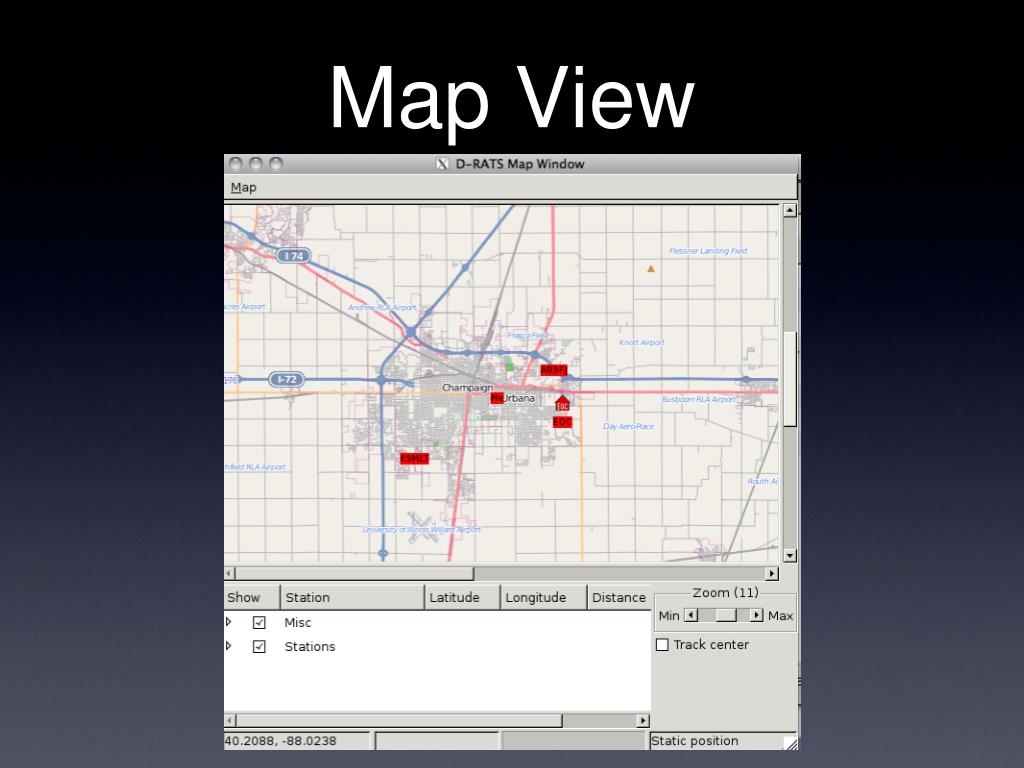

  22. Map View

  23. Positional Awareness • Integrated position reporting • Integrated mapping • Distance/bearing calculation to any station • External GPS support for moving stations • Use a D-STAR radio with an integrated or external GPS • IC-2820H, IC-92AD have integrated GPS options • Other ICOM radios can use any serial NMEA GPS

  24. How do I setup D-RATS? • Preferences panel has all configuration • Allows use “radio-less” or configure for multiple radios • “Connected to Internet” separate checkbox in the menu options • Tells D-RATS you can fetch and send internet email (if configured)

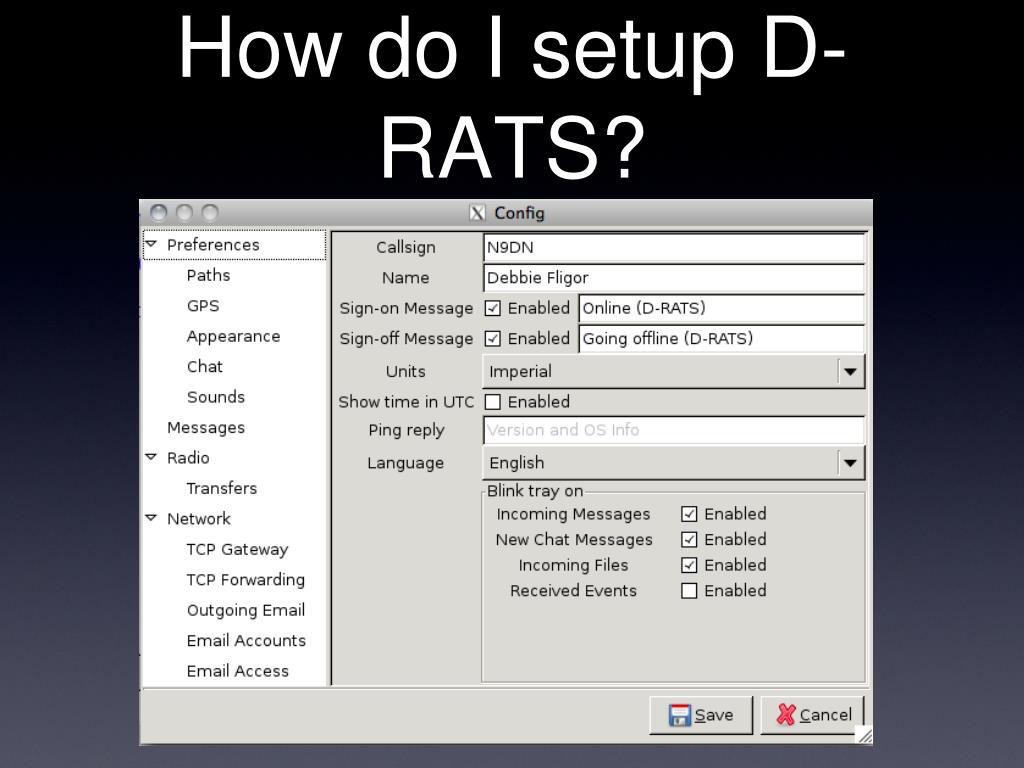

  25. How do I setup D-RATS?

  26. How do I setup D-RATS?

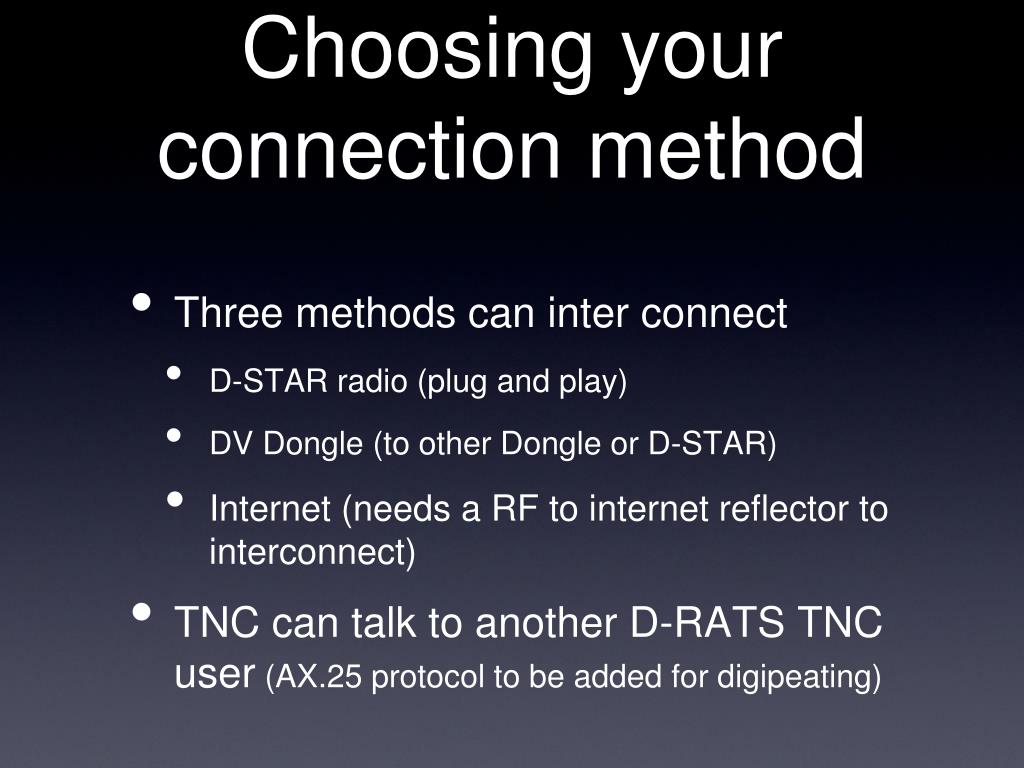

  27. Choosing your connection method • Three methods can inter connect • D-STAR radio (plug and play) • DV Dongle (to other Dongle or D-STAR) • Internet (needs a RF to internet reflector to interconnect) • TNC can talk to another D-RATS TNC user (AX.25 protocol to be added for digipeating)

  28. Choosing your connection method

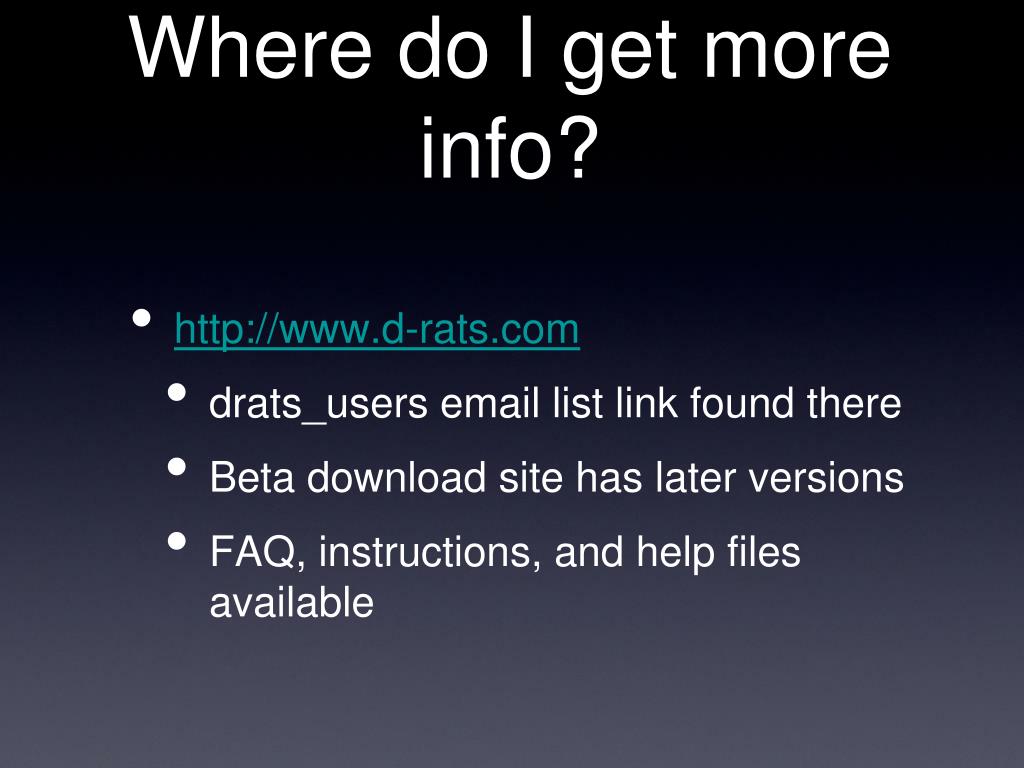

  29. Where do I get more info? • http://www.d-rats.com • drats_users email list link found there • Beta download site has later versions • FAQ, instructions, and help files available

  30. It’s Demo Time!
