  1. SLU CHESS By: James Cofield Dustin Dotson Travis Larkins Forest Marie Accidental Productions 2002

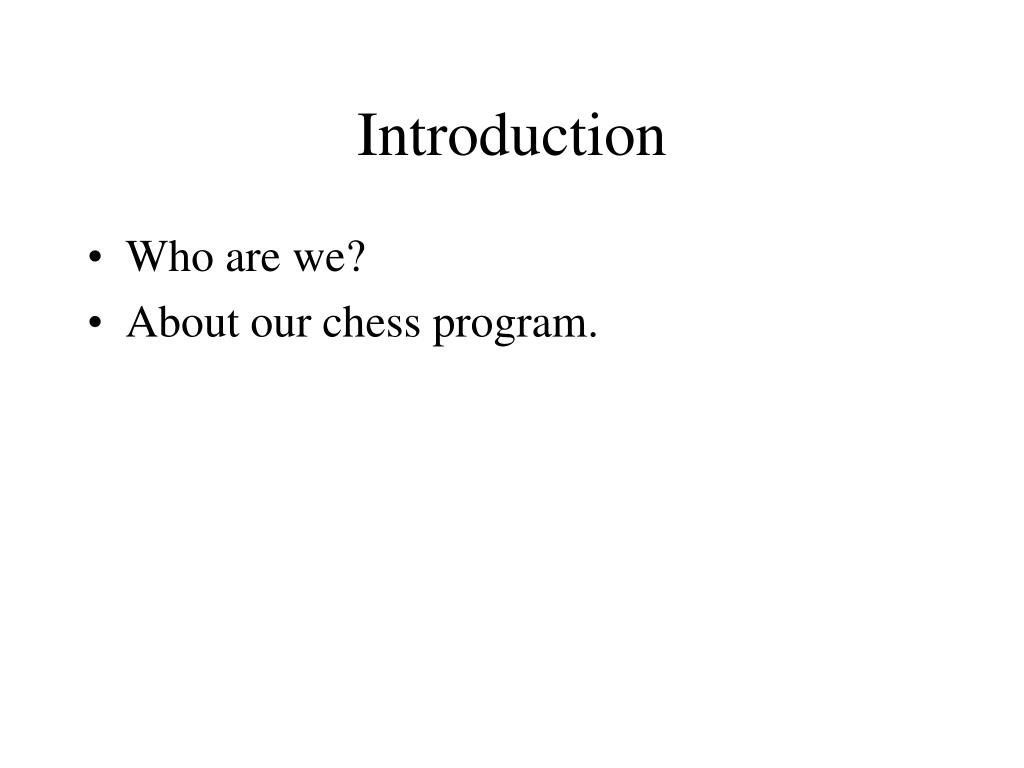

  2. Introduction • Who are we? • About our chess program.

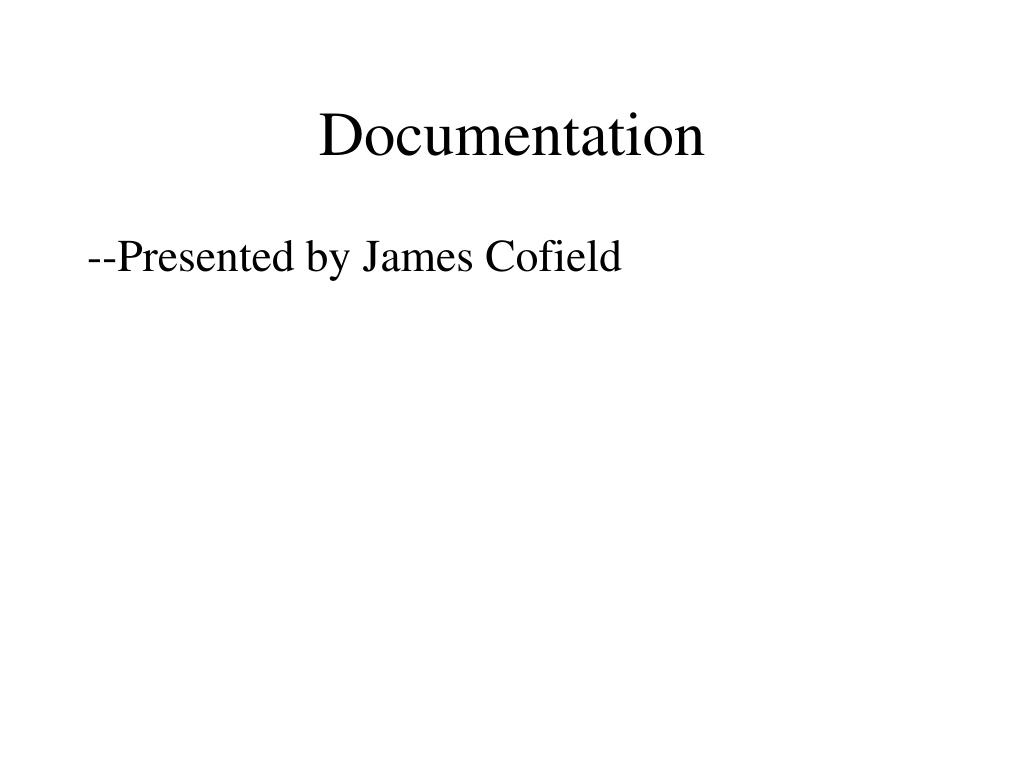

  3. Documentation --Presented by James Cofield

  4. Graphics—A Larkian approach Please wait while processing….

  5. Chess logic and math

  6. Setting up the board char pieceIdentifiers[ 66 ]; strcpy( pieceIdentifiers, “_rnbqkbnrpppppppp ……. PPPPPPPPRNBKQBNR”); for ( int walker = 1; walker <= 64; i++ ) DrawPieceToBoard( walker, pieceIdentifiers[ walker ] );

  7. X-Y Position struct Square { int squarePosition; }; int xPosition ( Square & square ) { return ( 1 + ( ( square – 1 ) % 8 ); } Why not square % 8? Consider the positions of 8n, where 1 <= n <= 8. int yPosition( Square & square ) { return 8 – (( square – 1 ) / 8 ); }

  8. Legal Move—Pawns int moveDifference = abs(xPosition( prevSquarePosition ) ) - abs(xPosition(currSquarePosition)); LegalPawnMove() { if ( yPosition( prevSquarePosition ) == yPosition( currSquarePosition )+ 1 ) { if ( !moveDifference ) // if not zero { if ( pieceIdentifiers[ currSquarePosition ] == ‘ ‘ ) return true; } else if ( moveDifference == 1 ) //Possible capture! if ( ( PieceColor( currSquare ) == Black ) return true; } else if ( ( yPosition( prevSquare == 2 ) && ( yPosition( currSquare == 4 ) ) if ( !moveDifference && pieceIdentifer[ currSquarePosition ] == ‘ ‘ && pieceIdentifier[ prevSquarePosition +currSquarePosition / 2 ] == ‘ ‘ ) return true; else return false; }

  9. Legal Move—Knights int moveDifferenceX = abs(( xPosition( prevSquarePosition ) – xPosition( currSquarePosition ) ); int moveDifferenceY = abs(( yPosition( prevSquarePosition ) – yPosition( currSquarePosition ); if ( moveDifferenceX == 2 && moveDifferenceY == 1 ) if ( PieceColor( currSquarePosition ) == White || pieceIdentifier[ currSquarePosition ] == ‘ ‘ ) return true; else if ( moveDifferenceX == 1 && moveDifferenceY == 2 ) if( PieceColor( currSquarePosition ) == White || pieceIdentifier[ currSquarePosition ] == ‘ ‘ ) return true; else return false;

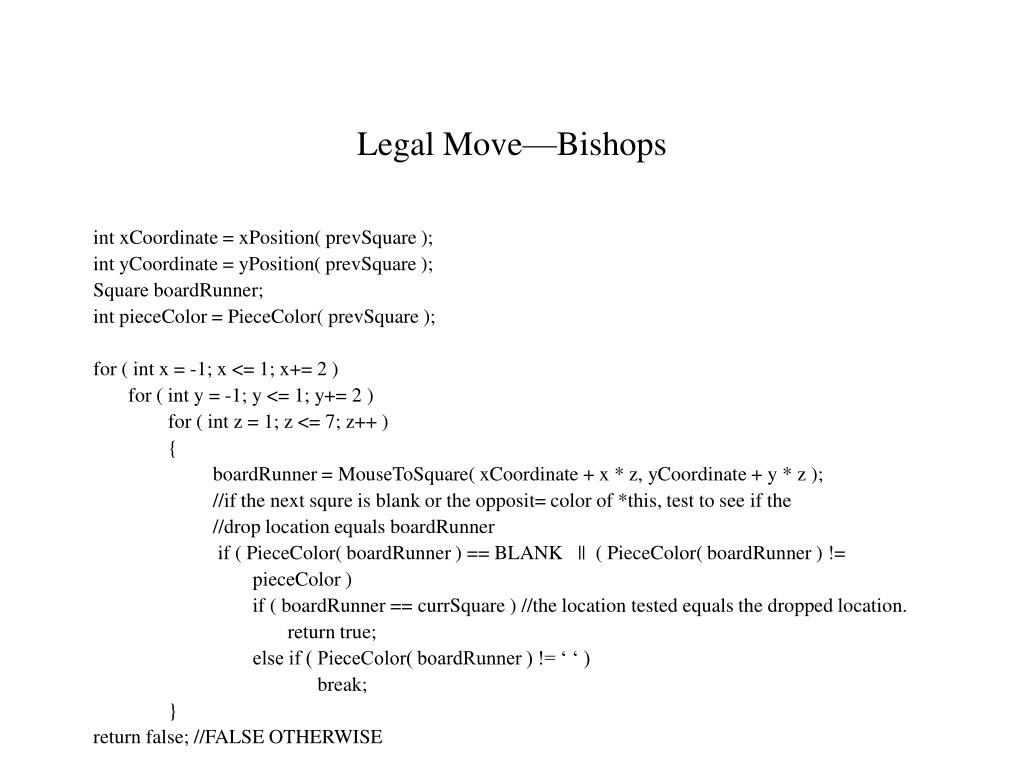

  10. Legal Move—Bishops int xCoordinate = xPosition( prevSquare ); int yCoordinate = yPosition( prevSquare ); Square boardRunner; int pieceColor = PieceColor( prevSquare ); for ( int x = -1; x <= 1; x+= 2 ) for ( int y = -1; y <= 1; y+= 2 ) for ( int z = 1; z <= 7; z++ ) { boardRunner = MouseToSquare( xCoordinate + x * z, yCoordinate + y * z ); //if the next squre is blank or the opposit= color of *this, test to see if the //drop location equals boardRunner if ( PieceColor( boardRunner ) == BLANK || ( PieceColor( boardRunner ) != pieceColor ) if ( boardRunner == currSquare ) //the location tested equals the dropped location. return true; else if ( PieceColor( boardRunner ) != ‘ ‘ ) break; } return false; //FALSE OTHERWISE

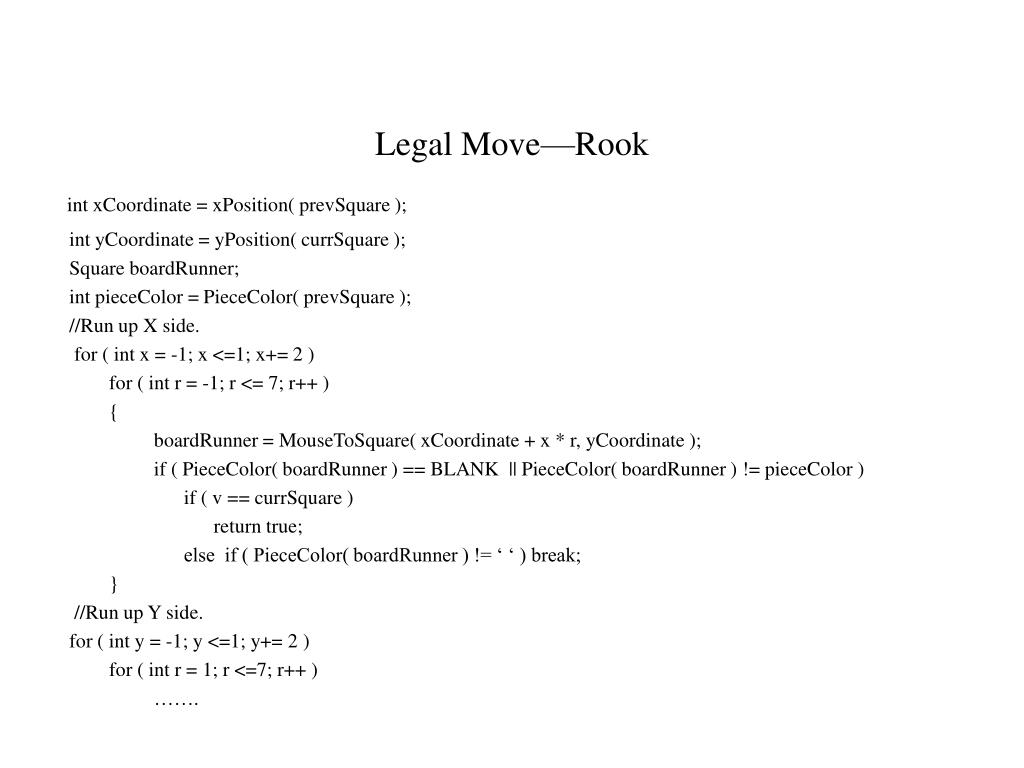

  11. Legal Move—Rook int xCoordinate = xPosition( prevSquare ); int yCoordinate = yPosition( currSquare ); Square boardRunner; int pieceColor = PieceColor( prevSquare ); //Run up X side. for ( int x = -1; x <=1; x+= 2 ) for ( int r = -1; r <= 7; r++ ) { boardRunner = MouseToSquare( xCoordinate + x * r, yCoordinate ); if ( PieceColor( boardRunner ) == BLANK || PieceColor( boardRunner ) != pieceColor ) if ( v == currSquare ) return true; else if ( PieceColor( boardRunner ) != ‘ ‘ ) break; } //Run up Y side. for ( int y = -1; y <=1; y+= 2 ) for ( int r = 1; r <=7; r++ ) …….

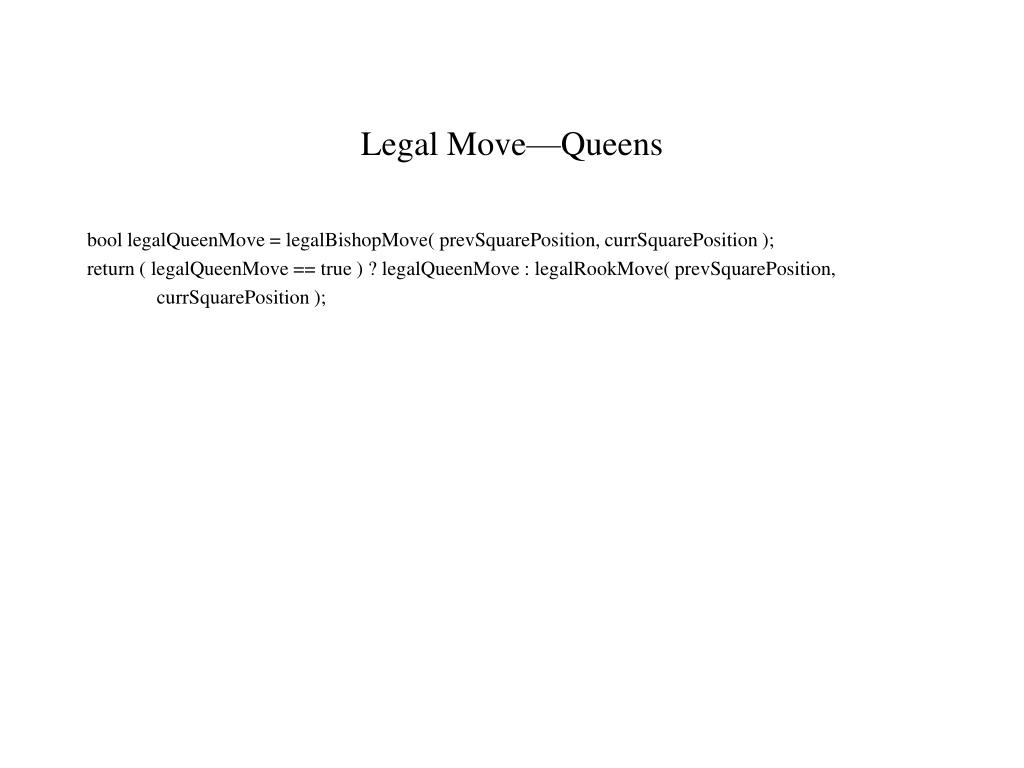

  12. Legal Move—Queens bool legalQueenMove = legalBishopMove( prevSquarePosition, currSquarePosition ); return ( legalQueenMove == true ) ? legalQueenMove : legalRookMove( prevSquarePosition, currSquarePosition );

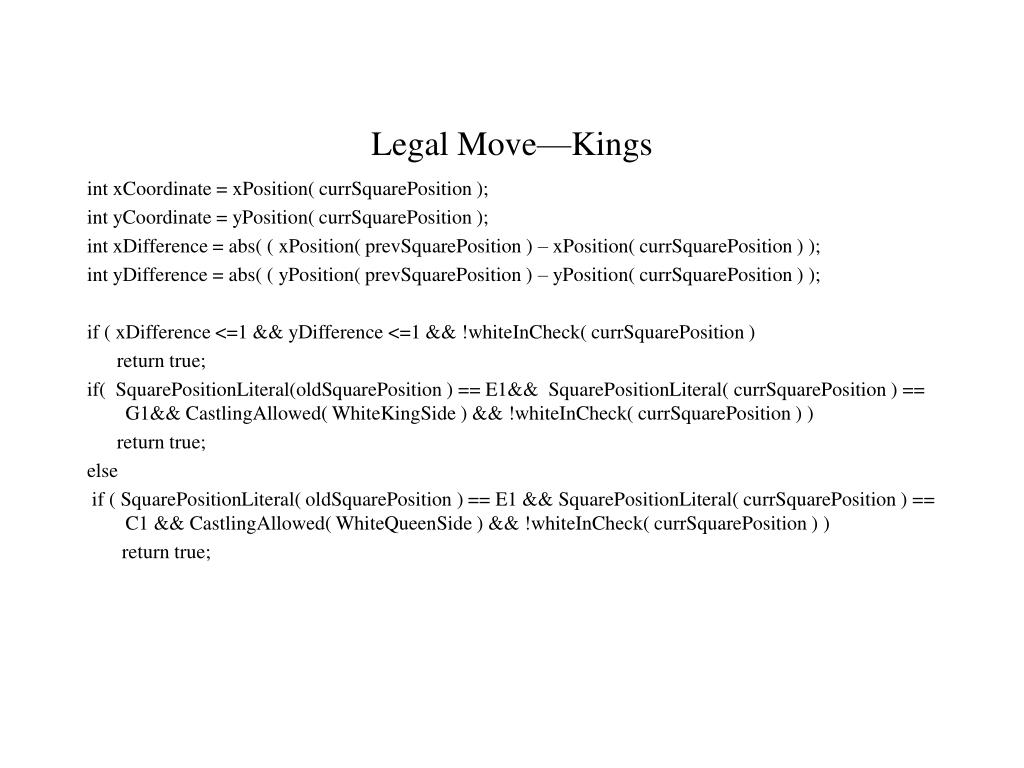

  13. Legal Move—Kings int xCoordinate = xPosition( currSquarePosition ); int yCoordinate = yPosition( currSquarePosition ); int xDifference = abs( ( xPosition( prevSquarePosition ) – xPosition( currSquarePosition ) ); int yDifference = abs( ( yPosition( prevSquarePosition ) – yPosition( currSquarePosition ) ); if ( xDifference <=1 && yDifference <=1 && !whiteInCheck( currSquarePosition ) return true; if( SquarePositionLiteral(oldSquarePosition ) == E1&& SquarePositionLiteral( currSquarePosition ) == G1&& CastlingAllowed( WhiteKingSide ) && !whiteInCheck( currSquarePosition ) ) return true; else if ( SquarePositionLiteral( oldSquarePosition ) == E1 && SquarePositionLiteral( currSquarePosition ) == C1 && CastlingAllowed( WhiteQueenSide ) && !whiteInCheck( currSquarePosition ) ) return true;
