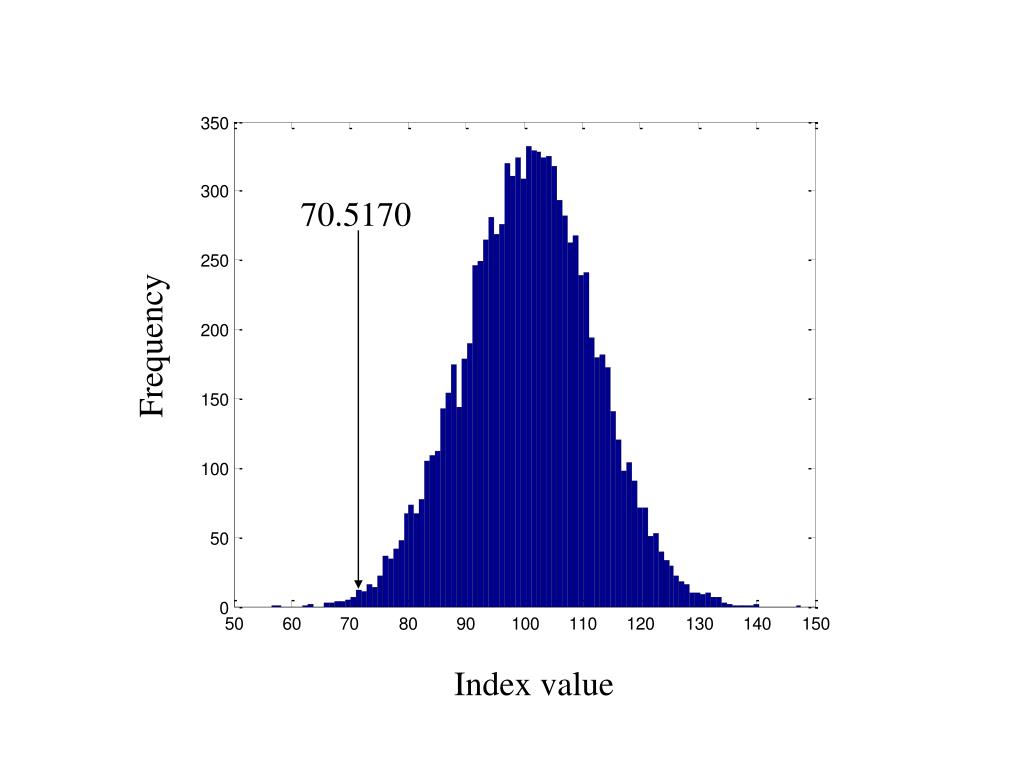

  1. 70.5170 Frequency Index value

  2. Soil and mineral nutrition • Soil is a complex product of the interaction between living organisms and their terrestrial environment • Soils are very heterogeneous • Soil texture describes the relative contribution of particle with different sizes that impart different characteristics and affect plant performance

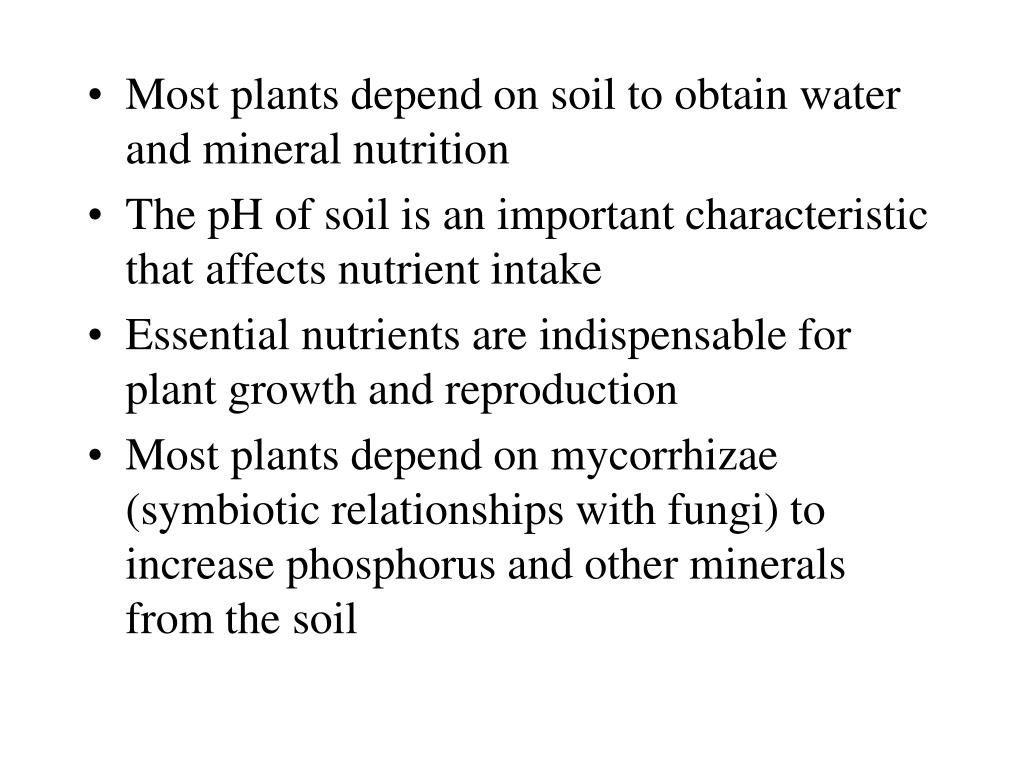

  3. Most plants depend on soil to obtain water and mineral nutrition • The pH of soil is an important characteristic that affects nutrient intake • Essential nutrients are indispensable for plant growth and reproduction • Most plants depend on mycorrhizae (symbiotic relationships with fungi) to increase phosphorus and other minerals from the soil

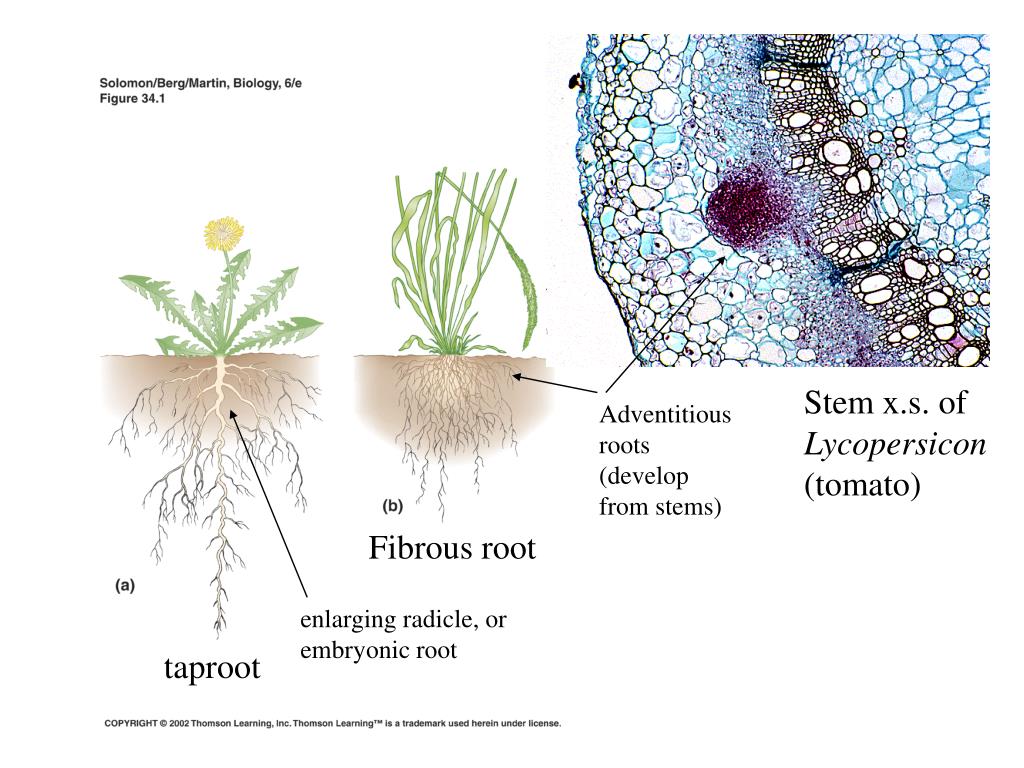

  4. Stem x.s. of Lycopersicon (tomato) Adventitious roots (develop from stems) Fibrous root enlarging radicle, or embryonic root taproot

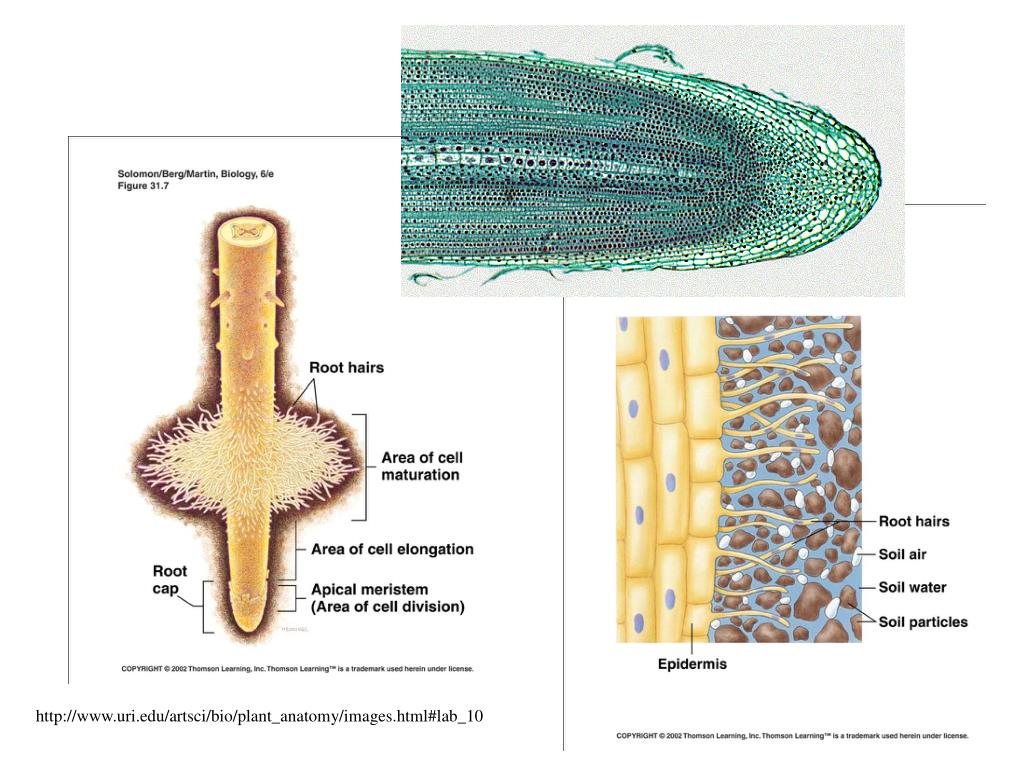

  5. http://www.uri.edu/artsci/bio/plant_anatomy/images.html#lab_10http://www.uri.edu/artsci/bio/plant_anatomy/images.html#lab_10

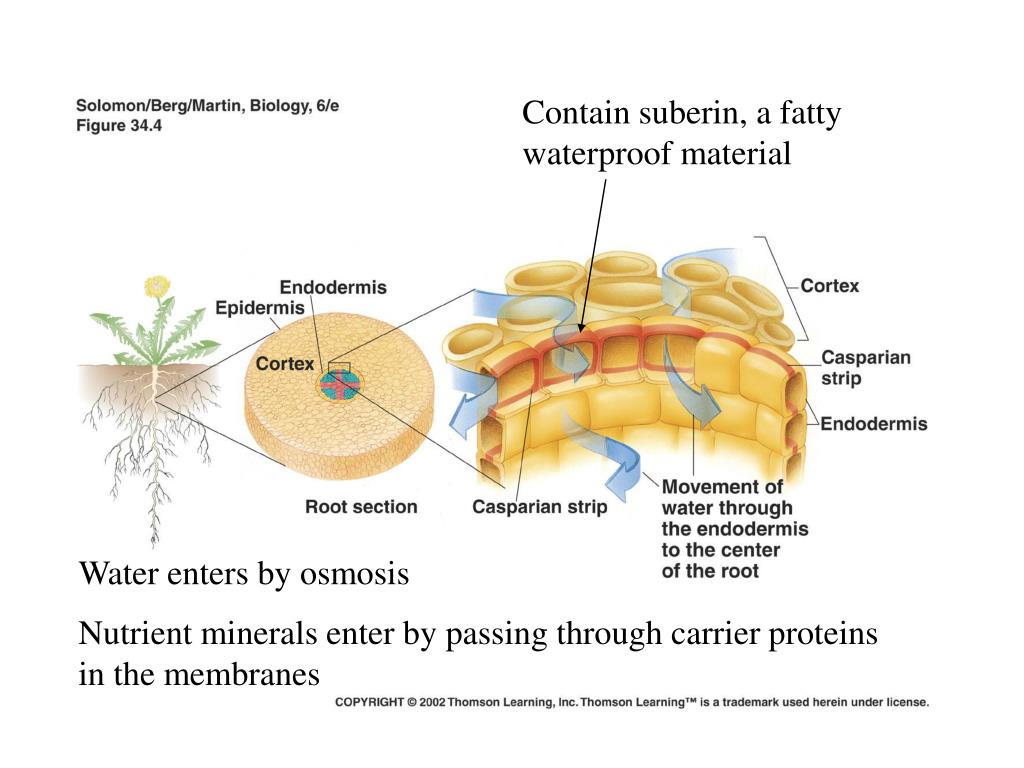

  6. Contain suberin, a fatty waterproof material Water enters by osmosis Nutrient minerals enter by passing through carrier proteins in the membranes

  7. Root x.s. of Zea mays (corn) Epidermis Cortex cell Endodermis Pericycle cell Pith cell Xylem vessel element Phloem cell http://www.uri.edu/artsci/bio/plant_anatomy/images.html#lab_10

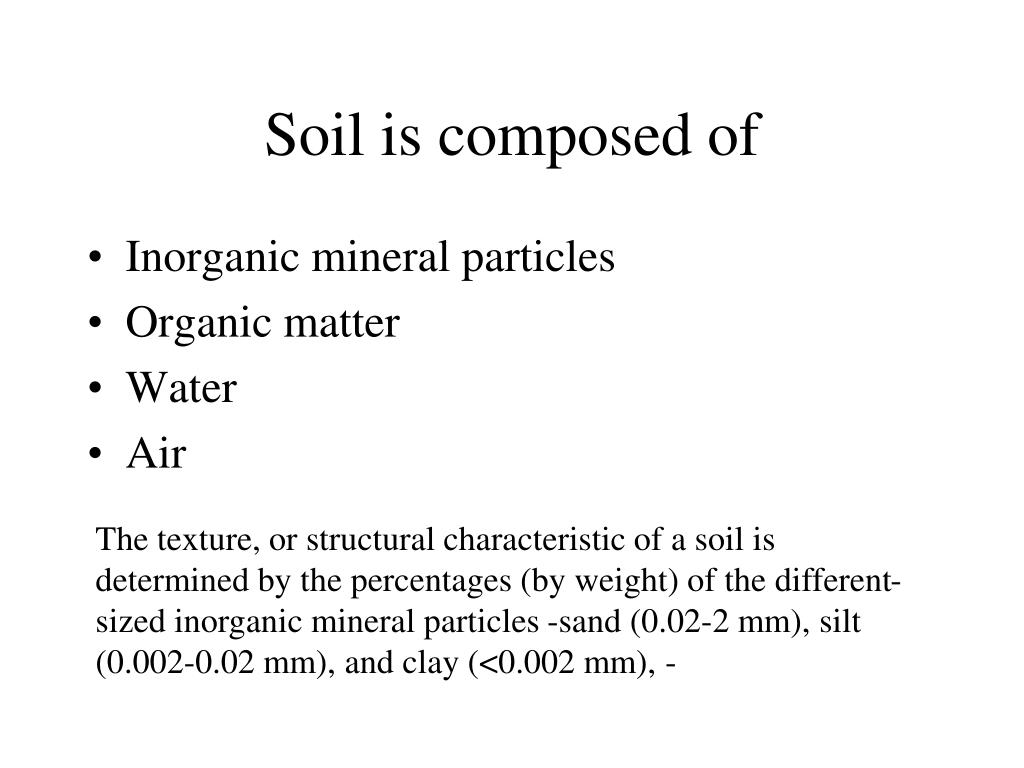

  8. Soil is composed of • Inorganic mineral particles • Organic matter • Water • Air The texture, or structural characteristic of a soil is determined by the percentages (by weight) of the different-sized inorganic mineral particles -sand (0.02-2 mm), silt (0.002-0.02 mm), and clay (<0.002 mm), -

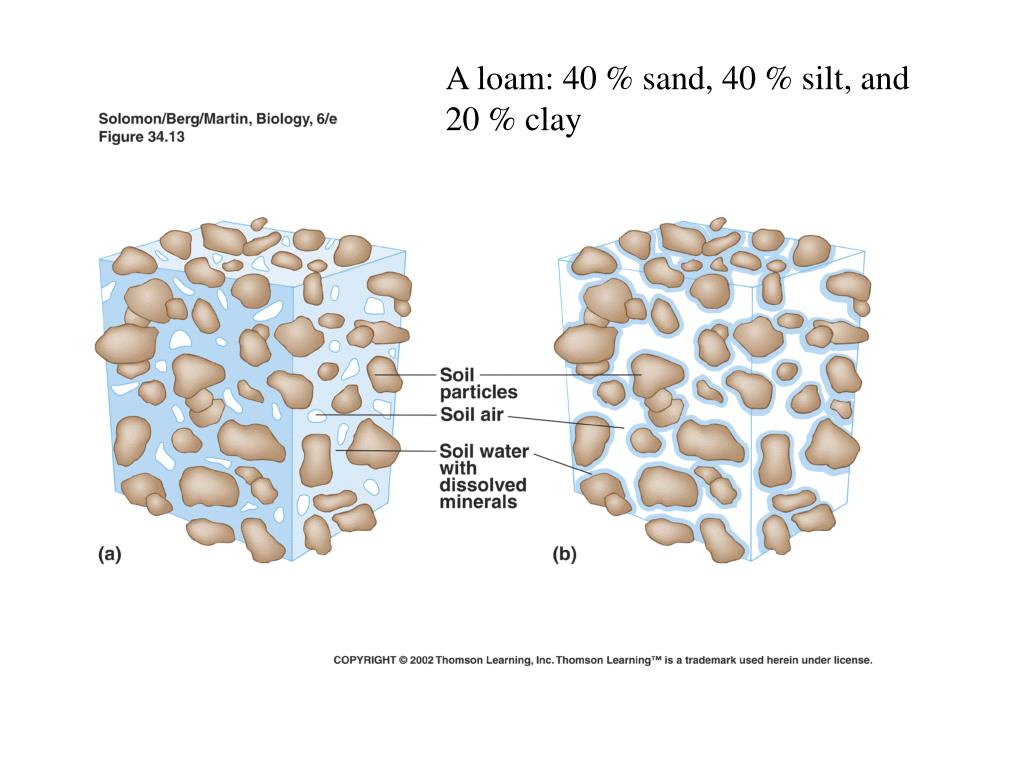

  9. A loam: 40 % sand, 40 % silt, and 20 % clay

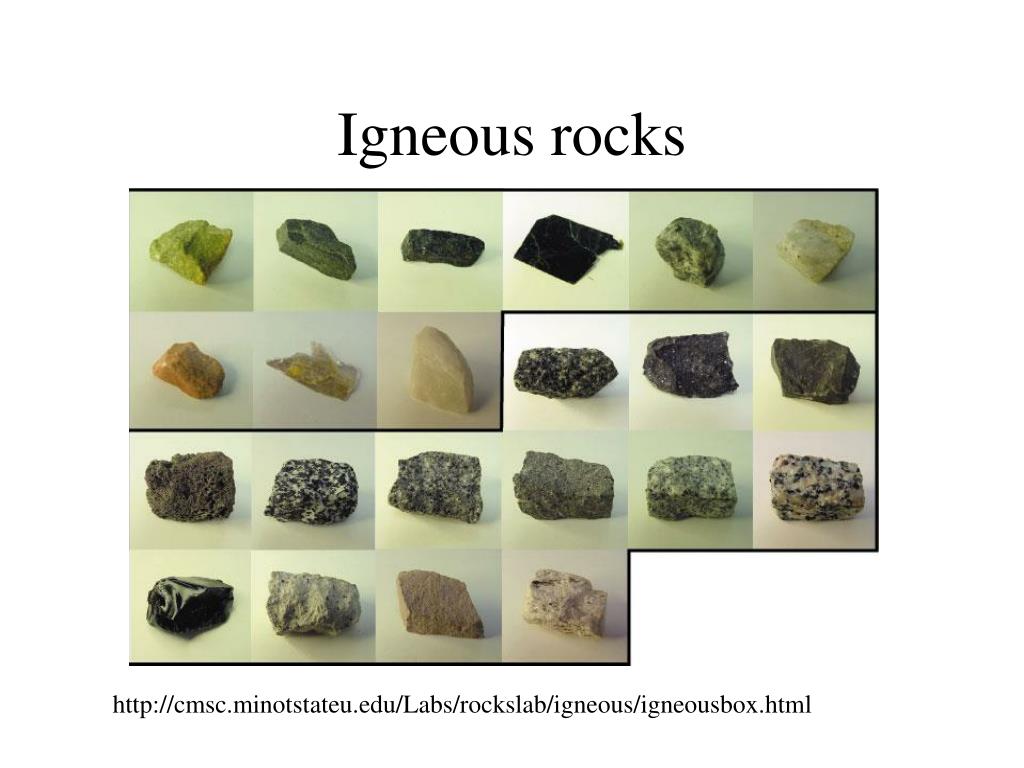

  10. Igneous rocks http://cmsc.minotstateu.edu/Labs/rockslab/igneous/igneousbox.html

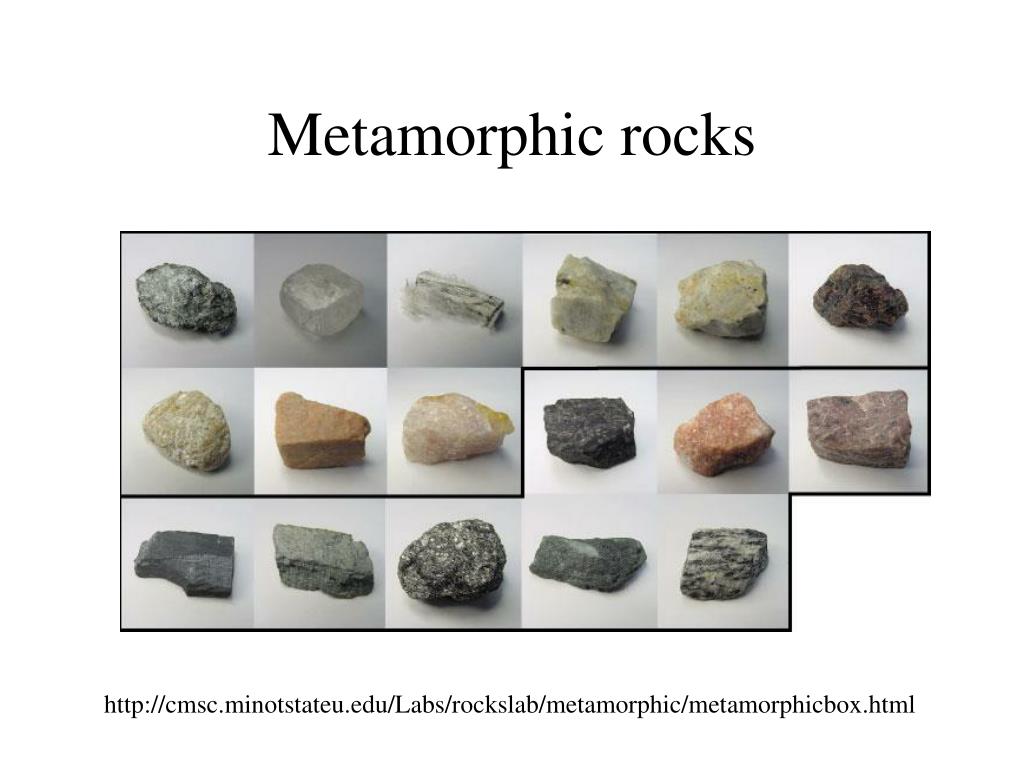

  11. Metamorphic rocks http://cmsc.minotstateu.edu/Labs/rockslab/metamorphic/metamorphicbox.html

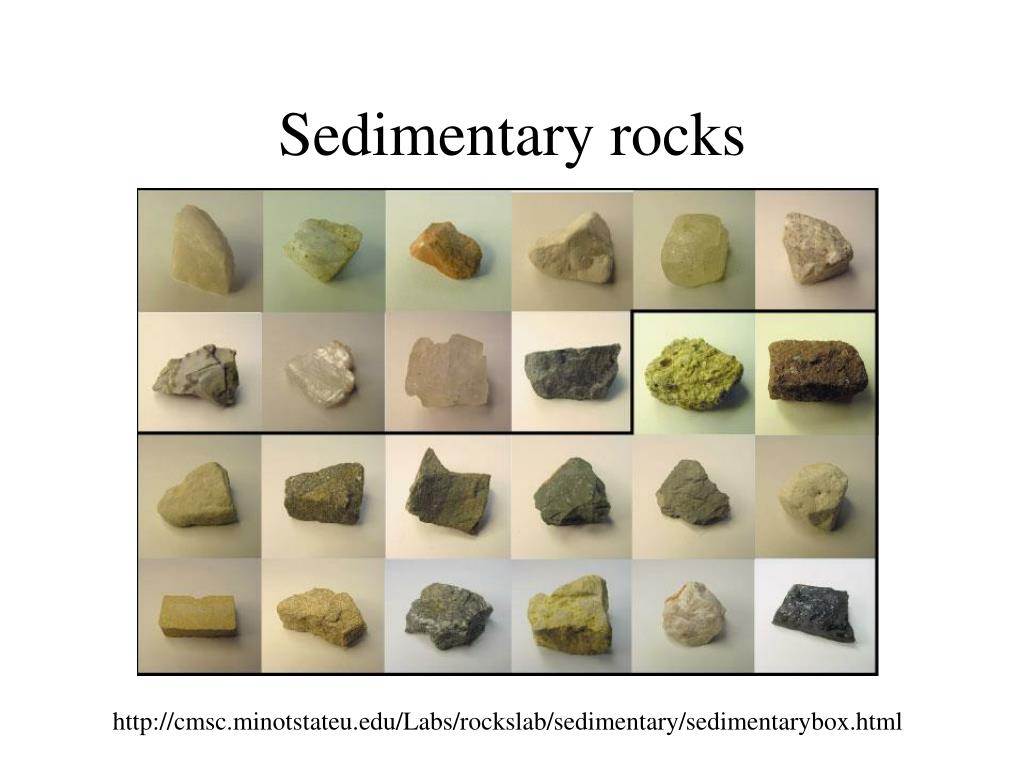

  12. Sedimentary rocks http://cmsc.minotstateu.edu/Labs/rockslab/sedimentary/sedimentarybox.html

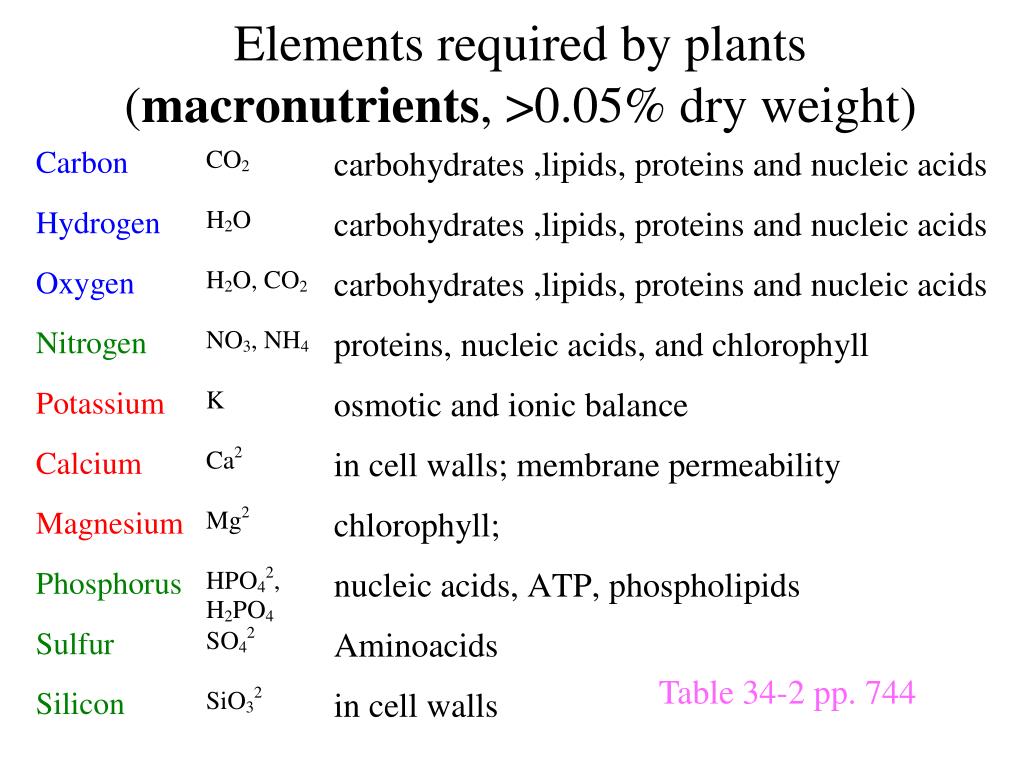

  13. Elements required by plants(macronutrients, >0.05% dry weight) Table 34-2 pp. 744

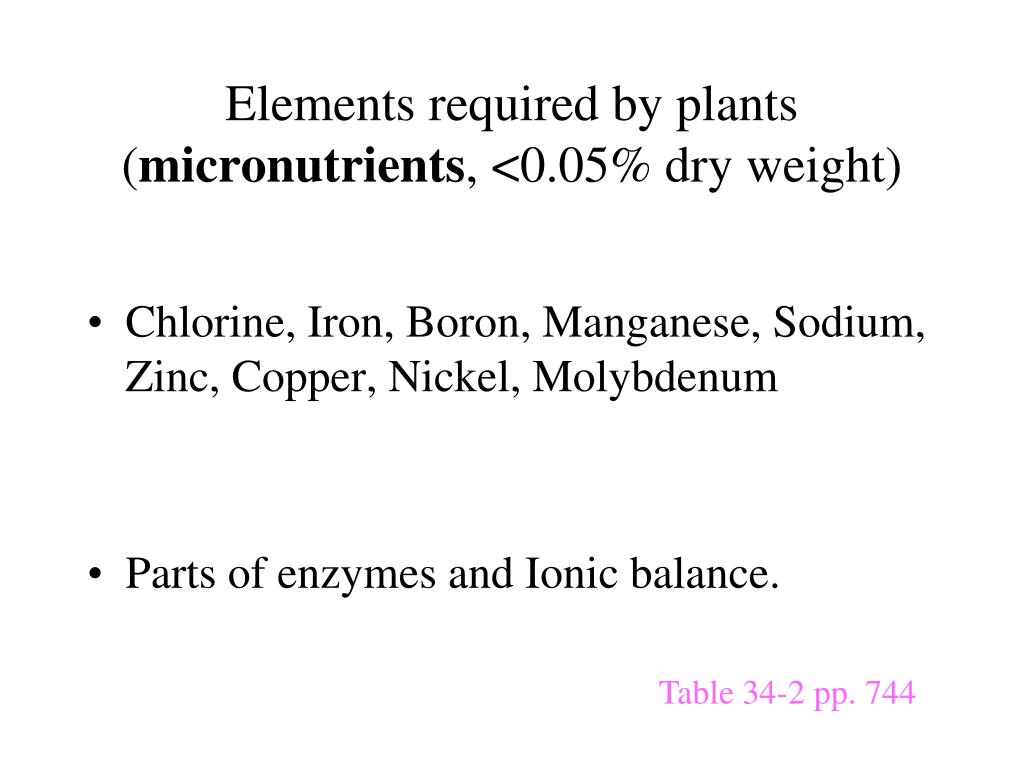

  14. Elements required by plants(micronutrients, <0.05% dry weight) • Chlorine, Iron, Boron, Manganese, Sodium, Zinc, Copper, Nickel, Molybdenum • Parts of enzymes and Ionic balance. Table 34-2 pp. 744

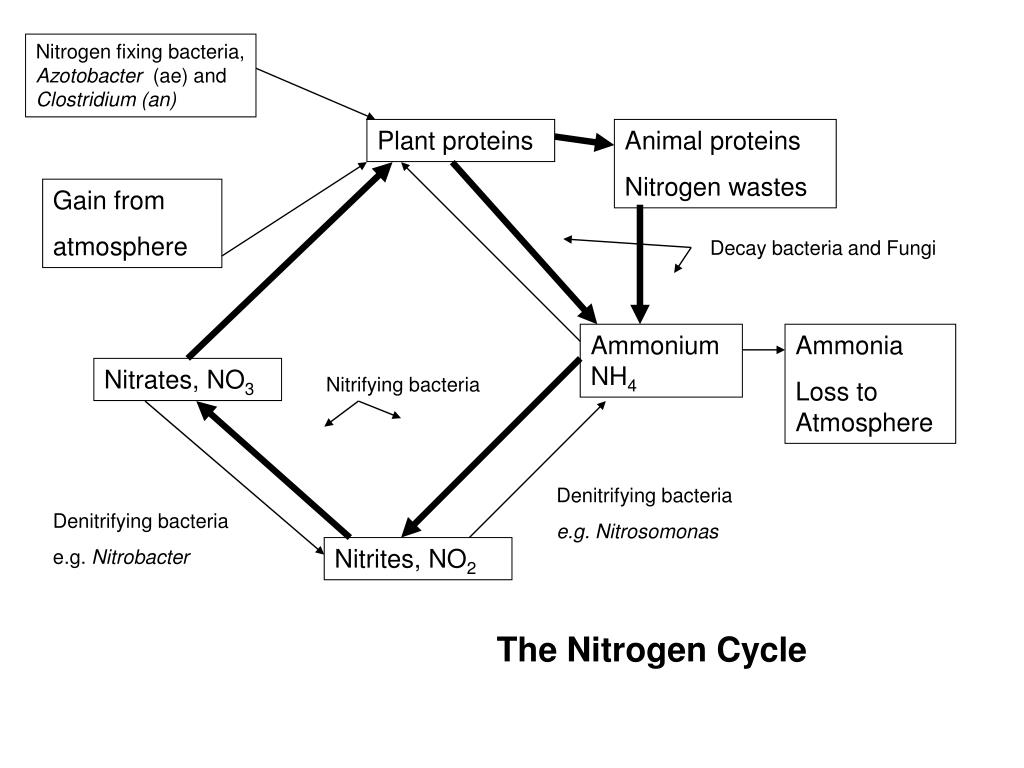

  15. Nitrogen fixing bacteria, Azotobacter (ae) and Clostridium (an) Plant proteins Animal proteins Nitrogen wastes Gain from atmosphere Decay bacteria and Fungi Ammonium NH4 Ammonia Loss to Atmosphere Nitrates, NO3 Nitrifying bacteria Denitrifying bacteria e.g. Nitrosomonas Denitrifying bacteria e.g. Nitrobacter Nitrites, NO2 The Nitrogen Cycle

  16. Endophytes:Legume/Rhizobium nodules http://www.botany.hawaii.edu/faculty/webb/BOT410/Roots/RootSymbioses.htm

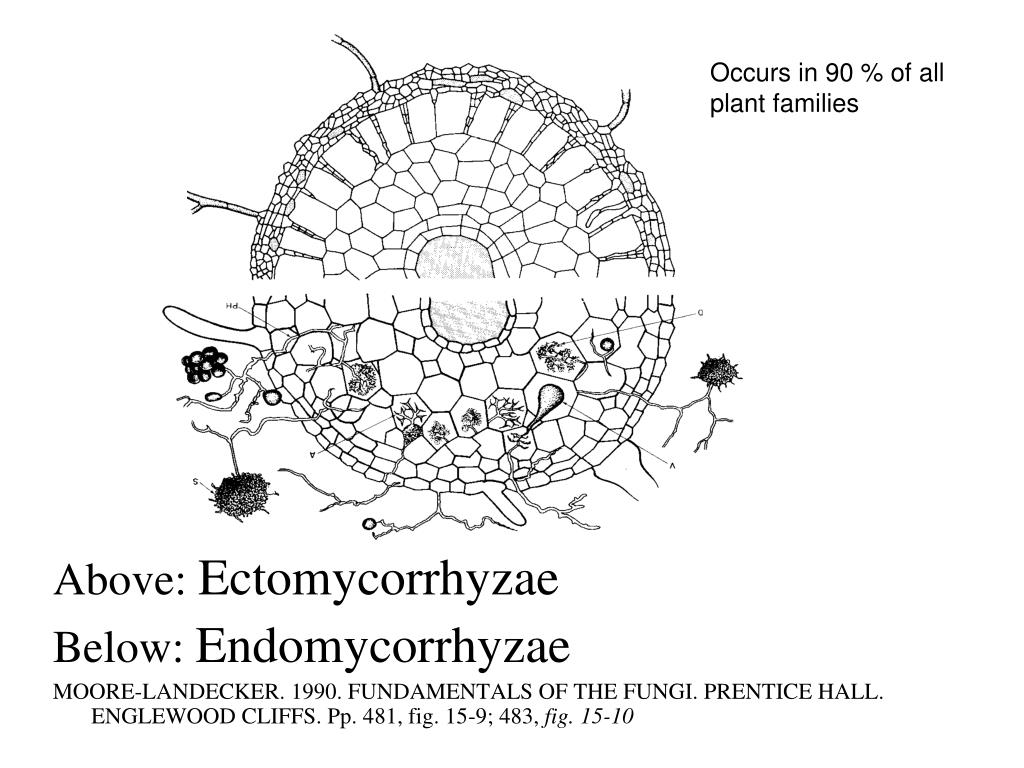

  17. Occurs in 90 % of all plant families Above: Ectomycorrhyzae Below: Endomycorrhyzae MOORE-LANDECKER. 1990. FUNDAMENTALS OF THE FUNGI. PRENTICE HALL. ENGLEWOOD CLIFFS. Pp. 481, fig. 15-9; 483, fig. 15-10

  18. Total mass (g) of mycorrhyzae present absent Andropogon gerardii 89 66 Sorghastrum nutans 121 62 Wilson and Hartnett. American Journal of Botany 84 No, 4, 1997

  19. Arbuscular Mycorrhizae

  20. epidermis Cross-section of Ranunculus root (buttercup) stele cortex immature Notice numerous amyloplasts which store starch Mature http://www.uri.edu/artsci/bio/plant_anatomy/images.html#lab_10

  21. Close up of Cross-section of Ranunculus root Intercellular spaces immature Cortex cells Endodermis cells Pericycle cells Phloem cells Xylem vessel element Mature http://www.uri.edu/artsci/bio/plant_anatomy/images.html#lab_10

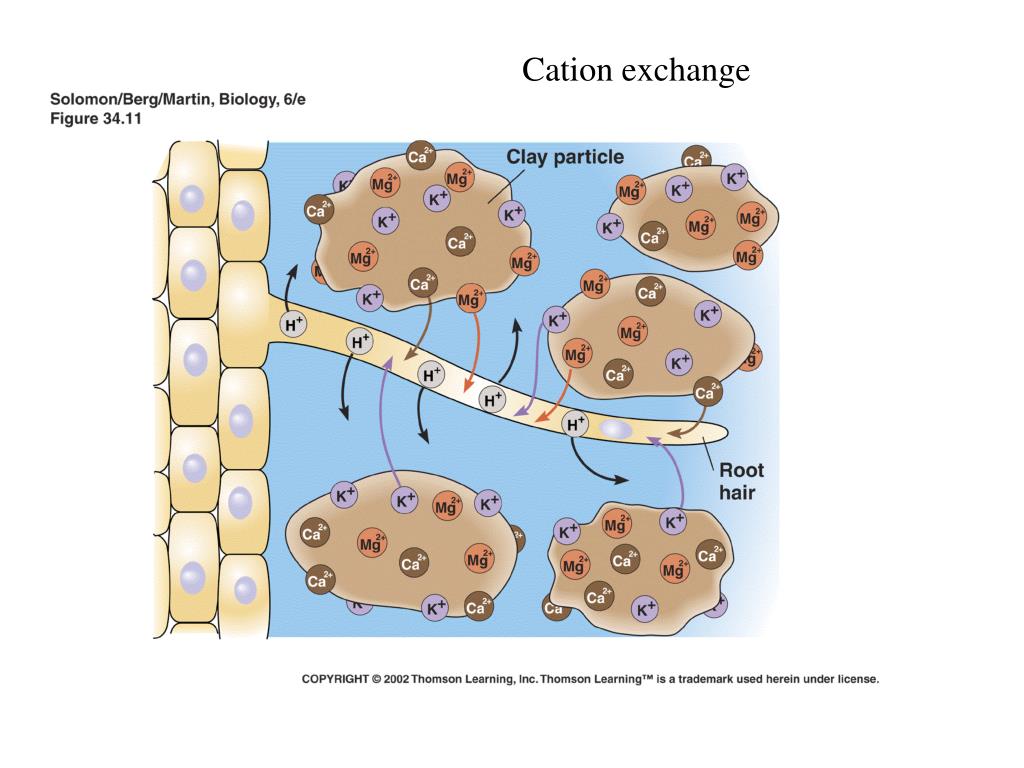

  22. Cation exchange

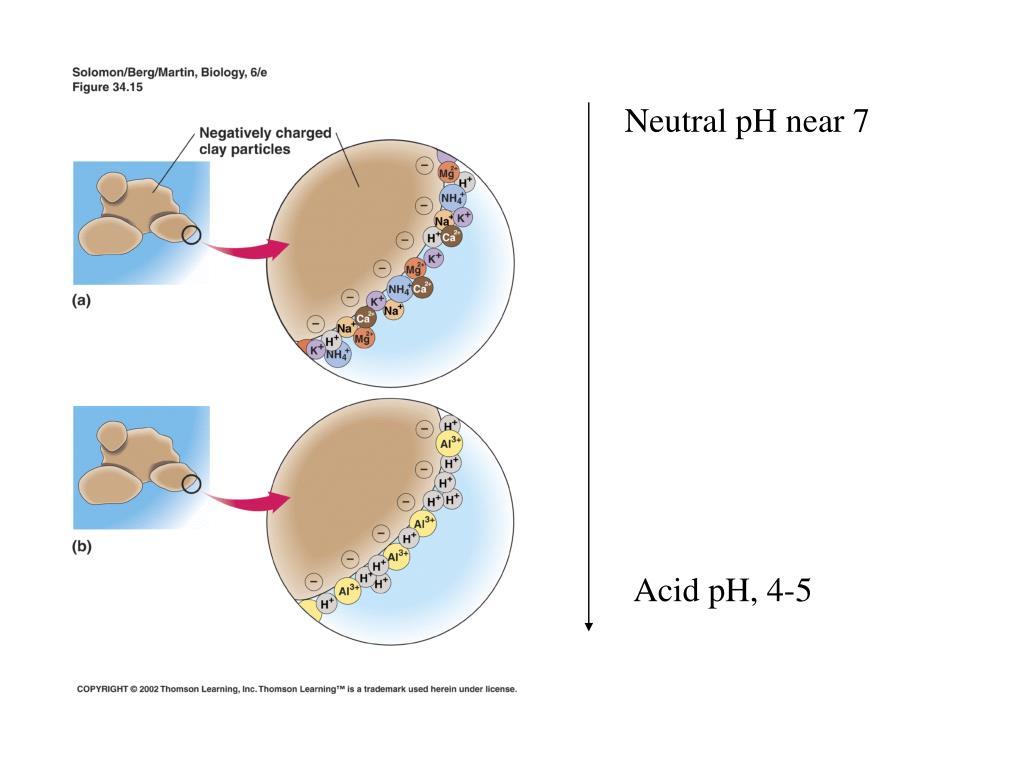

  23. Neutral pH near 7 Acid pH, 4-5
