  1. SCOPE OF DATA • STREAM FLOW AND SOLUTE FLUXES • Stream discharge gauging • Stream water chemistry • PRECIPITATION AND DEPOSITION • NRCS Snow Survey and Snow Pillow Data • National Atmospheric and Deposition Program

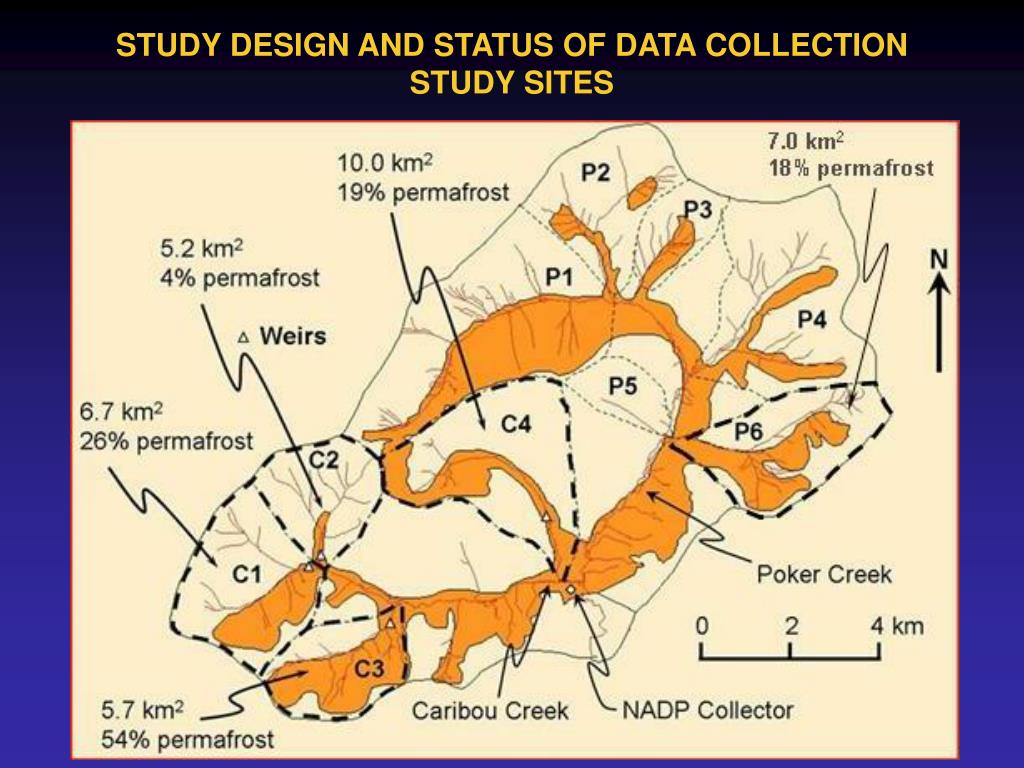

  2. STUDY DESIGN AND STATUS OF DATA COLLECTION STUDY SITES

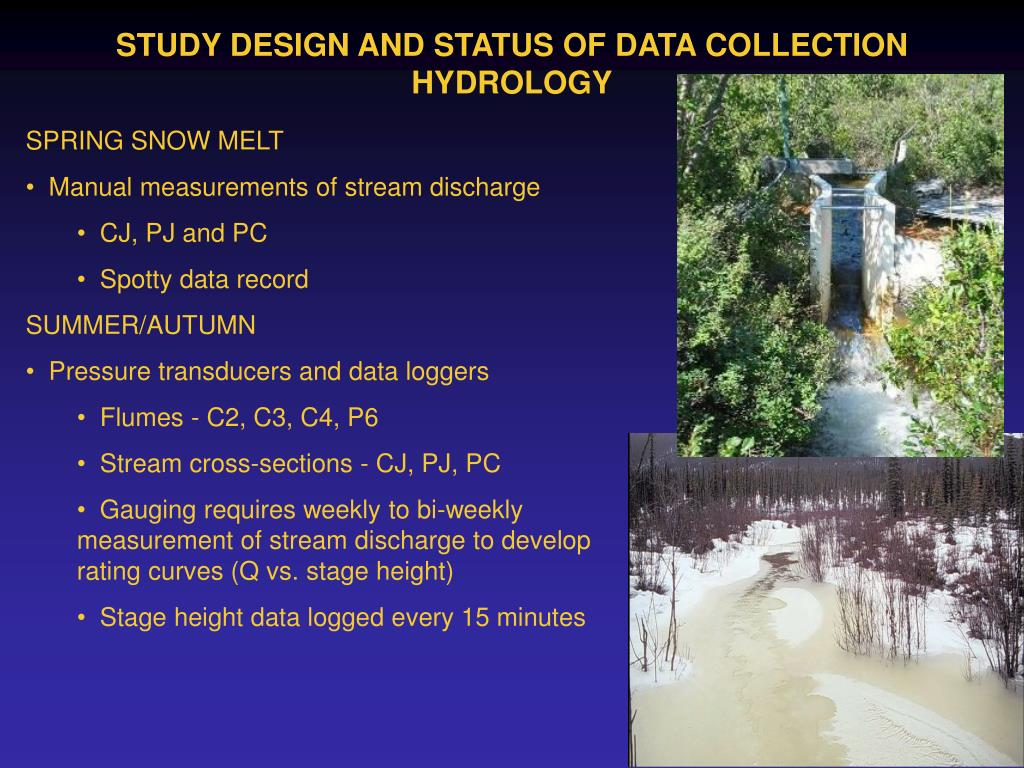

  3. STUDY DESIGN AND STATUS OF DATA COLLECTION HYDROLOGY • SPRING SNOW MELT • Manual measurements of stream discharge • CJ, PJ and PC • Spotty data record • SUMMER/AUTUMN • Pressure transducers and data loggers • Flumes - C2, C3, C4, P6 • Stream cross-sections - CJ, PJ, PC • Gauging requires weekly to bi-weekly measurement of stream discharge to develop rating curves (Q vs. stage height) • Stage height data logged every 15 minutes

  4. DATA AVAILABILITY HYDROLOGY • Data availability through BNZ data catalog: • C2 & C3: 1969 – 2007 (2008 40th year of collection) • ~Weekly 1969 – 1977 • 15 minute to hourly 1978 – present • C4: 1980 to 2007 • CJ, PJ and PC: 2005, 2006 & 2007 • Network wide databases: • C2, C3 and C4 available through • HYDRO-DB

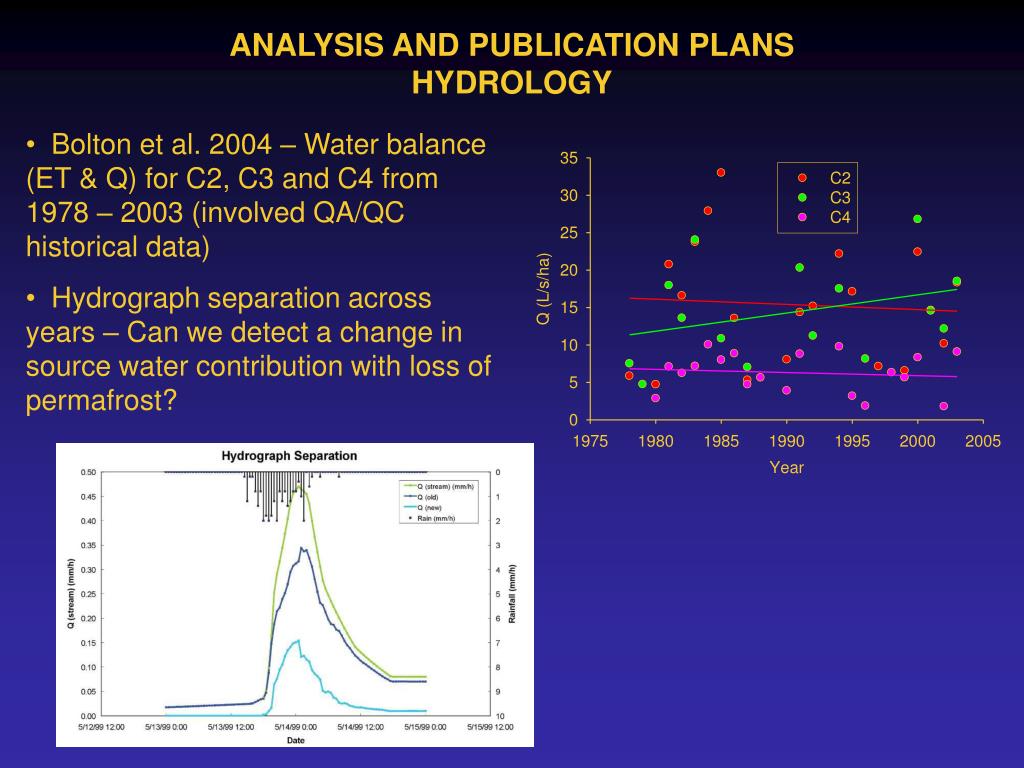

  5. ANALYSIS AND PUBLICATION PLANS HYDROLOGY • Bolton et al. 2004 – Water balance (ET & Q) for C2, C3 and C4 from 1978 – 2003 (involved QA/QC historical data) • Hydrograph separation across years – Can we detect a change in source water contribution with loss of permafrost?

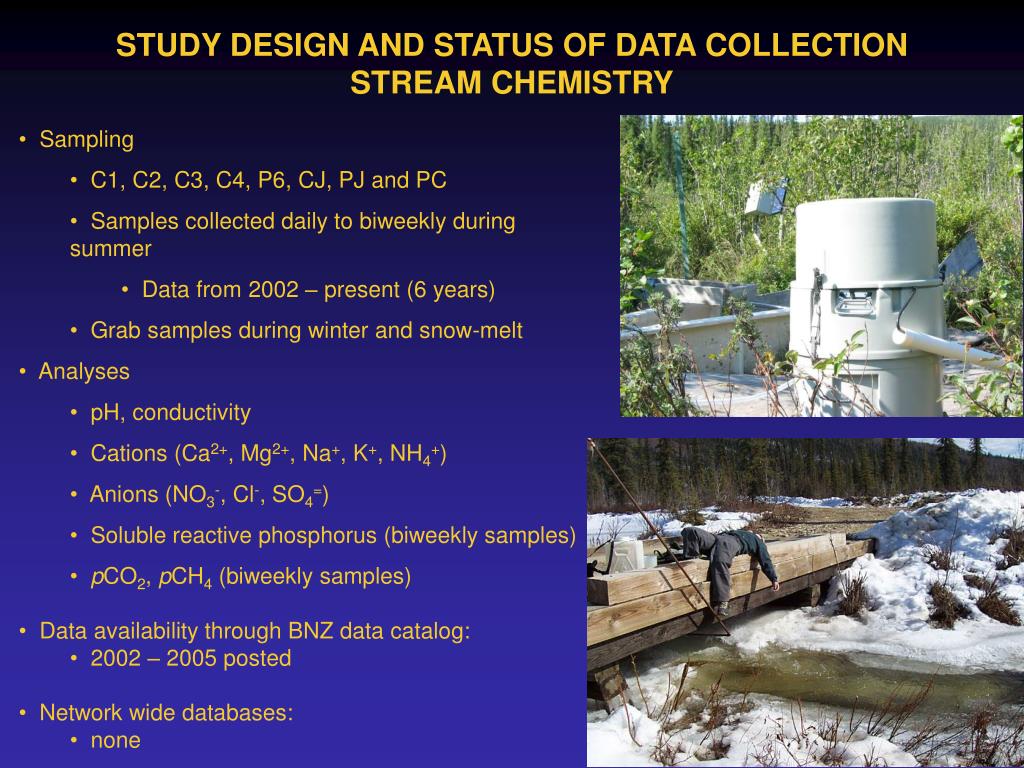

  6. STUDY DESIGN AND STATUS OF DATA COLLECTION STREAM CHEMISTRY • Sampling • C1, C2, C3, C4, P6, CJ, PJ and PC • Samples collected daily to biweekly during summer • Data from 2002 – present (6 years) • Grab samples during winter and snow-melt • Analyses • pH, conductivity • Cations (Ca2+, Mg2+, Na+, K+, NH4+) • Anions (NO3-, Cl-, SO4=) • Soluble reactive phosphorus (biweekly samples) • pCO2, pCH4 (biweekly samples) • Data availability through BNZ data catalog: • 2002 – 2005 posted • Network wide databases: • none

  7. ANALYSIS AND PUBLICATION PLANS STREAM CHEMISTRY • Fire effects on water chemistry (in preparation - Betts M.S. thesis ; planned submission spring 2008) • Watershed flowpaths and inorganic carbon exports (in preparation; planned submission spring 2008) • Watershed hydrology and nitrogen export (potential contribution to a BNZ special issue) Boundary Fire

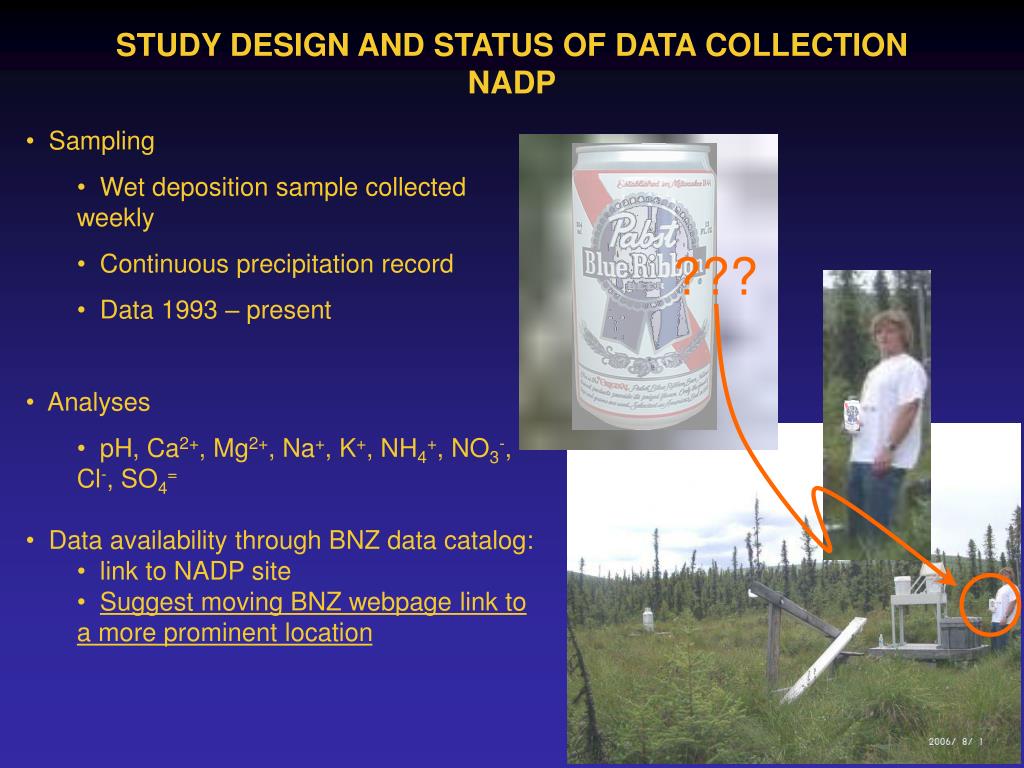

  8. ??? STUDY DESIGN AND STATUS OF DATA COLLECTION NADP • Sampling • Wet deposition sample collected weekly • Continuous precipitation record • Data 1993 – present • Analyses • pH, Ca2+, Mg2+, Na+, K+, NH4+, NO3-, Cl-, SO4= • Data availability through BNZ data catalog: • link to NADP site • Suggest moving BNZ webpage link to a more prominent location

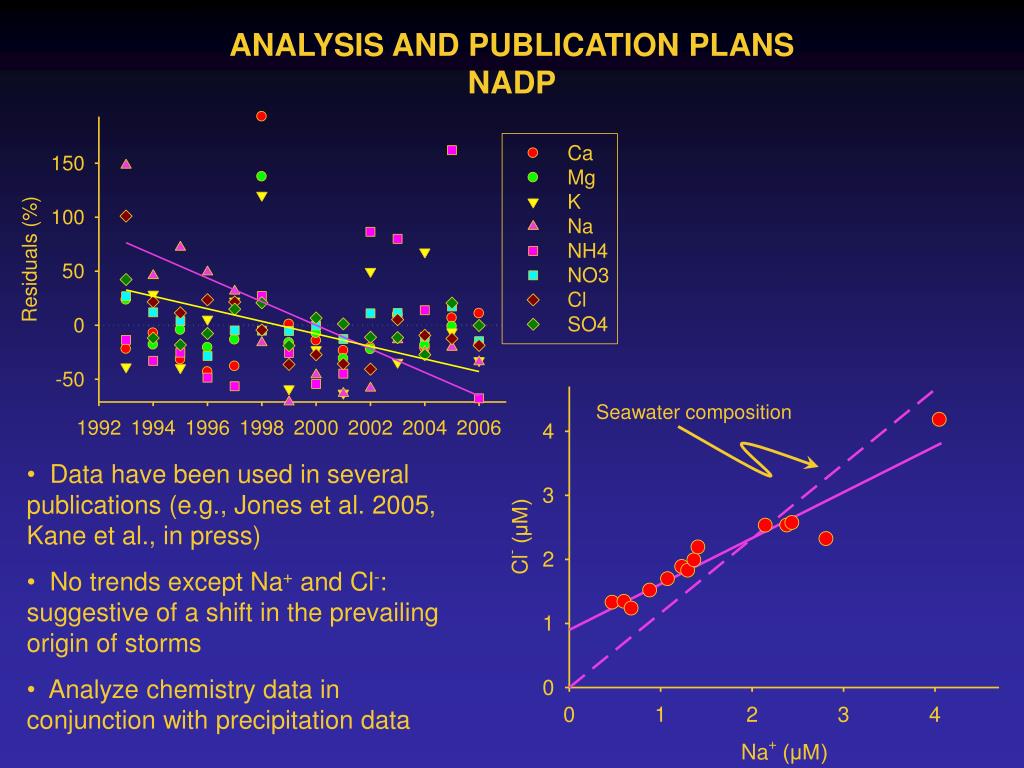

  9. ANALYSIS AND PUBLICATION PLANS NADP Seawater composition • Data have been used in several publications (e.g., Jones et al. 2005, Kane et al., in press) • No trends except Na+ and Cl-: suggestive of a shift in the prevailing origin of storms • Analyze chemistry data in conjunction with precipitation data

  10. STUDY DESIGN AND STATUS OF DATA COLLECTION NRCS SNOW SURVEY DATA • SNOW PILLOW • Continuous measurements of snow water equivalents • CPCRW: 1971 – present • BNZ: 1990 – present • SNOW SURVEYS • Conducted monthly • SNOW GAUGES • Currently most snow gauge data are not being fed into database • STATUS OF DATA AVAILABILITY • Available through NRCS website • Data should also be available through BNZ data catalog • Analyze snow gauge data and decide fate of collectors

  11. HYDROLOGY CORE DATASETS – SUMMARY • STREAM FLOW AND SOLUTE FLUXES • Potential publication contribution: Watershed hydrology and nitrogen export • PRECIPITATION AND DEPOSITION • Analyses: working group consider analyses that best integrate the various datasets (e.g., Na+ and Cl- NADP data with precipitation patterns/trends) • Post snow survey and snow pillow data on BNZ website • Create a more prominent link to NADP data • GENERAL COMMENTS • Reorganize data catalog and move long-term, core datasets to one page • With the long-term datasets, establish a relational database to provide easier integration of data to facilitate synthesis efforts (could be an internal database initially)
